TOYOTA PRIUS 2015 4.G Owners Manual

5
When trouble arises
531
5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem,
check that the warning message and light turn off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once 
(Comes on for 15 seconds.)
(Flashes) The electronic
key is not
detected when
attempting to
start the hybrid
system.
Confirm
the loca-
tion of the
electronic
key.
Once 3 times (Flashes)An open door
other than the
driver’s door is
closed while the
electronic key is
outside the
detection range
and the
“POWER”
switch is in
ACCESSORY
or ON mode.
Confirm
the loca-
tion of the
electronic
key.

532 5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once 3 times (Flashes)The driver’s
door is opened
and closed
while the elec-
tronic key is out-
side the
detection range
and the
“POWER”
switch is in
ACCESSORY
or ON mode
with the shift
position in P. Turn the
“POWER”
switch to
OFF or
confirm
the loca-
tion of the
electronic
key.
Contin-
uous 
(Flashes)The driver’s
door has been
opened with the
shift position in
a position other
than P and with-
out first turning
the “POWER”
switch is OFF.
Shift the
shift posi-
tion to P.

5
When trouble arises
533
5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
Interior
buzzerExterior buzzerWarning messageDetailsCorrection procedure
Once Contin-
uous
(Displayed alternately)(Flashes) The electronic
key has been
taken outside
the vehicle and
the doors have
been locked
without first
turning the
“POWER”
switch to OFF.
(vehicles with
entry function)
Turn the
“POWER”
switch to
OFF and
lock the
doors
again.

534 5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once Contin-
uous
(Flashes)An attempt to
lock the doors
has been made
using the smart
key system
while the elec-
tronic key is
inside the vehi-
cle. (vehicles
with entry func-
tion)
Take the
electronic
key out-
side the
vehicle,
and lock
the doors
again.
With the key
inside the vehi-
cle, a front door
has been
opened, the
lock lever has
been pulled in
the lock direc-
tion, the door
has been
closed and an
attempt has
been made to
lock the door.

5
When trouble arises
535
5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
Interior
buzzerExterior buzzerWarning messageDetailsCorrection procedure
Contin-
uous Contin-
uous
(Displayed alternately)(Flashes) The driver’s
door is opened
and closed
while the elec-
tronic key is out-
side the
detection range
and the
“POWER”
switch is in
ACCESSORY
or ON mode
with the shift
position not in P.
• Shift the
shift posi-
tion to P.
• Confirm the loca-
tion of the
electronic
key.
Once 
(Comes on for 15 seconds.)
The electronic
key battery is
low. Replace
the bat-
tery.
(
P. 464)
Once 
(Flashes)An open door
has been
closed and the
“POWER”
switch has been
turned twice to
the ACCES-
SORY mode
from OFF. Press the
“POWER”
switch
while
applying
the
brakes.

536 5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once 
(Flashes)The elec-
tronic key
does not
operate
properly.
P. 553
 Power
was
turned off
due to
the auto-
matic
power off
function.Next time when
starting the
hybrid system,
operate the
hybrid system
for approxi-
mately 5 minutes
to recharge the
12-volt battery.
NOTICE
■
While the engine oil level warning is displayed
Continued engine operation with low engine oil will damage the engine.
■ Engine oil maintenance message
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.

5
When trouble arises
537
5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)

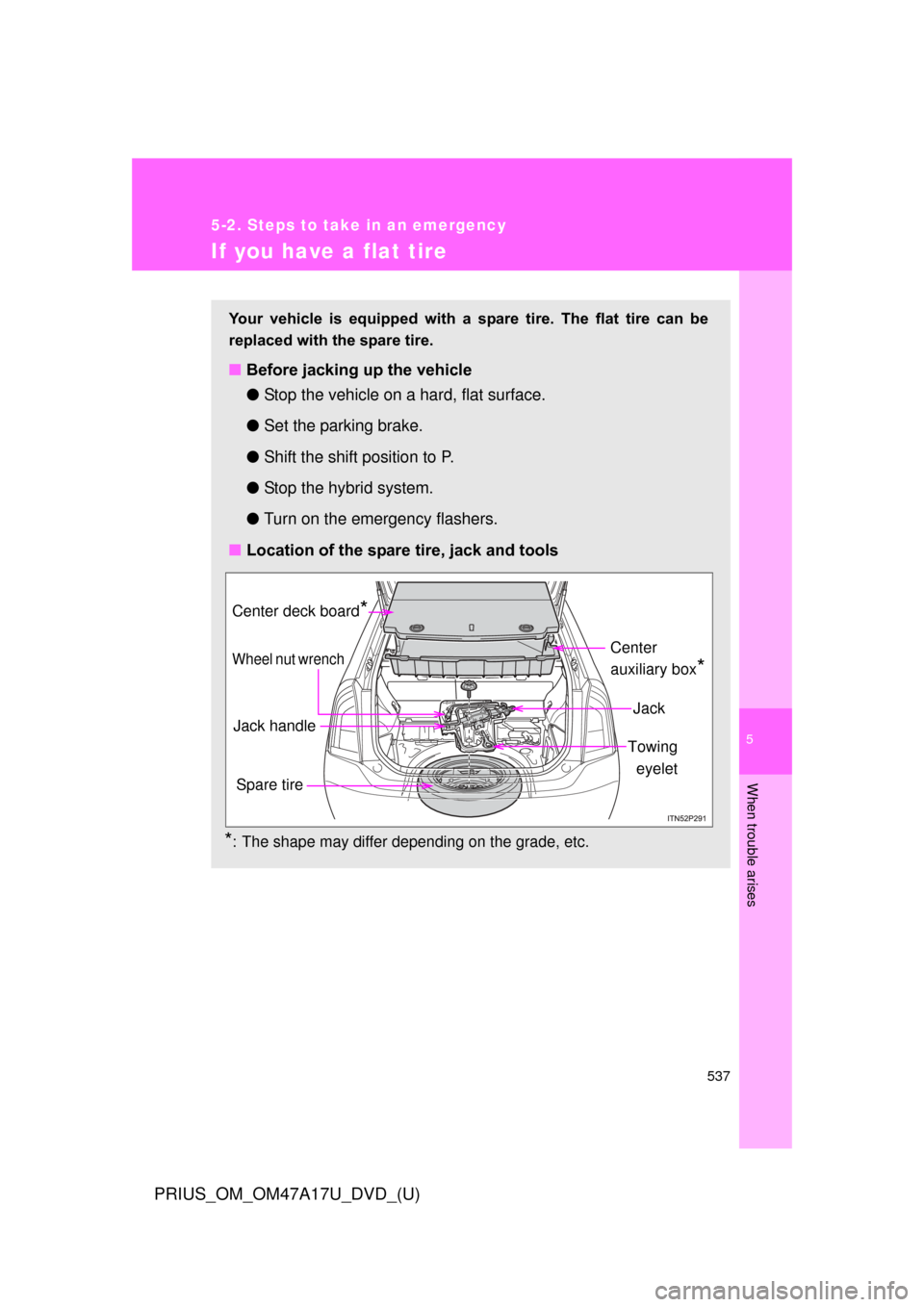

If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
*: The shape may differ depending on the grade, etc.
Center deck board*
Wheel nut wrench
Jack handle
Spare tire Towing
eyelet
Jack
Center
auxiliary box
*

538 5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
Taking out the jackRemove the center deck board and center auxiliary box.
Ty p e A Pull the strap up to open the cen-
ter deck board, lift up the center
auxiliary box, and unload it from
the vehicle.
Ty p e B Turn the knob to the UNLOCK
position to unfasten the lock,
and remove the center deck
board.
Fold the center deck board
toward the front of the vehicle,
and unload it from the vehicle.
Remove the center auxiliary
box.
STEP 1

5
When trouble arises
539
5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
Remove the jack handle.
Unhook the tightening strap.
After storing the jack, make
sure it is securely held by the
tightening strap.
Taking out the spare tire
Loosen the center fastener that
secures the spare tire.
STEP 2
CAUTION
■Service plug
Be careful not to hit the service plug when loading or unloading the tool
holder or the spare tire. (P. 3 8 )

540 5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
Replacing a flat tireChock the tires.
Vehicles with wheel ornament,
remove the wheel ornament
using the wrench.
To prevent damage, cover the
tip of the wrench with a rag.
STEP 1
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP 2
