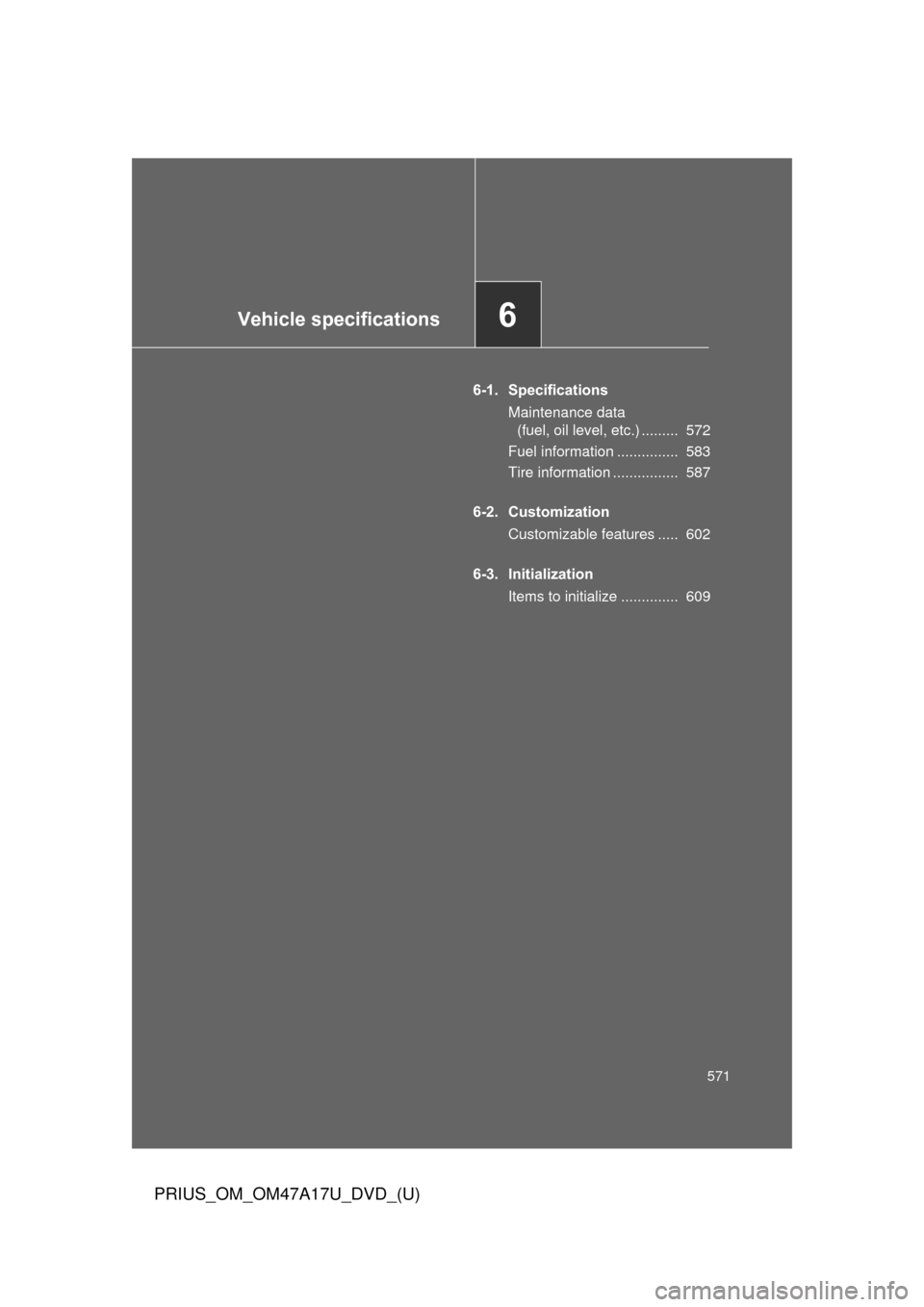

6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 572
Fuel information ............... 583
Tire information ................ 587
6-2. Customization Customizable features ..... 602
6-3. Initialization Items to initialize .............. 609

572
PRIUS_OM_OM47A17U_DVD_(U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)

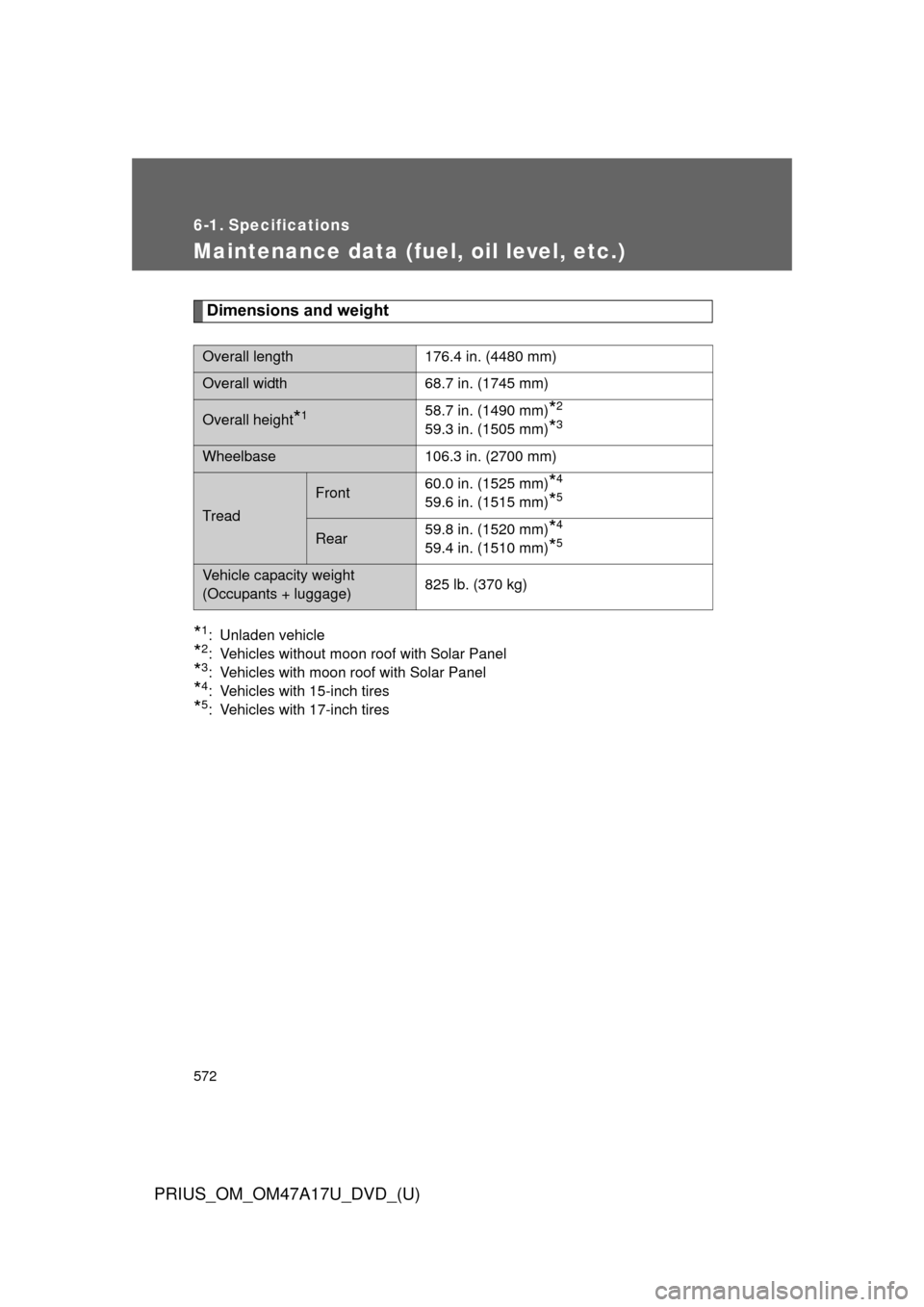

Dimensions and weight
*1: Unladen vehicle
*2: Vehicles without moon roof with Solar Panel
*3: Vehicles with moon roof with Solar Panel
*4: Vehicles with 15-inch tires
*5: Vehicles with 17-inch tires
Overall length176.4 in. (4480 mm)
Overall width68.7 in. (1745 mm)
Overall height*158.7 in. (1490 mm)*2
59.3 in. (1505 mm)*3
Wheelbase106.3 in. (2700 mm)
Tread
Front60.0 in. (1525 mm)*4
59.6 in. (1515 mm)*5
Rear59.8 in. (1520 mm)*4
59.4 in. (1510 mm)*5
Vehicle capacity weight
(Occupants + luggage) 825 lb. (370 kg)

573
6-1. Specifications
6
Vehicle specifications
PRIUS_OM_OM47A17U_DVD_(U)
Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
This number is also stamped
under the right-hand front seat.
ITO61P101

574 6-1. Specifications
PRIUS_OM_OM47A17U_DVD_(U)

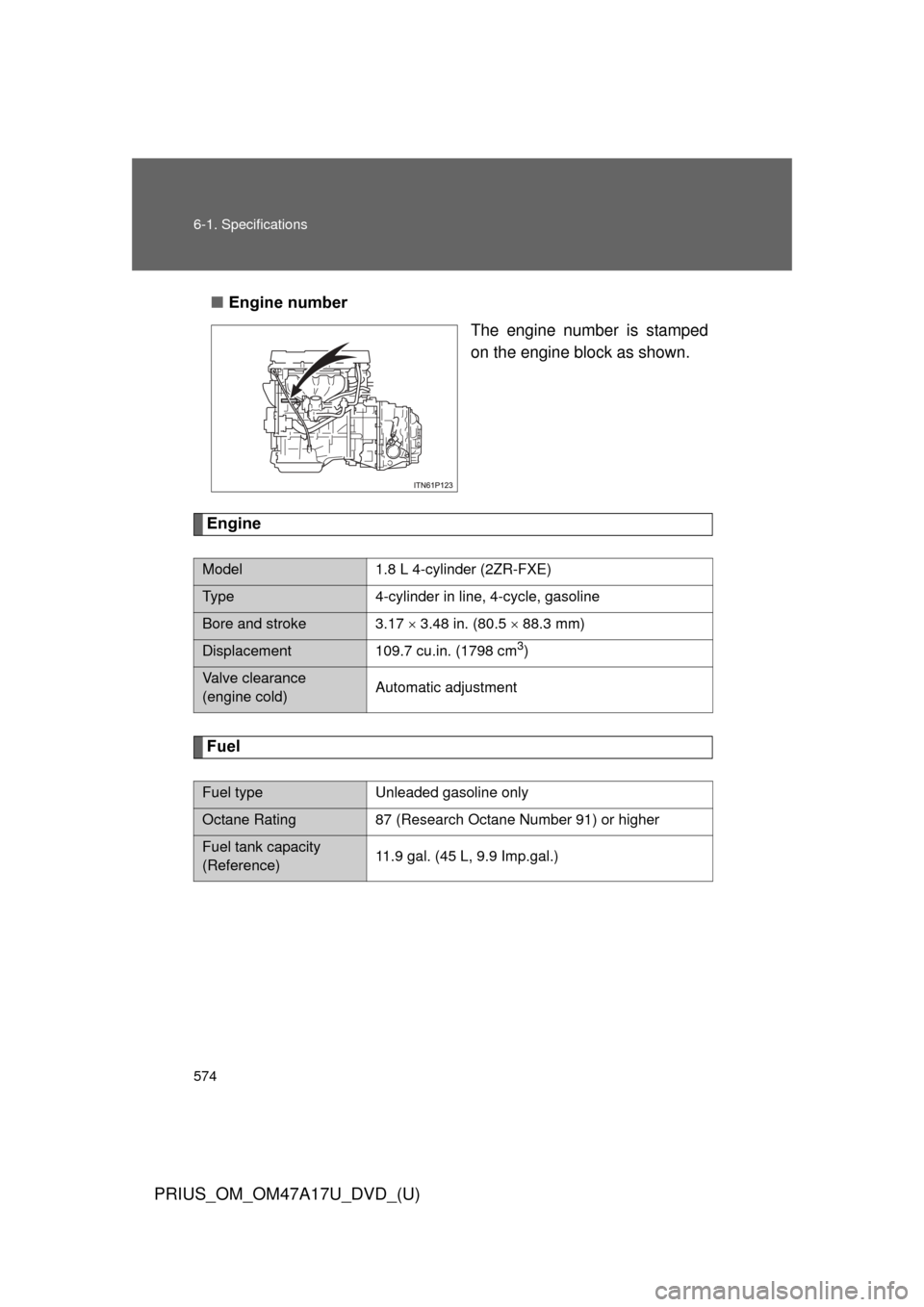

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Fuel
Model1.8 L 4-cylinder (2ZR-FXE)
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.17  3.48 in. (80.5  88.3 mm)
Displacement 109.7 cu.in. (1798 cm3)
Valve clearance
(engine cold) Automatic adjustment
Fuel typeUnleaded gasoline only
Octane Rating
87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)11.9 gal. (45 L, 9.9 Imp.gal.)

575
6-1. Specifications
6
Vehicle specifications
PRIUS_OM_OM47A17U_DVD_(U)

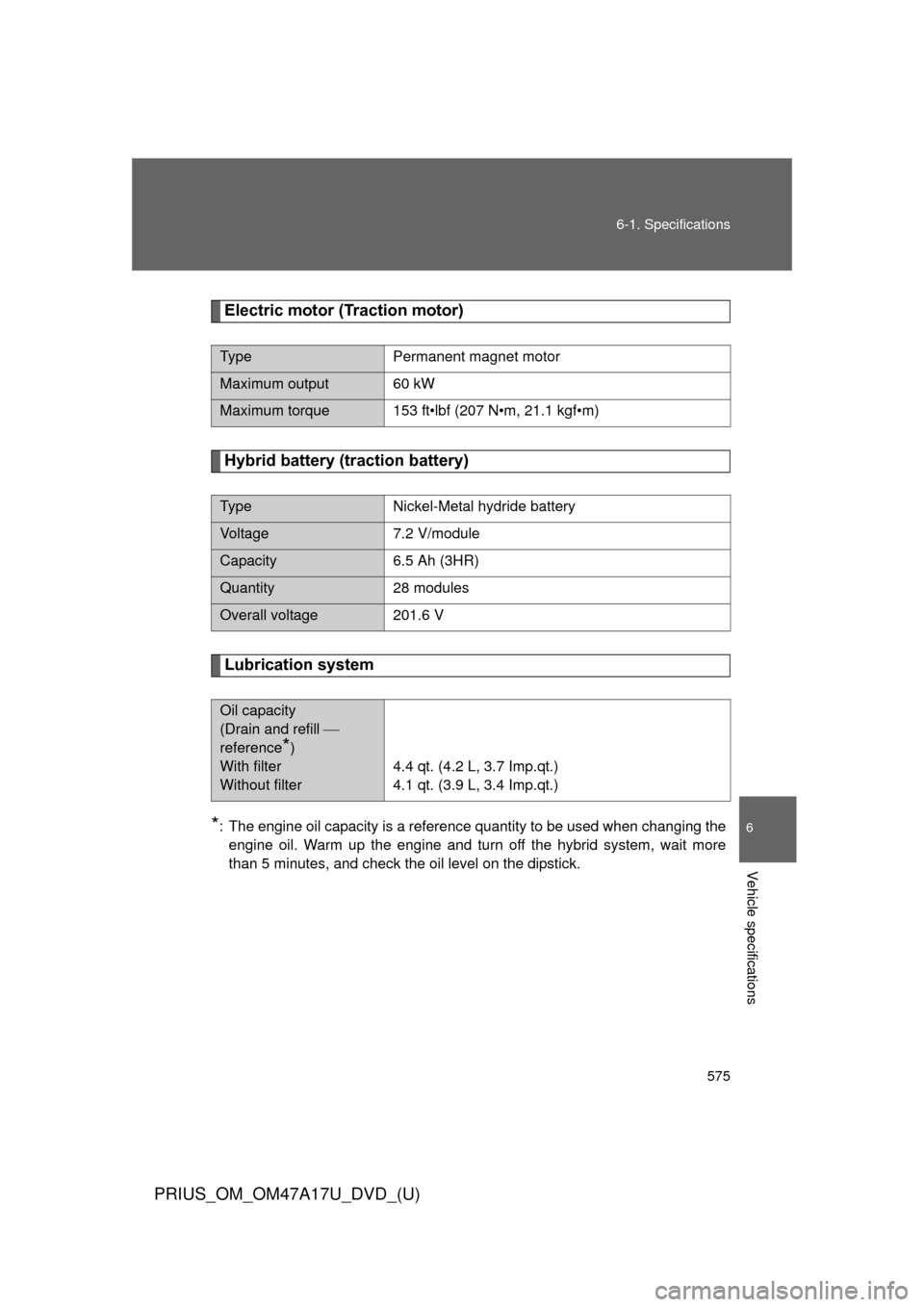

Electric motor (Traction motor)
Hybrid battery (traction battery)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more
than 5 minutes, and check the oil level on the dipstick.
Ty p ePermanent magnet motor
Maximum output 60 kW
Maximum torque 153 ft•lbf (207 N•m, 21.1 kgf•m)
Ty p eNickel-Metal hydride battery
Voltage 7.2 V/module
Capacity6.5 Ah (3HR)
Quantity 28 modules
Overall voltage 201.6 V
Oil capacity
(Drain and refill 
reference
*)
With filter
Without filter
4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)

576 6-1. Specifications
PRIUS_OM_OM47A17U_DVD_(U)
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20

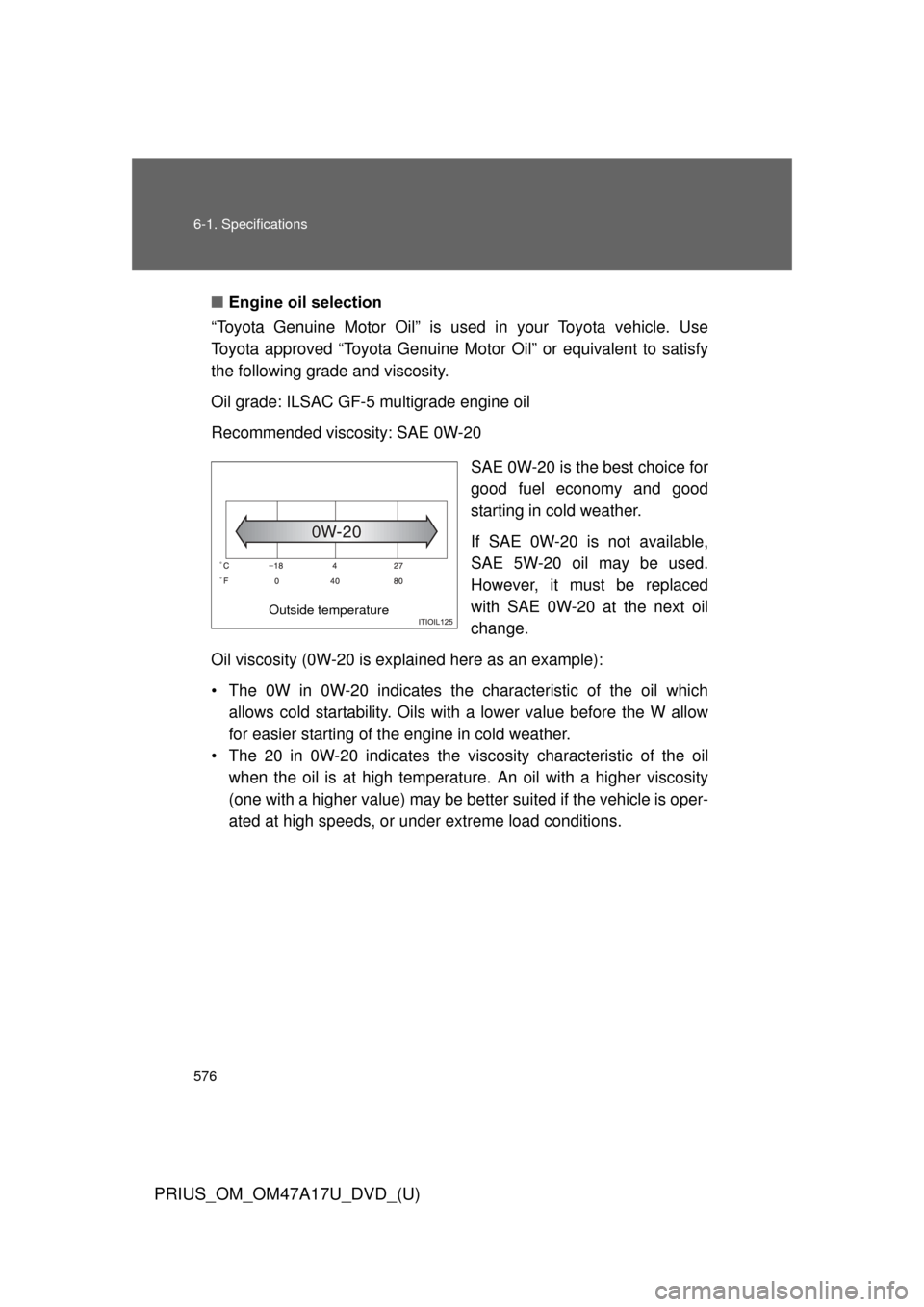

SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is ex plained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the visc osity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be be tter suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
Outside temperature

577
6-1. Specifications
6
Vehicle specifications
PRIUS_OM_OM47A17U_DVD_(U)

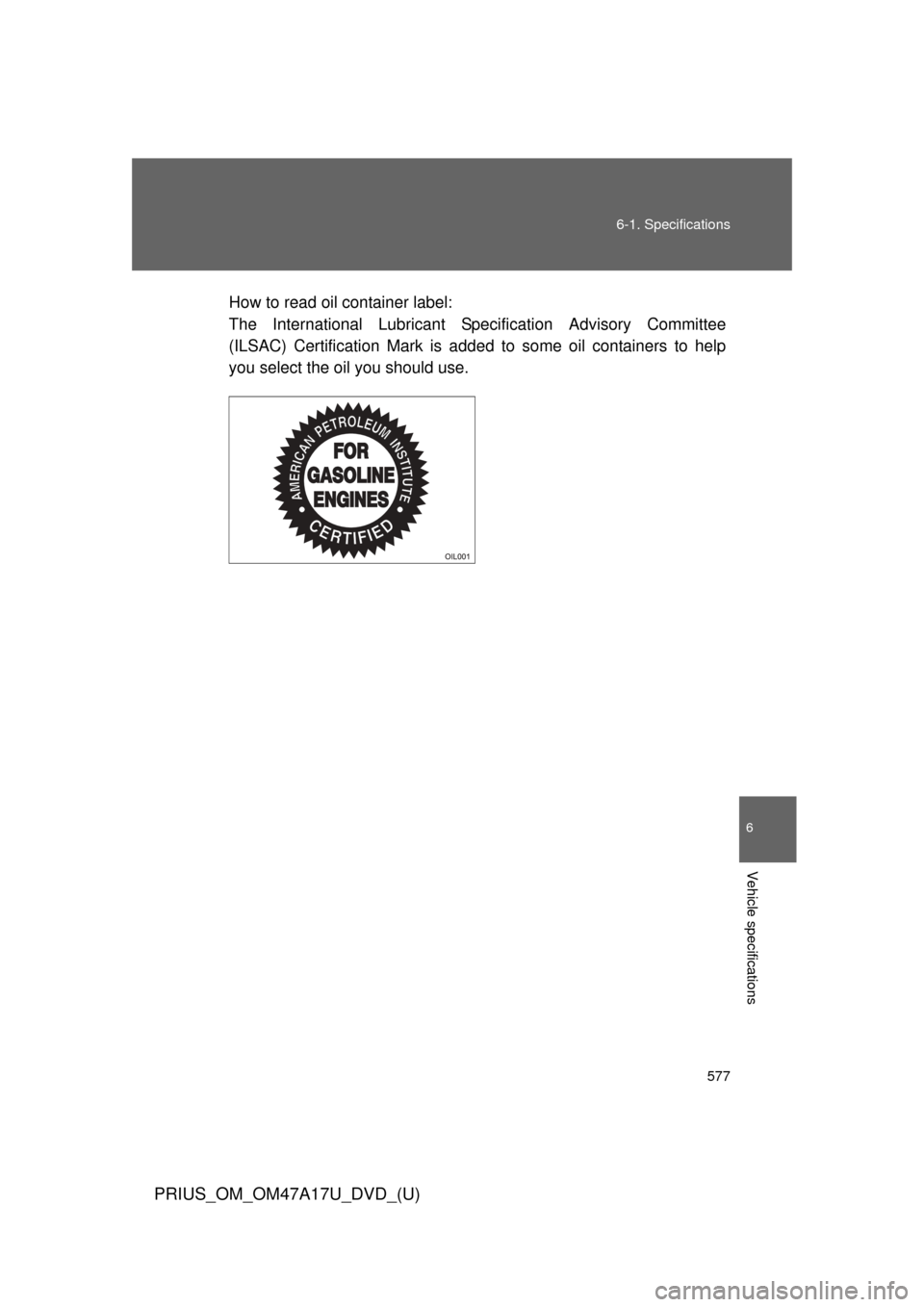

How to read oil container label:
The International Lubricant Spec
ification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oil you should use.

578 6-1. Specifications
PRIUS_OM_OM47A17U_DVD_(U)

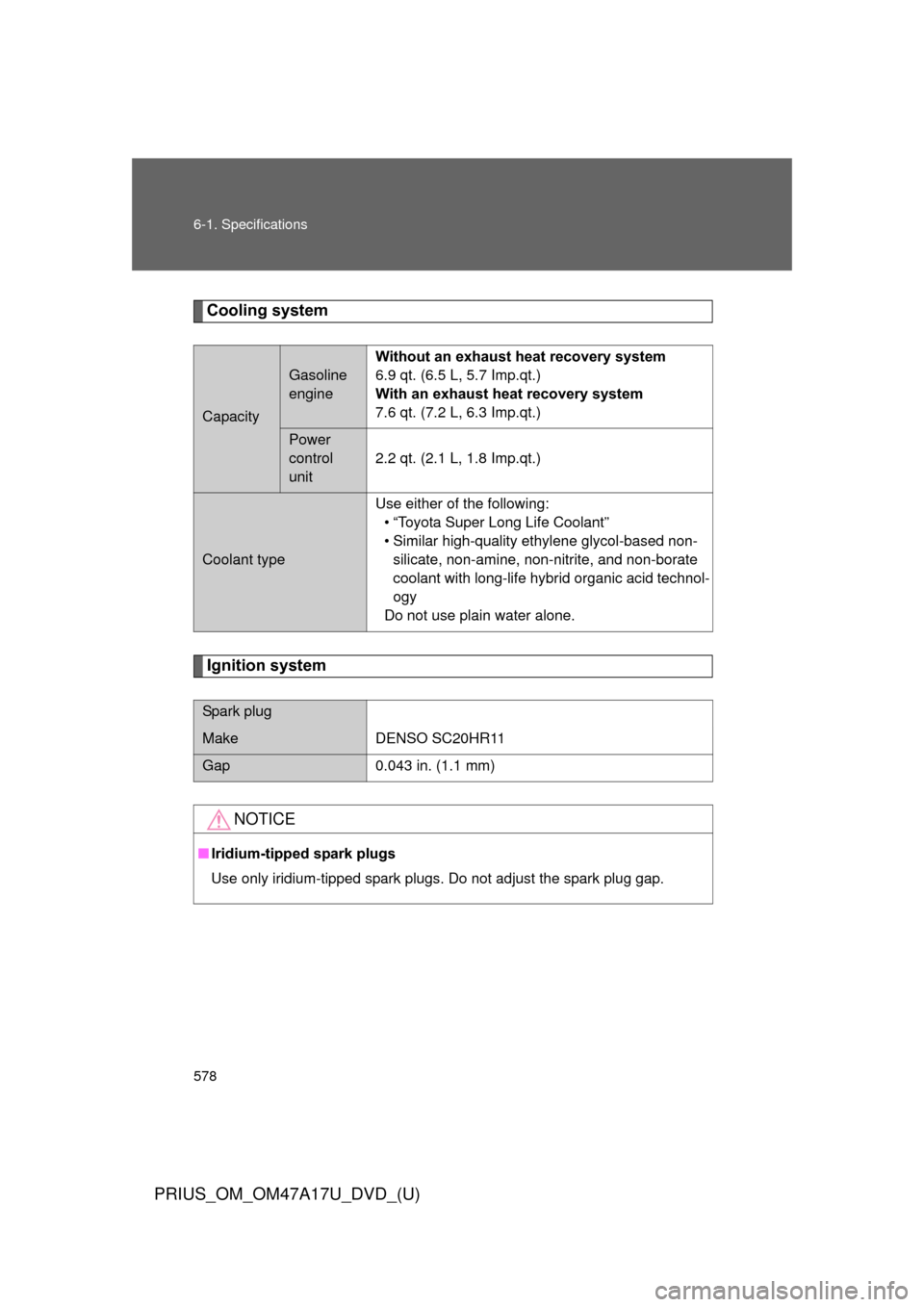

Cooling system
Ignition system
Capacity
Gasoline
engine
Without an exhaust heat recovery system
6.9 qt. (6.5 L, 5.7 Imp.qt.)
With an exhaust heat recovery system
7.6 qt. (7.2 L, 6.3 Imp.qt.)
Power
control
unit2.2 qt. (2.1 L, 1.8 Imp.qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non- silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make DENSO SC20HR11
Gap 0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

579
6-1. Specifications
6
Vehicle specifications
PRIUS_OM_OM47A17U_DVD_(U)
Electrical system
*1: Voltage is checked 30 seconds after the hybrid system and all lights are
turned off.
Transmission
*2: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Toyota dealer.
12-volt batteryFully charged12.5 V or over
Open voltage*1
at 68°F (20°C):Half charged 11.0  12.5 V
Discharged Under 11.0 V
Charging rates 5 A max.
Fluid capacity*23.6 qt. (3.4 L, 3.0 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

580 6-1. Specifications
PRIUS_OM_OM47A17U_DVD_(U)

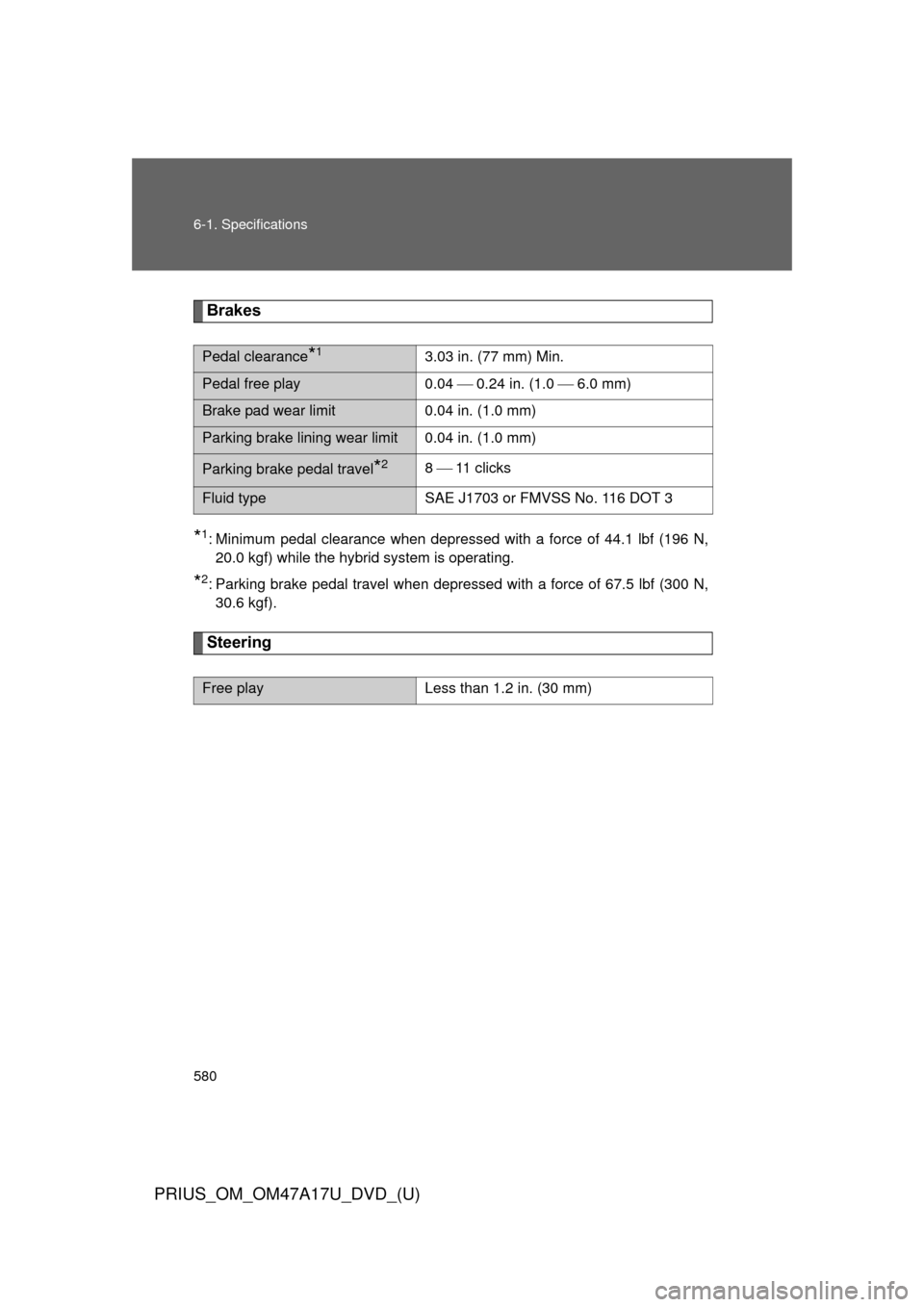

Brakes
*1: Minimum pedal clearance when depressed with a force of 44.1 lbf (196 N,20.0 kgf) while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 67.5 lbf (300 N,30.6 kgf).
Steering
Pedal clearance*13.03 in. (77 mm) Min.
Pedal free play 0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake pedal travel*28 11 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)
