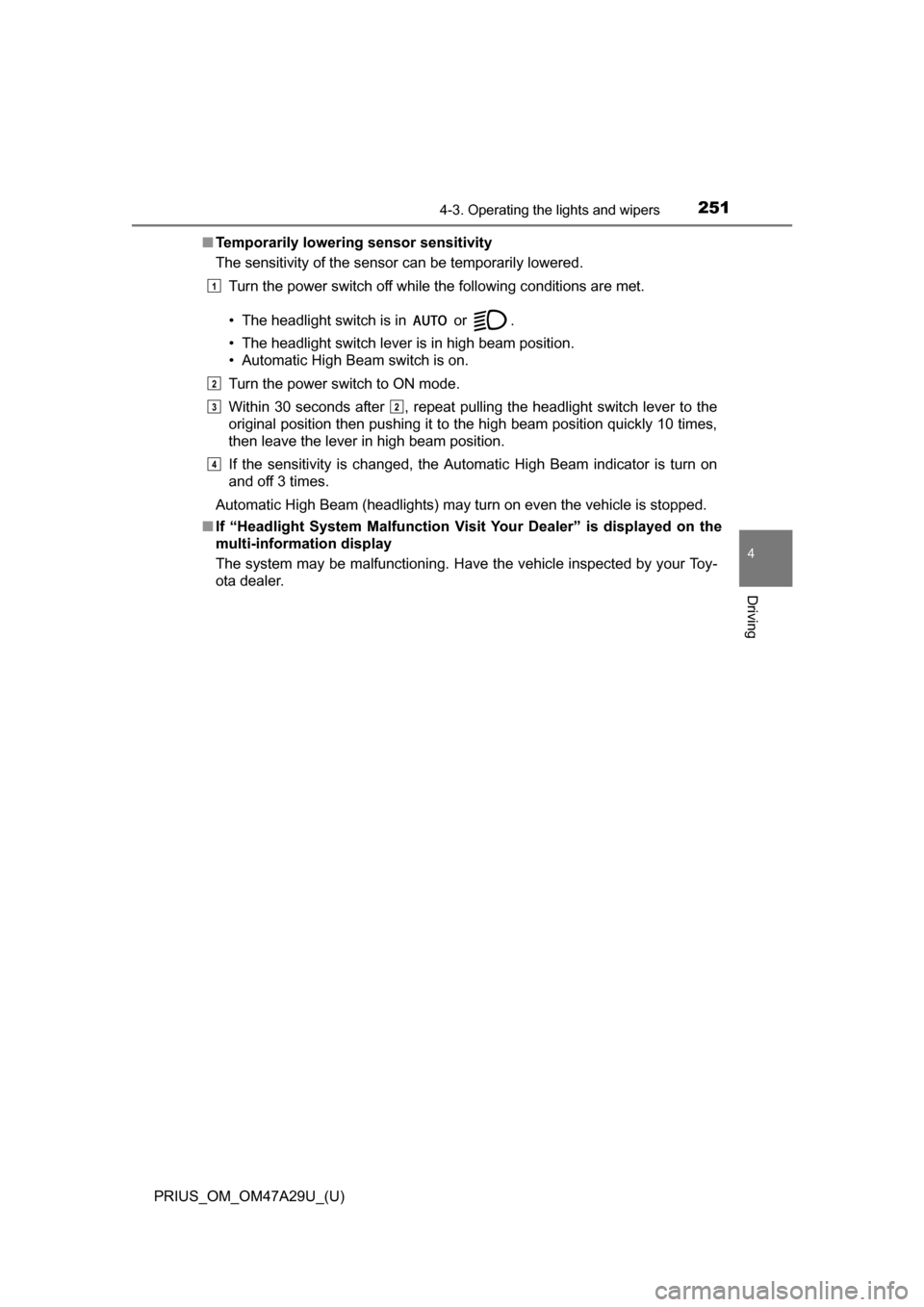

TOYOTA PRIUS 2016 4.G Owners Manual

PRIUS_OM_OM47A29U_(U)
2514-3. Operating the lights and wipers
4
Driving
■Temporarily lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
Turn the power switch off while the following conditions are met.
• The headlight switch is in or .
• The headlight switch lever is in high beam position.
• Automatic High Beam switch is on.
Turn the power switch to ON mode.
Within 30 seconds after , repeat pulling the headlight switch lever to the
original position then pushing it to the high beam position quickly 10 times,
then leave the lever in high beam position.
If the sensitivity is changed, the Automatic High Beam indicator is turn on
and off 3 times.
Automatic High Beam (headlights) may turn on even the vehicle is stopped.
■ If “Headlight System Malfunction Visi t Your Dealer” is displayed on the
multi-information display
The system may be malfunctioning. Have the vehicle inspected by your Toy-
ota dealer.
1
2
32
4

252
PRIUS_OM_OM47A29U_(U)
4-3. Operating the lights and wipers

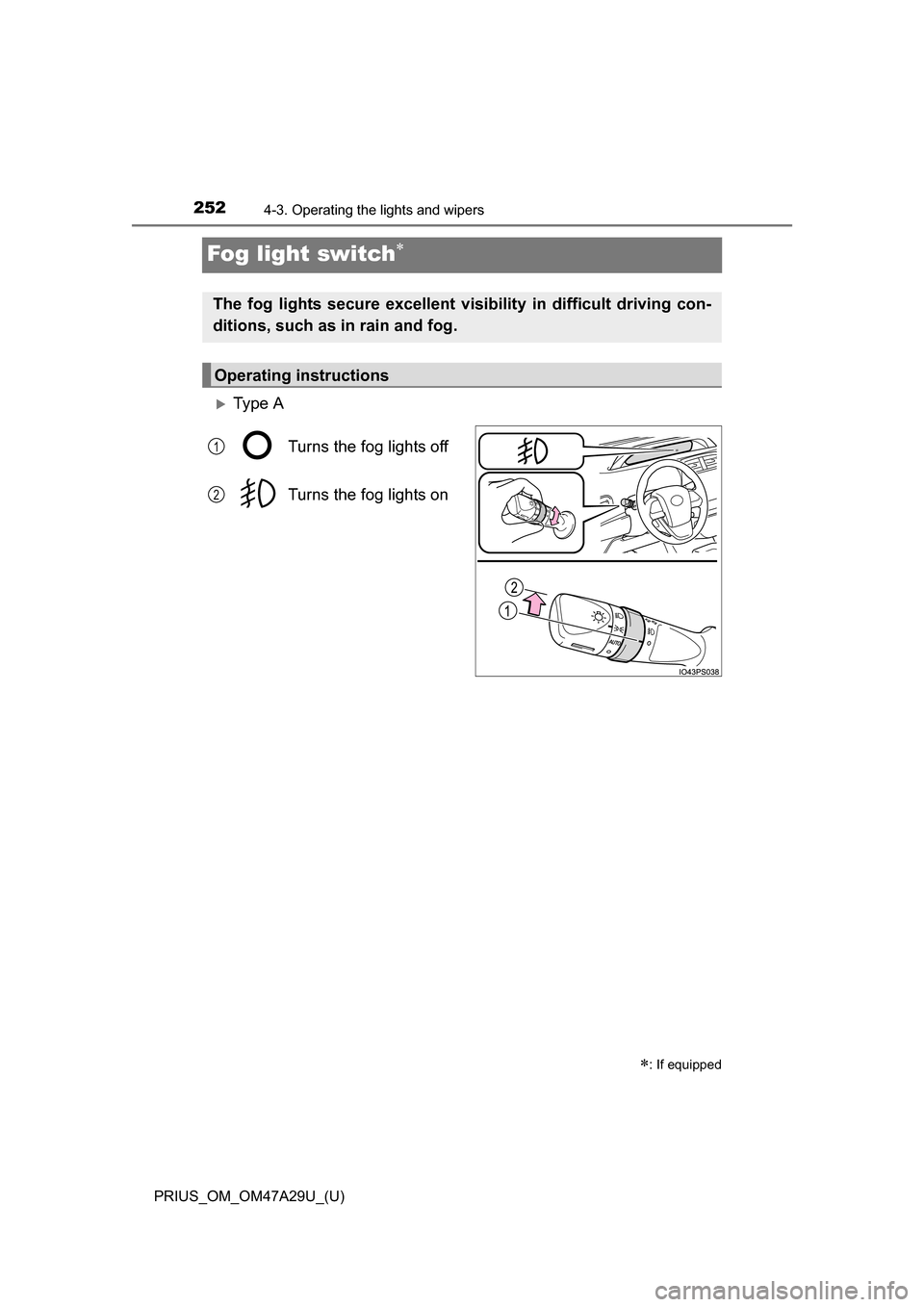

Fog light switch
Ty p e ATurns the fog lights off
Turns the fog lights on
: If equipped
The fog lights secure excellent visi bility in difficult driving con-
ditions, such as in rain and fog.
Operating instructions
1
2

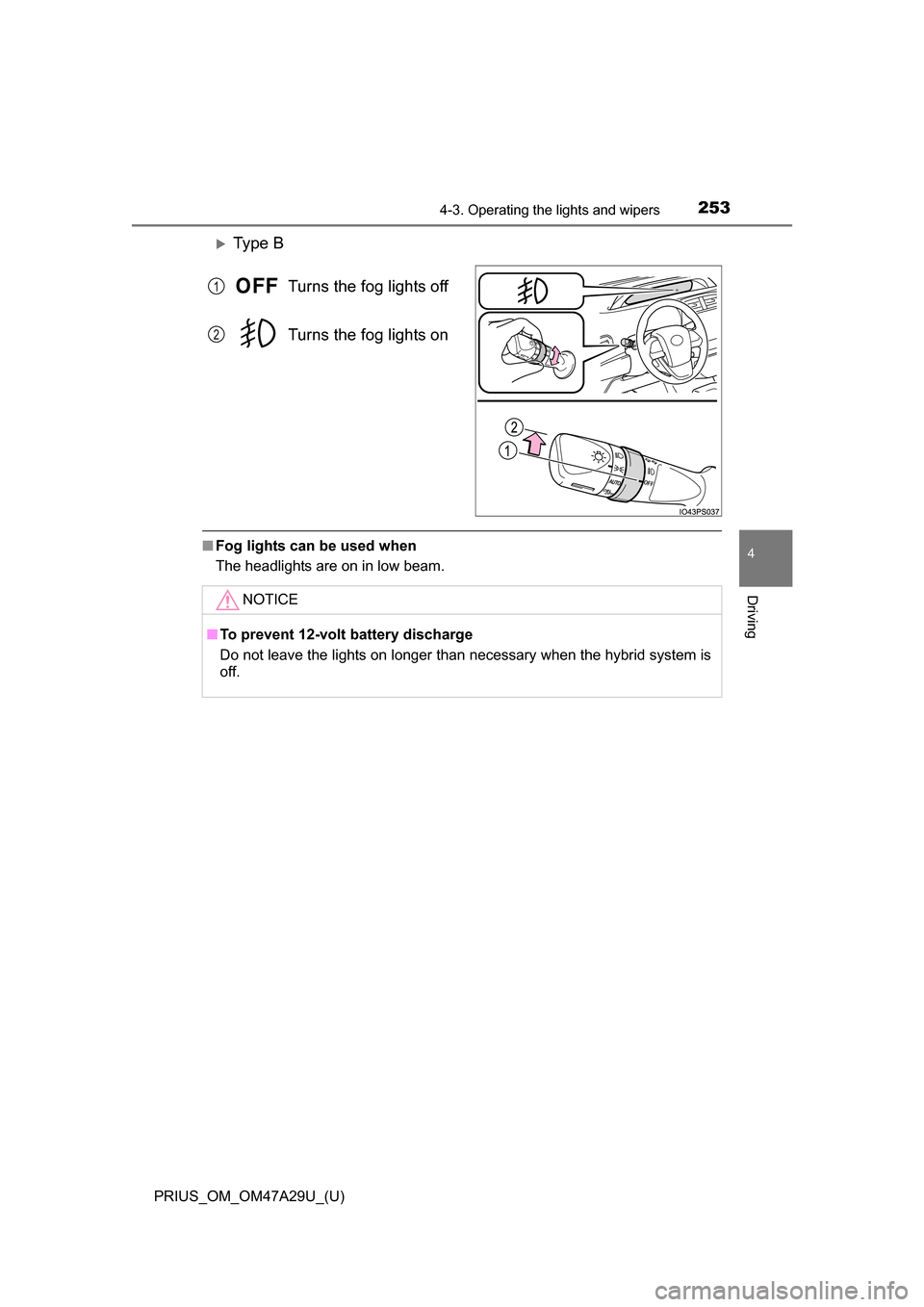

PRIUS_OM_OM47A29U_(U)
2534-3. Operating the lights and wipers
4
Driving
Ty p e BTurns the fog lights off
Turns the fog lights on
■Fog lights can be used when
The headlights are on in low beam.
1
2
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.

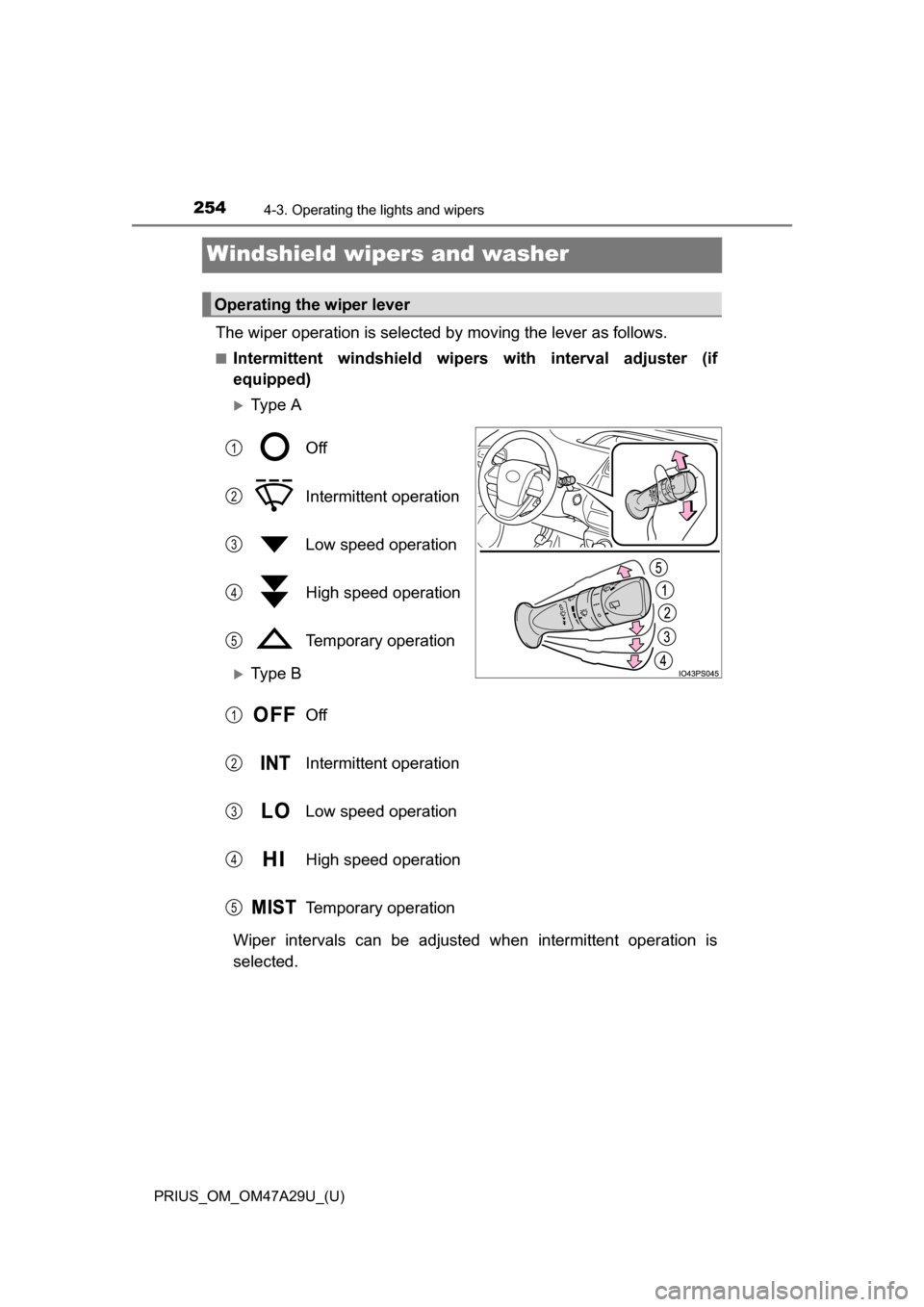

254
PRIUS_OM_OM47A29U_(U)
4-3. Operating the lights and wipers
Windshield wipers and washer
The wiper operation is selected by moving the lever as follows.
■Intermittent windshield wipers with interval adjuster (if
equipped)
Ty p e A
Off
Intermittent operation
Low speed operation
High speed operation
Temporary operation
Ty p e BOff
Intermittent operation
Low speed operation
High speed operation
Temporary operation
Wiper intervals can be adjusted w hen intermittent operation is
selected.
Operating the wiper lever
1
2
3
4
5
1
2
3
4
5

PRIUS_OM_OM47A29U_(U)
2554-3. Operating the lights and wipers
4
Driving

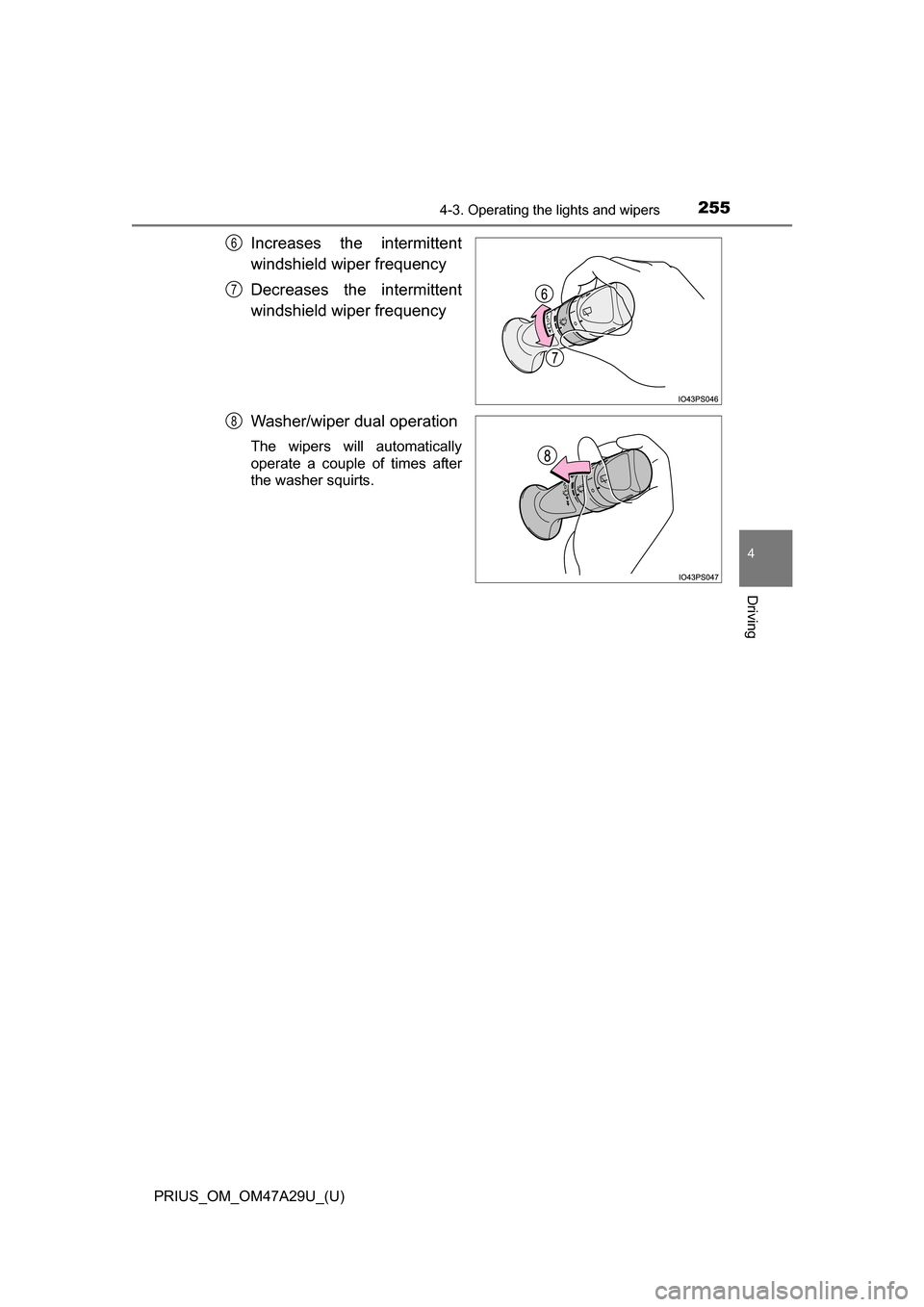

Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Washer/wiper dual operation
The wipers will automatically
operate a couple of times after
the washer squirts.
6
7
8

256

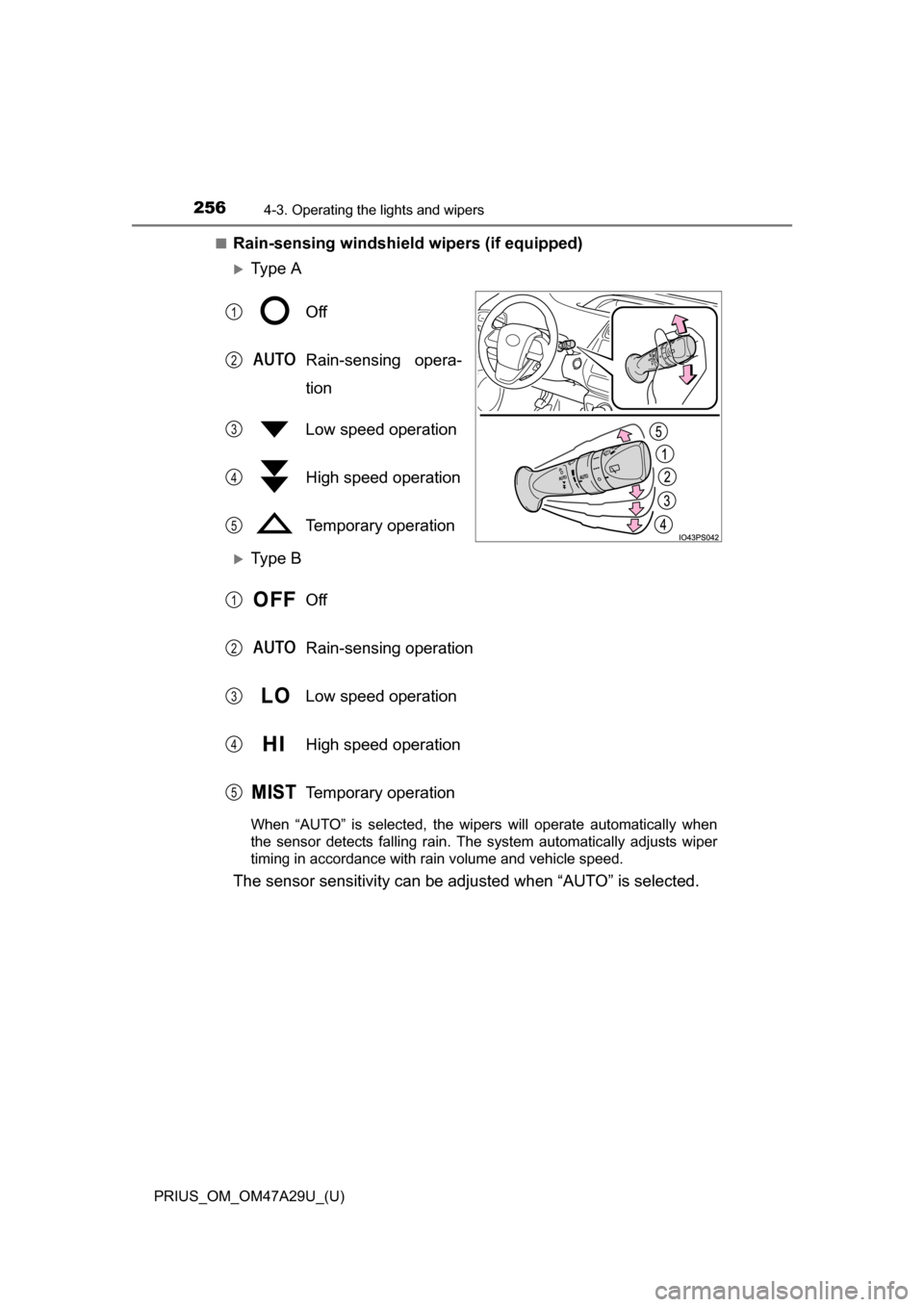

PRIUS_OM_OM47A29U_(U)
4-3. Operating the lights and wipers
■Rain-sensing windshield wipers (if equipped)
Ty p e A
Off
Rain-sensing opera-
tion
Low speed operation
High speed operation
Temporary operation
Ty p e BOff
Rain-sensing operation
Low speed operation
High speed operation
Temporary operation
When “AUTO” is selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts wiper
timing in accordance with rain volume and vehicle speed.
The sensor sensitivity can be adjusted when “AUTO” is selected.
1
2
3
4
5
1
2
3
4
5

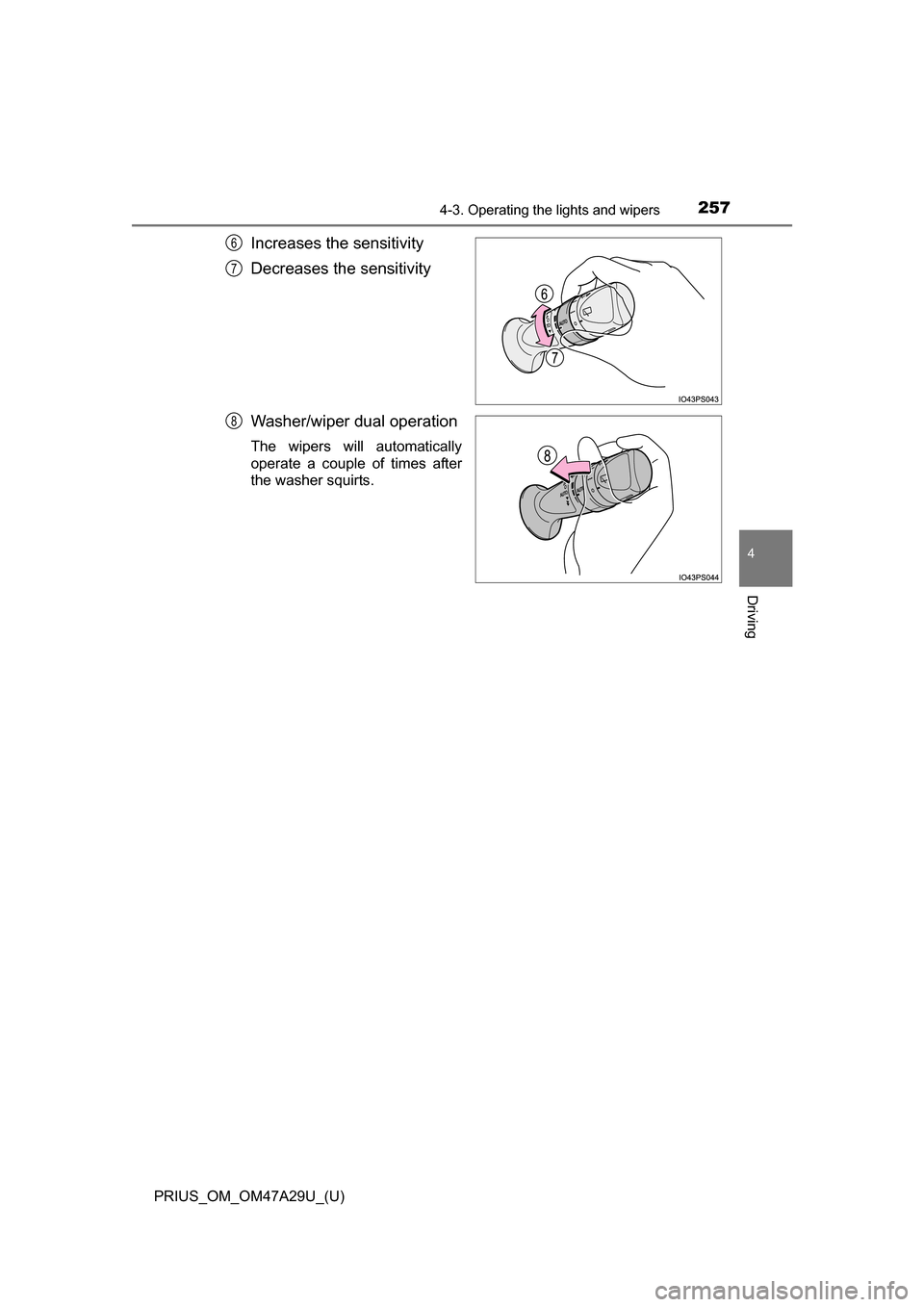

PRIUS_OM_OM47A29U_(U)
2574-3. Operating the lights and wipers
4
Driving
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
The wipers will automatically
operate a couple of times after
the washer squirts.
6
7
8

258

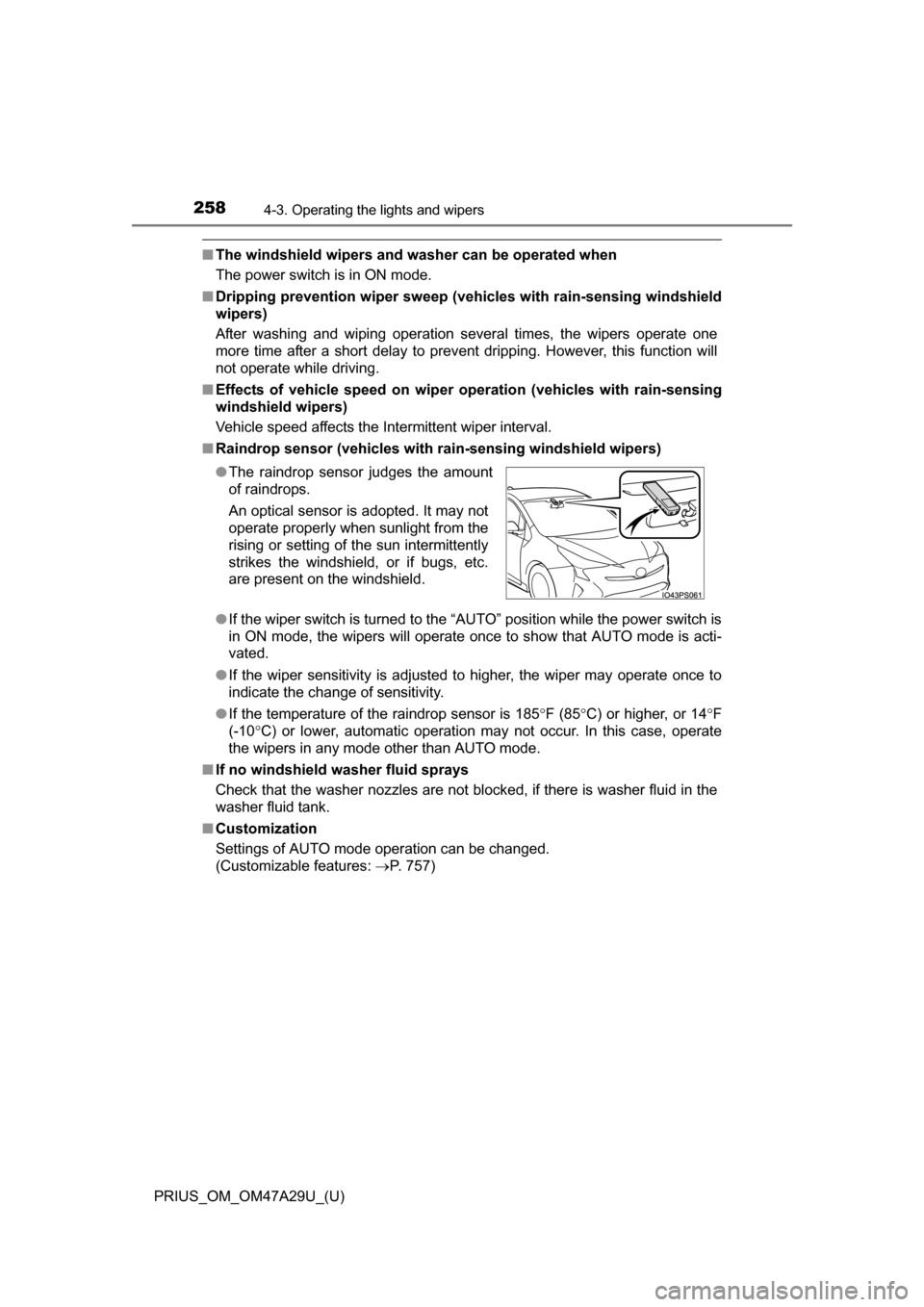

PRIUS_OM_OM47A29U_(U)
4-3. Operating the lights and wipers
■The windshield wipers and washer can be operated when
The power switch is in ON mode.
■ Dripping prevention wiper sweep (vehicles with rain-sensing windshield
wipers)
After washing and wiping operation several times, the wipers operate one
more time after a short delay to prevent dripping. However, this function will
not operate while driving.
■ Effects of vehicle speed on wiper operation (vehicles with rain-sensing
windshield wipers)
Vehicle speed affects the Intermittent wiper interval.
■ Raindrop sensor (vehicles with ra in-sensing windshield wipers)
● If the wiper switch is turned to the “AUTO” position while the power switch is
in ON mode, the wipers will operate once to show that AUTO mode is acti-
vated.
● If the wiper sensitivity is adjusted to higher, the wiper may operate once to
indicate the change of sensitivity.
● If the temperature of the raindrop sensor is 185 F (85 C) or higher, or 14 F
(-10 C) or lower, automatic operation may not occur. In this case, operate
the wipers in any mode other than AUTO mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked, if there is washer fluid in the
washer fluid tank.
■ Customization
Settings of AUTO mode operation can be changed.
(Customizable features: P. 757)
●
The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs, etc.
are present on the windshield.

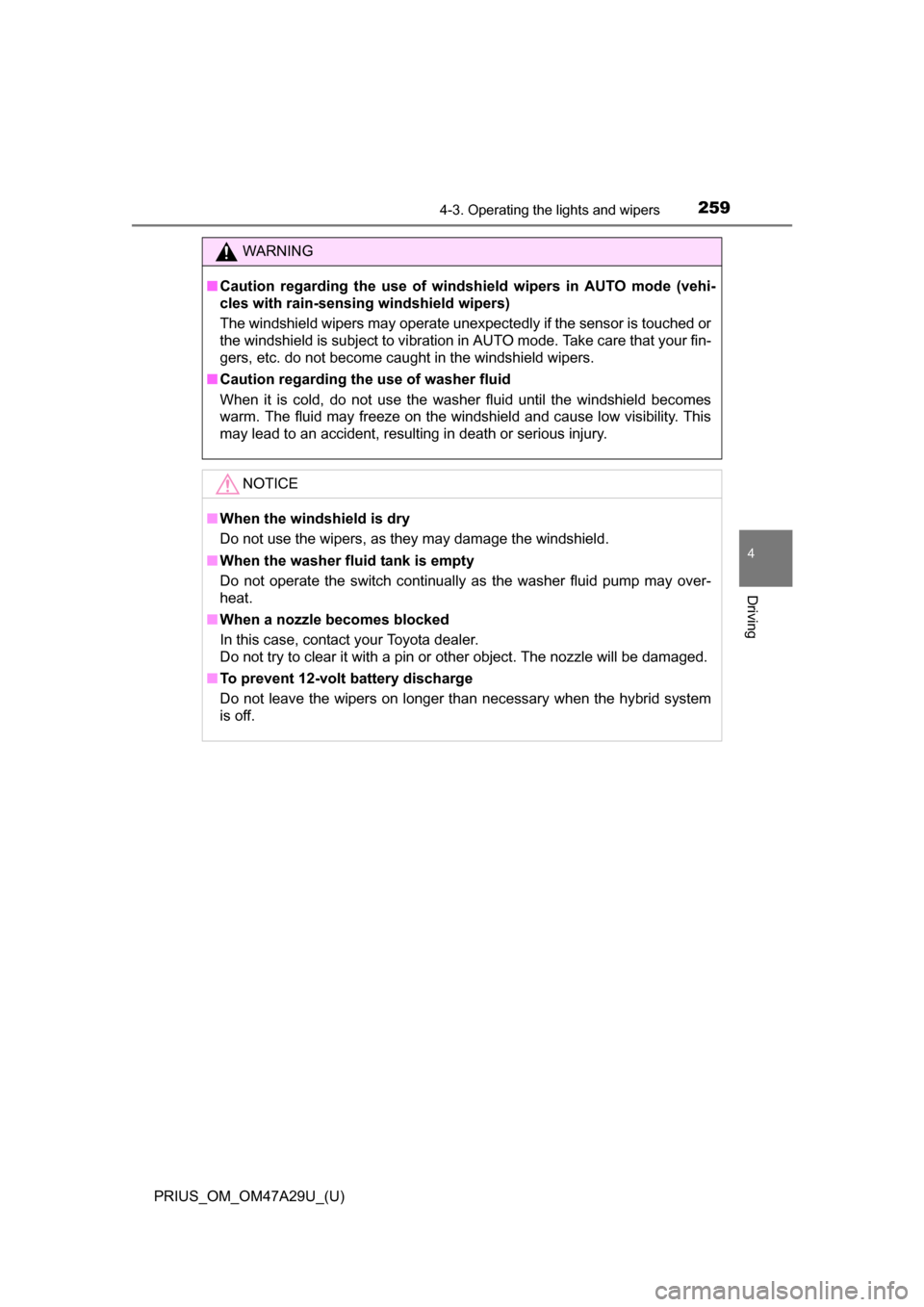

PRIUS_OM_OM47A29U_(U)
2594-3. Operating the lights and wipers
4
Driving
WARNING
■Caution regarding the use of windsh ield wipers in AUTO mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in AUTO mode. Take care that your fin-
gers, etc. do not become caught in the windshield wipers.
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged\
.
■ To prevent 12-volt battery discharge
Do not leave the wipers on longer than necessary when the hybrid system
is off.

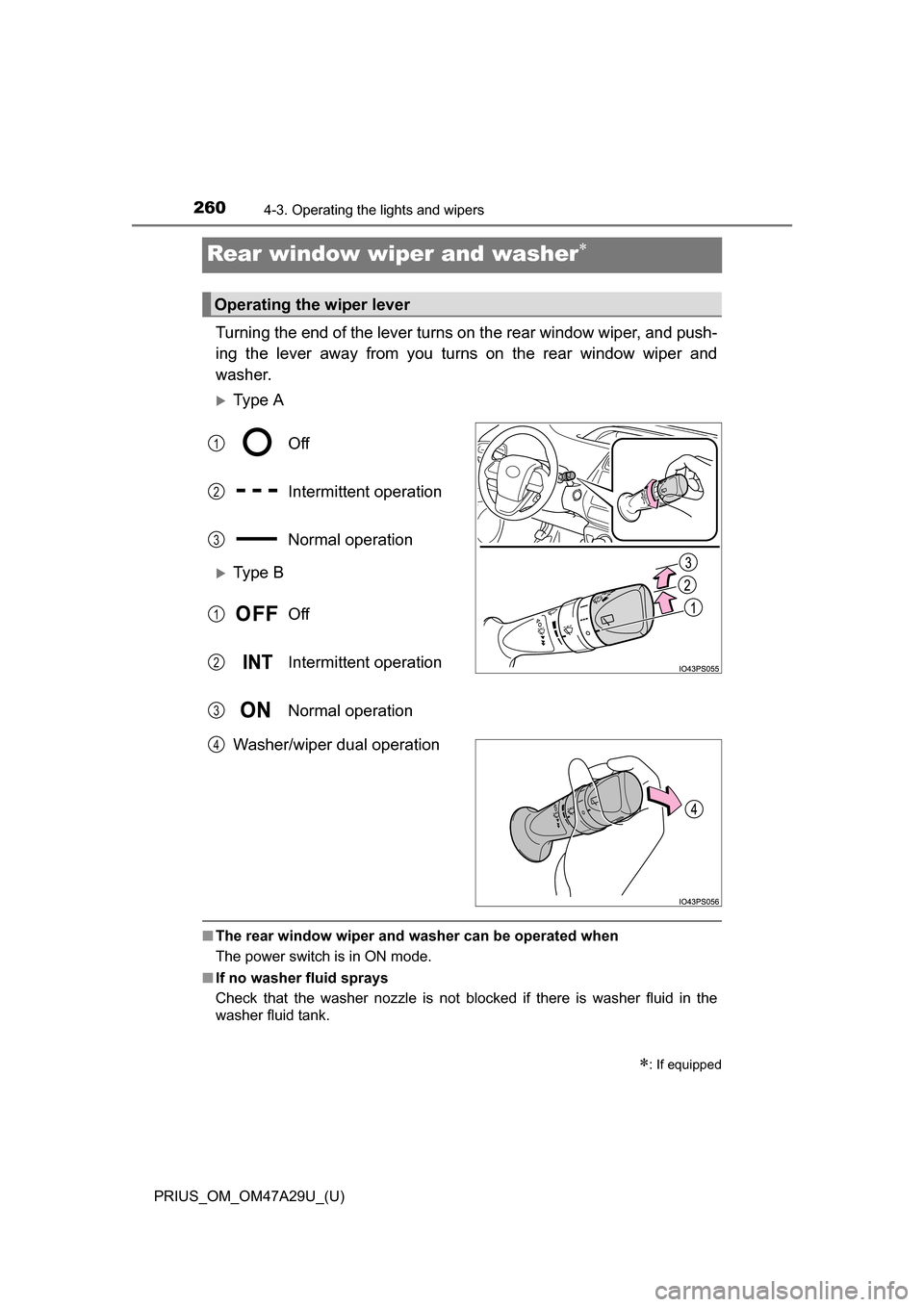

260
PRIUS_OM_OM47A29U_(U)
4-3. Operating the lights and wipers
Rear window wiper and washer
Turning the end of the lever turns on the rear window wiper, and push-
ing the lever away from you turns on the rear window wiper and
washer.
Ty p e AOff
Intermittent operation
Normal operation
Ty p e BOff
Intermittent operation
Normal operation
Washer/wiper dual operation
■ The rear window wiper and w asher can be operated when
The power switch is in ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid tank.
: If equipped
Operating the wiper lever
1
2
3
1
2
3
4
