clock setting TOYOTA PRIUS 2017 4.G Quick Reference Guide

22
Clock
Cruise control
If the sensors detect an obstacle, the buzzer and MID display informs the \
driver of
the approximate position and distance of the obstacle by illuminating conti\
nuously
(far) or blinking (near).
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine\
is
started again.
Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for more details.
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.

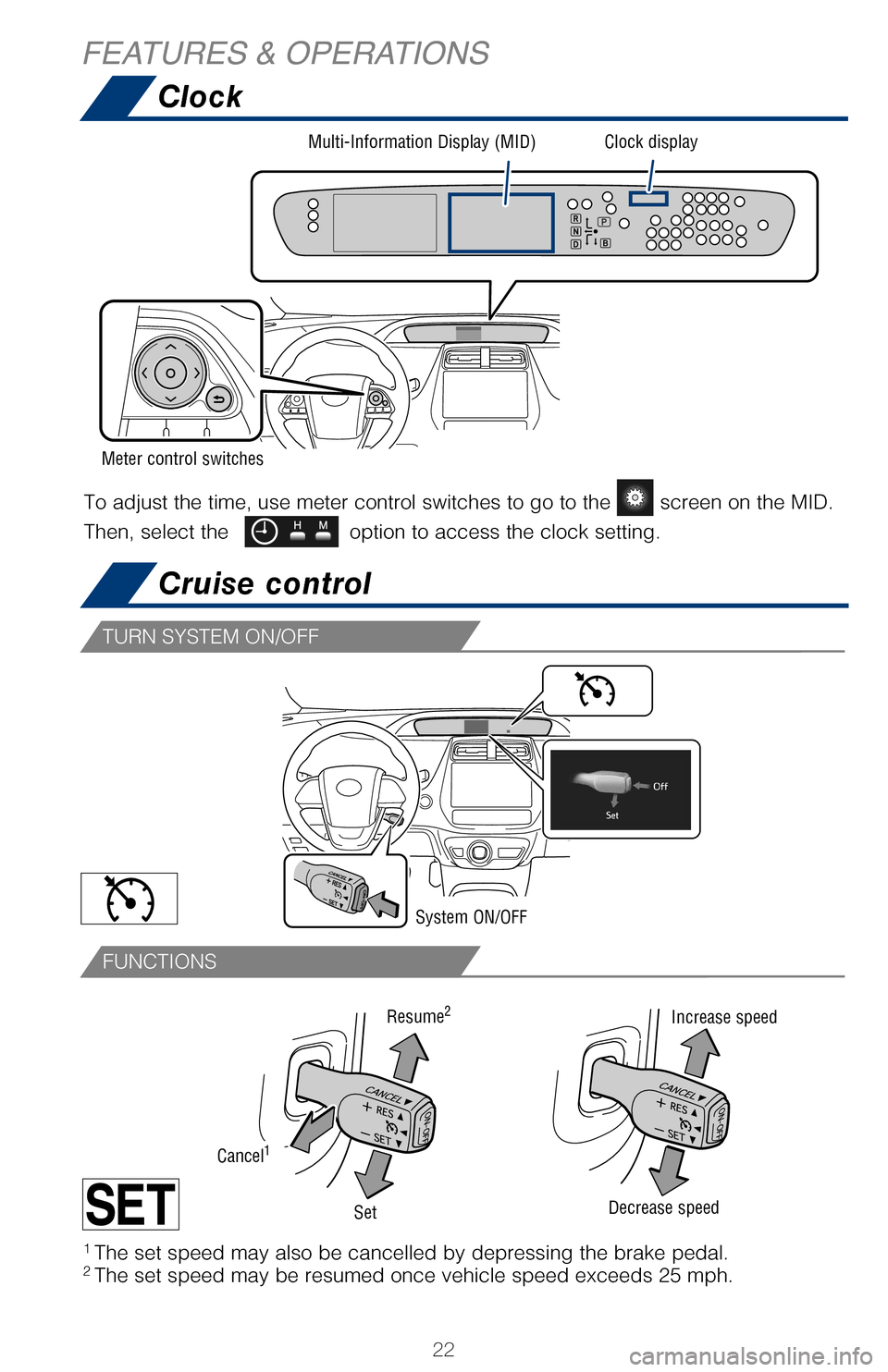

To adjust the time, use meter control switches to go to the screen on the MID.
Then, select the
option to access the clock setting.
TURN SYSTEM ON/OFF
FUNCTIONS
FEATURES & OPERATIONS
System ON/OFF
Increase speed
Multi-Information Display (MID)
Clock display
Meter control switches
Decrease speed
Cancel1
Resume2
Set
2017_Prius_D6_1.indd 229/25/16 2:38 AM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
23

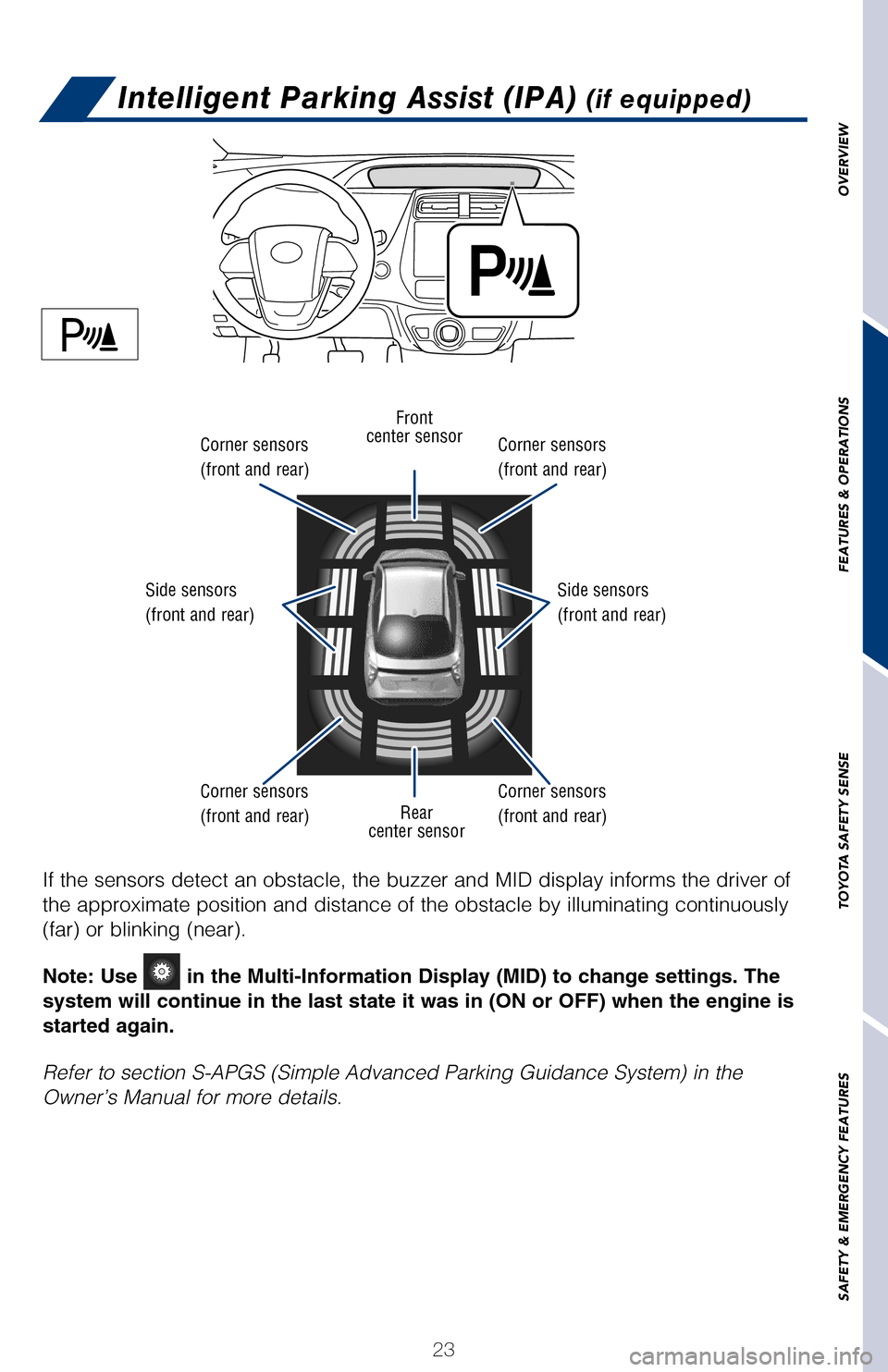

Intelligent Parking Assist (IPA) (if equipped)
Cruise control
If the sensors detect an obstacle, the buzzer and MID display informs th\
e driver of
the approximate position and distance of the obstacle by illuminating co\
ntinuously
(far) or blinking (near).
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the \
engine is
started again.
Refer to section S-APGS (Simple Advanced Parking Guidance System) in t\
he
Owner’s Manual for more details.
Front
center sensor
Rear
center sensor
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
To adjust the time, use meter control switches to go to the
screen on the MID.
Then, select the
option to access the clock setting.
Corner sensors
(front and rear)
Corner sensors
(front and rear)
Side sensors
(front and rear)
Side sensors
(front and rear)
Corner sensors
(front and rear)
Corner sensors
(front and rear)
Increase speed
2017_Prius_D6_1.indd 239/25/16 2:38 AM
