7719-2. Customization
9
Vehicle specifications
■Changing using the Entune Audio (if equipped)
Press the “SETUP” button on the Entune Audio.
Select “Vehicle” on the “Setup” screen and select “Vehicle Cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
■Changing using the Entune Premiu m Audio with Navigation (if
equipped)
Vehicles without 11.6-inch display
Press the “APPS” button on th e Entune Premium Audio with
Navigation.
Select “Setup” on the “Apps” screen.
Select “Vehicle” on the “Setup” screen and select “Vehicle Cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Vehicles with 11.6-inch display
Press the “MENU” button on the navigation system.
Select “Settings”.
Select “Vehicle” on the “Setup” screen and select “Vehicle cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
1
2
1
2
3
1
2
3

772
PRIUS_OM_OM47B89U_(U)
9-2. Customization
Settings that can be changed using the multi-information display
Settings that can be changed using the Entune Audio or Entune
Premium Audio with Navigation
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, – = Not available
■Hybrid system ( →P. 7 8 )
■Instrument cluster ( →P. 92)
Customizable features
1
2
3
FunctionDefault
settingCustomized setting
Vehicle Proximity Notification
System (volume of sound)Level 1Level 2––OLevel 3
123
FunctionDefault settingCustomized setting
Sensor sensitivity for darken-
ing the brightness of the
instrument cluster depending
on the outside brightness
Standard-2 to 2––O
Sensor sensitivity for returning
the brightness of the instru-
ment cluster to the original
level depending on the outside
brightness
Standard-2 to 2––O
123

PRIUS_OM_OM47B89U_(U)
7739-2. Customization
9
Vehicle specifications
■HUD (Head-up display)* (→ P. 146)
*: If equipped
■
Door lock ( →P. 171, 726)
■Smart key system and wireless remote control ( →P. 172, 182)
FunctionDefault
settingCustomized setting
Route guidance*OnOffO––
123
FunctionDefault settingCustomized setting
Automatic door lockingShift position linkedSpeed linked–OO
Off–OO
Automatic door unlockingShift position linkedDriver’s door linked–OO
Off–OO
Unlocking using a mechanical
key
Driver’s door unlocked in
first step, all
doors
unlocked in
second step
All doors
unlocked in first step
––O
123
FunctionDefault settingCustomized setting
Operation signal (buzzer) 5Off
–OO
1 to 7
Operation signal (emergency
flashers) On
Off – O O
Time elapsed before the auto-
matic door lock function is
activated if a door is not
opened after being unlocked
60 seconds
Off
–OO30 seconds
120 seconds
Open door reminder buzzer
(when locking the vehicle)OnOff––O
123

774
PRIUS_OM_OM47B89U_(U)
9-2. Customization
■Smart key system (→P. 182)
*: This function can also be changed using the wireless remote control.
(→P. 175)
■
Wireless remote control ( →P. 172)
FunctionDefault
settingCustomized setting
Smart key systemOnOff–OO
Smart door unlocking*Driver’s doorAll the doors–OO
Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle
2 seconds
Off
––O1.5 seconds
2.5 seconds
Number of consecutive door
lock operations2 timesAs many as
desired––O
123
FunctionDefault settingCustomized setting
Unlocking operation
Driver’s door unlocked in
first step, all
doors
unlocked in
second step
All doors
unlocked in first step
–OO
Wireless remote control On Off – – O
Locking operation when door
opened On Off – O O
123

PRIUS_OM_OM47B89U_(U)
7759-2. Customization
9
Vehicle specifications
■Power windows and moon roof* (→ P. 204, 208)
*: If equipped
■
Reverse warning buzzer (→ P. 242)
■Turn signal lever (→P. 246)
FunctionDefault
settingCustomized setting
Mechanical key linked opera-
tion (open)OffOn––O
Mechanical key linked opera-
tion (close)OffOn––O
Wireless remote control linked
operation (open only)OffOn––O
Mechanical key, wireless
remote control linked opera-
tion signal (buzzer)
OnOff––O
123
FunctionDefault
settingCustomized setting
Signal (buzzer) when the shift
position is in RIntermittentSingle––O
123
FunctionDefault settingCustomized setting
Times of flashing of the lane
change signal flashers3
Off
––O5
7
123

776
PRIUS_OM_OM47B89U_(U)
9-2. Customization
■Automatic light control system (→P. 248)
*: This function cannot be customized for vehicles sold in Canada.
■
Rain-sensing windshield wipers* ( → P. 262)
*: If equipped
■
Intuitive parking assist* ( → P. 339)
*: If equipped
FunctionDefault
settingCustomized setting
Time elapsed before the
headlights turn off 30 secondsOff
–OO
60 seconds
90 seconds
Light sensor sensitivityLevel 0Level -2 to 2–OO
Daytime running lights*OnOff–OO
123
FunctionDefault
settingCustomized setting
Wiper operation when the
wiper switch is in the “AUTO”
positionRain-sensing operation
Intermittent
operation
linked to vehi- cle speed
(with interval adjuster)
––O
123
FunctionDefault
settingCustomized setting
Detection distance of the front
center sensorsFarNear––O
Detection distance of the rear
center sensorsFarNear––O
Buzzer volume31 to 5––O
123

PRIUS_OM_OM47B89U_(U)
7779-2. Customization
9
Vehicle specifications
■S-APGS (Simple Advanced Parking Guidance System)*
( → P. 363)
*: If equipped
■
Automatic air conditioning system* ( → P. 526)
*: Vehicles with 11.6-inch display
FunctionDefault
settingCustomized setting
Obstacle detection rangeStandard
Near
––OSlightly far
Far
Back-in parking spaceStandard
Narrow
––OSlightly wide
Wide
Parallel parking spaceStandard
Narrow
––OSlightly wide
Wide
123
FunctionDefault settingCustomized setting
A/C auto switching operationOnOffO–O
123

778
PRIUS_OM_OM47B89U_(U)
9-2. Customization
■Illumination (→P. 538)
*: If equipped
■
Seat belt reminder ( →P. 678)
FunctionDefault
settingCustomized setting
Time elapsed before the inte-
rior lights turn off 15 secondsOff
–OO
7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff––O
Footwell lighting*OnOff––O
Interior lights illumination con-
trolOnOff––O
123
FunctionDefault settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff––O
123

PRIUS_OM_OM47B89U_(U)
7799-2. Customization
9
Vehicle specifications
■Vehicle customization
●When the Speed linked door locking function and the Shift position linked
door locking function are both on, the door lock operates as follows.
• When shifting the shift position to any position other than P, all the doors
will be locked.
• If the vehicle is started with all the doors locked, the Speed linked door locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door locking function will operate.
● When the smart key system is off, Smart door unlocking cannot be custom-
ized.
● When the doors remain closed after unlocking the doors and the automatic
door lock function is activated, the signals will be generated in accordance
with the operation signal (buzzer) and the operation signal (emergency
flashers) settings.
■ In the following situations, customiz e mode will automatically be turned
off.
● A warning message appears after the customize mode screen is displayed.
● The power switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
■
Maintenance system
WARNING
■ Cautions during customization
As the hybrid system needs to be oper ating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.
Oil Maintenance
(U.S.A. only)Resetting the message indicating maintenance
is required: →P. 592
Tire pressure warning
systemInitializing the tire pr essure warning system:
→ P. 6 2 0

780
PRIUS_OM_OM47B89U_(U)
9-3. Initialization

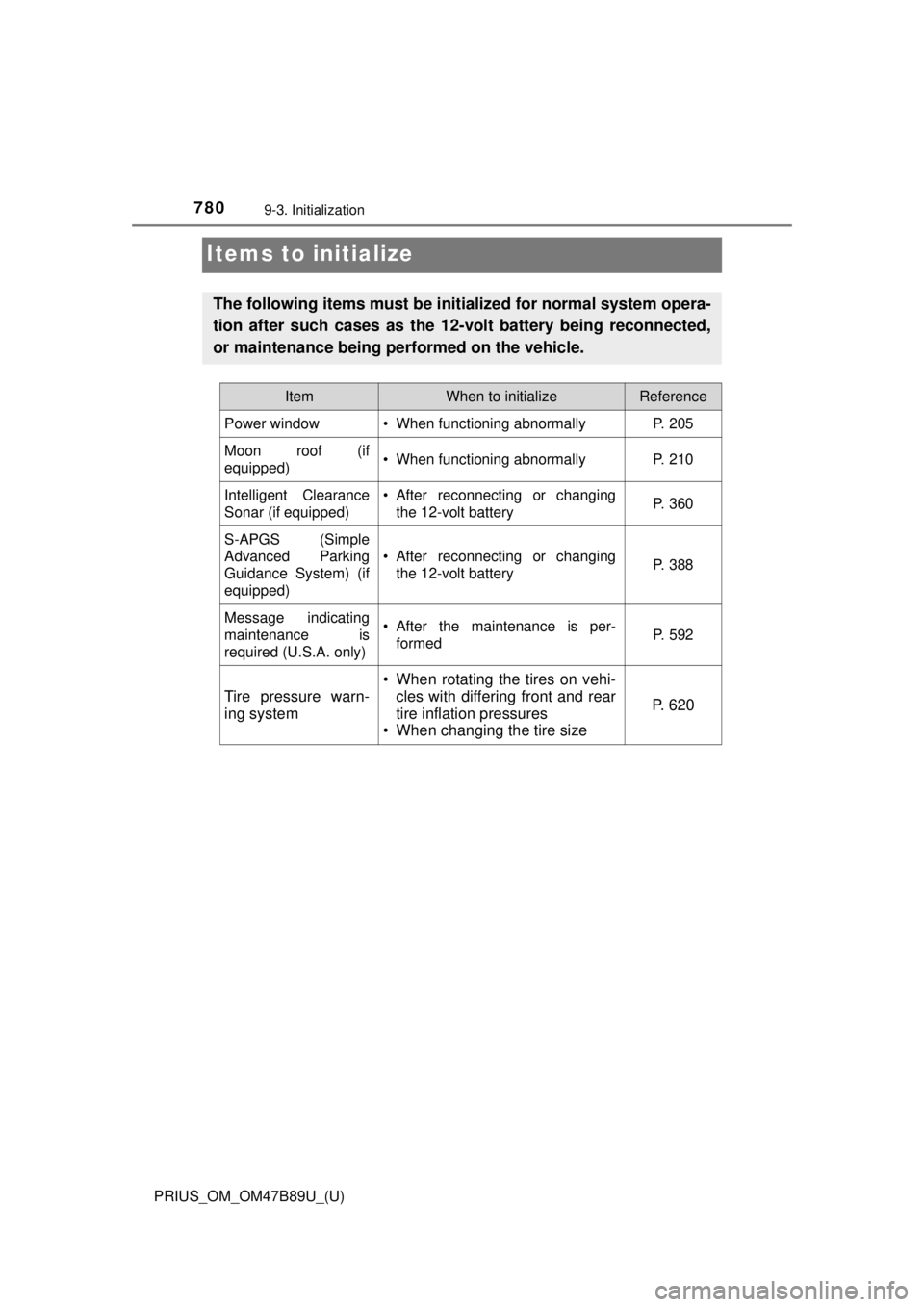

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle.
ItemWhen to initializeReference
Power window• When functioning abnormallyP. 205
Moon roof (if
equipped)• When functioning abnormallyP. 210
Intelligent Clearance
Sonar (if equipped)• After reconnecting or changing the 12-volt batteryP. 360
S-APGS (Simple
Advanced Parking
Guidance System) (if
equipped)
• After reconnecting or changingthe 12-volt batteryP. 388
Message indicating
maintenance is
required (U.S.A. only)• After the maintenance is per-formedP. 592
Tire pressure warn-
ing system
• When rotating the tires on vehi-cles with differing front and rear
tire inflation pressures
• When changing the tire size
P. 6 2 0
