TOYOTA PRIUS 2018 (in English) User Guide
Manufacturer: TOYOTA, Model Year: 2018, Model line: PRIUS, Model: TOYOTA PRIUS 2018Pages: 56, PDF Size: 3.82 MB
Page 11 of 56
9
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Engine maintenance
Windshield washer fluid tank Engine oil level dipstickEngine coolant reservoir Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.” Maintenance reset light instructions can be
I R X Q G L Q
Page 12 of 56
10

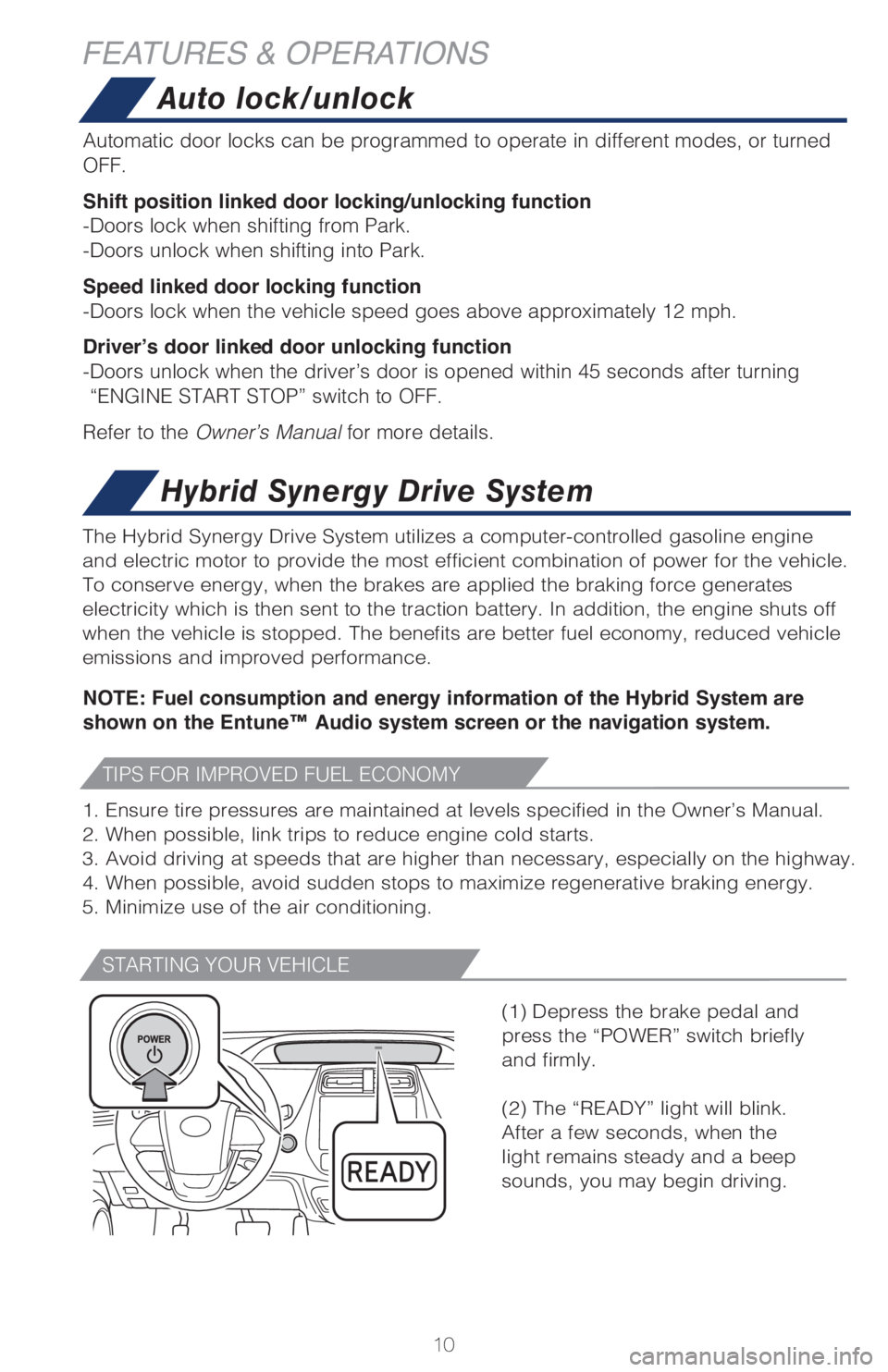

TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Entune™ Audio system screen or the navigation system.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the vehicle.
To conserve energy, when the brakes are applied the braking force generates
electricity which is then sent to the traction battery. In addition, the engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduced vehicle
emissions and improved performance.
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
2. When possible, link trips to reduce engine cold starts.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking energy.
5. Minimize use of the air conditioning.
Hybrid Synergy Drive System
Auto lock/unlock
FEATURES & OPERATIONS
(1) Depress the brake pedal and
press the “POWER” switch briefly
and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a beep
sounds, you may begin driving.
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph.
' U L Y H U
Page 13 of 56
11
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

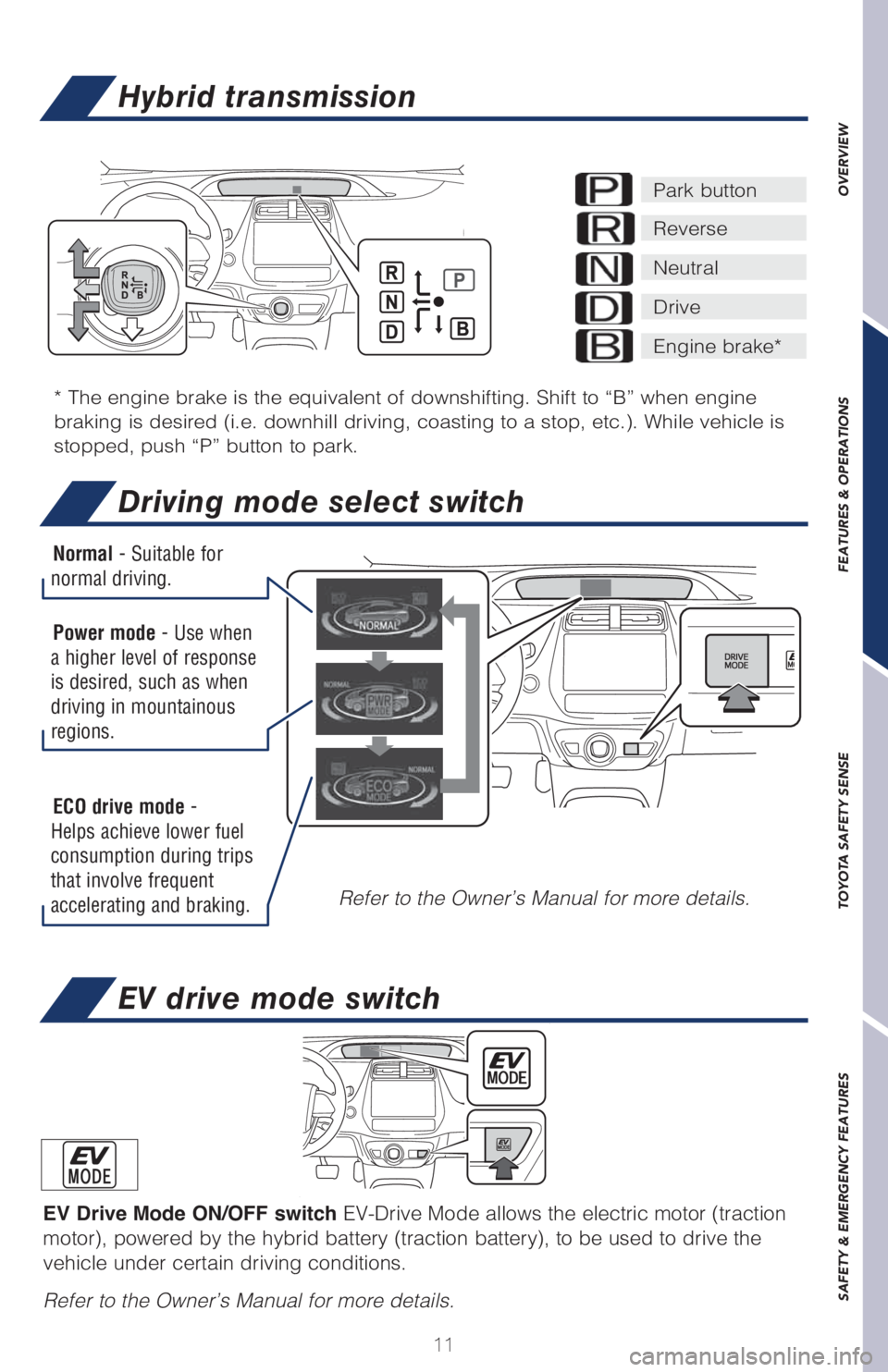

* The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.). While vehicle is
stopped, push “P” button to park.
Reverse
Park button
Neutral
Drive
Engine brake*
Hybrid transmission
Driving mode select switch
EV Drive Mode ON/OFF switch EV-Drive Mode allows the electric motor (traction
motor), powered by the hybrid battery (traction battery), to be used to drive the
vehicle under certain driving conditions.
Refer to the Owner’s Manual for more details.
Normal - Suitable for
normal driving.
Power mode - Use when
a higher level of response
is desired, such as when
driving in mountainous
regions.
ECO drive mode -
Helps achieve lower fuel
consumption during trips
that involve frequent
accelerating and braking.Refer to the Owner’s Manual for more details.
EV drive mode switch
Page 14 of 56
12

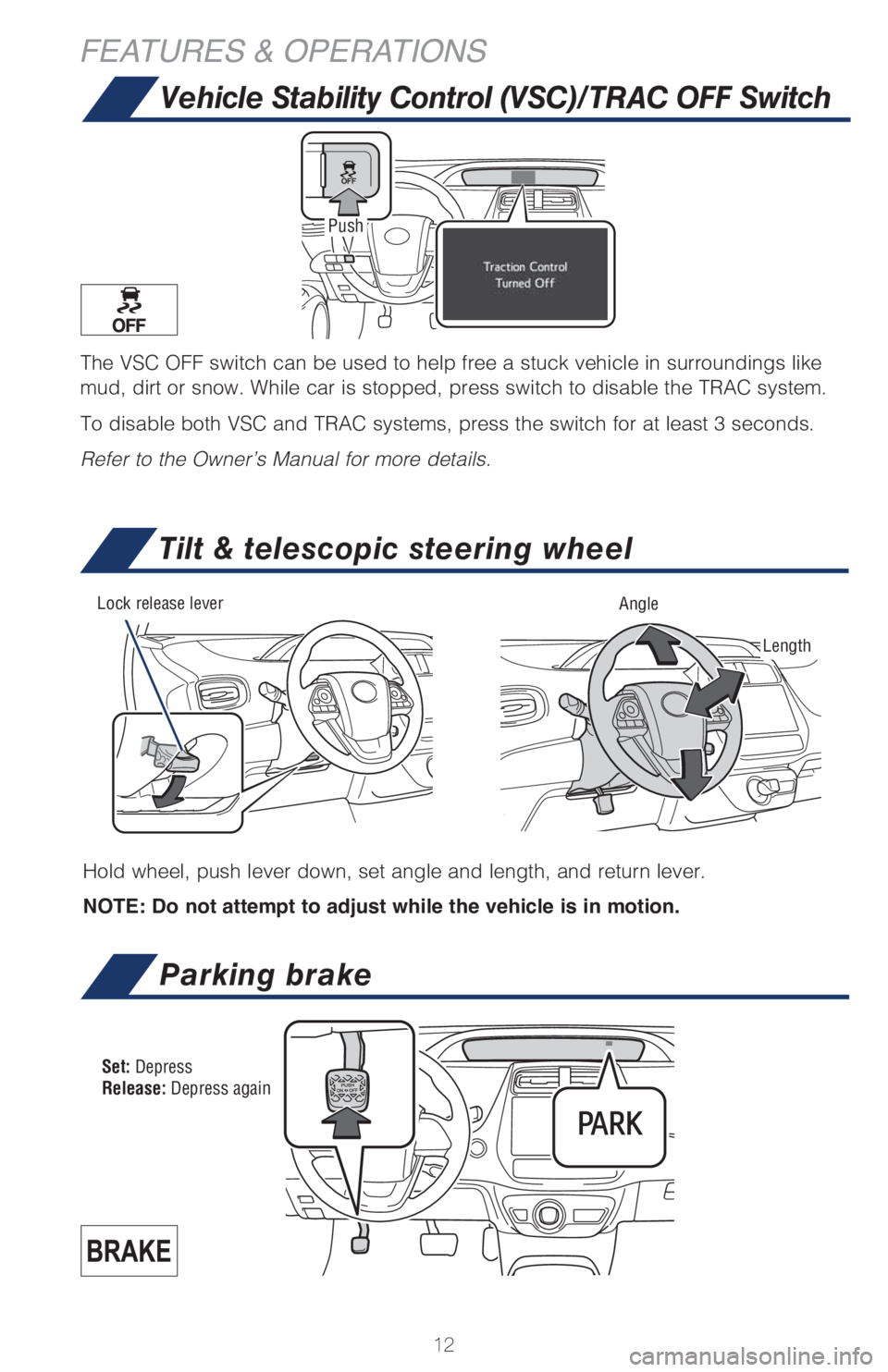

Vehicle Stability Control (VSC)/TRAC OFF Switch
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt & telescopic steering wheel
FEATURES & OPERATIONS
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While car is stopped, press switch to disable the TRAC system.
To disable both VSC and TRAC systems, press the switch for at least 3 seconds.
Refer to the Owner’s Manual for more details.
Push
Lock release lever
Angle
Length
Page 15 of 56
13
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

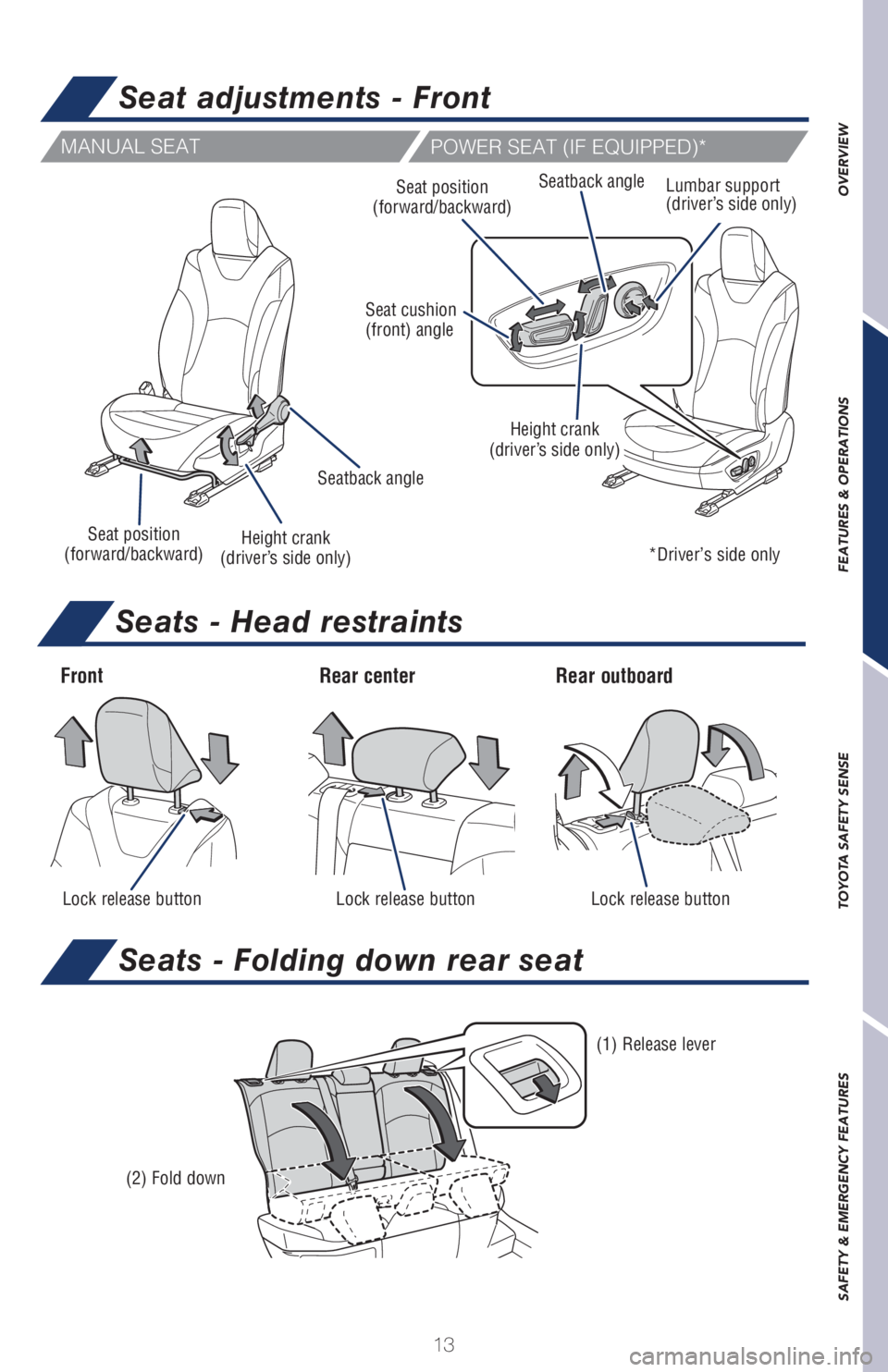

Seat adjustments - Front
Seats - Head restraints
Seats - Folding down rear seat
MANUAL SEAT
POWER SEAT (IF EQUIPPED)*
Front Rear center
Lock release button Lock release button
Rear outboard
Lock release button*Driver’s side only
Seat position
(forward/backward)
Seat cushion
(front) angle
Height crank
(driver’s side only)Seatback angle
Lumbar support
(driver’s side only)
Seatback angle
Seat position
(forward/backward)Height crank
(driver’s side only)
(2) Fold down
(1) Release lever
Page 16 of 56
14

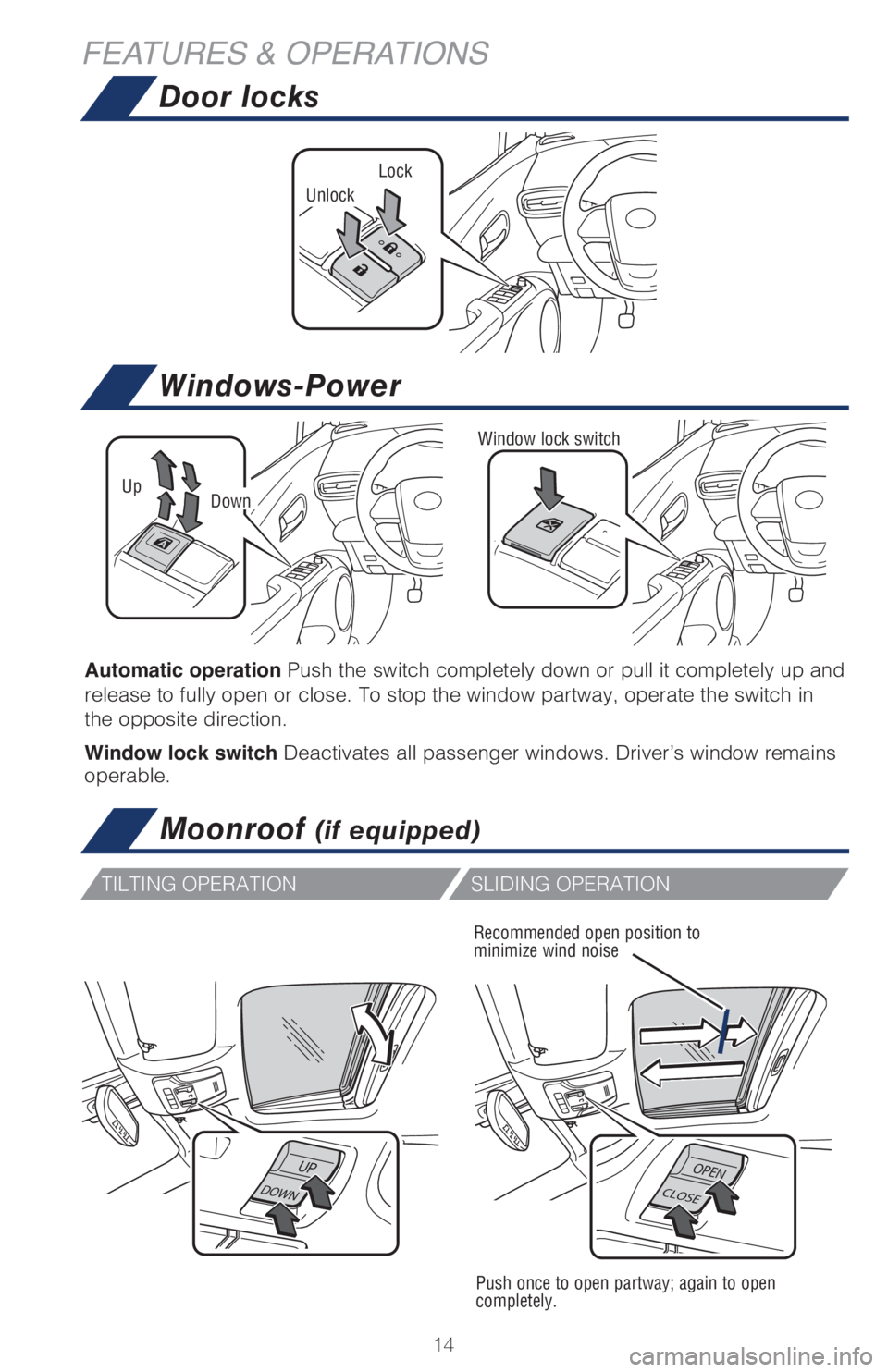

Windows-Power
Door locks
Moonroof (if equipped)
UpDown
Window lock switch
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop the window partway, operate the switch in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Push once to open partway; again to open
completely.
Unlock
Lock
TILTING OPERATION
SLIDING OPERATION
FEATURES & OPERATIONS
Recommended open position to
minimize wind noise
Page 17 of 56
15
OVERVIEW FEATURES & OPERATIONS
TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
FRONT-INTERMITTENT (IF EQUIPPED)
REAR (IF EQUIPPED)
FRONT-AUTO (RAIN-SENSING)(IF EQUIPPED)

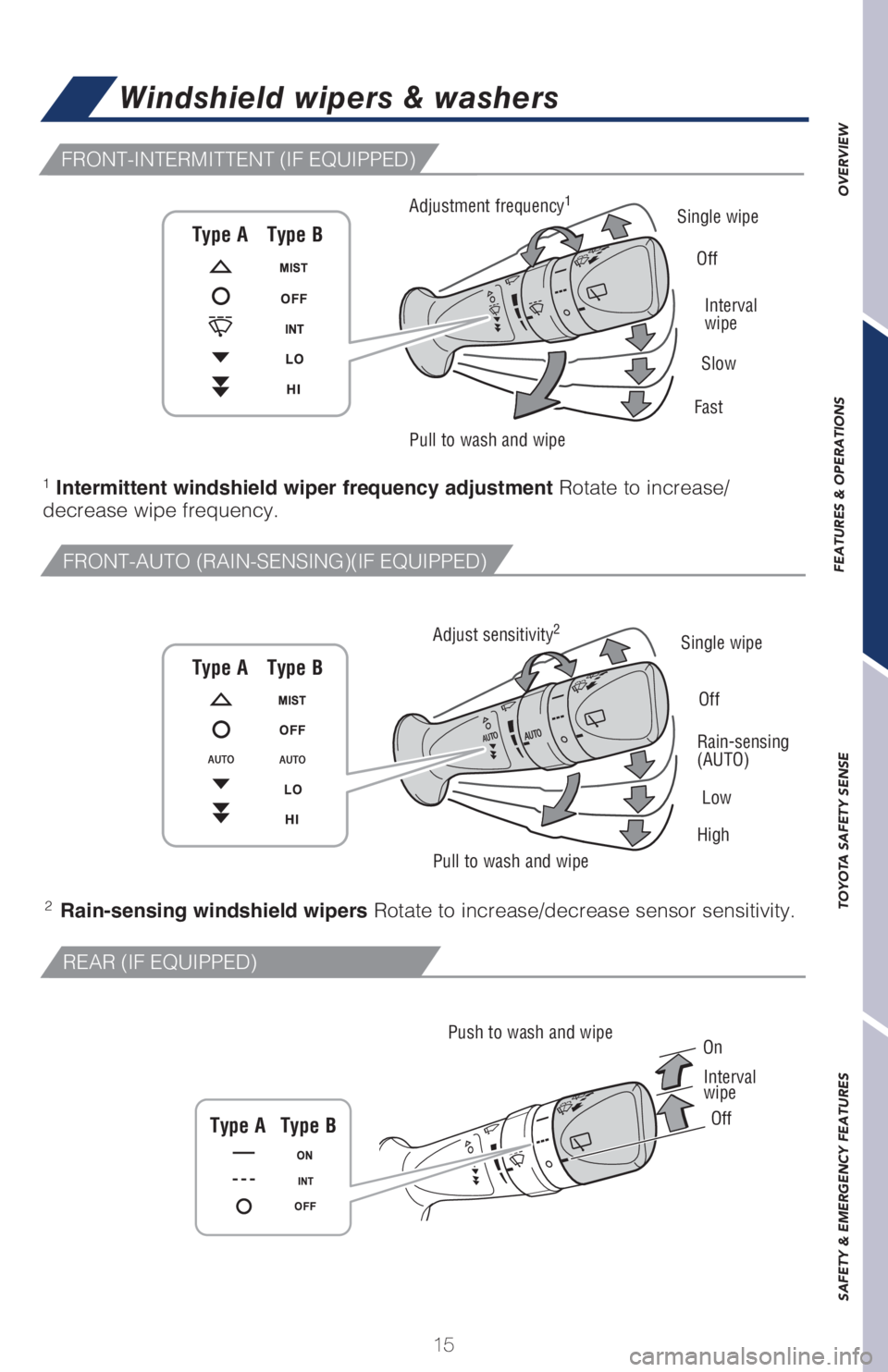

Windshield wipers & washers
1 Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.
2 Rain-sensing windshield wipers Rotate to increase/decrease sensor sensitivity.
Type A
Type A
Type A
Type B
Type B
Type B
Single wipe
Pull to wash and wipe
Adjustment frequency1
Interval
wipe
Slow
FastOff
Single wipe
Off Adjust sensitivity
2
Pull to wash and wipeRain-sensing
(AUTO)
Low
High
Off On
Interval
wipe
Push to wash and wipe
Page 18 of 56
16

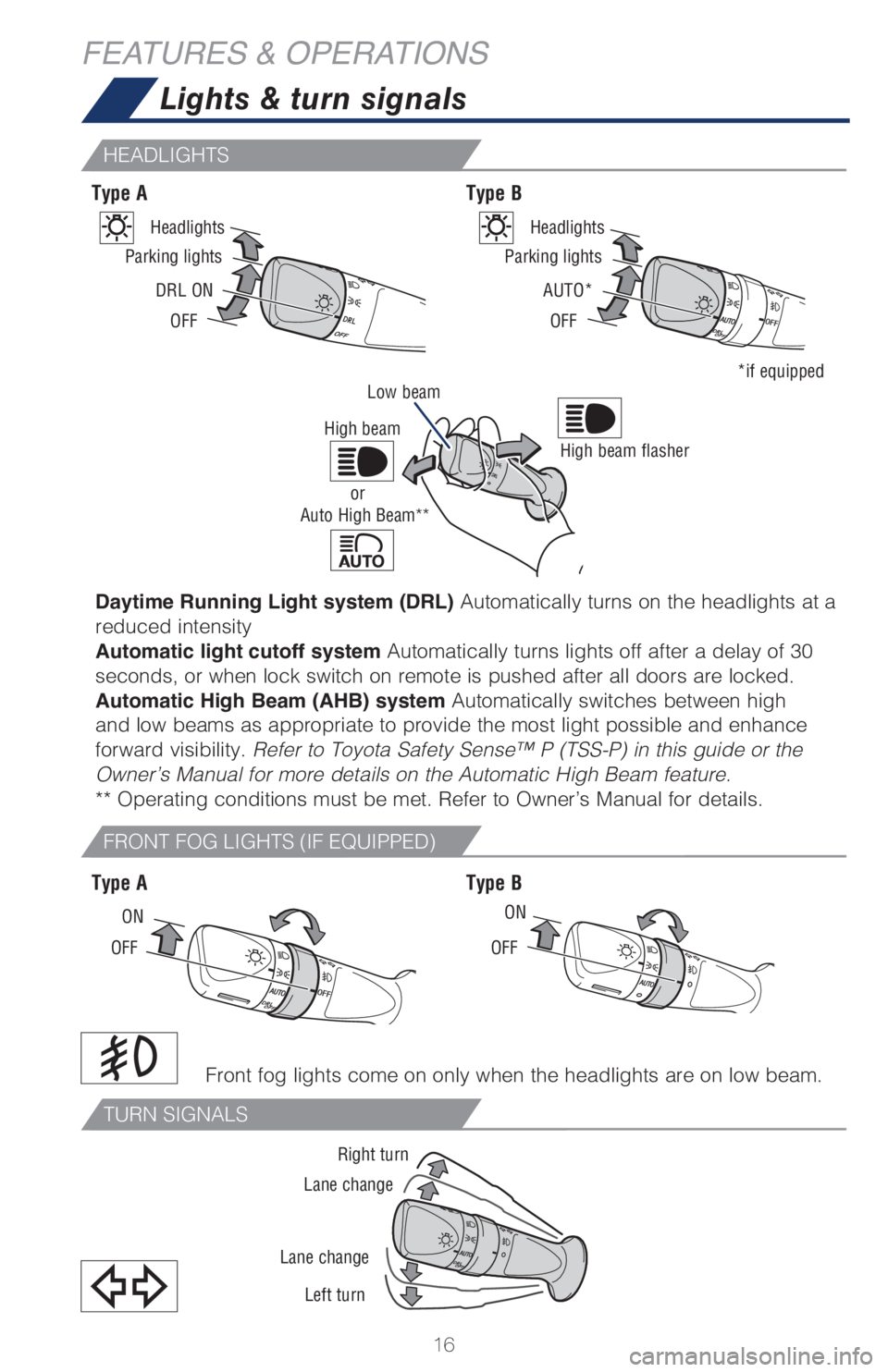

Lights & turn signals
Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds, or when lock switch on remote is pushed after all doors are locked.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to provide the most light possible and enhance
forward visibility. Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the
Owner’s Manual for more details on the Automatic High Beam feature.
** Operating conditions must be met. Refer to Owner’s Manual for details.
Front fog lights come on only when the headlights are on low beam.
Type A
Type AType B
Type B
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)
TURN SIGNALS
FEATURES & OPERATIONS
DRL ON
OFF Parking lightsHeadlightsAUTO*
OFF Parking lightsHeadlights
*if equippedLow beam
OFFON
OFFON
Right turn
Lane change
Lane change
Left turn
( I G H B E A M m A S H E RHigh beam
Auto High Beam**or
Page 19 of 56
17
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

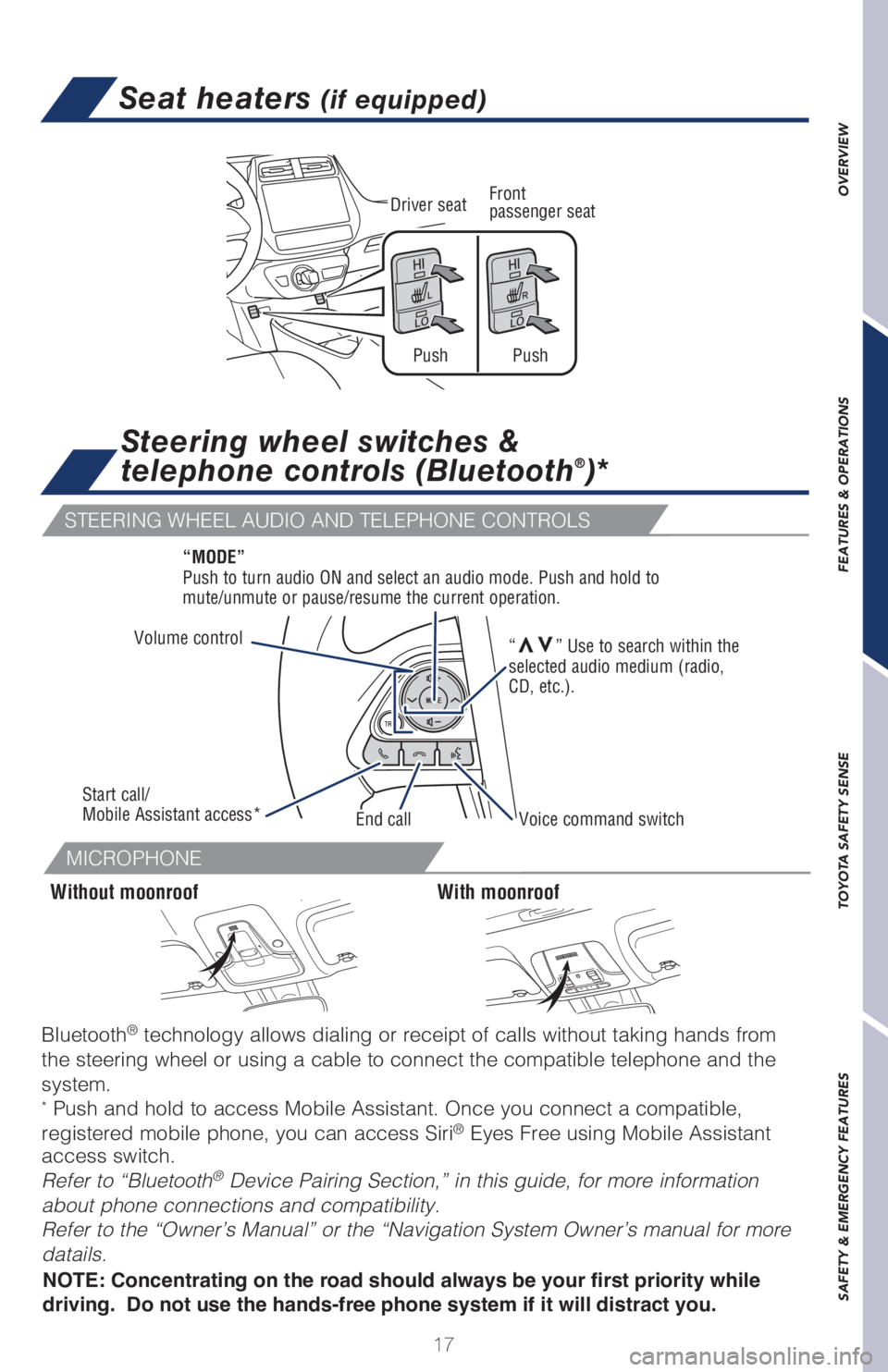

Seat heaters (if equipped)
MICROPHONE
STEERING WHEEL AUDIO AND TELEPHONE CONTROLS
Steering wheel switches &
telephone controls (Bluetooth®)*
Without moonroofWith moonroof
Bluetooth
® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
* Push and hold to access Mobile Assistant. Once you connect a compatible,
registered mobile phone, you can access Siri® Eyes Free using Mobile Assistant
access switch.
Refer to “Bluetooth
® Device Pairing Section,” in this guide, for more information
about phone connections and compatibility.
Refer to the “Owner’s Manual” or the “Navigation System Owner’s manual for more
datails.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the hands-free phone system if it will distract you.
Volume control
Start call/
Mobile Assistant access*
End callVoice command switch “MODE”
Push to turn audio ON and select an audio mode. Push and hold to
mute/unmute or pause/resume the current operation.
“
vv” Use to search within the
selected audio medium (radio,
CD, etc.).
Driver seatFront
passenger seat
Push Push
Page 20 of 56
18
FEATURES & OPERATIONS

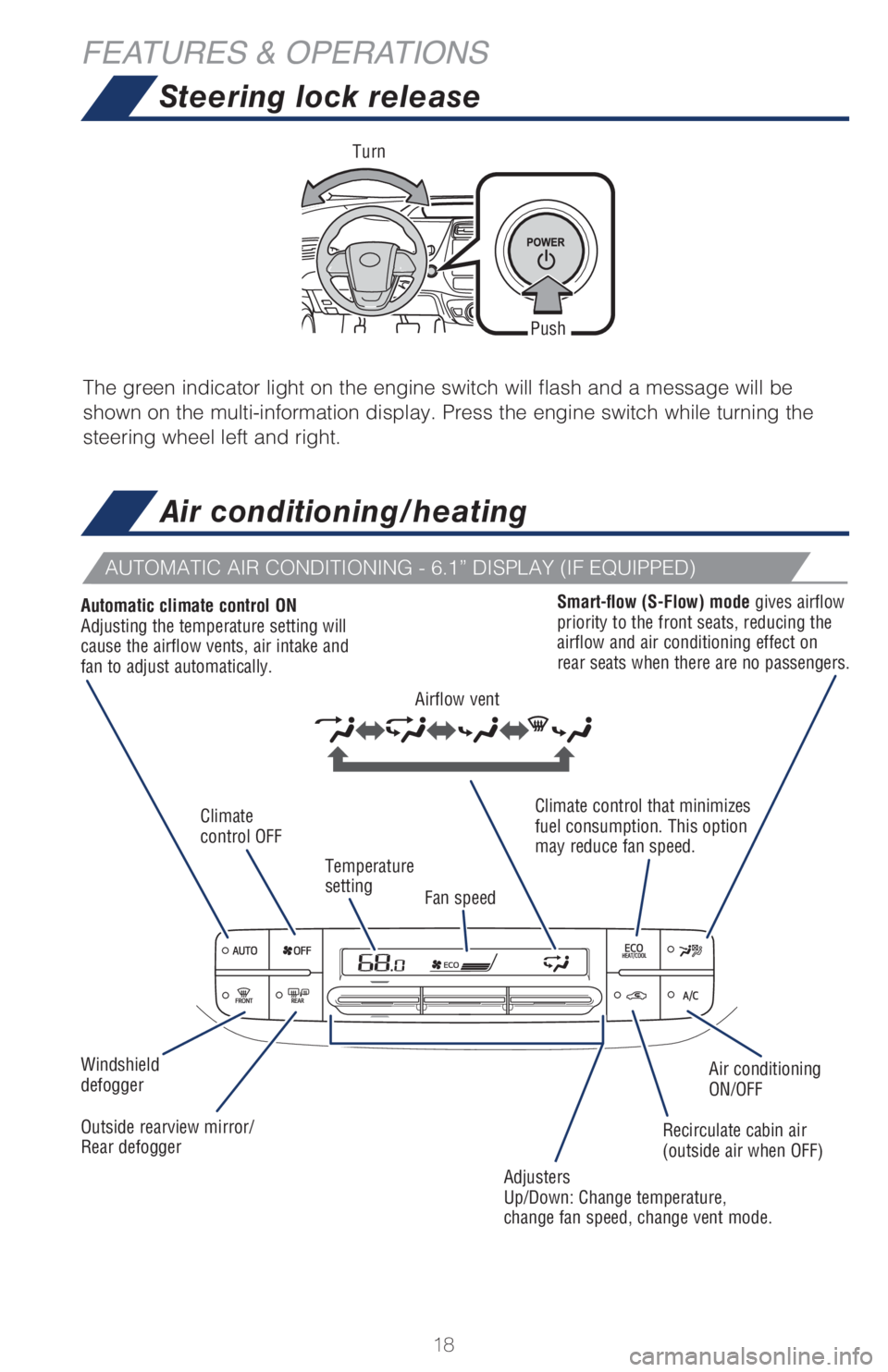

AUTOMATIC AIR CONDITIONING - 6.1” DISPLAY (IF EQUIPPED)
Air conditioning/heating
Air conditioning
ON/OFF
Recirculate cabin air
(outside air when OFF)
! I R m O W V E N T
Windshield
defogger
Outside rearview mirror/
Rear defogger Automatic climate control ON
Adjusting the temperature setting will
C A U S E T H E A I R m O W V E N T S A I R I N T A K E A N D
fan to adjust automatically. 3 M A R T
m O W 3
& L O W M O D E G I V E S A I R m O W
P R I O R I T Y T O T H E F R O N T S E A T S R E D U C I N G T H E
A I R m O W A N D A I R C O N D I T I O N I N G E F F E C T O N
rear seats when there are no passengers.
Climate
control OFF
Temperature
setting
Fan speedClimate control that minimizes
fuel consumption. This option
may reduce fan speed.
Adjusters
5 P $ O W N # H A N G E T E M P E R A T U R E
C H A N G E F A N S P E E D C H A N G E V E N T M O D E
5 I F H S F F O J O E J D B U P S M J H I U P O U I F F O H J O F T X J U D I X J M M n B T I B O E B N F T T B H F X J M M C F
T I P X O P O U I F N V M U J J O G P S N B U J P O E J T Q M B Z 1 S F T T U I F F O H J O F T X J U D I X I J M F U V S O J O H U I F
T U F F S J O H X I F F M M F G U B O E S J H I U
Push Turn
Steering lock release
