TOYOTA PRIUS 2018 (in English) Owner's Manual
Manufacturer: TOYOTA, Model Year: 2018, Model line: PRIUS, Model: TOYOTA PRIUS 2018Pages: 56, PDF Size: 3.82 MB
Page 21 of 56
19
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

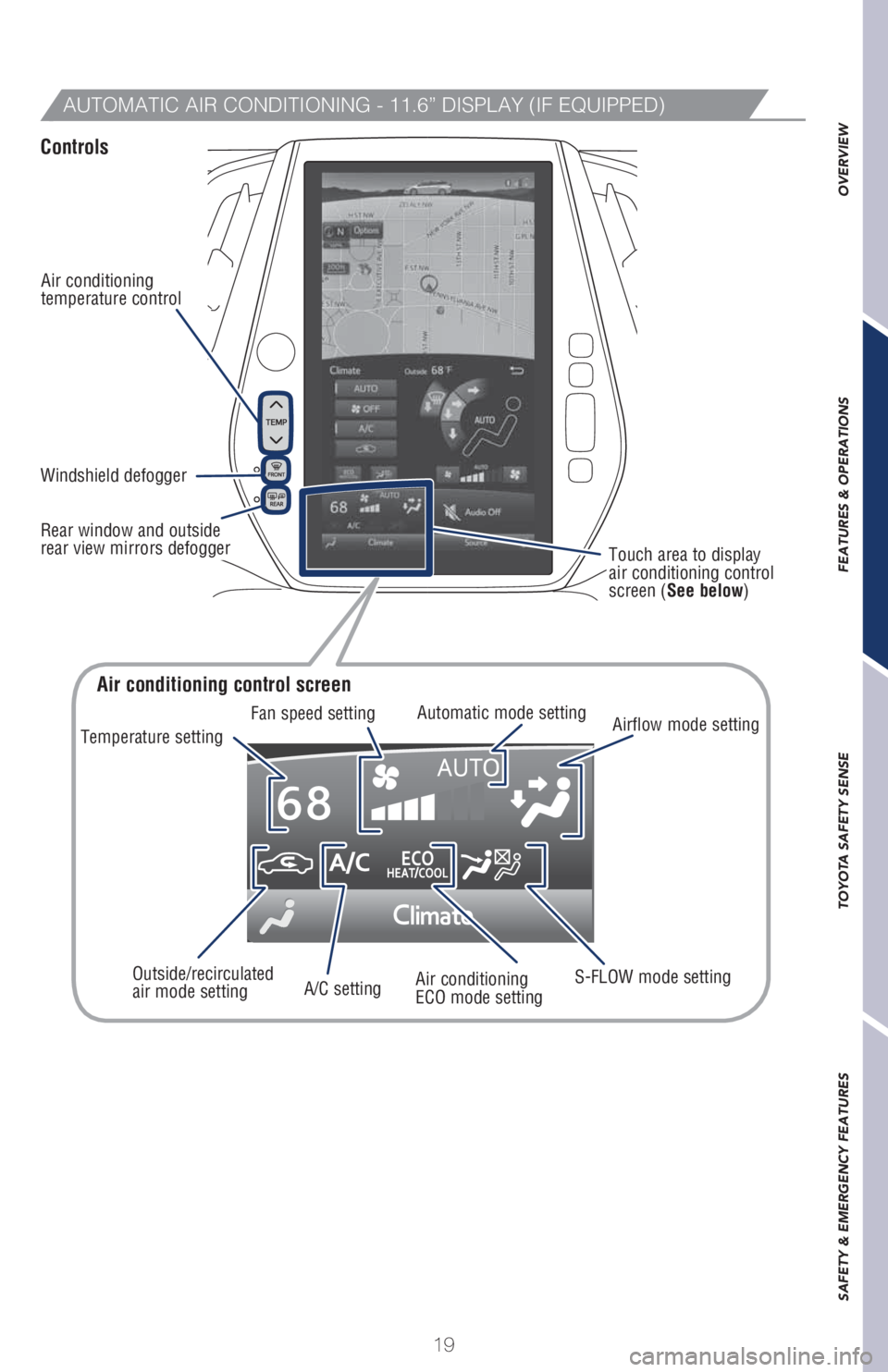

AUTOMATIC AIR CONDITIONING - 11.6” DISPLAY (IF EQUIPPED)
Controls
Air conditioning
temperature control
Windshield defogger
Rear window and outside
rear view mirrors defogger
Temperature settingFan speed settingAutomatic mode setting
Air conditioning control screen
! I R m O W M O D E S E T T I N G
S-FLOW mode setting
Air conditioning
ECO mode setting A/C setting Outside/recirculated
air mode setting
Touch area to display
air conditioning control
screen ( 3 E E B E L O W)
Page 22 of 56
20

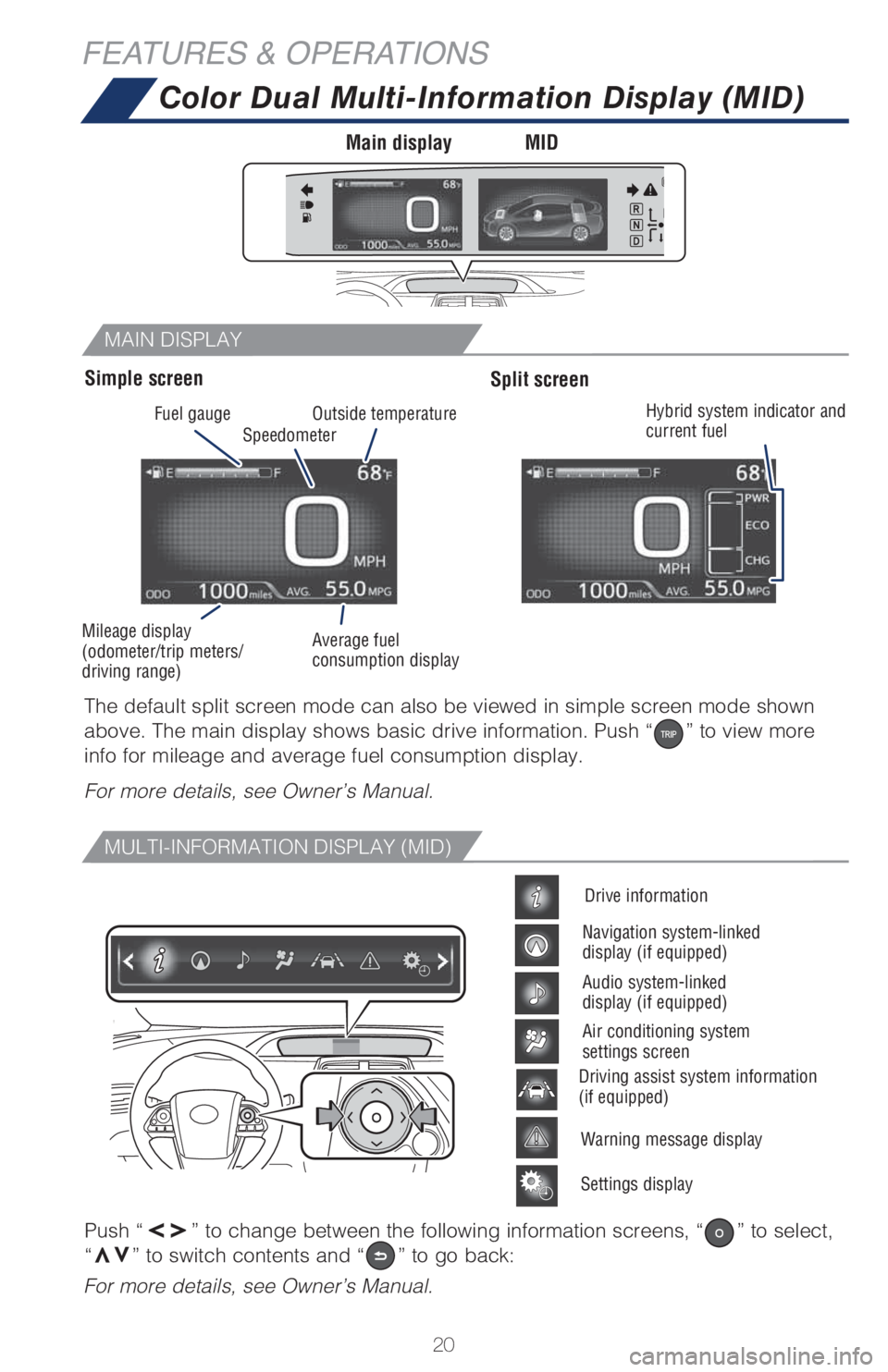

MAIN DISPLAY
MULTI-INFORMATION DISPLAY (MID)
Color Dual Multi-Information Display (MID)
Push “vv” to change between the following information screens, “” to select,
“vv” to switch contents and “” to go back:
The default split screen mode can also be viewed in simple screen mode shown
above. The main display shows basic drive information. Push “
” to view more
info for mileage and average fuel consumption display.
For more details, see Owner’s Manual.
For more details, see Owner’s Manual.
Warning message display
Settings display Driving assist system information
(if equipped)
Drive information
Navigation system-linked
display (if equipped)
Audio system-linked
display (if equipped)
Air conditioning system
settings screen
Simple screenMain display MIDSplit screen
FEATURES & OPERATIONS
Fuel gauge
Mileage display
(odometer/trip meters/
driving range)Average fuel
consumption display SpeedometerOutside temperatureHybrid system indicator and
current fuel
Page 23 of 56
21
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

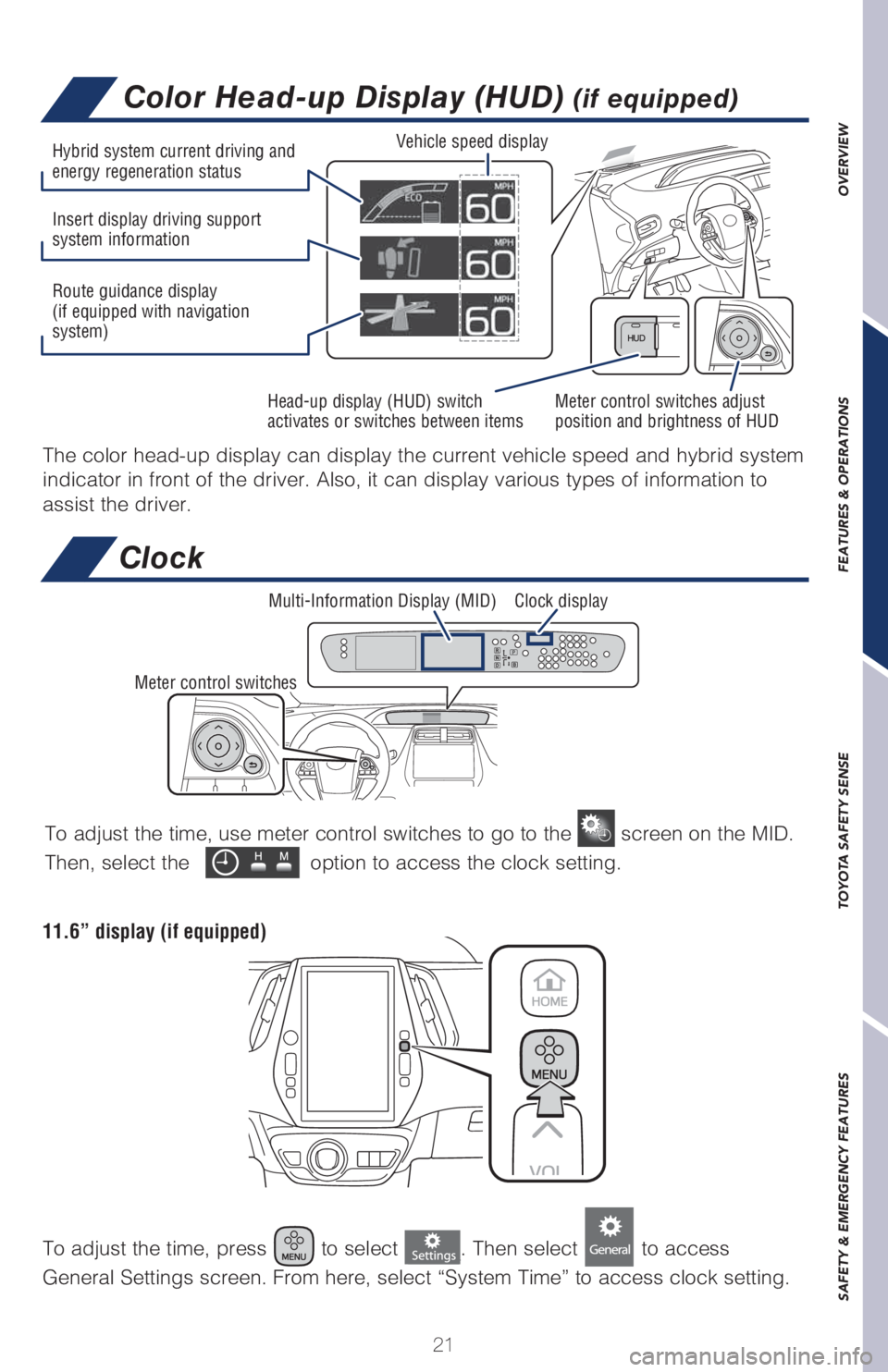

Color Head-up Display (HUD) (if equipped)
The color head-up display can display the current vehicle speed and hybrid system
indicator in front of the driver. Also, it can display various types of information to
assist the driver.
Meter control switches adjust
position and brightness of HUD Head-up display (HUD) switch
activates or switches between itemsVehicle speed display
Hybrid system current driving and
energy regeneration status
Insert display driving support
system information
Route guidance display
(if equipped with navigation
system)
Clock
To adjust the time, use meter control switches to go to the screen on the MID.
Then, select the
option to access the clock setting.
Multi-Information Display (MID) Clock display
Meter control switches
To adjust the time, press to select . Then select to access
General Settings screen. From here, select “System Time” to access clock setting.
11.6” display (if equipped)
Page 24 of 56
22

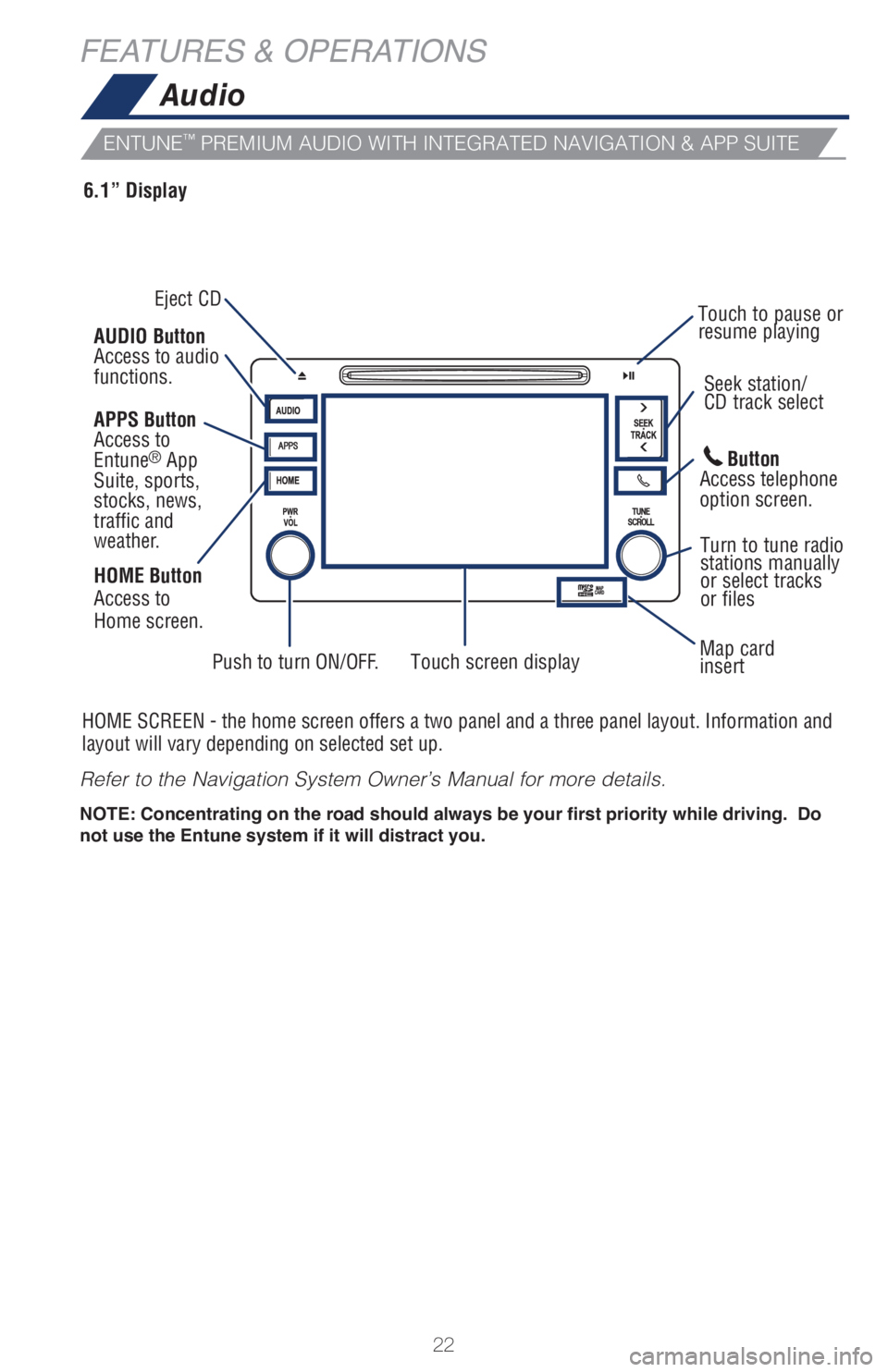

6.1” Display
Audio
FEATURES & OPERATIONS
HOME SCREEN - the home screen offers a two panel and a three panel layout. Information and
layout will vary depending on selected set up.HOME Button
Access to
Home screen.
Map card
insert Touch screen display Push to turn ON/OFF.
Seek station/
CD track select Touch to pause or
resume playing
Button
Access telephone
option screen.
Turn to tune radio
stations manually
or select tracks
O R l L E S
ENTUNE™ PREMIUM AUDIO WITH INTEGRATED NAVIGATION & APP SUITE
Refer to the Navigation System Owner’s Manual for more details.
NOTE: Concentrating on the road should always be your first priority while driving. Do
not use the Entune system if it will distract you.
Eject CD
AUDIO Button
Access to audio
functions.
APPS Button
Access to
Entune
® App
Suite, sports,
stocks, news,
T R A F l C A N D
weather.
Page 25 of 56
23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

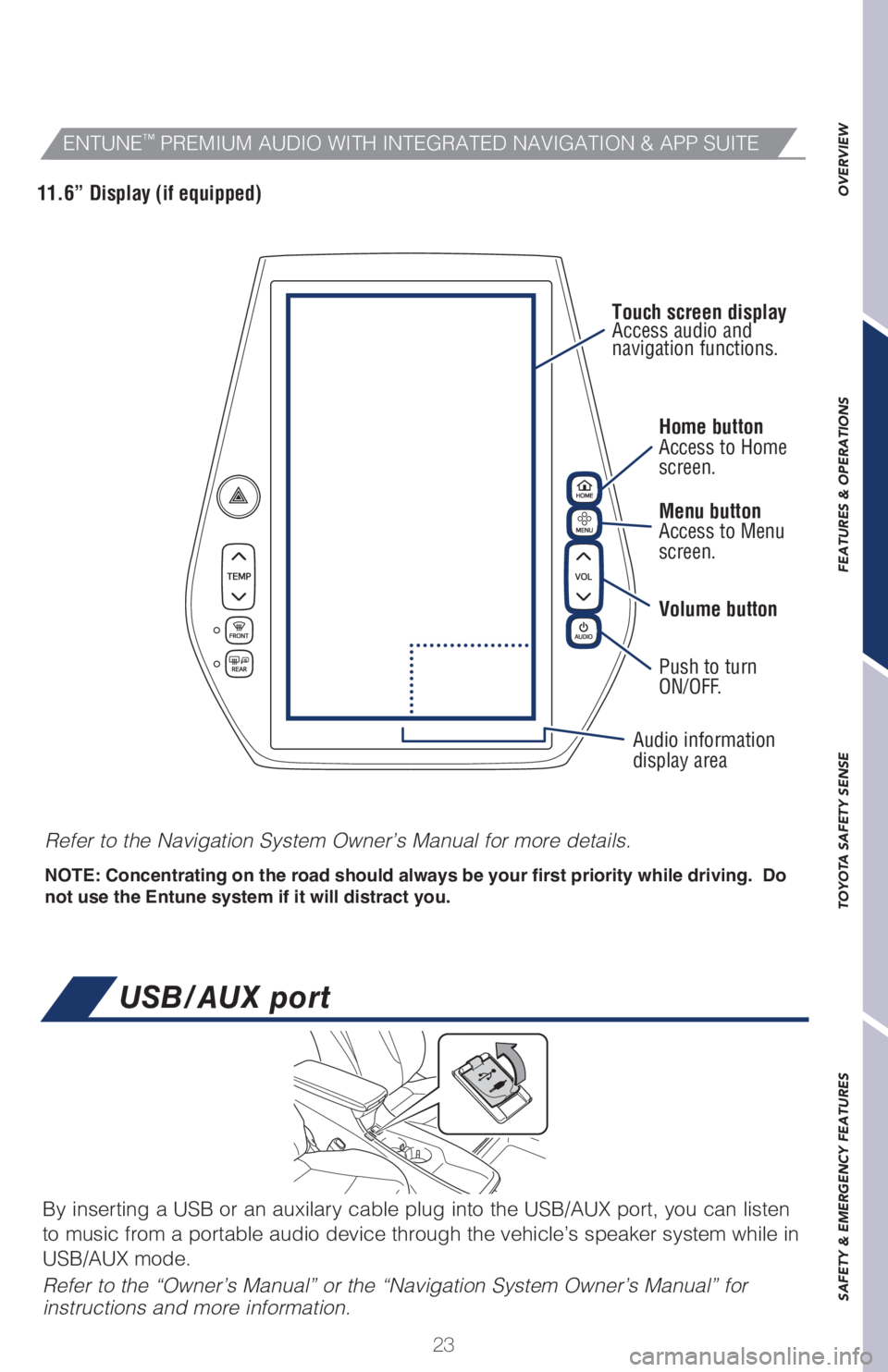

USB/AUX port
Home button
Access to Home
screen.
Menu button
Access to Menu
screen.
Volume button
Push to turn
ON/OFF.
Audio information
display area Touch screen display
Access audio and
navigation functions. 11.6” Display (if equipped)
ENTUNE™ PREMIUM AUDIO WITH INTEGRATED NAVIGATION & APP SUITE
By inserting a USB or an auxilary cable plug into the USB/AUX port, you can listen
to music from a portable audio device through the vehicle’s speaker system while in
USB/AUX mode.
Refer to the “Owner’s Manual” or the “Navigation System Owner’s Manual” for
instructions and more information.
Refer to the Navigation System Owner’s Manual for more details.
NOTE: Concentrating on the road should always be your first priority while driving. Do
not use the Entune system if it will distract you.
Page 26 of 56
24
FEATURES & OPERATIONS

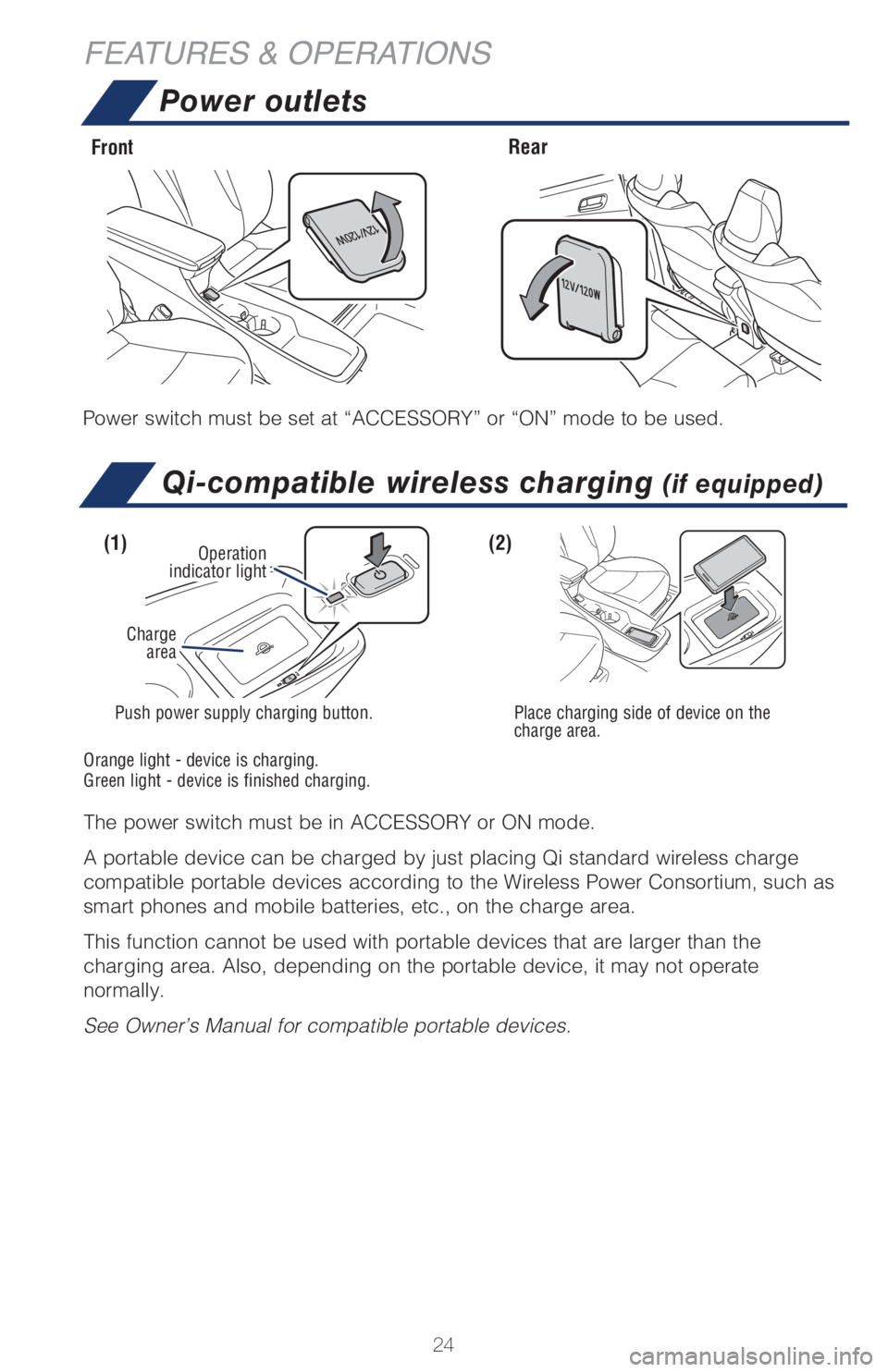

Qi-compatible wireless charging (if equipped)
The power switch must be in ACCESSORY or ON mode.
A portable device can be charged by just placing Qi standard wireless charge
compatible portable devices according to the Wireless Power Consortium, such as
smart phones and mobile batteries, etc., on the charge area.
This function cannot be used with portable devices that are larger than the
charging area. Also, depending on the portable device, it may not operate
normally.
See Owner’s Manual for compatible portable devices.
Power outlets
FrontRear
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
Push power supply charging button.
(1)(2)
Place charging side of device on the
charge area.
Operation
indicator light
Charge
area
Orange light - device is charging.
' R E E N L I G H T
D E V I C E I S l N I S H E D C H A R G I N G
Page 27 of 56
25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

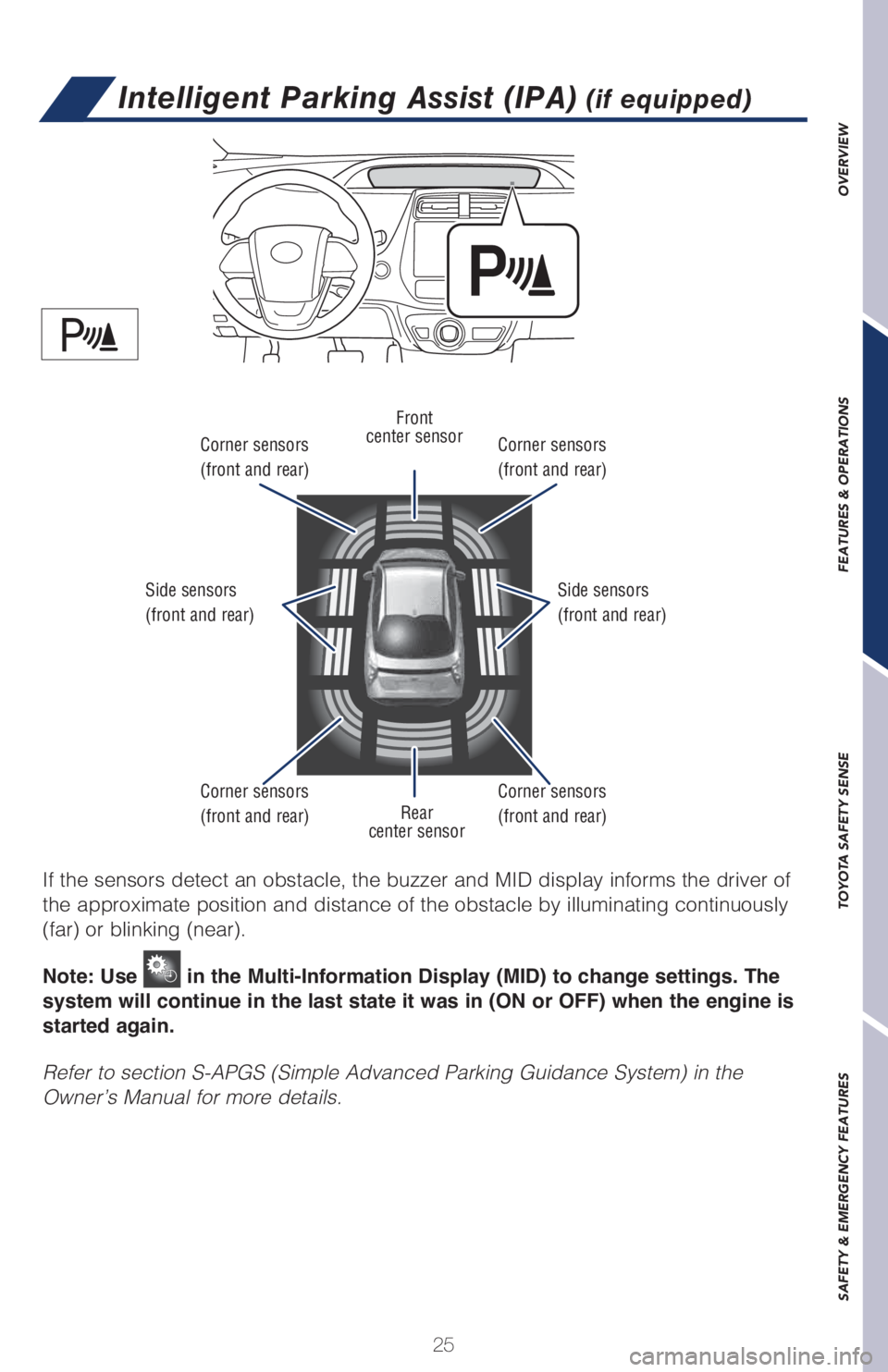

Intelligent Parking Assist (IPA) (if equipped)
If the sensors detect an obstacle, the buzzer and MID display informs the driver of
the approximate position and distance of the obstacle by illuminating continuously
(far) or blinking (near).
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for more details.
Front
center sensor
Rear
center sensor Corner sensors
(front and rear)
Corner sensors
(front and rear) Side sensors
(front and rear)Side sensors
(front and rear) Corner sensors
(front and rear)
Corner sensors
(front and rear)
Page 28 of 56
26

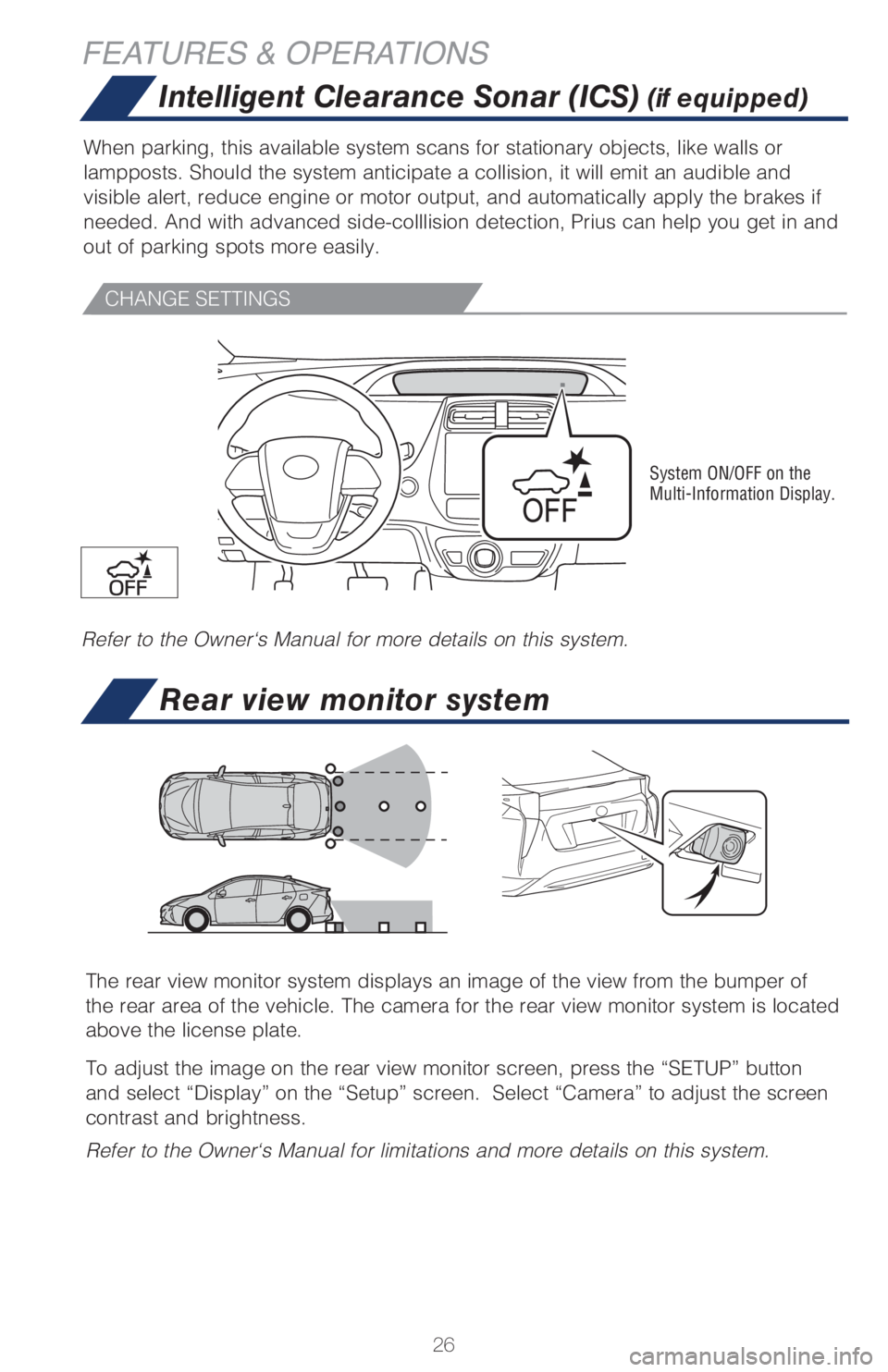

Intelligent Clearance Sonar (ICS) (if equipped)
When parking, this available system scans for stationary objects, like walls or
lampposts. Should the system anticipate a collision, it will emit an audible and
visible alert, reduce engine or motor output, and automatically apply the brakes if
needed. And with advanced side-colllision detection, Prius can help you get in and
out of parking spots more easily.
Refer to the Owner‘s Manual for more details on this system.
System ON/OFF on the
Multi-Information Display.
CHANGE SETTINGS
FEATURES & OPERATIONS
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this system.
Page 29 of 56
27
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

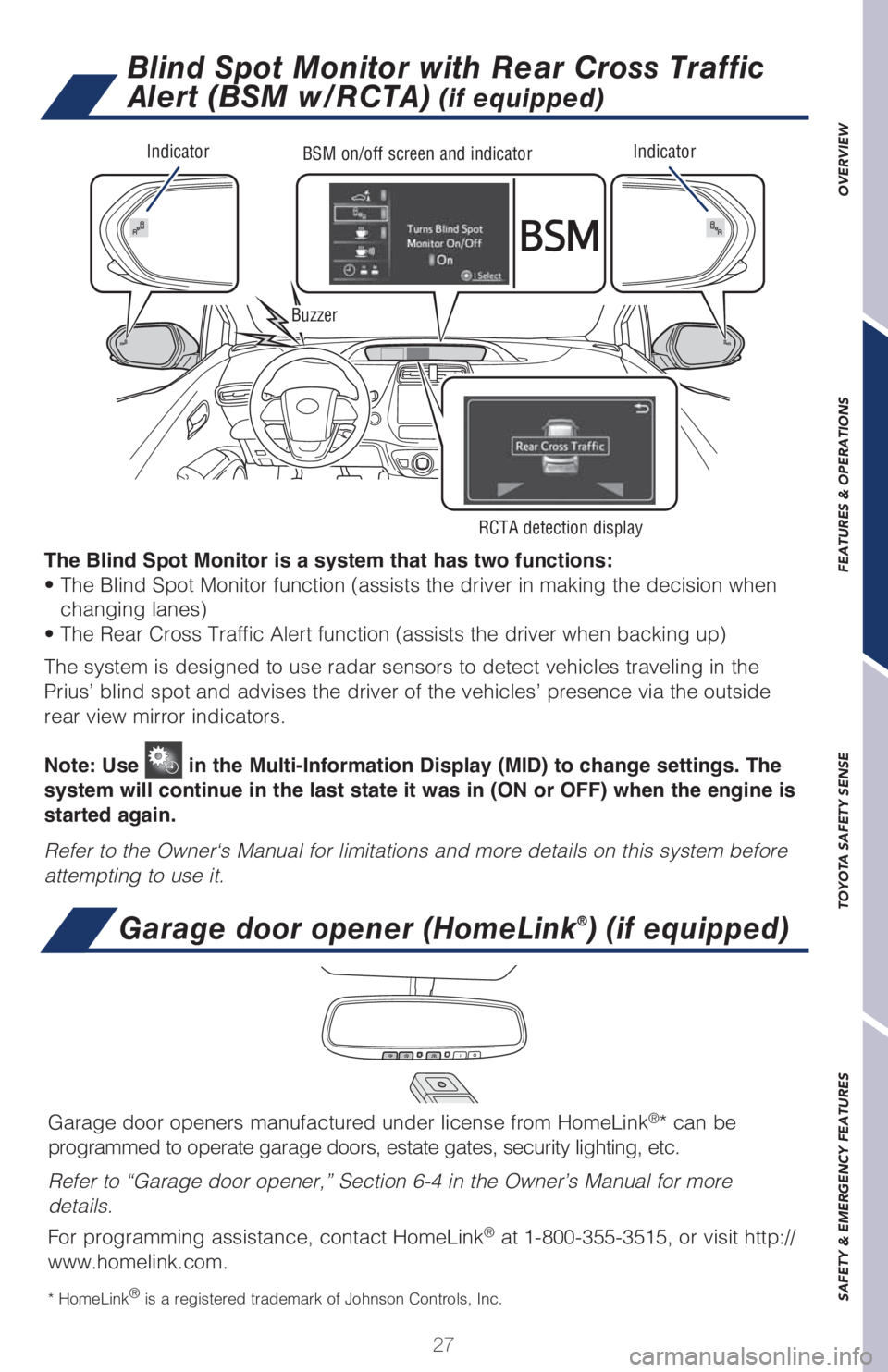

Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA)
(if equipped)
Garage door opener (HomeLink®) (if equipped)
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
t 5 I F 3 F B S $ S P T T 5 S B G m D " M F S U G V O D U J P O B T T J T U T U I F E S J W F S X I F O C B D L J O H V Q
The system is designed to use radar sensors to detect vehicles traveling in the
Prius’ blind spot and advises the driver of the vehicles’ presence via the outside
rear view mirror indicators.
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit http://
www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
IndicatorIndicatorBSM on/off screen and indicator
Buzzer
RCTA detection display
Page 30 of 56
28

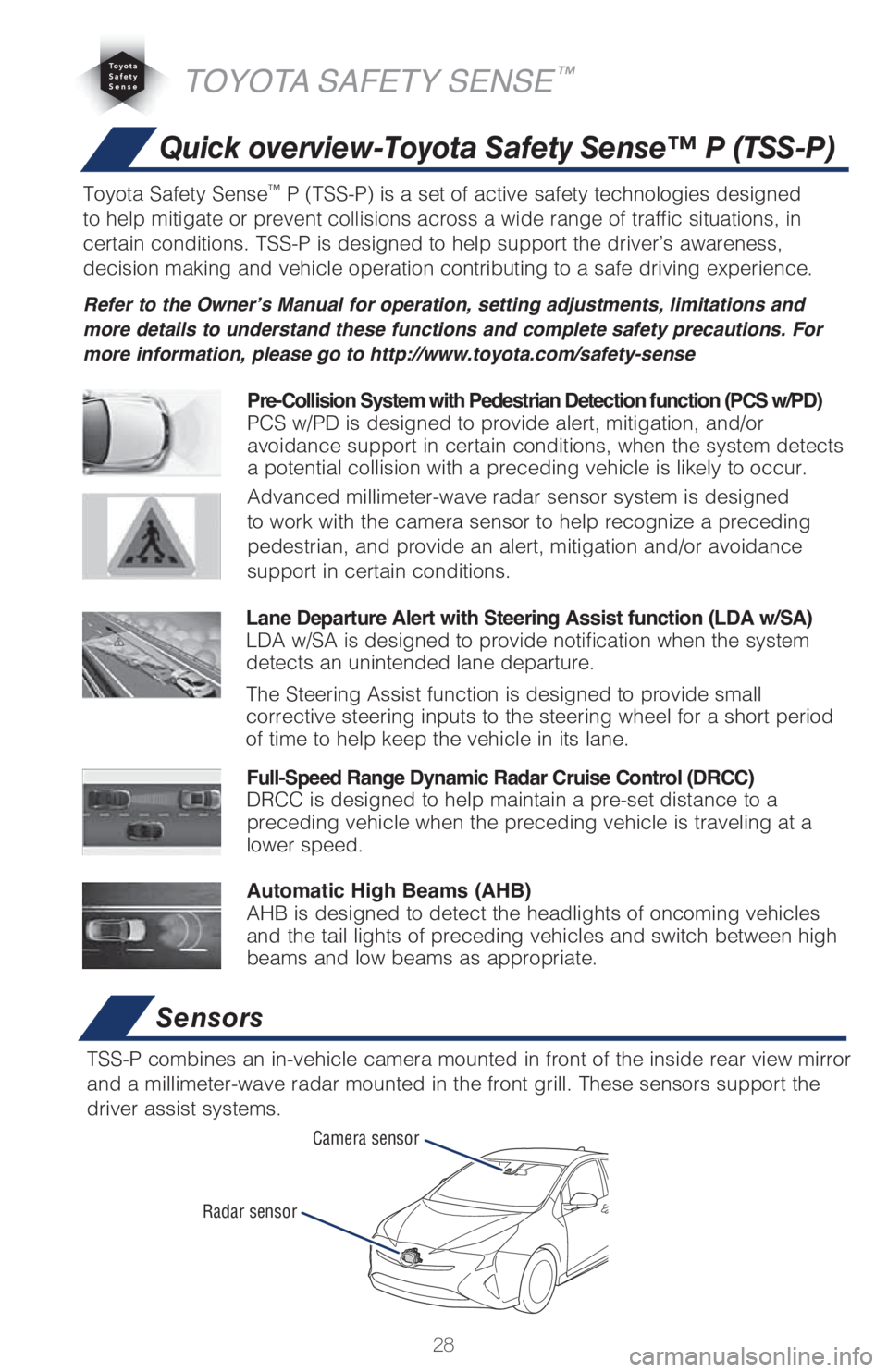

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grill. These sensors support the
driver assist systems.
Camera sensor
Radar sensor
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
U P I F M Q N J U J H B U F P S Q S F W F O U D P M M J T J P O T B D S P T T B X J E F S B O H F P G U S B G m D T J U V B U J P O T
J O
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
5 H I H U W R W K H 2 Z Q H U
