TOYOTA PRIUS 2019 Owners Manual (in English)

PRIUS_OM_OM47C35U_(U)
5616-3. Using the storage features
6
Interior features
■Installing the luggage cover
Install one side of the luggage
cover to the holder. While push-
ing that side in, install the other
side to the opposite holder.
■Using the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
■Removing the luggage cover
Push one end of the luggage
cover inward and remove it
from the holder.
Luggage cover (if equipped)

562
PRIUS_OM_OM47C35U_(U)
6-3. Using the storage features
■Stowing the luggage cover (except vehicles with full-size spare
tire)
Open the deck board and
secure it with the grocery bag
hooks.
Store cover in the deck under
box.
Close the deck board.
1
2
WARNING
●Do not place anything on the luggage cover. In the event of sud den brak-
ing or turning, the item may go flying and strike an occupant. This could
lead to an unexpected accident, resulting in death or serious i njury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibl y causing
death or serious injury to the child.
● Make sure that the rear edge of the cover is laying flat. If th e cover is
installed with the rear edge raised, the view from the rear win dow may be
obstructed, which could cause an accident.
● Make sure that seat belts are not caught up in the luggage cover. If a seat
belt is caught up in the cover, it may not be able to restrain passengers
properly.
3

563
PRIUS_OM_OM47C35U_(U)
6-4. Using the other interior features
6
Interior features
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
To use the side extender, place
the visor in the side position,
then slide it backward.
Slide the cover to open.
The light turns on when the cover
is opened.
If the vanity light remain on when the power switch is turned o ff, the light will
go off automatically after 20 minutes.
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity l ights on for
extended periods while the hybrid system is off.

564
PRIUS_OM_OM47C35U_(U)
6-4. Using the other interior features
Please use as a power supply for electronic goods that use less than
12 V DC/10 A (power consumption of 120 W).
Open the cover.
■ The power outlet can be used when
The power switch is in ACCESSORY or ON mode.
■ When stopping the hybrid system
Disconnect electrical devices with charging functions, such as mobile battery
packs.
If such devices are left connected, the hybrid system may not s top normally.
Power outlets
NOTICE
●To avoid damaging the power outlets, close the power outlets li d when the
power outlet is not in use.
Foreign objects or liquids that enter the power outlets may cause a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outl et longer
than necessary when the hybrid system is off.

PRIUS_OM_OM47C35U_(U)
5656-4. Using the other interior features
6
Interior features
The USB charging ports are used to supply 2.1 A of electricity at 5 V
to external devices. The USB c harging ports are for charging on ly.
They are not designed for data transfer or other purposes.
Depending on the external device, it may not charge properly. R efer to
the manual included with the dev ice before using a USB charging
port.
Open the lid.
USB charging ports

566
PRIUS_OM_OM47C35U_(U)
6-4. Using the other interior features
■The USB charging ports can be used when
The power switch is in ACCESSORY or ON mode.
■ Situations in which the USB charg ing ports may not operate correctly
● If a device which consumes more than 2.1 A at 5 V is connected
● If a device designed to communicate with a personal computer, s uch as a
USB memory device, is connected
● If the connected external device is turned off (depending on device)
● If the temperature inside the vehicle is high, such as after the vehicle has
been parked in the sun
■ About connected external devices
Depending on the connected external device, charging may occasi onally be
suspended and then start again. This is not a malfunction.
NOTICE
■To prevent damage to the USB charging ports
● Do not insert foreign objects into the ports.
● Do not spill water or other liquids into the ports.
● When the USB charging ports are not in use, close the lids. If a foreign
object or liquid enters a port may cause a short circuit.
● Do not apply excessive force to or impact the USB charging ports.
● Do not disassemble or modify the USB charging ports.
■ To prevent damage to external devices
● Do not leave external devices in the vehicle. The temperature i nside the
vehicle may become high, resulting in damage to an external device.
● Do not push down on or apply unnecessary force to an external device or
the cable of an external device while it is connected.
■ To prevent battery discharge
Do not use the USB charging ports for a long period of time with the hybrid
system stopped.

PRIUS_OM_OM47C35U_(U)
5676-4. Using the other interior features
6
Interior features
A portable device can be charged by just placing Qi standard wireless
charge compatible portable devices according to the Wireless Po wer
Consortium, such as smart phones and mobile batteries, etc., on the
charge area.
This function cannot be used with portable devices that are lar ger
than the charging area. Also, depending on the portable device, it may
not operate as normal. Please read the operation manual for por table
devices to be used.
■The “Qi” symbol
The “Qi” symbol is a trademark of the Wireless Power Consortium .
■Name for all parts
Power supply switch
Operation indicator light
Charge area
Wireless charger (if equipped)
1
2
3

568
PRIUS_OM_OM47C35U_(U)
6-4. Using the other interior features
■Using the wireless charger
Press the power supply
switch of the wireless char-
ger.
Switches on and off with each
press of the power supply
switch.
When turned on, the operation
indicator light (green) comes on.
Even with the hybrid system off,
the on/off state of the power
supply switch is memorized.
Place the charging side of
the portable device down.
When charging, the operation
indicator light (orange) comes
on.
If charging is not occurring, try
placing the portable device as
close to the center of the
charging area as possible.
When charging is complete, the operation indicator light (green ) comes
on.
● Recharging function
• When charging is complete and after a fixed time in the charge suspension state, c harging restarts.
• When the portable device is moved, charging is stopped for a moment and then it restarts.
1
2

PRIUS_OM_OM47C35U_(U)
5696-4. Using the other interior features
6
Interior features

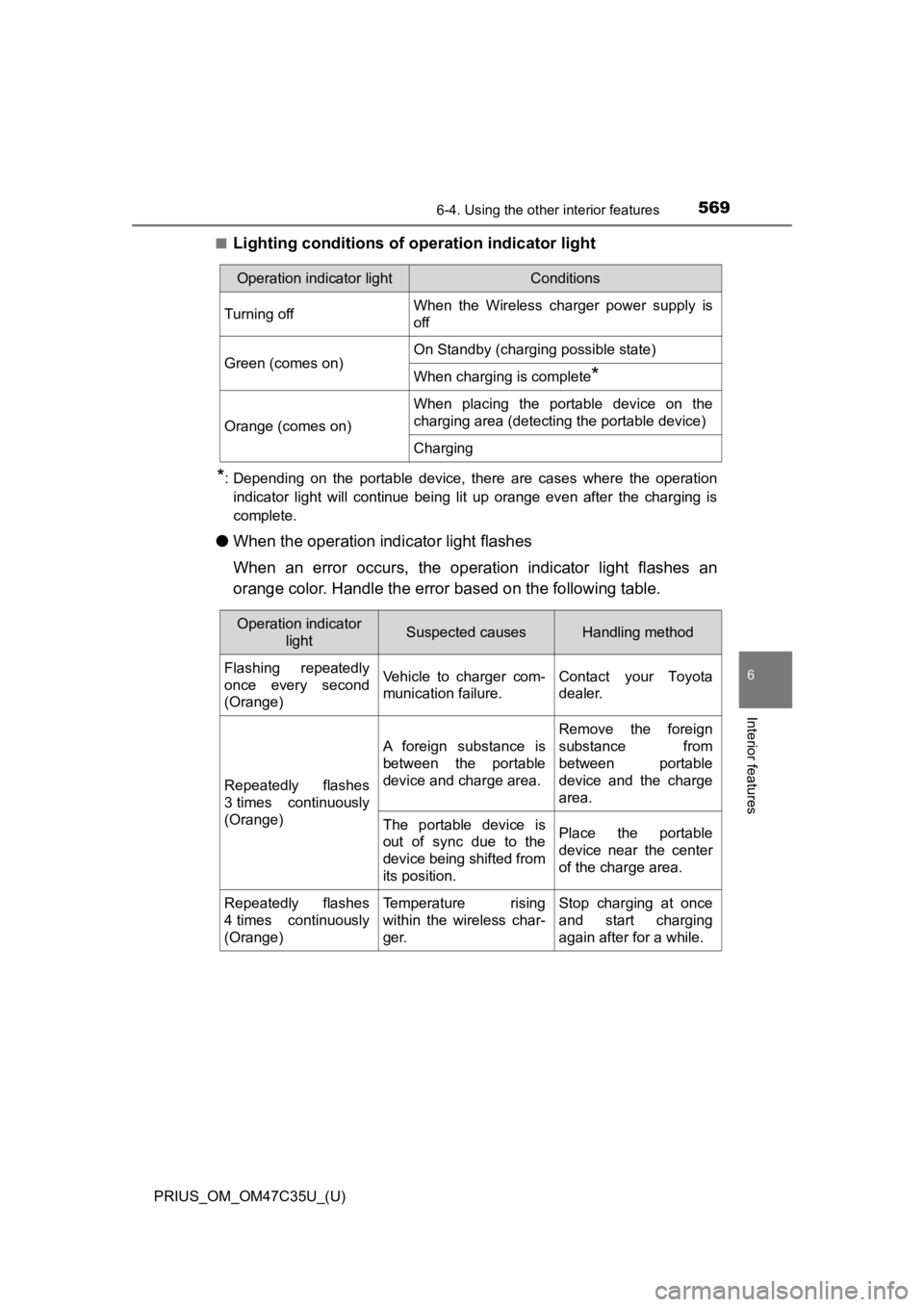

■Lighting conditions of operation indicator light
*: Depending on the portable device, there are cases where the op eration
indicator light will continue being lit up orange even after the charging is
complete.
● When the operation indi cator light flashes
When an error occurs, the operat ion indicator light flashes an
orange color. Handle the error based on the following table.
Operation indicator lightConditions
Turning offWhen the Wireless charger power supply is
off
Green (comes on)On Standby (charging possible state)
When charging is complete*
Orange (comes on)
When placing the portable device on the
charging area (detecting the portable device)
Charging
Operation indicator
lightSuspected causesHandling method
Flashing repeatedly
once every second
(Orange)Vehicle to charger com-
munication failure.Contact your Toyota
dealer.
Repeatedly flashes
3 times continuously
(Orange)
A foreign substance is
between the portable
device and charge area.
Remove the foreign
substance from
between portable
device and the charge
area.
The portable device is
out of sync due to the
device being shifted from
its position.Place the portable
device near the center
of the charge area.
Repeatedly flashes
4 times continuously
(Orange)Temperature rising
within the wireless char-
ger.Stop charging at once
and start charging
again after for a while.

570
PRIUS_OM_OM47C35U_(U)
6-4. Using the other interior features
■The wireless charger can be operated when
The power switch is in ACCESSORY or ON mode.
■ Usable portable devices
Qi standard wireless charge standard can be used on compatible devices.
However, not all Qi standard devices and compatibility are guar anteed.
Starting with mobile phones and smart phones, it is aimed for l ow power elec-
trically supplied portable devices of no more than 5W.
■ When covers and accessories are attached to portable devices
Do not charge in situations where cover and accessories not able to handle
Qi are attached to the portable device. Depending on the type o f cover and
accessory, it may not be possible to charge. When charging is not performed
even with the portable device placed on the charge area, remove the cover
and accessories.
■ While charging, noise enters the AM radio
Turn off the wireless charger and confirm that the noise has decreased. If the
noise decreases, continuously pushing the power supply switch o f the wire-
less charger for 2 seconds, the frequency of the charger can be changed and
the noise can be reduced.
Also, on that occasion, the operation indicator light will flas h orange 2 times.
■ Important points of the wireless charger
●If the electronic key cannot be detected within the vehicle int erior, charging
cannot be done. When the door is opened and closed, charging ma y be
temporarily suspended.
● When charging, the wireless charging device and portable device will get
warmer, however this is not a malfunction.
When a portable device gets warm while charging, charging may s top due
to the protection function on the portable device side. In this case, when the
temperature of the portable device drops significantly, charge again.
■ Operation sounds
When the power supply is turned on, while searching for the portable device a
sound will be produced, however this is not a malfunction.
