TOYOTA PRIUS 2019 Owners Manual (in English)

751
PRIUS_OM_OM47C35U_(U)
8
When trouble arises
8-2. Steps to take in an emergency
If the vehicle becomes stuck
Set the parking brake and shift the shift position to P. Stop the
hybrid system.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheel s
to help provide traction.
Restart the hybrid system.
Shift the shift position to D or R and release the parking brak e.
Then, while exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC. ( P. 4 1 9 )
1
2
3
4
5

7528-2. Steps to take in an emergency
PRIUS_OM_OM47C35U_(U)
WARNING
■When attempting to f ree a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, obj ects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When changing the shift position
Be careful not to change the shift position with the accelerato r pedal
depressed.
This may lead to unexpected rapid acceleration of the vehicle t hat may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the hybrid transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are pe rformed,
the vehicle may require towing to be freed.

753
PRIUS_OM_OM47C35U_(U)
9Vehicle specifications
9-1. SpecificationsMaintenance data (fuel, oil level, etc.) .......... 754
Fuel information ................ 765
Tire information ................. 768
9-2. Customization Customizable features ...... 780
9-3. Initialization Items to initialize ............... 790

754
PRIUS_OM_OM47C35U_(U)
9-1. Specifications

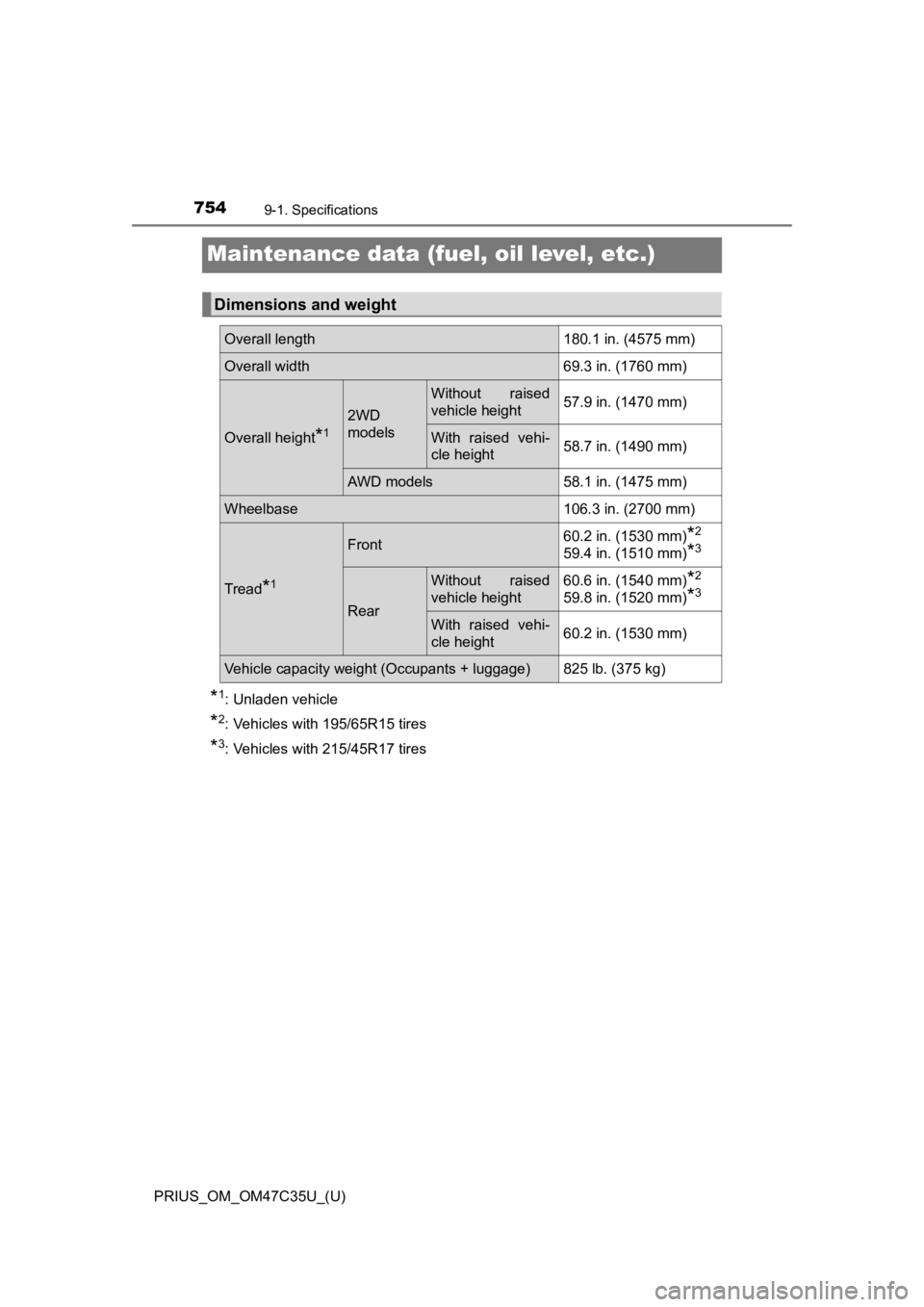

Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 215/45R17 tires
Dimensions and weight
Overall length180.1 in. (4575 mm)
Overall width69.3 in. (1760 mm)
Overall height*1
2WD
models
Without raised
vehicle height57.9 in. (1470 mm)
With raised vehi-
cle height58.7 in. (1490 mm)
AWD models58.1 in. (1475 mm)
Wheelbase106.3 in. (2700 mm)
Tread*1
Front60.2 in. (1530 mm)*2
59.4 in. (1510 mm)*3
Rear
Without raised
vehicle height60.6 in. (1540 mm)*2
59.8 in. (1520 mm)*3
With raised vehi-
cle height60.2 in. (1530 mm)
Vehicle capacity weight (Occupants + luggage)825 lb. (375 kg)

PRIUS_OM_OM47C35U_(U)
7559-1. Specifications
9
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for you r
Toyota. It is used in registeri ng the ownership of your vehicle .
This number is stamped on the
top left of the instrument panel.
This number is also stamped
under the right-hand front seat.
This number is also on the Cer-
tification label.
Vehicle identification

756
PRIUS_OM_OM47C35U_(U)
9-1. Specifications

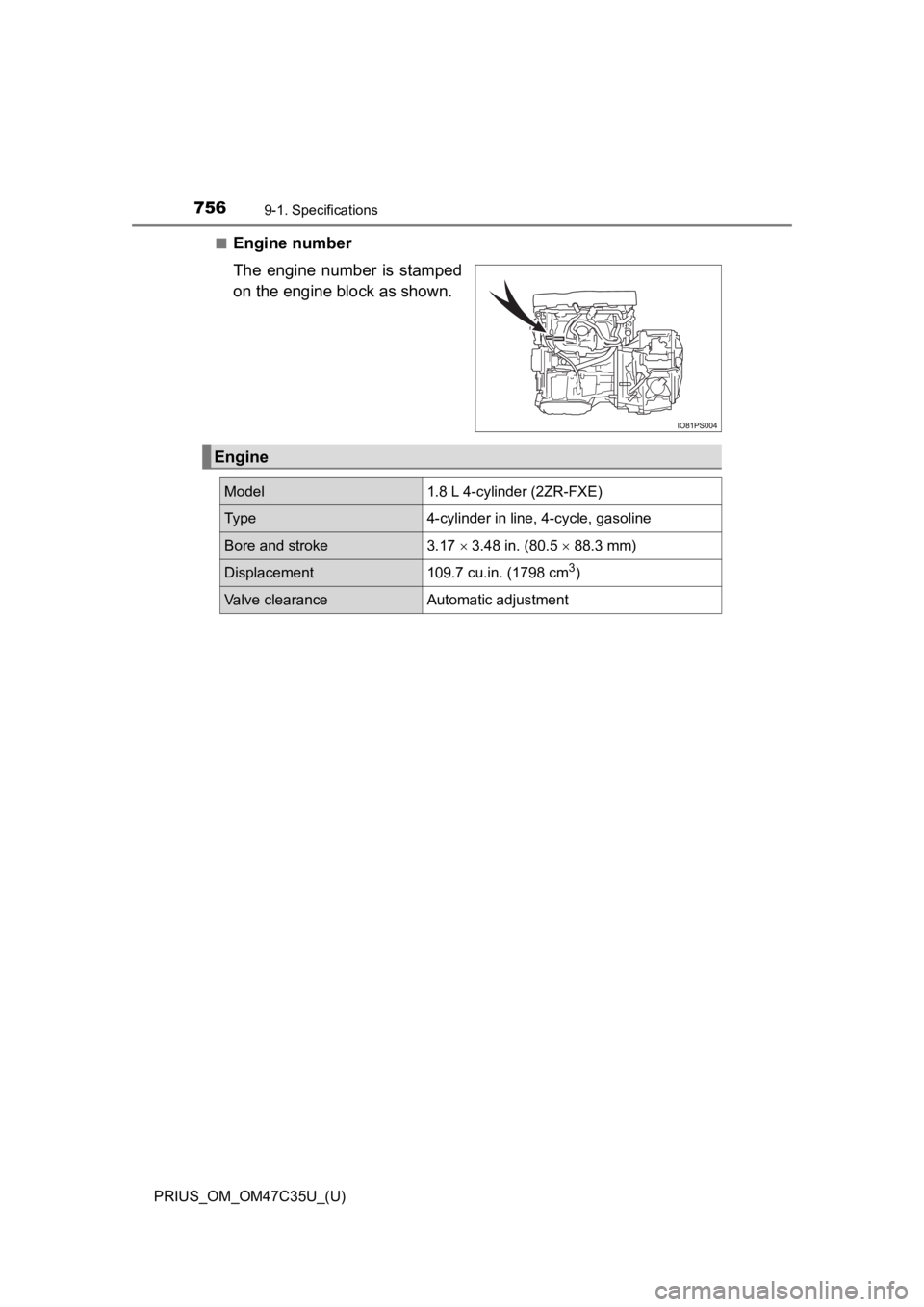

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.17  3.48 in. (80.5  88.3 mm)
Displacement109.7 cu.in. (1798 cm3)
Valve clearanceAutomatic adjustment

PRIUS_OM_OM47C35U_(U)
7579-1. Specifications
9
Vehicle specifications

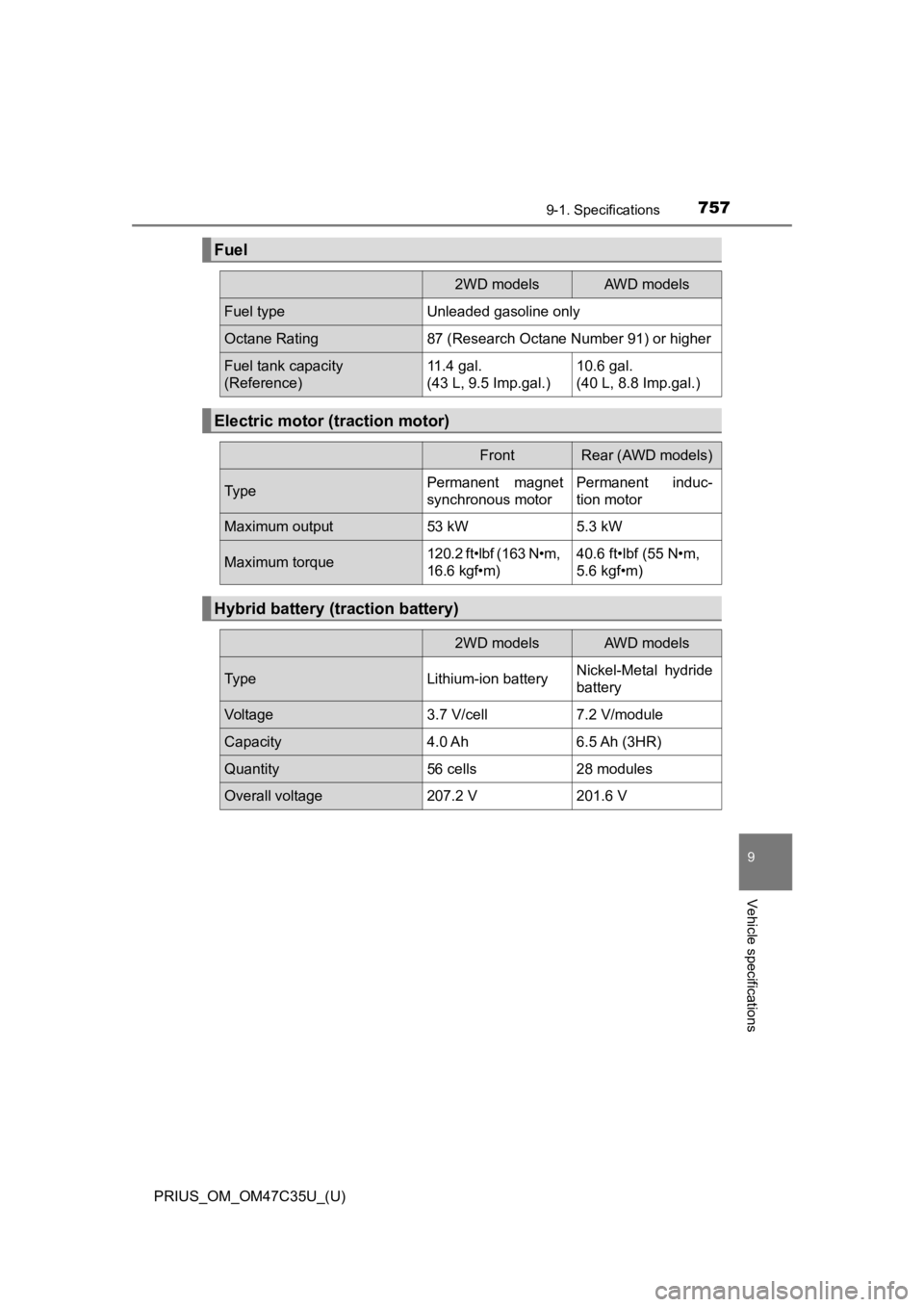

Fuel
2WD modelsAWD models
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)11.4 gal.
(43 L, 9.5 Imp.gal.)10.6 gal.
(40 L, 8.8 Imp.gal.)
Electric motor (traction motor)
FrontRear (AWD models)
Ty p ePermanent magnet
synchronous motorPermanent induc-
tion motor
Maximum output53 kW5.3 kW
Maximum torque120.2 ft•lbf (163 N•m,
16.6 kgf•m)40.6 ft•lbf (55 N•m,
5.6 kgf•m)
Hybrid battery (traction battery)
2WD modelsAWD models
Ty p eLithium-ion batteryNickel-Metal hydride
battery
Vol t a ge3.7 V/cell7.2 V/module
Capacity4.0 Ah6.5 Ah (3HR)
Quantity56 cells28 modules
Overall voltage207.2 V201.6 V

758
PRIUS_OM_OM47C35U_(U)
9-1. Specifications
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5 minu tes, and
check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat isfy
the following grade and viscosity.
Oil grade: API SN/RC multigrade engine oil
Recommended viscosity: SAE 0W-16
SAE 0W-16 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is expl ained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which allows cold startability. Oils wi th a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the vi scosity characteristic of the oil
when the oil is at high temperature. An oil with a higher visco sity
(one with a higher value) may be better suited if the vehicle i s
operated at high speeds, or un der extreme load conditions.
Lubrication system
With filter4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without filter4.1 qt. (3.9 L, 3.4 Imp.qt.)
Outside temperature

PRIUS_OM_OM47C35U_(U)
7599-1. Specifications
9
Vehicle specifications

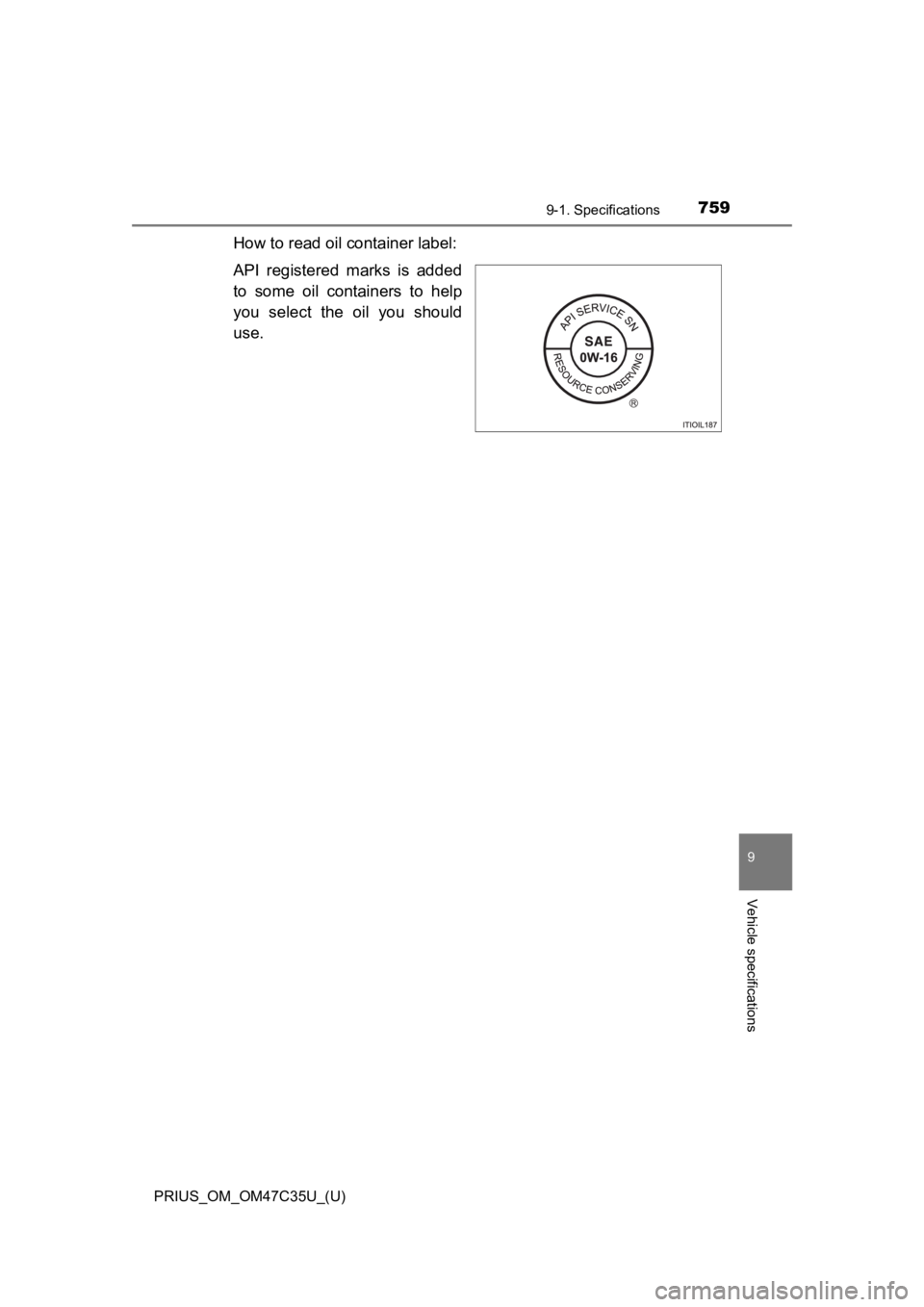

How to read oil container label:
API registered marks is added
to some oil containers to help
you select the oil you should
use.

760
PRIUS_OM_OM47C35U_(U)
9-1. Specifications
*: The coolant capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
Cooling system
Capacity*
Gasoline
engine6.3 qt. (6.0 L, 5.3 Imp.qt.)
Power
control unit1.5 qt. (1.4 L, 1.2 Imp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-CY9
Gap0.035 in. (0.9 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.
Electrical system (12-volt battery)
Open voltage at 68F (20 C):
12.0 V or higher
If the voltage is lower than the standard
value, charge the battery. (After charging
the battery, turn on the high beam head-
lights for 30 seconds with the power switch
off, and turn the headlights off.)
Charging rates5 A max.
