1112. Instrument cluster
2

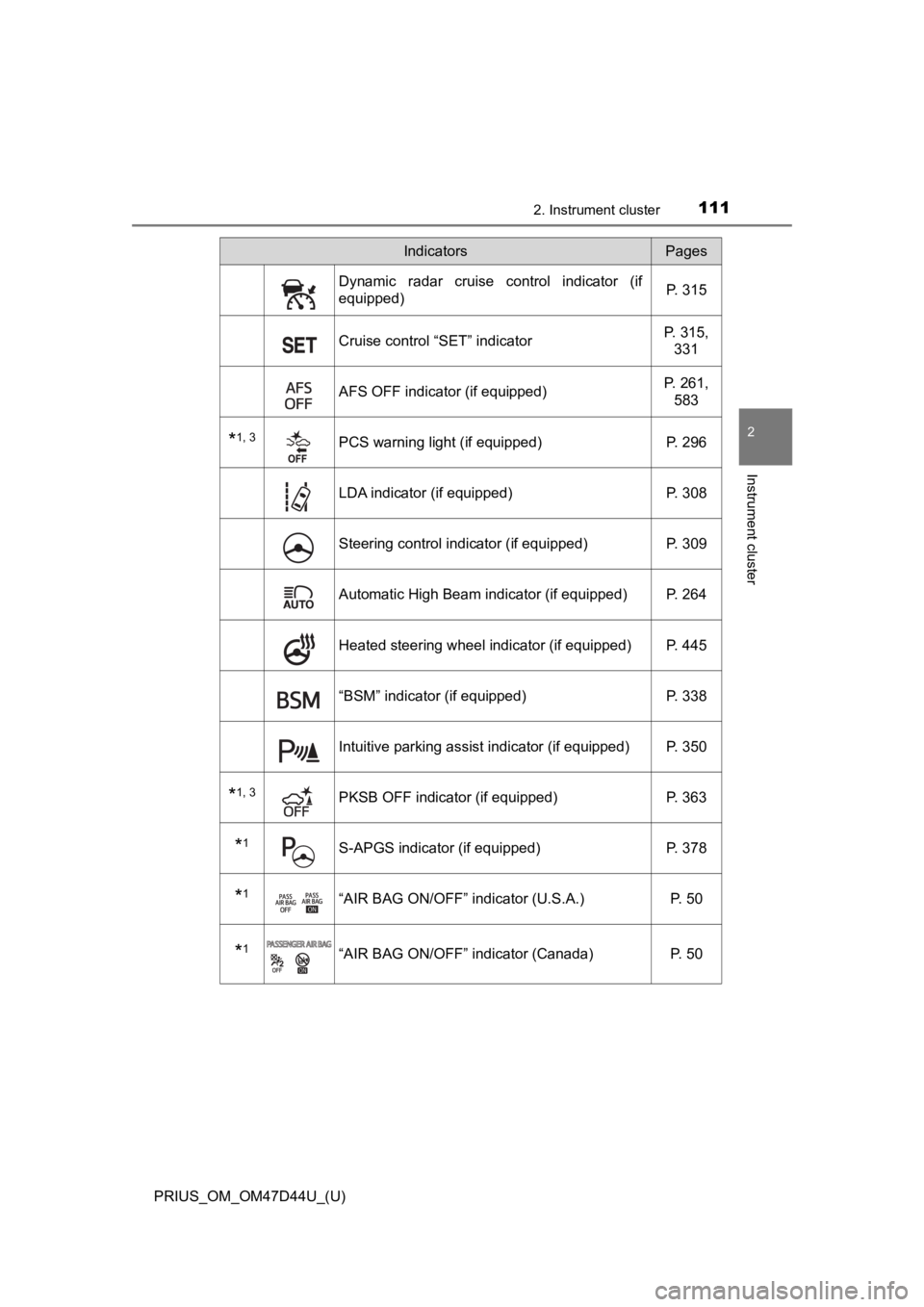

Instrument cluster
Dynamic radar cruise control indicator (if
equipped)P. 315
Cruise control “SET” indicatorP. 315,
331
AFS OFF indicator (if equipped) P. 261,
583
*1, 3PCS warning light (if equipped) P. 296
LDA indicator (if equipped)P. 308
Steering control indicator (if equipped)P. 309
Automatic High Beam indicator (if equipped) P. 264
Heated steering wheel indicator (if equipped) P. 445
“BSM” indicator (if equipped) P. 338
Intuitive parking assist indicator (if equipped) P. 350
*1, 3PKSB OFF indicator (if equipped)P. 363
*1S-APGS indicator (if equipped) P. 378
*1“AIR BAG ON/OFF” indicator (U.S.A.) P. 50
*1“AIR BAG ON/OFF” indicator (Canada)P. 50
IndicatorsPages

112
PRIUS_OM_OM47D44U_(U)
2. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the veh icle
inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.

PRIUS_OM_OM47D44U_(U)
1132. Instrument cluster
2
Instrument cluster
■Main display and multi-information display
*: The displayed indicator changes according to the current driving mode.
■
Multi-information display (symbol display*)
*: These symbols are displayed along with a message. Also, the sy mbol dis-
plays listed here are only an example, and different symbols ma y be dis-
played according to the contents of the multi-information displ ay.
Indicators and symbols displayed on the display
IndicatorsPages
EV drive mode indicator P. 248
*“ECO MODE” indicator P. 336
*“PWR MODE” indicatorP. 336
EV Indicator P. 128
Symbol displayPages
Smart key system P. 241
Brake Override System/Drive-Start Control/
Parking Support Brake function (if equipped) P. 584
LDA (Lane Departure Alert with steering con-
trol) (if equipped) P. 311
P. 311
Low engine oil pressure warning
(Canada only) P. 584

114
PRIUS_OM_OM47D44U_(U)
2. Instrument cluster

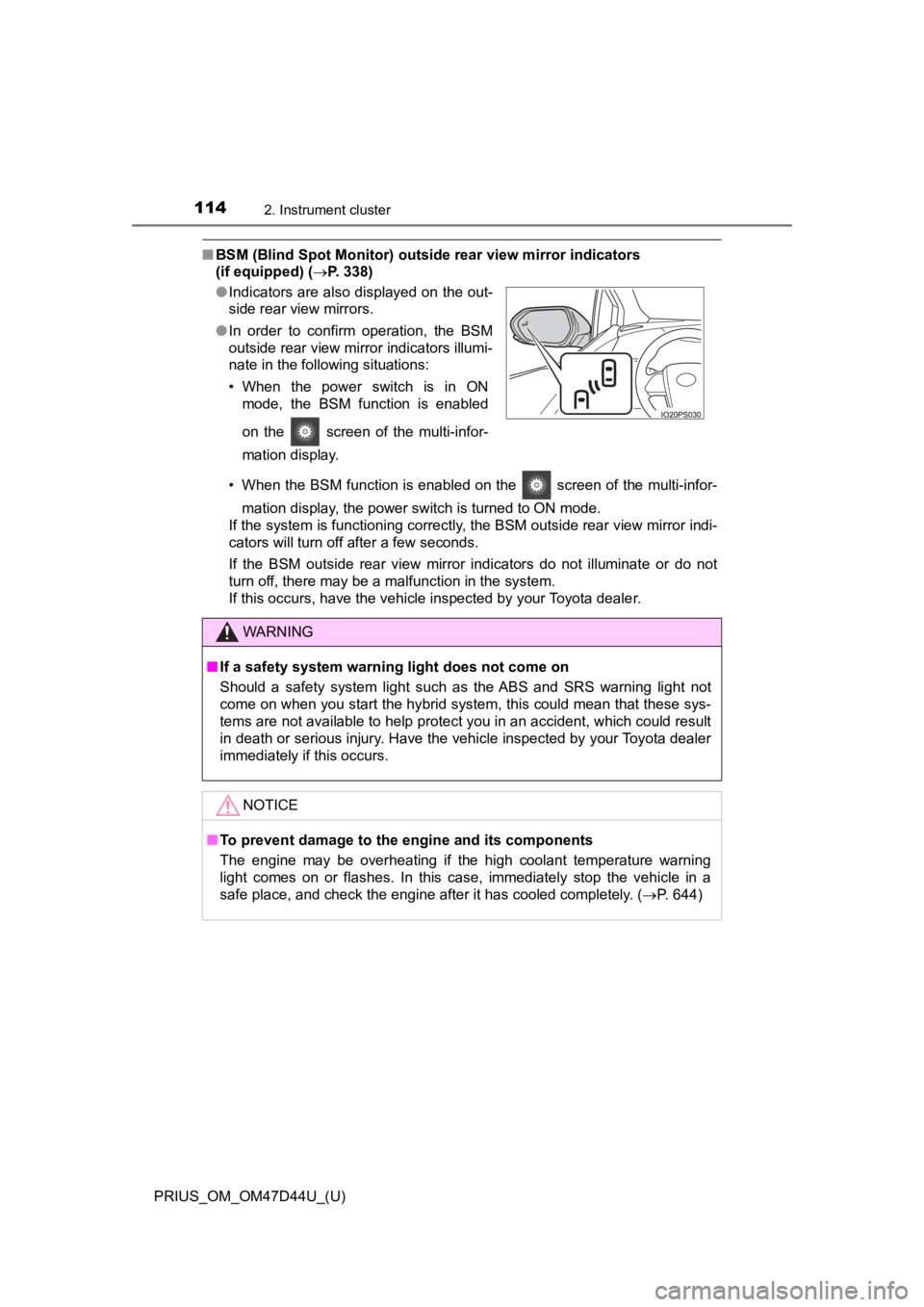

■BSM (Blind Spot Monitor) outsid e rear view mirror indicators
(if equipped) ( P. 338)
• When the BSM function is enabled on the screen of the multi-infor- mation display, the power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear vi ew mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminat e or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota deale r.
●
Indicators are also displayed on the out-
side rear view mirrors.
● In order to confirm operation, the BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is in ON
mode, the BSM function is enabled
on the screen of the multi-infor-
mation display.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning li ght not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the v ehicle in a
safe place, and check the engine after it has cooled completely. (P. 644)

115
PRIUS_OM_OM47D44U_(U)
2. Instrument cluster
2
Instrument cluster

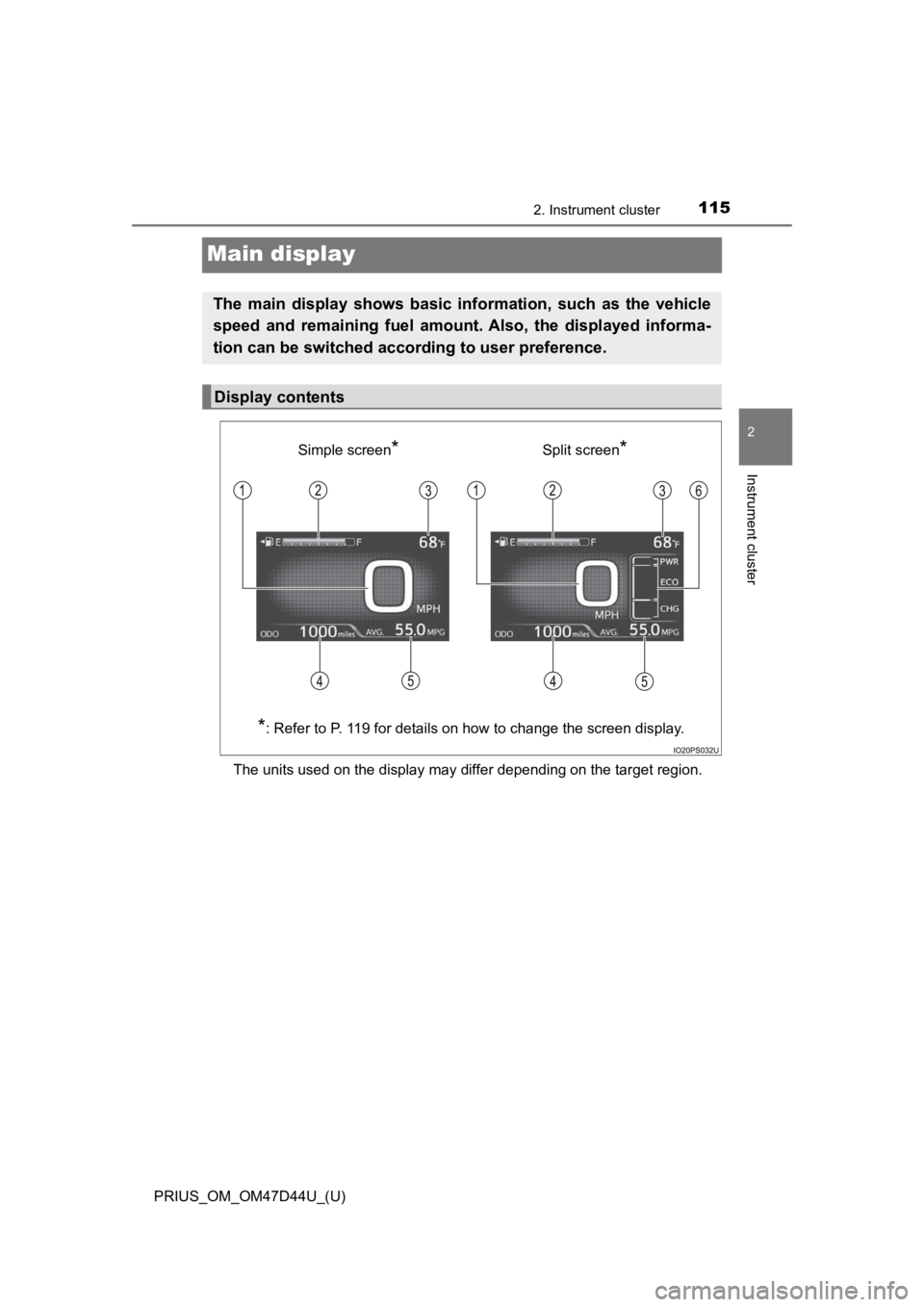

Main display
The units used on the display may differ depending on the target region.
The main display shows basic information, such as the vehicle
speed and remaining fuel amount. Also, the displayed informa-
tion can be switched according to user preference.
Display contents
Simple screen*Split screen*
*
: Refer to P. 119 for details on how to change the screen displa y.

116
PRIUS_OM_OM47D44U_(U)
2. Instrument cluster
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C).
The temperature display flashes for approximately 10 seconds wh en the
outside temperature drops to approximately 37 F (3 C) or less, and then
stops flashing.
Mileage display (odometer/tr ip meters/driving range)
The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. ( P. 117)
Average fuel consumption display
The average fuel consumption that is linked with the contents o f the mile-
age display can be displayed. ( P. 117)
Sub-screen
When split screen is selected for the main display, information such as the
Hybrid System Indicator and current fuel consumption can be dis played.
( P. 119)
1
2
3
4
5
6

PRIUS_OM_OM47D44U_(U)
1172. Instrument cluster
2
Instrument cluster
Each time is pressed, the mileage display and fuel consumption
display change in the following order from 1 to 6.
Mileage display
Average fuel consumption dis-
play
After 1 to 6 are displayed, the dis-
plays return to 1.
Use the displayed average fuel
consumption as a reference.

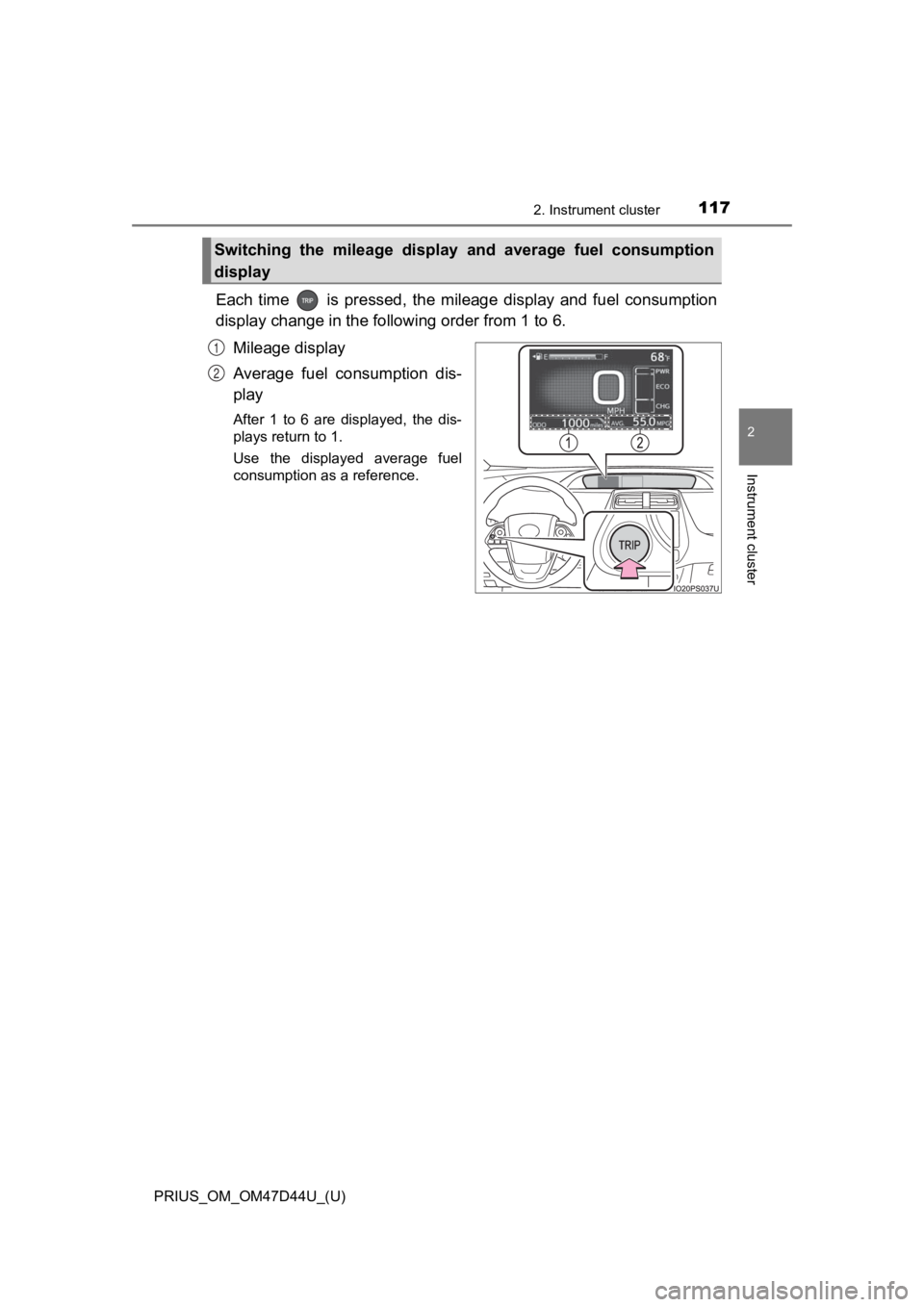

Switching the mileage display and average fuel consumption
display
1
2

118
PRIUS_OM_OM47D44U_(U)
2. Instrument cluster
*1: If is pressed and held while this item is displayed, the information is
reset.
*2: This item is reset each time the hybrid system starts.

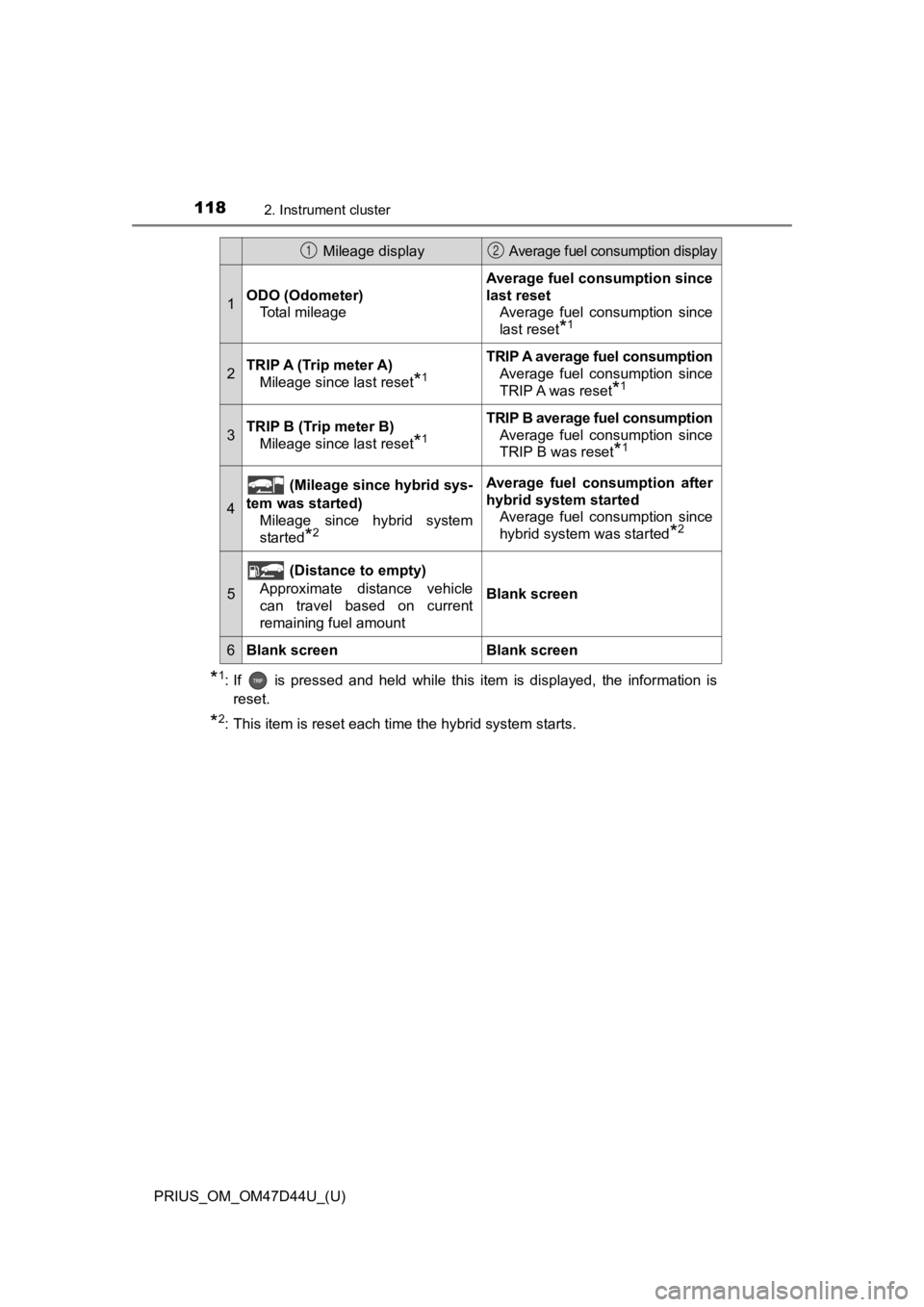

Mileage display Average fuel consumption display
1ODO (Odometer) Total mileage
Average fuel consumption since
last resetAverage fuel consumption since
last reset
*1
2TRIP A (Trip meter A)Mileage since last reset
*1
TRIP A average fuel consumption
Average fuel consumption since
TRIP A was reset
*1
3TRIP B (Trip meter B)Mileage since last reset
*1
TRIP B average fuel consumptionAverage fuel consumption since
TRIP B was reset
*1
4
(Mileage since hybrid sys-
tem was started) Mileage since hybrid system
started
*2
Average fuel con sumption after
hybrid system started Average fuel consumption since
hybrid system was started
*2
5
(Distance to empty)
Approximate distance vehicle
can travel based on current
remaining fuel amount
Blank screen
6Blank screenBlank screen
12

PRIUS_OM_OM47D44U_(U)
1192. Instrument cluster
2
Instrument cluster
Simple screen or split screen can be selected for the main display.
When split screen is selected, a variety of information can be displayed on
a sub-screen in addition to the contents of the simple screen.
■
Setting procedure
Select the “Meter Customize” settings ( ) screen on the
screen of the multi-information display, and then press .
(  P. 149)
Press or of the meter control switches to select “Simple/
Split Screen”.
Press to display the setting screen.
Press or of the
meter control switches to
select a display mode.
Press .
The contents of the main display switch to the selected display mode.
Press to return to the previous screen.

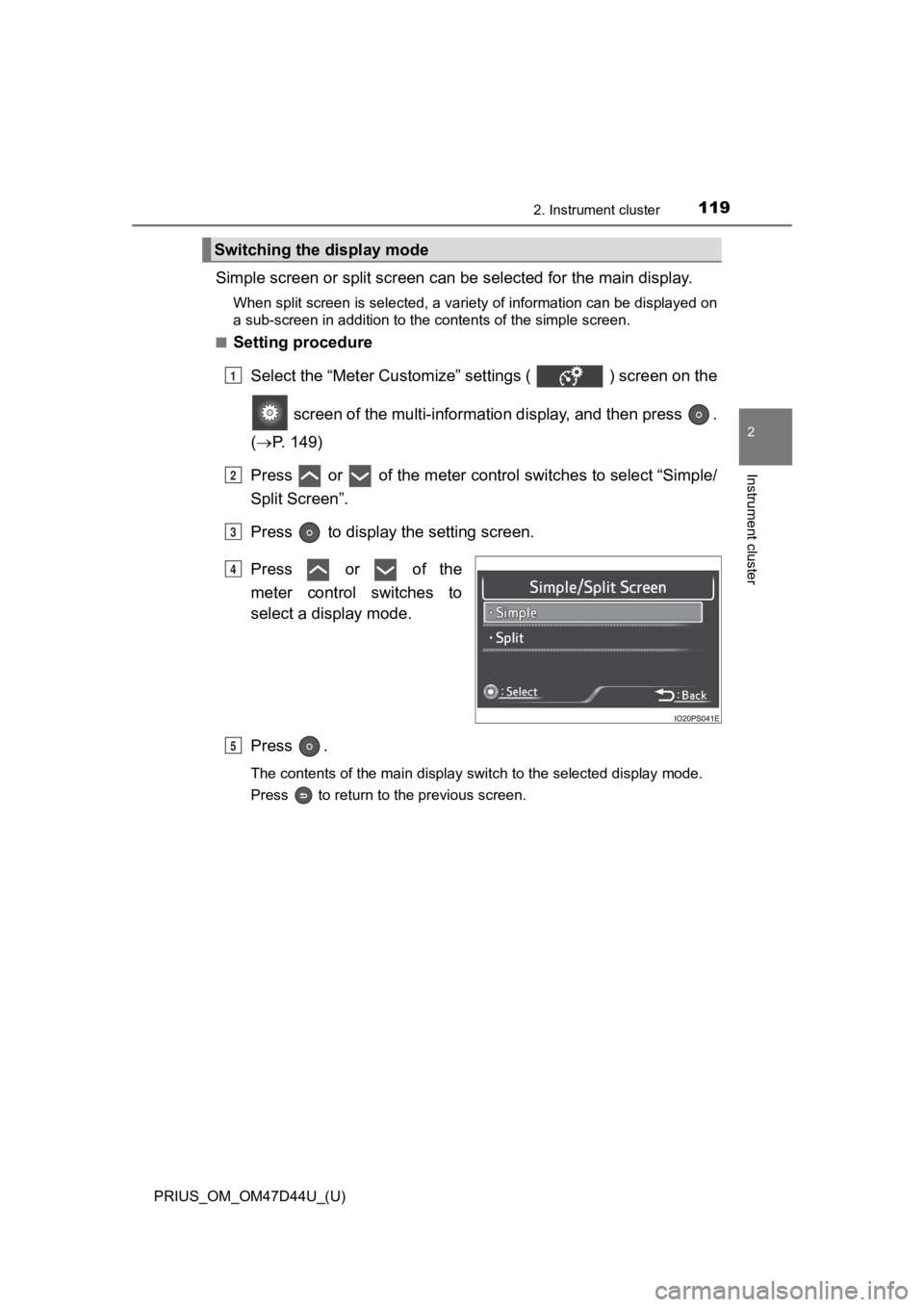

Switching the display mode
1
2
3
4
5

120
PRIUS_OM_OM47D44U_(U)
2. Instrument cluster

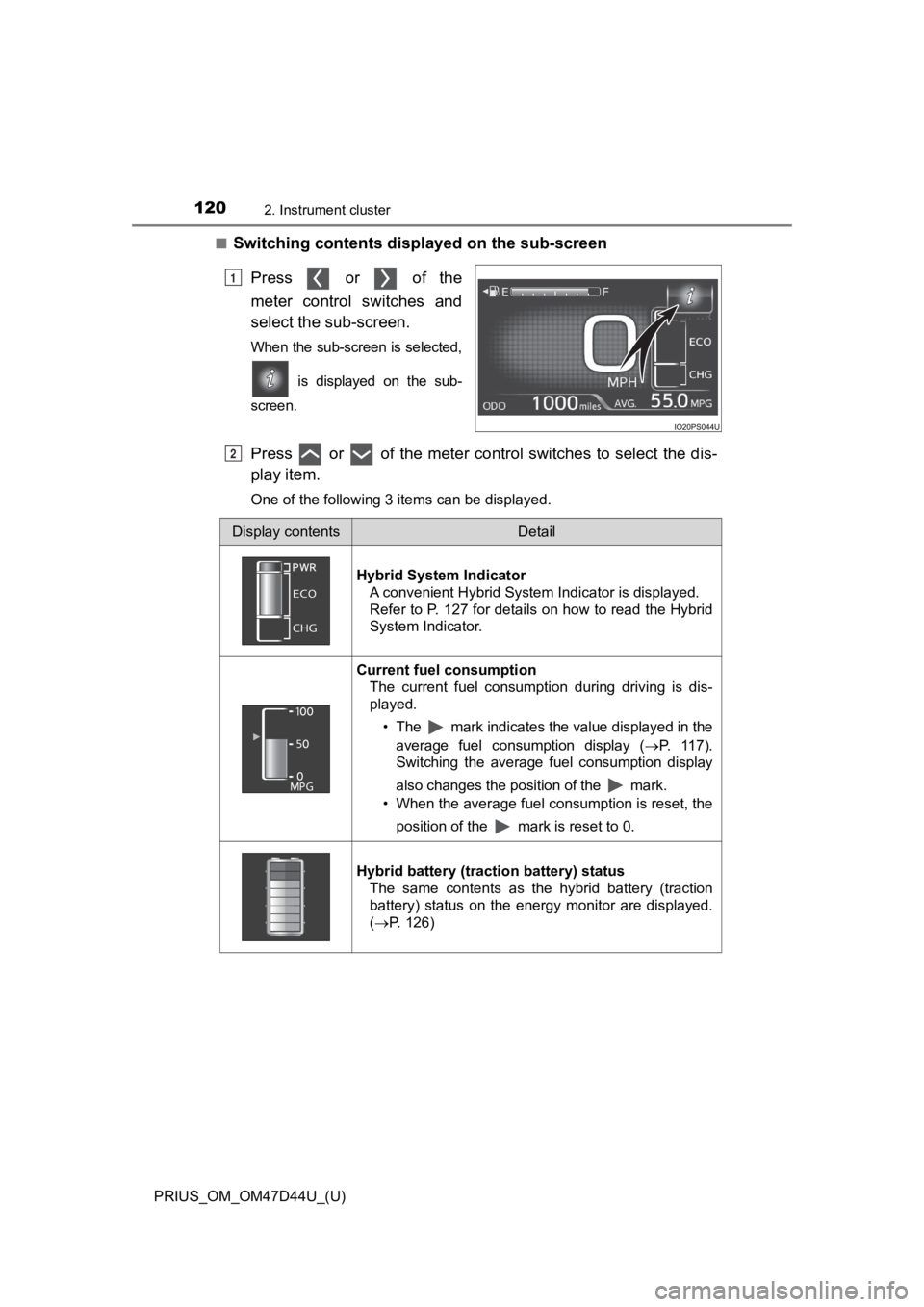

■Switching contents displayed on the sub-screen
Press or of the
meter control switches and
select the sub-screen.
When the sub-screen is selected,
is displayed on the sub-
screen.
Press or of the meter control switches to select the dis-
play item.
One of the following 3 items can be displayed.
1
2
Display contentsDetail
Hybrid System Indicator A convenient Hybrid System Indicator is displayed.
Refer to P. 127 for details on how to read the Hybrid
System Indicator.
Current fuel consumption
The current fuel consumption during driving is dis-
played.
• The mark indicates the value displayed in theaverage fuel consumption display ( P. 117).
Switching the average fuel consumption display
also changes the position of the mark.
• When the average fuel consumption is reset, the
position of the mark is reset to 0.
Hybrid battery (traction battery) status The same contents as the hybrid battery (traction
battery) status on the energy monitor are displayed.
(P. 126)
