TOYOTA PRIUS 2020 (in English) Owner's Manual

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Home button
Access to Home
screen.
Menu button
Access to Menu
screen.
Volume button
Push to turn
ON/OFF.
Audio information
display area (on
the home menu
only)
Touch screen display
Access audio and
navigation functions.

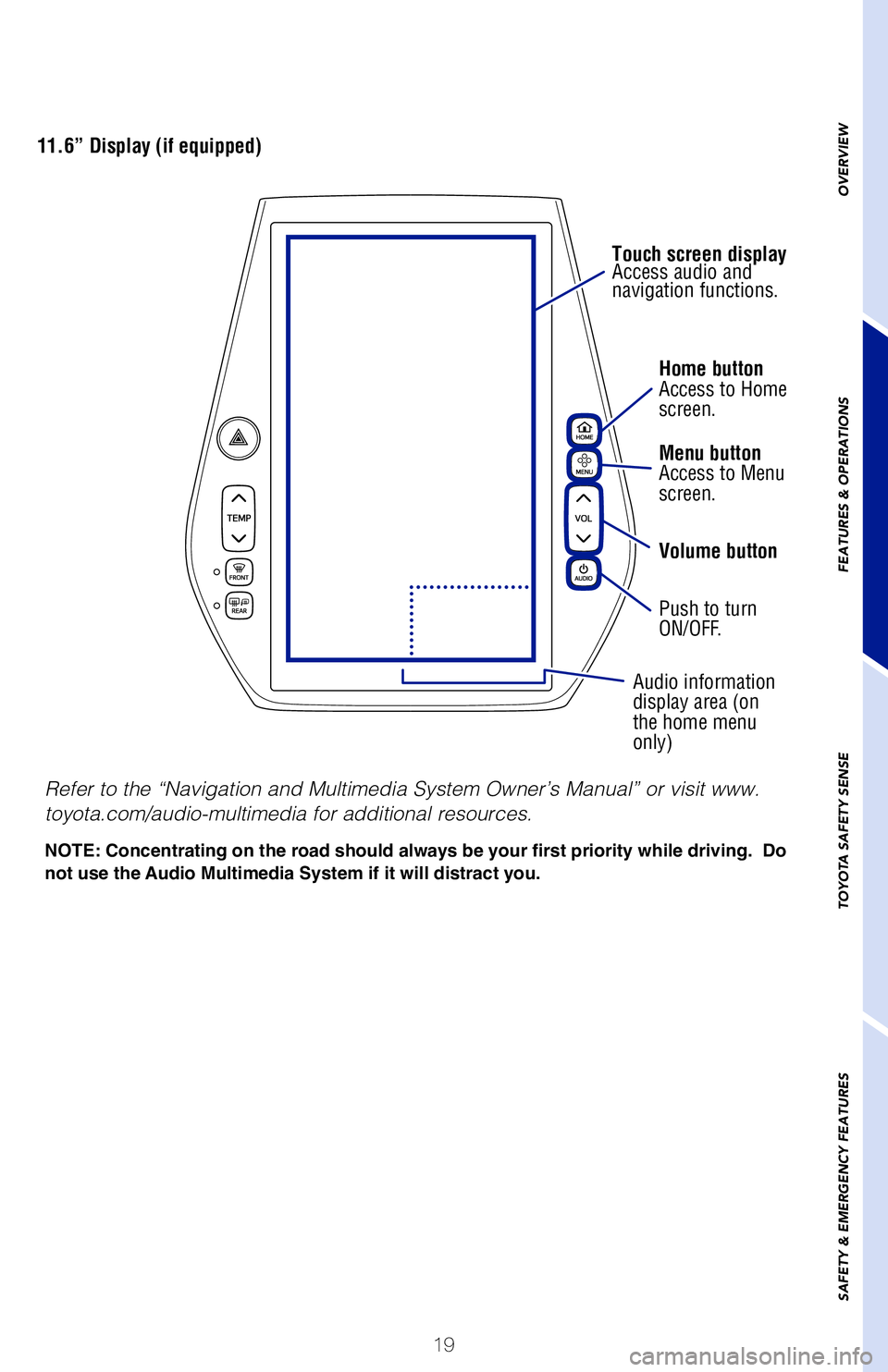

11.6” Display (if equipped)
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.
toyota.com/audio-multimedia for additional resources.
NOTE: Concentrating on the road should always be your first priority while driving. Do
not use the Audio Multimedia System if it will distract you.
62443_MY20_Prius_Text.indd 198/22/19 7:34 PM

20
FEATURES & OPERATIONS

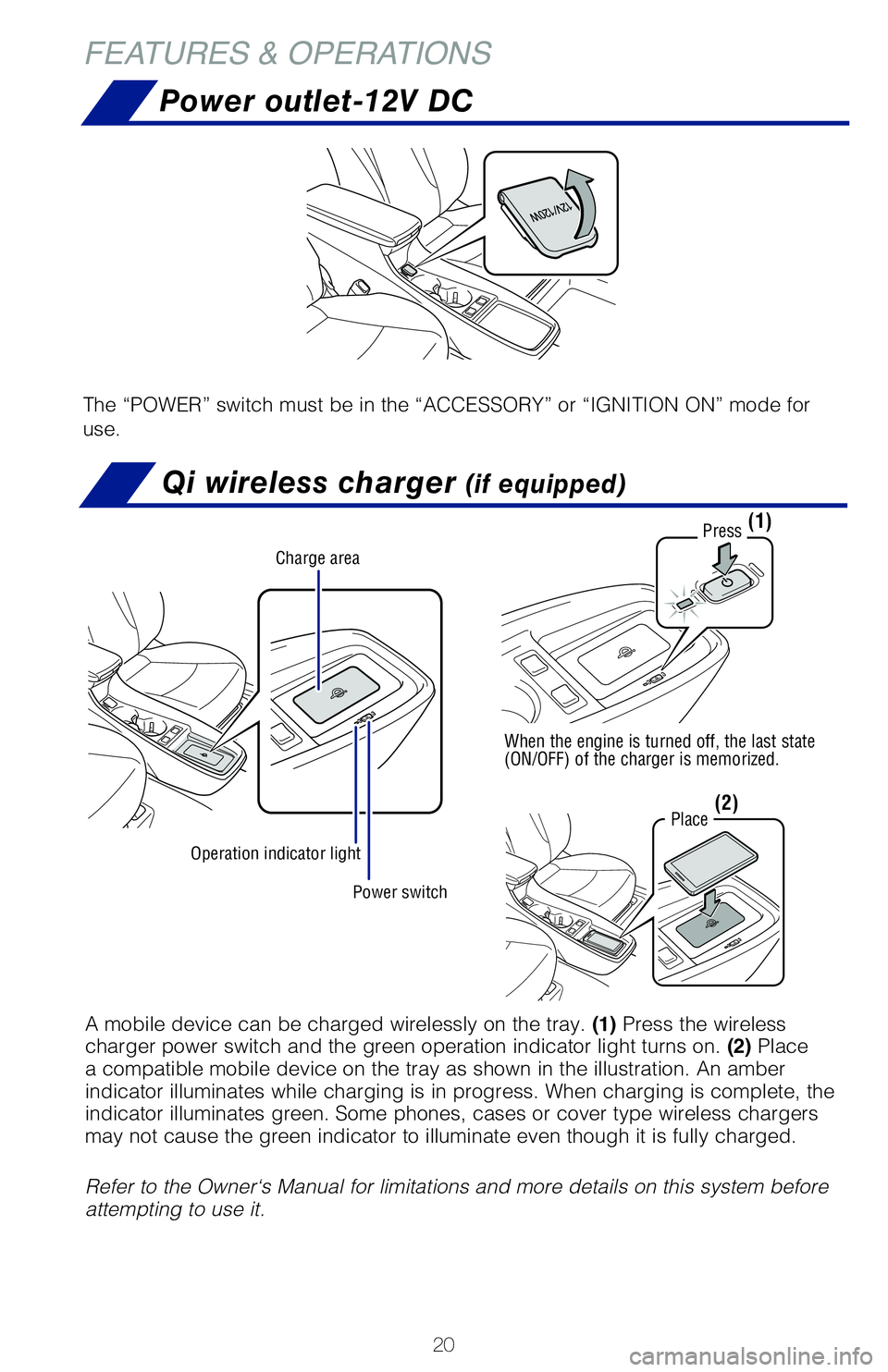

Qi wireless charger (if equipped)
Power outlet-12V DC
The “POWER” switch must be in the “ACCESSORY” or “IGNITION ON” mode for
use.
Power switch
Charge area
Operation indicator light
Press
When the engine is turned off, the last state
(ON/OFF) of the charger is memorized.
Place
(1)
(2)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An amber
indicator illuminates while charging is in progress. When charging is complete, the
indicator illuminates green. Some phones, cases or cover type wireless chargers
may not cause the green indicator to illuminate even though it is fully charged.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
62443_MY20_Prius_Text.indd 208/22/19 7:34 PM

21

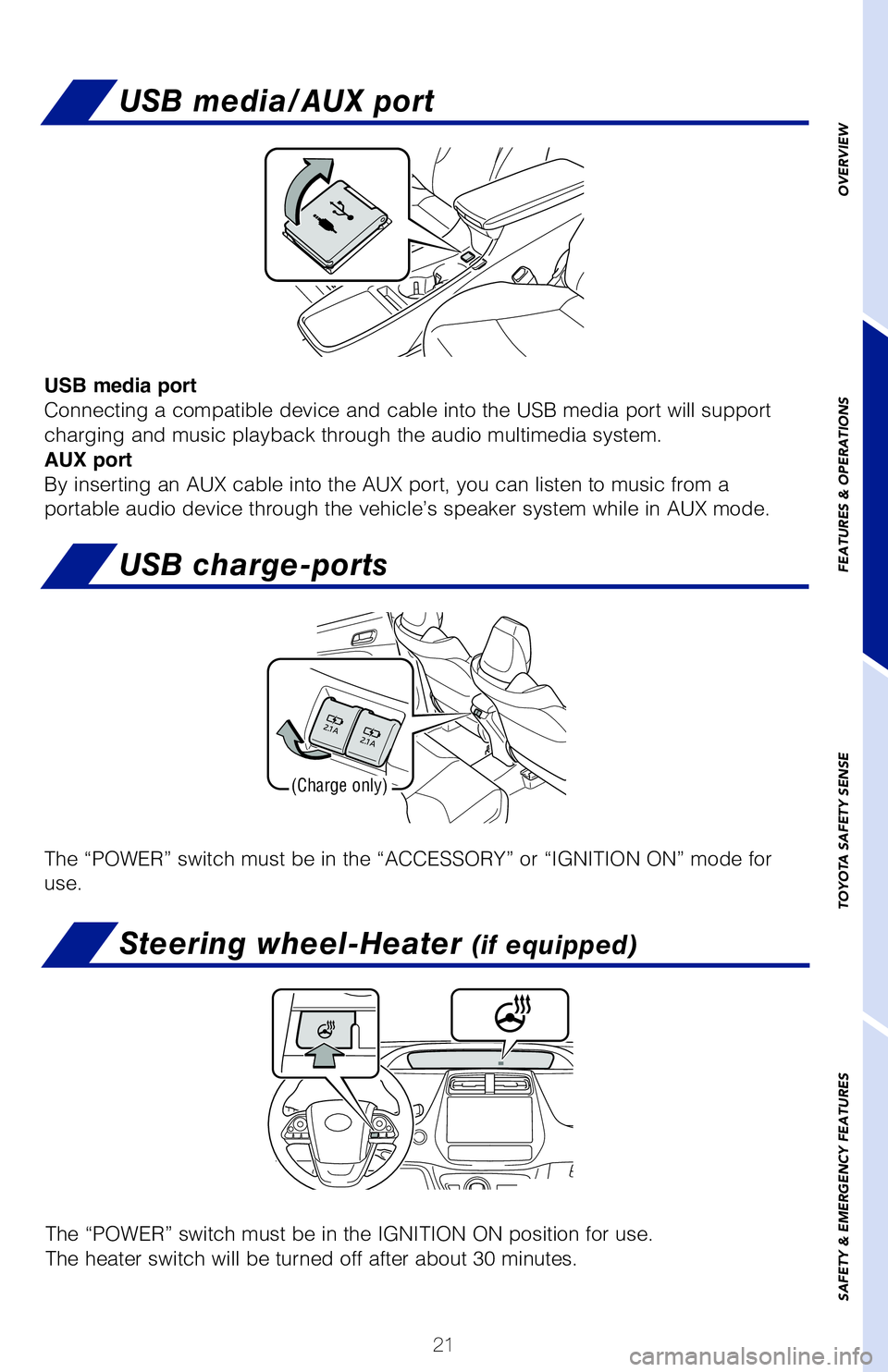

USB media/AUX port
USB media port
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.
USB charge-ports
(Charge only)
The “POWER” switch must be in the “ACCESSORY” or “IGNITION ON” mode for
use.
Steering wheel-Heater (if equipped)
The “POWER” switch must be in the IGNITION ON position for use.
The heater switch will be turned off after about 30 minutes.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
62443_MY20_Prius_Text.indd 218/22/19 7:34 PM

22
FEATURES & OPERATIONS

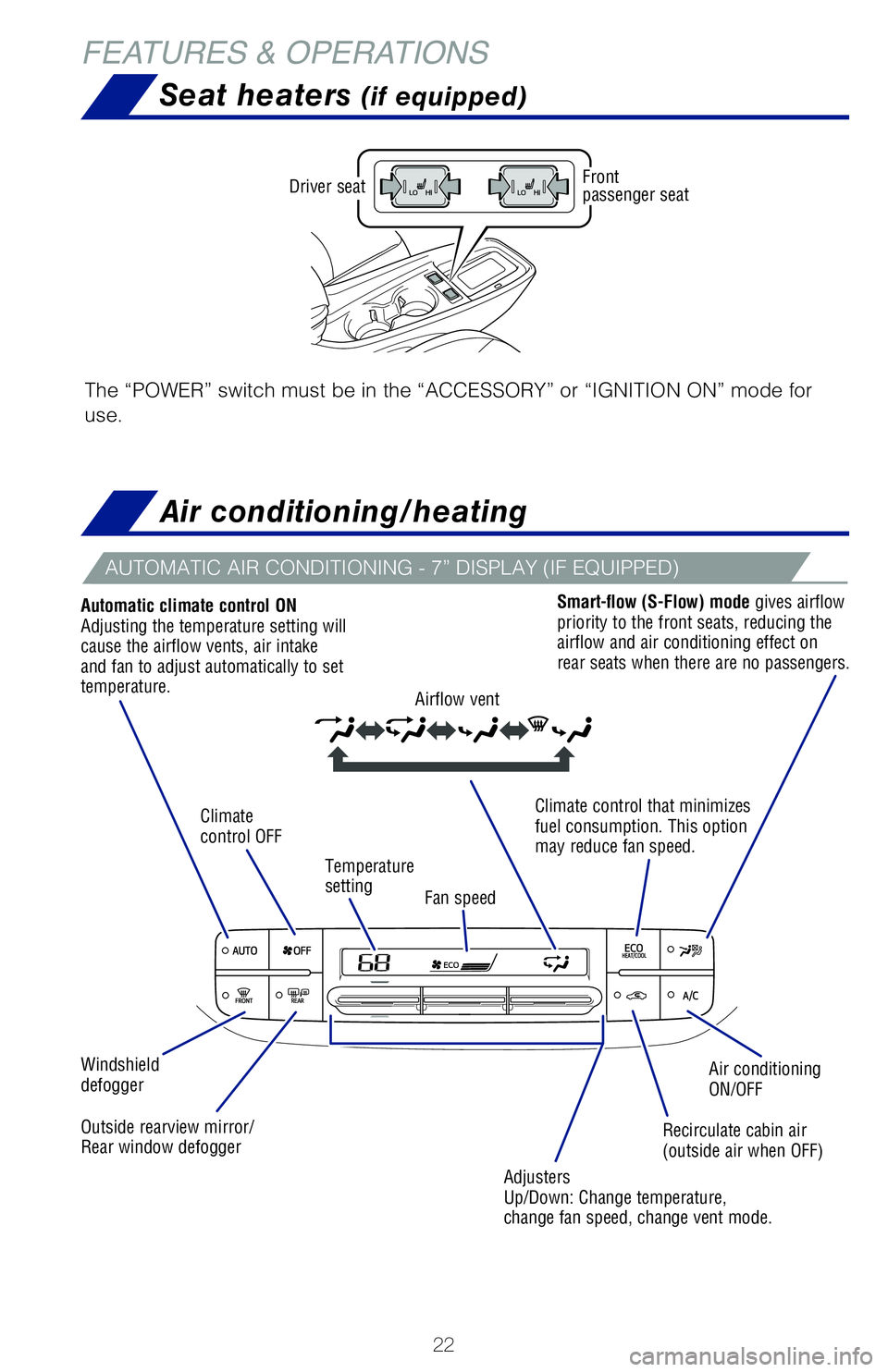

AUTOMATIC AIR CONDITIONING - 7” DISPLAY (IF EQUIPPED)
Air conditioning/heating
Air conditioning
ON/OFF
Recirculate cabin air
(outside air when OFF)
Airflow vent
Windshield
defogger
Outside rearview mirror/
Rear window defogger Automatic climate control ON
Adjusting the temperature setting will
cause the airflow vents, air intake
and fan to adjust automatically to set
temperature. Smart-flow (S-Flow) mode gives airflow
priority to the front seats, reducing the
airflow and air conditioning effect on
rear seats when there are no passengers.
Climate
control OFF Temperature
settingFan speed Climate control that minimizes
fuel consumption. This option
may reduce fan speed.
Adjusters
Up/Down: Change temperature,
change fan speed, change vent mode.
Seat heaters (if equipped)
Driver seatFront
passenger seat
The “POWER” switch must be in the “ACCESSORY” or “IGNITION ON” mode for
use.
62443_MY20_Prius_Text.indd 228/22/19 7:34 PM

23
AUTOMATIC AIR CONDITIONING - 11.6” DISPLAY (IF EQUIPPED)
Air conditioning
temperature control
Windshield defogger
Rear window and outside
rear view mirrors defogger
Temperature settingFan speed setting
Automatic mode setting
Air conditioning control screen
Airflow mode setting
S-FLOW mode setting
Air conditioning
ECO mode setting
A/C setting
Outside/recirculated
air mode setting
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Touch area to display
air conditioning control
screen (See below)
62443_MY20_Prius_Text.indd 238/22/19 7:34 PM

24

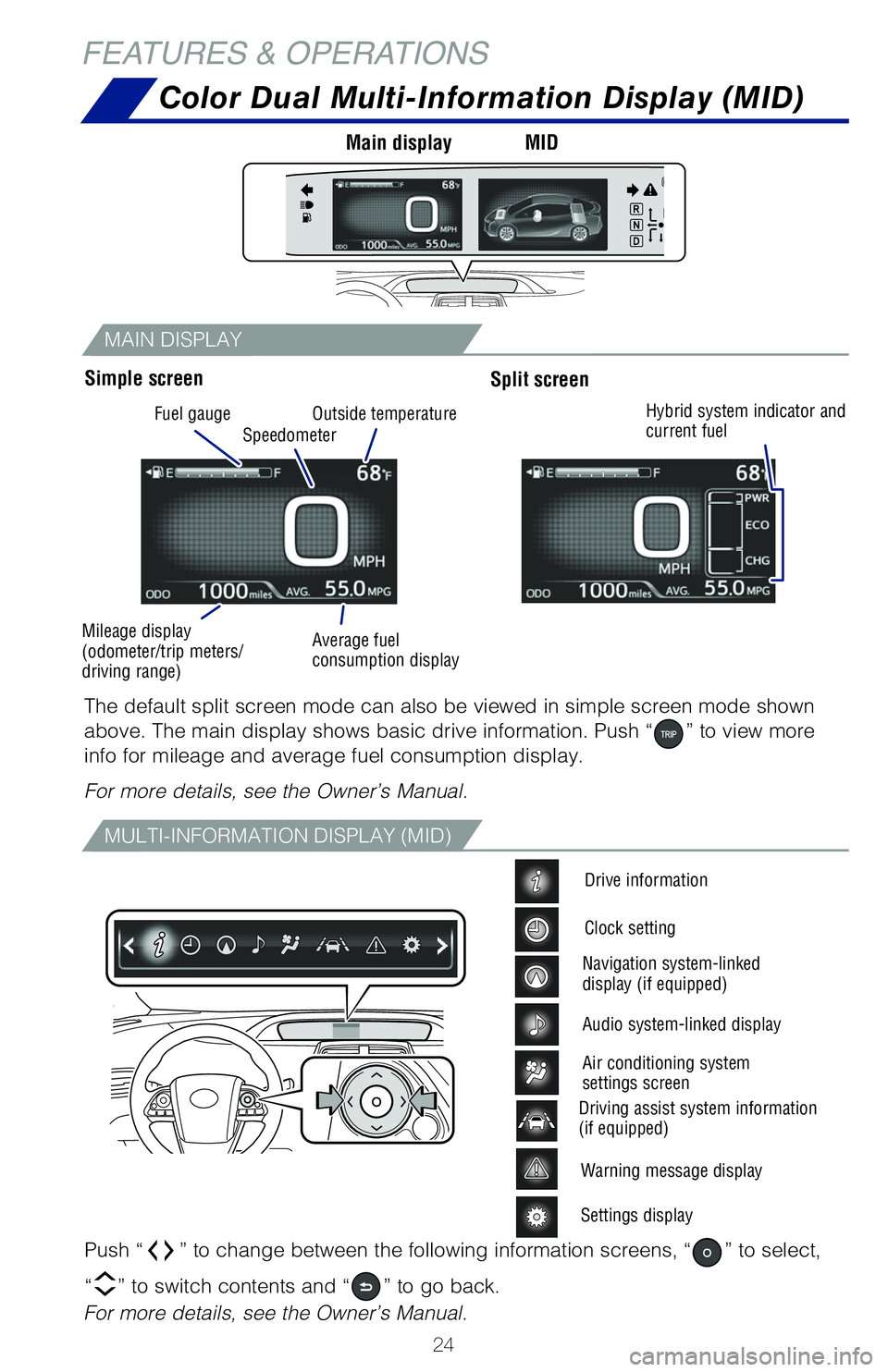

MAIN DISPLAY
MULTI-INFORMATION DISPLAY (MID)
Color Dual Multi-Information Display (MID)
Push “” to change between the following information screens, “” to select,
“
” to switch contents and “” to go back.
The default split screen mode can also be viewed in simple screen mode shown
above. The main display shows basic drive information. Push “
” to view more
info for mileage and average fuel consumption display.
For more details, see the Owner’s Manual.
For more details, see the Owner’s Manual.
Warning message display
Settings display
Driving assist system information
(if equipped)
Drive information
Clock setting
Navigation system-linked
display (if equipped)
Audio system-linked display
Air conditioning system
settings screen
Simple screen Main display
MIDSplit screen
FEATURES & OPERATIONS
Fuel gauge
Mileage display
(odometer/trip meters/
driving range) Average fuel
consumption display
Speedometer
Outside temperature
Hybrid system indicator and
current fuel
62443_MY20_Prius_Text.indd 248/22/19 7:34 PM

25

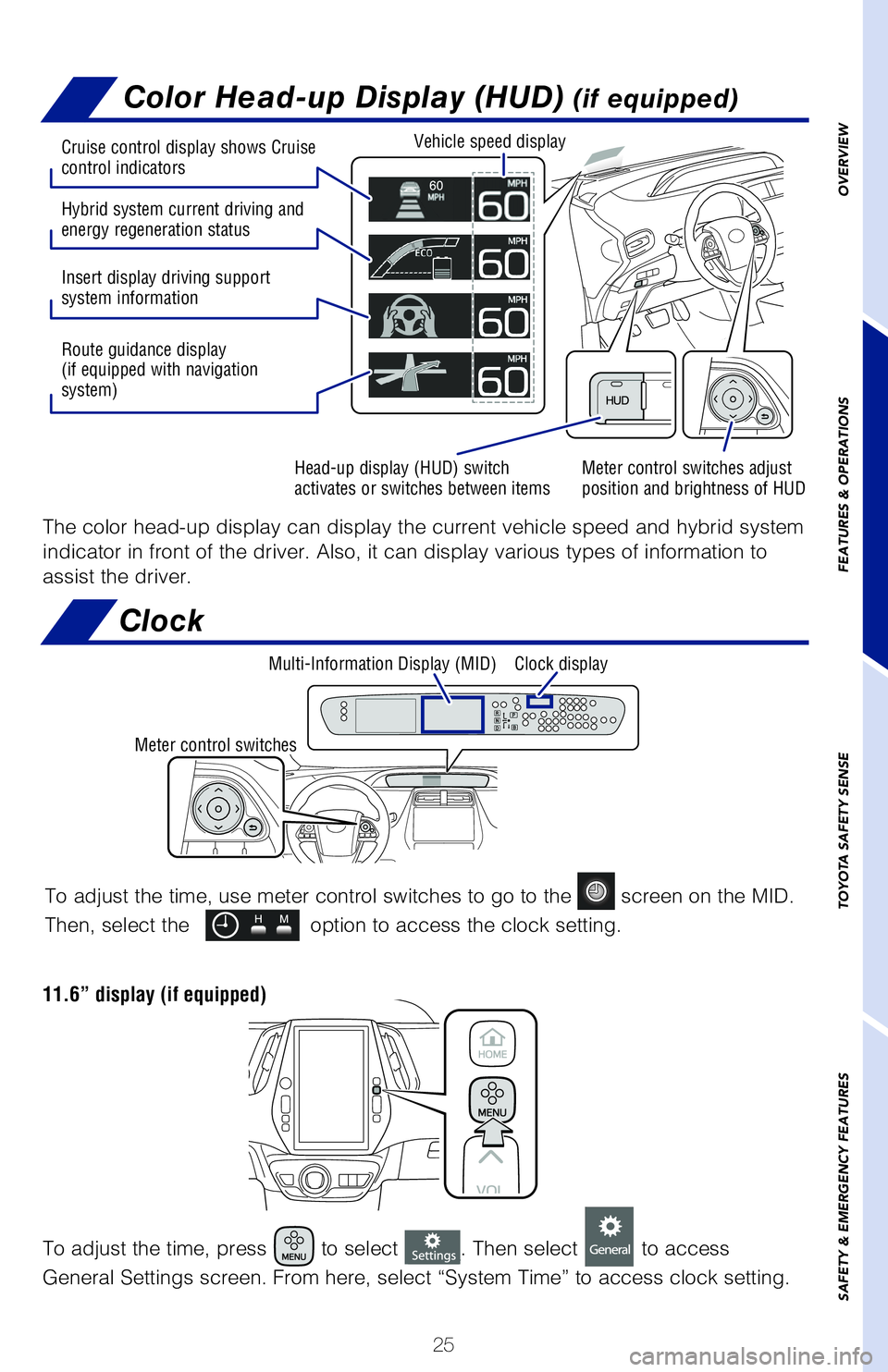

Color Head-up Display (HUD) (if equipped)
The color head-up display can display the current vehicle speed and hybrid system
indicator in front of the driver. Also, it can display various types of information to
assist the driver.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Meter control switches adjust
position and brightness of HUD
Head-up display (HUD) switch
activates or switches between items Vehicle speed display
Hybrid system current driving and
energy regeneration status
Insert display driving support
system information
Route guidance display
(if equipped with navigation
system)
Clock
To adjust the time, use meter control switches to go to the screen on the MID.
Then, select the
option to access the clock setting.
Multi-Information Display (MID) Clock display
Meter control switches
To adjust the time, press to select . Then select to access
General Settings screen. From here, select “System Time” to access clock setting.
11.6” display (if equipped)
Cruise control display shows Cruise
control indicators
62443_MY20_Prius_Text.indd 258/22/19 7:34 PM

26
FEATURES & OPERATIONS

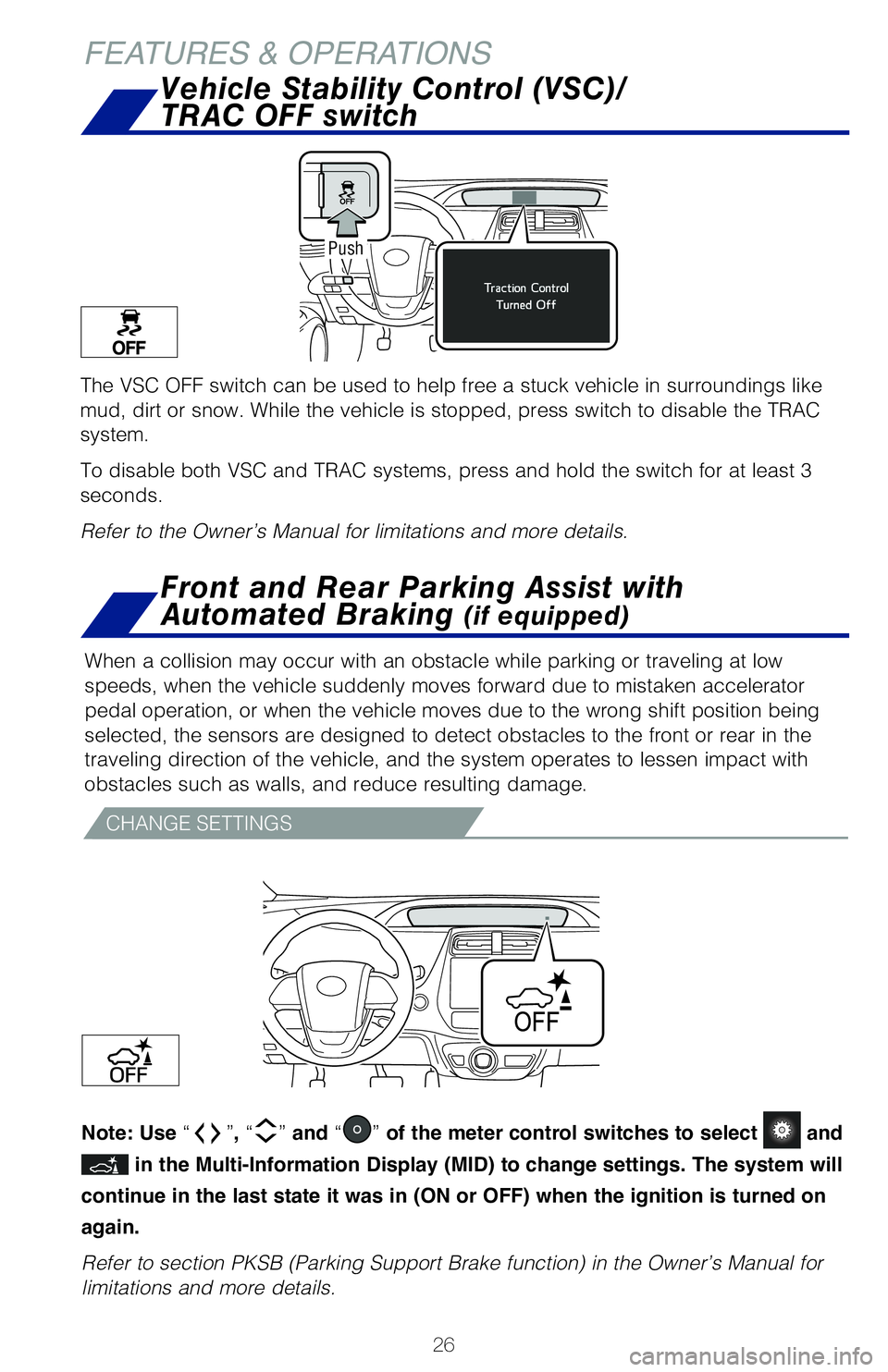

The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While the vehicle is stopped, press switch to disable the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at least 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
Push
Vehicle Stability Control (VSC)/
TRAC OFF switch
Front and Rear Parking Assist with
Automated Braking
(if equipped)
When a collision may occur with an obstacle while parking or traveling at low
speeds, when the vehicle suddenly moves forward due to mistaken accelerator
pedal operation, or when the vehicle moves due to the wrong shift position being
selected, the sensors are designed to detect obstacles to the front or rear in the
traveling direction of the vehicle, and the system operates to lessen impact with
obstacles such as walls, and reduce resulting damage.
CHANGE SETTINGS
Note: Use “”, “” and “” of the meter control switches to select and
in the Multi-Information Display (MID) to change settings. The system will
continue in the last state it was in (ON or OFF) when the ignition is turned on
again.
Refer to section PKSB (Parking Support Brake function) in the Owner’s Manual for
limitations and more details.
62443_MY20_Prius_Text.indd 268/22/19 7:34 PM

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

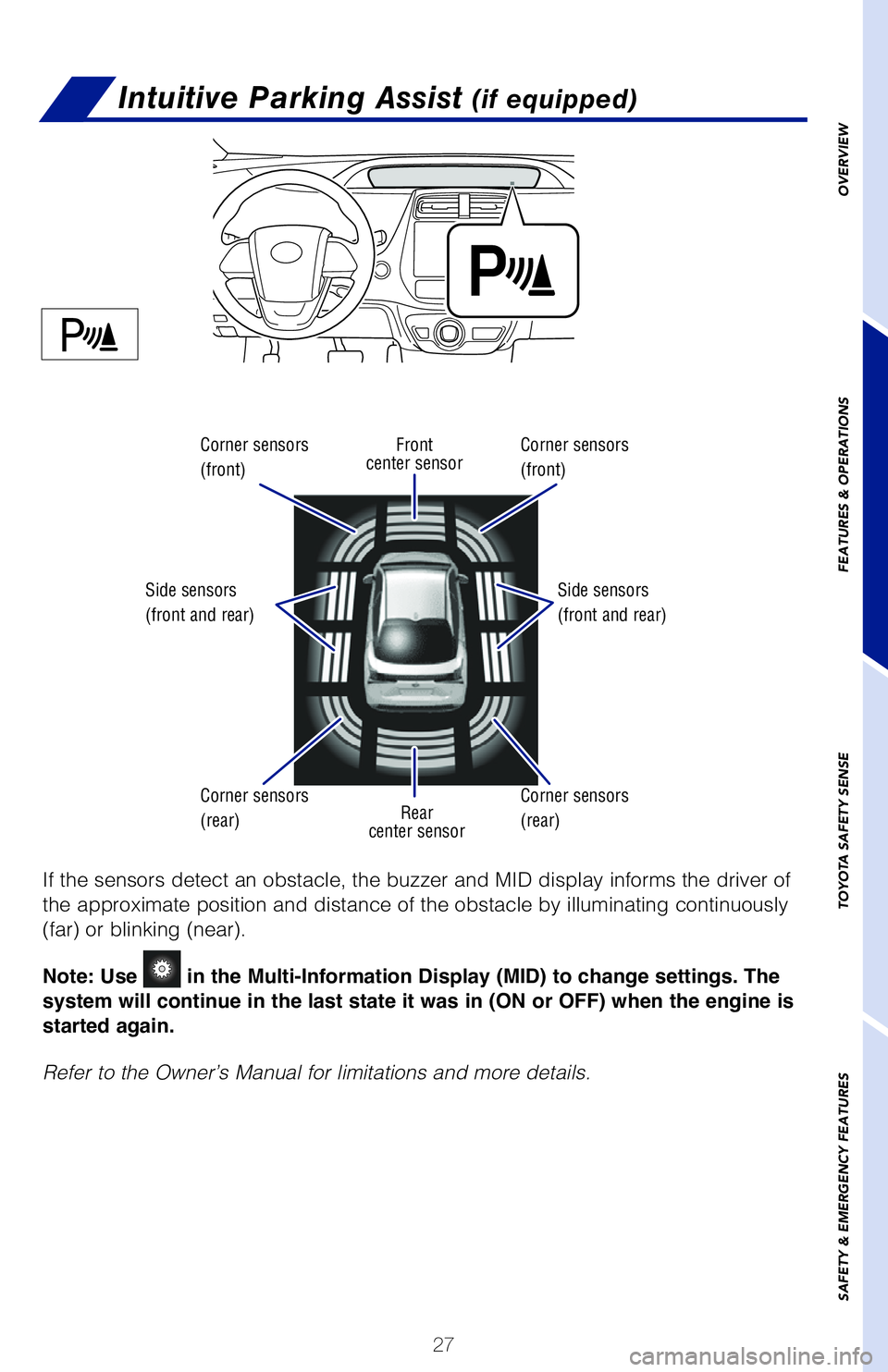

Intuitive Parking Assist (if equipped)
If the sensors detect an obstacle, the buzzer and MID display informs the driver of
the approximate position and distance of the obstacle by illuminating continuously
(far) or blinking (near).
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to the Owner’s Manual for limitations and more details.
Front
center sensor
Rear
center sensor
Corner sensors
(front)
Corner sensors
(rear)
Side sensors
(front and rear)
Side sensors
(front and rear)
Corner sensors
(front)
Corner sensors
(rear)
62443_MY20_Prius_Text.indd 278/22/19 7:34 PM

28
Garage door opener (HomeLink®) (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit http://
www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
FEATURES & OPERATIONS

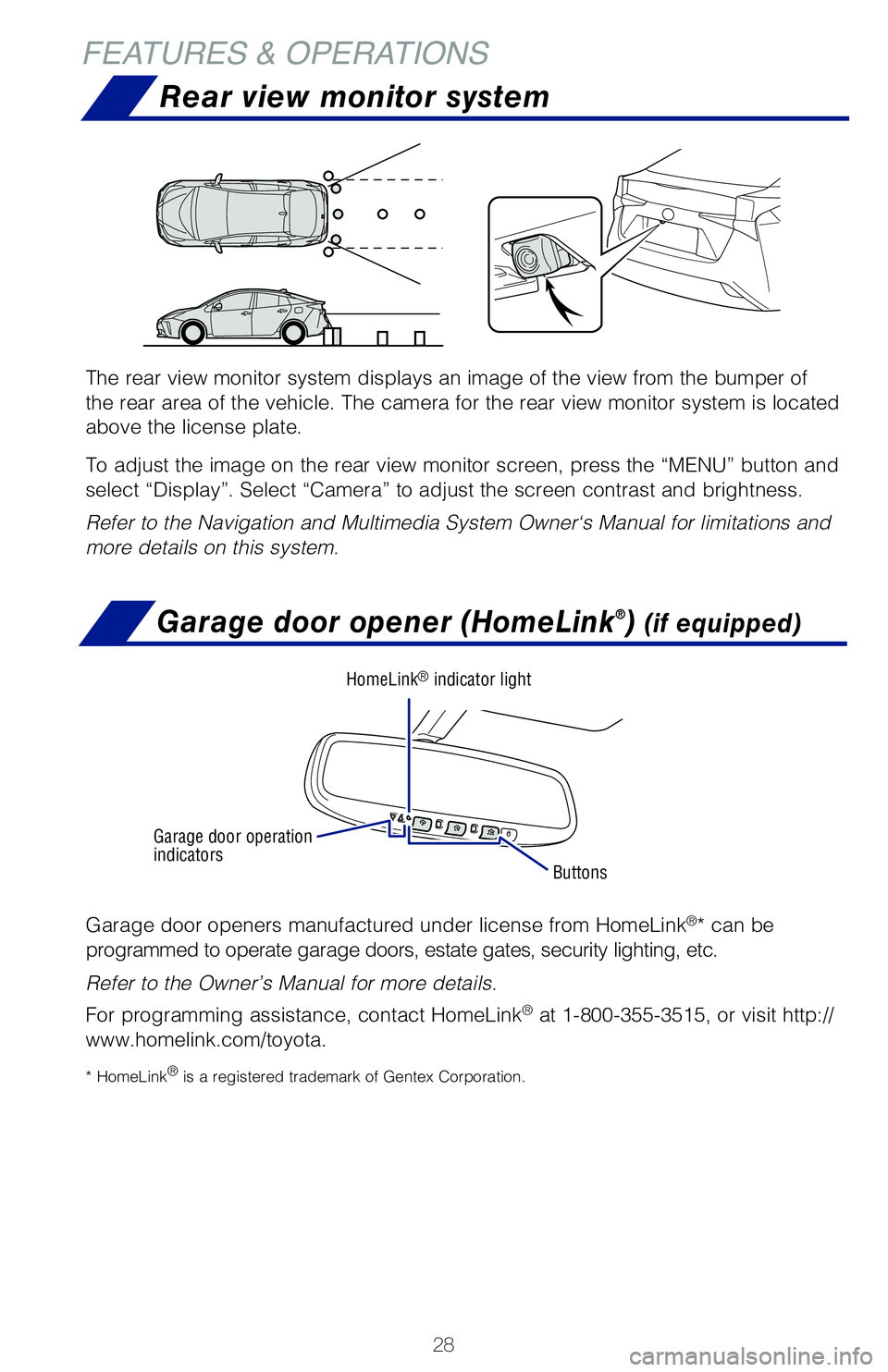

Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU” button and
select “Display”. Select “Camera” to adjust the screen contrast and brightness.
Refer to the Navigation and Multimedia System Owner‘s Manual for limitations and
more details on this system.
Buttons
HomeLink® indicator light
Garage door operation
indicators
