TOYOTA PRIUS 2021 Accessories, Audio & Navigation (in English)

1
11
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
1
2
3
4
5
6
7
8
9

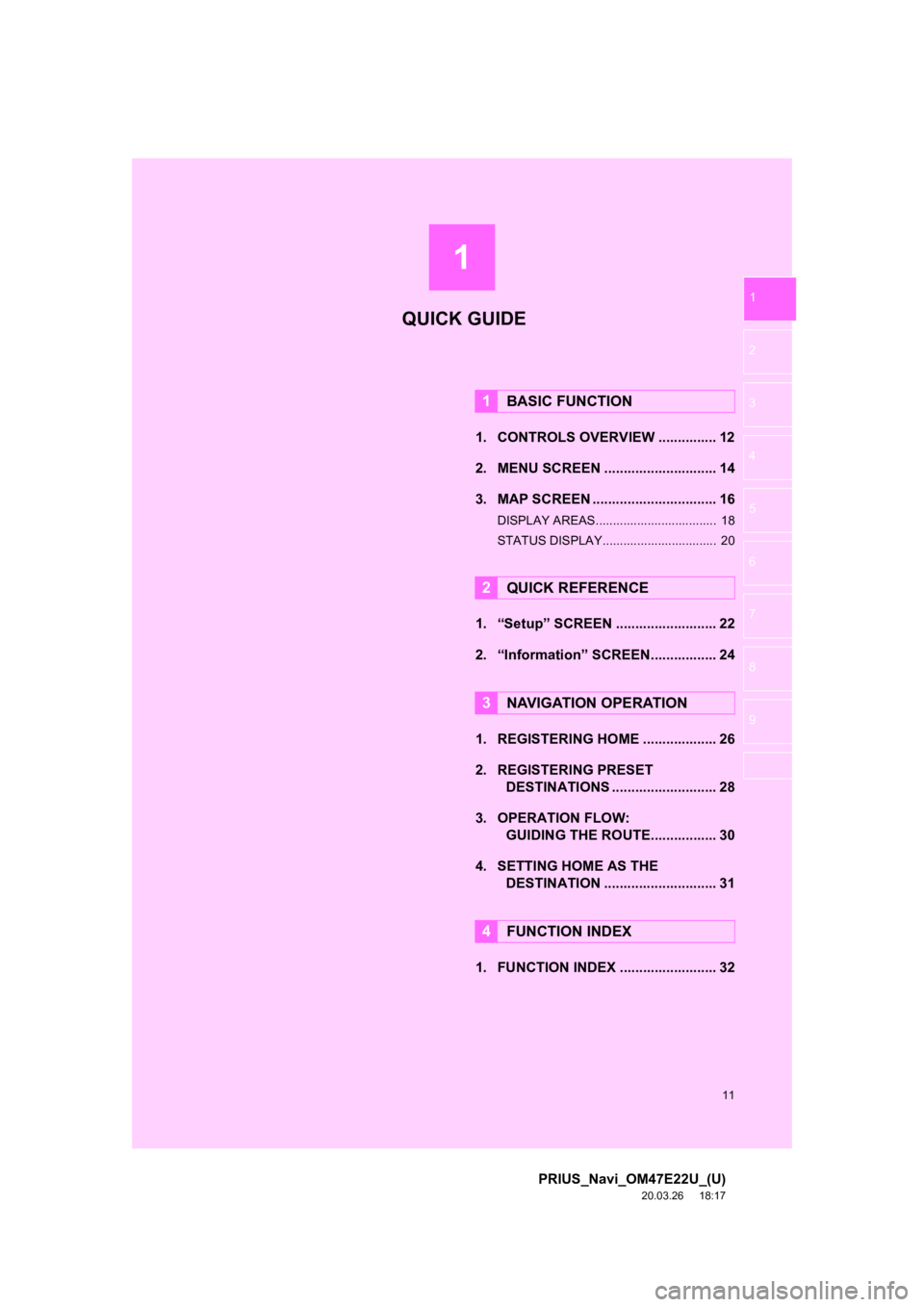

1. CONTROLS OVERVIEW ............... 12
2. MENU SCREEN ............................. 14
3. MAP SCREEN ................................ 16
DISPLAY AREAS................................... 18
STATUS DISPLAY................................. 20
1. “Setup” SCREEN .......................... 22
2. “Information” SCREEN................. 24
1. REGISTERING HOME ................... 26
2. REGISTERING PRESET DESTINATIONS ........................... 28
3. OPERATION FLOW: GUIDING THE ROUTE................. 30
4. SETTING HOME AS THE DESTINATION ............................. 31
1. FUNCTION INDEX ......................... 32
1BASIC FUNCTION
2QUICK REFERENCE
3NAVIGATION OPERATION
4FUNCTION INDEX
QUICK GUIDE

12
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
1. BASIC FUNCTION
1. CONTROLS OVERVIEW

13
1. BASIC FUNCTION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
QUICK GUIDE
1No.FunctionPage
By touching the screen with your finger, you can control the selected
functions.40, 41
Press to display the home screen.16, 42
Press to display the menu screen.14
Press the “ ” or “ ” button to adjust the volume.
Press to turn audio system on and off.82, 83
Operate the air conditioning/defogger.“Owner’s Manual”
INFORMATION
● Refer to the following page for precautions when using the cont rol panel switch. (P. 3 8 )

14
1. BASIC FUNCTION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
2. MENU SCREEN
Press the “MENU” button to display the menu screen.

15
1. BASIC FUNCTION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
QUICK GUIDE
1No.FunctionPage
Select to display the “Information” screen.24
Select to display the “Destination” screen.223
Select to display the hands-free operation screen.
When an Apple CarPlay connection is established, select to display
the phone app screen.*
68, 164
Select to adjust the contrast a nd brightness of the screens.48
Select to display the audio control screen. This area is normal ly dis-
played, even when the menu screen is not.82
Select to display the air conditioning control screen. This are a is nor-
mally displayed, even when the menu screen is not.“Owner’s Manual”
Select to display the “Setup” screen.22
*Select to display the Toyota apps screen.282
*When an Apple CarPlay connection is established, this button is dis-
played as “Apple CarPlay” . Select to display the Apple CarPlay home
screen.
68
*: This function is not made available in some countries or area s.

16
1. BASIC FUNCTION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
3. MAP SCREEN
Press the “HOME” button to display the map screen.
The map screen can be shown full screen and the menu buttons fo r each function
can be displayed on the map screen for quick access. Refer to t he following page
for the descriptions of each switch shown on the map screen. ( P.204)
No.Function
Displays/hides the menu buttons. (P.42)
Displays up to 3 shortcuts. Each function can be directly accessed through the shortcut.
The first 3 buttons displayed on the Apps screen are displayed as shortcuts for the
Apps buttons. ( P.282)
Map full-screen display Menu button display

17
1. BASIC FUNCTION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
QUICK GUIDE
1INFORMATION
●The visibility (displayed/not displayed) and position of the menu switch for each function
is stored. When the screen is switched from the map screen to another screen and back,
the condition of the display is the same as it was before switching took place.

18
1. BASIC FUNCTION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
DISPLAY AREAS

19
1. BASIC FUNCTION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
QUICK GUIDE
1No.FunctionPage
Various statuses are shown in this area, including the reception level
and Bluetooth® connection status.20
Displays the map.
When an Apple CarPlay connecti on is established, each screen of Ap-
ple CarPlay will be displayed.*
The map can be displayed bigger b y touching this area while the map
screen is displayed. This func tion is not supported by the Appl e Car-
Play map app.
204
Displays operations for various functions. The energy monitor i s dis-
played on a larger screen.
Displays audio information. Displays the audio control screen w hen
this area is touched.82
Displays air conditioner informati on. Displays the air conditioner con-
trol screen when this area is touched.“Owner’s Manual”
*: This function is not made available in some countries or area s.

20
1. BASIC FUNCTION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
STATUS DISPLAY
The condition of the Bluetooth® connection, as well as the level of reception and
the amount of cellular phone battery charge left, are displayed on the status dis-
play.
