navigation TOYOTA PRIUS 2021 Accessories, Audio & Navigation (in English)

1
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
1QUICK GUIDE11
2BASIC FUNCTION35
3AUDIO SYSTEM81
4VOICE COMMAND SYSTEM131
5INFORMATION147
6PERIPHERAL MONITORING SYSTEM151
7PHONE163
8NAVIGATION SYSTEM201
9Toyota Apps277
INDEX293
For more information about the foll owing items, see the “Owner’s Manual”.
 Air conditioning
 Fuel consumption
 Energy monitor
 Vehicle customization settings

2
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
Introduction
This manual explains the operation of this system. Please read this manual
carefully to ensure proper use. Keep this manual in your vehicle at all times.
The screen shots in this document and the actual screens of thi s system differ
depending on whether the functions and/or a contract existed an d the map data
available at the time of producing this document.
Please be aware that the content of this manual may be different from this sys-
tem in some cases, such as when the system’s software is updated.
The Navigation System is one of the most technologically advanc ed vehicle ac-
cessories ever developed. The system receives satellite signals from the Global
Positioning System (GPS) operated by the U.S. Department of Def ense. Using
these signals and other vehicle sensors, the system indicates your present po-
sition and assists in locating a desired destination.
The navigation system is designed to select efficient routes from your present
starting location to your destination. The system is also desig ned to direct you
to a destination that is unfamiliar to you in an efficient manner. Map database is
made based on AISIN AW maps, whose information source comes fro m HERE
maps. The calculated routes may not be the shortest nor the lea st traffic con-
gested. Your own personal local knowledge or “short cut” may at times be faster
than the calculated routes.
The navigation system’s database includes Point of Interest cat egories to allow
you to easily select destinations such as restaurants and hotel s. If a destination
is not in the database, you can enter the street address or a major intersection
close to it and the system will guide you there.
The system will provide both a visual map and audio instruction s. The audio in-
structions will announce the distance remaining and the directi on to turn in when
approaching an intersection. These voice instructions will help you keep your
eyes on the road and are timed to provide enough time to allow you to maneu-
ver, change lanes or slow down.
NAVIGATION SYSTEM OWNER’S MANUAL
NAVIGATION SYSTEM

3
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
Please be aware that all current vehicle navigation systems have certain limita-
tions that may affect their ability to perform properly. The accuracy of the vehi-
cle’s position depends on satellite conditions, road configurat ion, vehicle
condition or other circumstances. For more information on the l imitations of the
system, refer to page 272.

7
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for reference. If the sys-
tem cannot determine the current position
correctly, there is a possibility of incorrect,
late, or non-voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street clo-
sures, etc.) frequently change. Therefore,
before following any instructions from the
system, look to see whet her the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency ser-
vices. If unsure about the safety of an ar-
ea, do not drive into it. Under no
circumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.

TABLE OF CONTENTS
8
PRIUS_Navi_OM47E22U_(U)
20.04.15 12:08
1. BASIC FUNCTION........................... 12
CONTROLS OVERVIEW....................... 12
MENU SCREEN .................................... 14
MAP SCREEN ....................................... 16
2. QUICK REFERENCE....................... 22
“Setup” SCREEN ................................... 22
“Information” SCREEN........................... 24
3. NAVIGATION OPERATION ............ 26
REGISTERING HOME .......................... 26
REGISTERING PRESET DESTINATIONS .................................. 28
OPERATION FLOW: GUIDING THE ROUTE ....................... 30
SETTING HOME AS THE DESTINATION ............................ 31
4. FUNCTION INDEX ..... ...................... 32
FUNCTION INDEX ................................ 32
1. BASIC INFORMATION BEFORE
OPERATION .................................. 36
INITIAL SCREEN ................................... 36
CAPACITIVE TOUCH SWITCHES ........ 38
TOUCH SCREEN GESTURES .............. 40
TOUCH SCREEN OPERATION ............ 41
OPERATION OF MENU BUTTONS ON
MAP SCREEN ..................................... 42
ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION........................................ 44
SCREEN ADJUSTMENT ....................... 48
LINKING MULTI-INFORMATION DISPLAY AND NAVIGATION
SYSTEM .............................................. 50
2. CONNECTIVITY SETTINGS ........... 51
REGISTERING/CONNECTING Bluetooth® DEVICE ............................. 51
SETTING Bluetooth® DETAILS ............. 58
Apple CarPlay®...................................... 68
3. OTHER SETTINGS ......................... 72
GENERAL SETTINGS ........................... 72
VOICE SETTINGS ................................. 75
VEHICLE SETTINGS ............................. 76
1QUICK GUIDE2BASIC FUNCTION

TABLE OF CONTENTS
10
PRIUS_Navi_OM47E22U_(U)
20.04.15 12:08
1. BASIC OPERATION ...................... 204
QUICK REFERENCE .......................... 204
MAP SCREEN OPERATION ............... 207
MAP SCREEN INFORMATION ........... 213
TRAFFIC INFORMATION.................... 220
2. DESTINATION SEARCH ............... 223
DESTINATION SEARCH SCREEN ..... 223
SEARCH OPERATION ........................ 225
STARTING ROUTE GUIDANCE ......... 235
3. ROUTE GUIDANCE....................... 239
ROUTE GUIDANCE SCREEN ............ 239
TYPICAL VOICE GUIDANCE
PROMPTS......................................... 245
EDITING ROUTE ................................. 246
4. MEMORY POINTS ......................... 251
MEMORY POINTS SETTINGS ........... 251
5. SETUP ........................................... 261
DETAILED NAVIGATION SETTINGS ........................................ 261
TRAFFIC SETTINGS ........................... 265
6. TIPS FOR THE NAVIGATION SYSTEM ....................................... 272
GPS (GLOBAL POSITIONING
SYSTEM) .......................................... 272
MAP DATABASE VERSION AND COVERED AREA .............................. 275
1. CONNECTED SERVICE OVERVIEW .................................. 278
CONNECTED SERVICES ................... 278
2. CONNECTED SERVICE
OPERATION ................................ 282
Toyota Apps ......................................... 282
3. SETUP ........................................... 291
Toyota Apps Settings ........................... 291
ALPHABETICAL INDEX ................... 294
8NAVIGATION SYSTEM9Toyota Apps
INDEX

1
11
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
1
2
3
4
5
6
7
8
9
1. CONTROLS OVERVIEW ............... 12
2. MENU SCREEN ............................. 14
3. MAP SCREEN ................................ 16
DISPLAY AREAS................................... 18
STATUS DISPLAY................................. 20
1. “Setup” SCREEN .......................... 22
2. “Information” SCREEN................. 24
1. REGISTERING HOME ................... 26
2. REGISTERING PRESET DESTINATIONS ........................... 28
3. OPERATION FLOW: GUIDING THE ROUTE................. 30
4. SETTING HOME AS THE DESTINATION ............................. 31
1. FUNCTION INDEX ......................... 32
1BASIC FUNCTION
2QUICK REFERENCE
3NAVIGATION OPERATION
4FUNCTION INDEX
QUICK GUIDE

23
2. QUICK REFERENCE
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, keyboard
layout settings, etc.72
Select to set the voice settings.75
Select to set Bluetooth® phones and Bluetooth® audio devices.58
*Select to set traffic information.265
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.
251
Select to set audio settings.121
Select to set vehicle information.76
Select to set the phone sound, cont acts, message settings, etc.184
*Select to set Toyota apps settings.291
*Select to set data services settings.150
*: This function is not made available in some countries or area s.

26
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
3. NAVIGATION OPERATION

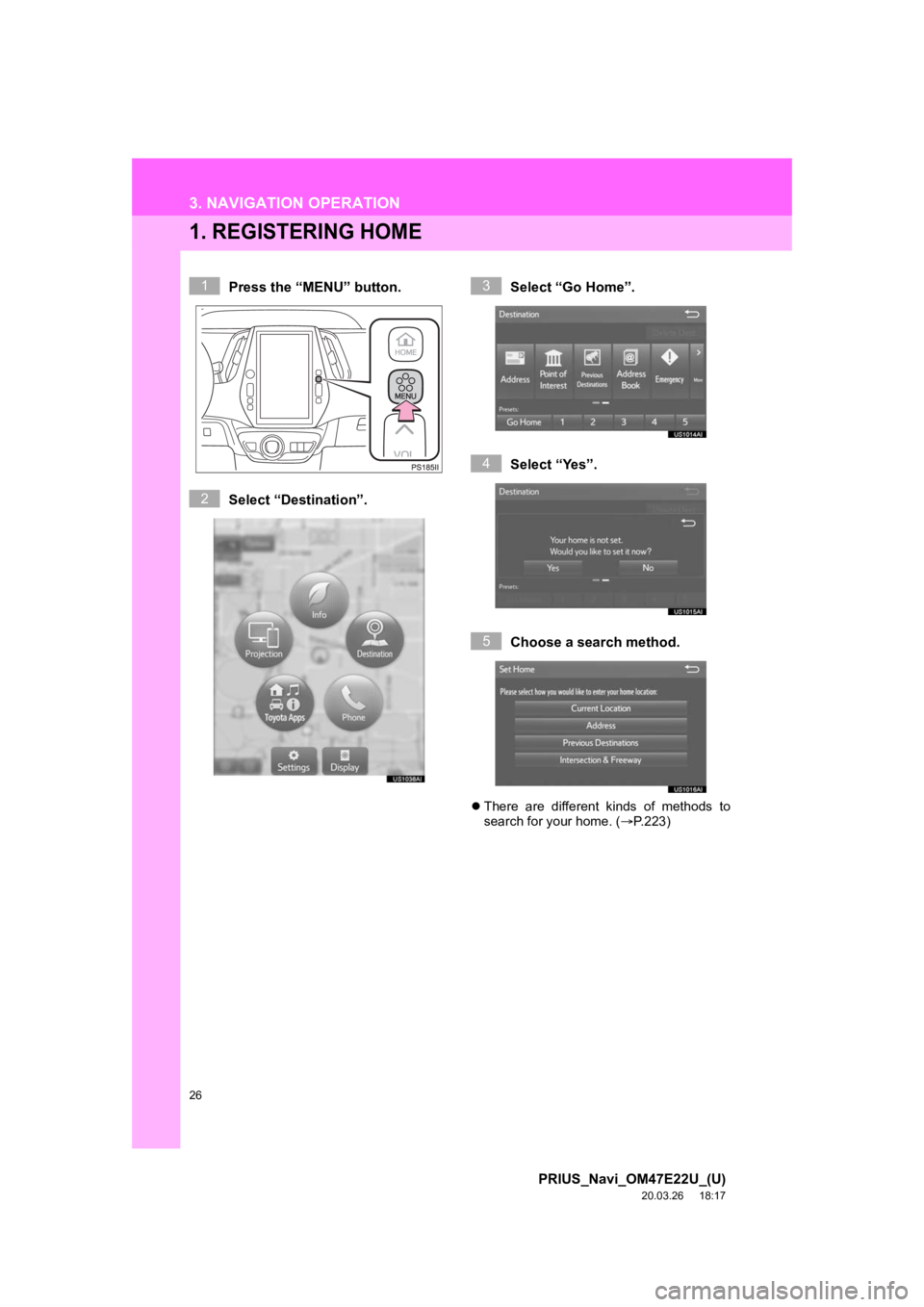

1. REGISTERING HOME
Press the “MENU” button.
Select “Destination”.Select “Go Home”.
Select “Yes”.
Choose a search method.

There are different kinds of methods to
search for your home. ( P.223)
1
2
3
4
5

27
3. NAVIGATION OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
QUICK GUIDE

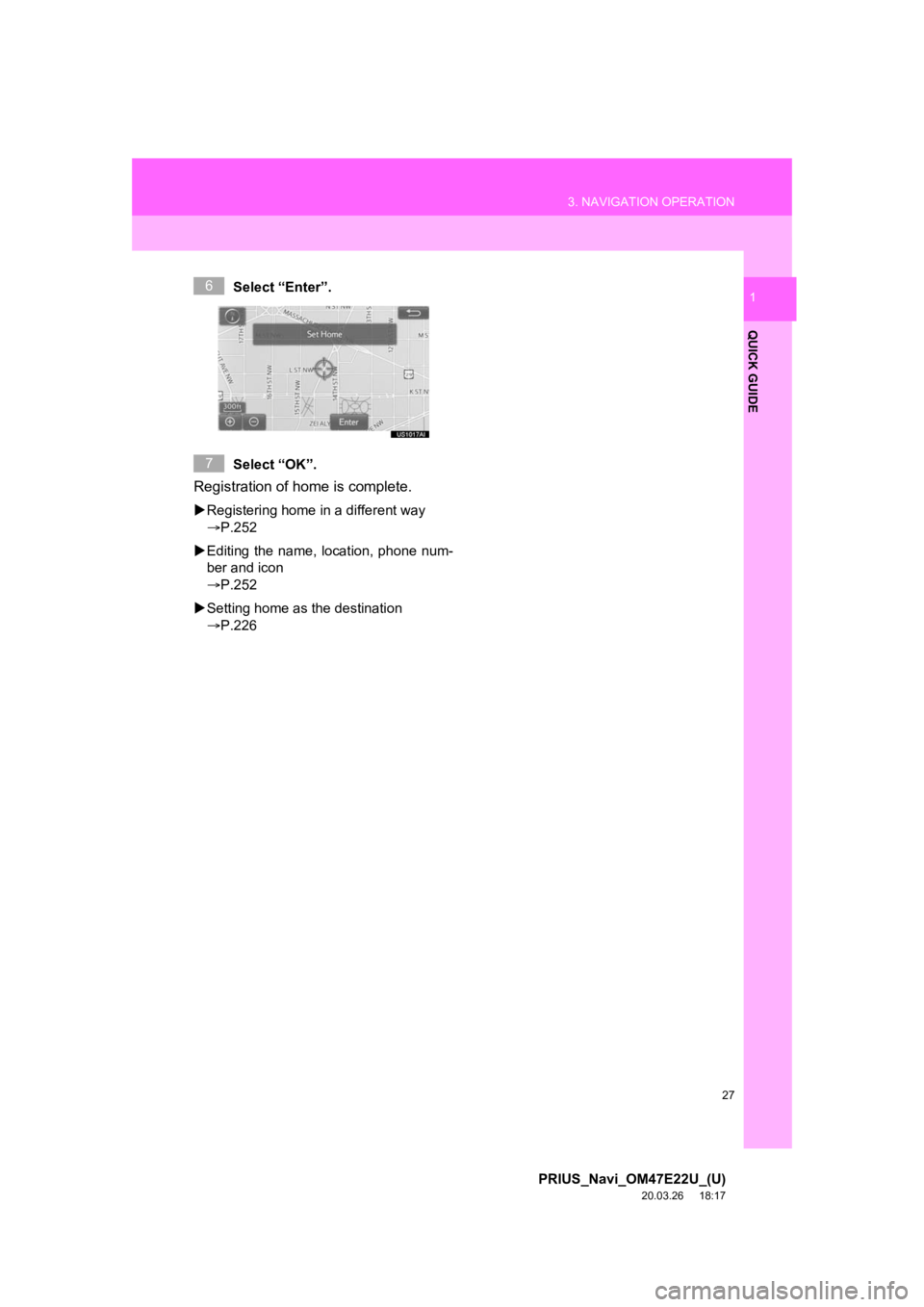

1Select “Enter”.
Select “OK”.
Registration of home is complete.
Registering home in a different way
P.252
 Editing the name, location, phone num-
ber and icon
P.252
 Setting home as the destination
P.226
6
7
