fuel consumption TOYOTA PRIUS 2021 Owners Manual (in English)

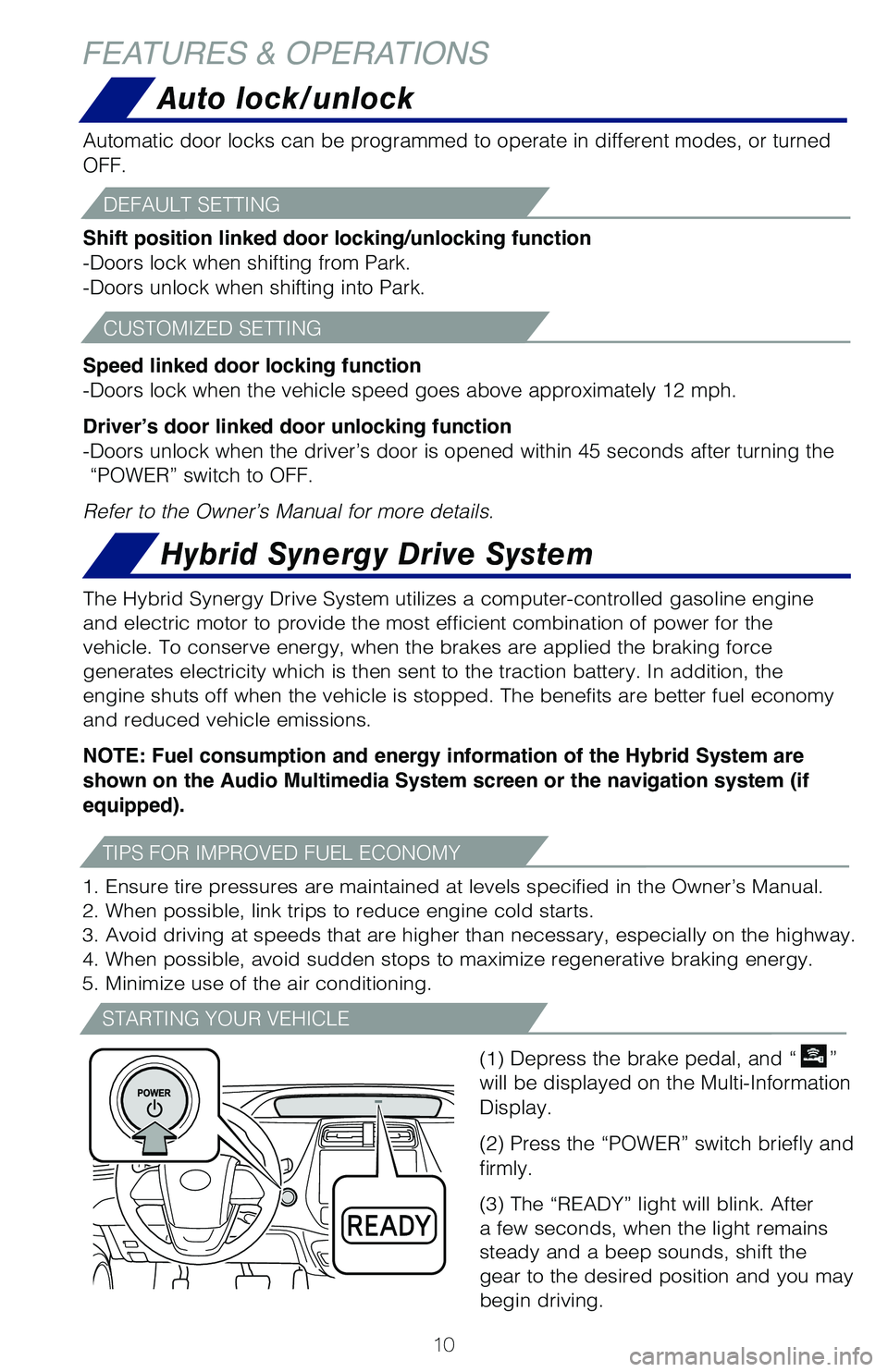

10
TIPS FOR IMPROVED FUEL ECONOMY
DEFAULT SETTING
CUSTOMIZED SETTING
STARTING YOUR VEHICLE
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition, the
engine shuts off when the vehicle is stopped. The benefits are better fuel economy
and reduced vehicle emissions.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Audio Multimedia System screen or the navigation system (if
equipped).
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
2. When possible, link trips to reduce engine cold starts.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking energy.
5. Minimize use of the air conditioning.
Hybrid Synergy Drive System
Auto lock/unlock
FEATURES & OPERATIONS
(1) Depress the brake pedal, and “”
will be displayed on the Multi-Information
Display.
(2) Press the “POWER” switch briefly and
firmly.
(3) The “READY” light will blink. After
a few seconds, when the light remains
steady and a beep sounds, shift the
gear to the desired position and you may
begin driving.
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph.
Driver’s door linked door unlocking function
-Doors unlock when the driver’s door is opened within 45 seconds after turning the
“POWER” switch to OFF.
Refer to the Owner’s Manual for more details.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 10126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 106/17/20 10:09 AM6/17/20 10:09 AM

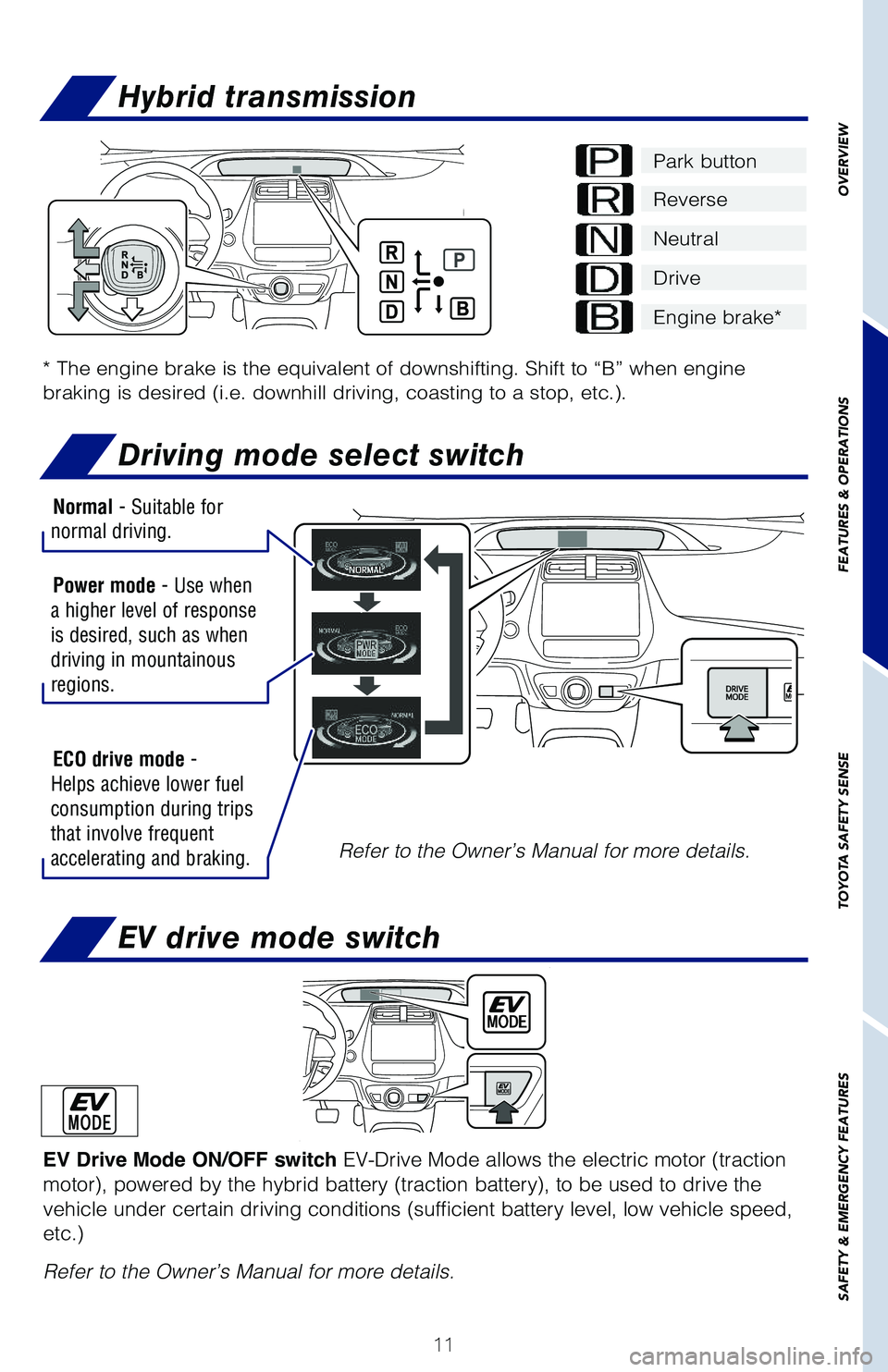

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
* The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Reverse
Park button
Neutral
Drive
Engine brake*
Hybrid transmission
Driving mode select switch
EV Drive Mode ON/OFF switch EV-Drive Mode allows the electric motor (traction
motor), powered by the hybrid battery (traction battery), to be used to drive the
vehicle under certain driving conditions (sufficient battery level, low vehicle speed,
etc.)
Refer to the Owner’s Manual for more details.
Normal - Suitable for
normal driving.
Power mode - Use when
a higher level of response
is desired, such as when
driving in mountainous
regions.
ECO drive mode -
Helps achieve lower fuel
consumption during trips
that involve frequent
accelerating and braking.Refer to the Owner’s Manual for more details.
EV drive mode switch
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 11126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 116/17/20 10:09 AM6/17/20 10:09 AM

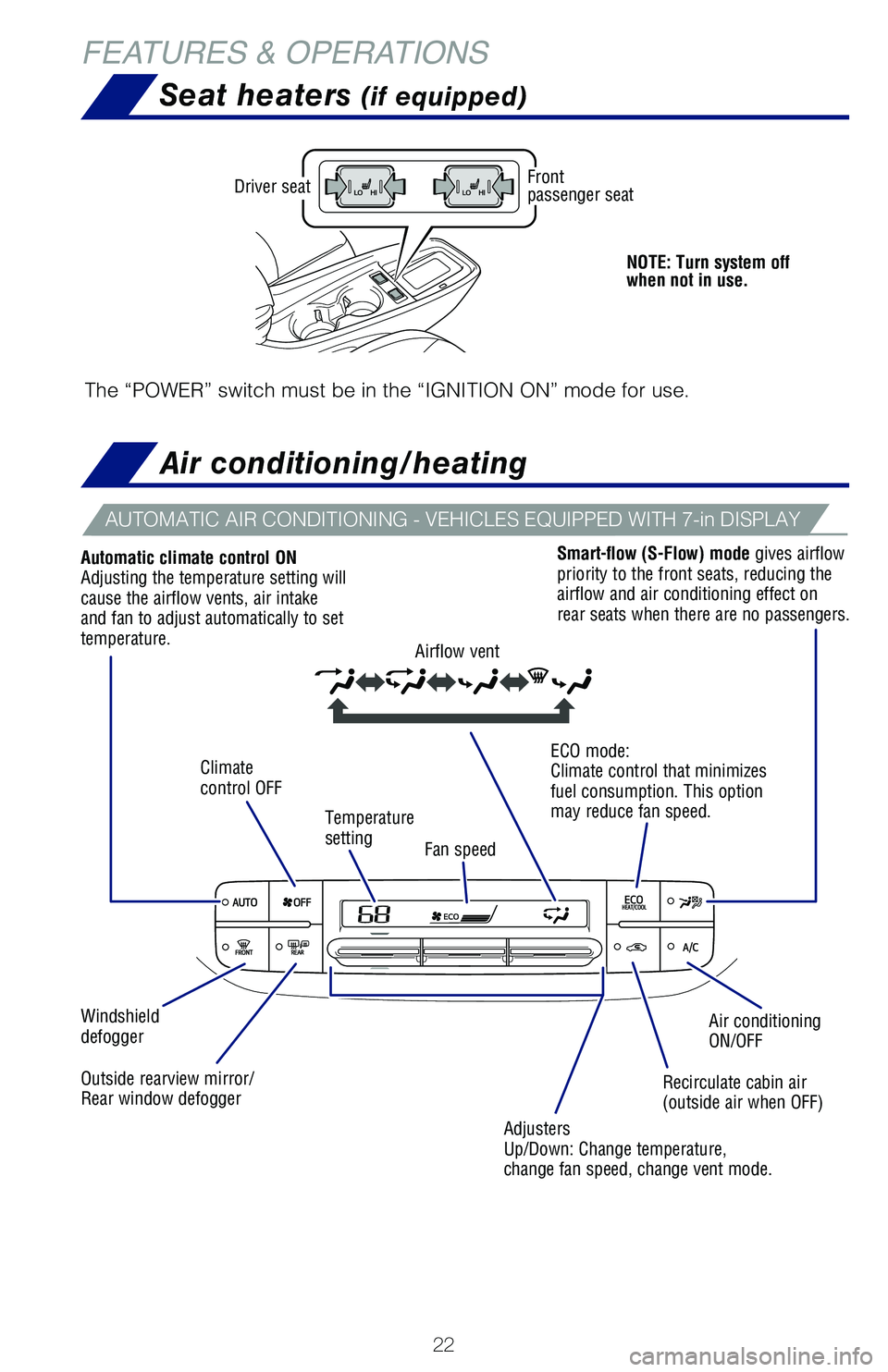

22
FEATURES & OPERATIONS
AUTOMATIC AIR CONDITIONING - VEHICLES EQUIPPED WITH 7-in DISPLAY
Air conditioning/heating
Air conditioningON/OFF
Recirculate cabin air (outside air when OFF)
Airflow vent
Windshield defogger
Outside rearview mirror/Rear window defogger
Automatic climate control ONAdjusting the temperature setting will cause the airflow vents, air intake and fan to adjust automatically to set temperature.
Smart-flow (S-Flow) mode gives airflow priority to the front seats, reducing the airflow and air conditioning effect onrear seats when there are no passengers.
Climate control OFF
Temperature settingFan speed
ECO mode: Climate control that minimizes fuel consumption. This option may reduce fan speed.
Adjusters Up/Down: Change temperature,change fan speed, change vent mode.
Seat heaters (if equipped)
Driver seatFrontpassenger seat
The “POWER” switch must be in the “IGNITION ON” mode for use.
NOTE: Turn system off when not in use.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 22126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 226/17/20 10:09 AM6/17/20 10:09 AM

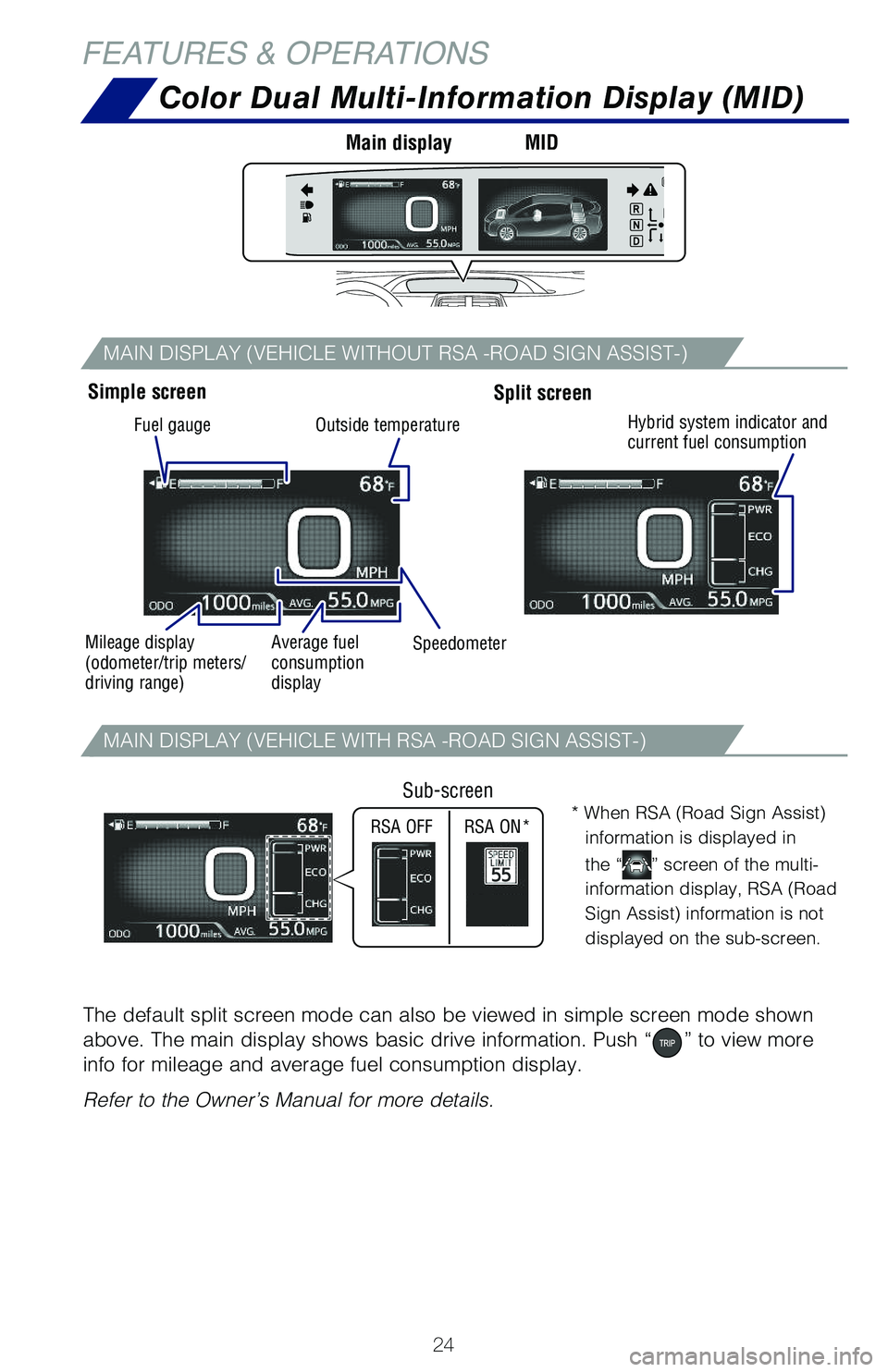

24
Color Dual Multi-Information Display (MID)
Main displayMID
FEATURES & OPERATIONS
MAIN DISPLAY (VEHICLE WITHOUT RSA -ROAD SIGN ASSIST-)
MAIN DISPLAY (VEHICLE WITH RSA -ROAD SIGN ASSIST-)
The default split screen mode can also be viewed in simple screen mode shown
above. The main display shows basic drive information. Push “” to view more
info for mileage and average fuel consumption display.
Refer to the Owner’s Manual for more details.
Simple screenSplit screen
Fuel gauge
Sub-screen
RSA OFFRSA ON*
Mileage display (odometer/trip meters/driving range)
Average fuelconsumption display
Speedometer
Outside temperatureHybrid system indicator and current fuel consumption
* When RSA (Road Sign Assist)
information is displayed in
the “” screen of the multi-
information display, RSA (Road
Sign Assist) information is not
displayed on the sub-screen.
