TOYOTA PRIUS 2022 Owners Manual

PRIUS_OM_OM47F01U_(U)
1512. Instrument cluster
2
Instrument cluster
The operation contents of the driving support systems and settings
related to the com bination meter disp lay can be changed.
Driving support systems such as the PCS (Pre-Collision System) (if
equipped) and Blind Spot Monitor (if equipped) is turned on and off by sim-
ply pressing . Make sure not to cancel the systems accidentally .
■
Setting procedure
Press or of the meter cont rol switches on the steering
wheel and select .
Press or of the meter control switches and select the
item to change, and then press .
If the function is turned on and
off or the sensitivity, etc. is
changed on the setting screen,
the setting is changed each time
the is pressed.
For functions that allow opera-
tion contents, display contents,
etc., of a function to be selected,
the setting screen is displayed.
When the setting screen is displayed, select the setting or
desired value (time, etc.) wit h the meter control switches.
*1, 2
For selectable operation con-
tents and setting values, select
the desired setting or value, and
then press .
To stop the selection, press .
When the setting check screen
is displayed, select proceed or
cancel and press .
*1: Depending on the items, a subsequent setting screen may be dis played
after selecting an item.
*2: For items which set the adjustment level or time, after the it em is set,
the setting screen remains displayed until is pressed.
Settings display
1
2
3

152
PRIUS_OM_OM47F01U_(U)
2. Instrument cluster
■Settings table
ItemSettingsSetting result
*“On”Turns the LTA (Lane Tracing Assist) lane
centering function on and off. ( P. 302)
“Off”
*“On”
Turns the LTA (Lane Tracing Assist) steer-
ing assist function on and off. ( P. 302)
“Off”
*“High”Switches the LTA (Lane Tracing Assist)
alert sensitivity. (P. 302)
“Standard”
*“On”Turns the PCS (Pre-Collision System) on
and off. ( P. 295)
“Off”
*
Early
Switches the PCS (Pre-Collision System)
warning timing. ( P. 295)Middle
Late
*“On”Turns the Intuitive parking assist on and off.
(P. 358)
“Off”
*“On”Turns the Parking Support Brake function
on and off. ( P. 372)
“Off”
*“On”Turns the Blind Spot Monitor on and off.
(P. 345)
“Off”
*“On”Turns the LTA (Lane Tracing Assist) vehicle
sway warning on and off. ( P. 302)
“Off”
*
“High”
Switches the LTA (Lane Tracing Assist)
vehicle sway warning sensitivity. ( P. 302)“Standard”
“Low”
*HeightChanges the display position and bright-
ness of the head-up display. (P. 160)
Brightness
*“On”Turns the RSA (Road Sign Assist) on and
off. (P. 317)
“Off”
“km/h”Switches the speed unit used by the screen
display.
“MPH”

PRIUS_OM_OM47F01U_(U)
1532. Instrument cluster
2
Instrument cluster
*: If equipped
■
“Meter Customize” settings ( )
“Meter Customize” settings: P. 153
“Vehicle Settings” settings: P. 686
ItemSettingsSetting result
ItemSettingsSetting result
“Simple/Split
Screen”
*1
“Simple” Switches the display mode of
the main display. (P. 121)
“Split”
“Screen
OFF”
*2
“Yes”Turns the multi-information dis-
play off.
“No”
“HV System
Indicator”
(  P. 1 2 9 )
“ECO Acceler-
ator Guidance”“On”Turns the “ECO Accelerator
Guidance” on and off.
“Off”
“EV Indicator
Light On/Off” “On”Turns the EV indicator on and
off.
“Off”

154
PRIUS_OM_OM47F01U_(U)
2. Instrument cluster
“Pop-up Display
On/Off”
“Navigation”*1“On”
Turns the pop-up display of the
selected item on the multi-
information display on and off.
“Off”
“Instrument
Panel Light”“On”
“Off”
“Gasoline
Price”“On”
“Off”
“Climate
Settings”
“On”
“Off”
“Cruise
Control
Operation
Display”“On”
“Off”
“HUD
Settings”
*1
“On”
“Off”
“Driving Mode
Select”
“On”
“Off”
“Multimedia
Menu”
*1
“On”
“Off”
“Speed
Limit”
*1, 3
(
 P. 1 6 2 )
“Off”Switches the operation con-
tents of the speed limit func-
tion.
“Only Display”
“With Caution”
“Language”
“English” (English)
Switches the language dis-
played on the screen.“Français” (French)
“Español” (Spanish)
“Calendar”
Month/Day/Year*4Changes the date used to
record fuel consumption data.
Day/Month/Year*5
“Eco Savings”
(  P. 1 3 8 )“Gasoline Price”Registers data used to calcu-
late and record “Eco Savings”.
“COMP. Consumption”
ItemSettingsSetting result

PRIUS_OM_OM47F01U_(U)
1552. Instrument cluster
2
Instrument cluster
*1: If equipped
*2: When the screen is turned off, pressing displays the setting screen
again.
*3: U.S.A. only
*4: Except for Canada
*5: For Canada

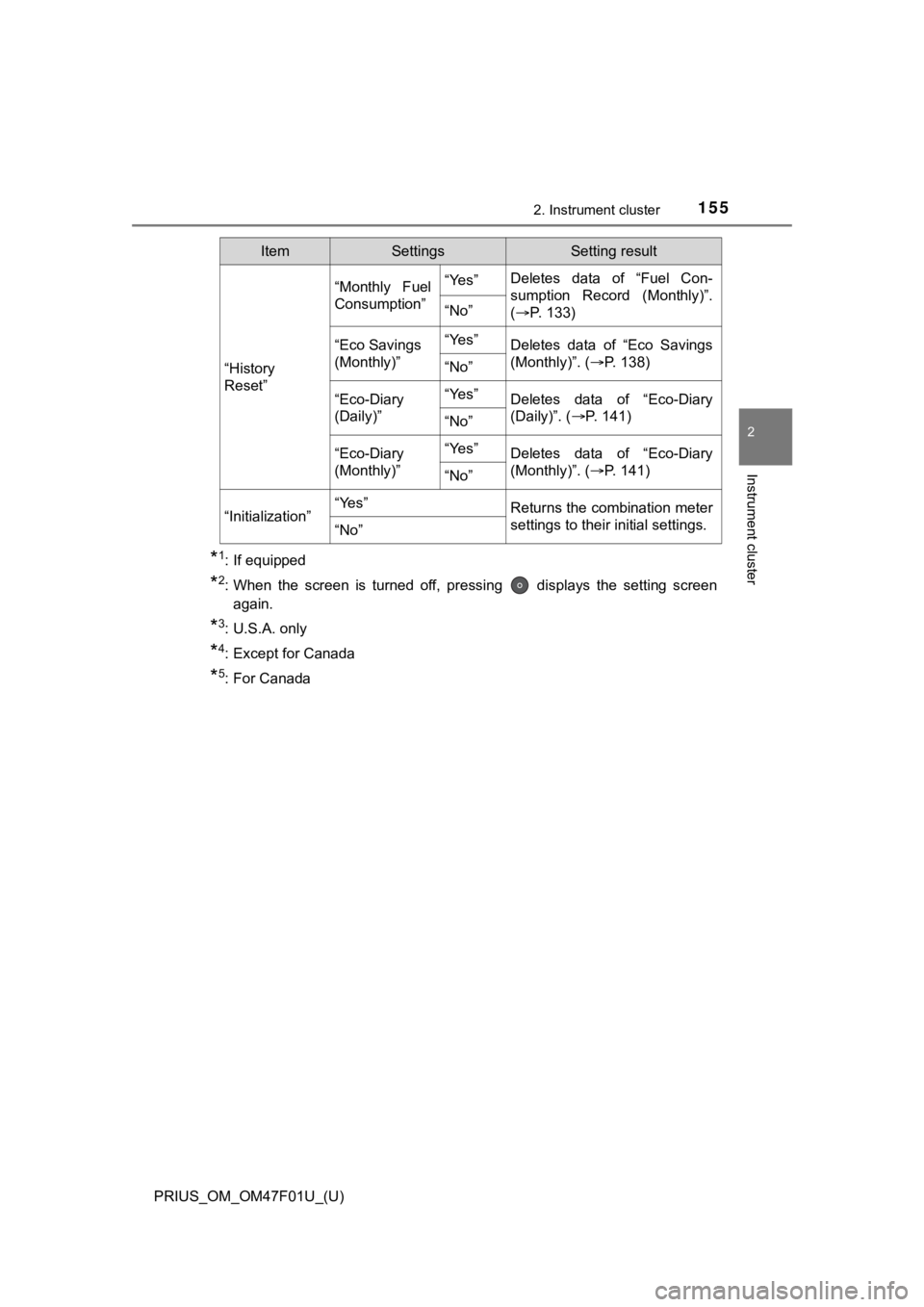

“History
Reset”
“Monthly Fuel
Consumption”“Yes”Deletes data of “Fuel Con-
sumption Record (Monthly)”.
(  P. 1 3 3 )
“No”
“Eco Savings
(Monthly)”“Yes”Deletes data of “Eco Savings
(Monthly)”. (P. 138)
“No”
“Eco-Diary
(Daily)”“Yes”Deletes data of “Eco-Diary
(Daily)”. ( P. 141)
“No”
“Eco-Diary
(Monthly)”“Yes”Deletes data of “Eco-Diary
(Monthly)”. ( P. 141)
“No”
“Initialization”“Yes”Returns the combination meter
settings to their initial settings.
“No”
ItemSettingsSetting result

156
PRIUS_OM_OM47F01U_(U)
2. Instrument cluster
■Setting items
●“Meter Customize” and “Vehicle Settings” setting items are not selectable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the follow ing situations.
• A warning message is displayed.
• The vehicle starts off.
● Settings for functions not equipped to the vehicle are not disp layed.
● When a function is turned off, the related settings for that fu nction are not
selectable.
■ Calendar settings
●Calendar settings contents are linked to the recorded informati on of “Fuel
Consumption Record (Monthly)” ( P. 133) and “Eco-Diary” (P. 141).
When the calendar date is changed, each record is processed as follows:
*: Month/date information not recorded is set to “0” or “0.0”.
● When the recorded contents of “Fuel Consumption Record (Monthly )” are
changed due to changing the calendar settings, the “Monthly” information of
“Eco Savings” ( P. 138) is also changed.
Contents of date
change“Fuel Consumption Record (Monthly)”
record
“Eco-Diary” record
Date changed to future
dateNot cleared*Not cleared*
Date changed to before
last monthClearedAll cleared
Date changed to earlier
date within current
month
Not clearedOnly “Daily” data cleared

PRIUS_OM_OM47F01U_(U)
1572. Instrument cluster
2
Instrument cluster
WARNING
■Cautions while setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate vent ilation. In a
closed area such as a garage, exhaust gases including harmful c arbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■ While setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid sy stem is oper-
ating while setting up the display features.

158
PRIUS_OM_OM47F01U_(U)
2. Instrument cluster
Head-up display
The units used on the display may differ depending on the target region.
Meter control switches
These switches are used when adjusting the display position and bright-
ness of the head-up display. ( P. 160)
“HUD” (Head-up display) switch (P. 1 5 9)
Vehicle speed display
Cruise control display
Dynamic radar cruise control (if equipped):
Displays the set speed and approach warning display. ( P. 321)
Cruise control (if equipped):
Displays the set speed only. ( P. 337)
Hybrid System Indicator (P. 129)
: If equipped
The head-up display can display the current vehicle speed and
Hybrid System Indicator in front of the driver. Also, it can di splay
various types of informati on to assist the driver.
Operation switches and display contents
1
2
3
4
5

PRIUS_OM_OM47F01U_(U)
1592. Instrument cluster
2
Instrument cluster
Insert display (P. 1 6 1)
This display inserts information from each driving support syst em accord-
ing to driving conditions.
Route guidance display (vehicles with navigation system)
(  P. 162)
This display is automatically shown when the navigation system is per-
forming route guidance.
The “HUD” switch can be used to turn the head-up display on and off,
or switch the display contents.
■When the head-up display is off
Pressing the “HUD” switch
turns the head-up display on
and starts the display.
The indicator light on the “HUD”
switch comes on.
The display position and bright-
ness adjustment screen is auto-
matically displayed on the multi-
information display. ( P. 160)
■
When the head-up display is on
Display items can be switched by pressing the “HUD” switch.
Vehicle speed display and
cruise control display
*
Vehicle speed display and
Hybrid System Indicator
*
Refer to P. 129 for details of the
Hybrid System Indicator.
No display (head-up display
is off)
The indicator light on the “HUD”
switch turns off.
*: When the insert display of each driving support system is dis-
played, the display is temporar-
ily turned off.
“HUD” (Head-up display) switch
6
7
1
2
3

160
PRIUS_OM_OM47F01U_(U)
2. Instrument cluster
In order to improve the visibility of the head-up display, the display
position and brightness can be adjusted.
Displaying the adjustment screen on the multi-information display.
When the head-up display is on:
Select on the screen of the multi-information dis-
play, and then press . ( P. 151)
When the head-up display is off:
When the “HUD” switch is pressed, the adjustment screen for the
head-up display automatically displays.
*1
If an adjustment operation is not performed for approximately 6 seconds*2,
the multi-information display automatically returns to the previous screen.
Adjusting the display position and brightness by operating the
meter control switches.
When or is pressed, the
position of the head-up display
changes.
When or is pressed, the
brightness of the head-up display
changes.
When the is pressed, the multi-
information display returns to the
previous screen.
*1: This function can be turned off. ( P. 153)
*2: The adjustment screen may suddenly be canceled if it is interrupted by a
warning message shown on the display.
Display positi on and brightness adjustment
1
2
