6-3. Do-it-yourself maintenance
6
Maintenance and care
Headlight aim
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.

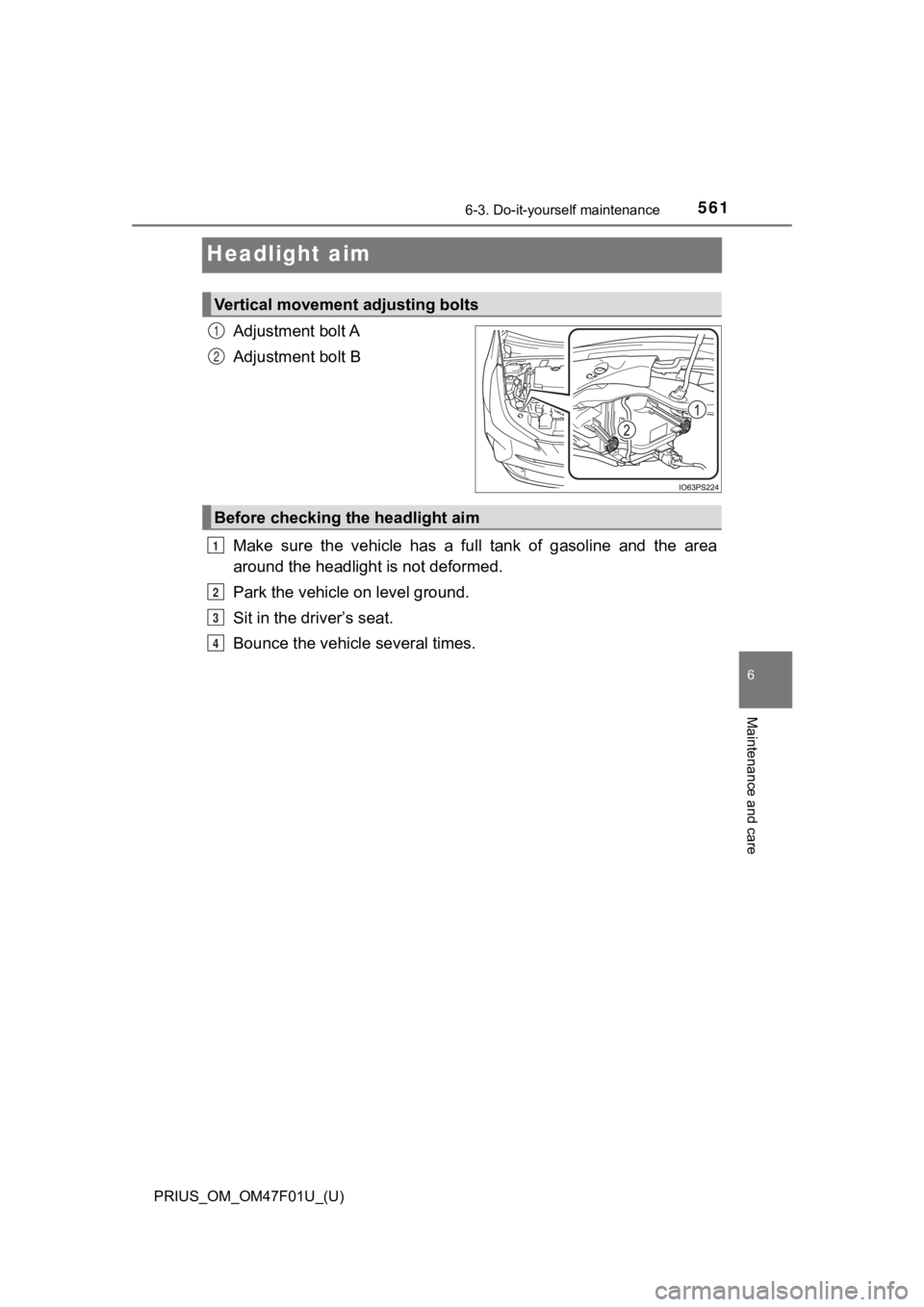

Vertical movement adjusting bolts
1
2
Before checking the headlight aim
1
2
3
4

562
PRIUS_OM_OM47F01U_(U)
6-3. Do-it-yourself maintenance
Using a Phillips-head screw-
driver, turn bolt A in either direc-
tion.
Remember the turning direction
and the number of turns.
Turn bolt B the same number of
turns and in the same direction
as step .
If the headlight cannot be adjusted
using this procedure, take the vehi-
cle to your Toyota dealer to adjust
the headlight aim.

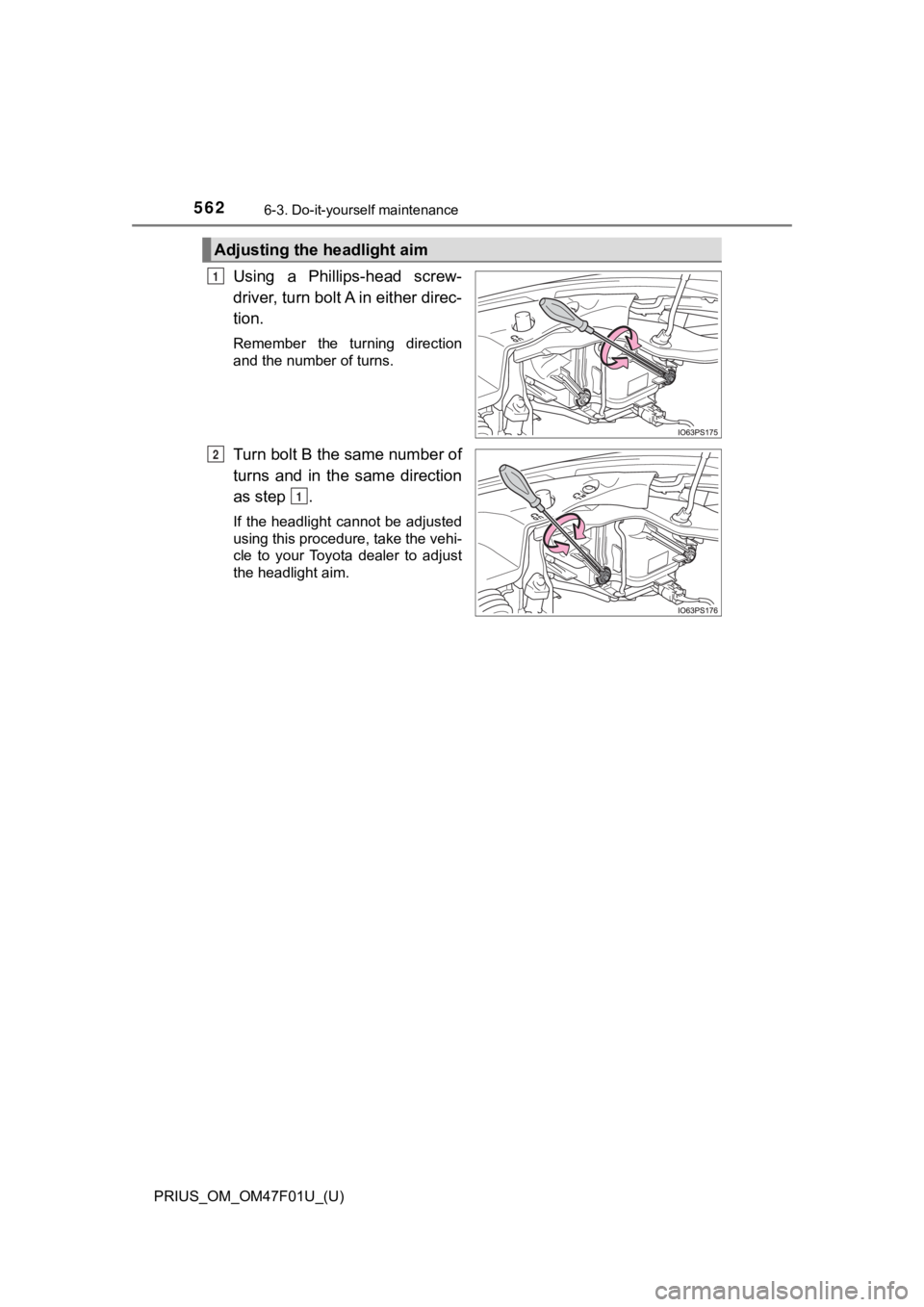

Adjusting the headlight aim
1
2
1

563
PRIUS_OM_OM47F01U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. ( P. 670)
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by your Toyota dealer.
Preparing for light bulb replacement

564
PRIUS_OM_OM47F01U_(U)
6-3. Do-it-yourself maintenance
■FrontParking light (bulb type)
*1, 2
Front side marker light
*1: If equipped
*2: The location of the parking lights may differ depending on th e grade,
etc.
■
Rear

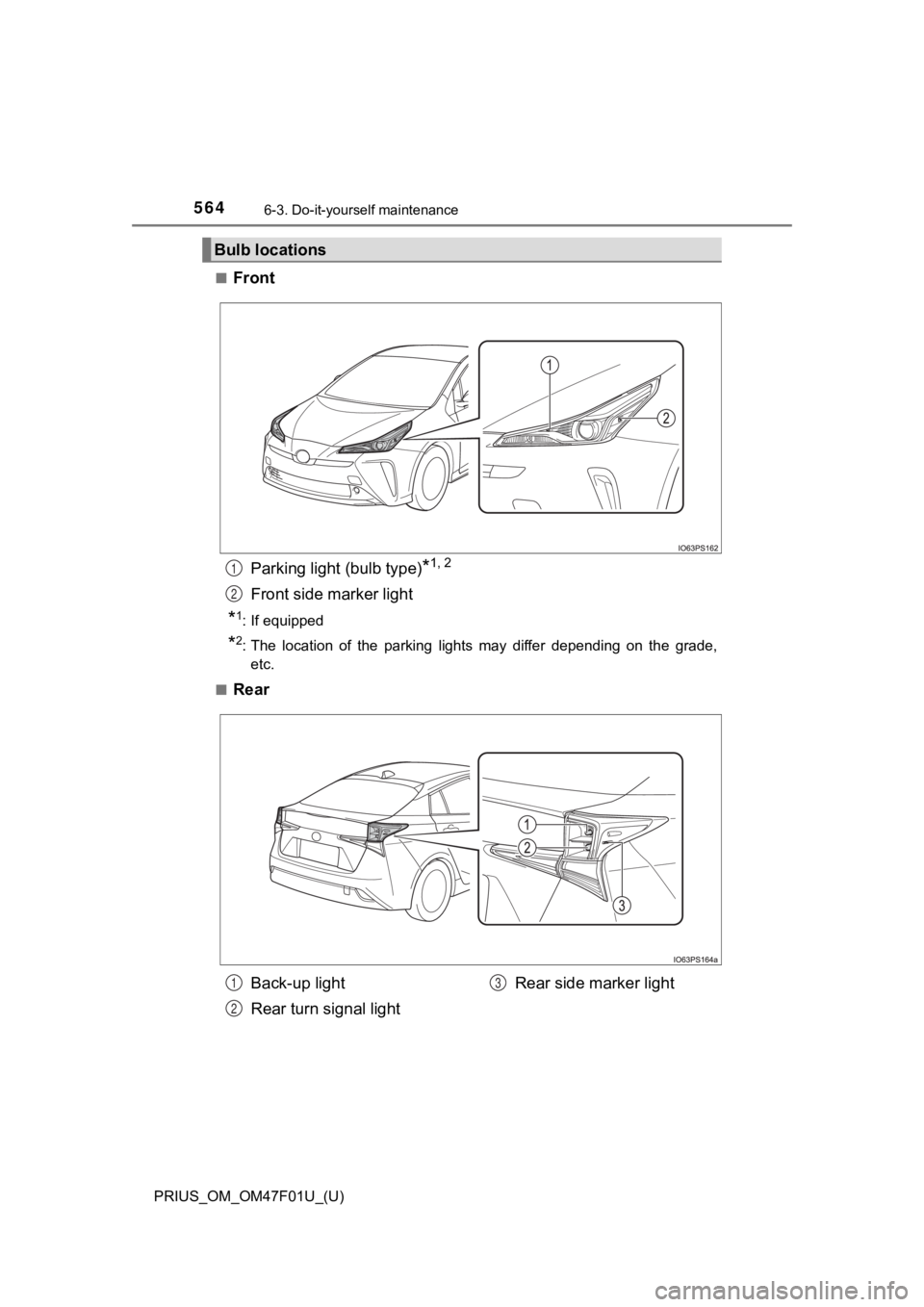

Bulb locations
1
2
Back-up light
Rear turn signal light Rear side ma
rker light1
2
3

PRIUS_OM_OM47F01U_(U)
5656-3. Do-it-yourself maintenance
6
Maintenance and care
■Parking lights (bulb type) (if equipped)

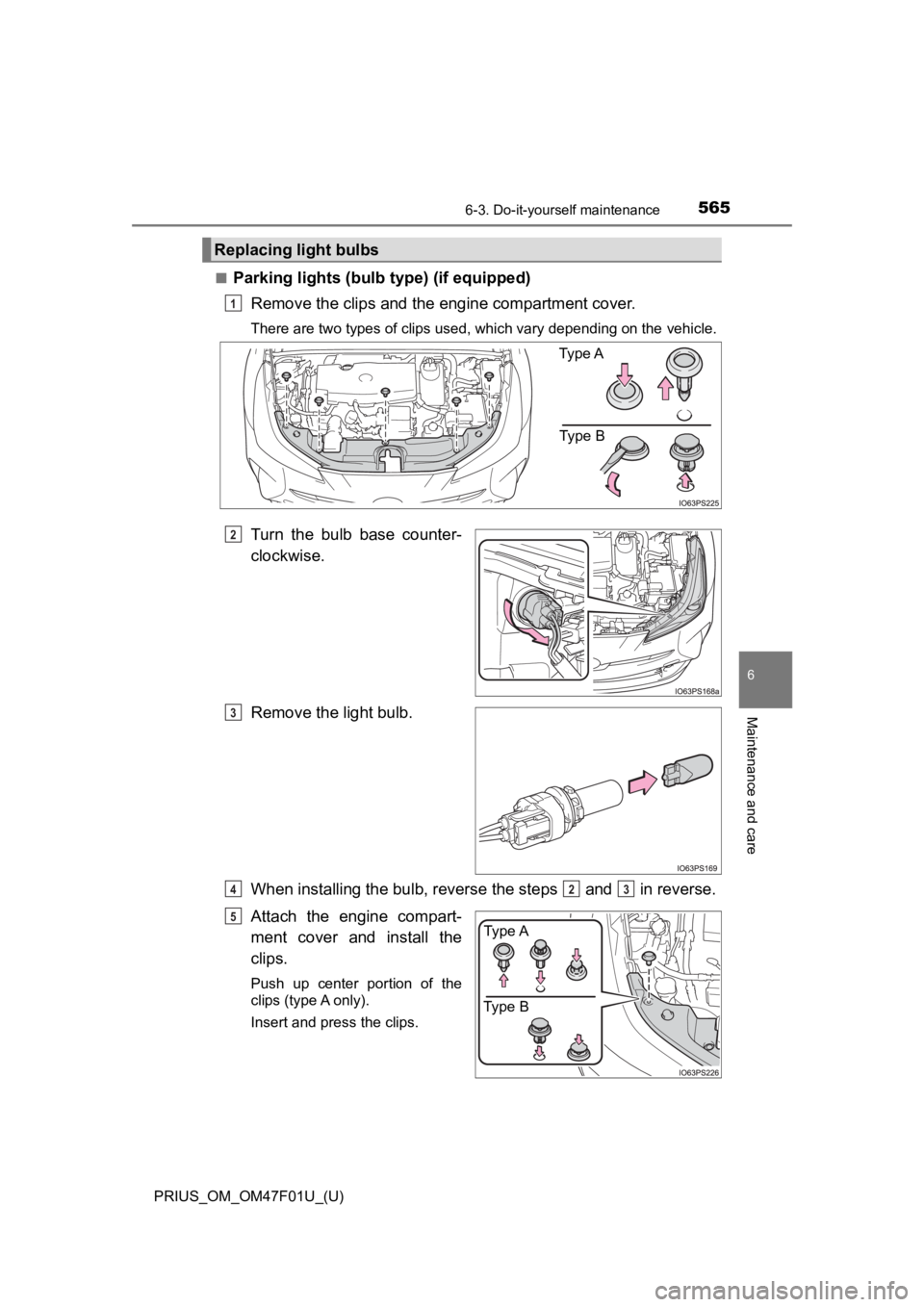

Remove the clips and the engine compartment cover.
There are two types of clips used, which vary depending on the vehicle.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the bulb, reverse the steps and in reverse.
Attach the engine compart-
ment cover and install the
clips.
Push up center portion of the
clips (type A only).
Insert and press the clips.
Replacing light bulbs
1
Type B
Type A
2
3
423
Type A
Type B5

566
PRIUS_OM_OM47F01U_(U)
6-3. Do-it-yourself maintenance

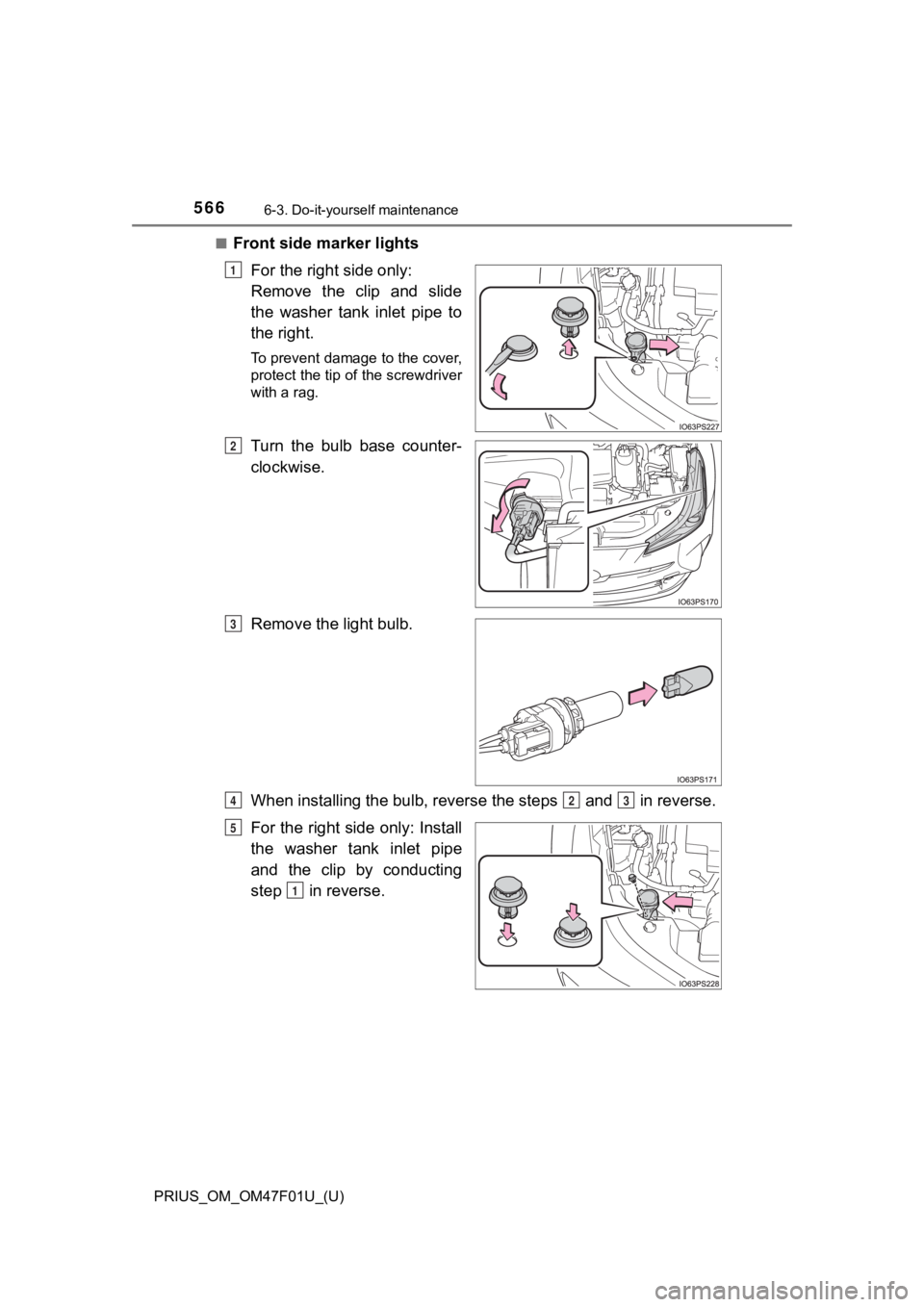

■Front side marker lightsFor the right side only:
Remove the clip and slide
the washer tank inlet pipe to
the right.
To prevent damage to the cover,
protect the tip of the screwdriver
with a rag.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the bulb, revers e the steps and in reverse.
For the right side only: Install
the washer tank inlet pipe
and the clip by conducting
step in reverse.
1
2
3
423
5
1

PRIUS_OM_OM47F01U_(U)
5676-3. Do-it-yourself maintenance
6
Maintenance and care

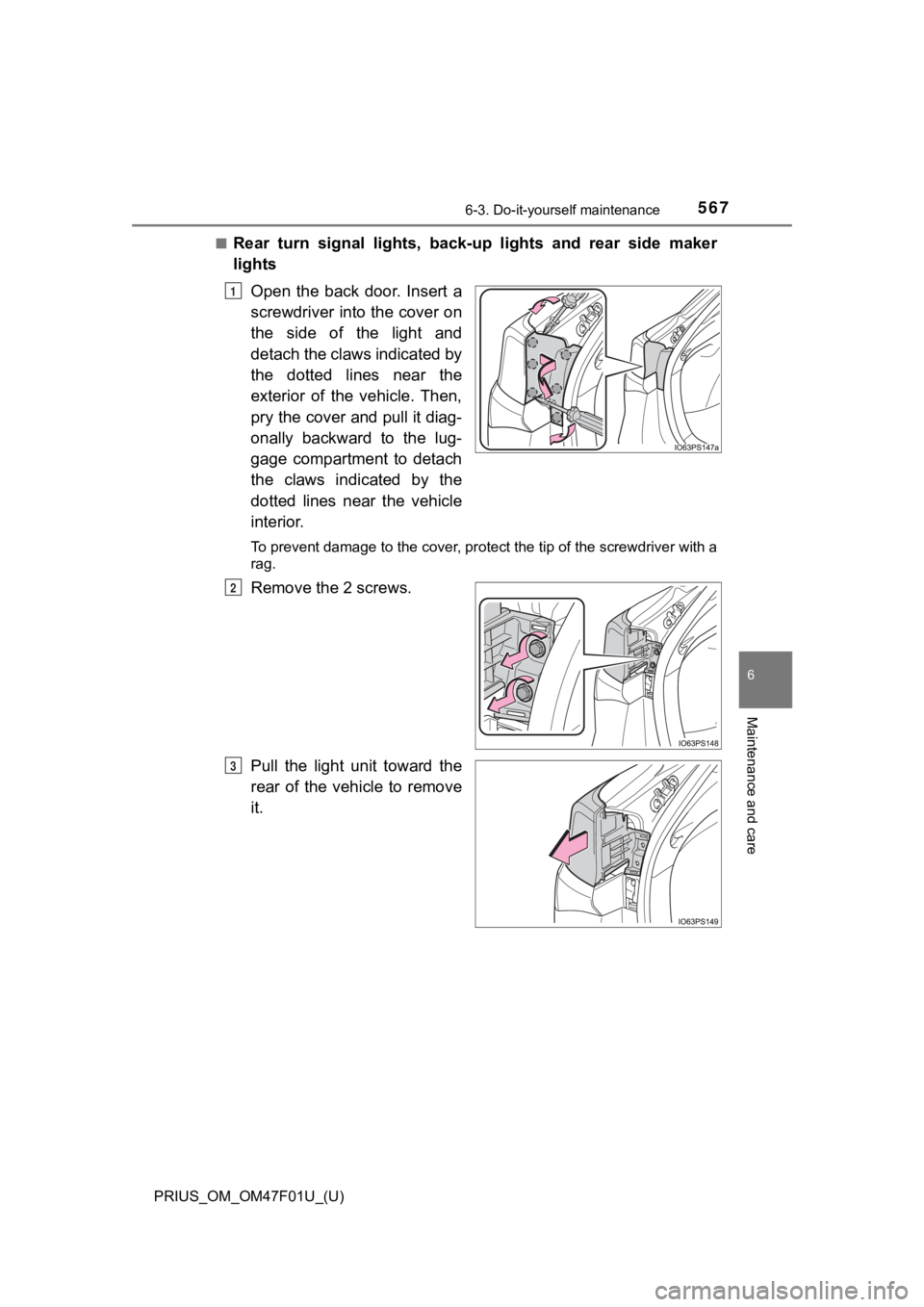

■Rear turn signal lights, back-up lights and rear side maker
lightsOpen the back door. Insert a
screwdriver into the cover on
the side of the light and
detach the claws indicated by
the dotted lines near the
exterior of the vehicle. Then,
pry the cover and pull it diag-
onally backward to the lug-
gage compartment to detach
the claws indicated by the
dotted lines near the vehicle
interior.
To prevent damage to the cover, protect the tip of the screwdri ver with a
rag.
Remove the 2 screws.
Pull the light unit toward the
rear of the vehicle to remove
it.
1
2
3

568
PRIUS_OM_OM47F01U_(U)
6-3. Do-it-yourself maintenance
Turn the bulb base counterclockwise.4
Back-up lightRear turn signal light
Rear side maker light

PRIUS_OM_OM47F01U_(U)
5696-3. Do-it-yourself maintenance
6
Maintenance and care

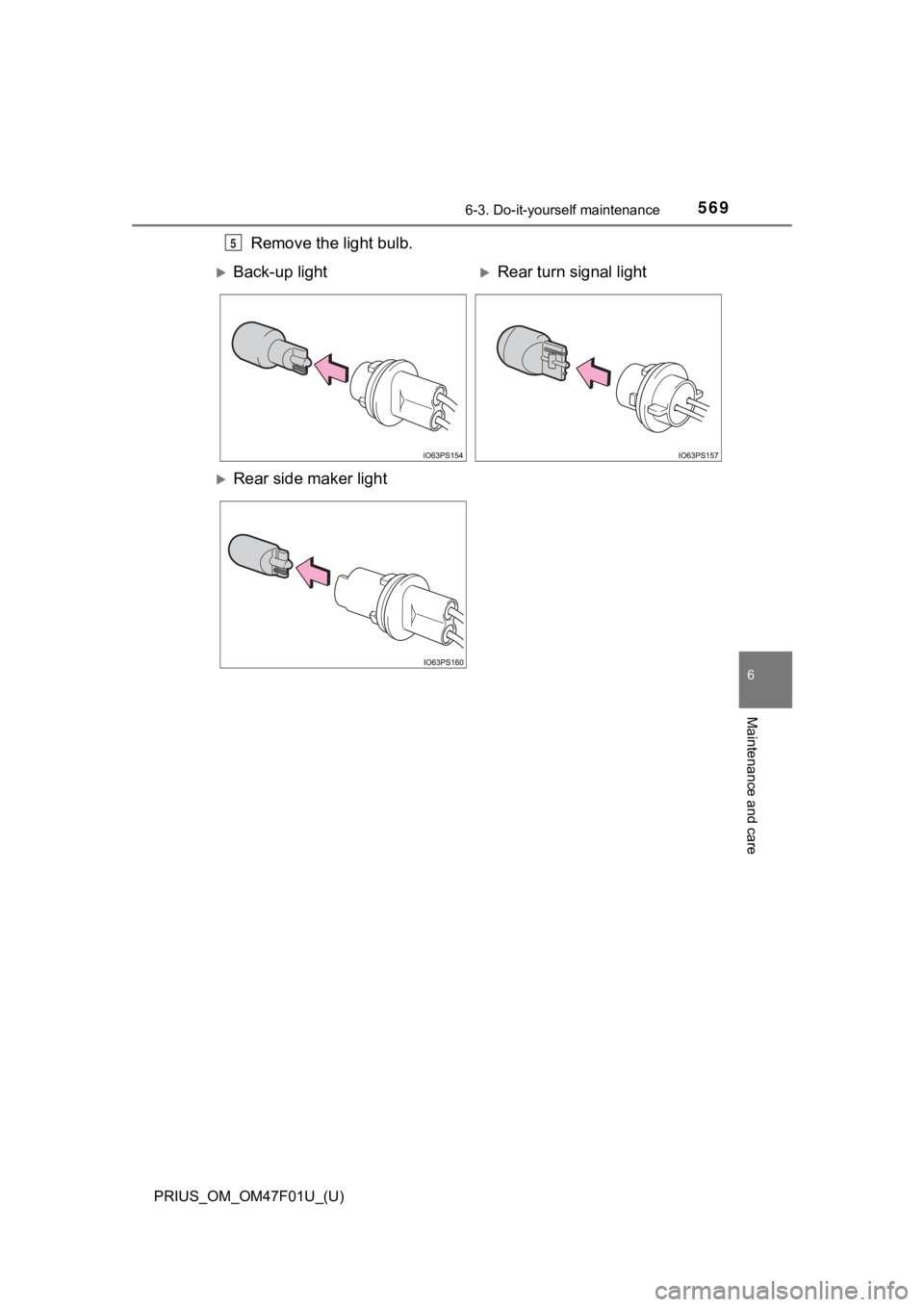

Remove the light bulb.5
Back-up lightRear turn signal light
Rear side maker light

570
PRIUS_OM_OM47F01U_(U)
6-3. Do-it-yourself maintenance

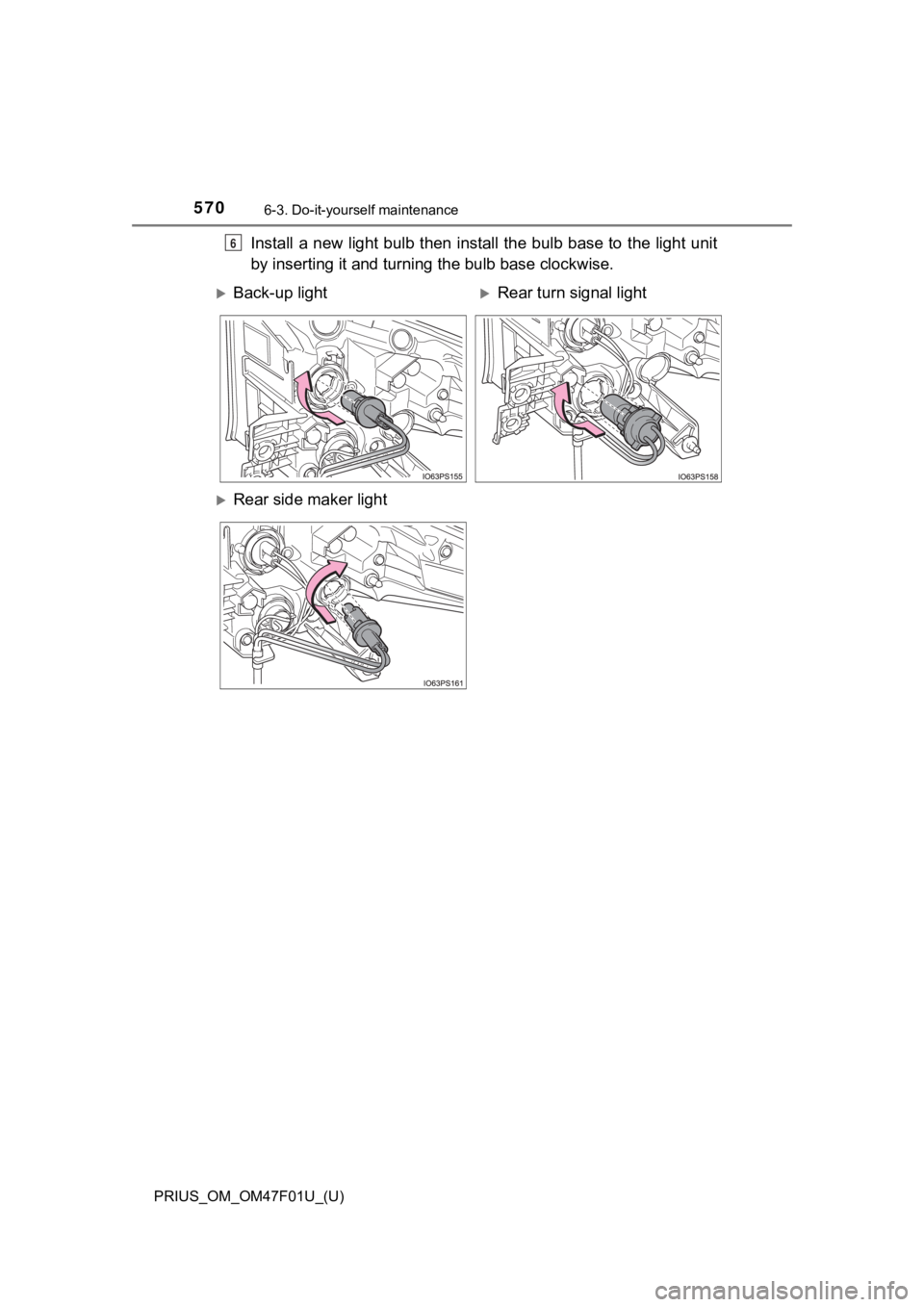

Install a new light bulb then install the bulb base to the light unit
by inserting it and turning the bulb base clockwise.6
Back-up lightRear turn signal light
Rear side maker light
