TOYOTA PRIUS 2023 Owners Manual

6197-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
7
When trouble arises

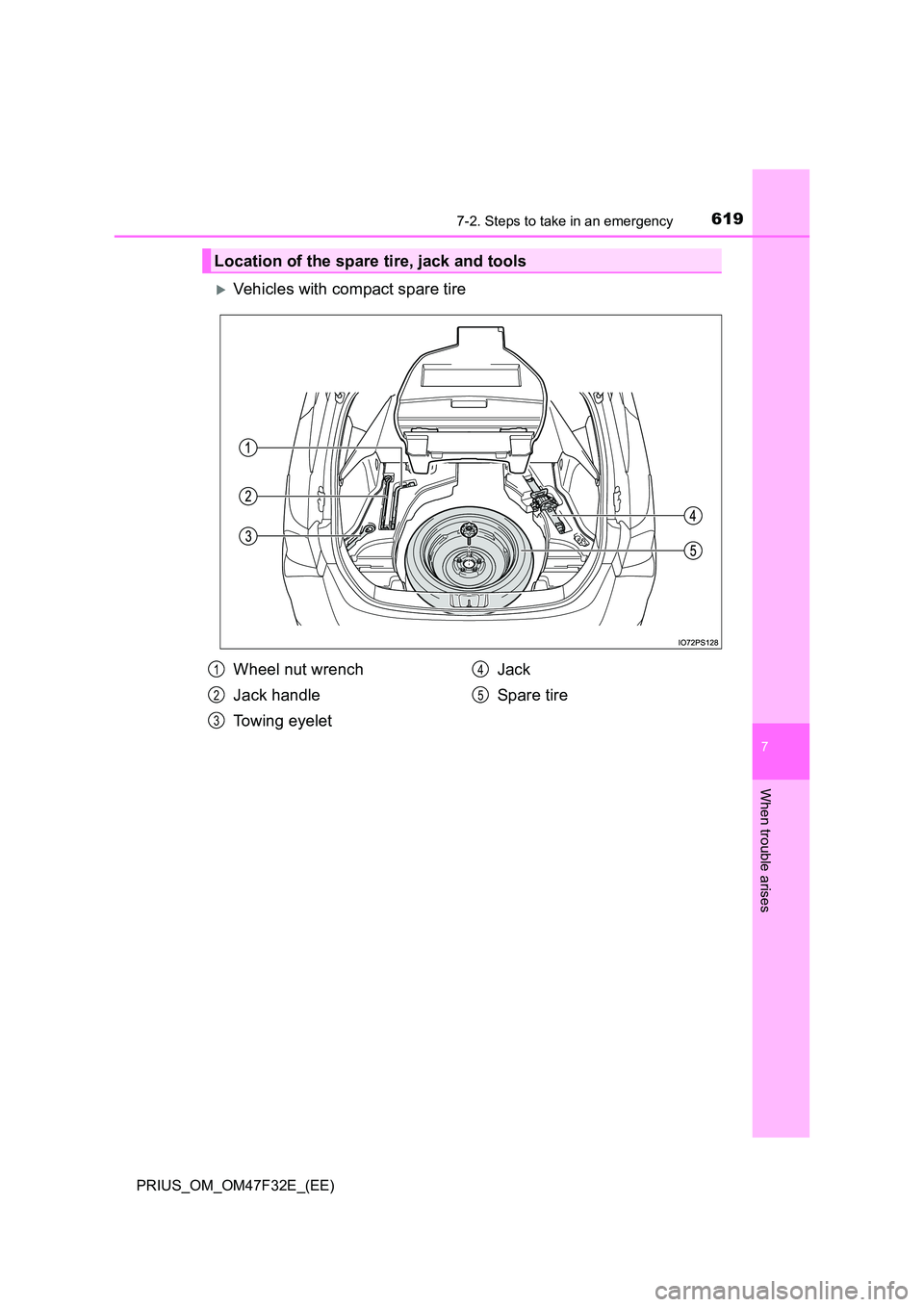

Vehicles with compact spare tire
Location of the spare tire, jack and tools
Wheel nut wrench
Jack handle
Towing eyelet
Jack
Spare tire
1
2
3
4
5

6207-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)

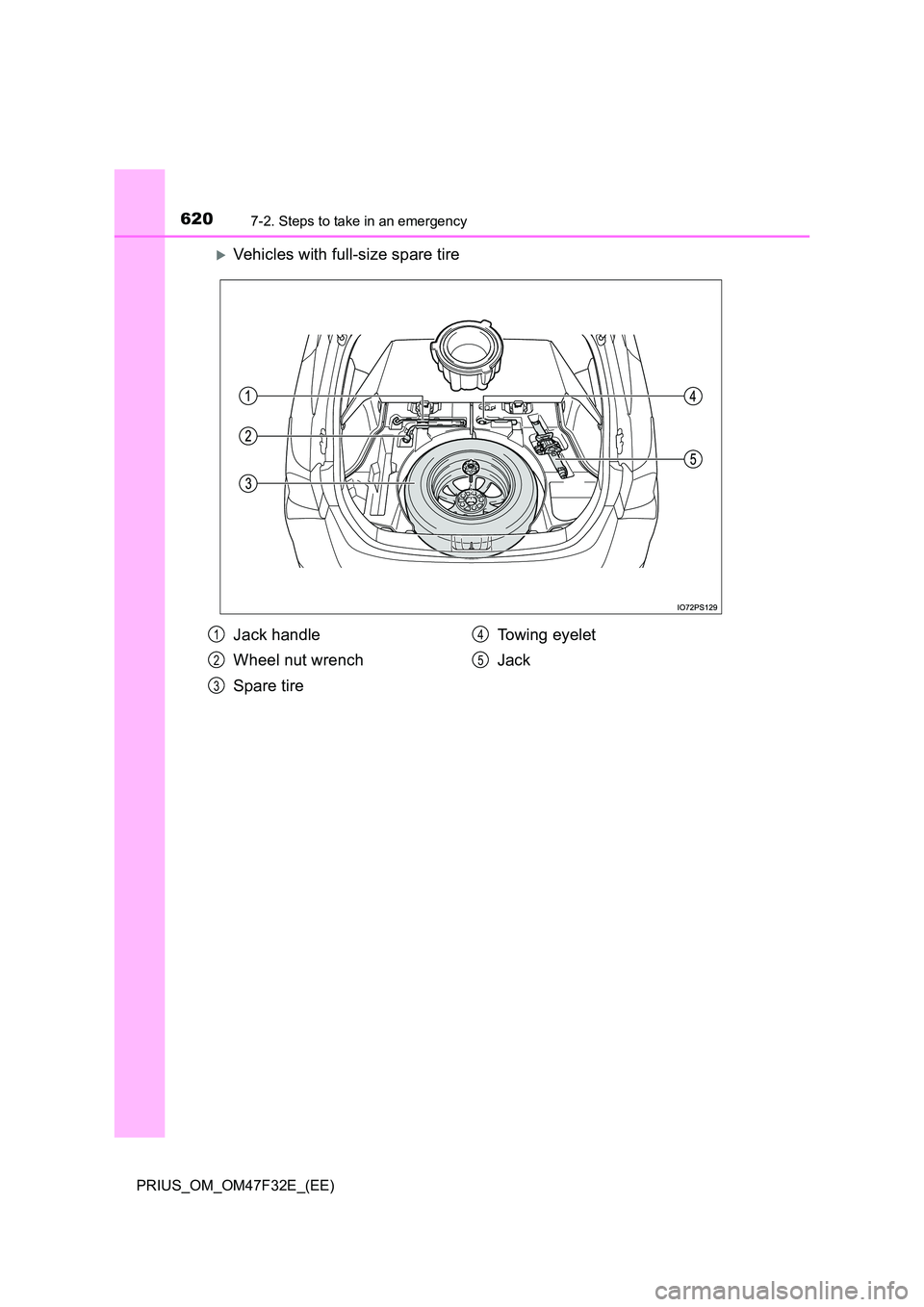

Vehicles with full-size spare tire
Jack handle
Wheel nut wrench
Spare tire
Towing eyelet
Jack
1
2
3
4
5

6217-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
7
When trouble arises

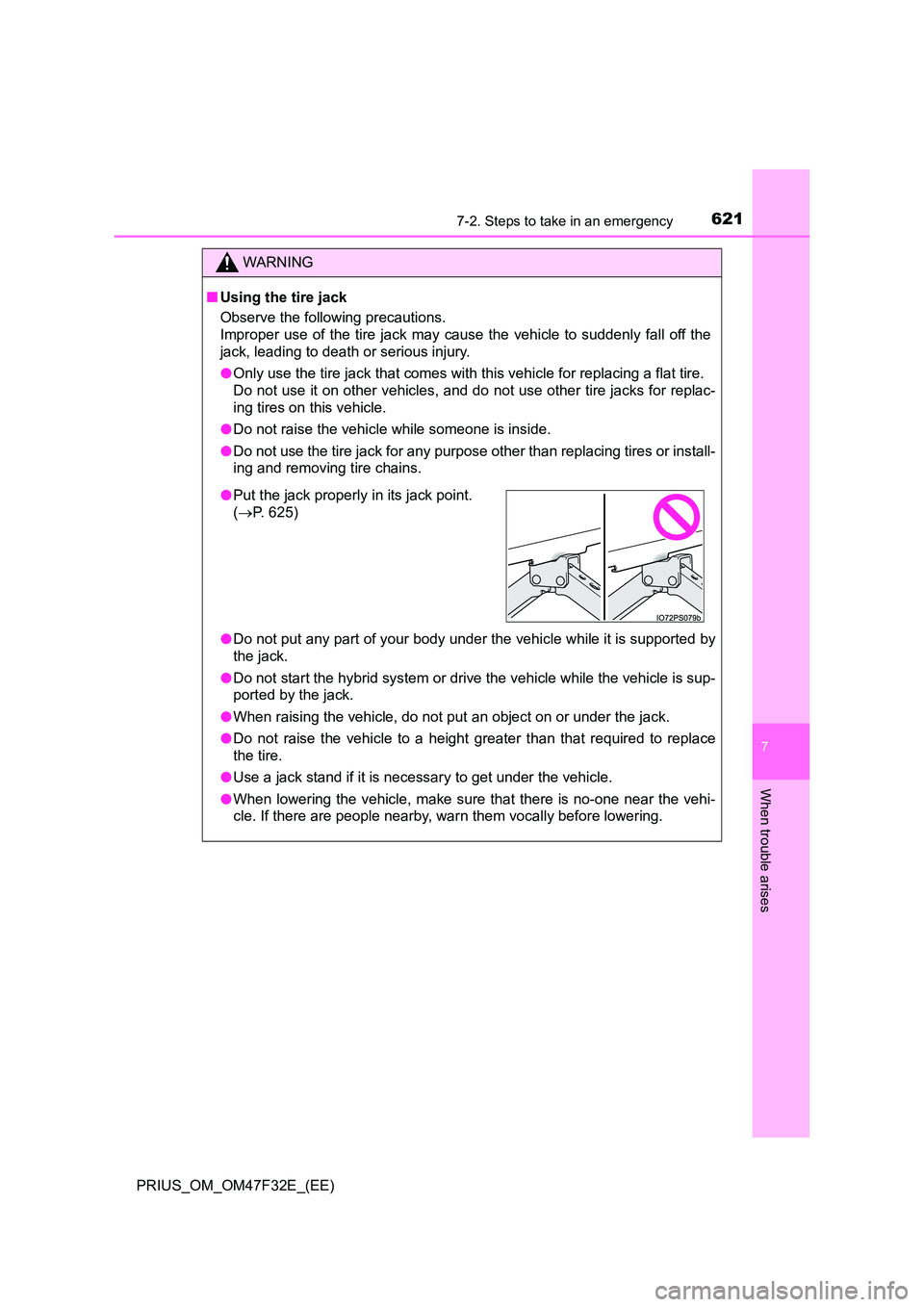

WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Do not raise the vehicle while someone is inside.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Do not put any part of your body under the vehicle while it is supported by
the jack.
● Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
● Put the jack properly in its jack point.
( P. 625)

6227-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)

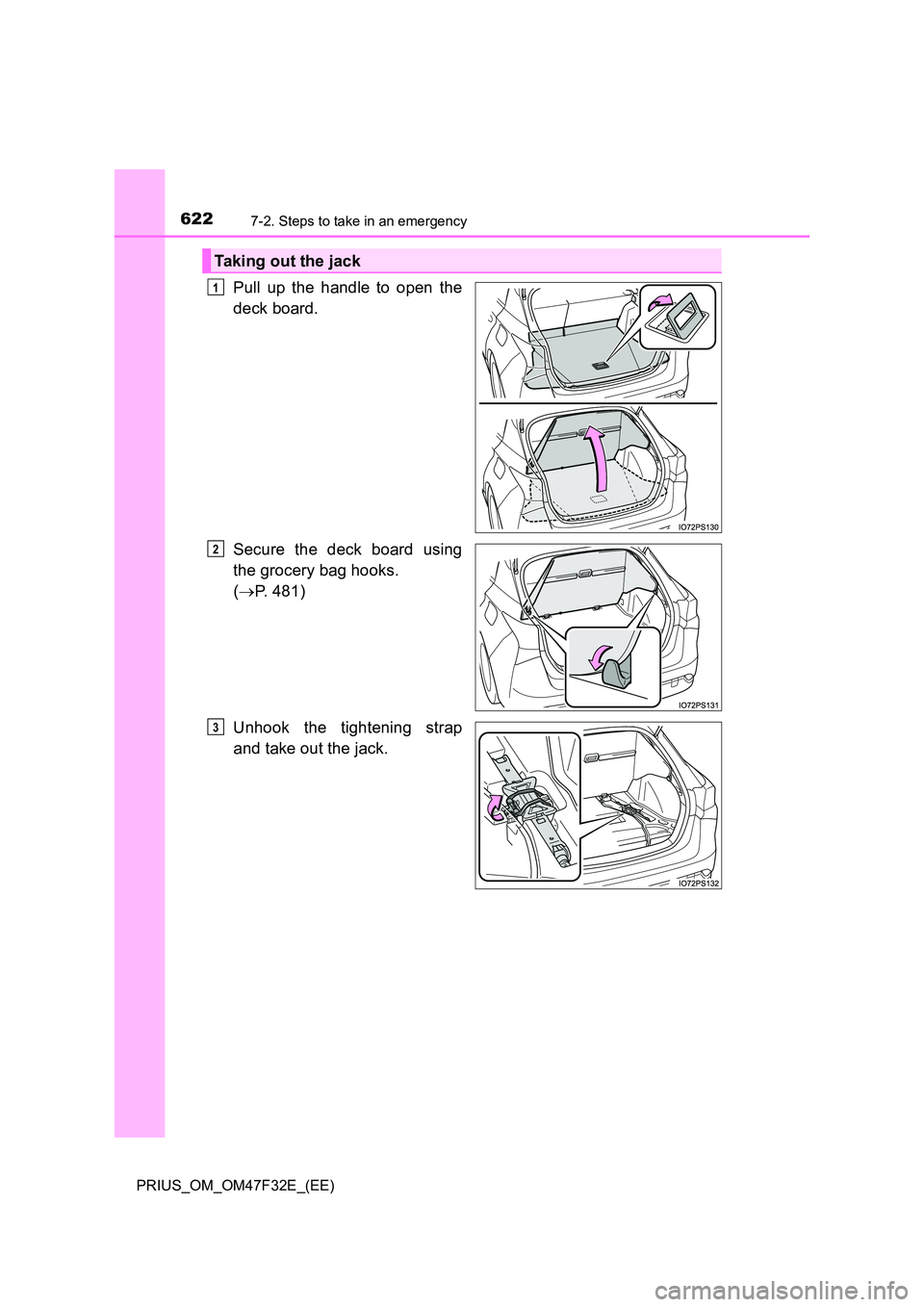

Pull up the handle to open the
deck board.
Secure the deck board using
the grocery bag hooks.
( P. 481)
Unhook the tightening strap
and take out the jack.
Taking out the jack
1
2
3

6237-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
7
When trouble arises

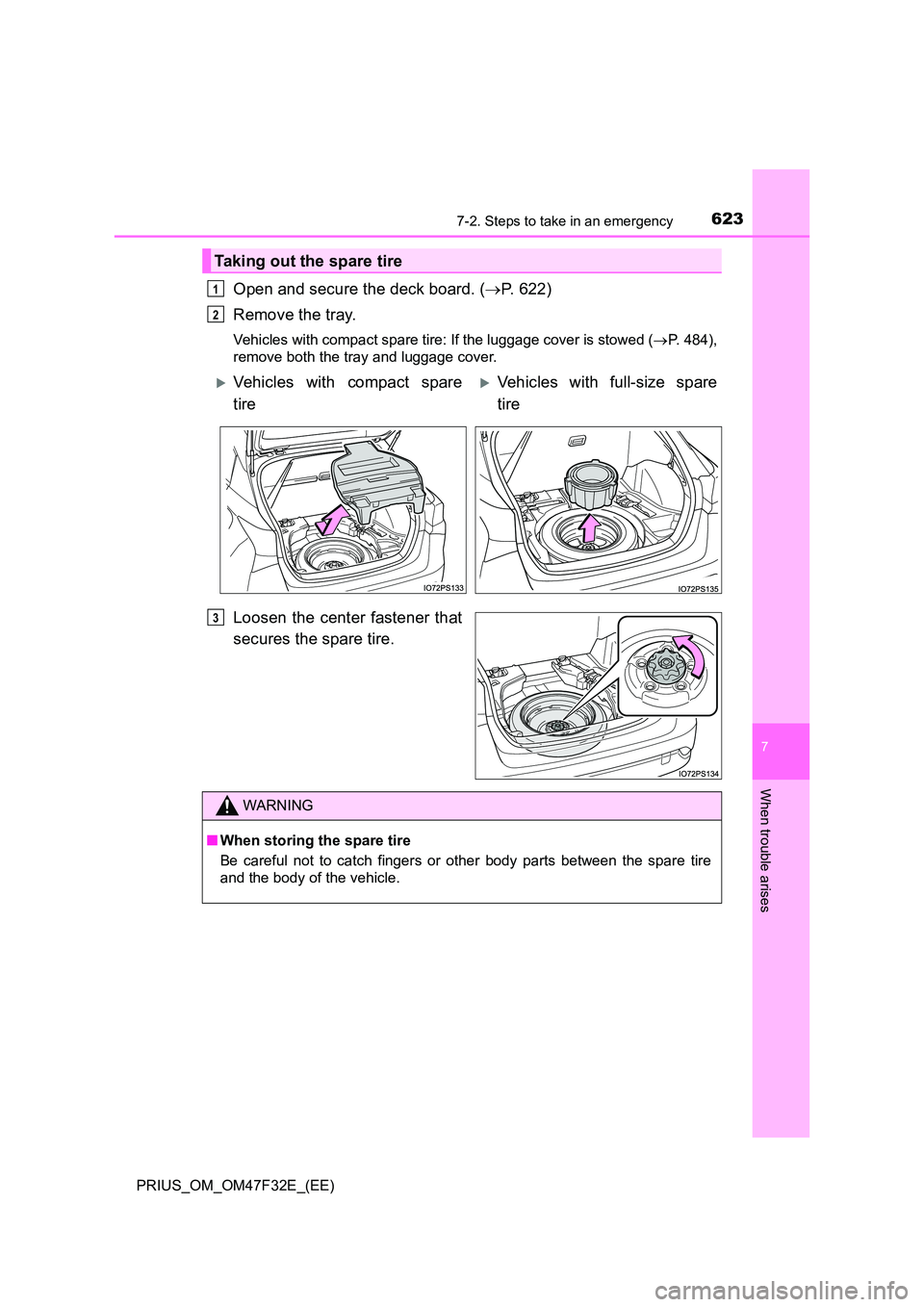

Open and secure the deck board. (P. 622)
Remove the tray.
Vehicles with compact spare tire: If the luggage cover is stowed ( P. 484),
remove both the tray and luggage cover.
Loosen the center fastener that
secures the spare tire.
Taking out the spare tire
1
2
Vehicles with compact spare
tire
Vehicles with full-size spare
tire
3
WARNING
■ When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire
and the body of the vehicle.

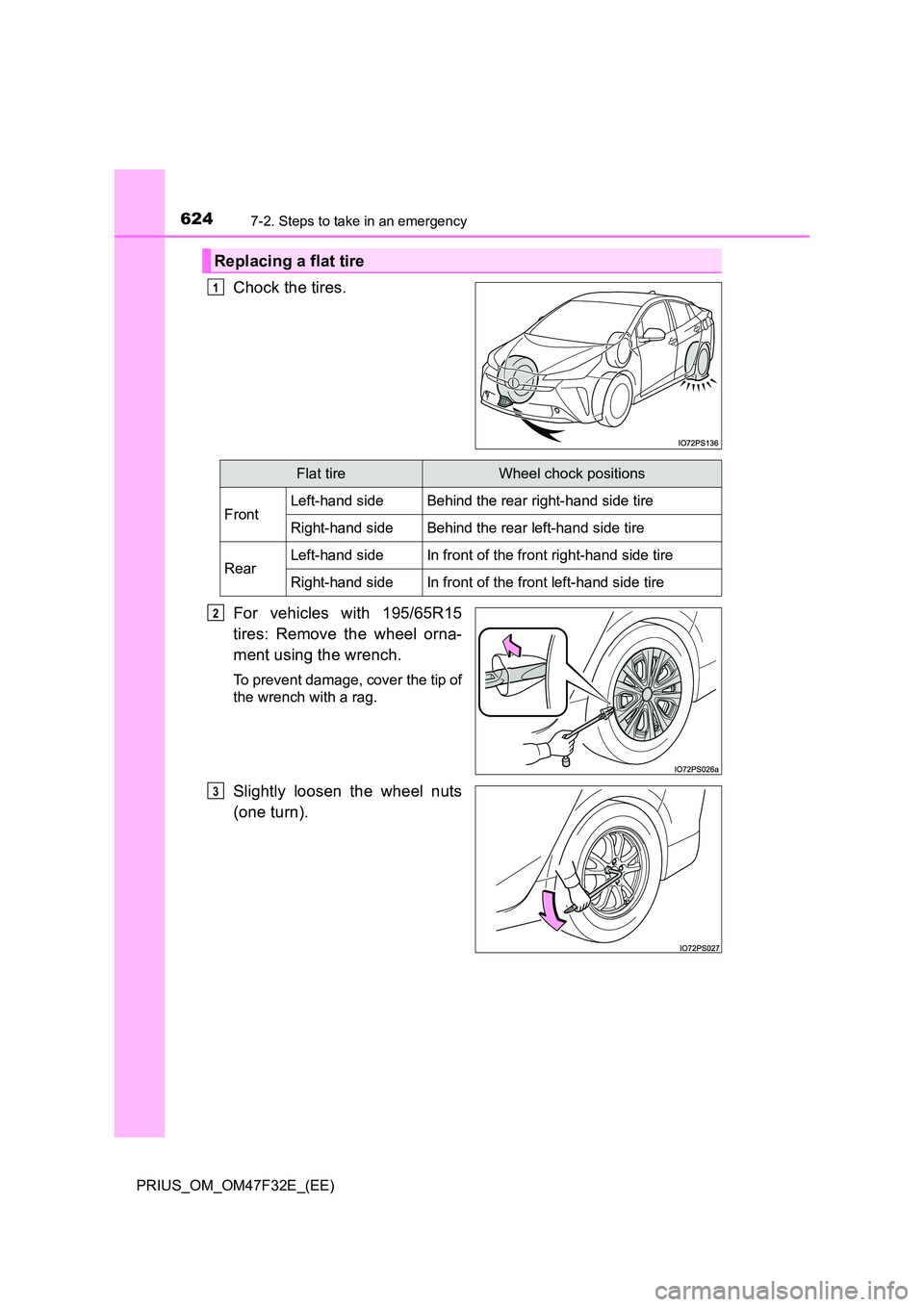

6247-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
Chock the tires.
For vehicles with 195/65R15
tires: Remove the wheel orna-
ment using the wrench.
To prevent damage, cover the tip of
the wrench with a rag.
Slightly loosen the wheel nuts
(one turn).
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3

6257-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
7
When trouble arises
Turn the tire jack portion by
hand until the center of the
recessed portion of the jack is
in contact with the center of the
jack point.
Assemble the jack handle and
the wheel nut wrench as shown
in the illustration.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Jack point
4A
5
6
7

6267-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)

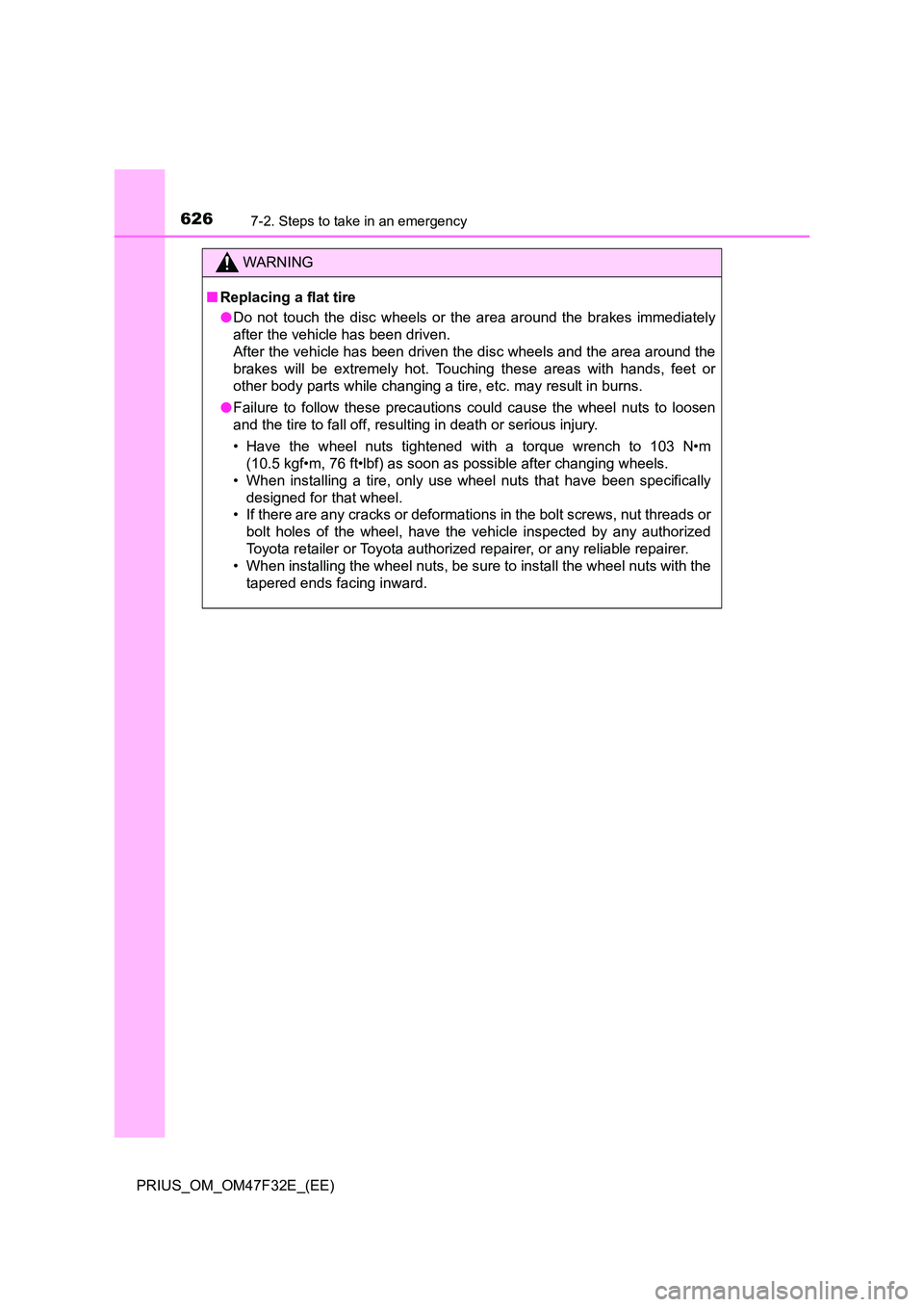

WARNING
■Replacing a flat tire
● Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
● Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N•m
(10.5 kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota retailer or Toyota authoriz ed repairer, or any reliable repairer.
• When installing the wheel nuts, be sure to install the wheel nuts with the
tapered ends facing inward.

6277-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
7
When trouble arises

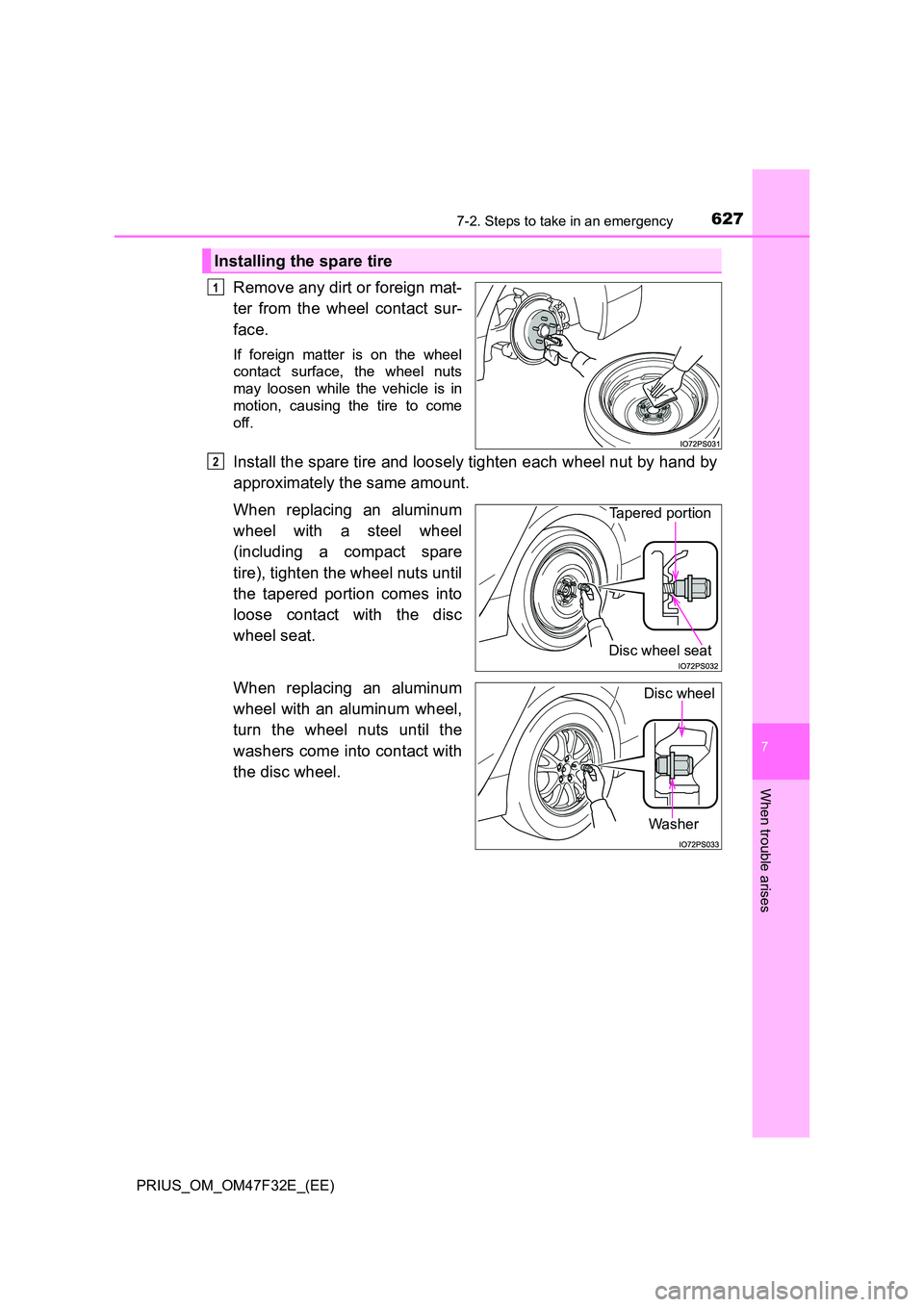

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing an aluminum
wheel with a steel wheel
(including a compact spare
tire), tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
When replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
Installing the spare tire
1
2
Tapered portion
Disc wheel seat
Washer
Disc wheel

6287-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)

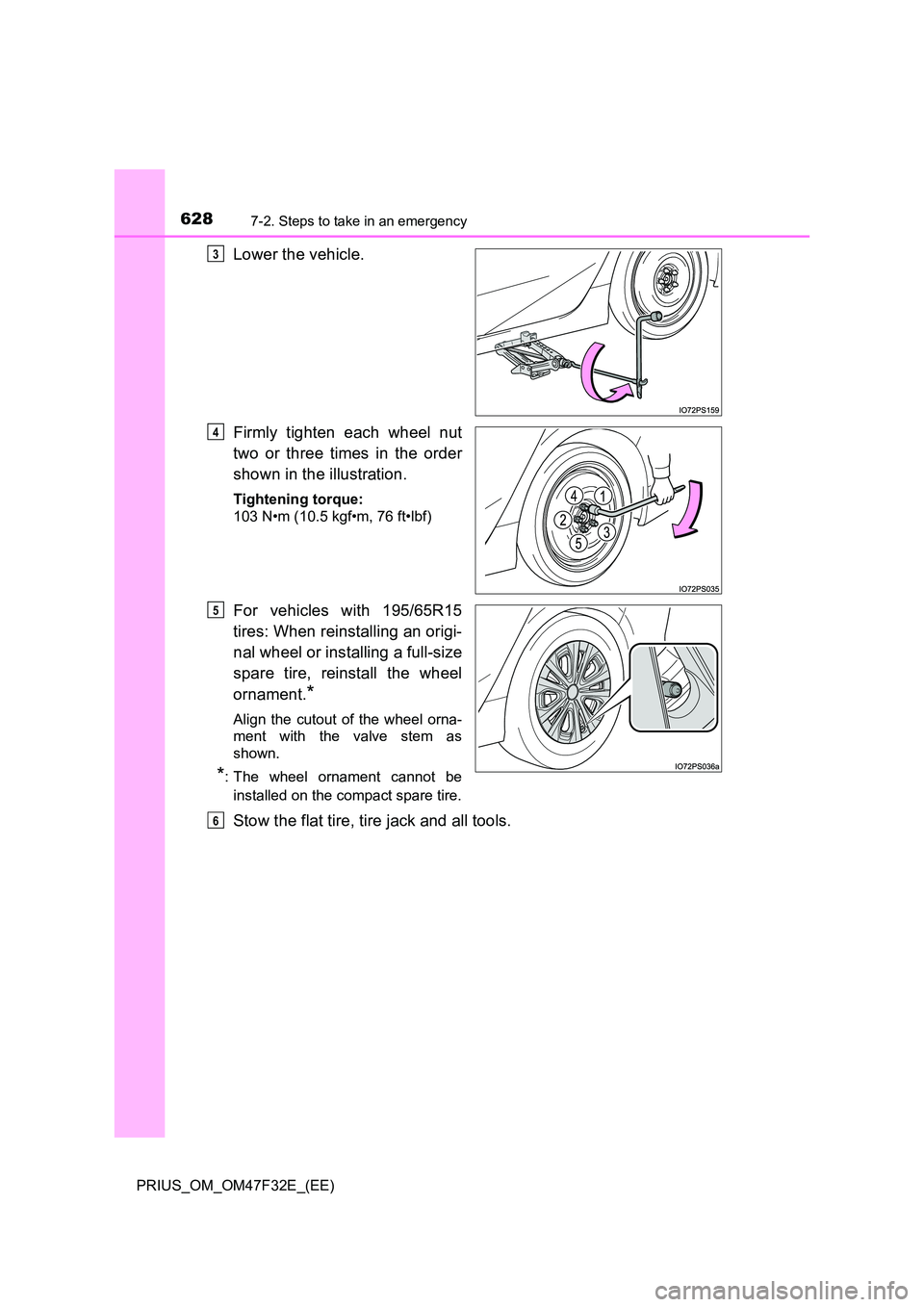

Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
For vehicles with 195/65R15
tires: When reinstalling an origi-
nal wheel or installing a full-size
spare tire, reinstall the wheel
ornament.*
Align the cutout of the wheel orna-
ment with the valve stem as
shown.
*: The wheel ornament cannot be
installed on the compact spare tire.
Stow the flat tire, tire jack and all tools.
3
4
5
6
