radio TOYOTA PRIUS C 2013 NHP10 / 1.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Push ONCE: Driver door
TWICE: All doors
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; Hybrid System is not engaged.
All systems OFF.
ACCESSORY
ON
OFF
Push
Depress
brake pedal
Carrying
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Power (without starting Hybrid System)
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Locking operation (if equipped)Unlocking operation (if equipped)
Carry remote to lock Carry remote to unlock
All-door lockDriver door unlock*
Back door lock/unlock (if equipped)
Carry remote to
lock/unlock
TouchGrasp
Push to lockPush to unlock
2013Prius-c.indd 712/7/12 9:06 PM

18

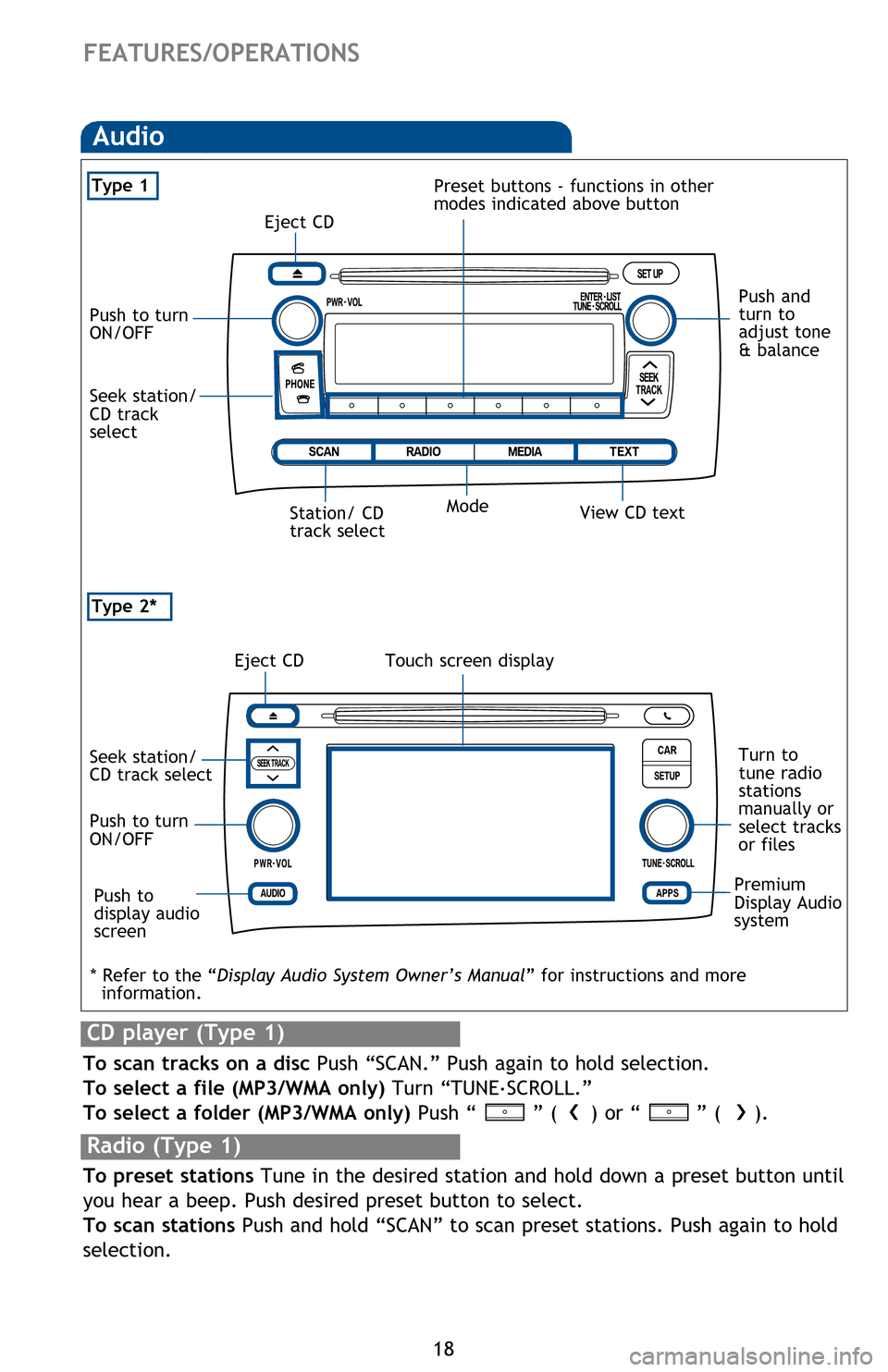

FEATURES/OPERATIONS
Type 2*
Audio
Eject CD
Push to turn
ON/OFF
View CD text
Seek station/
CD track
select
Mode
Preset buttons - functions in other
modes indicated above button
Type 1
Push and
turn to
adjust tone
& balance
Touch screen display
iPod®/USB/AUX port
Power outlets
The “POWER”/ignition switch must be set at the “ACC” or “ON” position for use.
Steering wheel switches
Audio control
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®, etc.).
Station/ CD
track select
Eject CD
Seek station/
CD track select
Push to turn
ON/OFF
Push to
display audio
screen
Turn to
tune radio
stations
manually or
select tracks
or files
Premium
Display Audio
system
CD player (Type 1)
To scan
tracks on a disc Push “SCAN.” Push again to hold selection.
To select a file (MP3/WMA only) Turn “TUNE .
SCROLL.”
To select a folder (MP3/WMA only) Push “
” () or “ ” ().
Radio (Type 1)
To preset stations Tune in the desired station and hold down a preset button until
you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
* Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.

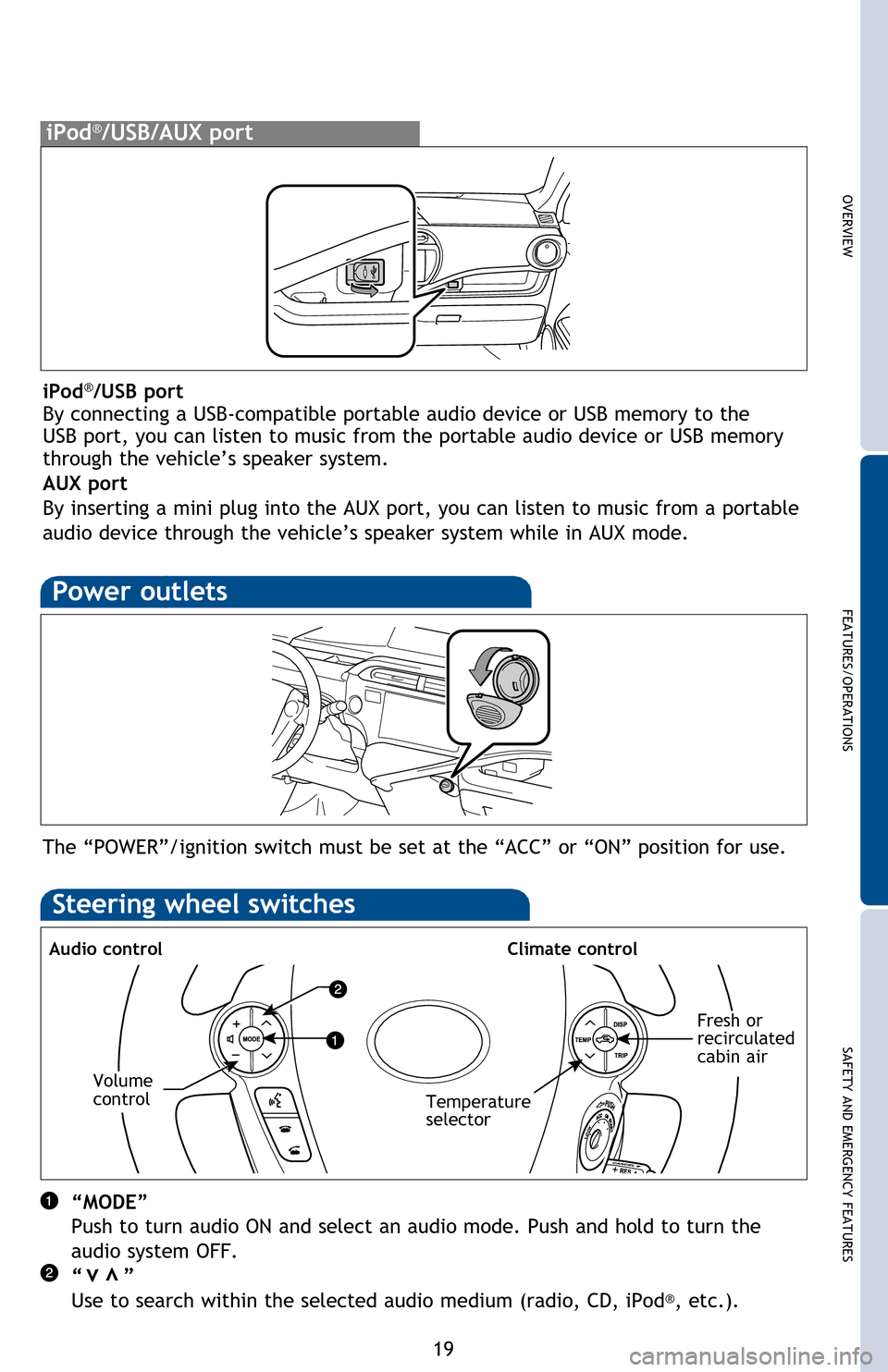

iPod®/USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
2013Prius-c.indd 1812/7/12 9:06 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Push and
turn to
adjust tone
& balance
iPod®/USB/AUX port
Power outlets
The “POWER”/ignition switch must be set at the “ACC” or “ON” position for use.
Steering wheel switches
Audio controlClimate control
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®, etc.).
vv
Volume
controlTemperature
selector
Fresh or
recirculated
cabin air
Turn to
tune radio
stations
manually or
select tracks
or files
Premium
Display Audio
system
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
To select a file (MP3/WMA only) Turn “TUNE .
SCROLL.”
To select a folder (MP3/WMA only) Push “
” ( ) or “ ” ( ).
To prese
t stations Tune in the desired station and hold down a preset button until
you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
* Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
iPod®/USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
