1012. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52E68U)■
“ECO Savings”
With 2 types of displays available, the cost of the consumed fuel
can be displayed or the fuel consumption's comparison can be dis-
played.
Switching between basic display and detailed display can be performed
on the screen settings screen. (
P. 104)
Savings and fuel cost
If the fuel consumption comparison is input ( P. 104), the possi-
ble savings are displayed. If the fuel consumption comparison
has not been input, your vehicle's actual fuel cost will be dis-
played.
Depending on whether the odometer or trip meter is displayed,
the displayed contents differ.
● When the odometer is displayed: the savings or fuel cost since
the hybrid system was started is displayed.
● When the trip meter is displayed: the savings or fuel cost since
the trip meter was reset is displayed. The savings or fuel cost
for trip meter A or trip meter B is displayed separately.
When the trip meter is reset, savings or fuel cost is also reset.
(P. 97)
“Fuel Cons. Comparison”
On the settings screen, input the fuel consumption comparison.
( P. 104)
The cost of consumed fuel per mile/kilometer (comparison car)
Based on the fuel consumption comparison, the calculated value
is displayed.
The cost of consumed fuel per mile/kilometer (your car)
The more fuel efficient your driving is, the further left the vehicle
mark moves.
Basic display Detailed display
1
2
3
4

1022. Instrument cluster
PRIUS c_U (OM52E68U)■
“ECO Savings Record”
If the fuel consumption compar-
ison is input in “ECO Savings”,
the savings history will be dis-
played. If the fuel consumption
comparison is not input, fuel
cost history will be displayed.
Fuel costs for the current
month, the last 3 months and
the same month last year are
displayed, enabling a compari-
son to be made.
If the dollar amount exceeds $ 100,
the numerical value will be dis-
played on the graph.
Charge area
Shows energy regeneration* sta-
tus. Regenerated energy will be
used to charge the hybrid battery
(traction battery).
*: When used in this manual, “regen-
eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical energy.
Hybrid Eco area
Shows that gasoline engine power is not being used very often.
The gasoline engine will automatically stop and restart under various con-
ditions.
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
Power area
Shows that the driving power is more than the upper limit of Eco driving.
(during full power driving etc.)
Keeping the indicator within Eco area can help Eco-friendly driving.

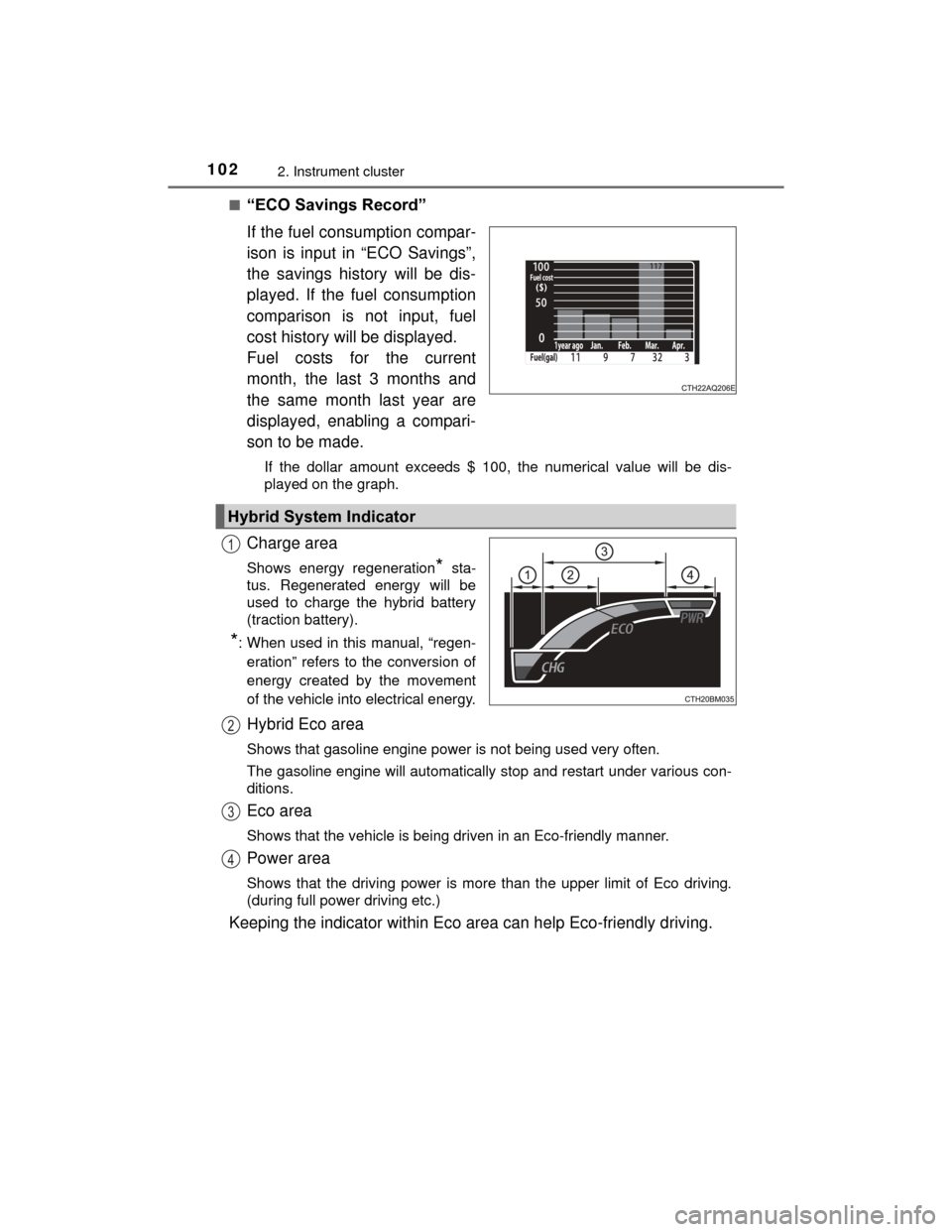

Hybrid System Indicator
1
2
3
4

1032. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52E68U)
If “Settings & Screen Off” is selected on the menu screen, the follow-
ing items can be set. Always perform this operation after stopping the
vehicle in a safe place. (Some items cannot be set while driving.)
Press the “DISP” switch on the
steering wheel to move the cursor.
To switch to the settings screen,
press and hold the “DISP” switch
while the cursor is on the desired
item.
■Basic settings/Changing the clock shortcut
The date, time, clock mode (12 or 24 hour), touch tracer settings
and the displayed language can be changed.
●Pressing the “DISP” (forward) or “TRIP” (back) switch changes
the date.
● Press the “DISP” switch to select hours or minutes. Pressing the
“TRIP” switch adjusts the hours or minutes.
● If set clock is selected, the screen will change to the clock set-
tings screen.

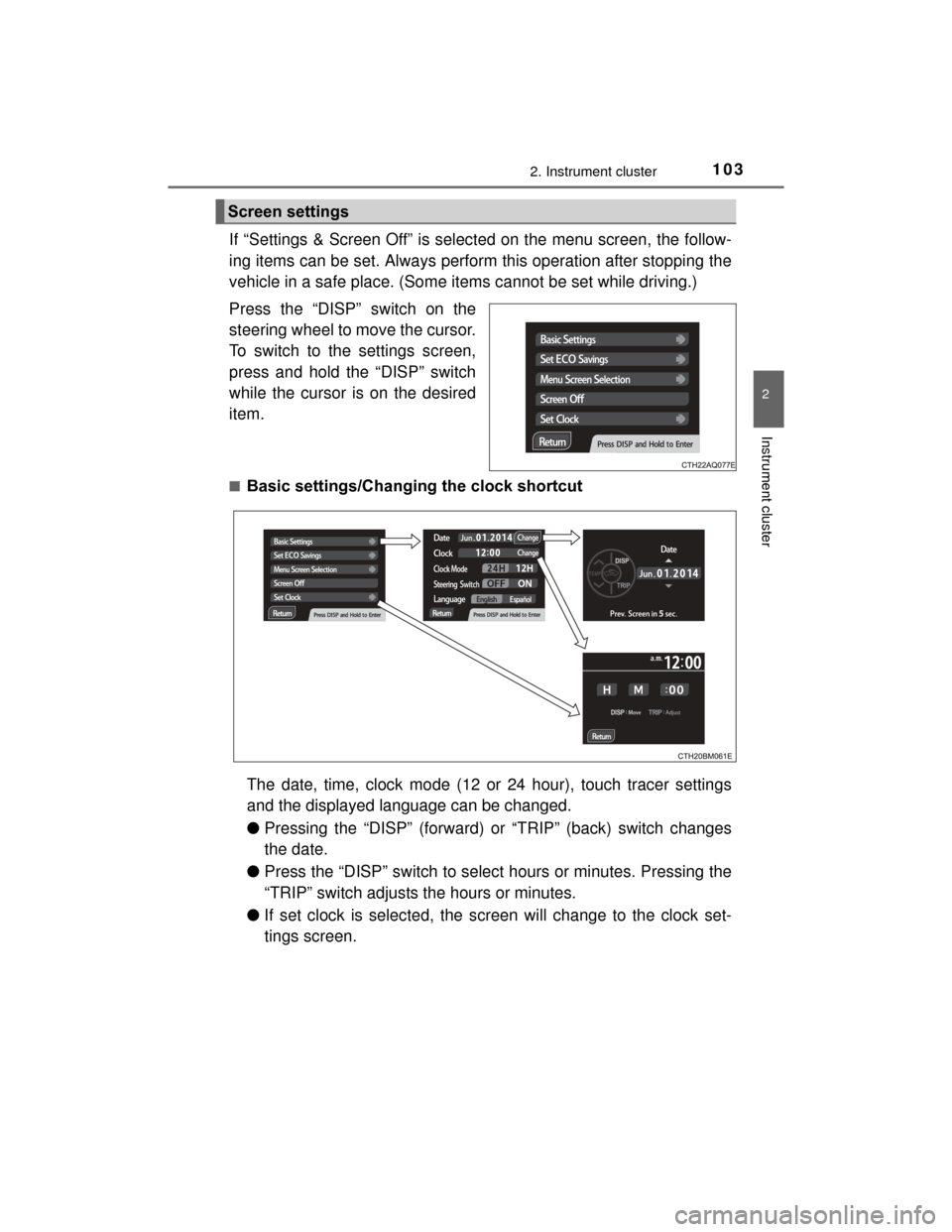

Screen settings

1042. Instrument cluster
PRIUS c_U (OM52E68U)■
“ECO savings” settings
The gasoline price and fuel consumption comparison settings can
be set, and the screen settings can be changed between basic and
detailed.
●
To input the gasoline price, press the “DISP” (to increase) or
“TRIP” (to reduce) switch.
When the engine switch is turned to the “ON” position (vehicles without
a smart key system) or the “POWER” switch is turned to ON mode
(vehicles with a smart key system) after refueling, the gasoline price
input screen is automatically displayed.
●To input the fuel consumption comparison, press the “DISP” (to
increase) or “TRIP” (to reduce) switch.
When the fuel consumption comparison is input, the estimated savings
in fuel costs are displayed. If the fuel consumption comparison is not
input, the cost of the consumed fuel will be displayed.
■
Menu screen selection
The following screen changes
and settings can be performed:
• The eco savings record screen can be switched on or off.
• The 5 minute fuel consumption
screen can be switched on or
off.
• Past record can be reset.
• The past record screen can be
switched between off, monthly
average and personal best.

1052. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52E68U)■
Screen off
The screen can be turned off.
The upper part of the screen is always displayed and cannot be turned
off.
When the hybrid system is turned
off, drive information data since
the system was started is dis-
played after the ending animation.
When the doors are locked, the
screen turns off.
■
The clock is displayed when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “POWER” switch is in ON mode.
■ Eco score
●As the accelerator pedal is not depressed, the driven distance using cruise
control (if equipped) is not included in the eco score.
● As the eco score evaluation differs according to driving conditions and envi-
ronmental factors, in some cases it may not be linked to fuel consumption.
■ Eco savings
●Fuel cost and savings should be used as a guide only.
● Depending on refueling methods, drivi ng conditions and environmental fac-
tors, the actual and displayed fuel costs may differ.
● In some cases, fuel cost and savings may not be linked to the eco score
evaluation.

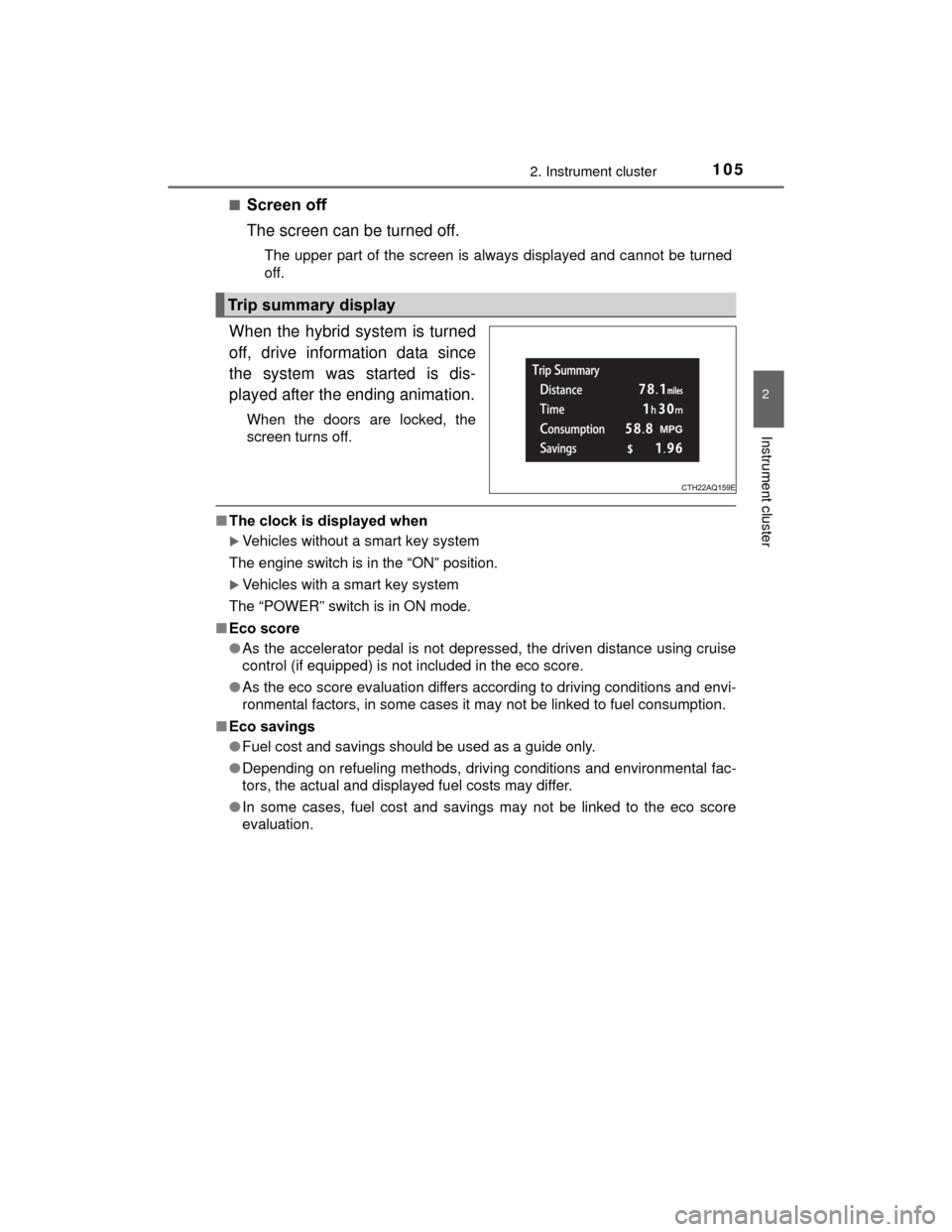

Trip summary display

1062. Instrument cluster
PRIUS c_U (OM52E68U)■
When disconnecting and reconnect ing 12-volt battery terminals
The following information data will be reset:
● Clock
● Past record (aside from the top 3 results)
● Average fuel consumption
● Cruising range
● Average vehicle speed
● Driving time
● EV driving rate/EV driven distance
Additionally, some displays may return to their default settings.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■Eco score
Eco score should be used as a guide only. Always drive safely in accor-
dance with road and traffic conditions.
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the hybrid system needs to be running during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

1072. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52E68U)
Audio system
Multi-information display
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-infor-
mation display and audio system.
1
2

1082. Instrument cluster
PRIUS c_U (OM52E68U)
Multimedia system
Press the “CAR” button.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.
Navigation system
Press the “APPS” button.
Touch “Eco” on the “Apps”
screen.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.
Multi-information display
Push the “DISP” switch on the
steering wheel several times to
select the energy monitor display.

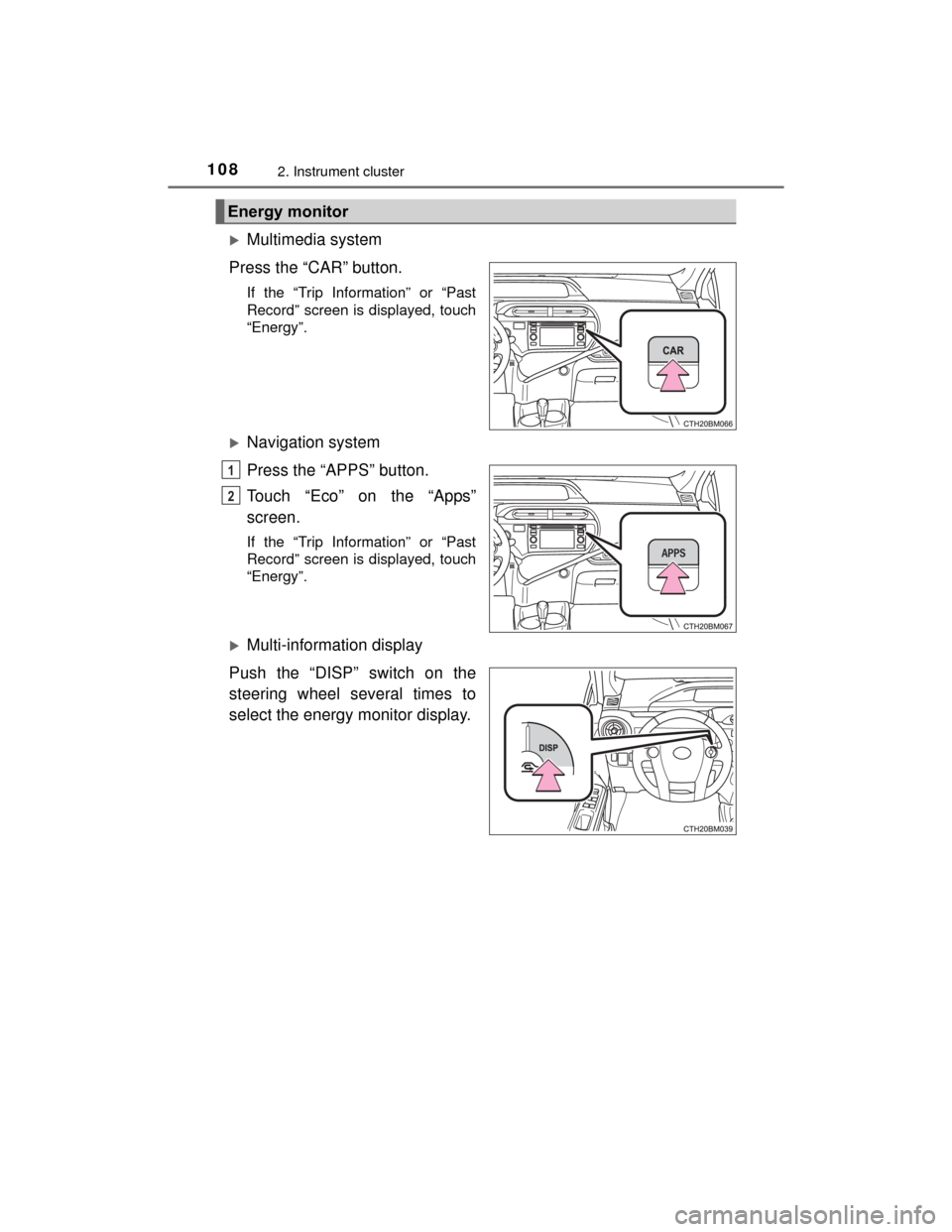

Energy monitor
1
2

1092. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52E68U)Audio system
Multi-information
display

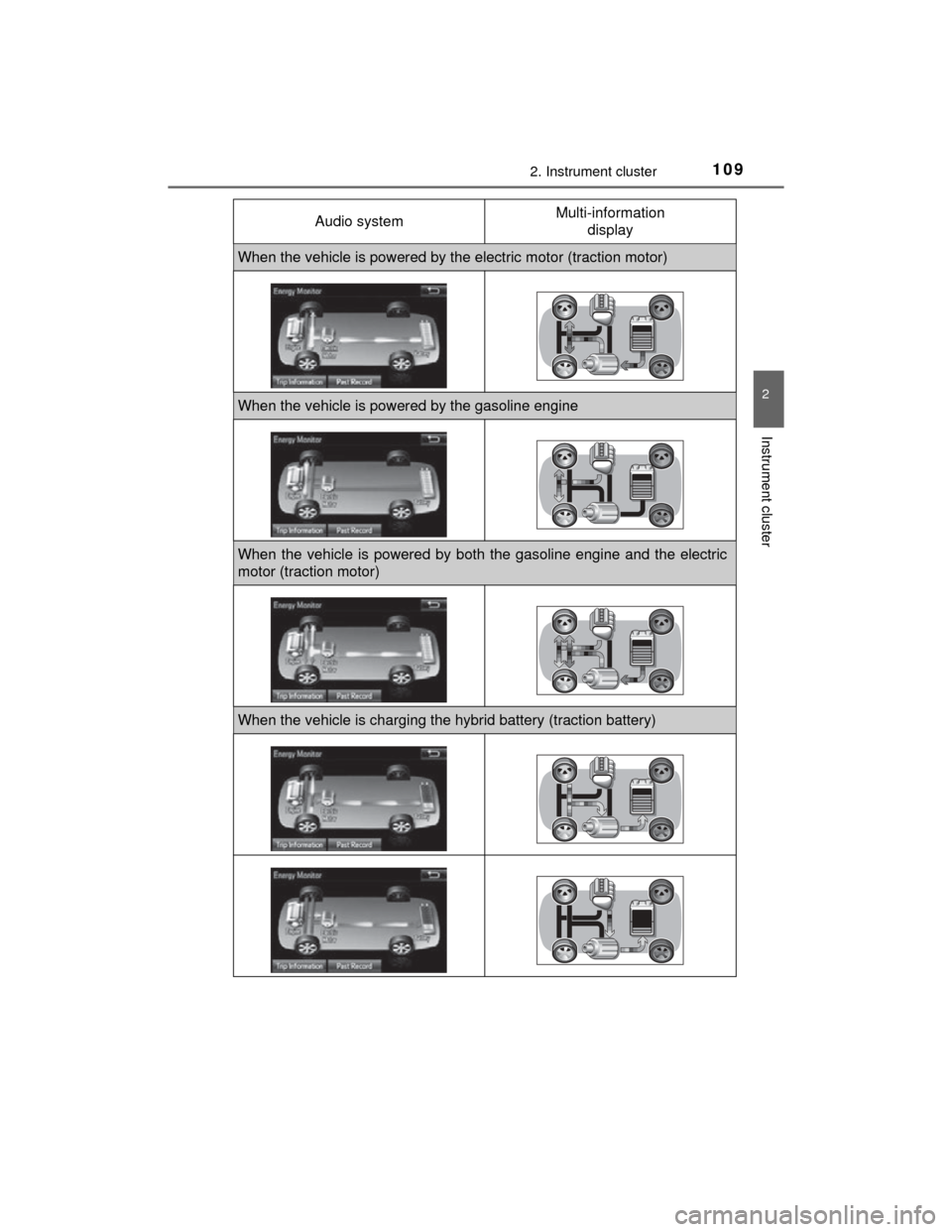

When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by the gasoline engine
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is charging the hybrid battery (traction battery)

1102. Instrument cluster
PRIUS c_U (OM52E68U)
These images are examples only, and may vary slightly from actual
conditions.

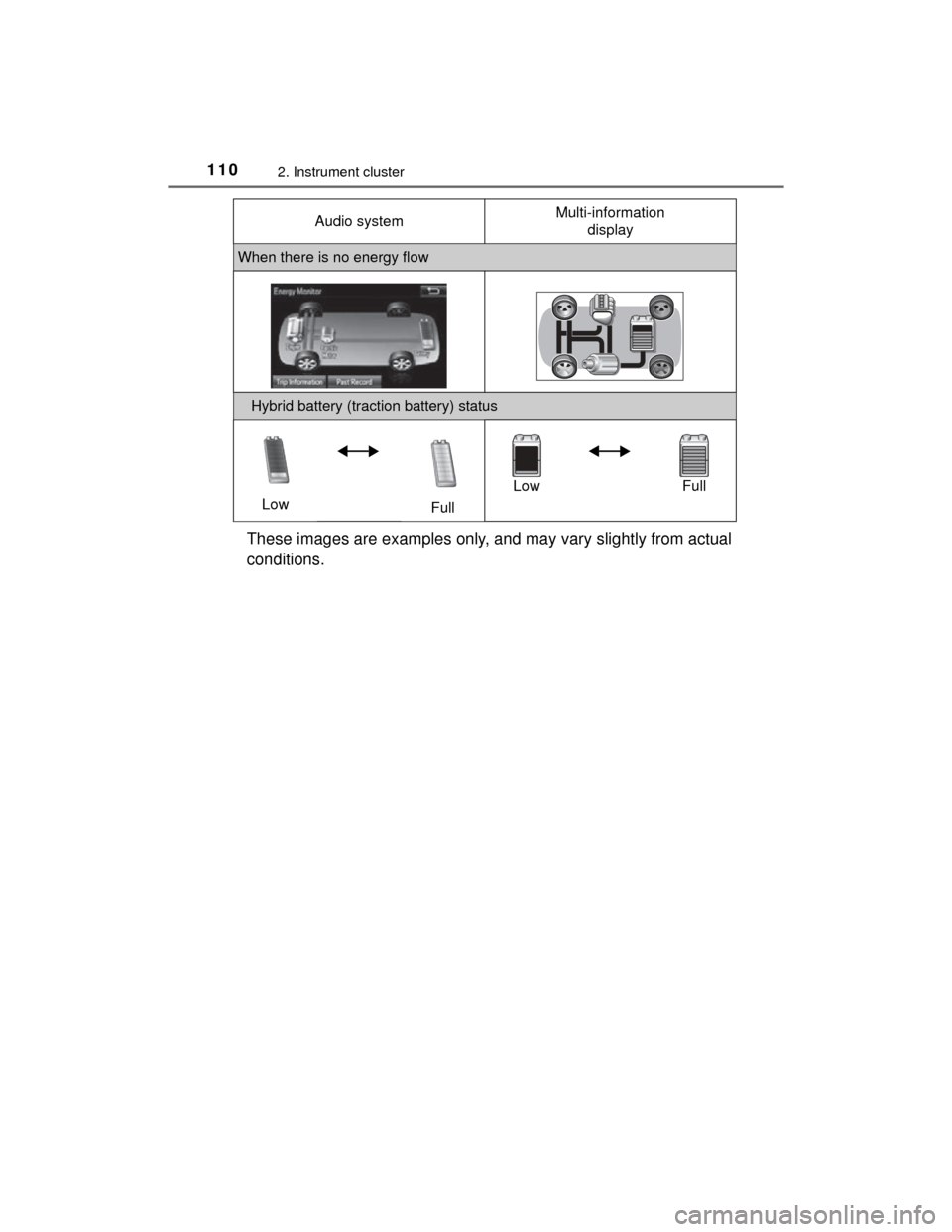

When there is no energy flow
Hybrid battery (traction battery) statusLow FullLow Full
Audio system
Multi-information
display
