TOYOTA PRIUS C 2015 NHP10 / 1.G Owners Manual

5119-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52E68U)
Cord separationThe parting of cords from adjacent rubber
compounds
Cracking Any parting within the tread, sidewall, or inner-
liner of the tire extending to cord material
CT A pneumatic tire with an inverted flange tire
and rim system in which the rim is designed
with rim flanges pointed radially inward and
the tire is designed to fit on the underside of
the rim in a manner that encloses the rim
flanges inside the air cavity of the tire
Extra load tire A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Groove The space between two adjacent tread ribs
Innerliner The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire
Innerliner separation The parting of the innerliner from cord material
in the carcass
Intended outboard
sidewall (a) The sidewall that contains a whitewall,
bears white lettering, or bears manufac-
turer, brand, and/or model name molding
that is higher or deeper than the same
molding on the other sidewall of the tire,
or
(b) The outward facing sidewall of an asym- metrical tire that has a particular side that
must always face outward when mounted
on a vehicle
Light truck (LT) tire A tire designated by its manufacturer as prima-
rily intended for use on lightweight trucks or
multipurpose passenger vehicles
Load rating The maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load rating The load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressure The maximum cold inflation pressure to which
a tire may be inflated
Tire related termMeaning

5129-1. Specifications
PRIUS c_U (OM52E68U)
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open splice Any parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameter The overall diameter of an inflated new tire
Overall width The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less.
Ply A layer of rubber-coated parallel cords
Ply separation A parting of rubber compound between adja-
cent plies
Pneumatic tire A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load
Radial ply tire A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Section width The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
Sidewall That portion of a tire between the tread and
bead
Sidewall separation The parting of the rubber compound from the
cord material in the sidewall
Tire related termMeaning

5139-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52E68U)
*: Table 1  Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Te s t r i m The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
Tread That portion of a tire that comes into contact
with the road
Tread rib A tread section running circumferentially
around a tire
Tread separation Pulling away of the tread from the tire carcass
Treadwear indicators
(TWI) The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixture The fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 4 2 2 in front
5 through 10 32 in front, 1 in second
seat
11 through 15 52 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 20 72 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat

514
PRIUS c_U (OM52E68U)
9-2. Customization
■Changing by using the multimedia systemPress the “SETUP” button.
Select “Vehicle” on the “Setup” screen.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
■Changing by using the navigation system Press the “APPS” button.
Select “Setup” on the “Apps” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by your Toyota dealer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.
Customizing vehicle features (audio system)
1
2
1
2

5159-2. Customization
9
Vehicle specifications
PRIUS c_U (OM52E68U)
Settings that can be changed using the audio system
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, — = Not available
■
Vehicle Proximity Notification System (P. 7 2 )
■Smart key system*1 and wireless remote control (P. 124, 133)
*1: If equipped
*2: Vehicles with a smart key system
Customizable Features
1
2
FunctionDefault settingCustomized setting
The volume of Vehicle
Proximity Notification Sys-
tem sound
Level 1
Level 2
—OLevel 3
12
FunctionDefault settingCustomized setting
Operation signal
(Emergency flashers) On Off — O
Operation signal
(Buzzer)
*2On Off — O
Operation buzzer vol-
ume
*2Level 5 Off to level 7 O O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked 60 seconds
30 seconds
OO
120 seconds
Open door warning
buzzer
*2OnOff —O
Automatic door lock func-
tion to be activated if door
is not opened after being
unlocked On Off — O
12

5169-2. Customization
PRIUS c_U (OM52E68U)■
Smart key system* (P. 124, 133, 138)
*: If equipped
■
Wireless remote control (P. 118, 124, 133)
FunctionDefault settingCustomized setting
Smart key system OnOff — O
Smart door unlocking Driver’s door All the doors O O
Number of permissible
times of continuous smart
lock Twice
Unlimited — O
12
FunctionDefault settingCustomized
setting
Wireless remote control OnOff — O
Unlocking operation Driver's door
unlocked in one step, all doors
unlocked in two
steps All doors unlocked
in one step. OO
Panic function OnOff — O
12

5179-2. Customization
9
Vehicle specifications
PRIUS c_U (OM52E68U)■
Door lock (P. 124, 133, 476)
*: Vehicles with a smart key system
■
Lights (P. 201)
FunctionDefault settingCustomized setting
Unlocking using a key Driver's door
unlocked in one
step, all doors
unlocked in two steps All doors unlocked
in one step. —O
Speed-detecting auto-
matic door lock function
*Off On O O
Opening driver's door
unlocks all doors Off
On O O
Shifting gears to P unlocks
all doors. On
Off O O
Shifting gears to position
other than P locks all
doors. On
Off O O
12
FunctionDefault settingCustomized
setting
Daytime running light sys-
tem (except Canada) On Off O O
12

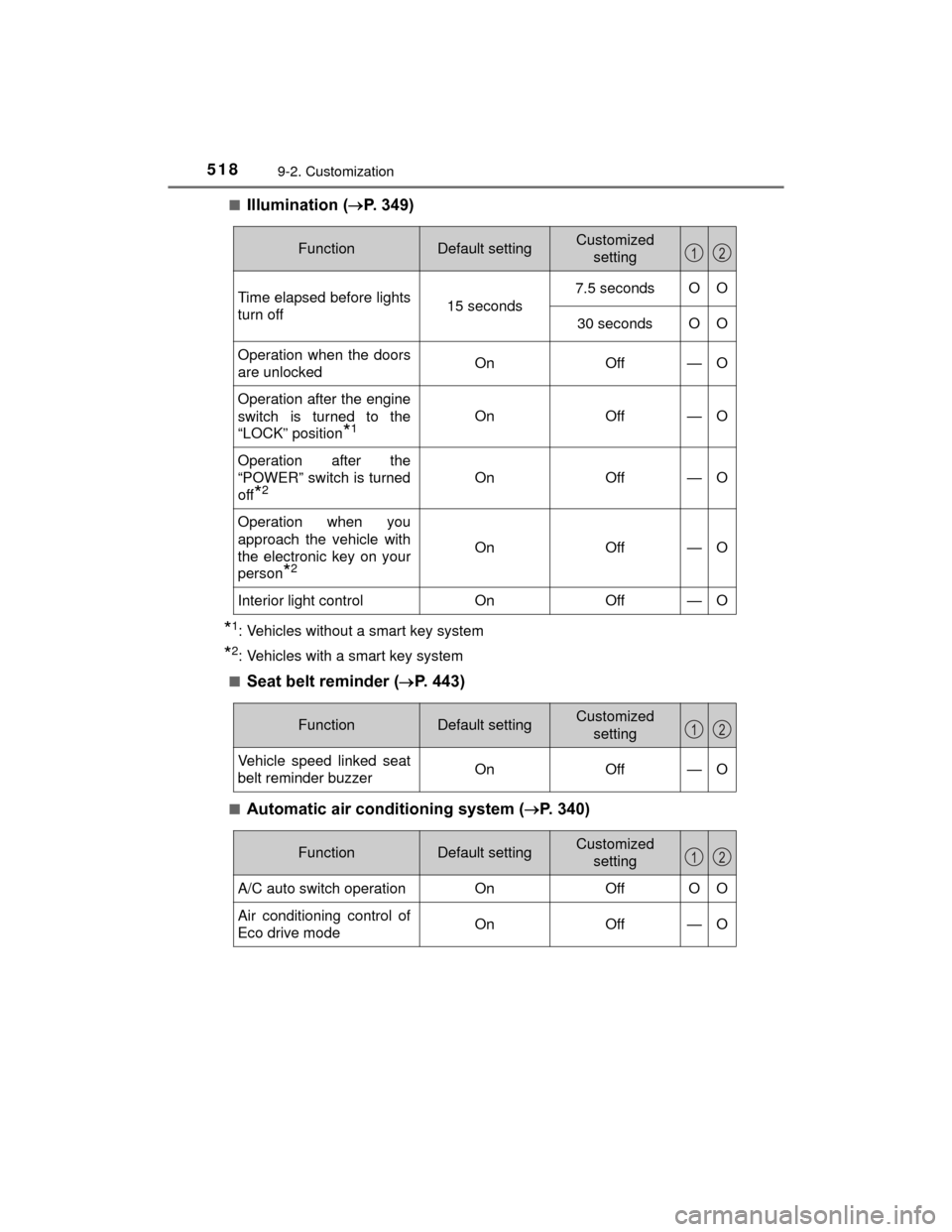

5189-2. Customization
PRIUS c_U (OM52E68U)■
Illumination (P. 349)
*1: Vehicles without a smart key system
*2: Vehicles with a smart key system
■
Seat belt reminder (P. 443)
■Automatic air conditioning system (P. 340)
FunctionDefault settingCustomized setting
Time elapsed before lights
turn off15 seconds
7.5 secondsOO
30 secondsOO
Operation when the doors
are unlockedOnOff—O
Operation after the engine
switch is turned to the
“LOCK” position
*1OnOff—O
Operation after the
“POWER” switch is turned
off
*2OnOff—O
Operation when you
approach the vehicle with
the electronic key on your
person
*2
OnOff—O
Interior light controlOnOff—O
12
FunctionDefault settingCustomized setting
Vehicle speed linked seat
belt reminder buzzer On Off — O
12
FunctionDefault settingCustomized
setting
A/C auto switch operationOnOffOO
Air conditioning control of
Eco drive modeOnOff—O
12

5199-2. Customization
9
Vehicle specifications
PRIUS c_U (OM52E68U)
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Message indicating
maintenance is required
(except Canada)
After the maintenance is performedP. 373
Tire pressure warning
system
• When rotating the tires on vehi-cles with differing front and rear
tire inflation pressures
• When changing tire pressure
(such as when changing travel-
ing speed, load weight, etc.)
• When changing the tire size
P. 399

5209-2. Customization
PRIUS c_U (OM52E68U)
