TOYOTA PRIUS C 2015 NHP10 / 1.G Owners Manual

4919-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52E68U)■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the front passenger’s seat.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.

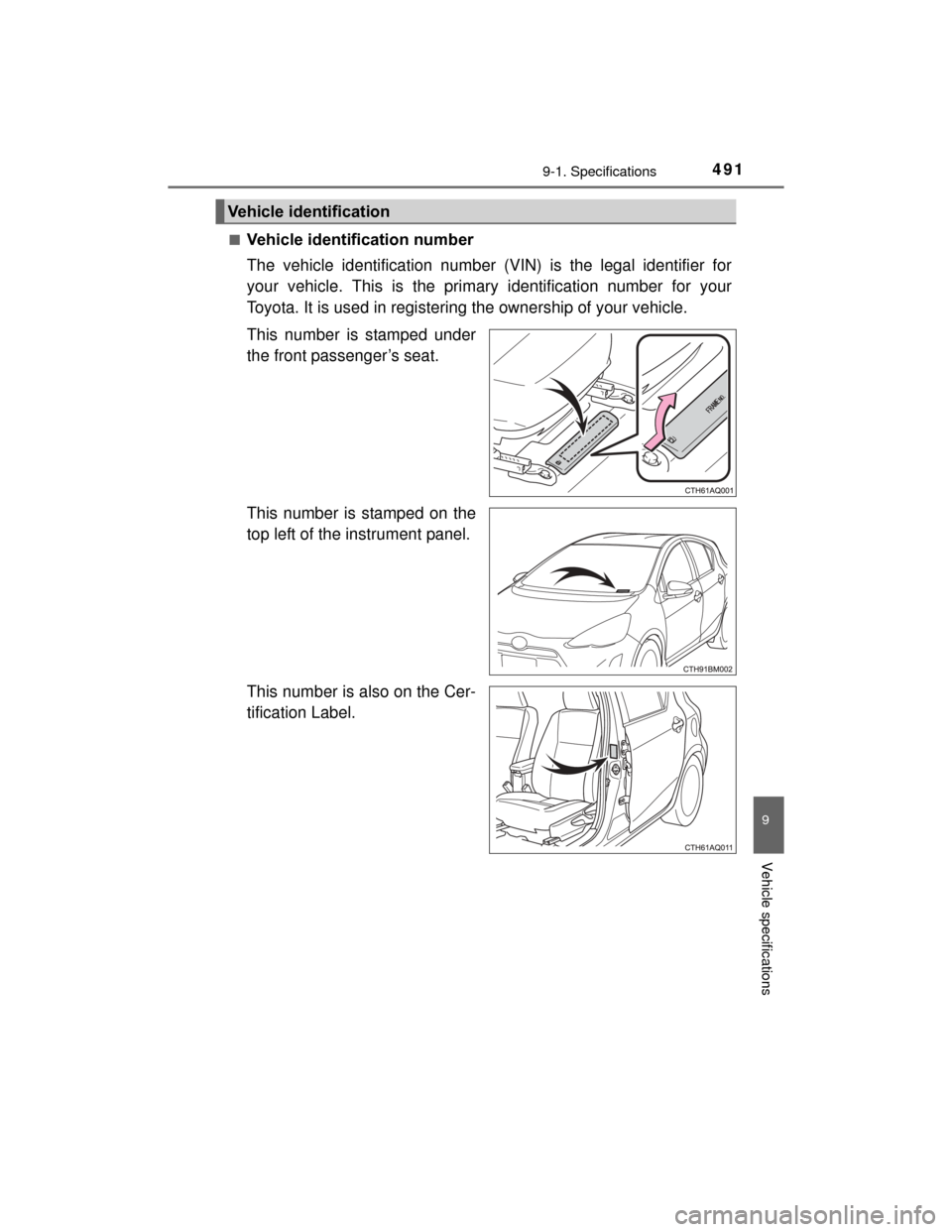

Vehicle identification

4929-1. Specifications
PRIUS c_U (OM52E68U)■

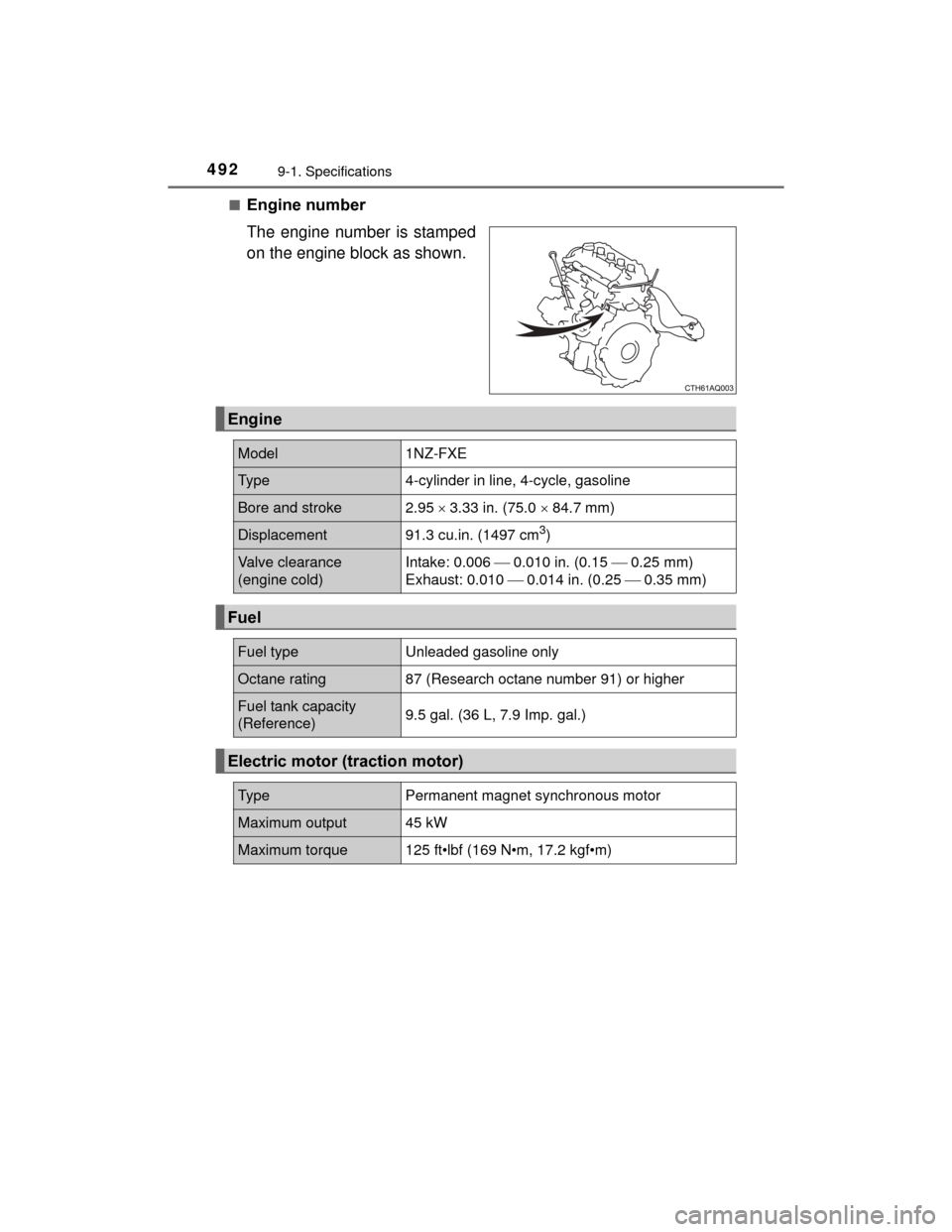

Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model
1NZ-FXE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 2.95  3.33 in. (75.0  84.7 mm)
Displacement 91.3 cu.in. (1497 cm3)
Valve clearance
(engine cold) Intake: 0.006
 0.010 in. (0.15  0.25 mm)
Exhaust: 0.010  0.014 in. (0.25  0.35 mm)
Fuel
Fuel type Unleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)9.5 gal. (36 L, 7.9 Imp. gal.)
Electric motor (traction motor)
Type
Permanent magnet synchronous motor
Maximum output 45 kW
Maximum torque 125 ft•lbf (169 N•m, 17.2 kgf•m)

4939-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52E68U)
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

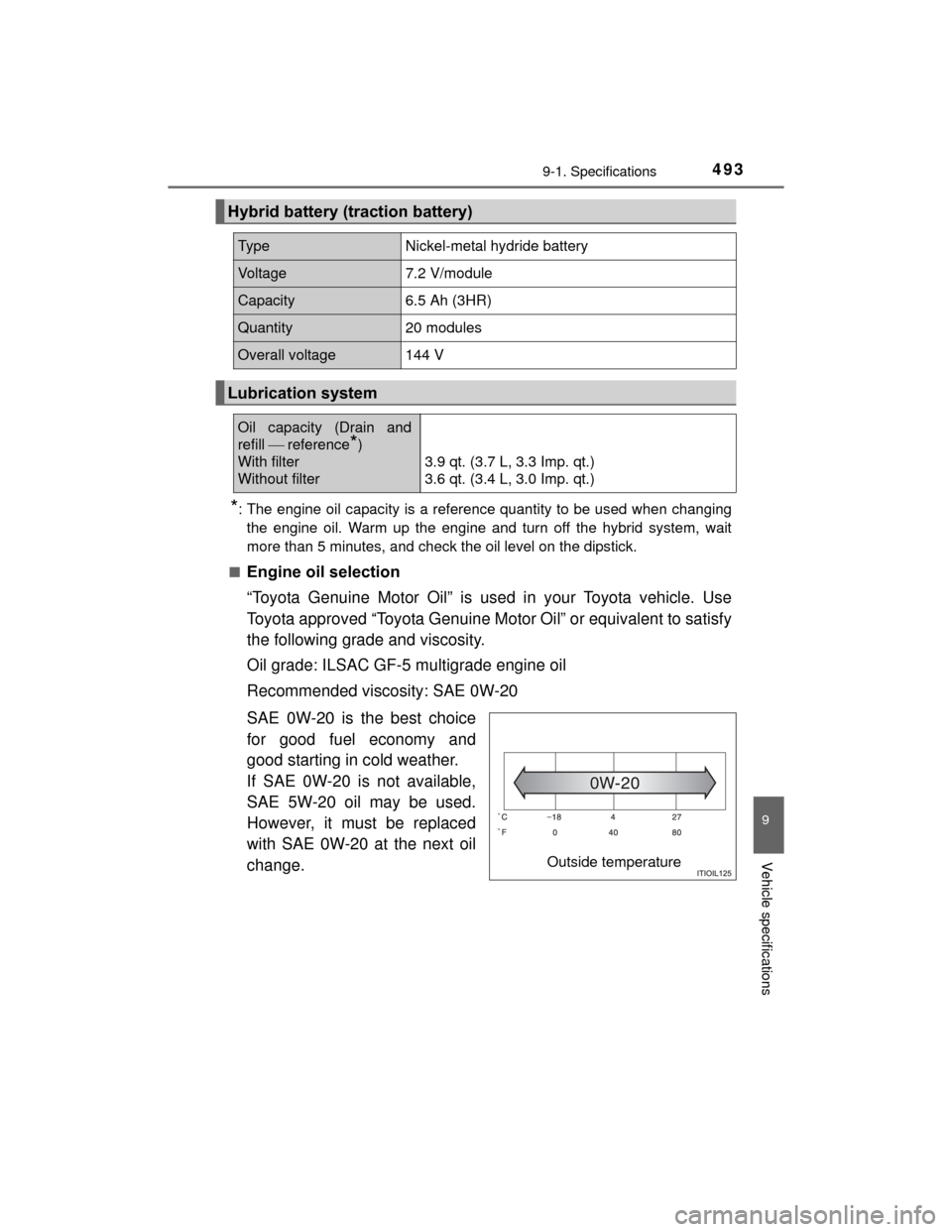

Hybrid battery (traction battery)
Type Nickel-metal hydride battery
Voltage7.2 V/module
Capacity 6.5 Ah (3HR)
Quantity20 modules
Overall voltage 144 V
Lubrication system
Oil capacity (Drain and
refill reference
*)
With filter
Without filter 3.9 qt. (3.7 L, 3.3 Imp. qt.)
3.6 qt. (3.4 L, 3.0 Imp. qt.)
Outside temperature

4949-1. Specifications
PRIUS c_U (OM52E68U)
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

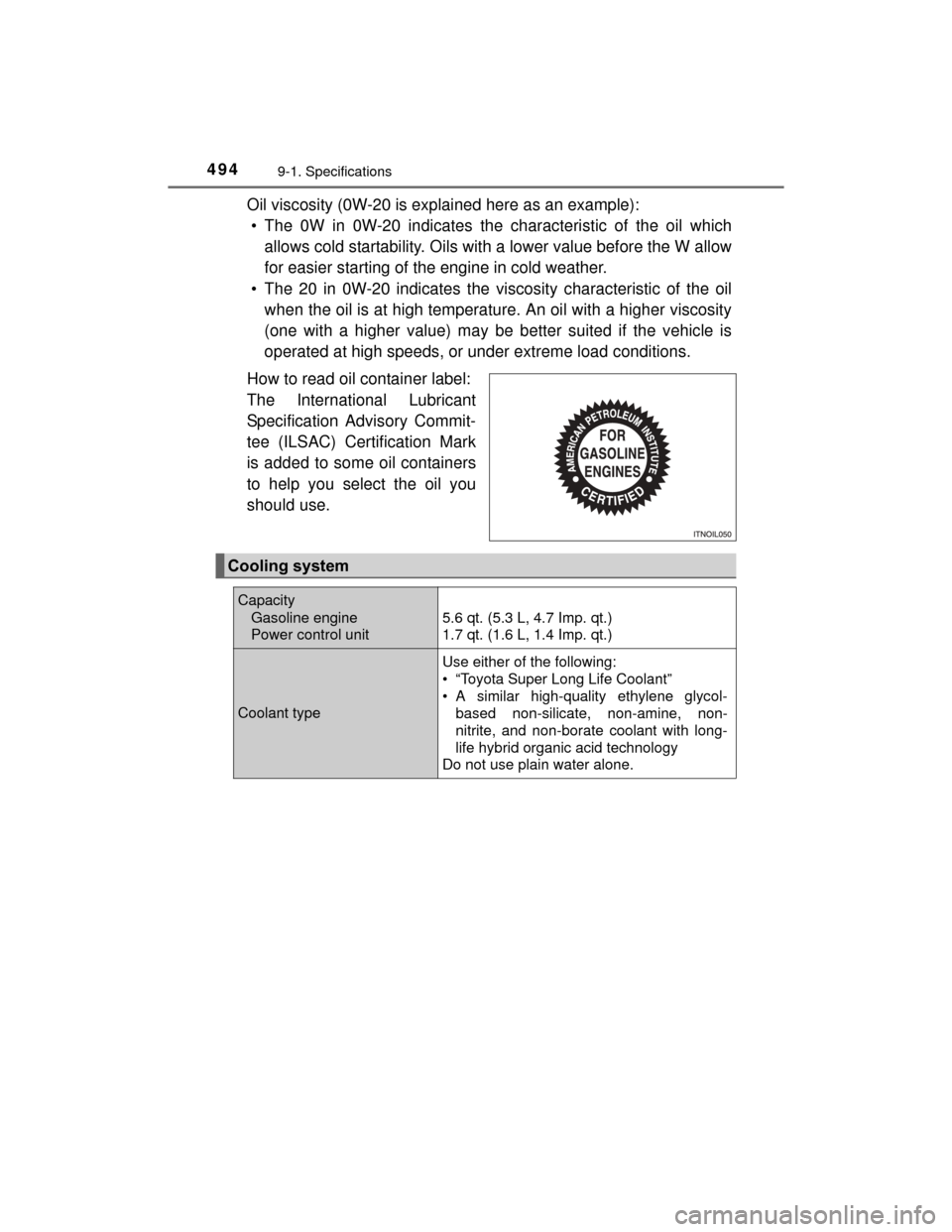

How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Cooling system
Capacity Gasoline engine
Power control unit 5.6 qt. (5.3 L, 4.7 Imp. qt.)
1.7 qt. (1.6 L, 1.4 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.

4959-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52E68U)
Ignition system
Spark plug
Make
GapDENSO FK16R-A8
0.03 in. (0.8 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at
68 F (20 C): 12.5 V or over Fully charged
11 . 0
 12.5 V Half charged
Under 11.0 V Discharged
(Voltage checked 20 minutes after the hybrid sys-
tem and all the lights are turned off)
Charging rates 3.5 A or less
(Recharge within 10 hours)

4969-1. Specifications
PRIUS c_U (OM52E68U)
*: The fluid capacity is a reference quantity. If replacement is necessary, con-tact your Toyota dealer.
*1: Minimum pedal clearance when depressed with a force of 66 lbf (294 N, 30kgf) while the hybrid system is operating
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N, 20kgf)
Hybrid transmission
Fluid capacity*3.5 qt. (3.3 L, 2.9 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locki ng up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.
Brakes
Pedal clearance*12.8 in. (70 mm) Min.
Pedal free play 0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Brake lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel*28  11 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)

4979-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52E68U)
15-inch tires
16-inch tires
Tires and wheels
Tire sizeP175/65R15 84H, T125/70D16 96M
(spare)
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear: 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Never exceed the maximum cold tire infla-
tion pressure indicated on the tire sidewall.
Wheel size 15  5J, 16  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size P195/50R16 83V, T125/70D16 96M
(spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)Front:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear:
29 psi (200 kPa, 2.0 kgf/cm
2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Never exceed the maximum cold tire infla-
tion pressure indicated on the tire sidewall.
Wheel size 16  6J, 16  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

4989-1. Specifications
PRIUS c_U (OM52E68U)
*1: If equipped
*2: Side turn signal lights should be replaced as an assembly.
Light bulbs
Light bulbsBulb No.WTyp e
ExteriorFront turn signal/parking
lights

28/8 B
License plate lights 5A
Back-up lights 16 A
Side turn signal lights 5B
*2
Front side marker lights 5A
Rear turn signal lights 21 B
InteriorInterior lights/personal
lights

5A
Luggage compartment
light
*1 5A
A: Wedge base bulbs (clear) B: Wedge base bulbs (amber)

4999-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52E68U)
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed
a specification for fuel quality call ed the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.
● The WWFC consists of four categorie s that are based on required emission
levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
■ Recommendation of the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.
● All gasoline sold in the U.S.A. co ntains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These ty pes of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.

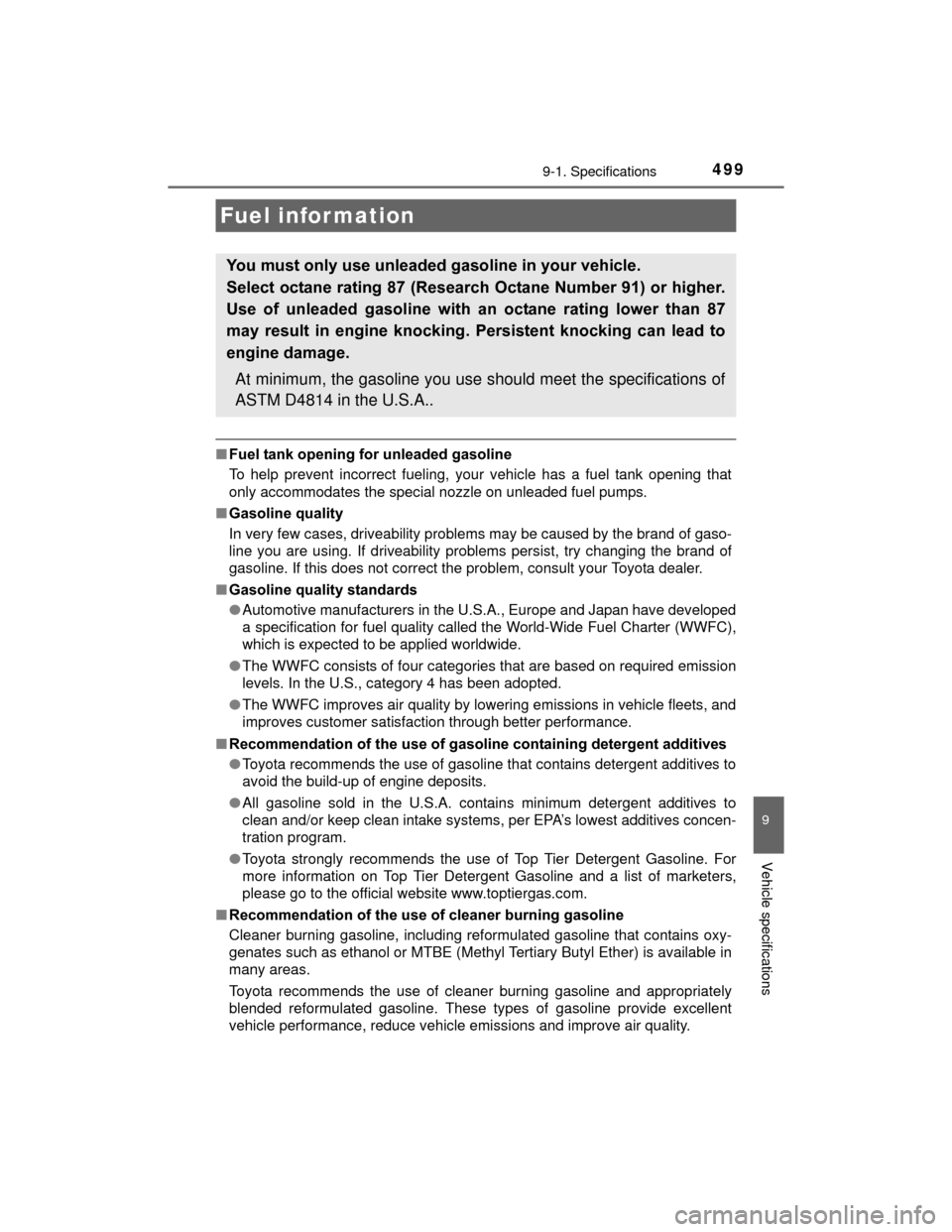

Fuel infor mation
You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..

5009-1. Specifications
PRIUS c_U (OM52E68U)■
Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.
■ If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is nor mal and there is no need for concern.
●
Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).
DO NOT use gasoline contain-
ing more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)
