912. Instrument cluster
2

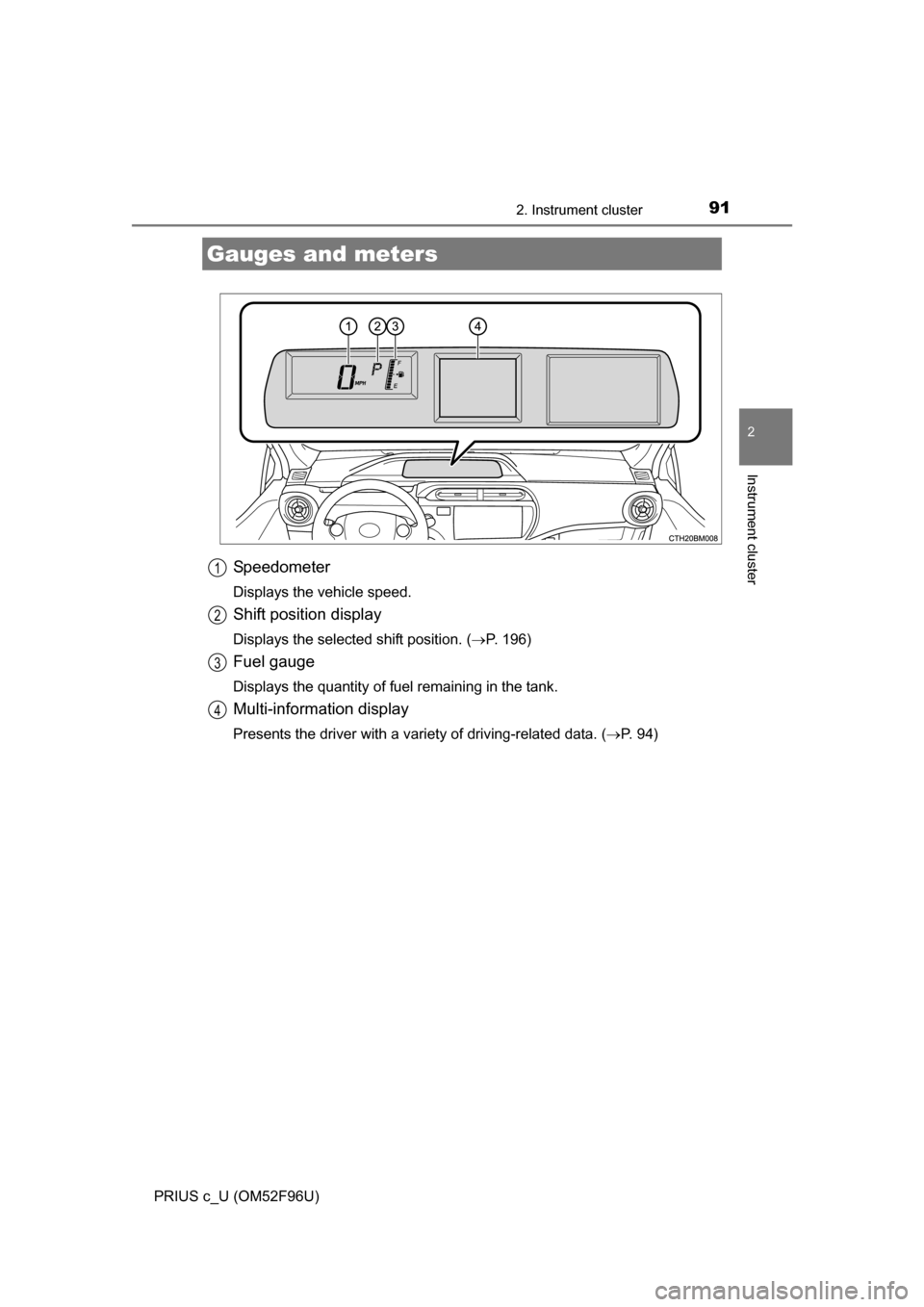

Instrument cluster
PRIUS c_U (OM52F96U)
Speedometer
Displays the vehicle speed.
Shift position display
Displays the selected shift position. (P. 196)
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 94)
Gauges and meters
1
2
3
4

922. Instrument cluster
PRIUS c_U (OM52F96U)

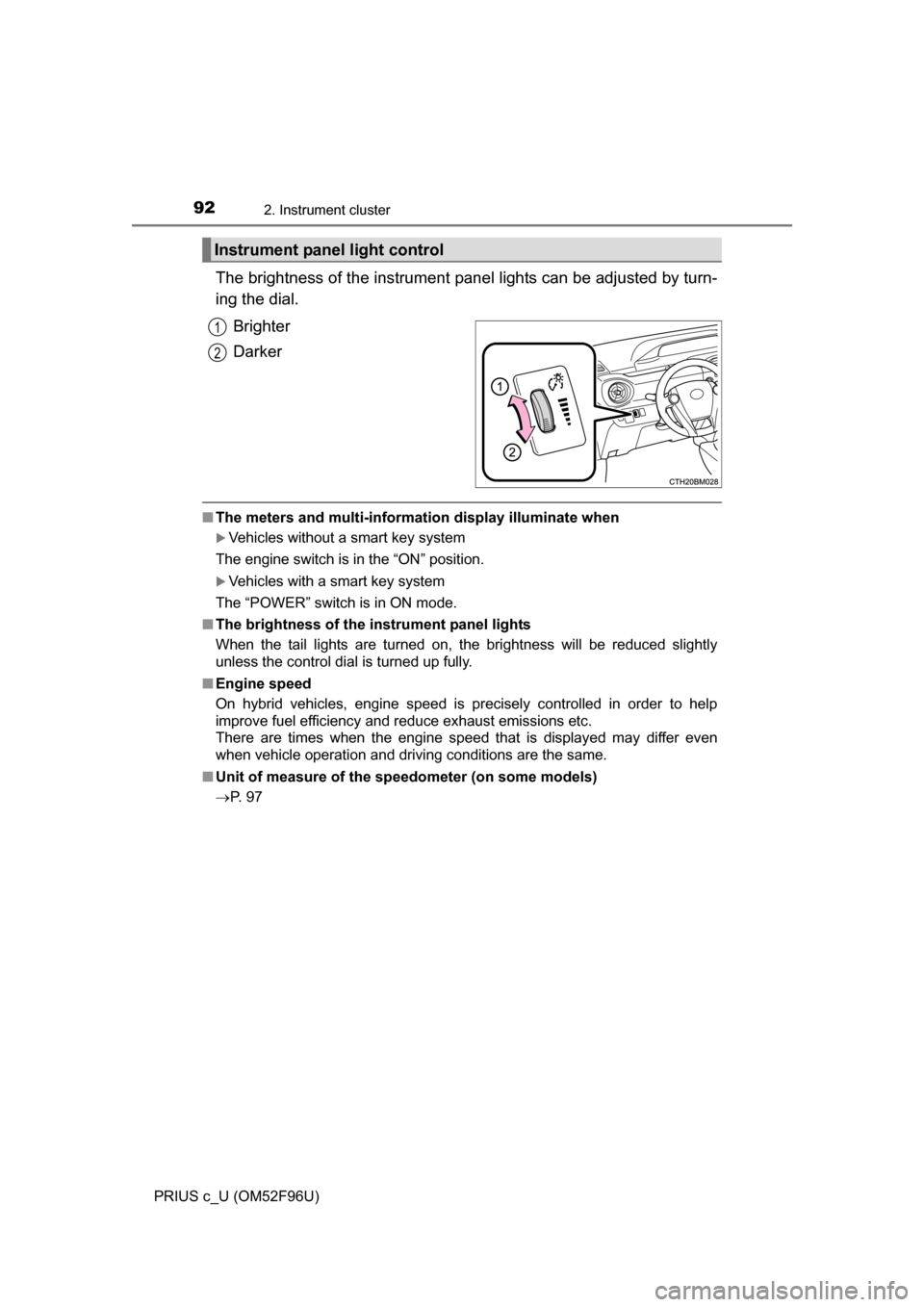

The brightness of the instrument panel lights can be adjusted by turn-
ing the dial.
Brighter
Darker
■The meters and multi-information display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “POWER” switch is in ON mode.
■ The brightness of the in strument panel lights
When the tail lights are turned on, the brightness will be reduced slightly
unless the control dial is turned up fully.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
■ Unit of measure of the sp eedometer (on some models)
P. 9 7
Instrument panel light control
1
2

932. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52F96U)

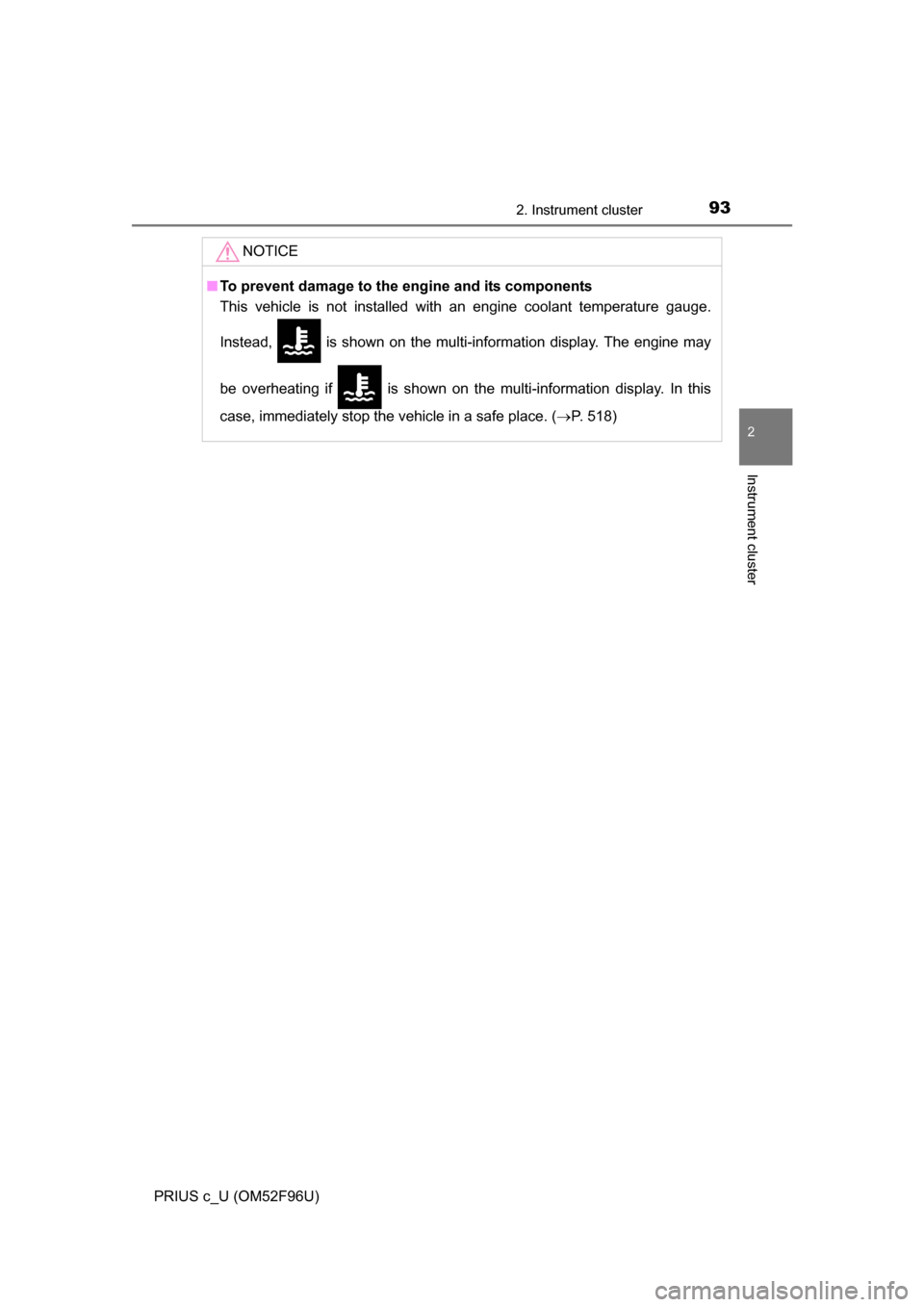

NOTICE
■To prevent damage to the engine and its components
This vehicle is not installed with an engine coolant temperature gauge.
Instead, is shown on the multi-information display. The engine may
be overheating if is shown on the multi-information display. In this
case, immediately stop the vehicle in a safe place. ( P. 518)

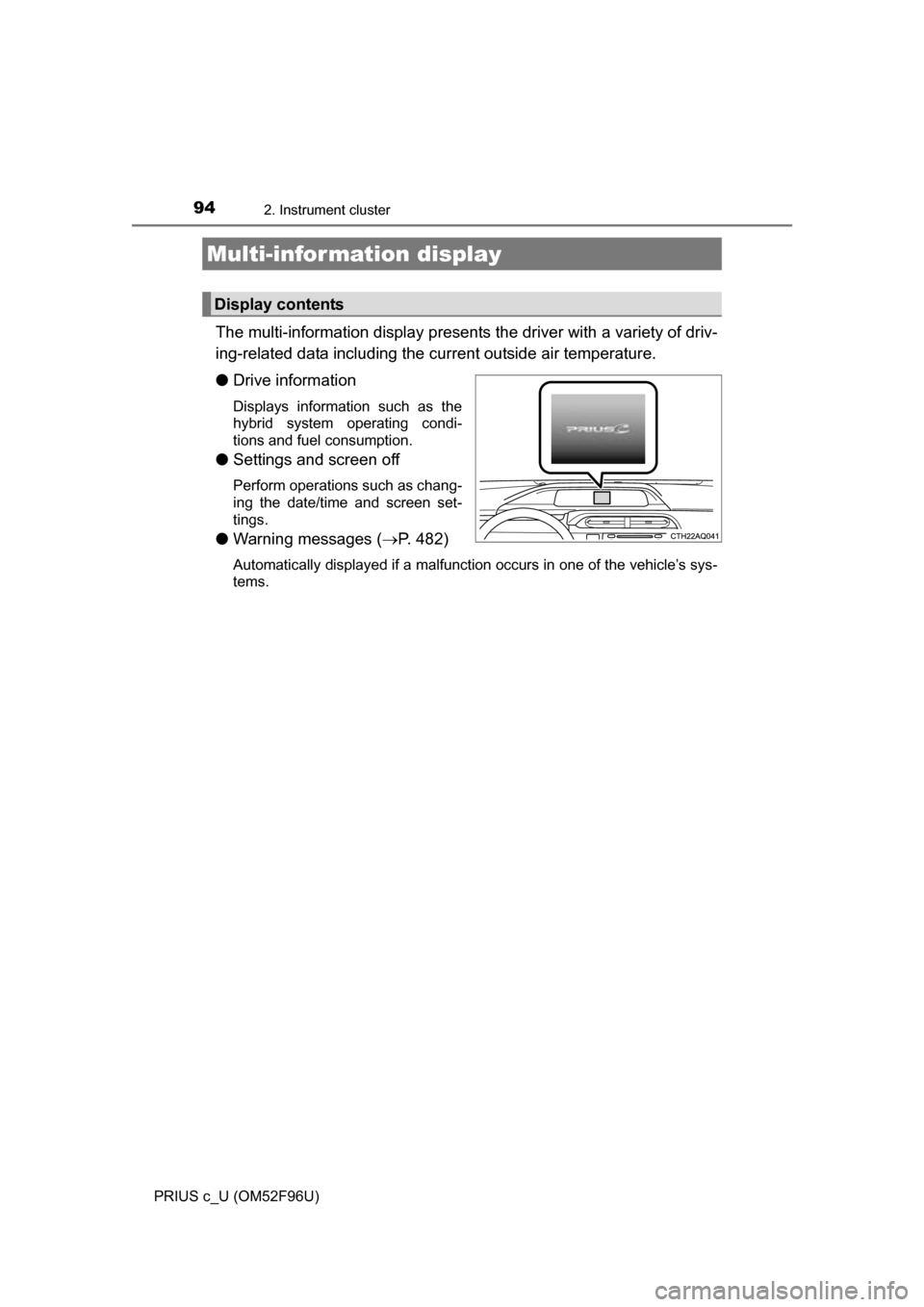

942. Instrument cluster
PRIUS c_U (OM52F96U)
The multi-information display presents the driver with a variety of driv-
ing-related data including the current outside air temperature.
● Drive information
Displays information such as the
hybrid system operating condi-
tions and fuel consumption.
●Settings and screen off
Perform operations such as chang-
ing the date/time and screen set-
tings.
●Warning messages ( P. 482)
Automatically displayed if a malfunction occurs in one of the vehicle’s sys-
tems.
Multi-infor mation display
Display contents

952. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52F96U)

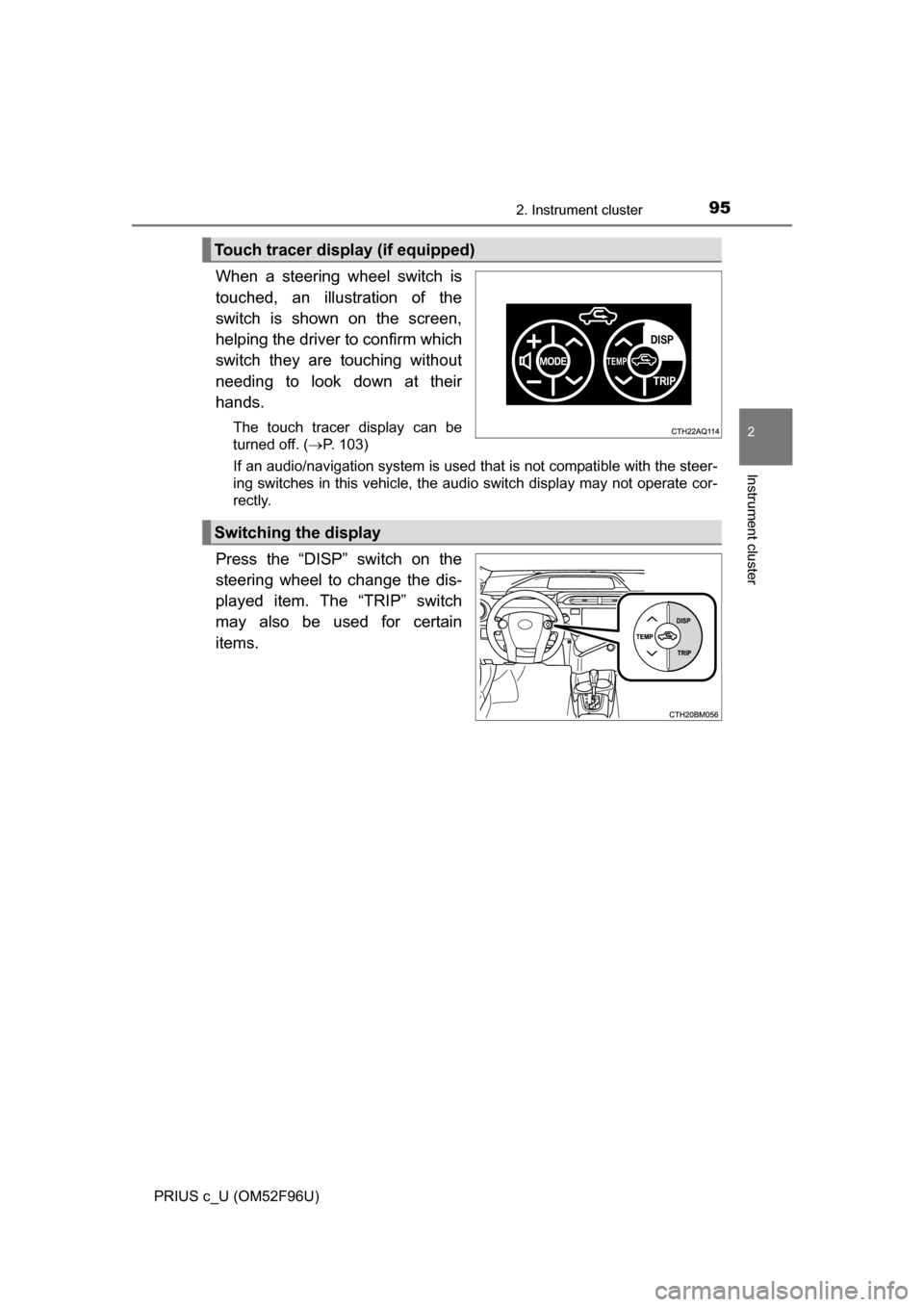

When a steering wheel switch is
touched, an illustration of the
switch is shown on the screen,
helping the driver to confirm which
switch they are touching without
needing to look down at their
hands.
The touch tracer display can be
turned off. (P. 103)
If an audio/navigation system is used that is not compatible with the steer-
ing switches in this vehicle, the audio switch display may not operate cor-
rectly.
Press the “DISP” switch on the
steering wheel to change the dis-
played item. The “TRIP” switch
may also be used for certain
items.
Touch tracer display (if equipped)
Switching the display

962. Instrument cluster
PRIUS c_U (OM52F96U)

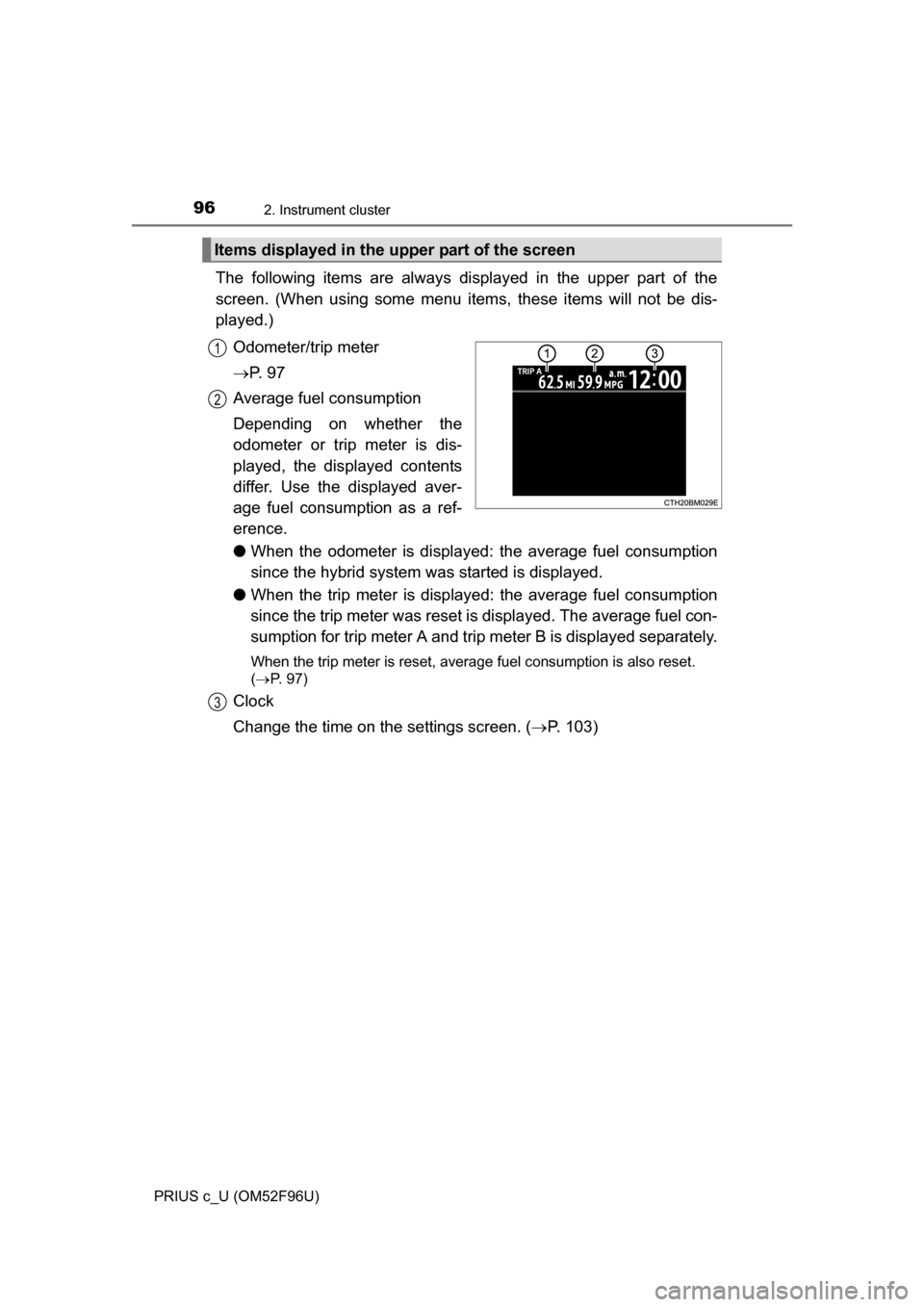

The following items are always displayed in the upper part of the
screen. (When using some menu items, these items will not be dis-
played.)
Odometer/trip meter
P. 9 7
Average fuel consumption
Depending on whether the
odometer or trip meter is dis-
played, the displayed contents
differ. Use the displayed aver-
age fuel consumption as a ref-
erence.
● When the odometer is displayed: the average fuel consumption
since the hybrid system was started is displayed.
● When the trip meter is displayed: the average fuel consumption
since the trip meter was reset is displayed. The average fuel con-
sumption for trip meter A and trip meter B is displayed separately.
When the trip meter is reset, average fuel consumption is also reset.
( P. 97)
Clock
Change the time on the settings screen. ( P. 103)
Items displayed in the upper part of the screen
1
2
3

972. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52F96U)■

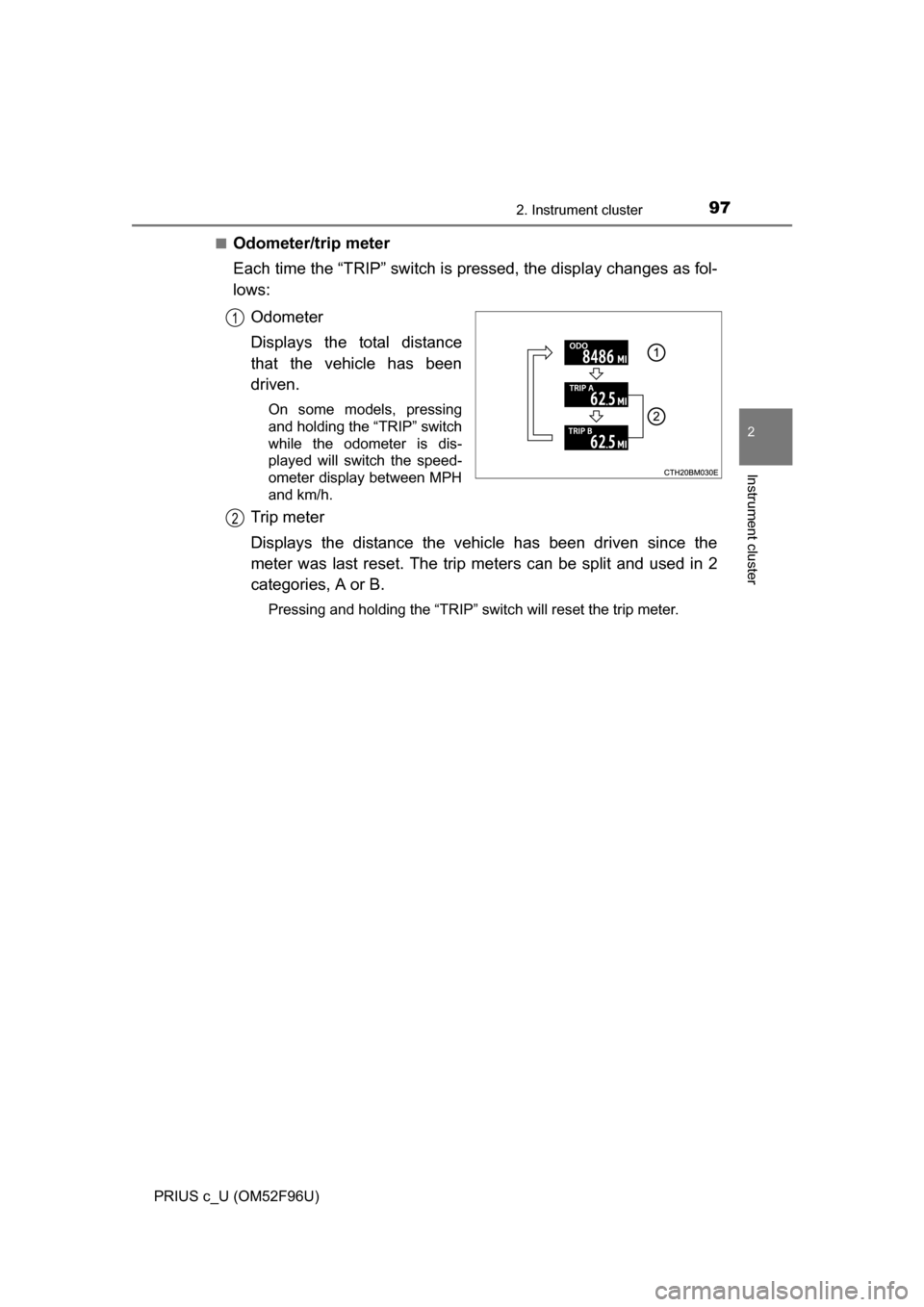

Odometer/trip meter
Each time the “TRIP” switch is pr
essed, the display changes as fol-
lows:
Odometer
Displays the total distance
that the vehicle has been
driven.
On some models, pressing
and holding the “TRIP” switch
while the odometer is dis-
played will switch the speed-
ometer display between MPH
and km/h.
Trip meter
Displays the distance the vehicle has been driven since the
meter was last reset. The trip meters can be split and used in 2
categories, A or B.
Pressing and holding the “TRIP” switch will reset the trip meter.
1
2

982. Instrument cluster
PRIUS c_U (OM52F96U)

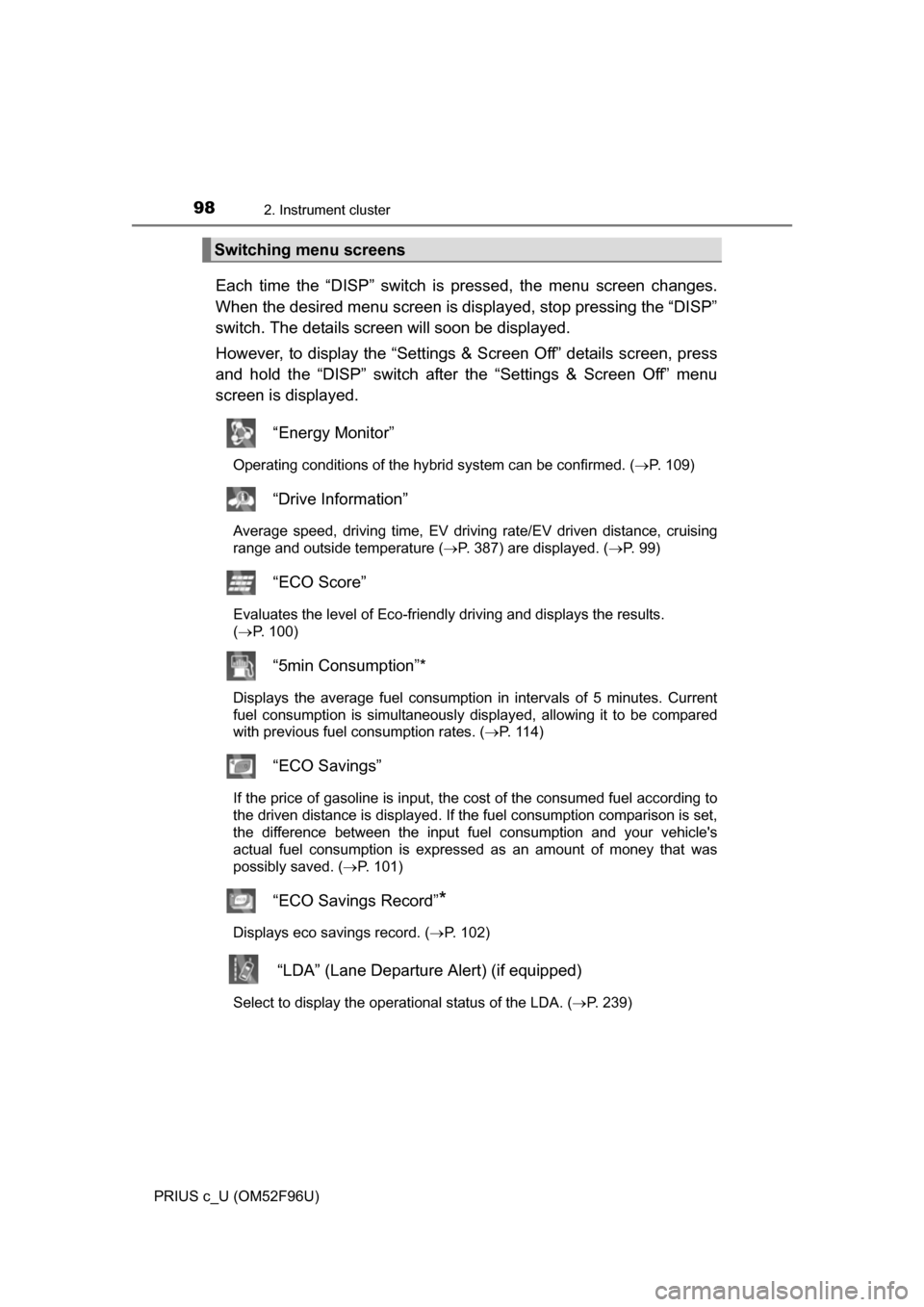

Each time the “DISP” switch is pressed, the menu screen changes.
When the desired menu screen is displayed, stop pressing the “DISP”
switch. The details screen will soon be displayed.
However, to display the “Settings & Screen Off” details screen, press
and hold the “DISP” switch after the “Settings & Screen Off” menu
screen is displayed.
“Energy Monitor”
Operating conditions of the hybrid system can be confirmed. ( P. 109)
“Drive Information”
Average speed, driving time, EV driving rate/EV driven distance, cruising
range and outside temperature ( P. 387) are displayed. (P. 99)
“ECO Score”
Evaluates the level of Eco-friendly driving and displays the results.
( P. 100)
“5min Consumption”*
Displays the average fuel consumption in intervals of 5 minutes. Current
fuel consumption is simultaneously displayed, allowing it to be compared
with previous fuel consumption rates. ( P. 114)
“ECO Savings”
If the price of gasoline is input, the cost of the consumed fuel according to
the driven distance is displayed. If the fuel consumption comparison is set,
the difference between the input fuel consumption and your vehicle's
actual fuel consumption is expressed as an amount of money that was
possibly saved. (P. 101)
“ECO Savings Record”*
Displays eco savings record. ( P. 102)
“LDA” (Lane Departure Alert) (if equipped)
Select to display the operational status of the LDA. ( P. 239)
Switching menu screens

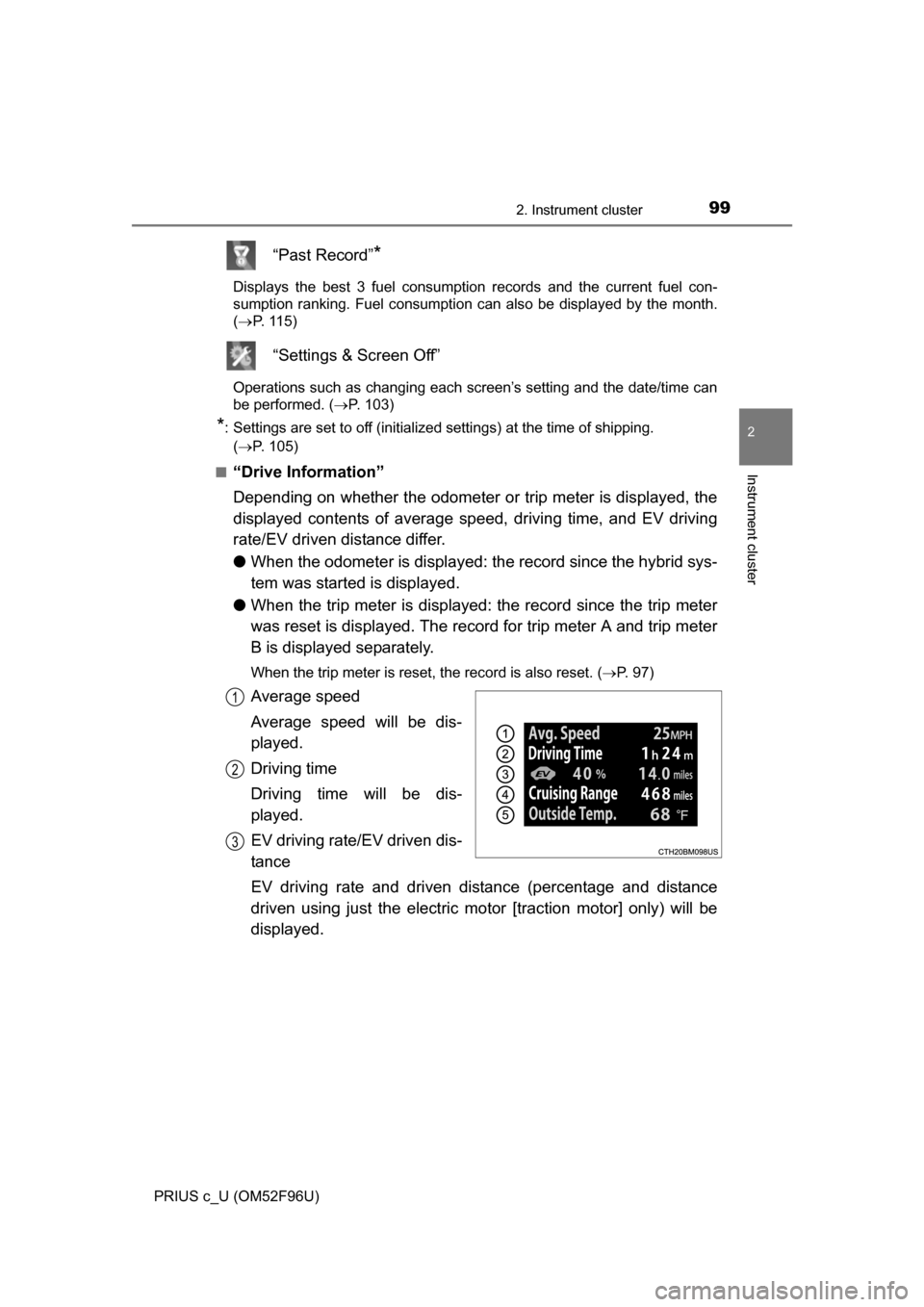

992. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52F96U)
“Past Record”*
Displays the best 3 fuel consumption records and the current fuel con-
sumption ranking. Fuel consumption can also be displayed by the month.
( P. 115)
“Settings & Screen Off”
Operations such as changing each screen’s setting and the date/time can
be performed. ( P. 103)
*: Settings are set to off (initialized settings) at the time of shipping.
( P. 105)
■
“Drive Information”
Depending on whether the odometer or trip meter is displayed, the
displayed contents of average speed, driving time, and EV driving
rate/EV driven distance differ.
● When the odometer is displayed: the record since the hybrid sys-
tem was started is displayed.
● When the trip meter is displayed: the record since the trip meter
was reset is displayed. The record for trip meter A and trip meter
B is displayed separately.
When the trip meter is reset, the record is also reset. ( P. 97)
Average speed
Average speed will be dis-
played.
Driving time
Driving time will be dis-
played.
EV driving rate/EV driven dis-
tance
EV driving rate and driven distance (percentage and distance
driven using just the electric motor [traction motor] only) will be
displayed.1
2
3

1002. Instrument cluster
PRIUS c_U (OM52F96U)

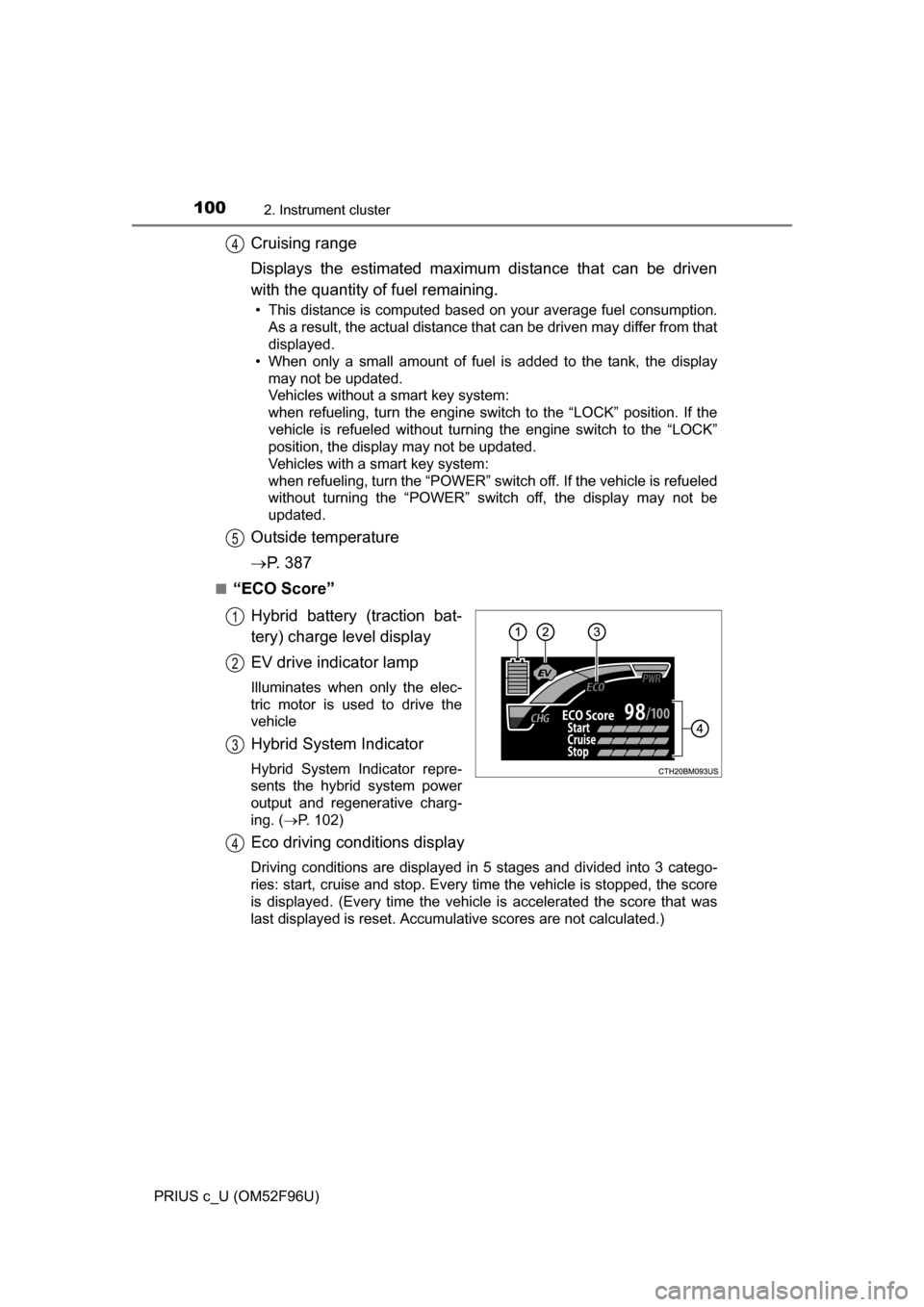

Cruising range
Displays the estimated maximum distance that can be driven
with the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display
may not be updated.
Vehicles without a smart key system:
when refueling, turn the engine switch to the “LOCK” position. If the
vehicle is refueled without turning the engine switch to the “LOCK”
position, the display may not be updated.
Vehicles with a smart key system:
when refueling, turn the “POWER” switch off. If the vehicle is refueled
without turning the “POWER” switch off, the display may not be
updated.
Outside temperature
 P. 3 8 7
■“ECO Score”
Hybrid battery (traction bat-
tery) charge level display
EV drive indicator lamp
Illuminates when only the elec-
tric motor is used to drive the
vehicle
Hybrid System Indicator
Hybrid System Indicator repre-
sents the hybrid system power
output and regenerative charg-
ing. ( P. 102)
Eco driving conditions display
Driving conditions are displayed in 5 stages and divided into 3 catego-
ries: start, cruise and stop. Every time the vehicle is stopped, the score
is displayed. (Every time the vehicle is accelerated the score that was
last displayed is reset. Accumulative scores are not calculated.)
4
5
1
2
3
4
