811-2. Hybrid system
1
For safety and security
PRIUS c_U (OM52F96U)
WARNING

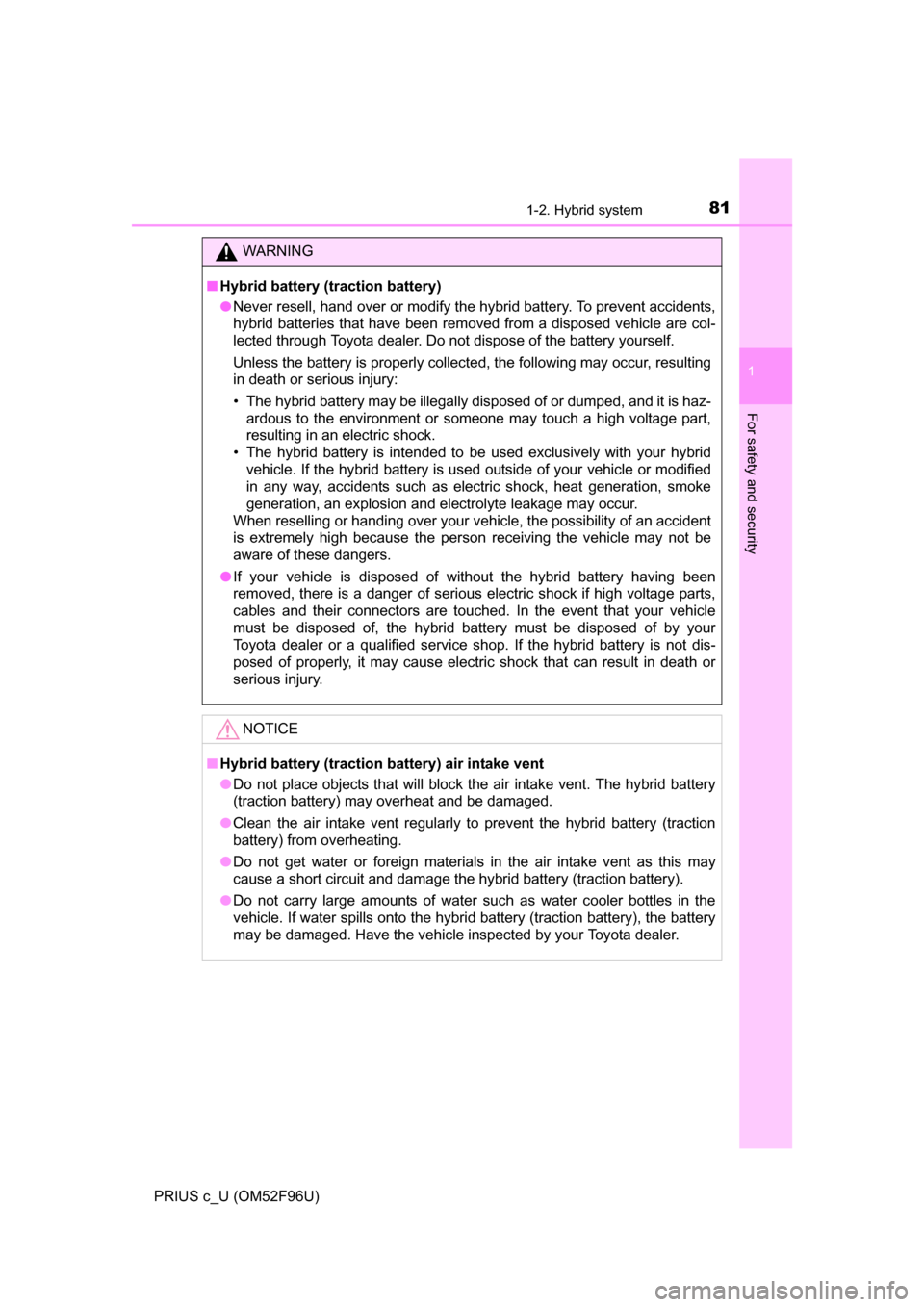

■Hybrid battery (traction battery)
●Never resell, hand over or modify the hybrid battery. To prevent accidents,
hybrid batteries that have been removed from a disposed vehicle are col-
lected through Toyota dealer. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting
in death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and it is haz-
ardous to the environment or someone may touch a high voltage part,
resulting in an electric shock.
• The hybrid battery is intended to be used exclusively with your hybrid
vehicle. If the hybrid battery is used outside of your vehicle or modified
in any way, accidents such as electric shock, heat generation, smoke
generation, an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident
is extremely high because the person receiving the vehicle may not be
aware of these dangers.
● If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event that your vehicle
must be disposed of, the hybrid battery must be disposed of by your
Toyota dealer or a qualified service shop. If the hybrid battery is not dis-
posed of properly, it may cause electric shock that can result in death or
serious injury.
NOTICE
■Hybrid battery (traction battery) air intake vent
● Do not place objects that will block the air intake vent. The hybrid battery
(traction battery) may overheat and be damaged.
● Clean the air intake vent regularly to prevent the hybrid battery (traction
battery) from overheating.
● Do not get water or foreign materials in the air intake vent as this may
cause a short circuit and damage the hybrid battery (traction battery).
● Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by your Toyota dealer.

82
PRIUS c_U (OM52F96U)
1-3. Theft deterrent system
Vehicles without a smart key system
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system
The indicator light flashes after t he “POWER” switch has been turned
off to indicate that the system is operating.
The indicator light stops flashing after the “POWER” switch has been
turned to ACCESSORY or ON mode to indicate that the system has
been canceled.
■ System maintenance
The vehicle has a maintenance-free type immobilizer system.
■ Conditions affecting operation
Depending on the surrounding environment and conditions, the immobilizer
system may not operate properly. This may prevent the hybrid system from
starting. ( P. 140)
Immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehi cle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.
: If equipped

831-3. Theft deterrent system
1
For safety and security
PRIUS c_U (OM52F96U)■
Certifications for the immobilizer system
For vehicles sold in the U.S.A. and Puerto rico
FCC ID: NI4TMIMB-3
FCC ID: MOZRI-42BTY
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
For vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
WARNING
■ Certifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

841-3. Theft deterrent system
PRIUS c_U (OM52F96U)

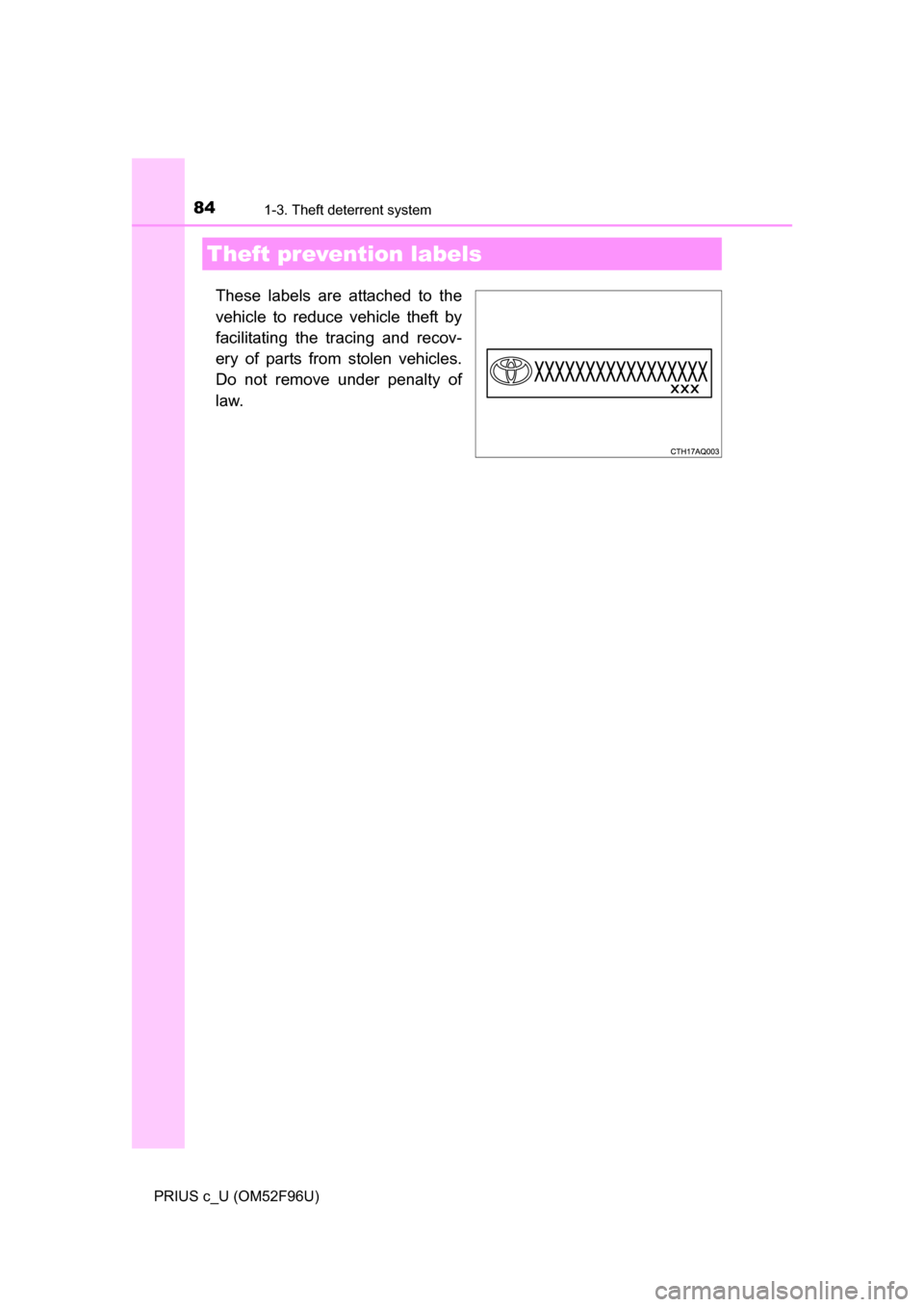

These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.
Theft prevention labels

85
Instrument cluster2
PRIUS c_U (OM52F96U)2. Instrument cluster
Warning lights and indicators .......................... 86
Gauges and meters ............ 91
Multi-information display ..... 94
Energy monitor/ consumption screen ........ 108

86
PRIUS c_U (OM52F96U)
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights a nd indicators illuminated.

872. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52F96U)

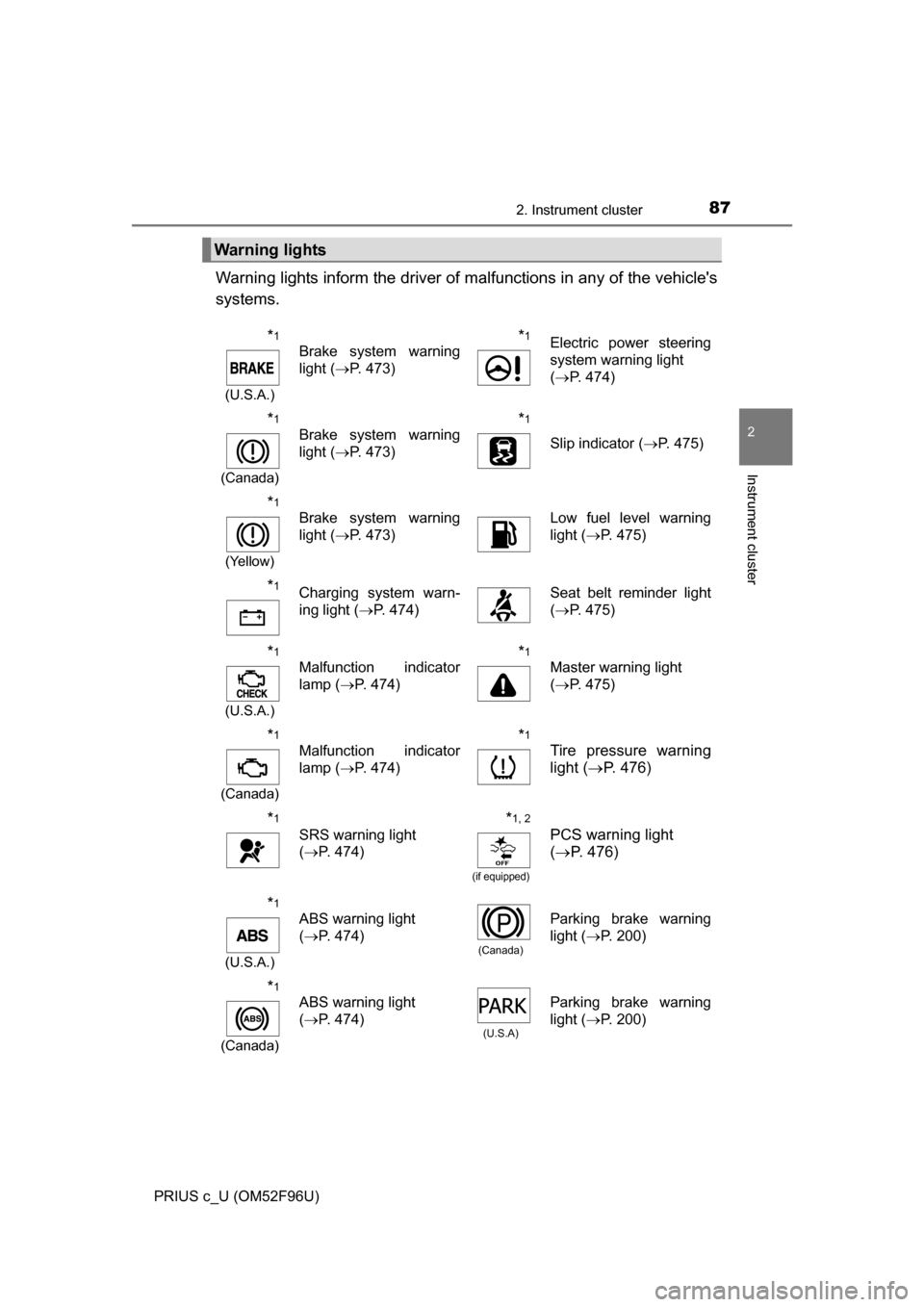

Warning lights inform the driver of malfunctions in any of the vehicle's
systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 473)*1Electric power steering
system warning light
(P. 474)
*1
(Canada)
Brake system warning
light ( P. 473)*1
Slip indicator ( P. 475)
*1
(Yellow)
Brake system warning
light (P. 473)Low fuel level warning
light (P. 475)
*1Charging system warn-
ing light ( P. 474)Seat belt reminder light
(P. 475)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 474)*1
Master warning light
(P. 475)
*1
(Canada)
Malfunction indicator
lamp ( P. 474)*1
Tire pressure warning
light (P. 476)
*1
SRS warning light
(P. 474)
*1, 2
(if equipped)
PCS warning light
(  P. 476)
*1
(U.S.A.)
ABS warning light
(P. 474)
(Canada)
Parking brake warning
light ( P. 200)
*1
(Canada)
ABS warning light
(P. 474)
(U.S.A)
Parking brake warning
light ( P. 200)

882. Instrument cluster
PRIUS c_U (OM52F96U)

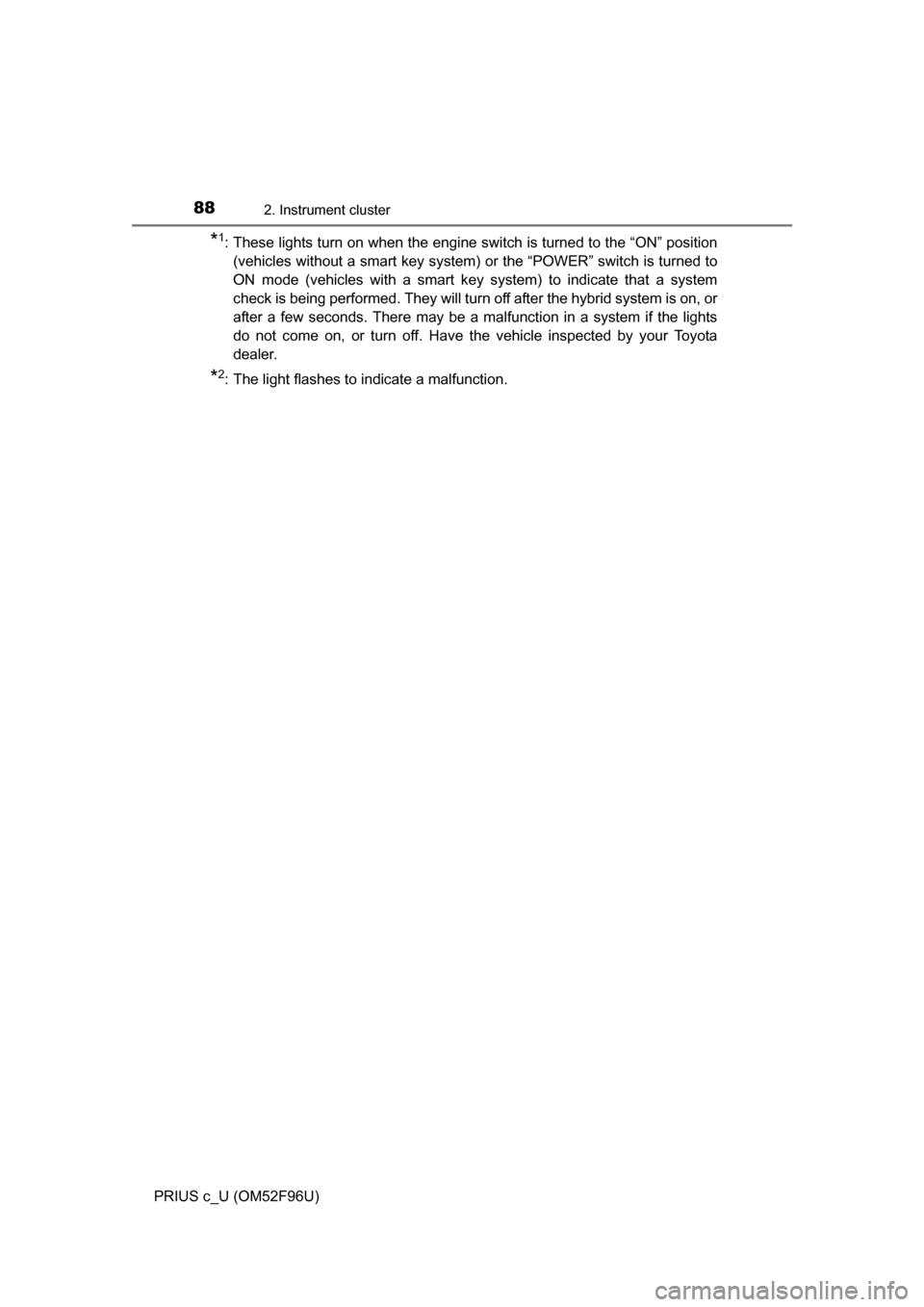

*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or the “POWER” switch is turned to
ON mode (vehicles with a smart key system) to indicate that a system
check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunction in a system if the lights
do not come on, or turn off. Have the vehicle inspected by your Toyota
dealer.
*2: The light flashes to indicate a malfunction.

892. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52F96U)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 199)Shift position indicator
(P. 197)
Headlight high beam
indicator ( P. 201) “ECO MODE” indicator
(
P. 197)
(U.S.A.)
Headlight indicator
(P. 201)EV drive indicator lamp
(P. 73)
(Canada)
Tail light indicator
(P. 201)
(if equipped)
Cruise control indicator
(P. 247)
(if equipped)
Front fog light indicator
(P. 205)
(if equipped)
Cruise control set indica-
tor ( P. 247)
*1
(if equipped)
Automatic High Beam
indicator ( P. 242)*1, 2
Slip indicator ( P. 262)
(if equipped)
Immobilizer system indi-
cator (P. 82)*1VSC OFF indicator
(P. 262)
(if equipped)
LDA indicator
(P. 237)
“READY” indicator
( P. 182, 186)
*1
(if equipped)
PCS warning light
(P. 224)
EV drive mode indicator
( P. 193)
SRS airbag
on-off indica-
tor ( P. 50)*1

902. Instrument cluster
PRIUS c_U (OM52F96U)
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or the “POWER” switch is turned to
ON mode (vehicles with a smart key system) to indicate that a system
check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunction in a system if the lights
do not come on, or turn off. Have the vehicle inspected by your Toyota
dealer.
*2: The light flashes to indicate that the system is operating.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS or SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could r\
esult
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
