TOYOTA PRIUS C 2016 NHP10 / 1.G Owner's Manual

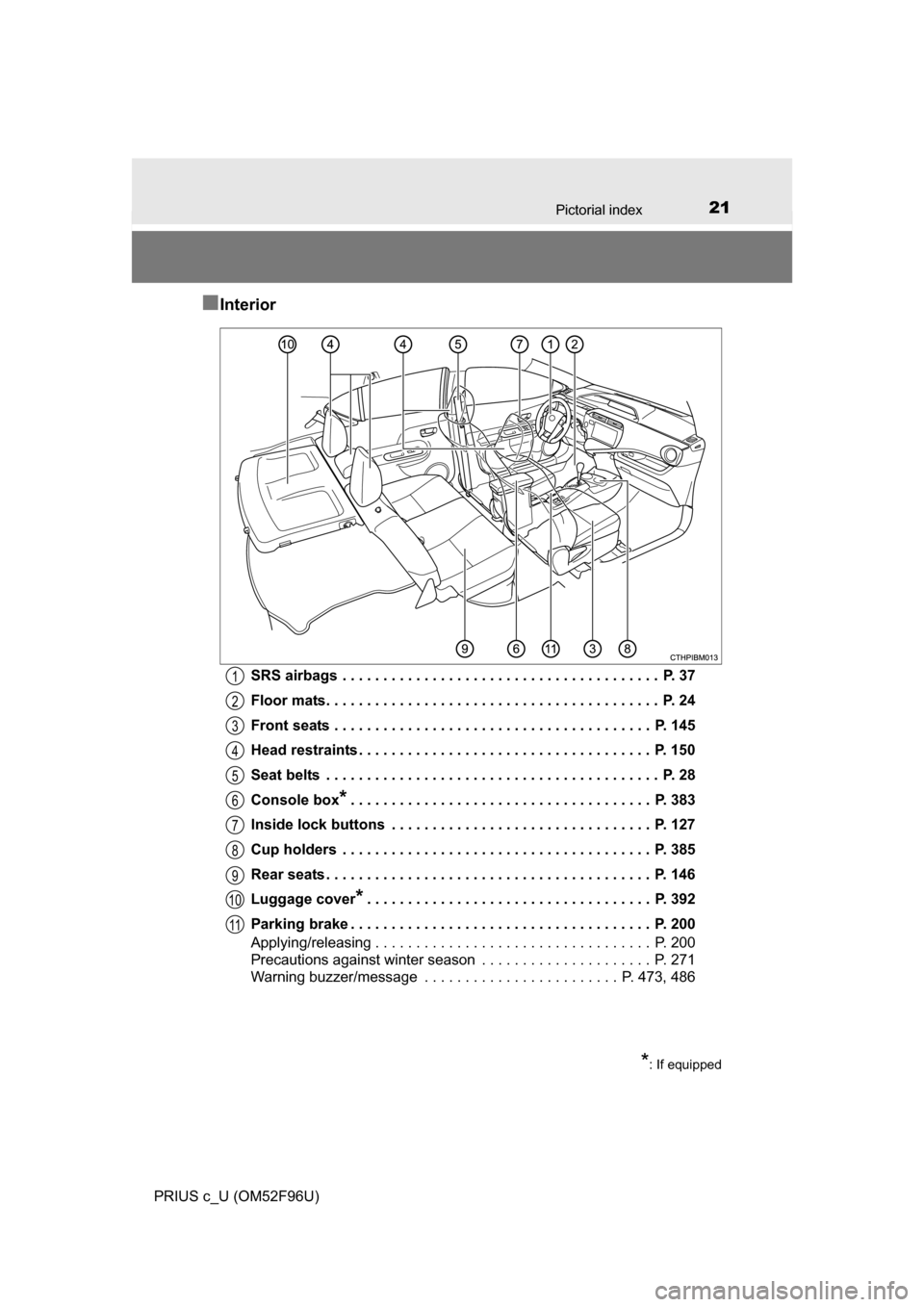

21Pictorial index
PRIUS c_U (OM52F96U)
■Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 37
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 24
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 145
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 150
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Console box
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 383
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 385
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Luggage cover
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 392
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 271
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . P. 473, 486
*: If equipped
1
2
3
4
5
6
7
8
9
10
11

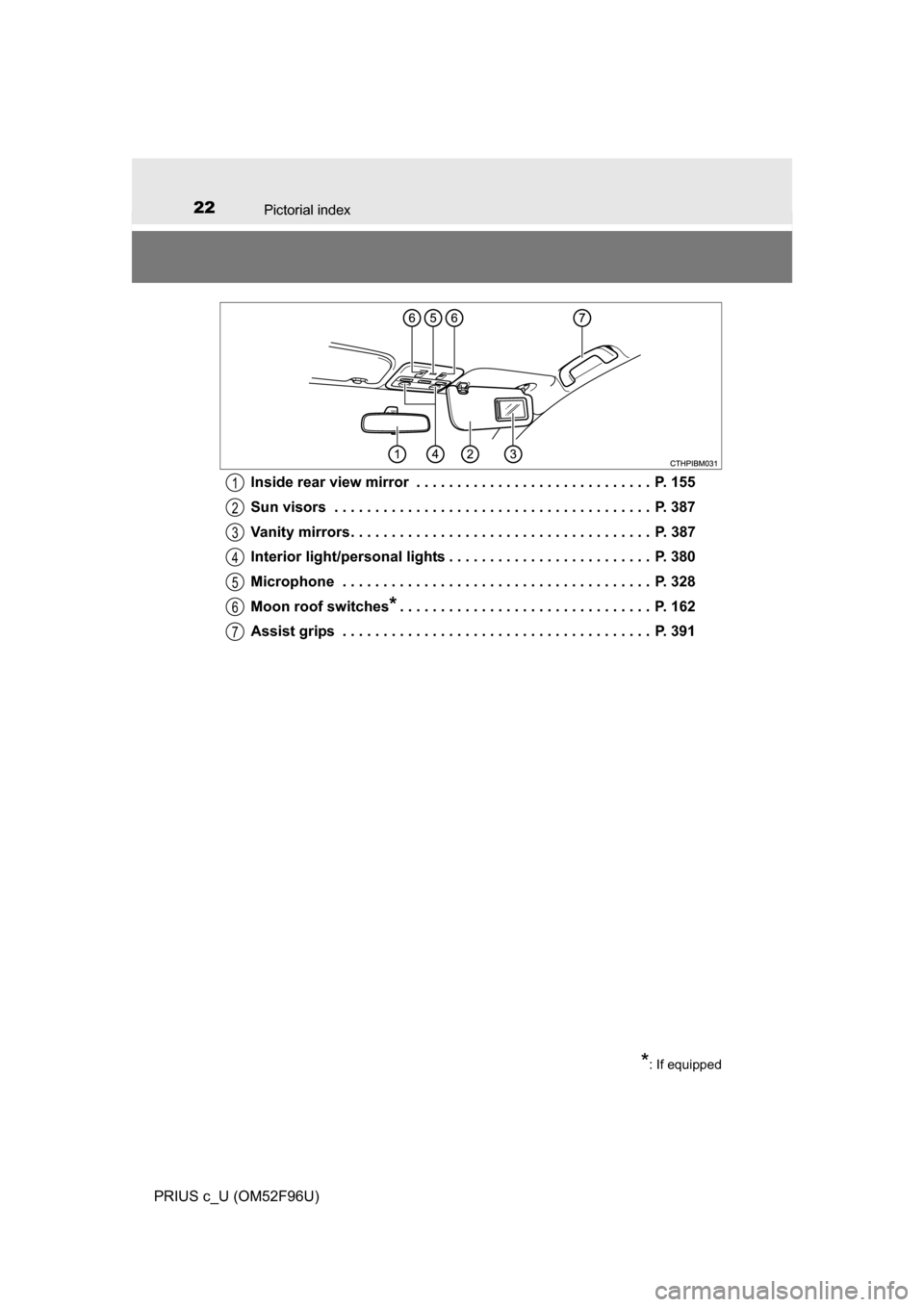

22Pictorial index
PRIUS c_U (OM52F96U)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
Interior light/personal lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
Moon roof switches
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 391
*: If equipped
1
2
3
4
5
6
7

23
For safety and security1
PRIUS c_U (OM52F96U)1-1. For safe use
Before driving ...................... 24
For safety drive ................... 26
Seat belts ............................ 28
SRS airbags ........................ 37
Front passenger occupant classification system ......... 50
Safety information for children ........................ 56
Child restraint systems........ 57
Installing child restraints...... 61
Exhaust gas precautions..... 70
1-2. Hybrid system Hybrid system features ....... 71
Hybrid system precautions ....................... 76
1-3. Theft deterrent system Immobilizer system ............. 82
Theft prevention labels........ 84

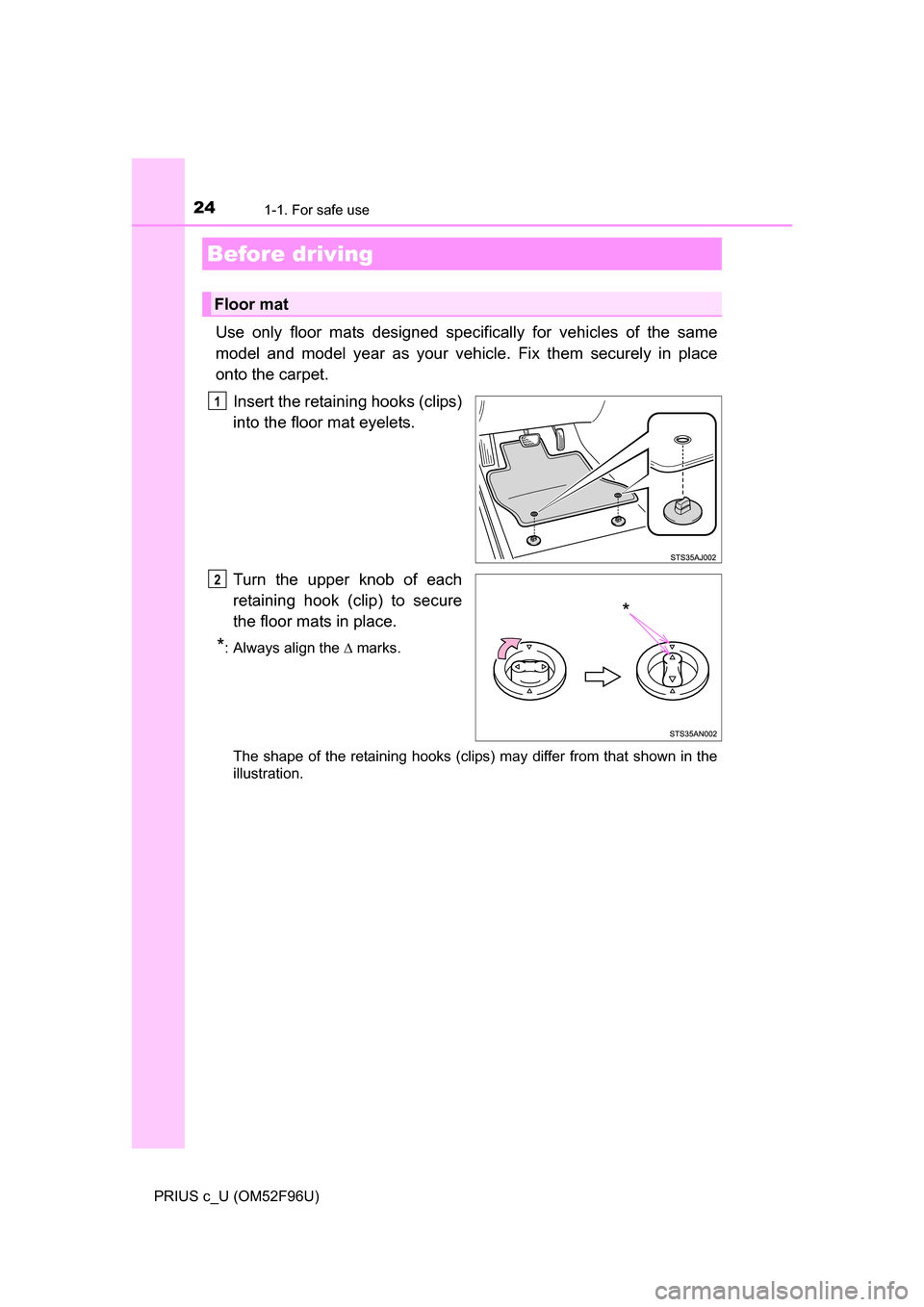

24
PRIUS c_U (OM52F96U)
1-1. For safe use
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehi cle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the  marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Before driving
Floor mat
1
*
2

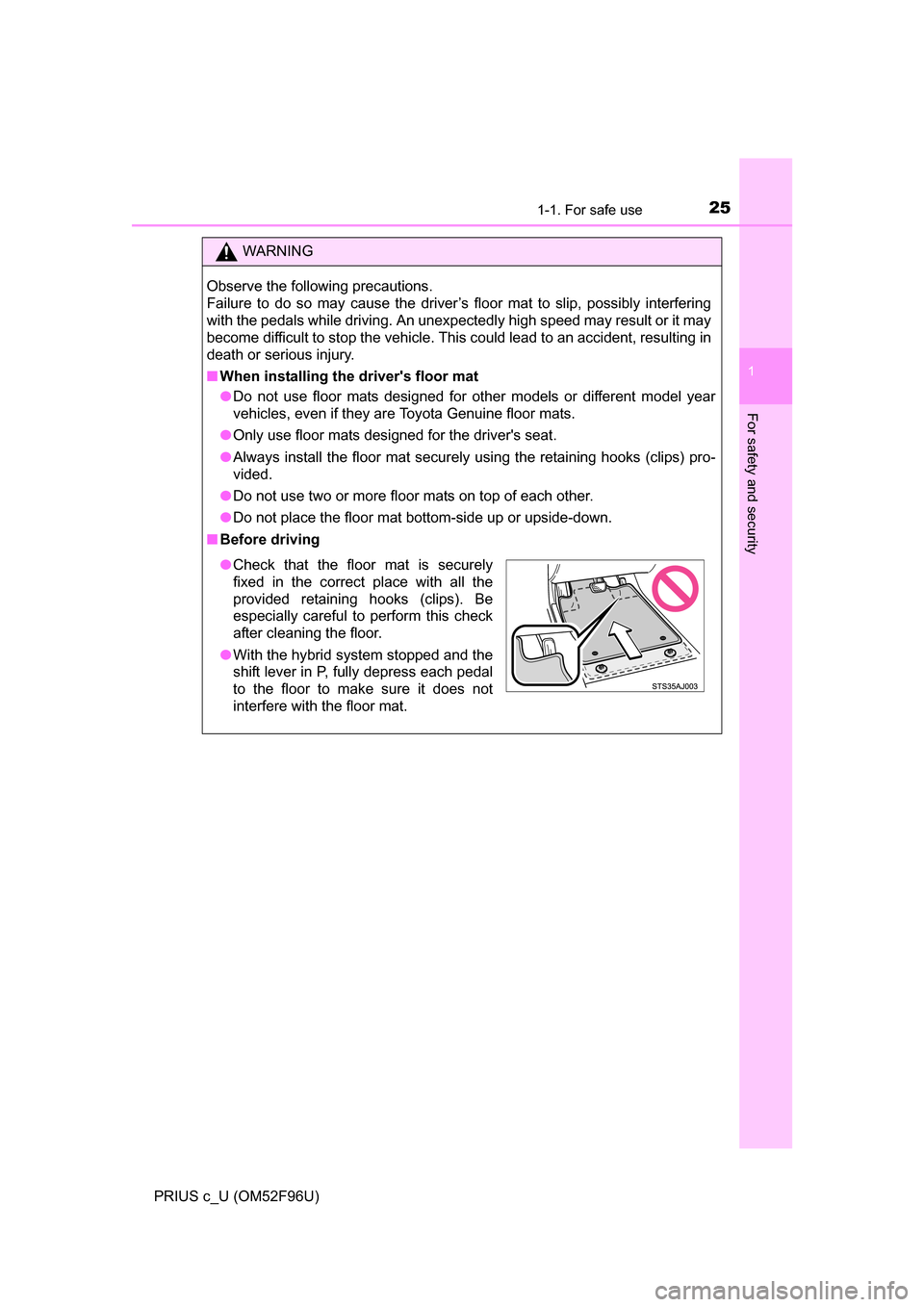

251-1. For safe use
1
For safety and security
PRIUS c_U (OM52F96U)
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver's floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver's seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift lever in P, fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

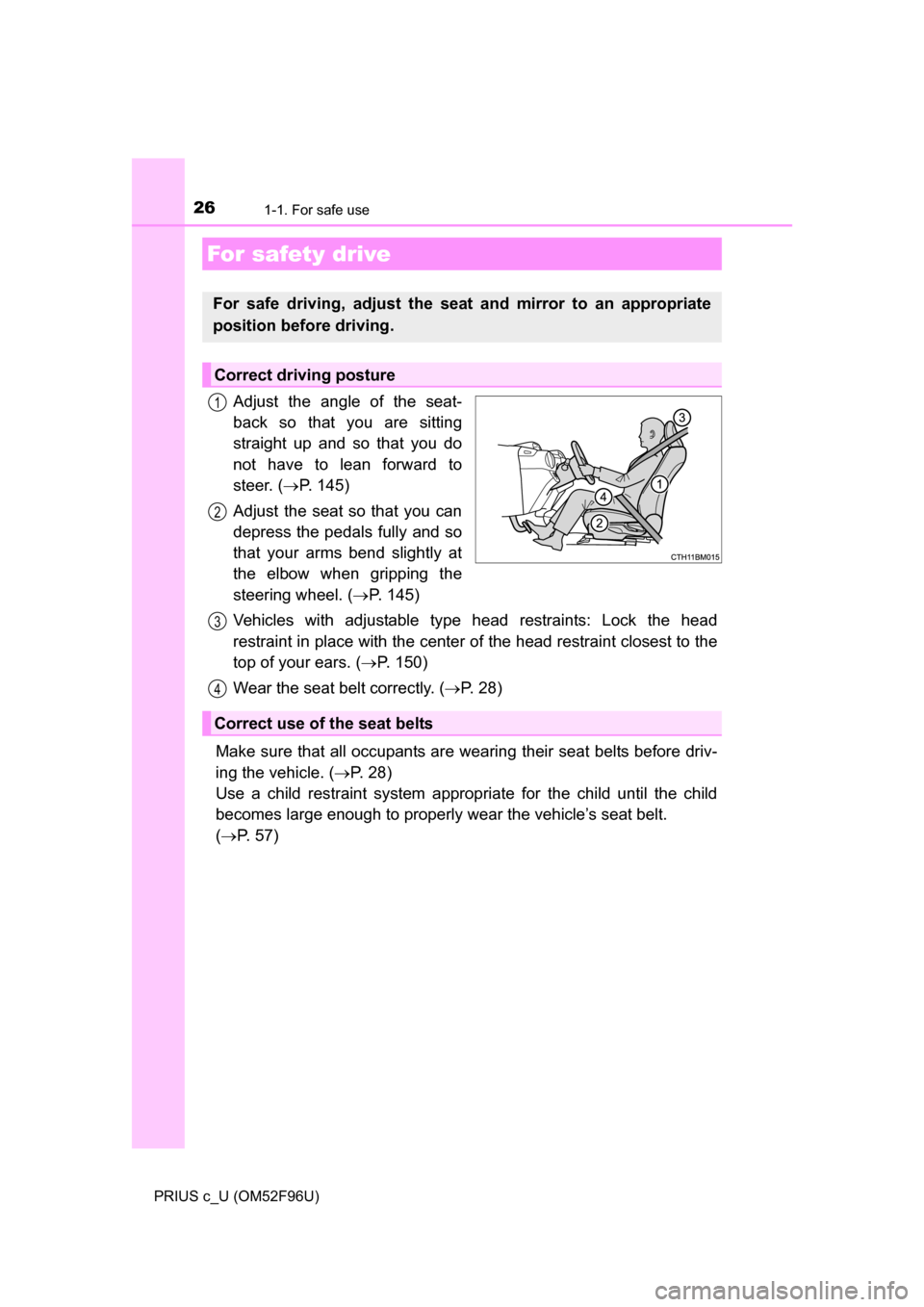

261-1. For safe use
PRIUS c_U (OM52F96U)
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 145)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 145)
Vehicles with adjustable type head restraints: Lock the head
restraint in place with the center of the head restraint closest to the
top of your ears. ( P. 150)
Wear the seat belt correctly. ( P. 2 8 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 2 8 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(  P. 57)
For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4

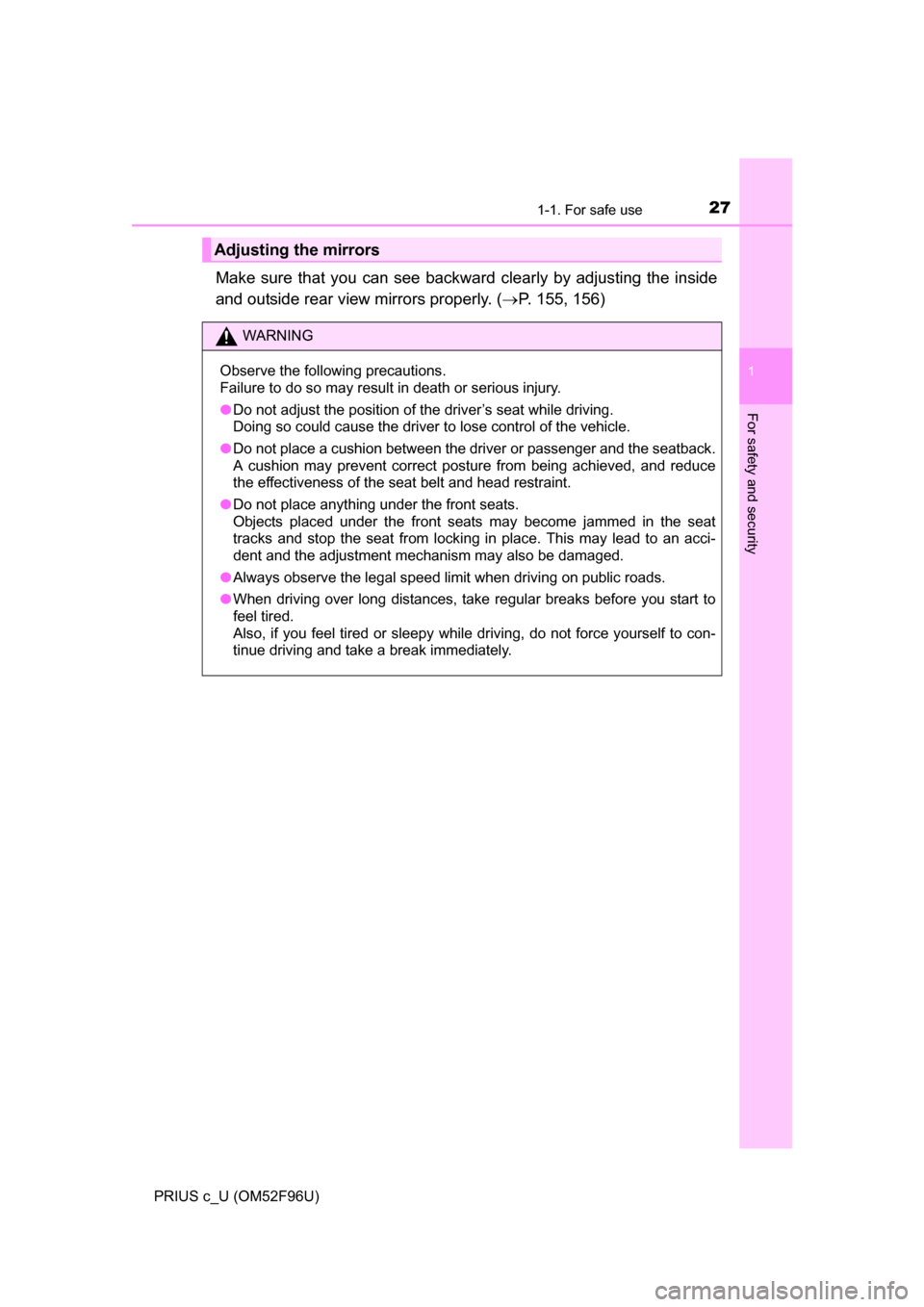

271-1. For safe use
1
For safety and security
PRIUS c_U (OM52F96U)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 155, 156)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

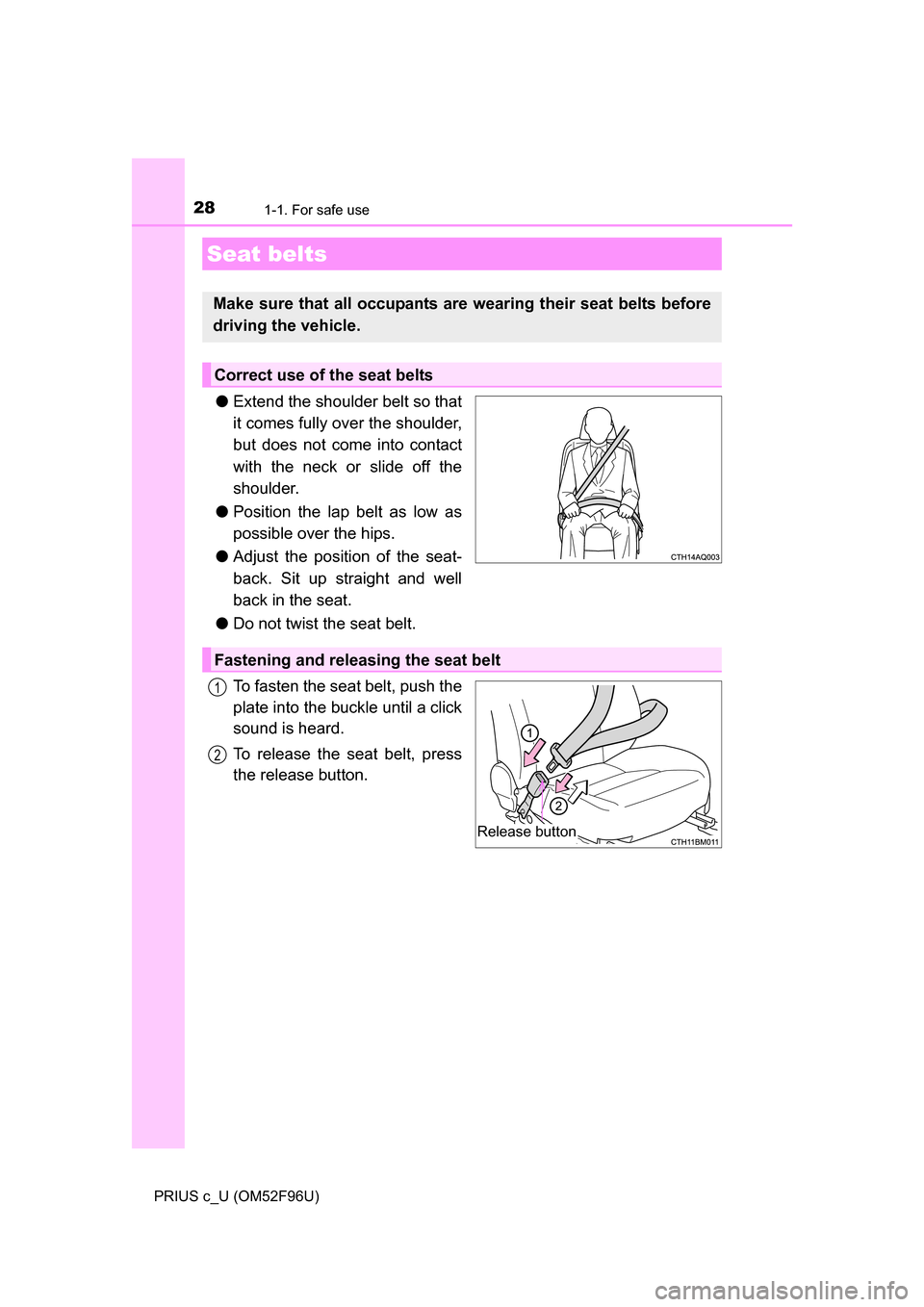

281-1. For safe use
PRIUS c_U (OM52F96U)
●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Seat belts
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2

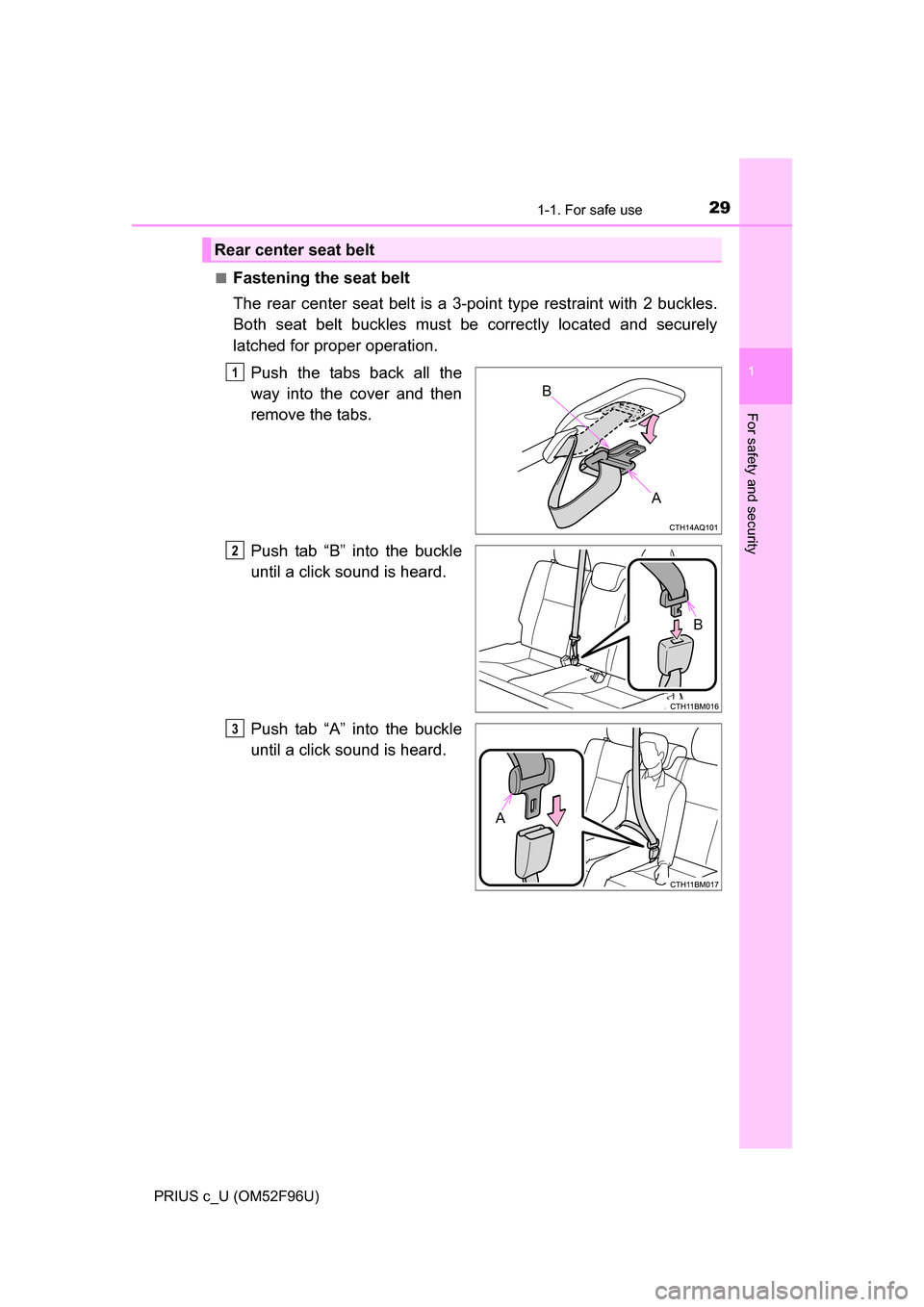

291-1. For safe use
1
For safety and security
PRIUS c_U (OM52F96U)■
Fastening the seat belt
The rear center seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be correctly located and securely
latched for proper operation.
Push the tabs back all the
way into the cover and then
remove the tabs.
Push tab “B” into the buckle
until a click sound is heard.
Push tab “A” into the buckle
until a click sound is heard.
Rear center seat belt
B
A
1
B
2
A
3

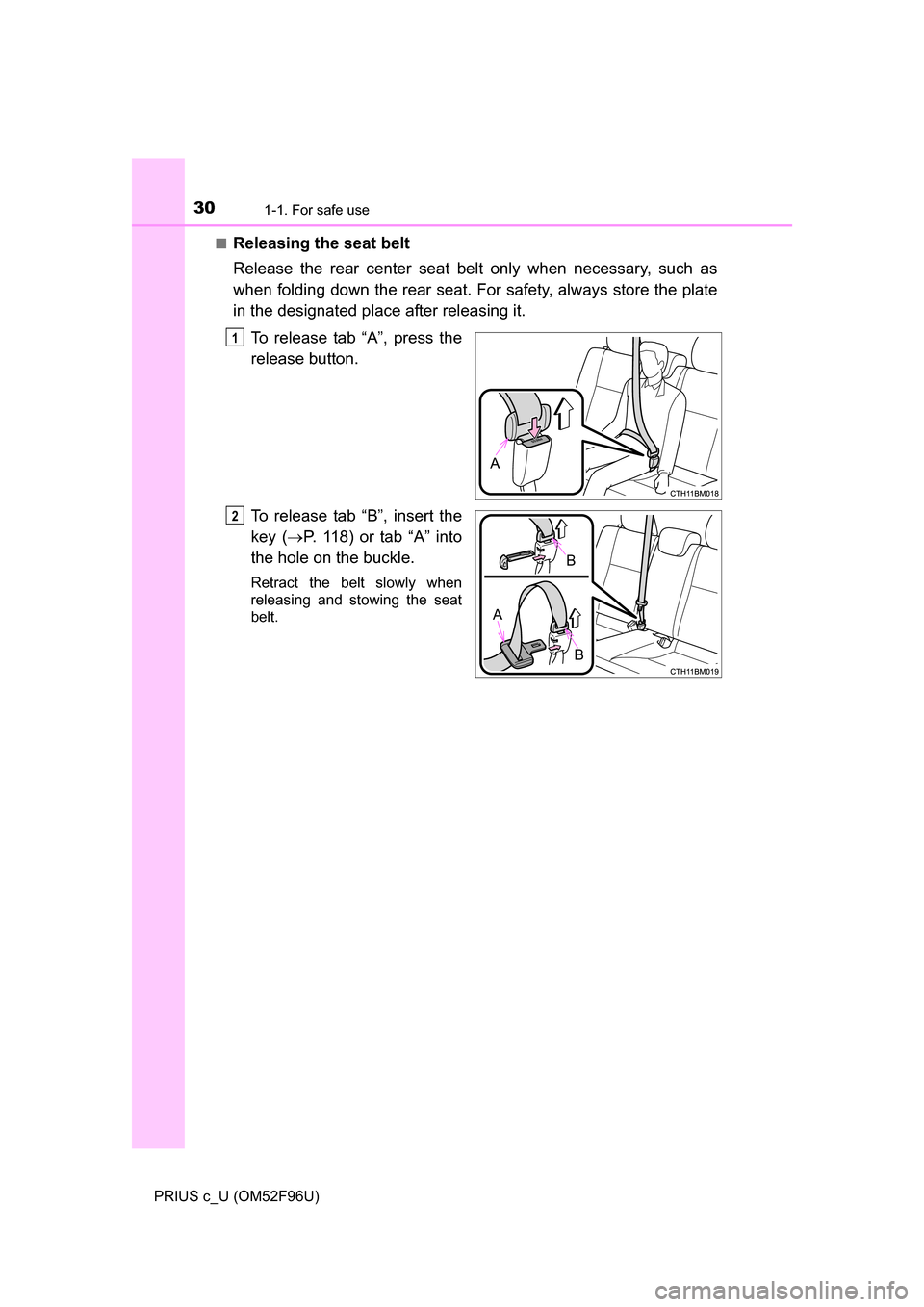

301-1. For safe use
PRIUS c_U (OM52F96U)■
Releasing the seat belt
Release the rear center seat
belt only when necessary, such as
when folding down the rear seat. For safety, always store the plate
in the designated place after releasing it.
To release tab “A”, press the
release button.
To release tab “B”, insert the
key ( P. 118) or tab “A” into
the hole on the buckle.
Retract the belt slowly when
releasing and stowing the seat
belt.
A
1
A
B
B
2
