TOYOTA PRIUS C 2016 NHP10 / 1.G Owners Manual

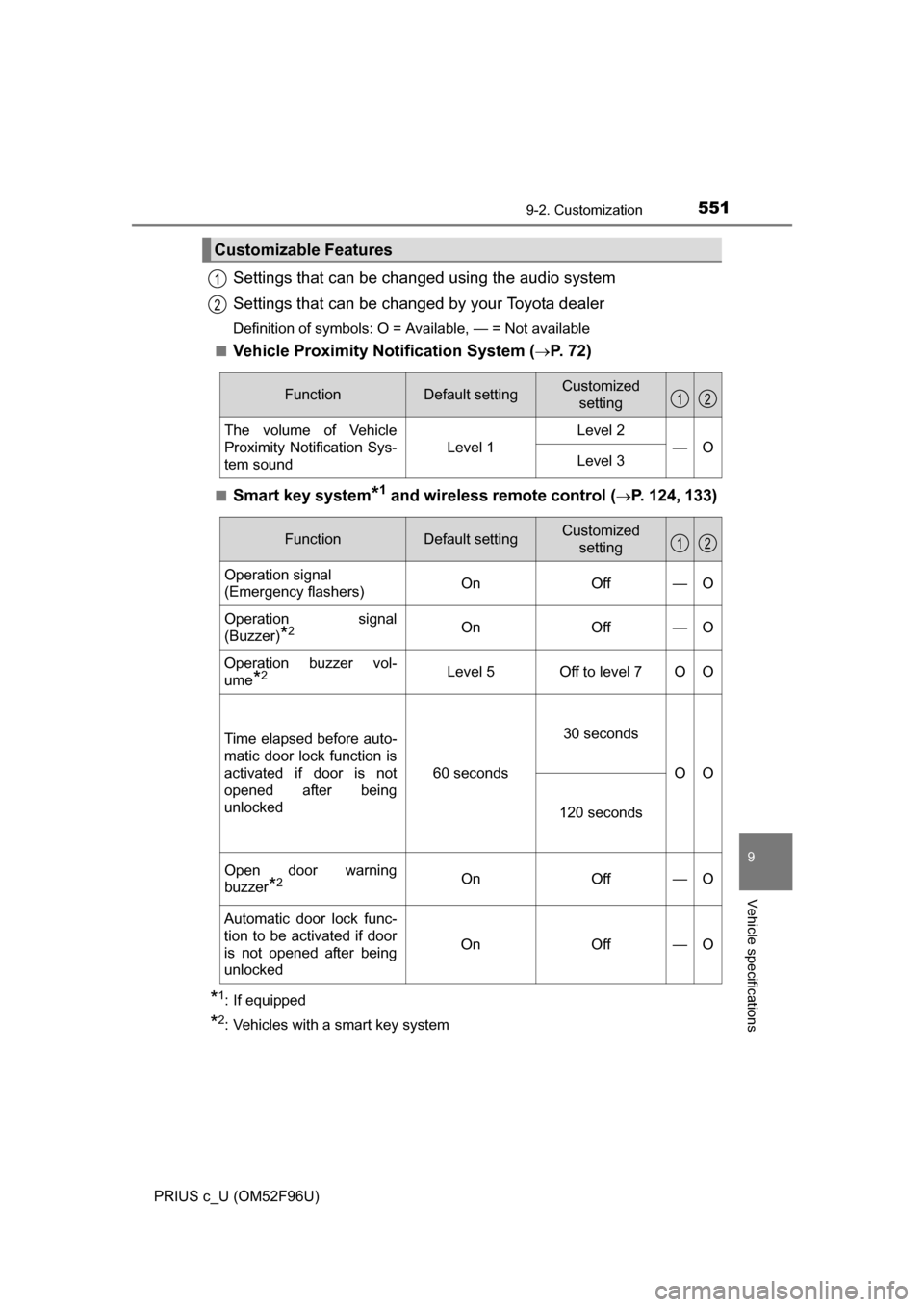

5519-2. Customization
9
Vehicle specifications
PRIUS c_U (OM52F96U)
Settings that can be changed using the audio system
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, — = Not available
■
Vehicle Proximity Notification System (P. 7 2 )
■Smart key system*1 and wireless remote control (P. 124, 133)
*1: If equipped
*2: Vehicles with a smart key system
Customizable Features
1
2
FunctionDefault settingCustomized setting
The volume of Vehicle
Proximity Notification Sys-
tem sound
Level 1
Level 2
—OLevel 3
12
FunctionDefault settingCustomized setting
Operation signal
(Emergency flashers) On Off — O
Operation signal
(Buzzer)
*2On Off — O
Operation buzzer vol-
ume
*2Level 5 Off to level 7 O O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked 60 seconds
30 seconds
OO
120 seconds
Open door warning
buzzer
*2OnOff —O
Automatic door lock func-
tion to be activated if door
is not opened after being
unlocked On Off — O
12

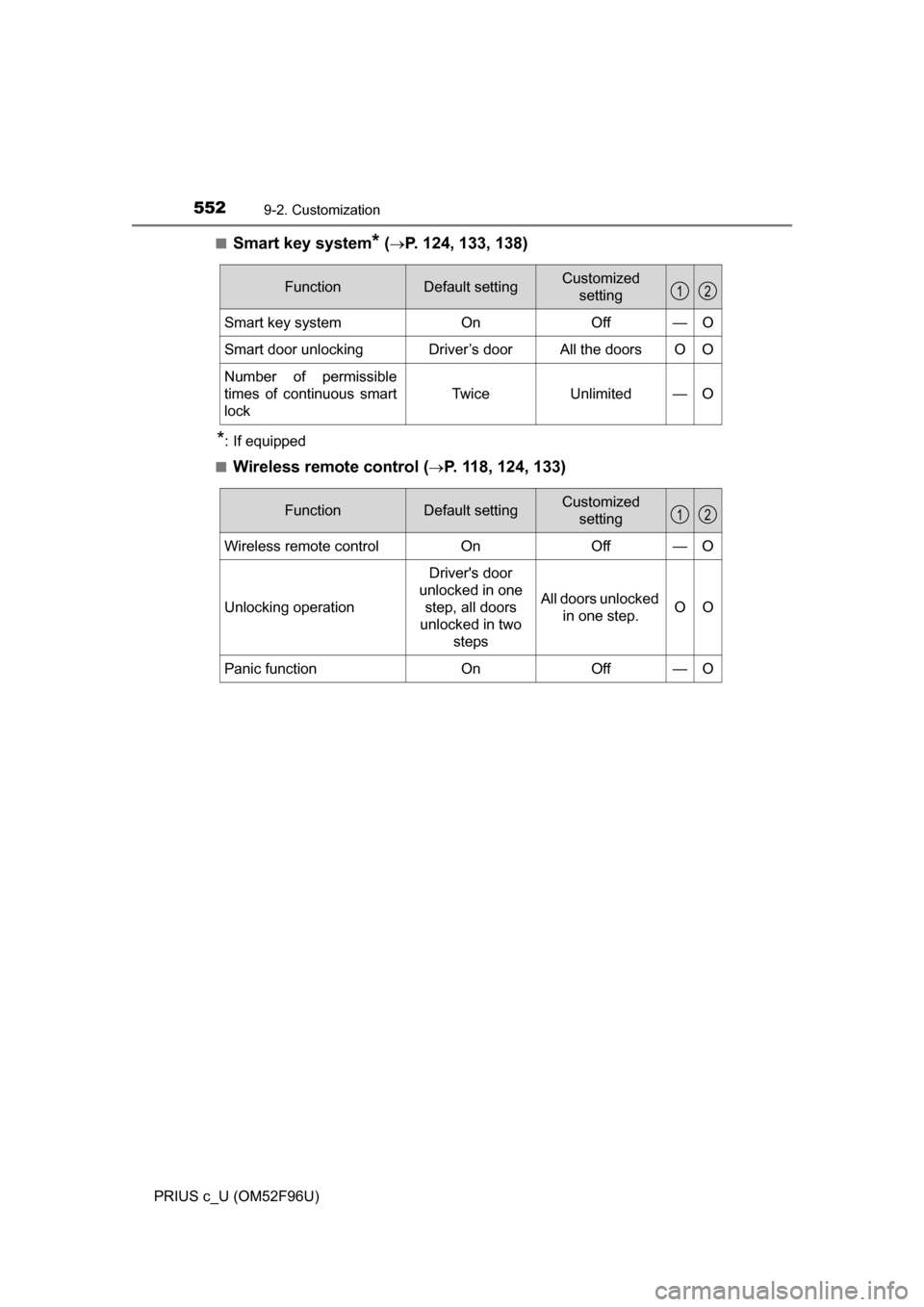

5529-2. Customization
PRIUS c_U (OM52F96U)■
Smart key system* (P. 124, 133, 138)
*: If equipped
■
Wireless remote control (P. 118, 124, 133)
FunctionDefault settingCustomized setting
Smart key system OnOff — O
Smart door unlocking Driver’s door All the doors O O
Number of permissible
times of continuous smart
lock Twice
Unlimited — O
12
FunctionDefault settingCustomized
setting
Wireless remote control OnOff — O
Unlocking operation Driver's door
unlocked in one step, all doors
unlocked in two
steps All doors unlocked
in one step. OO
Panic function OnOff — O
12

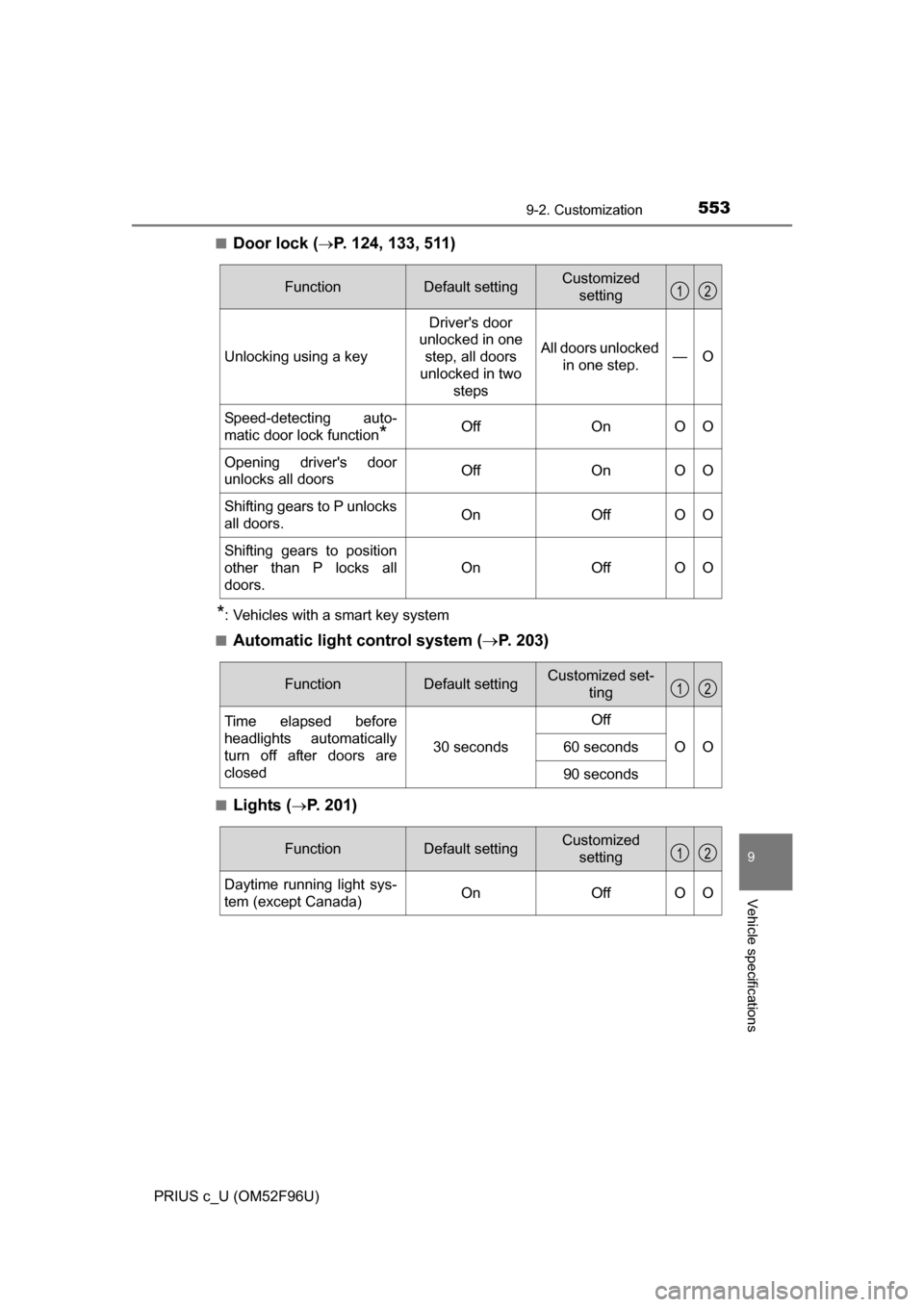

5539-2. Customization
9
Vehicle specifications
PRIUS c_U (OM52F96U)■
Door lock (P. 124, 133, 511)
*: Vehicles with a smart key system
■
Automatic light control system ( P. 203)
■Lights (P. 201)
FunctionDefault settingCustomized
setting
Unlocking using a key Driver's door
unlocked in one step, all doors
unlocked in two steps All doors unlocked
in one step. —O
Speed-detecting auto-
matic door lock function
*Off On O O
Opening driver's door
unlocks all doors Off
On O O
Shifting gears to P unlocks
all doors. On
Off O O
Shifting gears to position
other than P locks all
doors. On
Off O O
12
FunctionDefault settingCustomized set-
ting
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
OO60 seconds
90 seconds
12
FunctionDefault settingCustomized setting
Daytime running light sys-
tem (except Canada) On Off O O
12

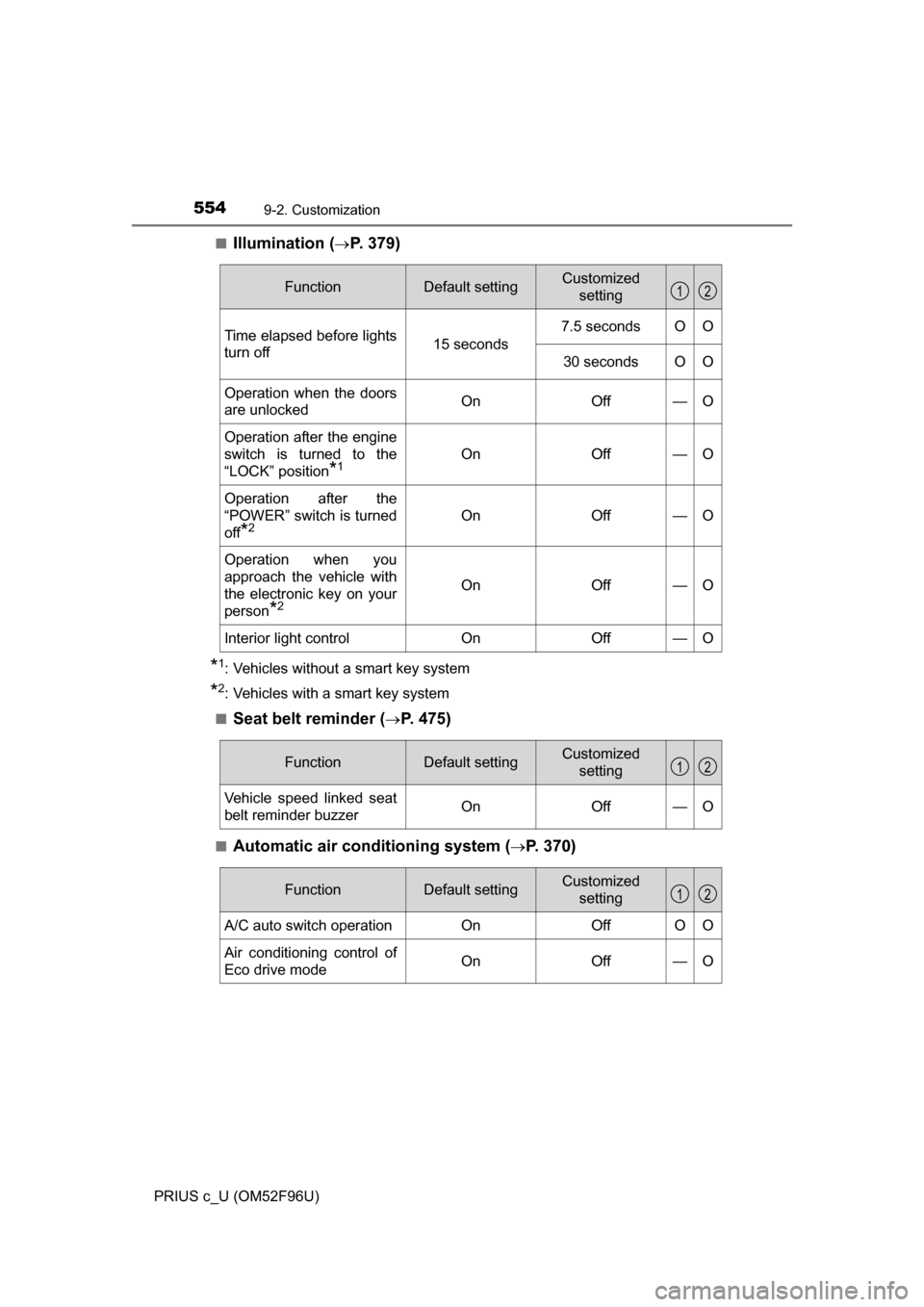

5549-2. Customization
PRIUS c_U (OM52F96U)■
Illumination (P. 379)
*1: Vehicles without a smart key system
*2: Vehicles with a smart key system
■
Seat belt reminder (P. 475)
■Automatic air condi tioning system (P. 370)
FunctionDefault settingCustomized
setting
Time elapsed before lights
turn off15 seconds
7.5 secondsOO
30 secondsOO
Operation when the doors
are unlockedOnOff—O
Operation after the engine
switch is turned to the
“LOCK” position
*1OnOff—O
Operation after the
“POWER” switch is turned
off
*2OnOff—O
Operation when you
approach the vehicle with
the electronic key on your
person
*2
OnOff—O
Interior light controlOnOff—O
12
FunctionDefault settingCustomized setting
Vehicle speed linked seat
belt reminder buzzer On Off — O
12
FunctionDefault settingCustomized
setting
A/C auto switch operationOnOffOO
Air conditioning control of
Eco drive modeOnOff—O
12

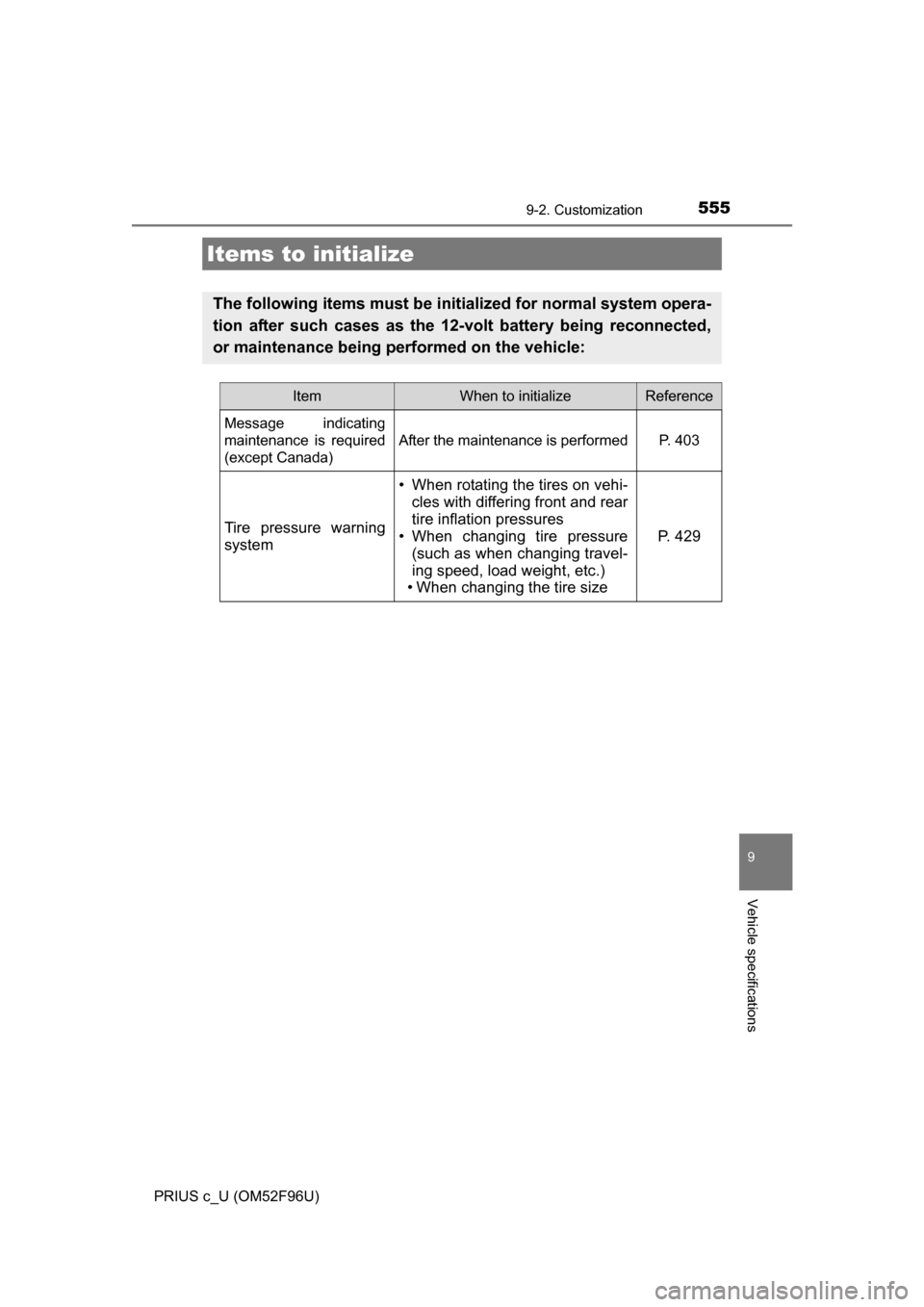

5559-2. Customization
9
Vehicle specifications
PRIUS c_U (OM52F96U)
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Message indicating
maintenance is required
(except Canada)
After the maintenance is performedP. 403
Tire pressure warning
system
• When rotating the tires on vehi- cles with differing front and rear
tire inflation pressures
• When changing tire pressure (such as when changing travel-
ing speed, load weight, etc.)
• When changing the tire size
P. 4 2 9

5569-2. Customization
PRIUS c_U (OM52F96U)

10
557
For owners
PRIUS c_U (OM52F96U)Reporting safety defects
for U.S. owners ........................ 558
Seat belt instructions for Canadian owners
(in French) ............................... 559
SRS airbag instructions for Canadian owners
(in French) ............................... 561

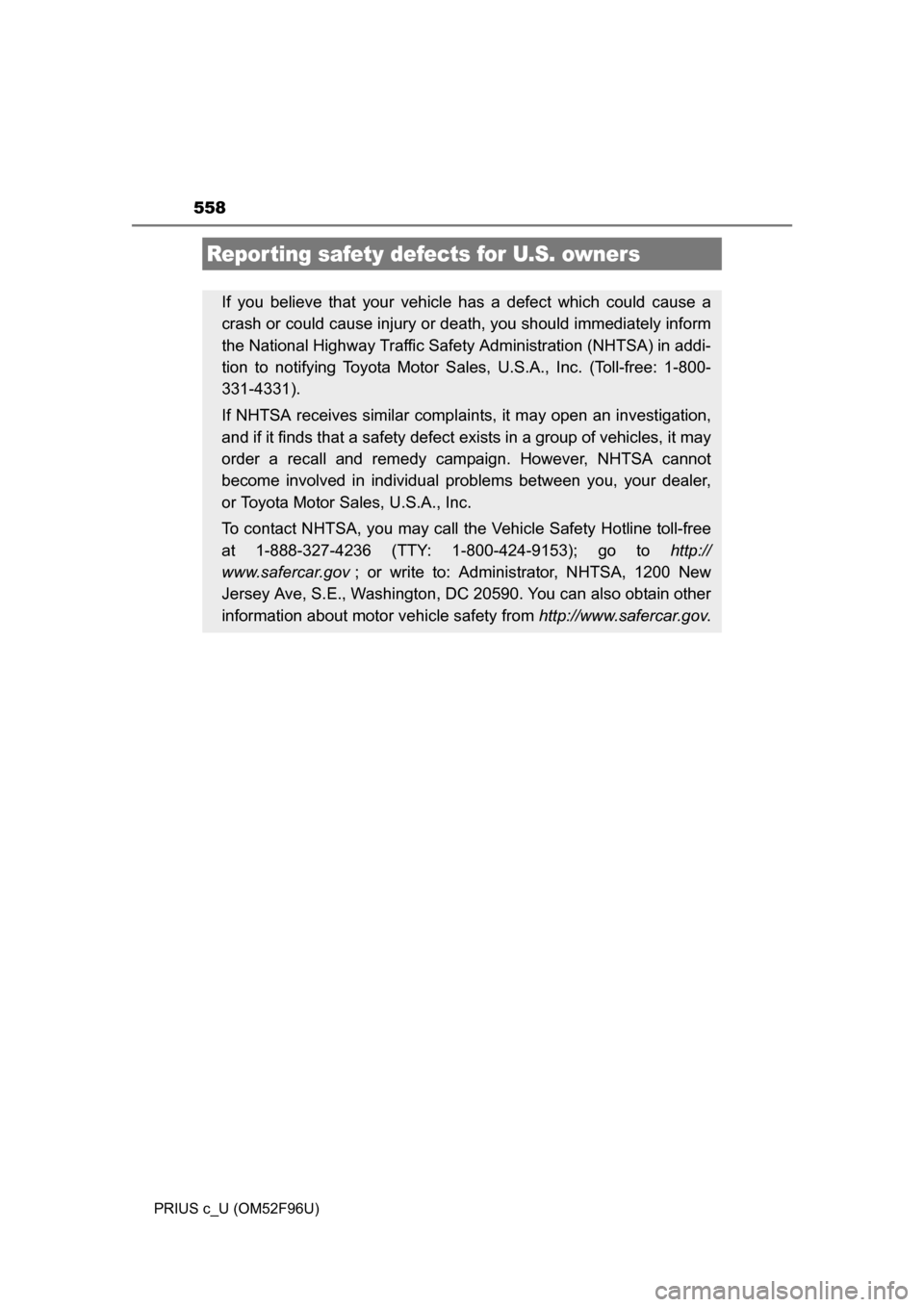

558
PRIUS c_U (OM52F96U)
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sale s, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives simila r complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call t he Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.

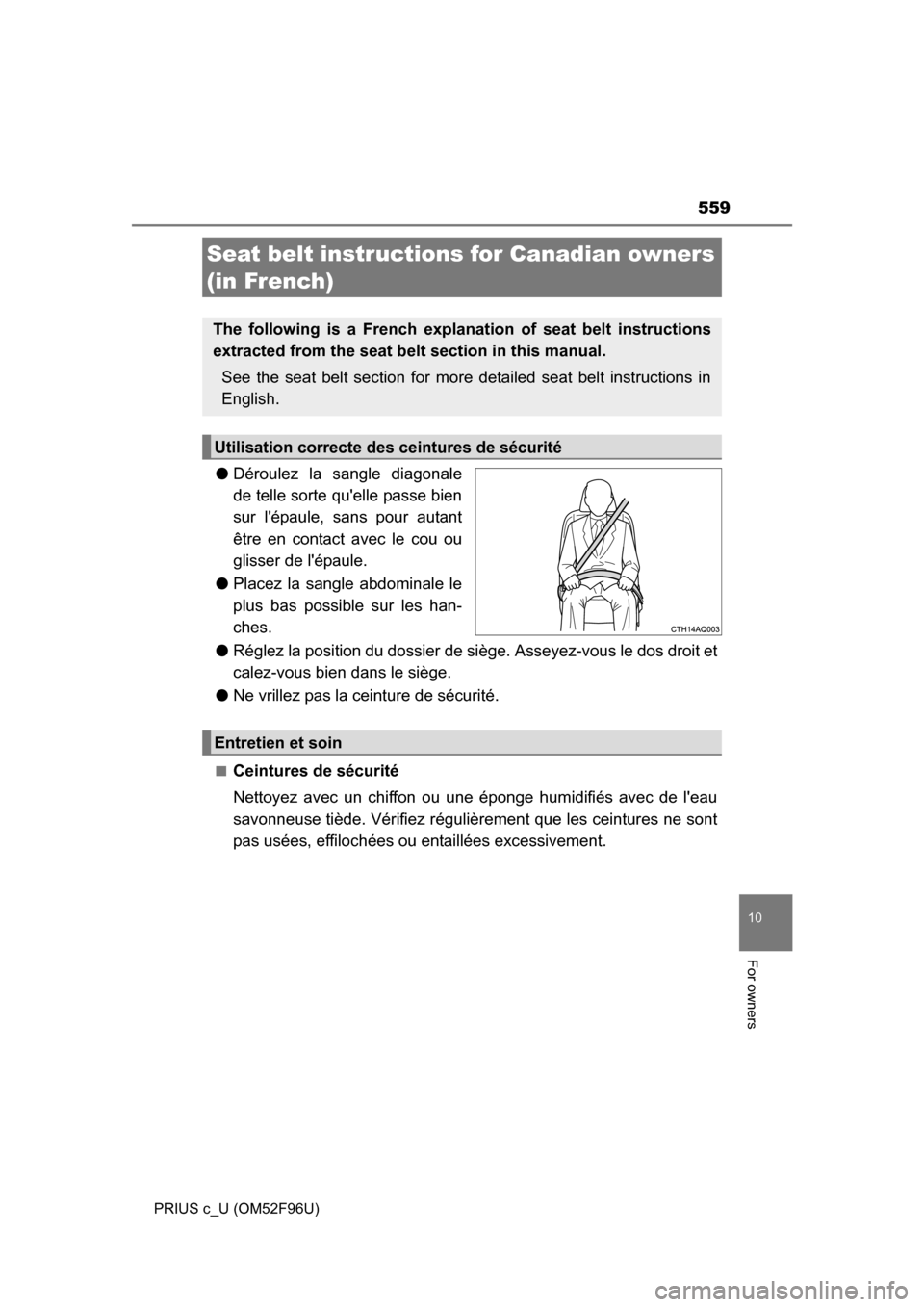

559
10
For owners
PRIUS c_U (OM52F96U)
●Déroulez la sangle diagonale
de telle sorte qu'elle passe bien
sur l'épaule, sans pour autant
être en contact avec le cou ou
glisser de l'épaule.
● Placez la sangle abdominale le
plus bas possible sur les han-
ches.
● Réglez la position du dossier de si ège. Asseyez-vous le dos droit et
calez-vous bien dans le siège.
● Ne vrillez pas la ceinture de sécurité.
■Ceintures de sécurité
Nettoyez avec un chif fon ou une éponge humidifiés avec de l'eau
savonneuse tiède. Vérifiez régulièrement que les ceintures ne sont
pas usées, effilochées ou entaillées excessivement.
Seat belt instructions for Canadian owners
(in French)
The following is a French explan ation of seat belt instructions
extracted from the seat be lt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
Entretien et soin

560
PRIUS c_U (OM52F96U)
AVERTISSEMENT
■Détérioration et usure des ceintures de sécurité
Inspectez le système de ceintures de sécurité régulièrement. Contrô\
lez
l'absence de coupures, d'effilochages et de pièces desserrées. N'utilisez
pas une ceinture de sécurité endommagée avant qu'elle ne soit remplacée.
Une ceinture de sécurité endommagée ne permet pas de protéger un occu-
pant de blessures graves ou mortelles.
