WARNING
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● After the hybrid system has been turned off, check that on the
multi-information display and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the radiator cap while the hybrid system and radiator are
hot.
Serious injuries, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power
control unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid sys-
tem too quickly can cause damage to the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.

5228-2. Steps to take in an emergency
PRIUS c_U (OM52F96U)
Shift the shift lever to P and set the parking brake. Stop the hybrid
system.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction.
Restart the hybrid system.
Shift the shift lever to the D or R position and carefully apply the
accelerator to free the vehicle.
■When it is difficult to free the vehicle

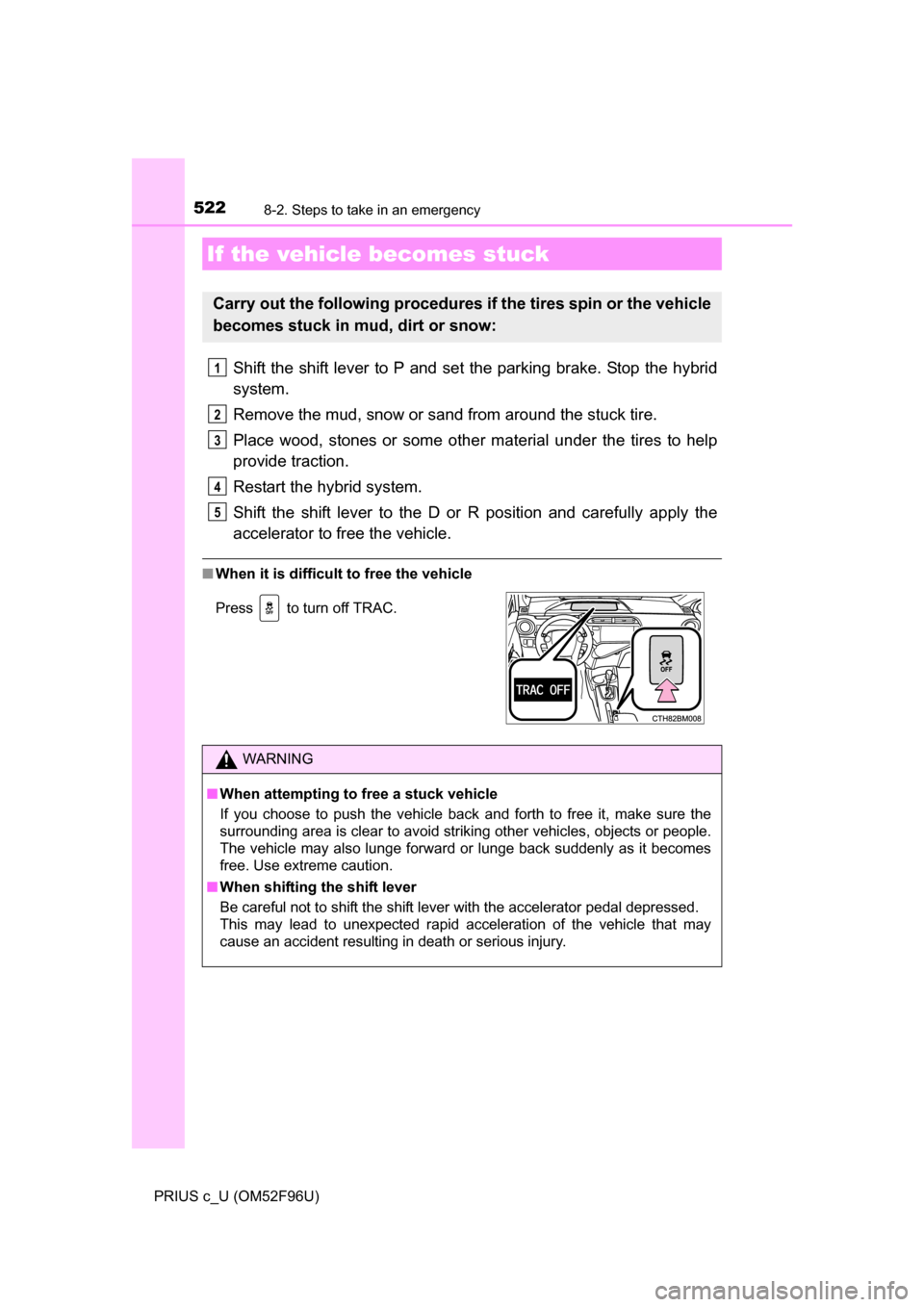

If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC.
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
1
2
3
4
5

5238-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52F96U)
NOTICE
■To avoid damage to the tran smission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

5248-2. Steps to take in an emergency
PRIUS c_U (OM52F96U)

525
9Vehicle specifications
PRIUS c_U (OM52F96U)9-1. Specifications
Maintenance data (fuel, oil level, etc.) .......... 526
Fuel information ................ 535
Tire information ................. 538
9-2. Customization Customizable features ...... 550
Items to initialize ............... 555

526
PRIUS c_U (OM52F96U)
9-1.Specifications
*1: Unladen vehicles
*2: P175/65R15 tires
*3: P195/50R16 tires
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length157.3 in. (3995 mm)
Overall width 66.7 in. (1695 mm)
Overall height*1
Without moon roof
57.3 in. (1455 mm)
With moon roof
57.7 in. (1465 mm)
Wheelbase 100.4 in. (2550 mm)
Tread
Front58.3 in. (1480 mm)*2
57.5 in. (1460 mm)*3
Rear58.1 in. (1475 mm)*2
57.1 in. (1450 mm)*3
Vehicle capacity weight
(Occupants + luggage)
845 lb. (380 kg)

5279-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52F96U)■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar
y identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the front passenger’s seat.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.
Vehicle identification

5289-1. Specifications
PRIUS c_U (OM52F96U)■
Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model
1NZ-FXE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke 2.95  3.33 in. (75.0  84.7 mm)
Displacement 91.3 cu.in. (1497 cm3)
Valve clearance
(engine cold)Intake: 0.006  0.010 in. (0.15 
0.25 mm)
Exhaust: 0.010  0.014 in. (0.25  0.35 mm)
Fuel
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)9.5 gal. (36 L, 7.9 Imp. gal.)
Electric motor (traction motor)
Type
Permanent magnet synchronous motor
Maximum output 45 kW
Maximum torque 125 ft•lbf (169 N•m, 17.2 kgf•m)

5299-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52F96U)
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Hybrid battery (traction battery)
Type Nickel-metal hydride battery
Voltage7.2 V/module
Capacity 6.5 Ah (3HR)
Quantity 20 modules
Overall voltage 144 V
Lubrication system
Oil capacity (Drain and
refill reference
*)
With filter
Without filter 3.9 qt. (3.7 L, 3.3 Imp. qt.)
3.6 qt. (3.4 L, 3.0 Imp. qt.)
Outside temperature

5309-1. Specifications
PRIUS c_U (OM52F96U)
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils wi th a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Cooling system
Capacity Gasoline engine
Power control unit 5.6 qt. (5.3 L, 4.7 Imp. qt.)
1.7 qt. (1.6 L, 1.4 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
