TOYOTA PRIUS C 2017 NHP10 / 1.G Owners Manual

3715-12. Using the voice command system (Multimedia system)
5
Audio system
PRIUS c_U (OM52J11U)
Some recognizable voice commands and their actions are shown
below as examples.
Basic
Phone

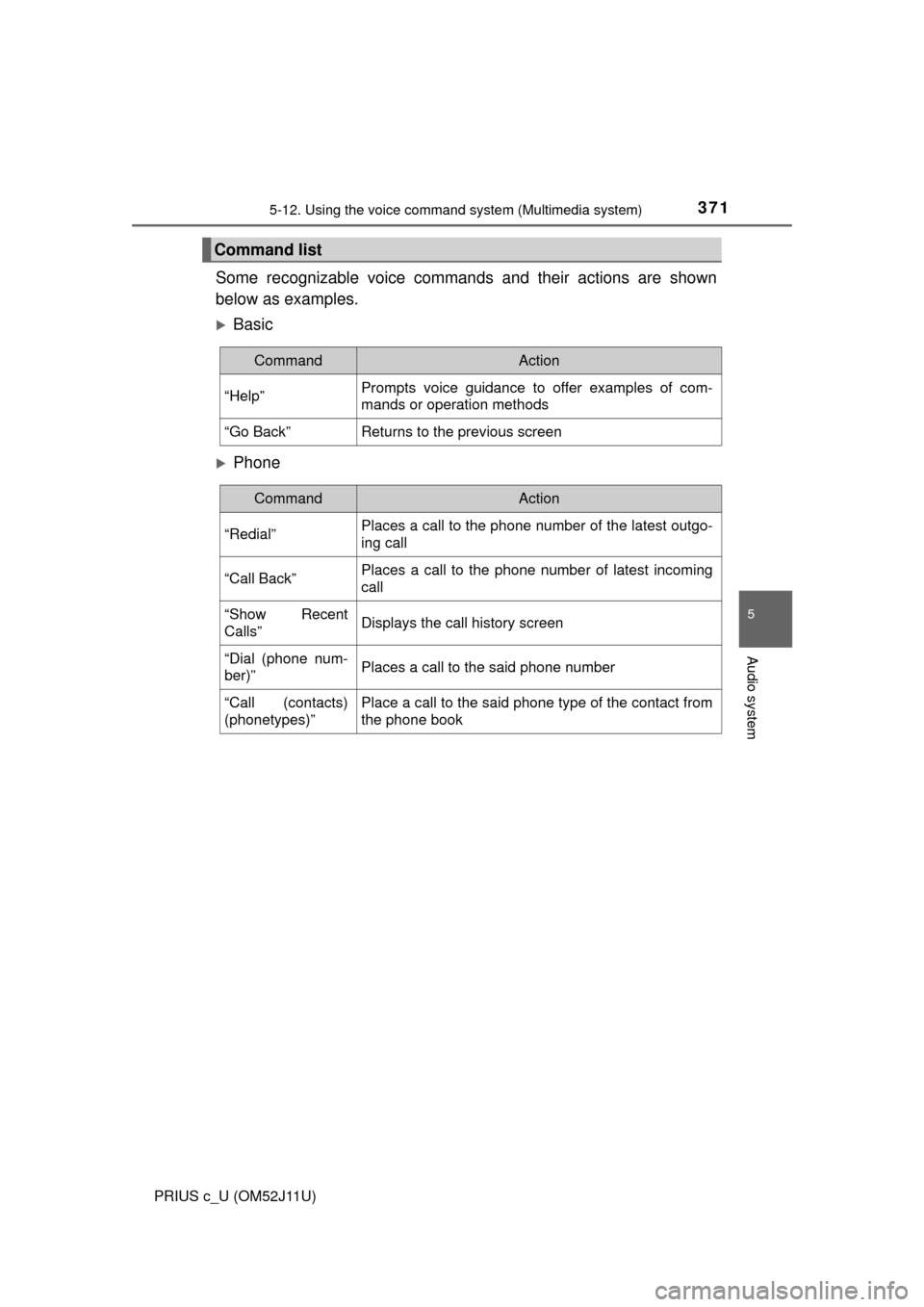

Command list
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent
Calls”Displays the call history screen
“Dial (phone num-
ber)”Places a call to the said phone number
“Call (contacts)
(phonetypes)”Place a call to the said phone type of the contact from
the phone book

3725-12. Using the voice command system (Multimedia system)
PRIUS c_U (OM52J11U)

373
6Interior features
PRIUS c_U (OM52J11U)6-1. Using the air
conditioning system
and defogger
Automatic air conditioning system ........ 374
Seat heaters...................... 382
6-2. Using the interior lights Interior lights list ................ 383
• Interior lights ................. 384
• Personal lights .............. 384
6-3. Using the storage features
List of storage features ..... 386
• Glove box...................... 387
• Console box .................. 387
• Auxiliary boxes.............. 388
• Cup holders .................. 389
• Bottle holders ................ 390
6-4. Other interior features Other interior features ....... 391
• Sun visors ..................... 391
• Vanity mirrors................ 391
• Outside temperature display........................... 391
• Power outlet .................. 393
• Coat hooks.................... 394
• Assist grips ................... 395
• Luggage cover .............. 396

374
PRIUS c_U (OM52J11U)
6-1. Using the air conditioning system and defogger
■Adjusting the temperature setting
To adjust the temperature setting, turn clockwise to increase
the temperature and turn count erclockwise to decrease the
temperature.
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls

3756-1. Using the air conditioning system and defogger
6
Interior features
PRIUS c_U (OM52J11U)■
Fan speed setting
To adjust the fan speed, press “
∧” on to increase the fan
speed and “ ∨” to decrease the fan speed.
Press to turn the fan off.
■
Changing airflow modes
To change the airflow mode,
press .
The air outlets used are
switched each time the button is
pressed.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.
Press .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Adjust the temperature setting.
To stop the operation, press .
■Automatic mode indicator
If the fan speed setting or air fl ow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
1
2
3
4
Using automatic mode
1
2
3

3766-1. Using the air conditioning system and defogger
PRIUS c_U (OM52J11U)■
Switching between outside air
and recirculated air modes
Press .
The mode switches between outside air mode (the indicator is off) and
recirculated air mode (the indicator is on) each time the button is
pressed.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the windshield
is defogged.
■
Defogging the rear window and out side rear view mirrors (if
equipped)
Defogger(s) are used to defog the rear window, and to remove rain-
drops, dew and frost from the ou tside rear view mirrors (if
equipped).
Press .
The defogger(s) will automatically turn off after a period of time.
Other functions

3776-1. Using the air conditioning system and defogger
6
Interior features
PRIUS c_U (OM52J11U)■
Location of air outlets
The air outlets and air volume
change according to the
selected airflow mode.
: Some models
■
Adjusting the position of and opening and closing the air out-
lets
Center outlets
Direct air flow to the left or right,
up or down.
Right and left side outlets (type A)
Direct air flow to the left or right,
up or down.
Air outlets

3786-1. Using the air conditioning system and defogger
PRIUS c_U (OM52J11U)
Open the vent.
Close the vent.
Right and left side outlets (type B)
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
Temperature control
Press “ ∧” on to increase
the temperature and “ ∨” to
decrease the temperature.
Outside air or recirculated air
mode
The mode switches between outside air mode and recirculated air mode
each time is pressed.
1
2
1
2
Steering wheel switches
1
2

3796-1. Using the air conditioning system and defogger
6
Interior features
PRIUS c_U (OM52J11U)
■Operation of the air conditio ning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
● Heating/cooling capacity is restricted.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
● Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
● Adjust the fan speed or the temperature setting
● Turn off Eco drive mode
■ Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■ Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.

3806-1. Using the air conditioning system and defogger
PRIUS c_U (OM52J11U)■
Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from entering the vehicle interior. During
cooling operation, setting the recirculated air mode will also cool the vehicle
interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
■ When the outside temperature exceeds 75 °F (24 °C) and the air condition-
ing system is on
● In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically. This may also
reduce fuel consumption.
● Recirculated air mode is selected as a default mode when the engine switch
is turned to the “ON” position (vehicles without a smart key system) or the
“POWER” switch is turned to ON mode (vehicles with a smart key system).
● It is possible to switch to outside air mode at any time by pressing .
■ When the outside temperat ure falls to nearly 32°F (0°C)
The dehumidification function may not operate even when is pressed.
■ Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air m\
ode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immediately after the air conditioning system is started in automatic
mode.
