2214-4. Refueling
4
Driving
PRIUS c_U
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
remove it and hang it on the
back of the fuel filler door.
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Opening the fuel tank cap
1
2
Closing the fuel tank cap

2224-4. Refueling
PRIUS c_U
WARNING
■When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

223
4
Driving
PRIUS c_U
4-5. Toyota Safety Sense C
■PCS (Pre-Collision System)
P. 2 2 9
■LDA (Lane Departure Alert)
P. 2 3 9
■Automatic High Beam
P. 2 4 4
Toyota Safety Sense C
The Toyota Safety Sense C consis ts of the following drive assist
systems and contributes to a safe and comfortable driving expe-
rience:
Driving assist system
WARNING
■ Toyota Safety Sense C
The Toyota Safety Sense C is designed to operate under the assu mption
that the driver will drive safely, and is designed to help redu ce the impact to
the occupants and the vehicle in the case of a collision or ass ist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicl e's surround-
ings and driving safely.

2244-5. Toyota Safety Sense C
PRIUS c_U
The front sensor is located on the
upper side of the windshield. It
consists of 2 types of sensors,
each of which detects information
necessary to operate the drive
assist systems.Laser sensors
Front camera
Front sensor
1
2

2254-5. Toyota Safety Sense C
4
Driving
PRIUS c_U
WARNING
■Front sensor
The front sensor uses lasers to detect vehicles ahead of your vehicle. The
front sensor is classified as class 1M laser product according to the IEC
60825-1 standard. Under normal usage conditions, these lasers a re not
harmful to the naked eye. However, it is necessary to observe the following
precautions.
Failure to do so may result in the loss of eyesight or severe v isual impair-
ment.
● To avoid hazardous laser radiation exposure, never attempt to d isassem-
ble the front sensor (e.g. remove the lenses). When disassemble d, the
front sensor is classified as a class 3B laser product accordin g to the IEC
60825-1 standard. Class 3B lasers are hazardous and pose a risk of eye
injury under direct exposure.
● Do not attempt to look into the front sensor with a magnifying glass, micro-
scope or other optical instrument within a distance of less tha n 3.9 in.
(100 mm).
Laser classification label
Laser explanatory label
Laser emission data Maximum average power: 45 mW
Pulse duration: 33 ns
Wave length: 905 nm
Divergence (horizontal x vertical): 28° x 12°

2264-5. Toyota Safety Sense C
PRIUS c_U
WARNING
■To avoid malfunction of the front sensor
Observe the following precautions.
Otherwise, the front sensor may not operate properly, possibly leading to an
accident resulting in death or serious injury.
● Keep the windshield clean at all times. If the windshield is di rty or covered
with an oily film, water droplets, snow, etc., clear the windshield. If the
inner side of the windshield in front of the front sensor is dirty, contact your
Toyota dealer.
● If there is a large difference in temperature between the inside and outside
of the vehicle, such as in winter, the windshield is likely to fog up easily. If
the part of the windshield in front of the front sensor is fogg ed up or cov-
ered with condensation or ice, the PCS warning light may illumi nate and
the system may be temporarily disabled. In this case, use the w indshield
defogger to remove the fog, etc. ( P. 376)
● If the area of the windshield in front of the front sensor is covered with
water droplets, use the windshield wipers to remove them.
If the water droplets are not sufficiently removed, the performance of the
front sensor may be reduced.
●Do not attach objects, such as stickers,
transparent stickers, etc., and so forth,
to the outer side of the windshield in
front of the front sensor (shaded area in
the illustration).
A: From the top of the windshield to
approximately 4.0 in. (10 cm) below the
bottom of the front sensor
B: Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. (10 cm) to the
right and left from the center of the front
sensor)
● Do not install or attach anything to the
inner side of the windshield under the
front sensor (shaded area in the illustra-
tion).
A: Approximately 4.0 in. (10 cm) (Start-
ing from the bottom of the front sensor)
B: Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. (10 cm) to the
right and left from the center of the front
sensor)

2274-5. Toyota Safety Sense C
4
Driving
PRIUS c_U
WARNING
●If water droplets cannot be properly removed from the area of t he wind-
shield in front of the front sensor by the windshield wipers, r eplace the
wiper insert or wiper blade.
If the wiper inserts or wiper blades need to be replaced, contact your
Toyota dealer.
● Do not attach window tint to the windshield.
● Replace the windshield if it is damaged or cracked.
If the windshield needs to be replaced, contact your Toyota dea ler.
● Do not get the front sensor wet.
● Do not allow bright lights to shine into the front sensor.
● Do not dirty or damage the front sensor.
When cleaning the inside of the windshield, do not allow glass cleaner to
contact the lens. Also, do not touch the lens.
If the lens is dirty or damaged, contact your Toyota dealer.
● Do not subject the front sensor to a strong impact.
● Do not change the installation position or direction of the fro nt sensor or
remove it.
● Do not disassemble the front sensor.
● Do not modify any components of the vehicle around the front sensor
(inside rear view mirror, etc.) or ceiling.
● Do not attach any accessories that may obstruct the front senso r to the
hood, front grille or front bumper. Contact your Toyota dealer for details.
● If a surfboard or other long object is to be mounted on the roo f, make sure
that it will not obstruct the front sensor.
● Do not modify the headlights or other lights.
● Do not attach anything to or place anything on the dashboard.
■ Installation area of front sensor on windshield
When the windshield is fogging up easily, the glass around the front sensor
may be hot due to the heater running. If the glass is touched, it may result in
burns.

2284-5. Toyota Safety Sense C
PRIUS c_U

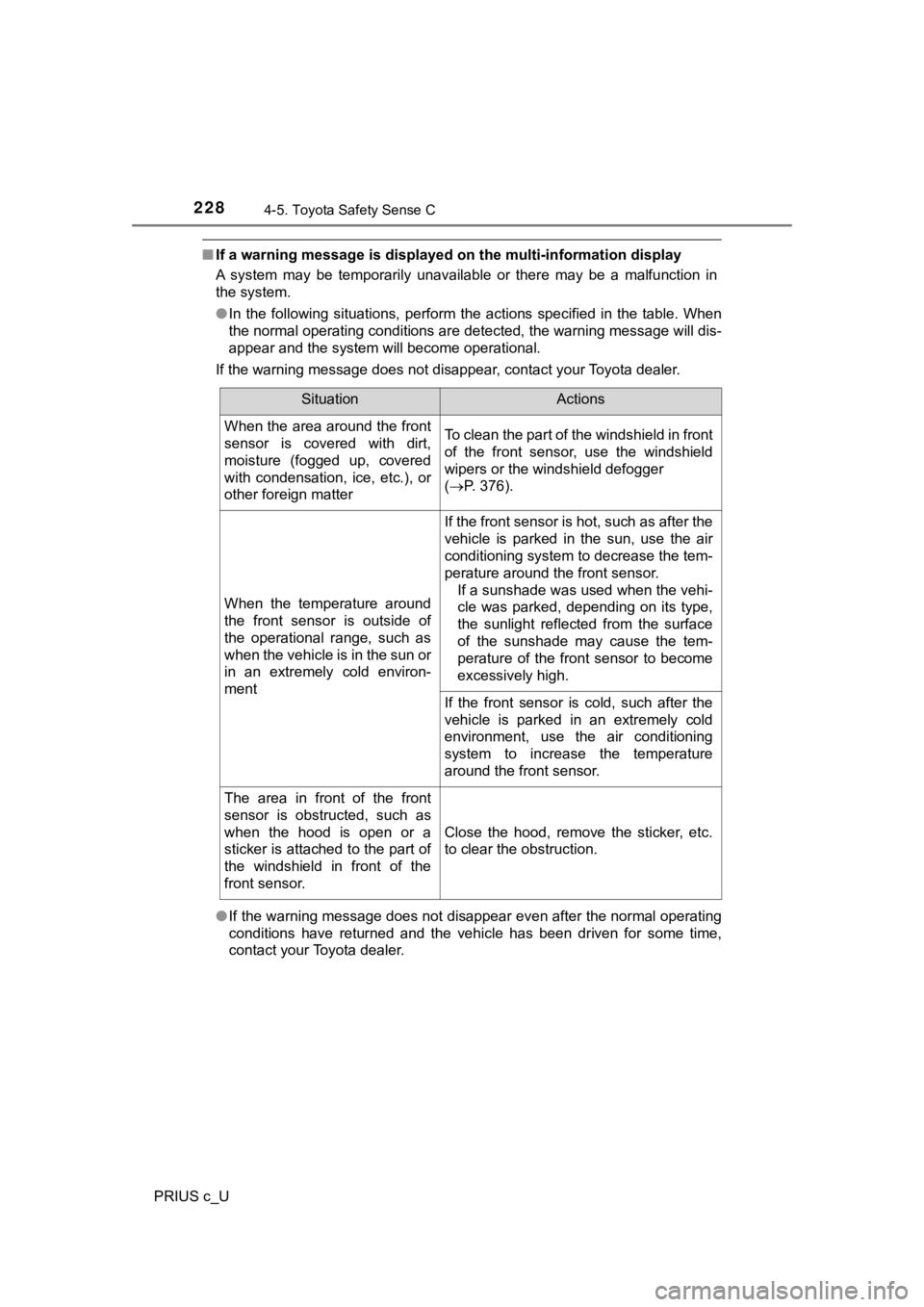

■If a warning message is displayed on the multi-information disp lay
A system may be temporarily unavailable or there may be a malfu nction in
the system.
● In the following situations, perform the actions specified in t he table. When
the normal operating conditions are detected, the warning messa ge will dis-
appear and the system will become operational.
If the warning message does not disappear, contact your Toyota dealer.
● If the warning message does not disappear even after the normal operating
conditions have returned and the vehicle has been driven for so me time,
contact your Toyota dealer.
SituationActions
When the area around the front
sensor is covered with dirt,
moisture (fogged up, covered
with condensation, ice, etc.), or
other foreign matterTo clean the part of the windshield in front
of the front sensor, use the windshield
wipers or the windshield defogger
( P. 376).
When the temperature around
the front sensor is outside of
the operational range, such as
when the vehicle is in the sun or
in an extremely cold environ-
ment
If the front sensor is hot, such as after the
vehicle is parked in the sun, use the air
conditioning system to decrease the tem-
perature around the front sensor.
If a sunshade was used when the vehi-
cle was parked, depending on its type,
the sunlight reflected from the surface
of the sunshade may cause the tem-
perature of the front sensor to become
excessively high.
If the front sensor is cold, such after the
vehicle is parked in an extremely cold
environment, use the air conditioning
system to increase the temperature
around the front sensor.
The area in front of the front
sensor is obstructed, such as
when the hood is open or a
sticker is attached to the part of
the windshield in front of the
front sensor.
Close the hood, remove the sticker, etc.
to clear the obstruction.

2294-5. Toyota Safety Sense C
4
Driving
PRIUS c_U
The system can detect the following:
P. 2 3 2
● Vehicles
● Pedestrians
■Pre-collision warning
When the system determines
that the possibility of a frontal
collision is high, a buzzer will
sound and a warning message
will be displayed on the multi-
information display to urge the
driver to take evasive action.
■Pre-collision brake assist
When the system determines that the possibility of a frontal colli-
sion with a vehicle or pedestrian is high, the system applies greater
braking force in relation to how strongly the brake pedal is
depressed.

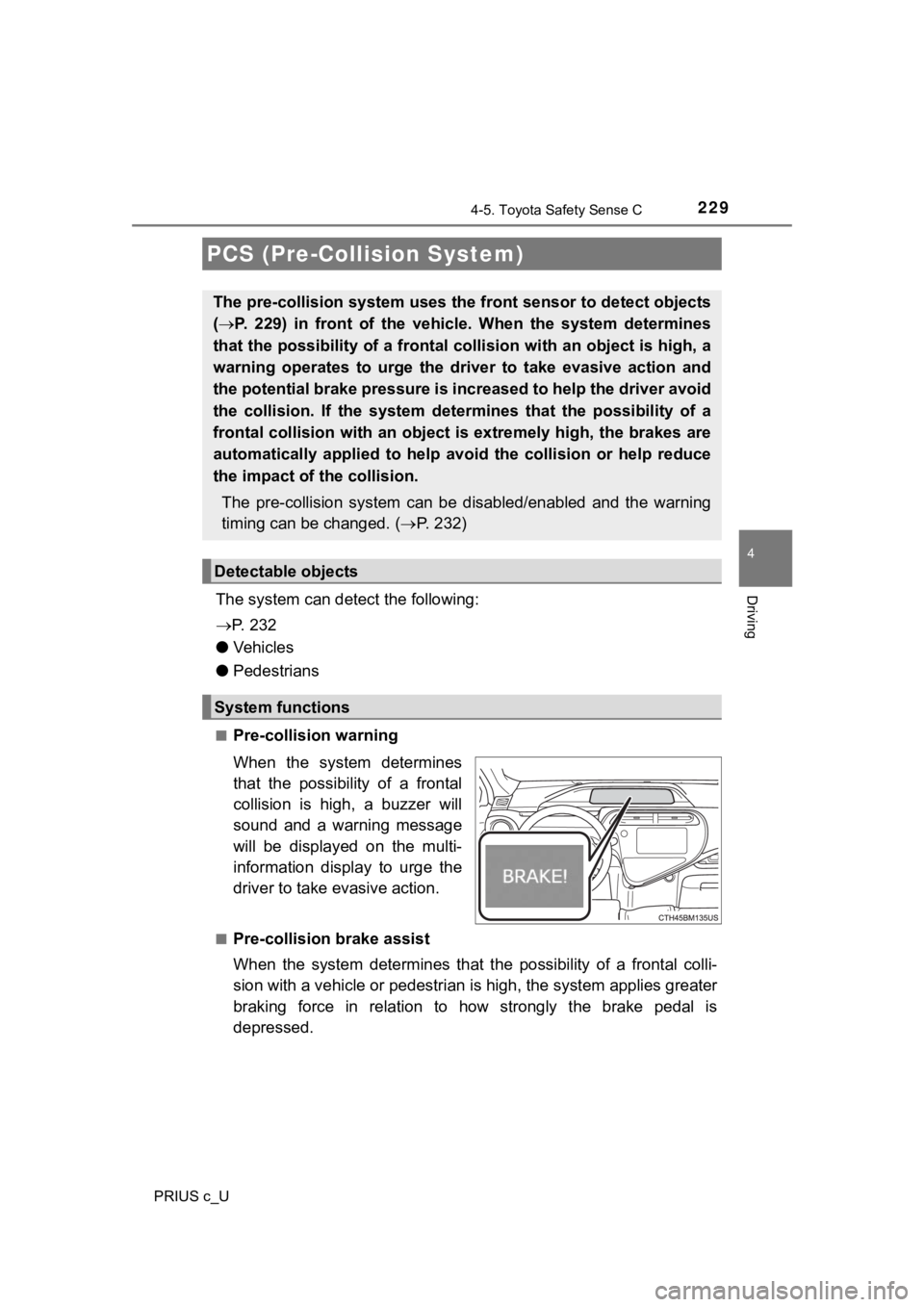

PCS (Pre-Collision System)
The pre-collision system uses the front sensor to detect objects
(  P. 229) in front of the vehicle. When the system determines
that the possibility of a front al collision with an object is h igh, a
warning operates to urge the driver to take evasive action and
the potential brake pressure is increased to help the driver av oid
the collision. If the system determines that the possibility of a
frontal collision with an object i s extremely high, the brakes are
automatically applied to help av oid the collision or help reduce
the impact of the collision.
The pre-collision system can b e disabled/enabled and the warnin g
timing can be changed. ( P. 2 3 2 )
Detectable objects
System functions

2304-5. Toyota Safety Sense C
PRIUS c_U■
Pre-collision braking
If the system determines that the
possibility of a frontal collision is
extremely high, a buzzer will sound and the brakes are automati -
cally applied to help avoid the collision or reduce the impact of the
collision.
WARNING
■ Limitations of the pre-collision system
● The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
Do not use the pre-collision system instead of normal braking o perations
under any circumstances. This system will not prevent collision s or lessen
collision damage or injury in every situation. Do not overly re ly on this sys-
tem. Failure to do so may lead to an accident, resulting in dea th or serious
injury.
● Although this system is designed to help avoid a collision or h elp reduce
the impact of the collision, its effectiveness may change according to vari-
ous conditions, therefore the system may not always be able to achieve
the same level of performance.
Read the following conditions carefully. Do not overly rely on this system
and always drive carefully.
• Conditions under which the system may operate even if there is no pos-
sibility of a collision: P. 234
• Conditions under which the system may not operate properly: P. 236
● Do not attempt to test the operation of the pre-collision syste m yourself
Depending on the objects used for testing (dummies, cardboard o bjects
imitating detectable objects, etc.), the system may not operate properly,
possibly leading to an accident.
■ Pre-collision braking
● When the pre-collision braking function is operating, a large a mount of
braking force will be applied.
● If the vehicle is stopped by the operation of the pre-collision braking func-
tion, the pre-collision braking function operation will be canceled after
approximately 2 seconds. Depress the brake pedal as necessary.
● The pre-collision braking function may not operate if certain o perations are
performed by the driver. If the accelerator pedal is being depressed
strongly or the steering wheel is being turned, the system may determine
that the driver is taking evasive action and possibly prevent t he pre-colli-
sion braking function from operating.
● In some situations, while the pre-collision braking function is operating,
operation of the function may be canceled if the accelerator pe dal is
depressed strongly or the steering wheel is turned and the syst em deter-
mines that the driver is taking evasive action.
