TOYOTA PRIUS C 2019 Owners Manual (in English)

00505QRG19PRIC
2 0 1 9 www.toyota.com/owners
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
Printed in U.S.A. 07/18
1 8 - M K G - 12 0 4 7
QUICK REFERENCE GUIDE
PRIUS C
49125a_18-MKG-12047 - MY19 PRIUS C QRG_1_TG.indd 17/20/18 8:37 PM

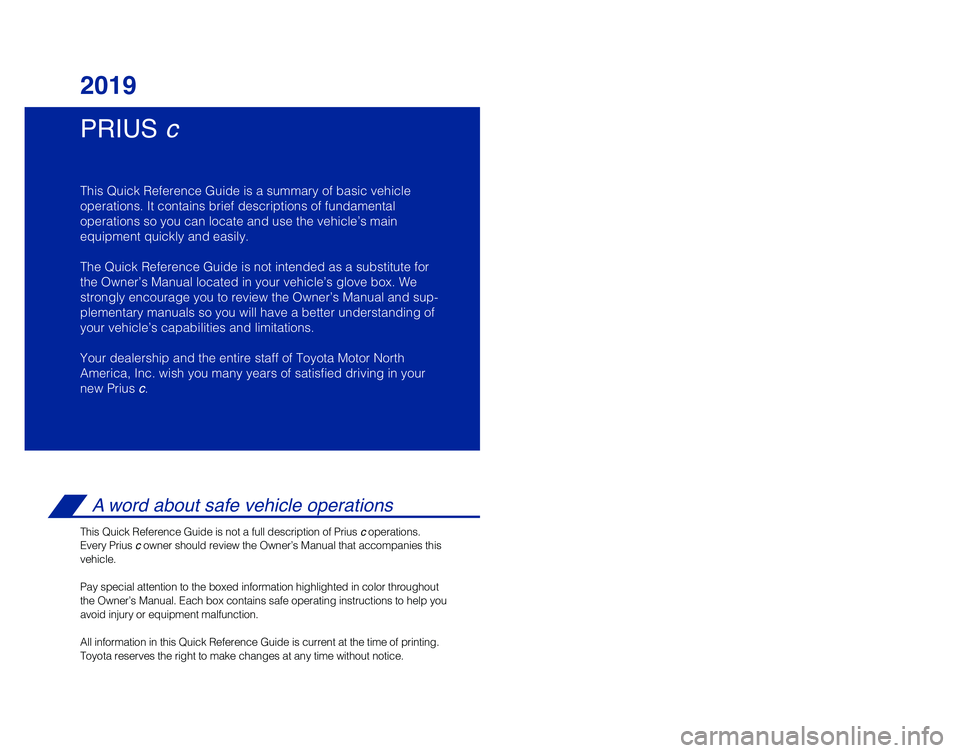

PRIUS c
2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Prius c.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius c operations.
Every Prius c owner should review the Owner’s Manual that accompanies this
vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
45
49125a_18-MKG-12047 - MY19 PRIUS C QRG_1_TG.indd 27/20/18 8:37 PM

1

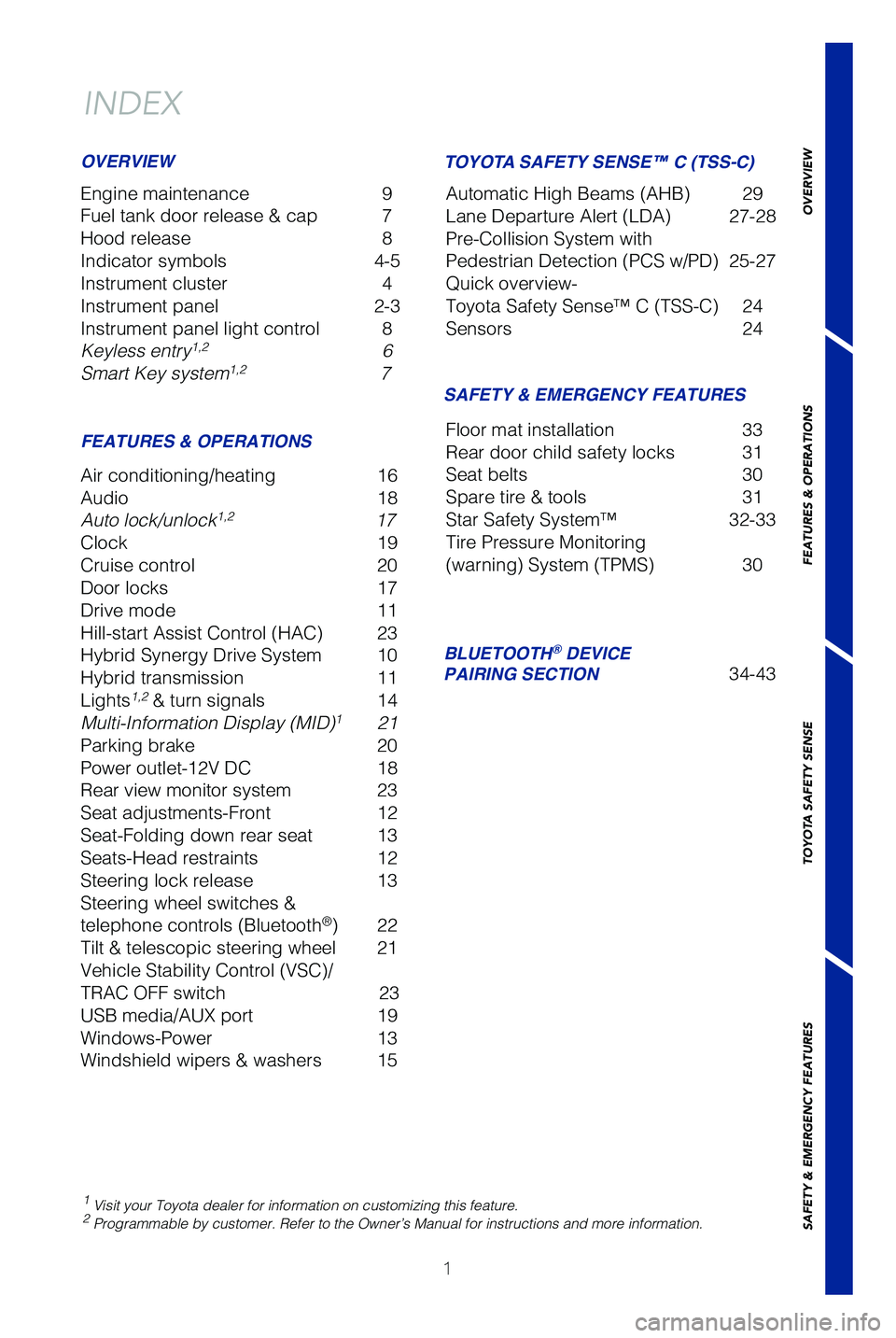

INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.
OVERVIEW
FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
Air conditioning/heating
16
Audio 18
Auto lock/unlock
1,2 17
Clock 19
Cruise control 20
Door locks 17
Drive mode 11
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System 10
Hybrid transmission 11
Lights
1,2 & turn signals 14
Multi-Information Display (MID)1 21
Parking brake 20
Power outlet-12V DC 18
Rear view monitor system 23
Seat adjustments-Front 12
Seat-Folding down rear seat 13
Seats-Head restraints 12
Steering lock release 13
Steering wheel switches &
telephone controls (Bluetooth
®) 22
Tilt & telescopic steering wheel 21
Vehicle Stability Control (VSC)/
TRAC OFF switch 23
USB media/AUX port 19
Windows-Power 13
Windshield wipers & washers 15Floor mat installation
33
Rear door child safety locks 31
Seat belts 30
Spare tire & tools 31
Star Safety System™ 32-33
Tire Pressure Monitoring
(warning) System (TPMS) 30
BLUETOOTH® DEVICE
PAIRING SECTION 34-43
TOYOTA SAFETY SENSE™ C (TSS-C)
Automatic High Beams (AHB) 29
Lane Departure Alert (LDA) 27-28
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 25-27
Quick overview-
Toyota Safety Sense™ C (TSS-C) 24
Sensors 24
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 17/20/18 8:33 PM
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

2

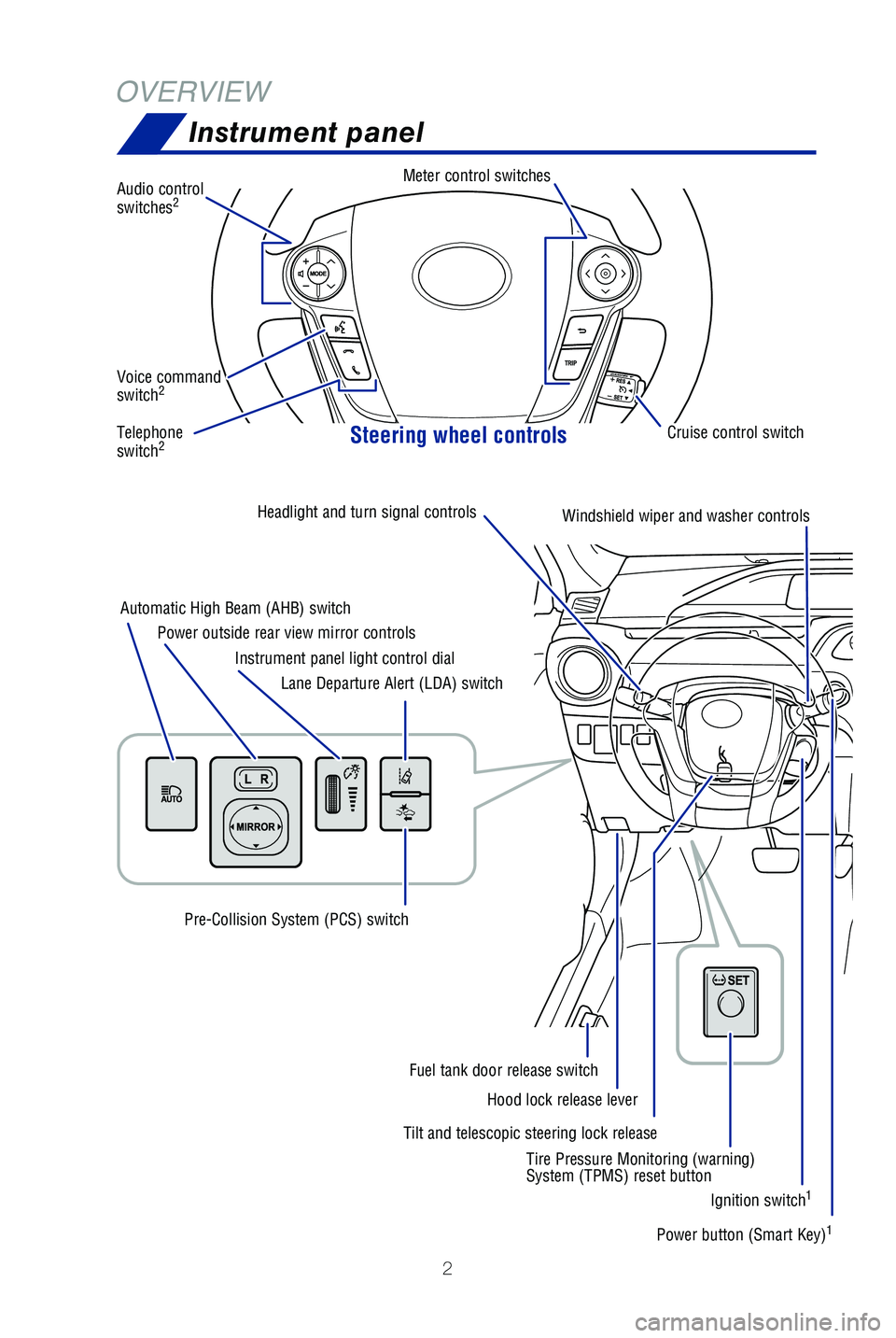

OVERVIEWInstrument panel
Steering wheel controls
Audio control
switches2
Meter control switches
Telephone
switch2
Voice command
switch2
Tilt and telescopic steering lock release
Automatic High Beam (AHB) switch
Power outside rear view mirror controls
Instrument panel light control dial
Lane Departure Alert (LDA) switch
Pre-Collision System (PCS) switch
Hood lock release lever
Fuel tank door release switch
Headlight and turn signal

controls
Windshield wiper and washer controlsEmergency flasher button
Power button (Smart Key)1
Ignition switch1
Tire Pressure Monitoring (warning)
System (TPMS) reset button Cruise control switch
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 27/20/18 8:33 PM

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

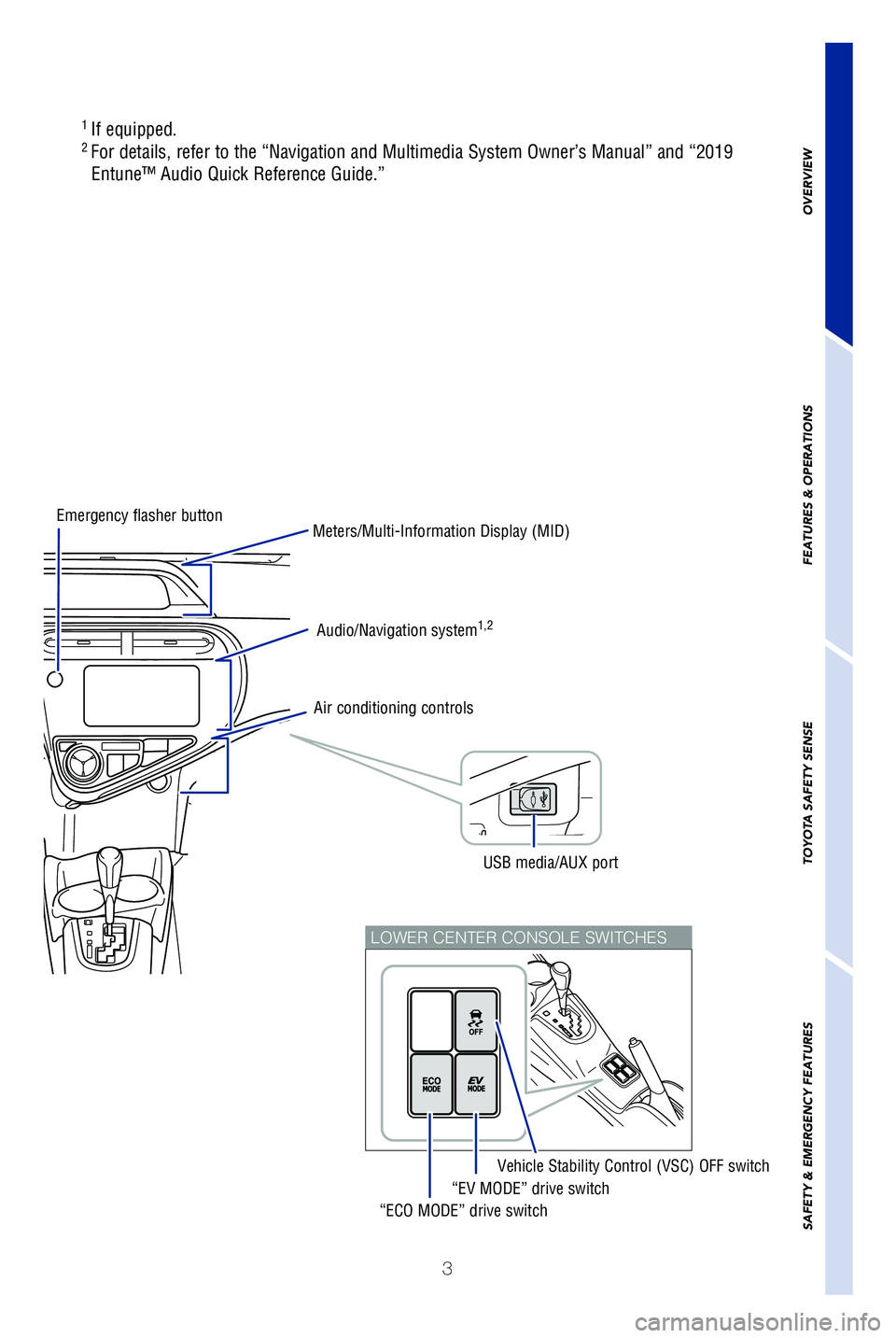

LOWER CENTER CONSOLE SWITCHES
1
If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” and “2019
Entune™ Audio Quick Reference Guide.”
Air conditioning controls
“EV MODE” drive switch
Vehicle Stability Control (VSC) OFF switch
“ECO MODE” drive switch
Audio/Navigation system1,2
Meters/Multi-Information Display (MID)Emergency flasher button
USB media/AUX port
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 37/20/18 8:33 PM

4

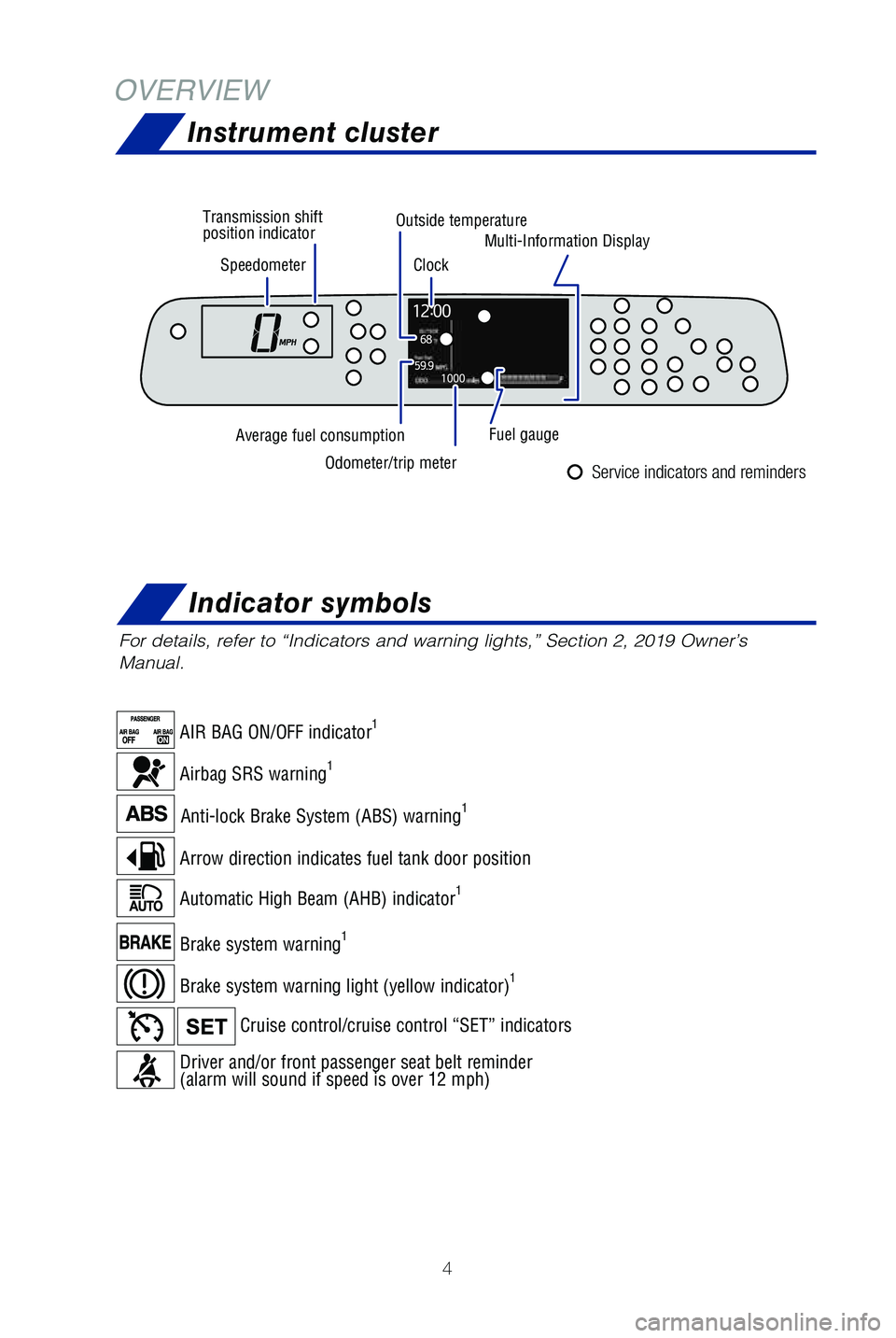

OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 2, \
2019 Owner’s
Manual.
Service indicators and reminders
Driver and/or front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning1
Brake system warning light (yellow indicator)1
Cruise control/cruise control “SET” indicators
Airbag SRS warning1
Anti-lock Brake System (ABS) warning1
Automatic High Beam (AHB) indicator1
Arrow direction indicates fuel tank door position
Speedometer Outside temperature
Average fuel consumption Clock
Transmission shift
position indicator
Fuel gauge
Multi-Information Display
AIR BAG ON/OFF indicator1
Indicator symbols
Odometer/trip meter
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 47/20/18 8:33 PM

5

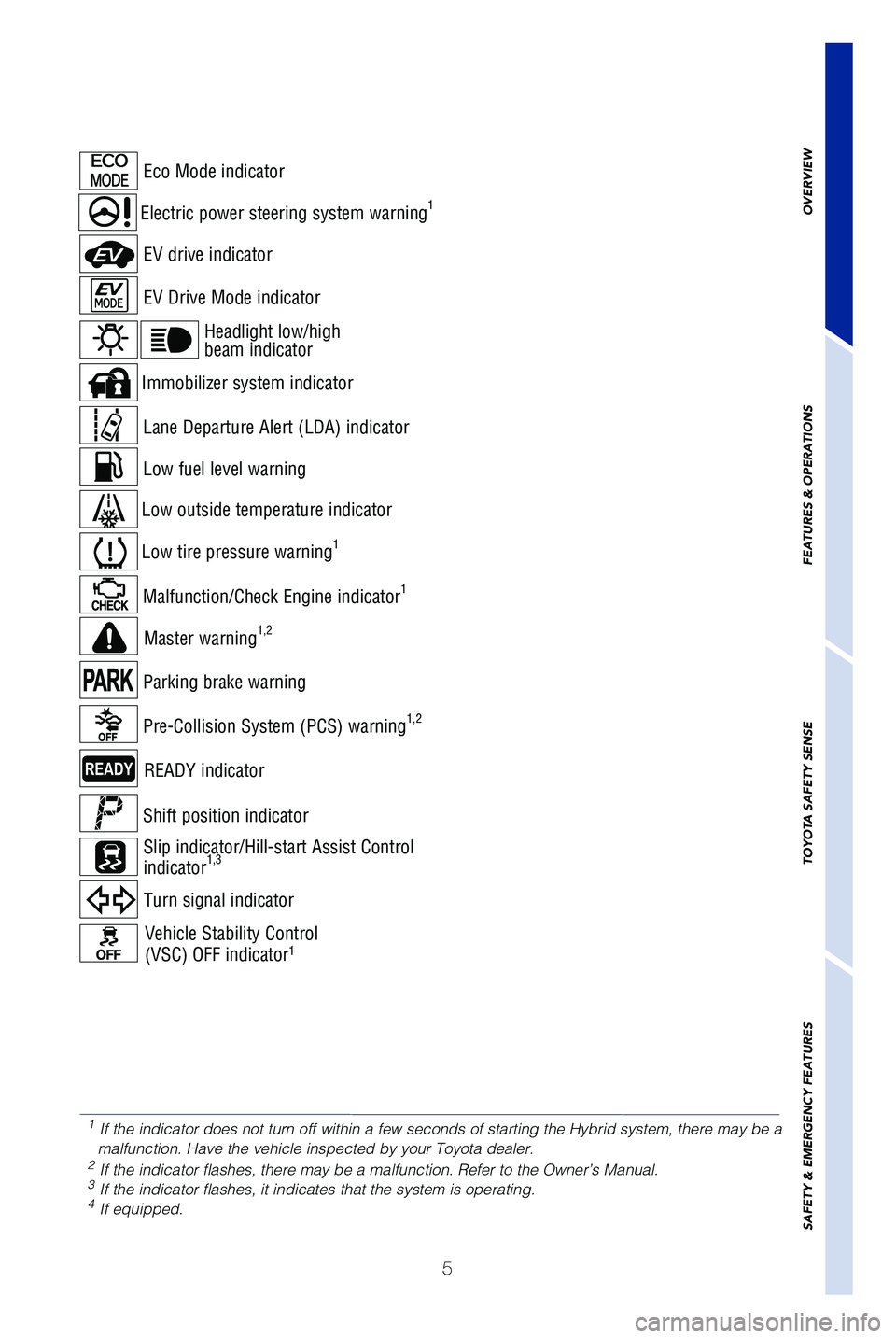

Headlight low/high
beam indicator
Turn signal indicator
Immobilizer system indicator
READY indicator
Electric power steering system warning1
Eco Mode indicator
EV Drive Mode indicator
EV drive indicator
Pre-Collision System (PCS) warning1,2
Master warning1,2
Malfunction/Check Engine indicator1
Low tire pressure warning1
Low outside temperature indicator
Low fuel level warning
Lane Departure Alert (LDA) indicator
Parking brake warning
Vehicle Stability Control
(VSC) OFF indicator1
Shift position indicator
Slip indicator/Hill-start Assist Control
indicator
1,3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the \
Hybrid system, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 57/20/18 8:33 PM

6

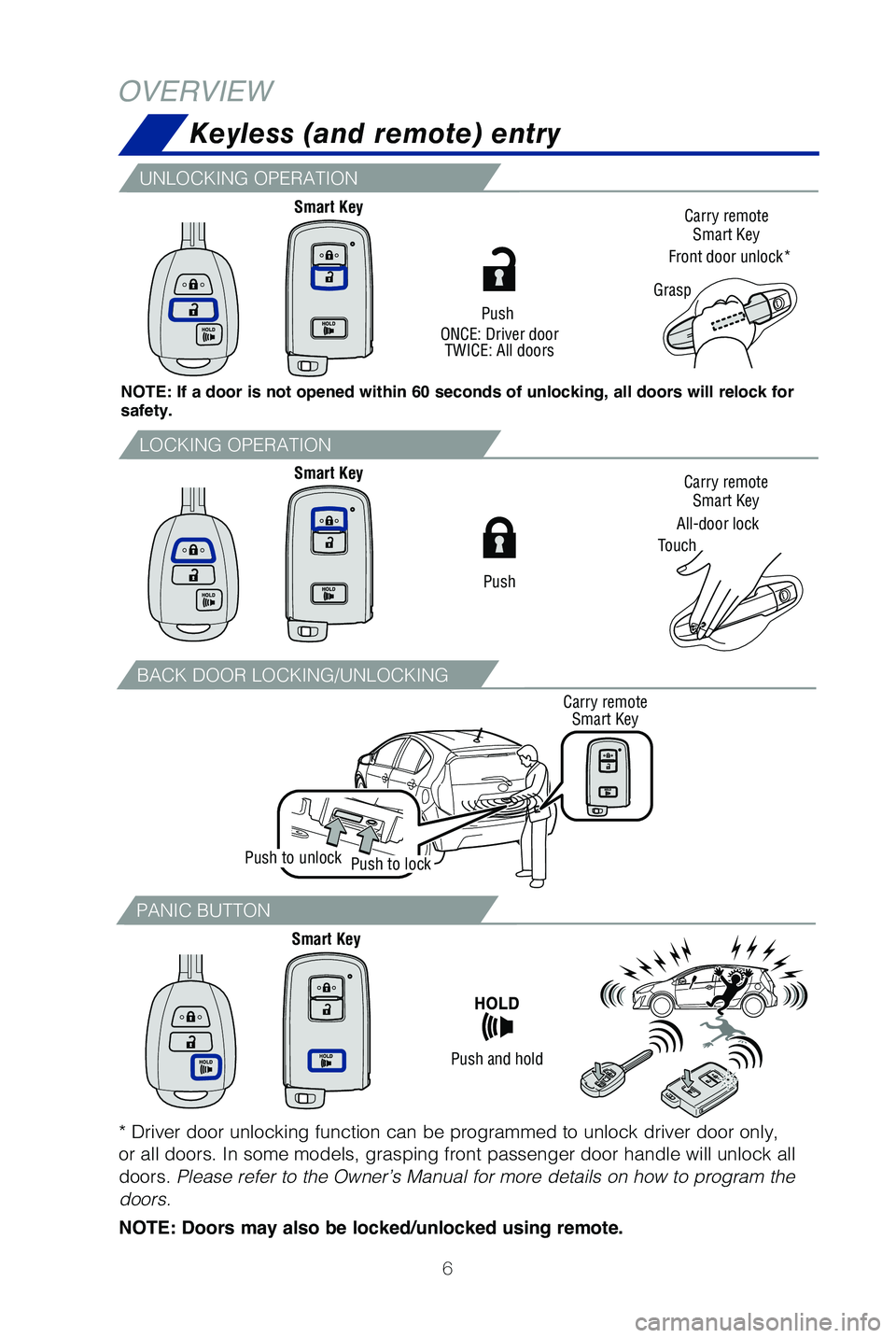

Keyless (and remote) entry
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety. Push
ONCE: Driver door TWICE: All doors
Carry remote
Smart Key Carry remote
Smart Key
All-door lock
Touch Carry remote
Smart Key
Grasp
Front door unlock*
Push
Push and hold
Smart Key
Smart Key
Smart Key
Push to lockPush to unlock
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door\
only,
or all doors. In some models, grasping front passenger door handle will \
unlock all
doors. Please refer to the Owner’s Manual for more details on how to program\
the
doors.
NOTE: Doors may also be locked/unlocked using remote.
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 67/20/18 8:33 PM

7

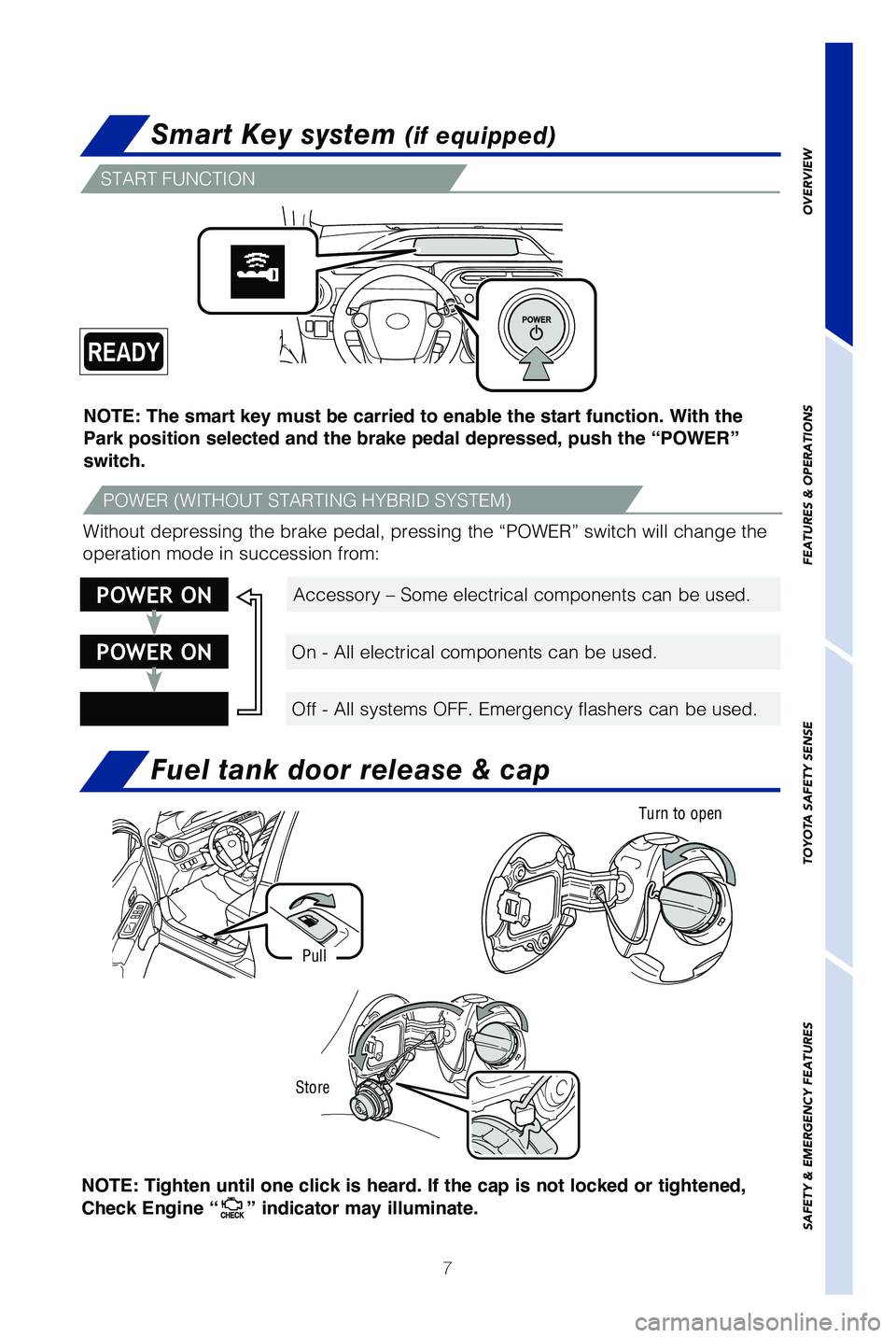

Smart Key system (if equipped)
NOTE: The smart key must be carried to enable the start function. With the
Park position selected and the brake pedal depressed, push the “POWER”
switch.
Fuel tank door release & cap
Accessory – Some electrical components can be used.
On - All electrical components can be used.
Off - All systems OFF. Emergency flashers can be used.
POWER ON
POWER ON
Without depressing the brake pedal, pressing the “POWER” switch wi\
ll change the
operation mode in succession from:
Store
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Turn to open
Pull
START FUNCTION
POWER (WITHOUT STARTING HYBRID SYSTEM)
NOTE: Tighten until one click is heard. If the cap is not locked or tightened,
Check Engine “
” indicator may illuminate.
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 77/20/18 8:33 PM

8
OVERVIEW

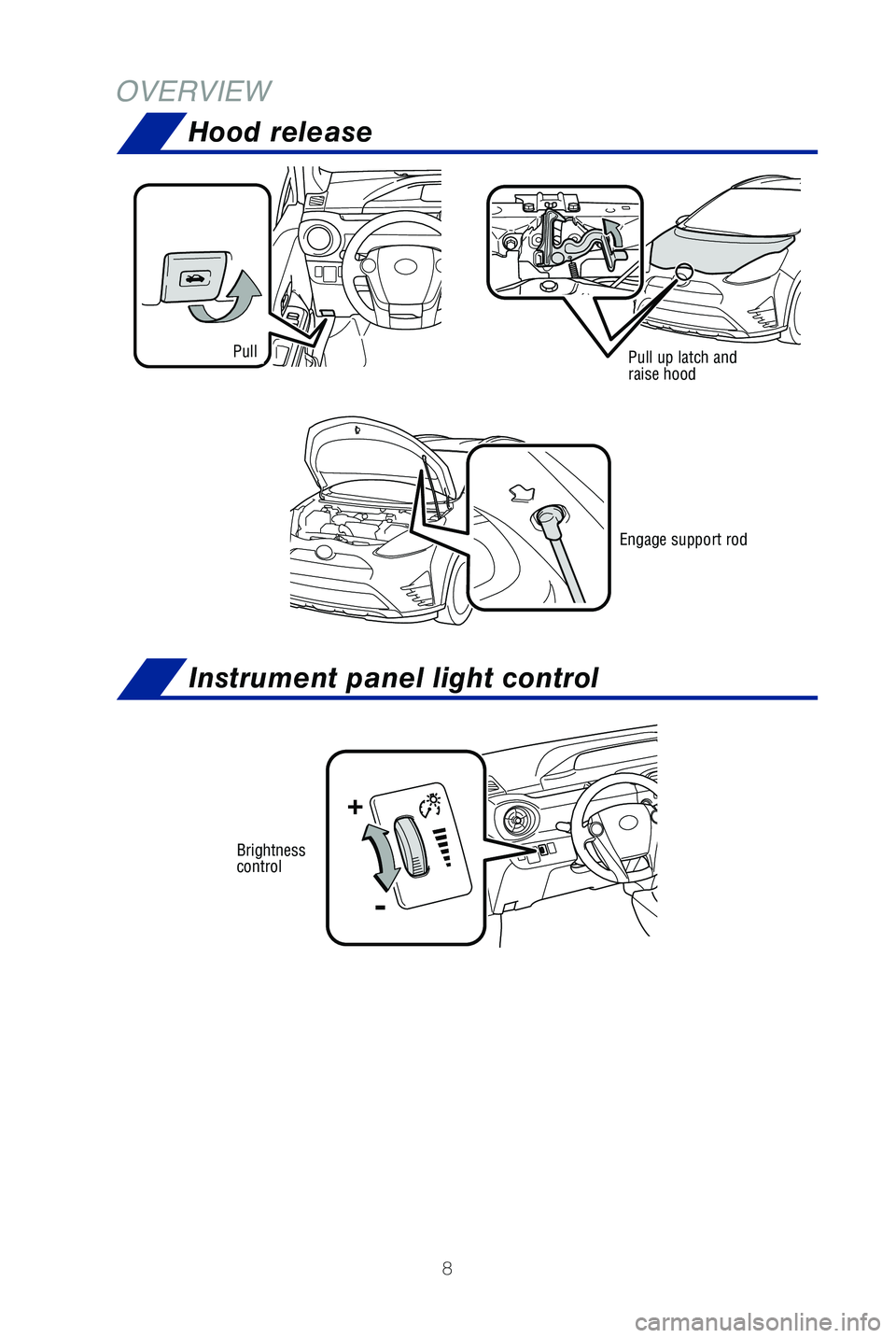

Pull up latch and
raise hood
Engage support rod
Pull
Brightness
control
-
+
Hood release
Instrument panel light control
