TOYOTA PRIUS C 2020 Owners Manual

4818-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U

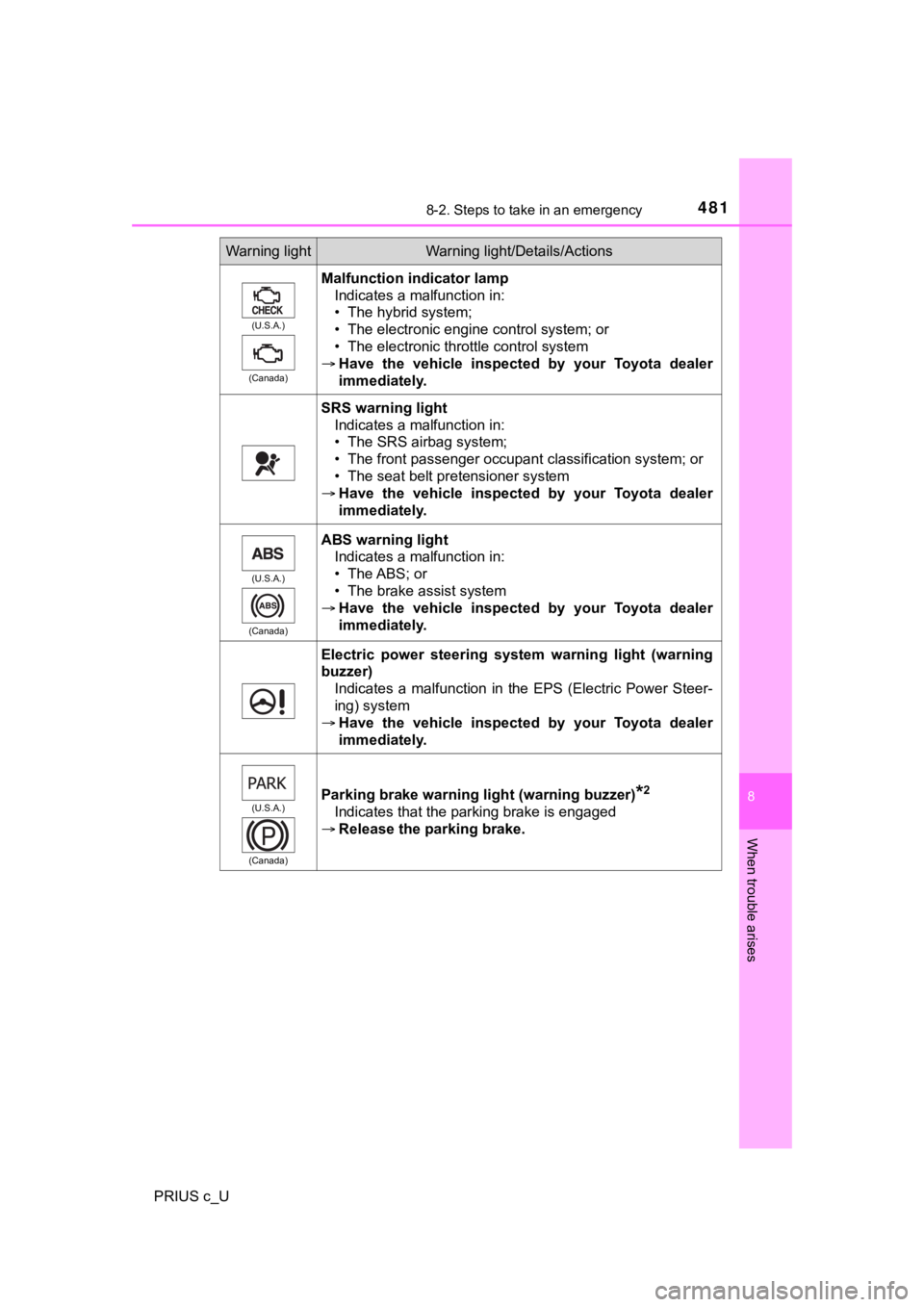

Warning lightWarning light/Details/Actions
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system; or
• The electronic throttle control system
 Have the vehicle inspected by your Toyota dealer
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
 Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system
 Have the vehicle inspected by your Toyota dealer
immediately.
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
 Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)Parking brake warning light (warning buzzer)*2
Indicates that the parking brake is engaged
 Release the parking brake.

4828-2. Steps to take in an emergency
PRIUS c_U

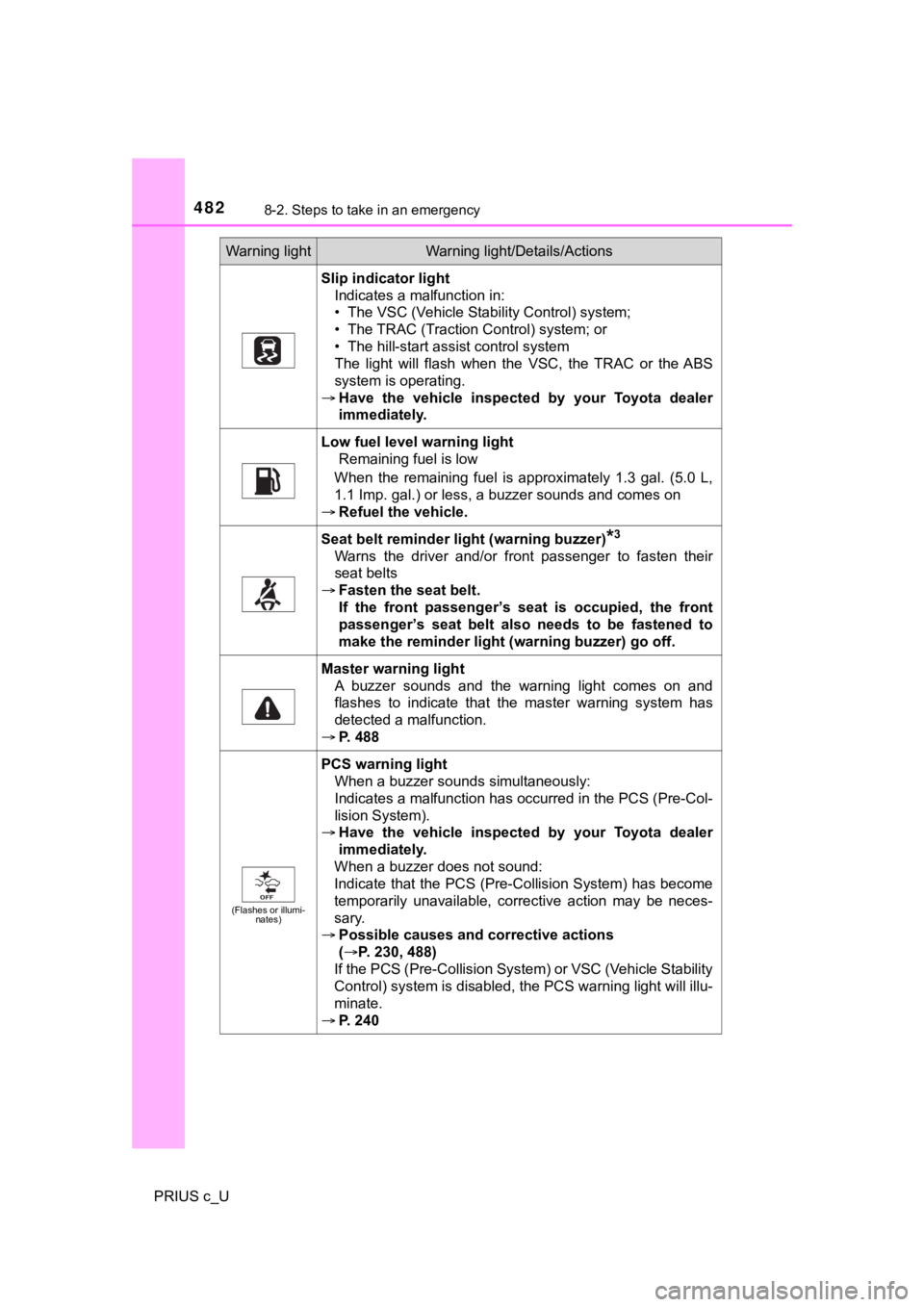

Slip indicator lightIndicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system; or
• The hill-start assist control system
The light will flash when the VSC, the TRAC or the ABS
system is operating.
 Have the vehicle inspected by your Toyota dealer
immediately.
Low fuel level warning light
Remaining fuel is low
When the remaining fuel is approximately 1.3 gal. (5.0 L,
1.1 Imp. gal.) or less, a buzzer sounds and comes on
 Refuel the vehicle.
Seat belt reminder light (warning buzzer)*3
Warns the driver and/or front passenger to fasten their
seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the reminder light (warning buzzer) go off.
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
 P. 488
(Flashes or illumi-
nates)
PCS warning light
When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS (Pre-Col-
lision System).
 Have the vehicle inspected by your Toyota dealer
immediately.
When a buzzer does not sound:
Indicate that the PCS (Pre-Collision System) has become
temporarily unavailable, corrective action may be neces-
sary.
 Possible causes and corrective actions
(P. 230, 488)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
 P. 240
Warning lightWarning light/Details/Actions

4838-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U
*1: Brake system warning buzzer: When there is a possible problem that could affect braking perf ormance,
the warning light will come on and a warning buzzer will sound.
*2: Parking brake engaged warning buzzer P. 207, 492
*3: Driver’s seat belt buzzer: Vehicles without a smart key system: The driver’s seat belt buzzer sounds
to alert the driver that his or her seat belt is not fastened. Once the power
switch is turned to the “ON” position, the buzzer sounds for 6 seconds. If
the vehicle reaches a speed of 12 mph (20 km/h), the buzzer sounds once.
If the seat belt is still unfastened after 24 seconds, the buzzer will sound
intermittently for 10 seconds. Then, if the seat belt is still unfastened, the
buzzer will sound in a different tone for 20 more seconds.
Vehicles with a smart key system: The driver’s seat belt buzzer sounds to
alert the driver that his or her seat belt is not fastened. Onc e the power
switch is turned to ON mode, the buzzer sounds for 6 seconds. I f the vehi-
cle reaches a speed of 12 mph (20 km/h), the buzzer sounds once. If the
seat belt is still unfastened after 24 seconds, the buzzer will sound intermit-
tently for 10 seconds. Then, if the seat belt is still unfasten ed, the buzzer
will sound in a different tone for 20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the fron t passenger
that his or her seat belt is not fastened. The buzzer sounds on ce if the
vehicle reaches a speed of 12 mph (20 km/h). If the seat belt i s still unfas-
tened after 24 seconds, the buzzer will sound intermittently fo r 10 seconds.
Then, if the seat belt is still unfastened, the buzzer will sou nd in a different
tone for 20 more seconds.

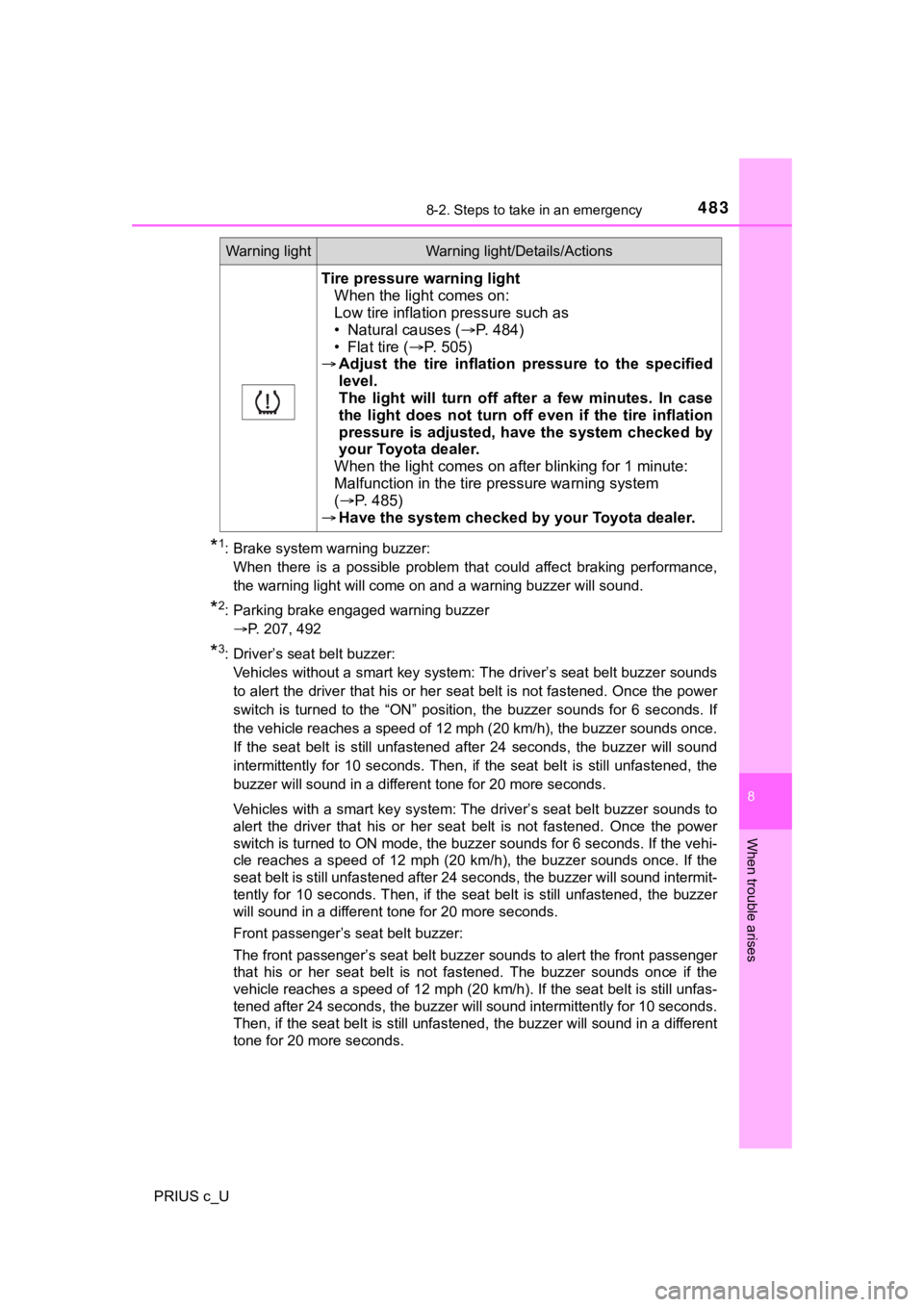

Tire pressure warning light When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 4 8 4 )
• Flat tire ( P. 505)
 Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case
the light does not turn off even if the tire inflation
pressure is adjusted, have the system checked by
your Toyota dealer.
When the light comes on after blinking for 1 minute:
Malfunction in t he tire pressure warning system
(  P. 4 8 5 )
 Have the system checked by your Toyota dealer.
Warning lightWarning light/Details/Actions

4848-2. Steps to take in an emergency
PRIUS c_U
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors (front door), side impact sensors (front), side
impact sensors (rear), driver’s seat belt buckle switch, front passenger occu-
pant classification system, “AIR BAG ON” indicator light, “AIR BAG OFF” indi-
cator light, front passenger’s seat belt buckle switch, seat be lt pretensioners
(front), airbags, interconnecting wiring and power sources. ( P. 41)
■ Front passenger detection senso r, passenger seat belt reminder and
warning buzzer
● If luggage is placed on the front passenger seat, the front pas senger detec-
tion sensor may cause the warning light to flash and the warnin g buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ Electric power steering system wa rning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the vol tage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.
■ If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Toyota dealer
as soon as possible.
■
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Push-
ing the tire pressur e warning reset switch will not turn off the tire pressure
warning light.
■The tire pressure warning light may come on due to natural caus es
The tire pressure warning light may come on due to natural caus es such
as natural air leaks and tire inflation pressure changes caused by tem-
perature. In this case, adjusting the tire inflation pressure w ill turn off the
warning light (afte r a few minutes).
■When a tire is replace d with a spare tire
The compact spare tire is not equipped with a tire pressure war ning valve
and transmitter. If a tire goes flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the s pare tire.
Replace the spare tire with the repaired tire and adjust the ti re inflation
pressure. The tire pressure war ning light will go off after a few minutes.

4858-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U■
If the tire pressure warning system is not functioning
P. 440
■
If the tire pressure warning light frequently comes on after bl inking
for 1 minute
If the tire pressure warning light frequently comes on after bl inking for 1
minute when the power switch is turned to the “ON” position (ve hicles
without a smart key system) or the power switch is turned to ON mode
(vehicles with a smart key system) , have it checked by your Toyota
dealer.
■ Customization that can be configured at Toyota dealer
The vehicle speed linked seat belt reminder buzzer can be disab led. (Cus-
tomizable features: P. 560) However, Toyota recommends that the seat belt
reminder buzzer be operational to alert the driver and front pa ssenger when
seat belts are not fastened.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy pla ce or an
audio sound.
WARNING
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
When steering wheel operations are heavier than usual, grip the steering
wheel firmly and operate it using more force than usual.
■
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust t he tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inf lation pres-
sure adjustment, it is probable that you have a flat tire. Chec k the tires.
If a tire is flat, change it with the spare tire and have the f lat tire
repaired by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires dete riorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

4868-2. Steps to take in an emergency
PRIUS c_U
WARNING
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation p ressure
label (tire and load information label). (If your vehicle has t ires of a dif-
ferent size than the size indica ted on the vehicle placard or tire inflation
pressure label [tire and load information label], you should de termine
the proper tire inflation p ressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS -tire pressure warning system) that
illuminates a low tire pressure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Acco rdingly,
when the low tire pressure telltale (tire pressure warning ligh t) illumi-
nates, you should stop and check your tires as soon as possible , and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread lif e, and may
affect the vehicle’s handl ing and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire maintena nce, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached
the level to trigger illumination of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicato r to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) mal func-
tion indicator is combined with the low tire pressure telltale (tire pressure
warning light). When the system detects a malfunction, the tell tale will
flash for approximately one mi nute and then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle star t-ups
as long as the malfunction exists . When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tir e pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installation of replacement or al ternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure w arning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning sys tem) to
continue to function properly.

4878-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, a s the tire
pressure warning system may not operate properly.

4888-2. Steps to take in an emergency
PRIUS c_U
Multi-information display
Warning message details and/or
correction procedures are shown
on the multi-information display.
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
If any of the warning message or indicator comes on again after the
following actions have been per formed, contact your Toyota deal er.
If a warning message is displayed
If a warning is shown on the multi-information display, stay ca lm
and perform the following actions:
1
2

4898-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U

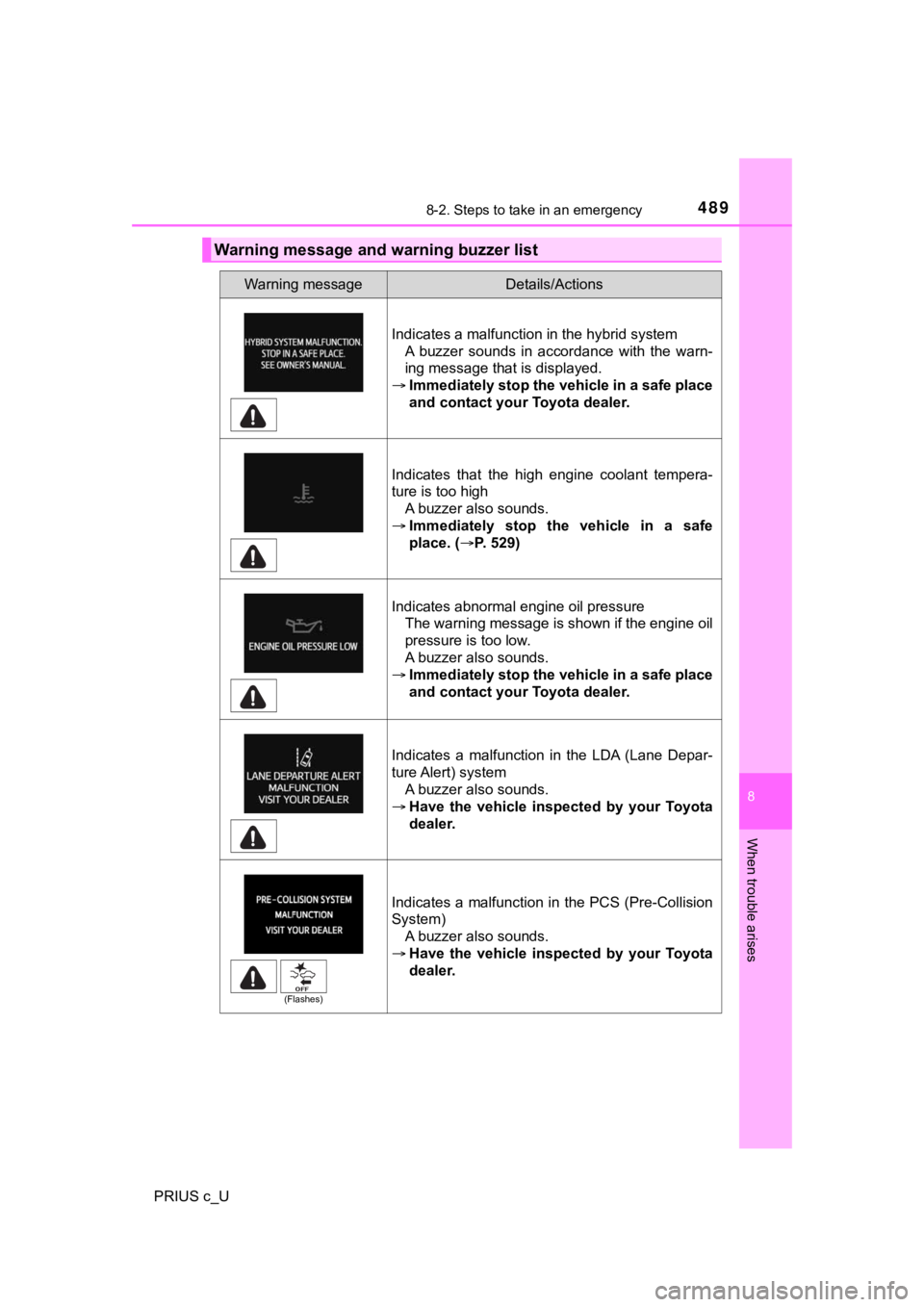

Warning message and warning buzzer list
Warning messageDetails/Actions
Indicates a malfunction in the hybrid systemA buzzer sounds in accordance with the warn-
ing message that is displayed.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates that the high engine coolant tempera-
ture is too high
A buzzer also sounds.
 Immediately stop the vehicle in a safe
place. ( P. 529)
Indicates abnormal engine oil pressure
The warning message is shown if the engine oil
pressure is too low.
A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates a malfunction in the LDA (Lane Depar-
ture Alert) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates a malfunction in the PCS (Pre-Collision
System)
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(Flashes)

4908-2. Steps to take in an emergency
PRIUS c_U
Indicates a malfunction in:
• The Automatic High Beam system
• The LED headlight systemA buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates that:
• There is a high possibility of a frontal collision;
or
• The pre-collision braking function is operating A buzzer also sounds.
 Check the vehicle's surroundings and take
evasive action if necessary.
(If equipped)
• Indicates a malfunction in the smart key system
• Indicates a malfunction in the steering lock sys-
tem
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the cruise control sys-
tem
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates a malfunction in the Brake Override
System
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer immediately.
Warning messageDetails/Actions
(Flashes)
