TOYOTA PRIUS PHV 2012 Owners Manual

381
3-2. Using the audio system
PRIUS PHV_OM_OM47818U_(U)
3
Interior features
Using the AUX port/USB port
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
■ When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Open the console box lid. ( P. 387)
Connect the portable audio
device.STEP 1
STEP 2

382
PRIUS PHV_OM_OM47818U_(U)

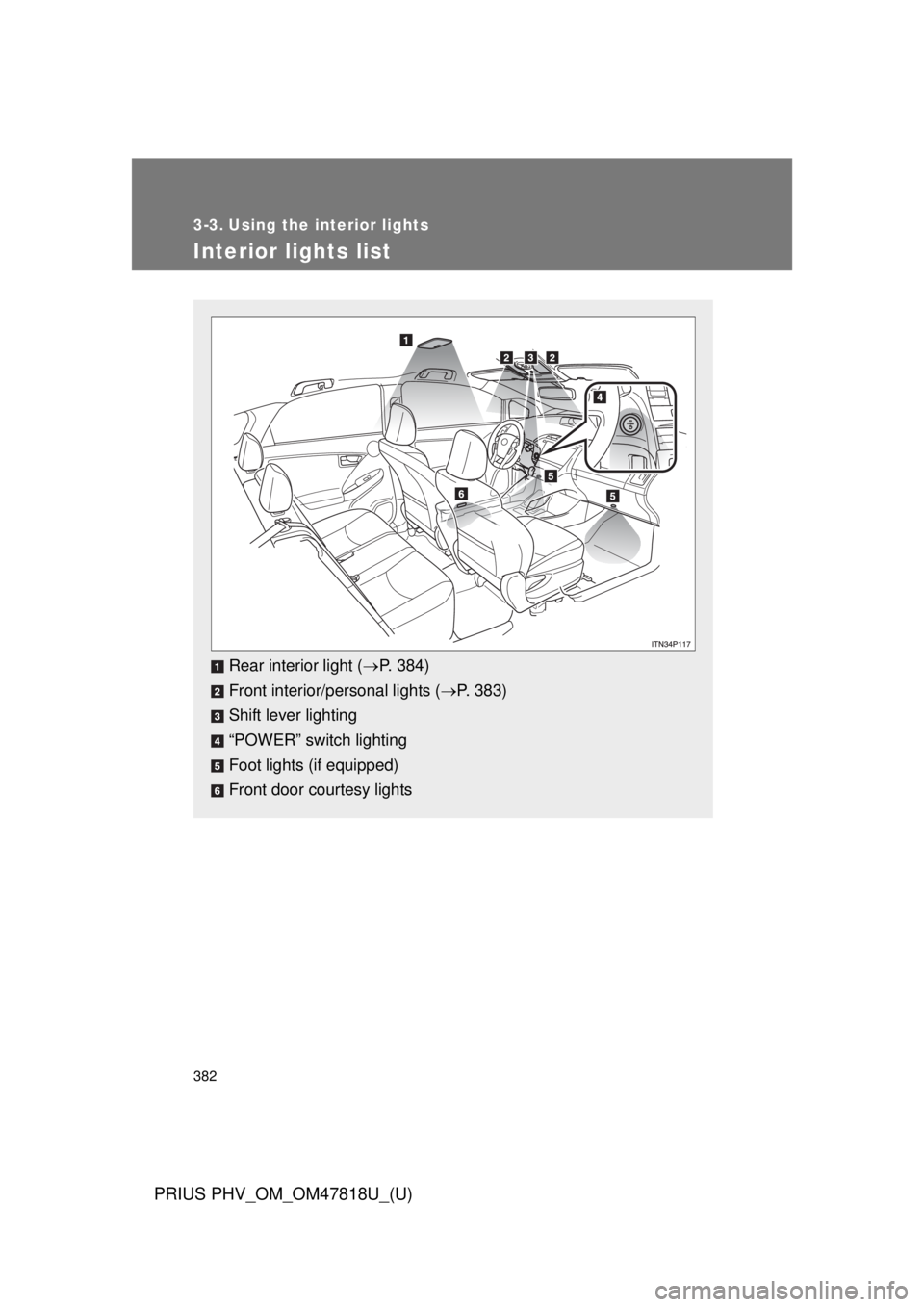

3-3. Using the interior lights
Interior lights list
Rear interior light (P. 384)
Front interior/personal lights ( P. 383)
Shift lever lighting
“POWER” switch lighting
Foot lights (if equipped)
Front door courtesy lights

383
3-3. Using the interior lights
PRIUS PHV_OM_OM47818U_(U)
3
Interior features
Front interior lights
Turns the lights off
Turns the door position on
Turns the lights on
Personal lightsTy p e A Turns the lights on/off
Ty p e B Turns the lights on/off
Front interior lights and personal lights

384 3-3. Using the interior lights
PRIUS PHV_OM_OM47818U_(U)
Rear interior lightThe light will turn on/off in con-
junction with the front interior
lights
Turns the light on
ITI34P133a
■Illuminated entry system
The lights automatically turn on/off according to “POWER” switch mode, the
presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
■ To prevent 12-volt battery discharge
If the interior lights remain on when the door is not fully closed and the inte-
rior light switch (door position on/off) is on, the lights will go off automatically
after 20 minutes.
■ Customization
Setting (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 643)
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.
Rear interior light

385
PRIUS PHV_OM_OM47818U_(U)
3
Interior features
3-4. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Bottle holders
Auxiliary boxes
Glove boxes
Cup holders
Console box

386 3-4. Using the storage features
PRIUS PHV_OM_OM47818U_(U)
Glove boxesUpper glove box Push the button.
Lower glove box Push the button.
■Glove box light (lower glove box only)
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed when not in use. In the event of sudden braking
or sudden swerving, an accident may occur due to an occupant being struck
by the open glove box or the items stored inside.
Glove boxes

387
3-4. Using the
storage features
PRIUS PHV_OM_OM47818U_(U)
3
Interior features
Console box
Pull up the lever to release the
lock.
Lift the console box lid to
open.
CAUTION
■While driving
Keep the console box closed when not is use. In the event of sudden brak-
ing or sudden swerving, an accident may occur due to an occupant being
struck by the open console box or the items stored inside.
Console box

388 3-4. Using the storage features
PRIUS PHV_OM_OM47818U_(U)
Cup holdersFront (type A) Lift the lid.
Front (type B)
Rear (if equipped) Pull down the armrest.
ITO35P113
Cup holders

389
3-4. Using the
storage features
PRIUS PHV_OM_OM47818U_(U)
3
Interior features
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of sudden braking,
sudden swerving or an accident and cause injury. If possible, cover hot
drinks to prevent burns.
■ When not in use
Keep the cup holders closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Cup holders

390 3-4. Using the storage features
PRIUS PHV_OM_OM47818U_(U)
Bottle holders
ITO35P121
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than pet bottles in the bottle holders.
Other items may be thrown out of the holders in the event of sudden braking,
sudden swerving or an accident and cause injury.
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders
