Storing the jack and tools
Store the jack and tools in a reverse way as taking out the
jack.
After storing the jack, make sure it is securely held by the tight-
ening strap.
Reinstall the lid.
Insert the tab on far side of the
lid first, then insert the tab on
the near side.
STEP 1
STEP 2
■When using a towing eyelet
Remove the towing eyelet after following the procedure on P. 449 to
remove the jack, jack handle and wheel nut wrench.

452 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)

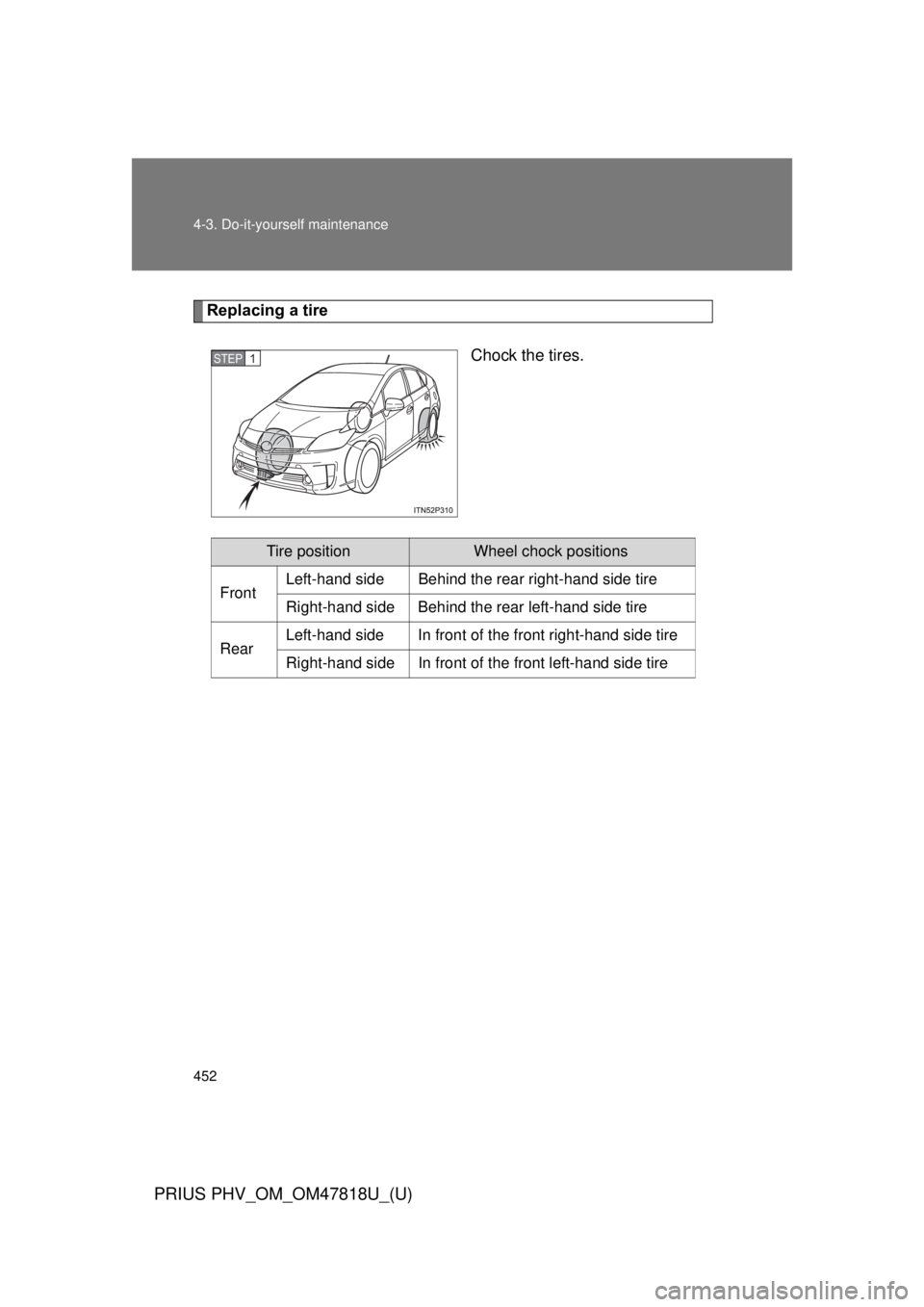

Replacing a tireChock the tires.
STEP 1
Tire positionWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire

453
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
4
Maintenance and care

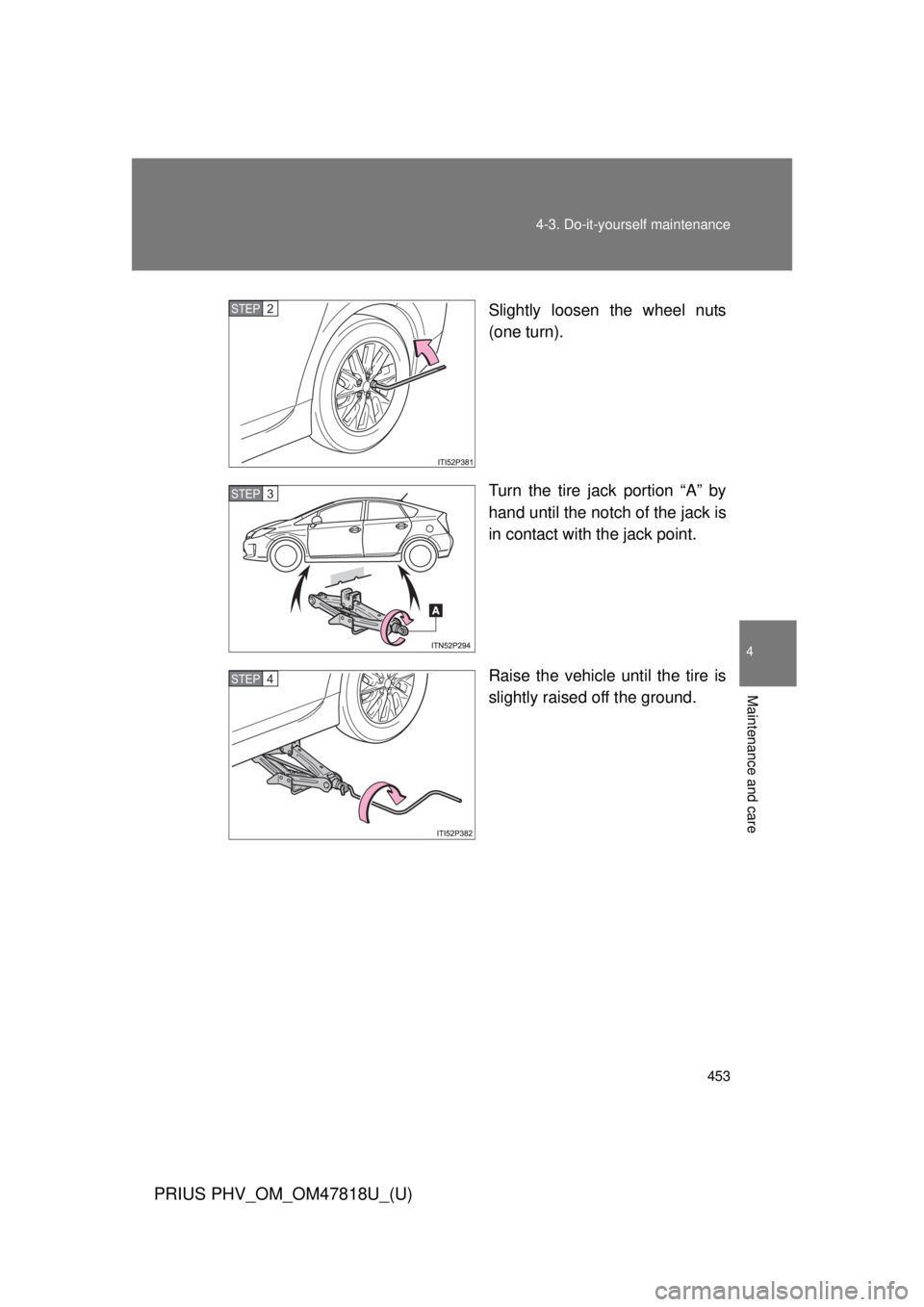

Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.STEP 2
STEP 3
STEP 4

454 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)

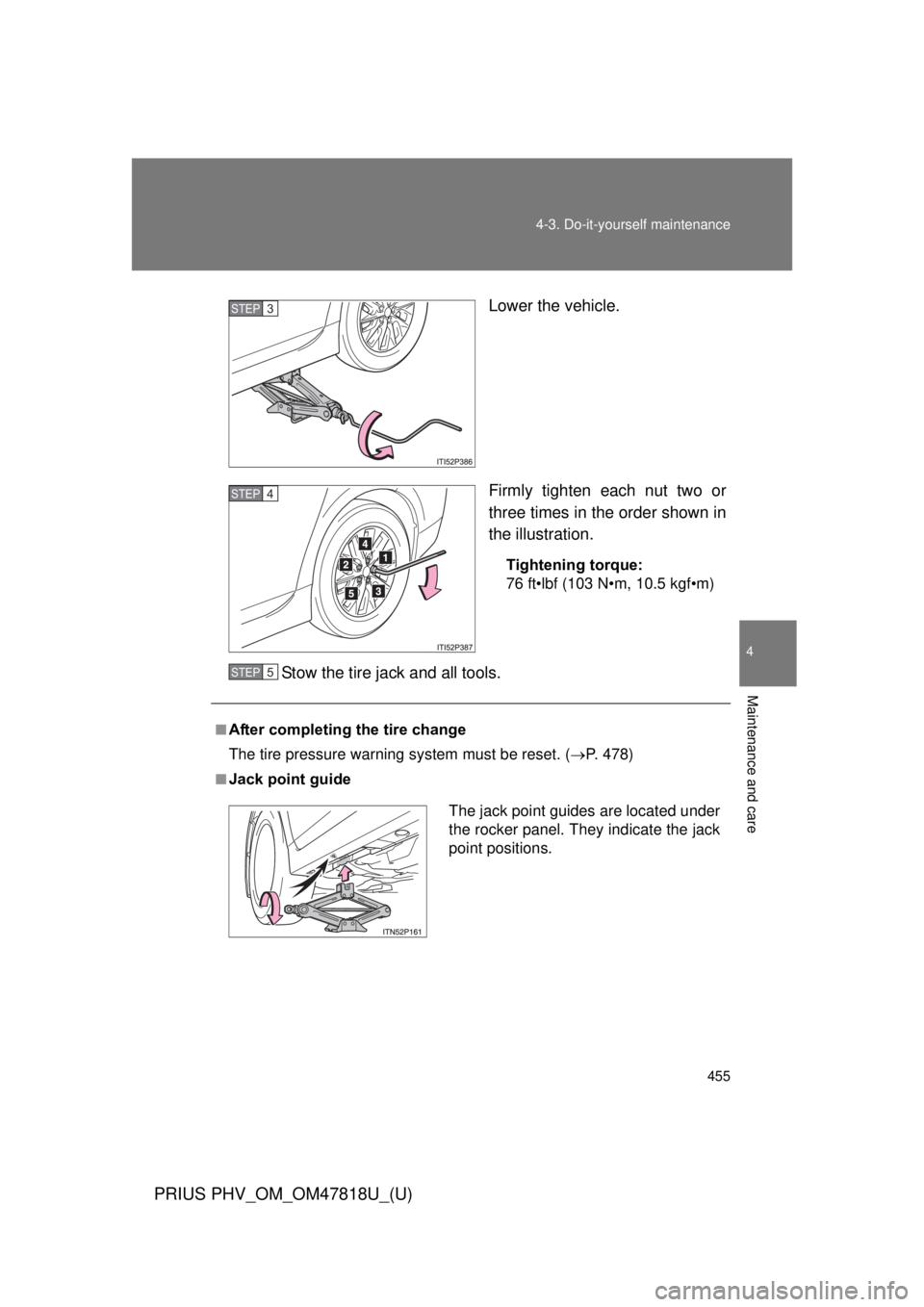

Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.

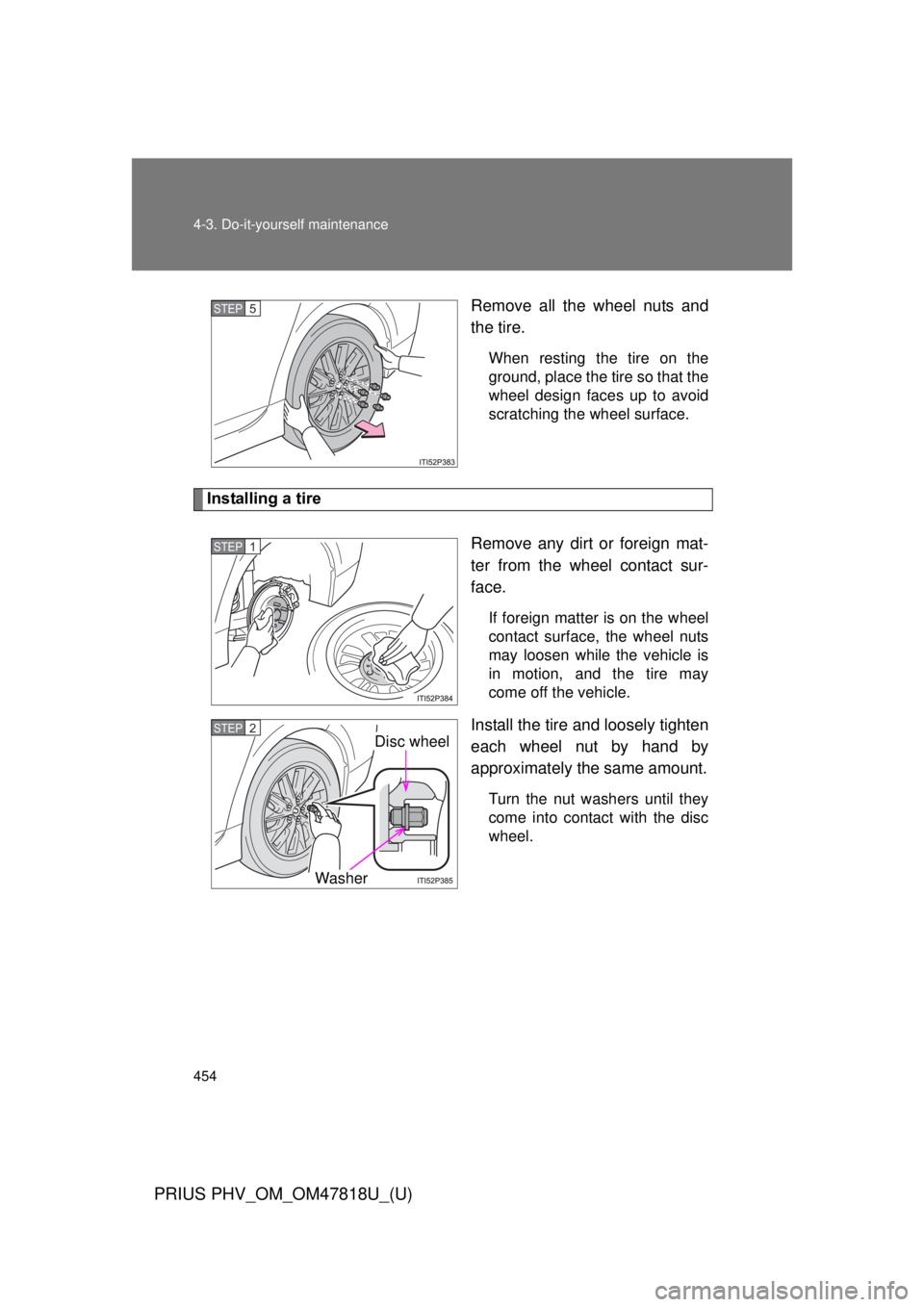

Installing a tireRemove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the tire and loosely tighten
each wheel nut by hand by
approximately the same amount.
Turn the nut washers until they
come into contact with the disc
wheel.
STEP 5
STEP 1
STEP 2 Disc wheel
Washer

455
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
4
Maintenance and care
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the tire jack and all tools.
STEP 3
STEP 4
■After completing the tire change
The tire pressure warning
system must be reset. (P. 478)
■Jack point guide
STEP 5
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.

456 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
Observe the following precautions:
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the hybrid system while your vehicle is supported by
the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a hei ght greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.

457
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
4
Maintenance and care
CAUTION
■Replacing a tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot.
Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifi- cally designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wh eel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install the wheel nuts with the tapered en d facing inward. (P. 491)
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the po ssibility of personal injury during a
collision or sudden braking.

458 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
NOTICE
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid se alants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( P. 477)

459
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
4
Maintenance and care

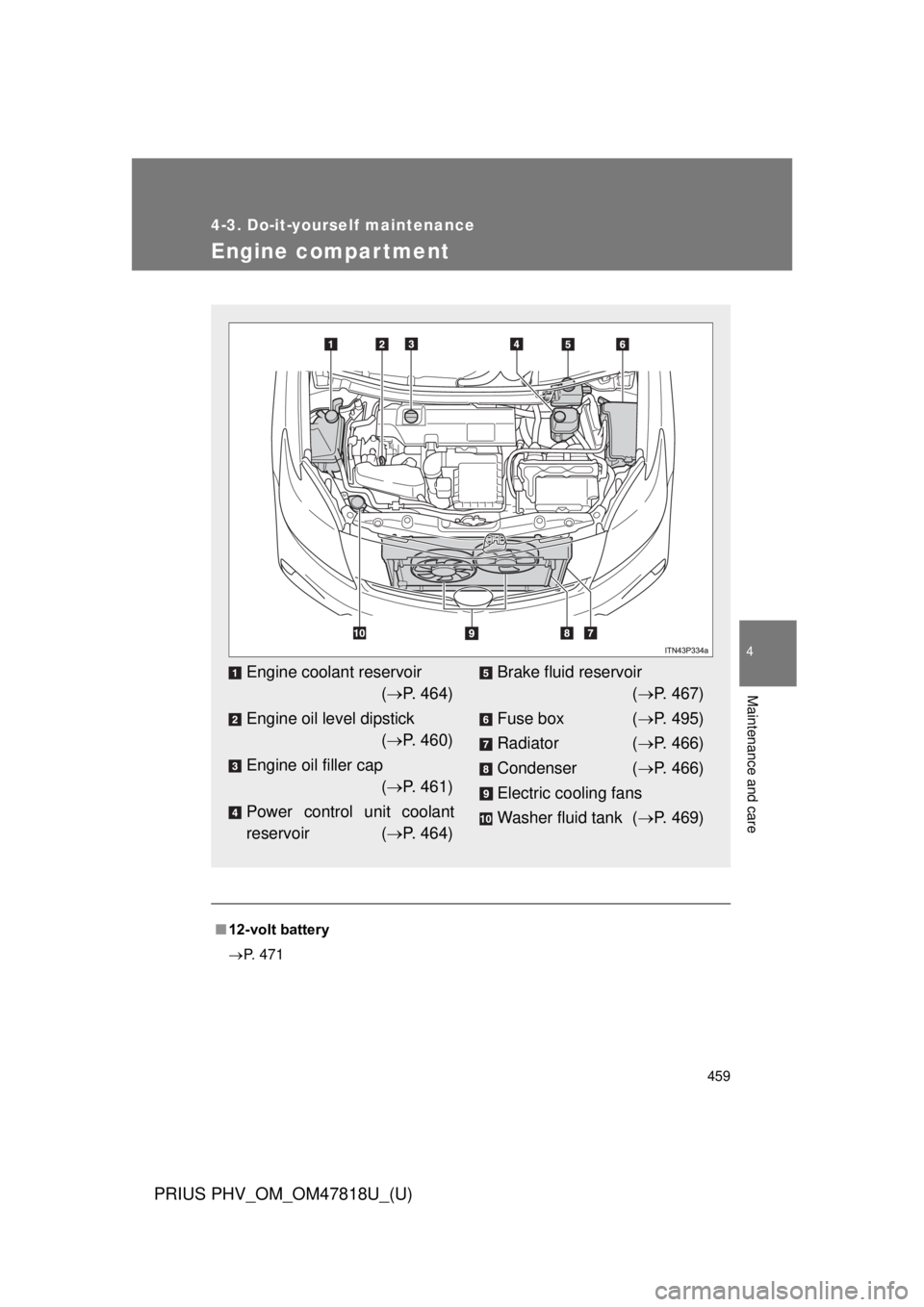

Engine compar tment
■12-volt battery
 P. 471
Engine coolant reservoir
( P. 464)
Engine oil level dipstick ( P. 460)
Engine oil filler cap ( P. 461)
Power control unit coolant
reservoir ( P. 464)Brake fluid reservoir
( P. 467)
Fuse box ( P. 495)
Radiator ( P. 466)
Condenser ( P. 466)
Electric cooling fans
Washer fluid tank ( P. 469)

460 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning off the hybrid system, wait more than 5 minutes
for the oil to drain back into the bottom of the engine.

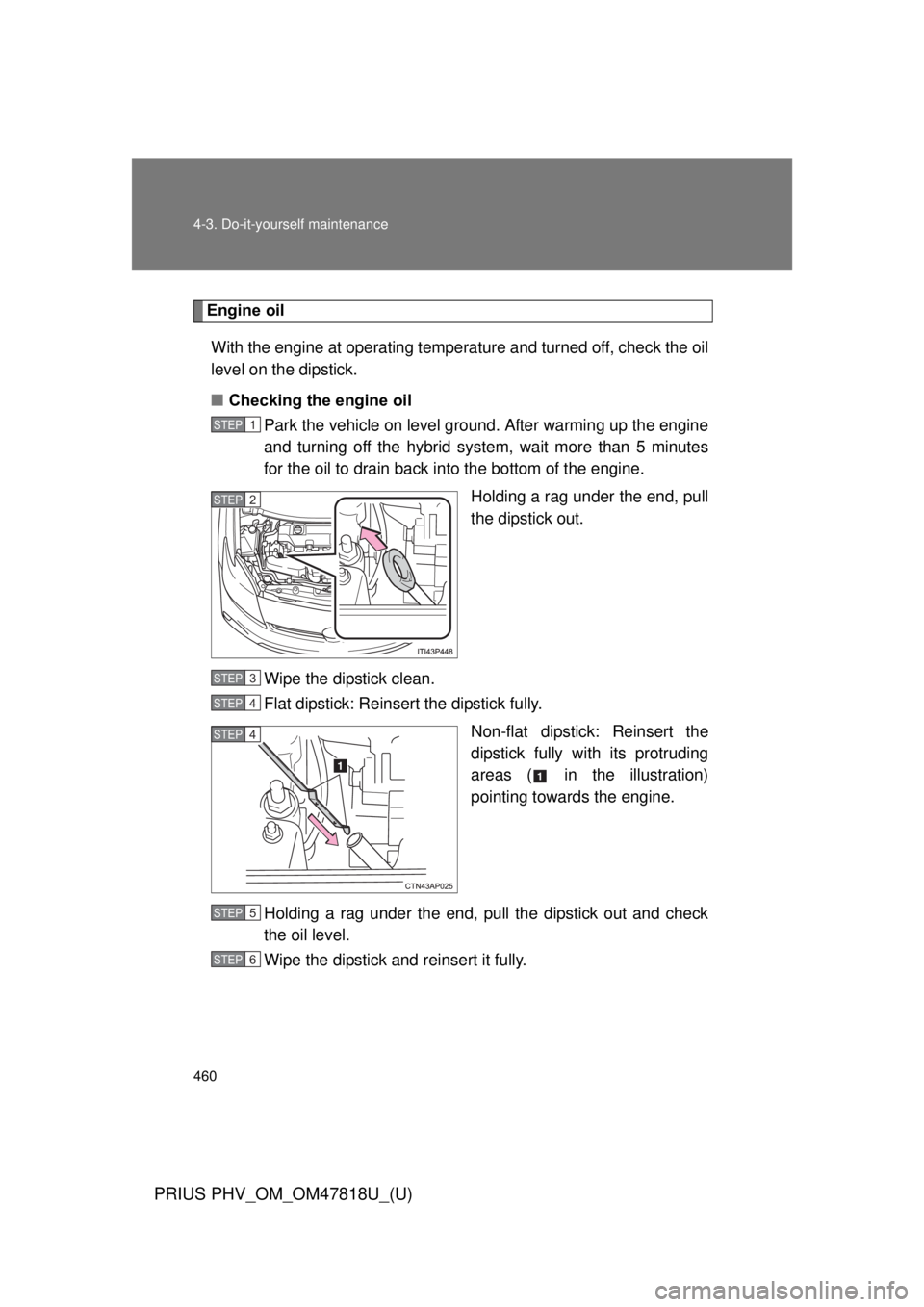

Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Flat dipstick: Reinsert the dipstick fully. Non-flat dipstick: Reinsert the
dipstick fully with its protruding
areas ( in the illustration)
pointing towards the engine.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 4
STEP 5
STEP 6
