TOYOTA PRIUS PHV 2012 Manual PDF

71
1-1. Plug-in hybrid system
1
Before driving
PRIUS PHV_OM_OM47818U_(U)
■

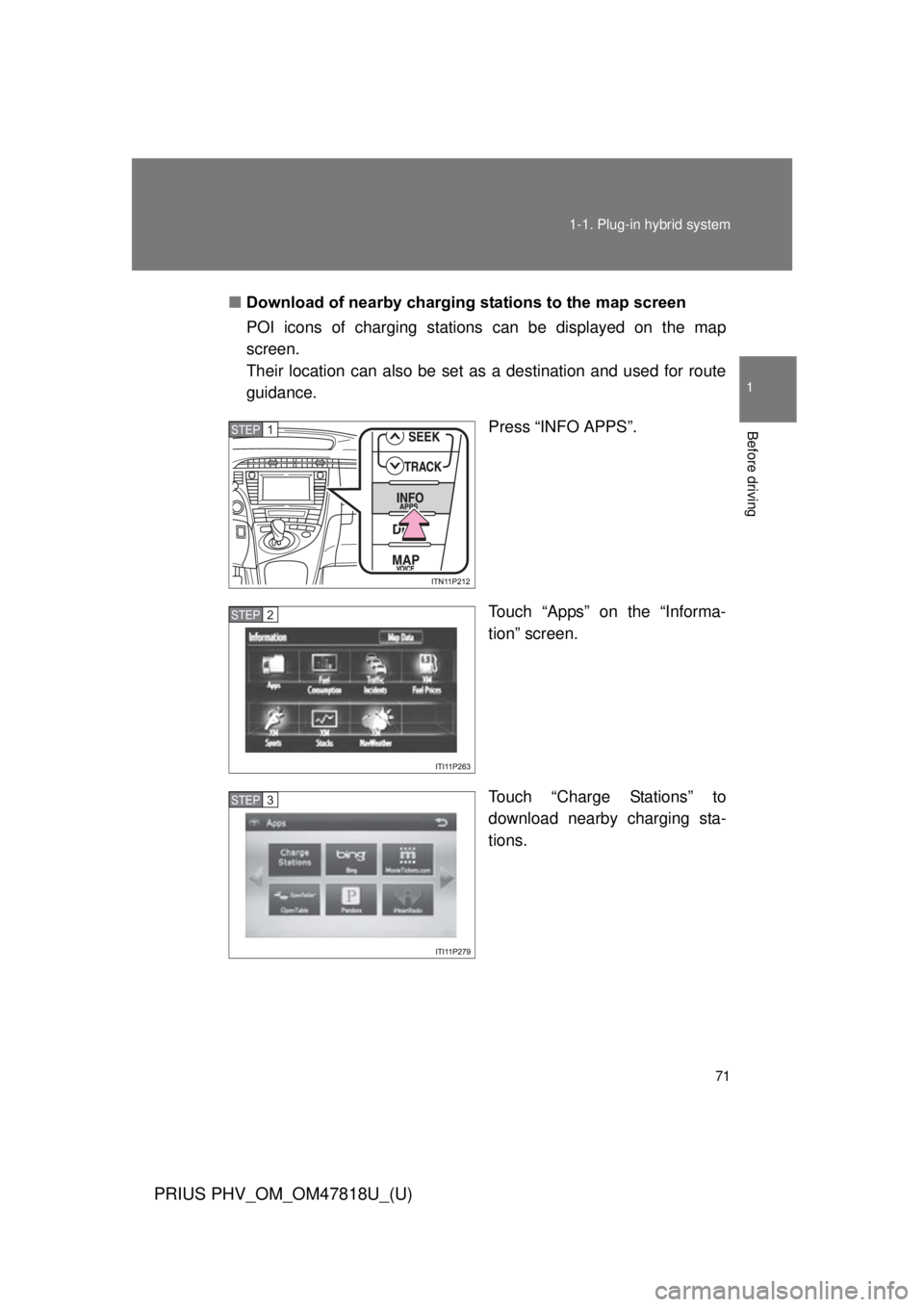

Download of nearby charging stations to the map screen
POI icons of charging stations can be displayed on the map
screen.
Their location can also be set as a destination and used for route
guidance.
Press “INFO APPS”.
Touch “Apps” on the “Informa-
tion” screen.
Touch “Charge Stations” to
download nearby charging sta-
tions.
STEP 1
STEP 2
STEP 3

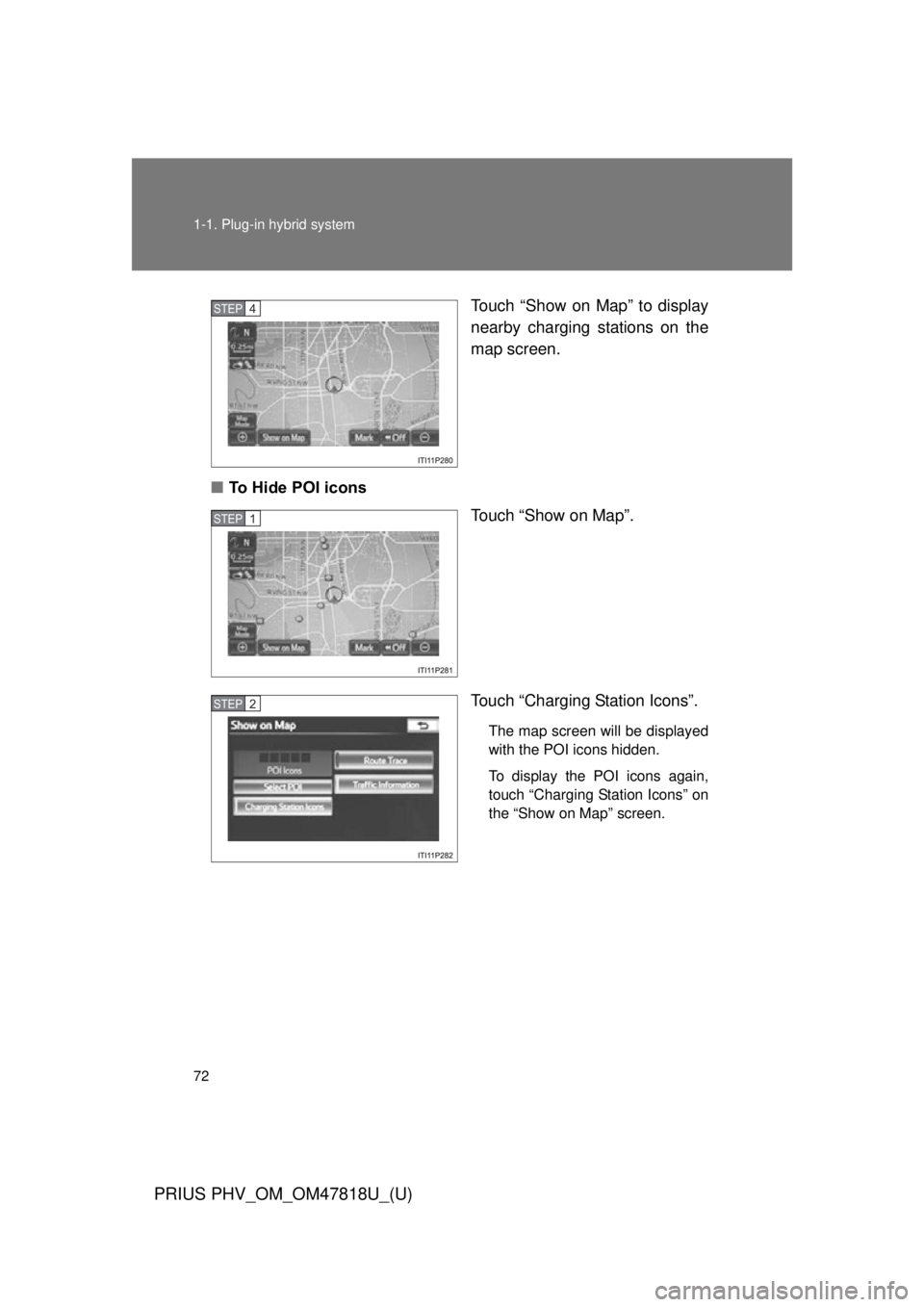

72 1-1. Plug-in hybrid system
PRIUS PHV_OM_OM47818U_(U)
Touch “Show on Map” to display
nearby charging stations on the
map screen.
■ To Hide POI icons
Touch “Show on Map”.
Touch “Charging Station Icons”.
The map screen will be displayed
with the POI icons hidden.
To display the POI icons again,
touch “Charging Station Icons” on
the “Show on Map” screen.
STEP 4
STEP 1
STEP 2

73
1
Before driving
PRIUS PHV_OM_OM47818U_(U)
1-2. Charging

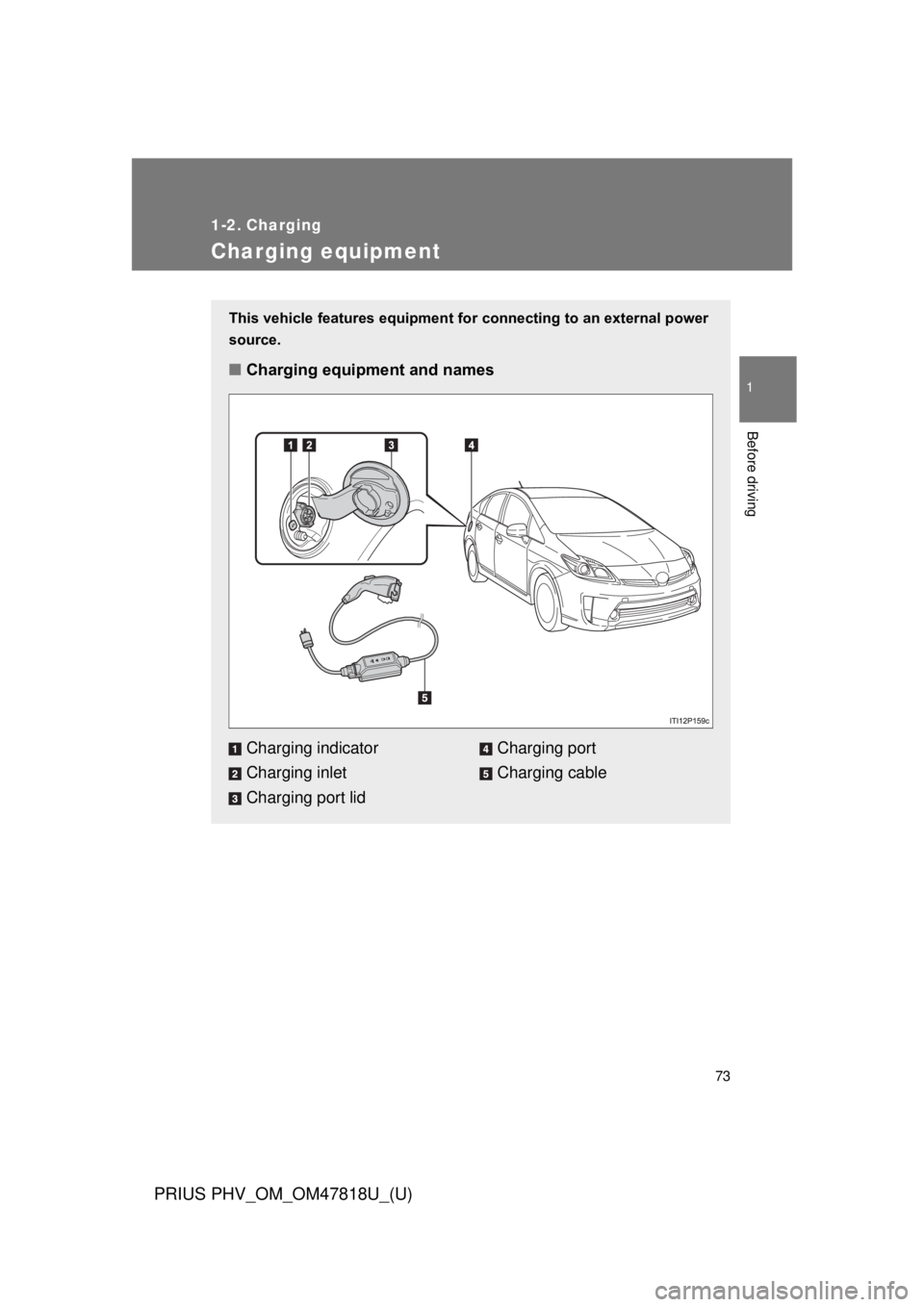

Charging equipment
This vehicle features equipment for connecting to an external power
source.
■ Charging equipment and names
Charging indicator
Charging inlet
Charging port lidCharging port
Charging cable

74 1-2. Charging
PRIUS PHV_OM_OM47818U_(U)

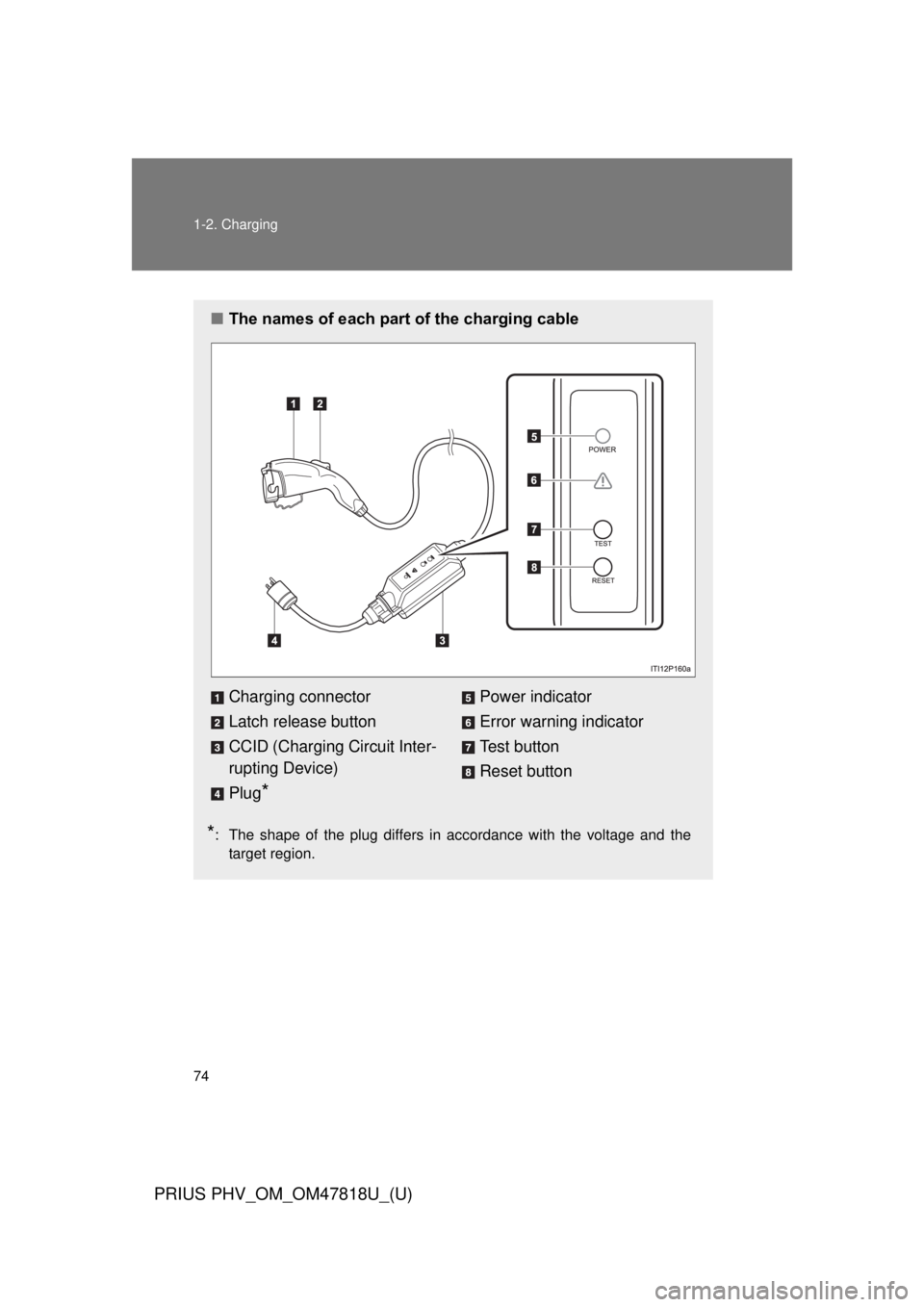

■The names of each part of the charging cable
*: The shape of the plug differs in accordance with the voltage and the
target region.
Charging connector
Latch release button
CCID (Charging Circuit Inter-
rupting Device)
Plug
*
Power indicator
Error warning indicator
Test button
Reset button

75
1-2. Charging
1
Before driving
PRIUS PHV_OM_OM47818U_(U)
Safety functions
The CCID (Charging Circuit Interrupting Device) has the following
safety features.
■ Electrical leakage detection function
If an electrical leakage is de tected during charging, the power
source will be automatically interr upted, thus preventing fires or
electrical shocks caused by electrical leakage.
If the power source is interrupted, the error warning indicator will illumi-
nate.
If the power source is interrupted: P. 102
■ Electrical leakage test function
The electrical leakage detection function can be tested prior to
charging to confirm that it is operating correctly.
When the test button is pressed while the plug is connected to an exter-
nal power source, the error warning indicator should illuminate.
(P. 103)
■ Conditions for supplying current to the vehicle
The CCID (Charging Circuit Interrupting Device) is designed to
prevent electrical current from being supplied to the charging con-
nector when it is not connected to the vehicle, even if the plug is
inserted into the outlet.

76 1-2. Charging
PRIUS PHV_OM_OM47818U_(U)
CAUTION
■When using the charging cable and CCID (Charging Circuit Interrupt-
ing Device)
Observe the following precautions.
If you do not follow them, fire, electrical shock or damage may occur, possi-
bly resulting in death or serious injury.
● Do not attempt to disassemble or repair the charging cable, charging con-
nector, plug or CCID (Charging Circuit Interrupting Device).
If a problem arises with the charging cable or the CCID (Charging Circuit
Interrupting Device), stop charging immediately and contact your Toyota
dealer.
● Do not subject the charging cable, charging connector, plug or CCID
(Charging Circuit Interrupting Device) to strong force or impact.
● Do not forcefully fold the charging cable or damage the charging cable
with sharp objects.
● Do not fold the charging connector or plug or insert foreign objects into
them.
● Do hold the body of the charging connector or plug when removing or
inserting.
● Remove the charging connector from the vehicle’s charging inlet FIRST,
before removing the plug from the outlet.
● Avoid exposure of plug to water or moisture.

77
1
1-2. Charging
Before driving
PRIUS PHV_OM_OM47818U_(U)

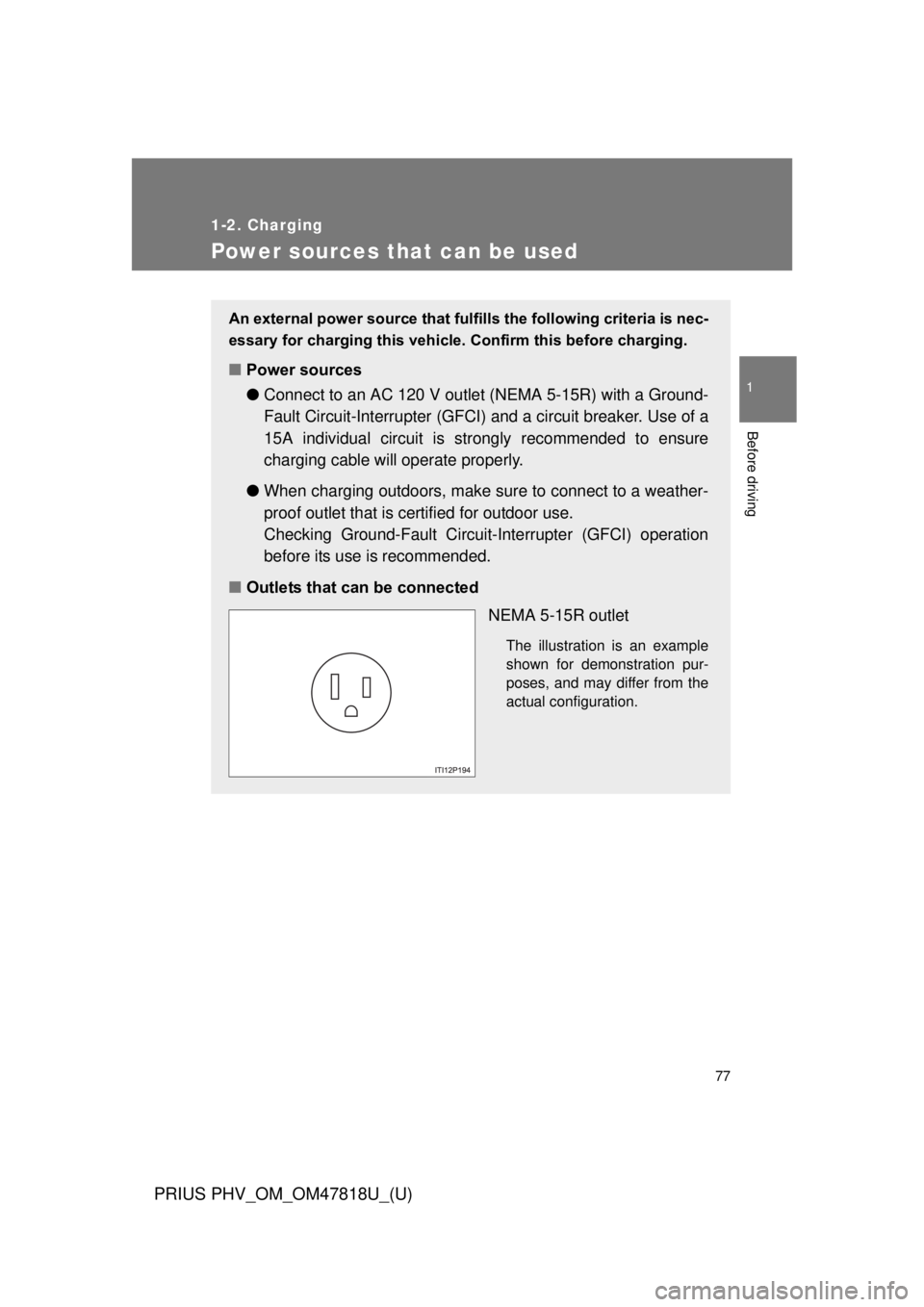

Power sources that can be used
An external power source that fulfills the following criteria is nec-
essary for charging this vehicle. Confirm this before charging.
■Power sources
●Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-
Fault Circuit-Interrupter (GFCI) and a circuit breaker. Use of a
15A individual circuit is st rongly recommended to ensure
charging cable will operate properly.
● When charging outdoors, make sure to connect to a weather-
proof outlet that is certified for outdoor use.
Checking Ground-Fault Circuit-Interrupter (GFCI) operation
before its use is recommended.
■ Outlets that can be connected
NEMA 5-15R outlet
The illustration is an example
shown for demonstration pur-
poses, and may differ from the
actual configuration.

78 1-2. Charging
PRIUS PHV_OM_OM47818U_(U)
■The charging environment
For safe charging, the following charging equipment and settings are recom-
mended.
● Weatherproof outlet
When charging outdoors, connect the plug to a weatherproof outlet, and
ensure that the plug remains waterproof while the plug is connected.
● Dedicated circuit
• To reduce the risk of fire, connect only to an at least 15A branch circuit
with an over-current protection in accordance with the National Electric\
Code, ANSI/NFPA 70.
• To reduce the risk of electric shock when working with the plug, con- nect to a outlet with a Ground-Fault Circuit-Interrupter (GFCI) or that
has an Earth Leakage Circuit Breaker installed.
CAUTION
■Warnings for electrical faults
Make sure to observe the following precautions when charging the vehicle.
Failure to use a power source that fulfills the requirements, or failure to
observe regulations while charging could lead to an accident, possibly
resulting in death or serious injury.

79
1-2. Charging
1
Before driving
PRIUS PHV_OM_OM47818U_(U)

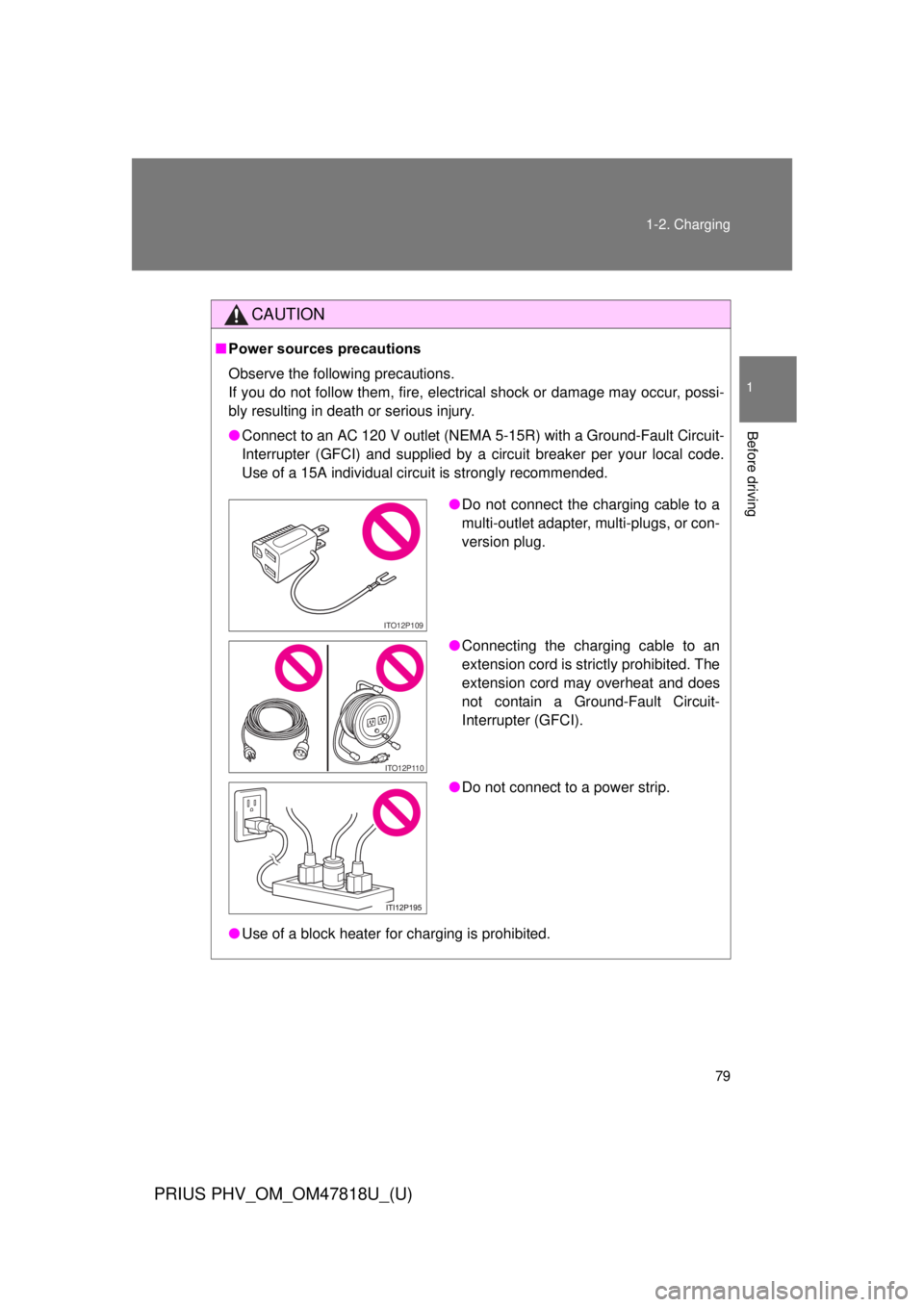

CAUTION
■
Power sources precautions
Observe the following precautions.
If you do not follow them, fire, electrical shock or damage may occur, possi-
bly resulting in death or serious injury.
● Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit-
Interrupter (GFCI) and supplied by a circuit breaker per your local code.
Use of a 15A individual circuit is strongly recommended.
● Use of a block heater for charging is prohibited.
●Do not connect the charging cable to a
multi-outlet adapter, multi-plugs, or con-
version plug.
● Connecting the charging cable to an
extension cord is strictly prohibited. The
extension cord may overheat and does
not contain a Ground-Fault Circuit-
Interrupter (GFCI).
● Do not connect to a power strip.
ITO12P109
ITO12P110

80
1-2. Charging
PRIUS PHV_OM_OM47818U_(U)

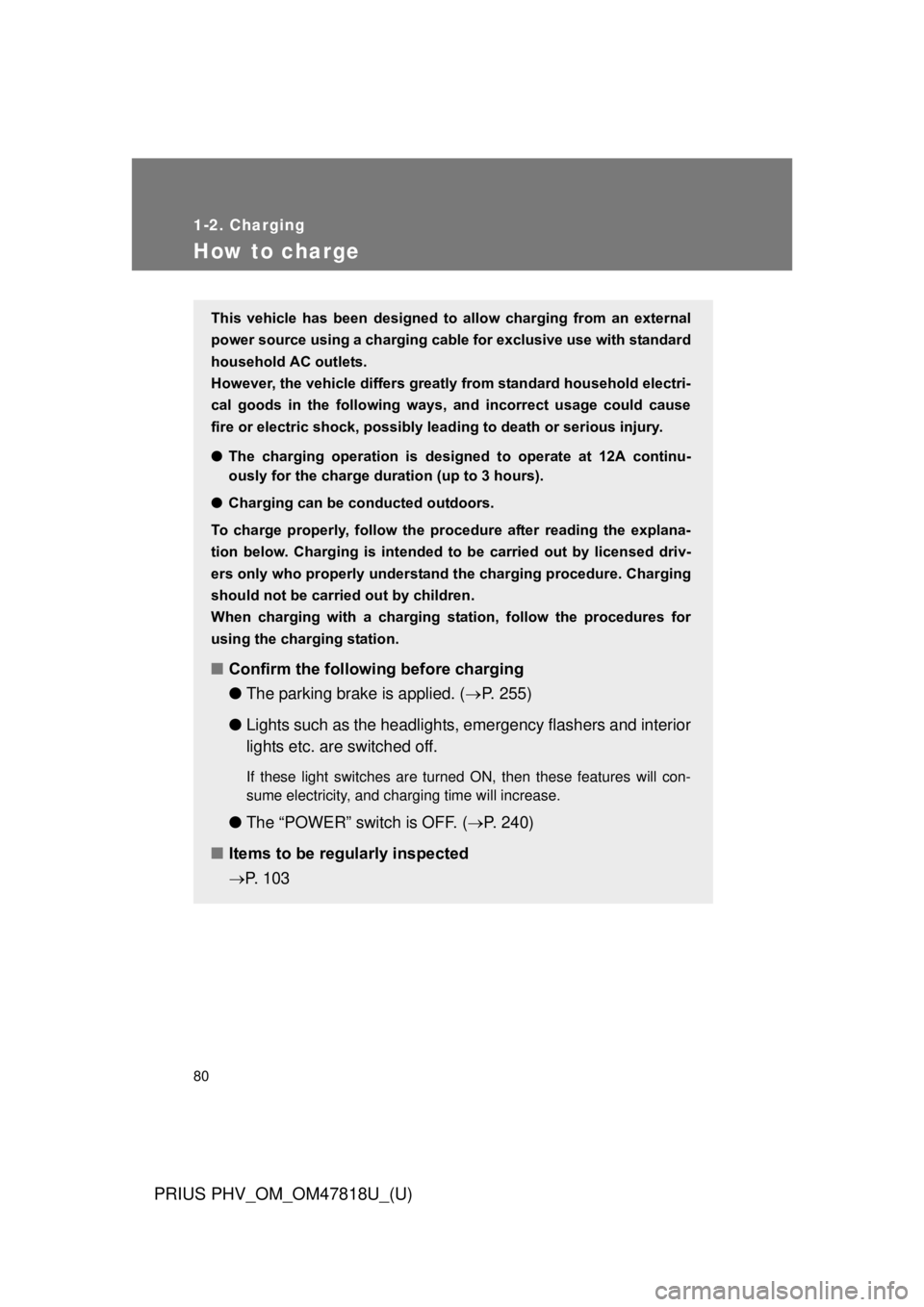

How to charge
This vehicle has been designed to allow charging from an external
power source using a charging cable for exclusive use with standard
household AC outlets.
However, the vehicle differs greatly from standard household electri-
cal goods in the following ways, and incorrect usage could cause
fire or electric shock, possibly leading to death or serious injury.
● The charging operation is designe d to operate at 12A continu-
ously for the charge dura tion (up to 3 hours).
● Charging can be conducted outdoors.
To charge properly, follow the pr ocedure after reading the explana-
tion below. Charging is intended to be carried out by licensed driv-
ers only who properly understand the charging procedure. Charging
should not be carried out by children.
When charging with a charging st ation, follow the procedures for
using the charging station.
■ Confirm the following before charging
●The parking brake is applied. ( P. 255)
● Lights such as the headlights, emergency flashers and interior
lights etc. are switched off.
If these light switches are turned ON, then these features will con-
sume electricity, and charging time will increase.
●The “POWER” switch is OFF. ( P. 240)
■ Items to be regularly inspected
P. 103
