TOYOTA PRIUS PLUG-IN 2012 Owners Manual

2
PLUG-IN QG_U (OM47747U)
1. Charging operation
How to charge

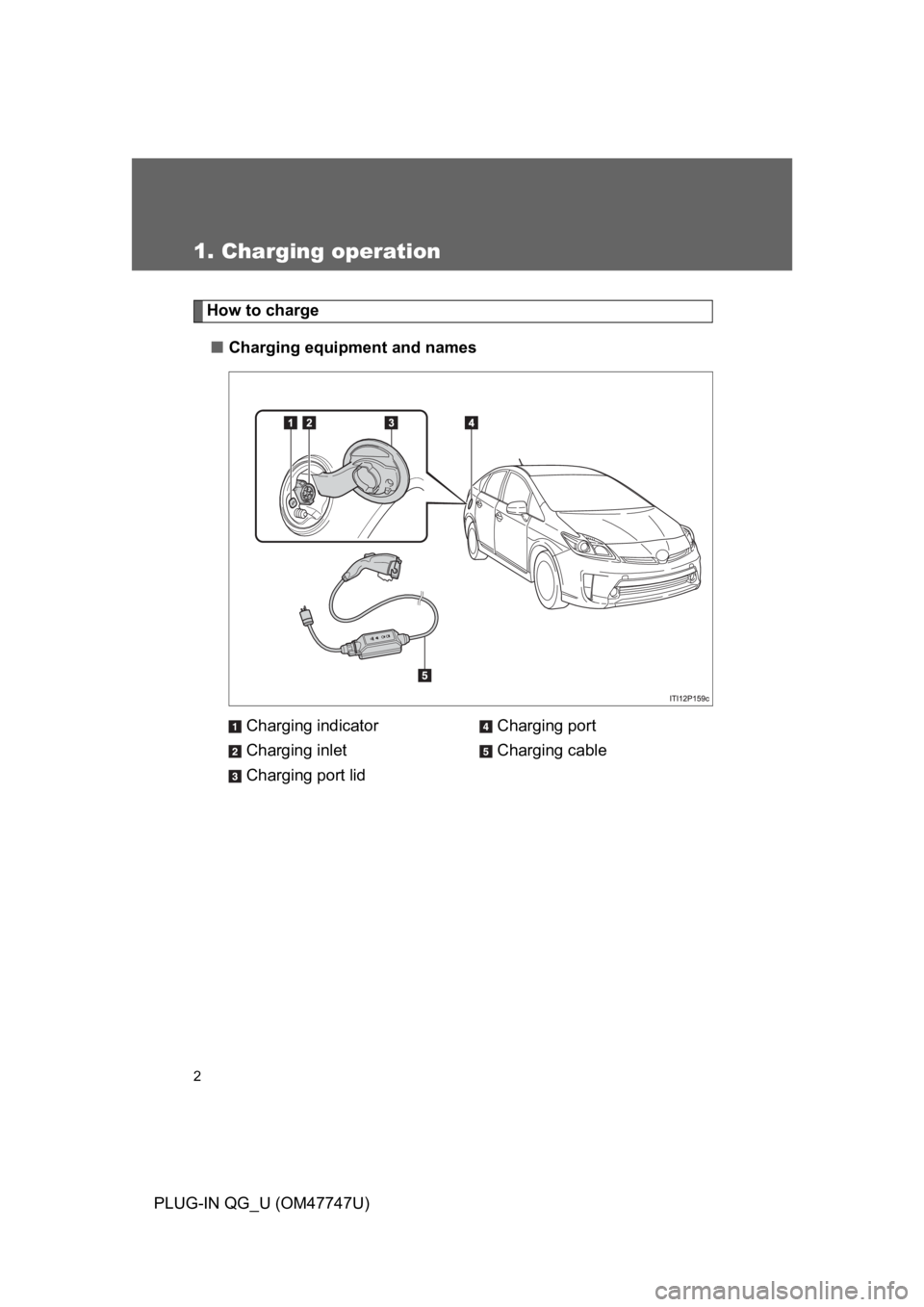

■Charging equipment and names
Charging indicator
Charging inlet
Charging port lid
Charging port
Charging cable

3
1. Charging operation
PLUG-IN QG_U (OM47747U)

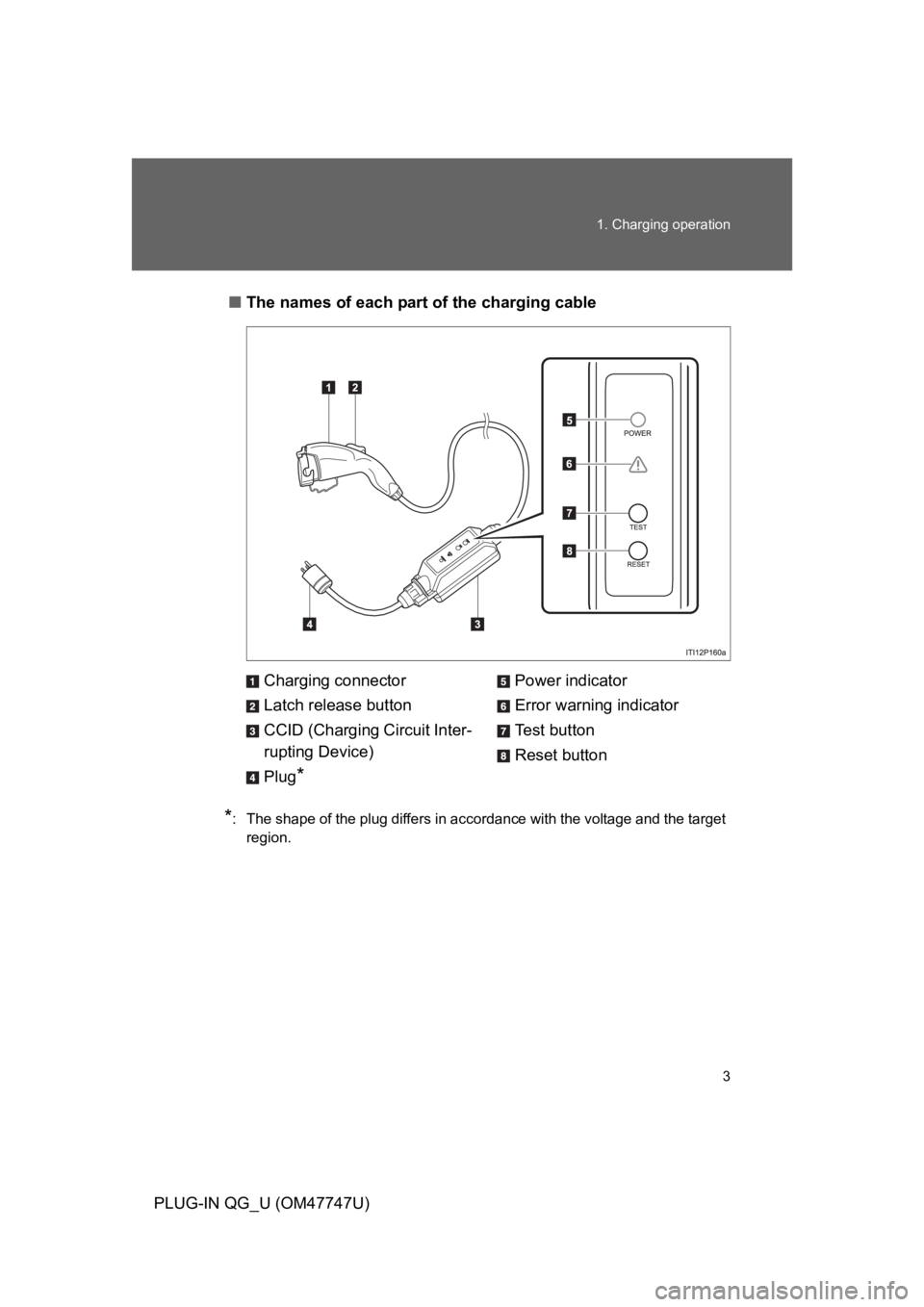

■The names of each part of the charging cable
*:The shape of the plug differs in accordance with the voltage and the target
region.
Charging connector
Latch release button
CCID (Charging Circuit Inter-
rupting Device)
Plug*
Power indicator
Error warning indicator
Te s t b u t t o n
Reset button

4
1. Charging operation
PLUG-IN QG_U (OM47747U)
■Confirm the following before recharging
●The parking brake is applied.
●Lights such as the headlights, emergency flashers and interior
lights etc. are switched off.
If these light switches are turned ON, then these features will consume
electricity, and recharging time will increase.
●The “POWER” switch is OFF.

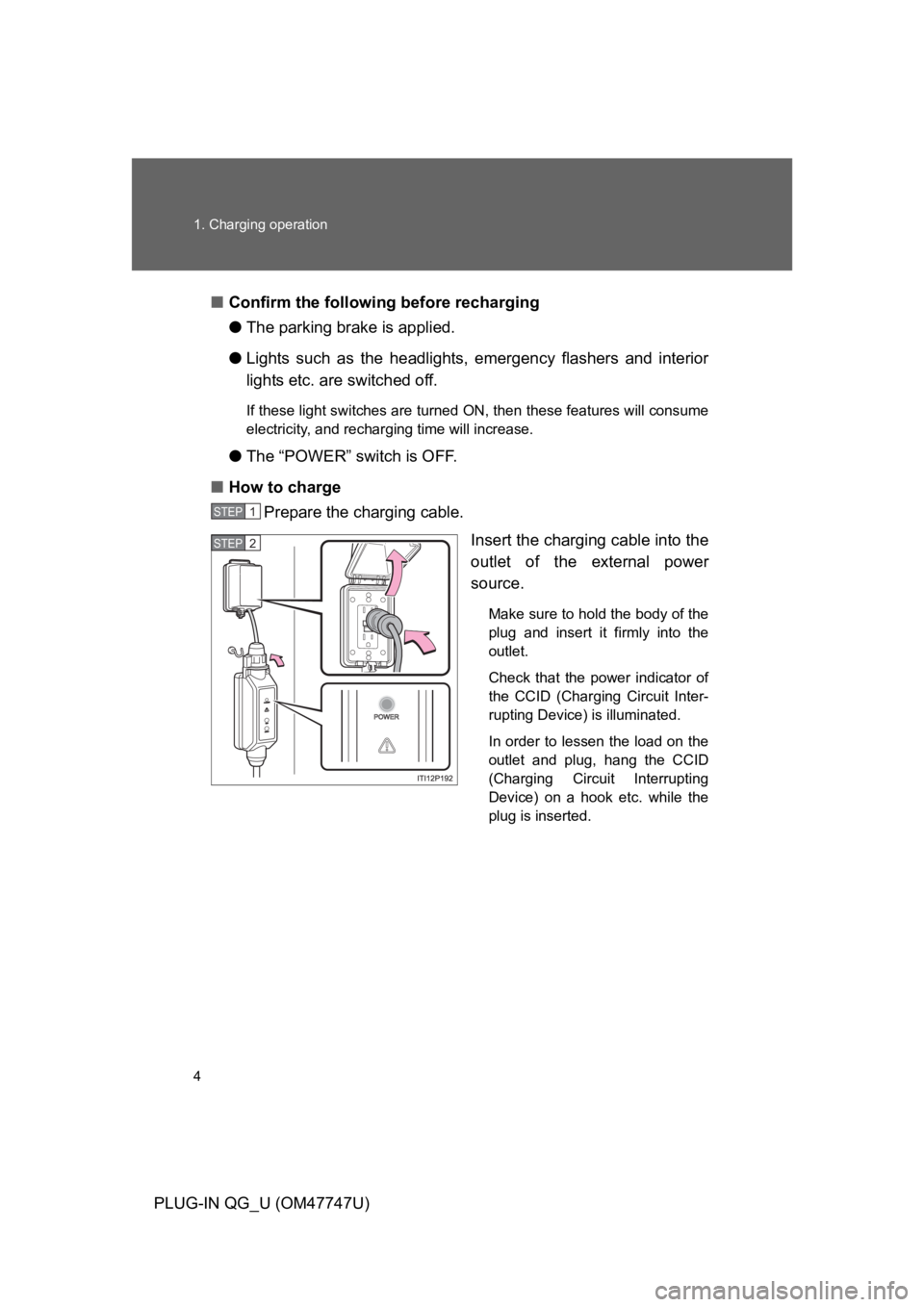

■How to charge
Prepare the charging cable.
Insert the charging cable into the
outlet of the external power
source.
Make sure to hold the body of the
plug and insert it firmly into the
outlet.
Check that the power indicator of
the CCID (Charging Circuit Inter-
rupting Device) is illuminated.
In order to lessen the load on the
outlet and plug, hang the CCID
(Charging Circuit Interrupting
Device) on a hook etc. while the
plug is inserted.
STEP1
STEP2

5
1. Charging operation
PLUG-IN QG_U (OM47747U)

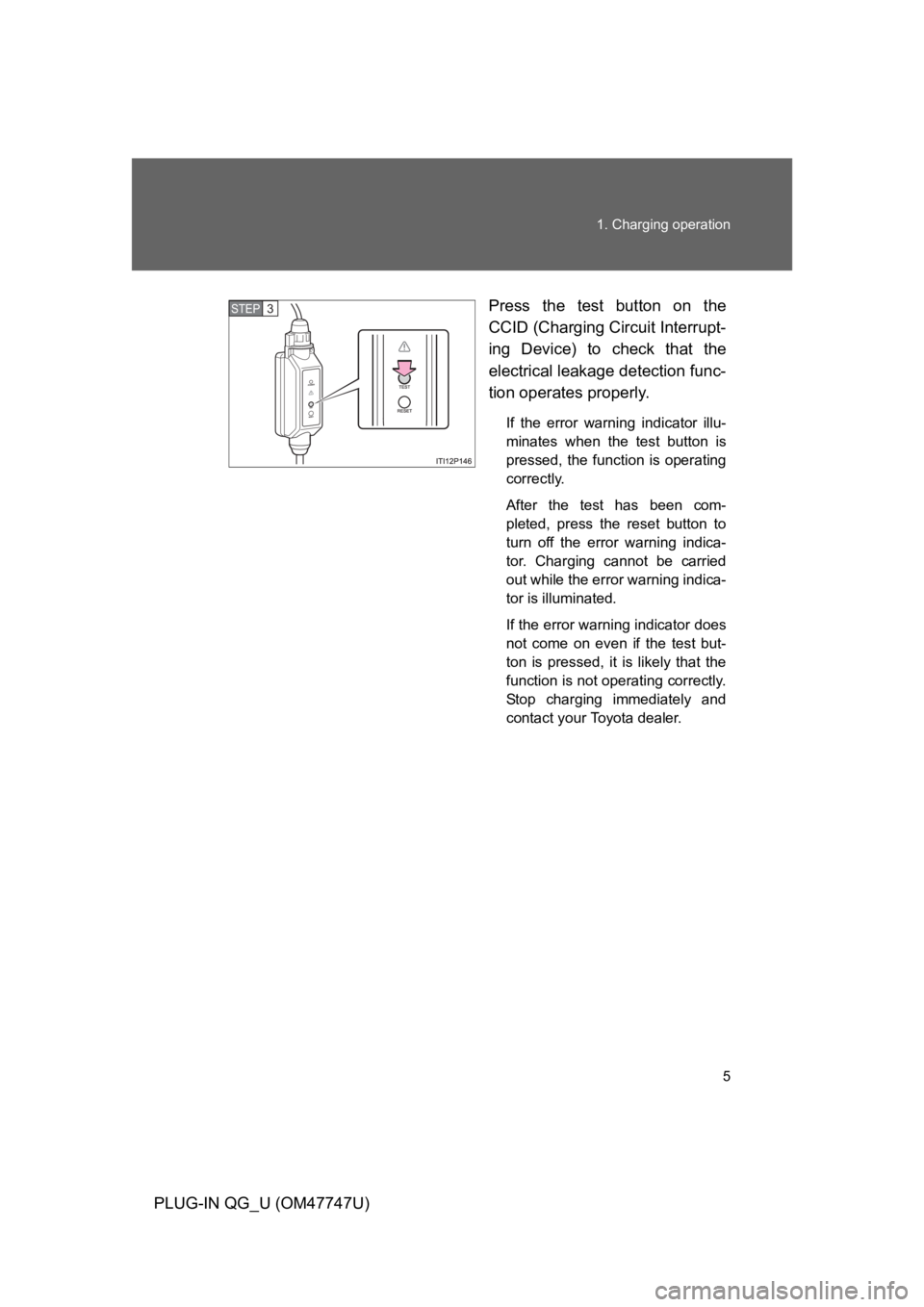

Press the test button on the
CCID (Charging Circuit Interrupt-
ing Device) to check that the
electrical leakage detection func-
tion operates properly.
If the error warning indicator illu-
minates when the test button is
pressed, the function is operating
correctly.
After the test has been com-
pleted, press the reset button to
turn off the error warning indica-
tor. Charging cannot be carried
out while the error warning indica-
tor is illuminated.
If the error warning indicator does
not come on even if the test but-
ton is pressed, it is likely that the
function is not operating correctly.
Stop charging immediately and
contact your Toyota dealer.
STEP3

6
1. Charging operation
PLUG-IN QG_U (OM47747U)

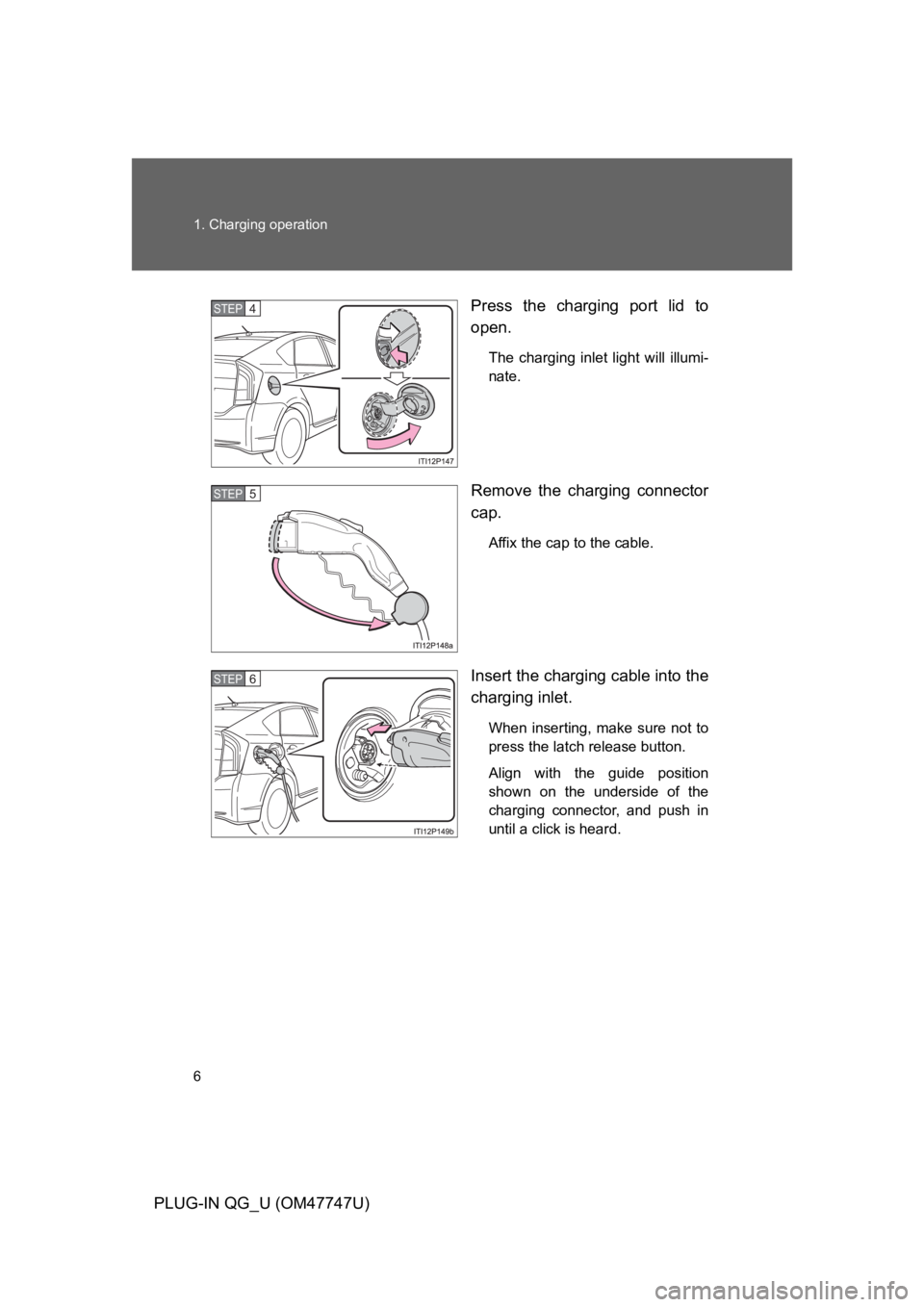

Press the charging port lid to
open.
The charging inlet light will illumi-
nate.
Remove the charging connector
cap.
Affix the cap to the cable.
Insert the charging cable into the
charging inlet.
When inserting, make sure not to
press the latch release button.
Align with the guide position
shown on the underside of the
charging connector, and push in
until a click is heard.
STEP4
STEP5
STEP6

7
1. Charging operation
PLUG-IN QG_U (OM47747U)
Confirm that the charging indica-
tor is illuminated. (When the
charging timer function is in use,
the light will turn off several sec-
onds after illuminating.)
Charging cannot be started if the
charging indicator does not illumi-
nate when the charging cable is
inserted.
The amount of time until charging
is completed can be checked on
the energy monitor by turning the
“POWER” switch to ON mode.
The charging indicator will turn off
when charging is completed.
STEP7

8
1. Charging operation
PLUG-IN QG_U (OM47747U)
■After charging
Pull the charging connector
towards you while pressing the
latch release button.
If the charging connector is dis-
connected during charging (while
the charging indicator is on),
charging will be interrupted.
Attach the charging connector cap.
Close the charging port lid.
Remove the plug from the outlet when the charging equip-
ment will not be used for a prolonged period of time.
Hold the body of the plug when removing.
Make sure to put the cable away immediately after disconnecting.
When leaving the plug inserted, inspect the plug and connector once
a month to check if dirt or dust has accumulated.
STEP1
STEP2
STEP3
STEP4

9
1. Charging operation
PLUG-IN QG_U (OM47747U)
■Charging timer function
By using the charging timer function, deterioration of the hybrid bat-
tery (traction battery) charge can be suppressed, and off-peak elec-
tricity can be used effectively.
●A charging time can be assigned by setting the charging start time
or finish time.
●Once the time has been set, the time can be assigned again next
time simply by pressing the charging timer switch.

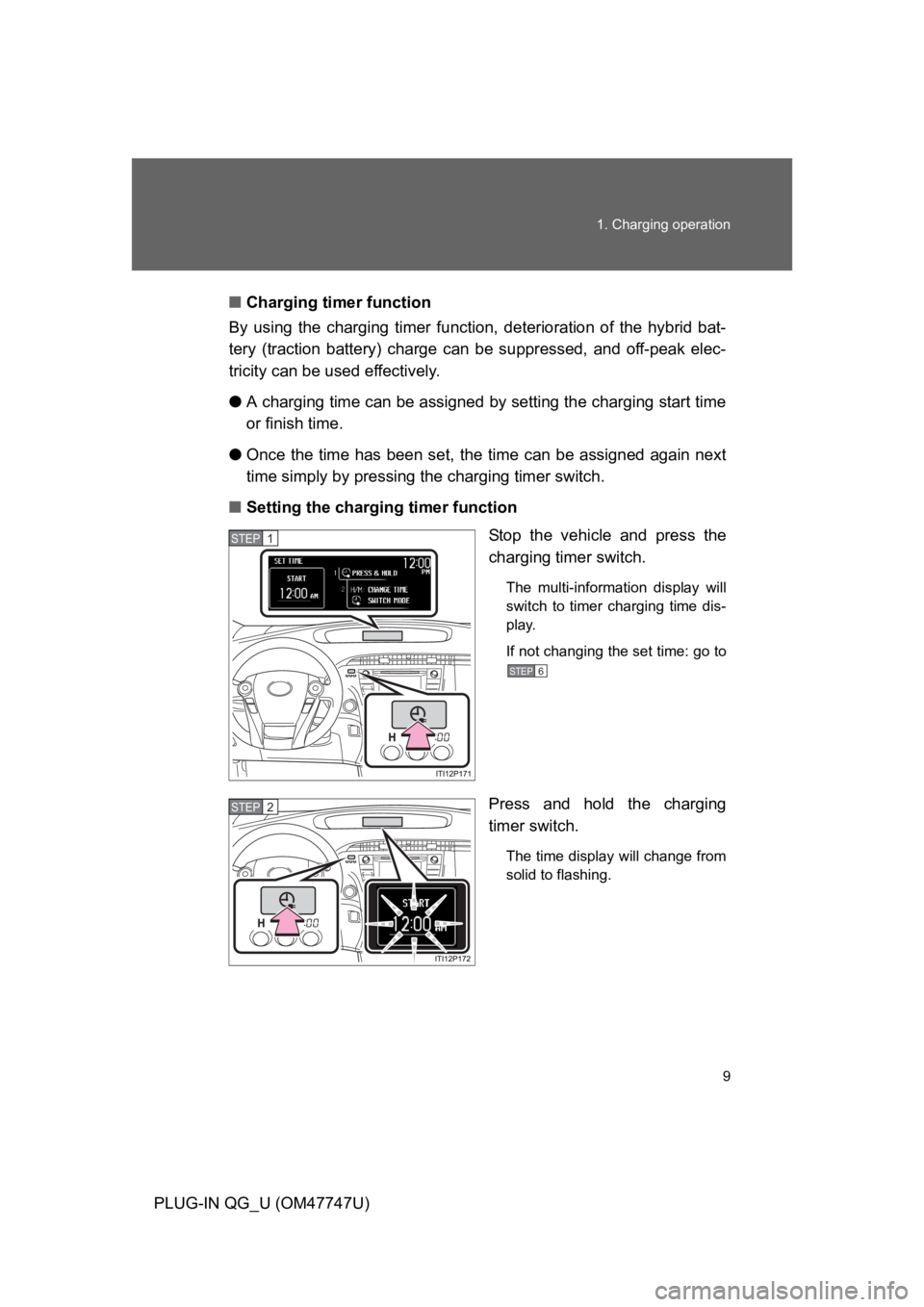

■Setting the charging timer function
Stop the vehicle and press the
charging timer switch.
The multi-information display will
switch to timer charging time dis-
play.
If not changing the set time: go to
Press and hold the charging
timer switch.
The time display will change from
solid to flashing.
STEP1
STEP6
STEP2

10
1. Charging operation
PLUG-IN QG_U (OM47747U)

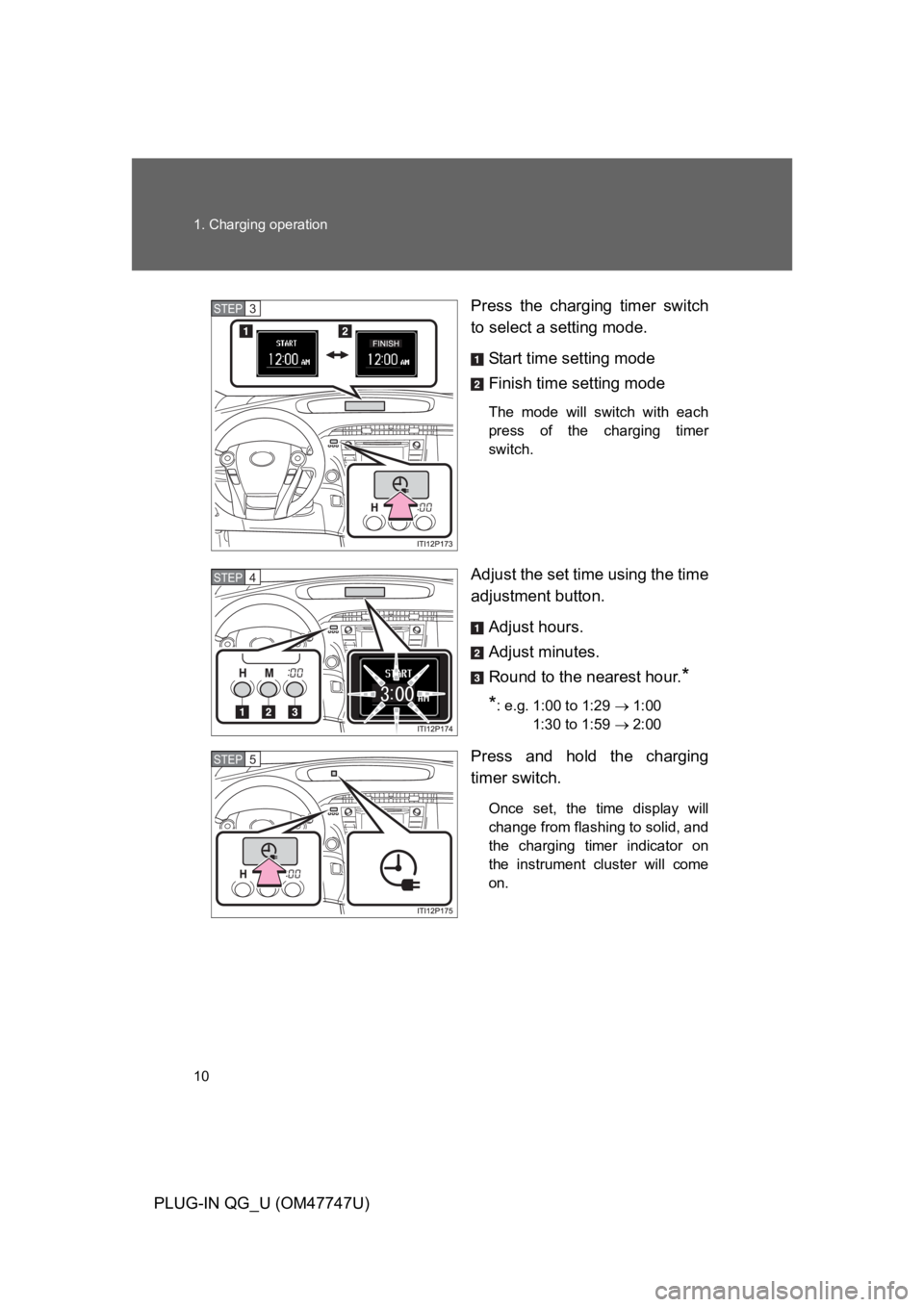

Press the charging timer switch
to select a setting mode.
Start time setting mode
Finish time setting mode
The mode will switch with each
press of the charging timer
switch.
Adjust the set time using the time
adjustment button.
Adjust hours.
Adjust minutes.
Round to the nearest hour.*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
Press and hold the charging
timer switch.
Once set, the time display will
change from flashing to solid, and
the charging timer indicator on
the instrument cluster will come
on.
STEP3
STEP4
STEP5

11
1. Charging operation
PLUG-IN QG_U (OM47747U)
Turn the “POWER” switch off.
The charging timer indicator will start flashing.
Connect the charging cable to the vehicle.
Check that the charging indicator (→P. 2 ) h a s c o m e o n . I t w i l l t u r n o f f
after several seconds.
If the indicator does not come on, re-insert the charging connector. If
it still does not come on, check the power supply status using the
power indicator on the CCID (Charging Circuit Interrupting Device).

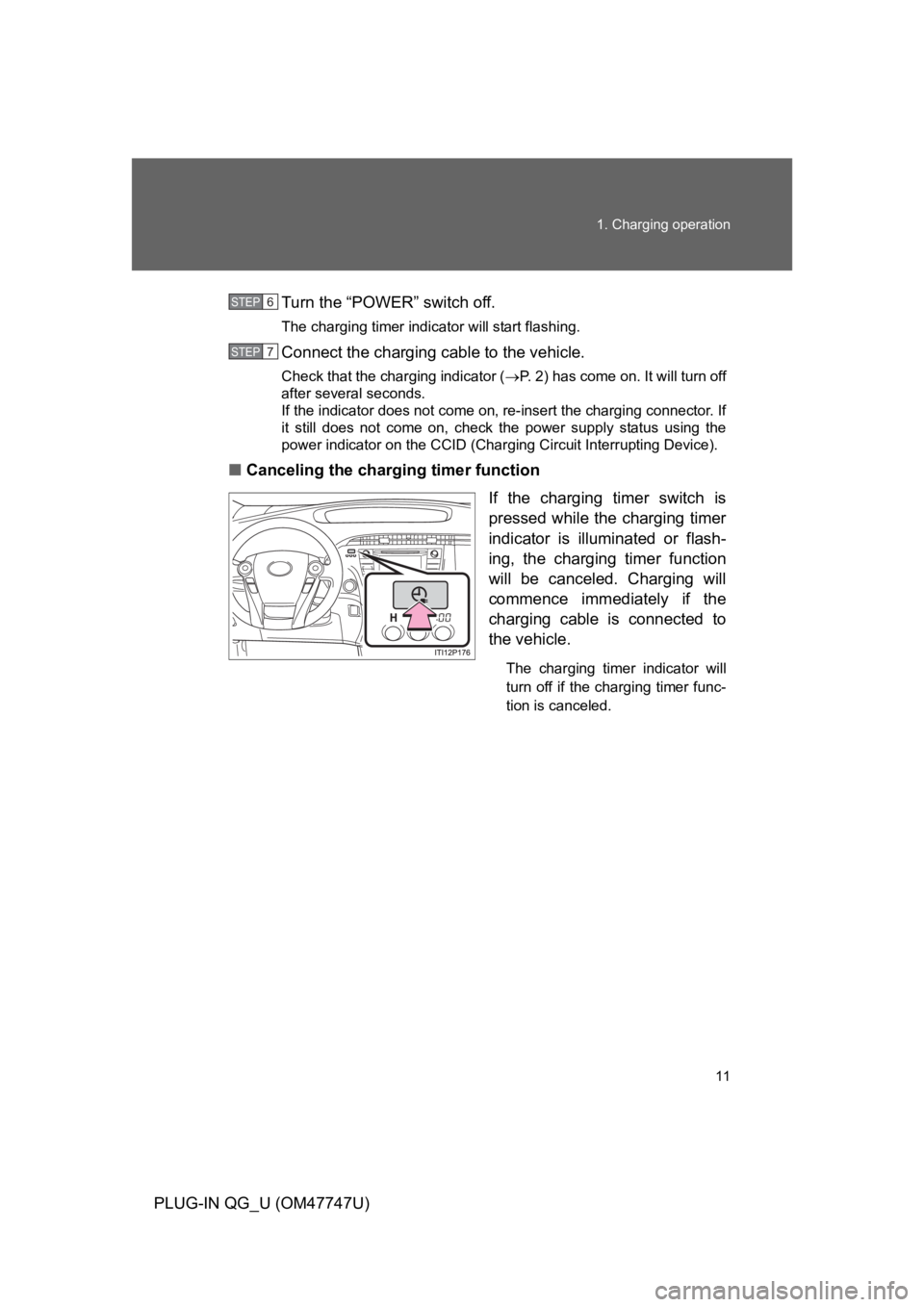

■Canceling the charging timer function
If the charging timer switch is
pressed while the charging timer
indicator is illuminated or flash-
ing, the charging timer function
will be canceled. Charging will
commence immediately if the
charging cable is connected to
the vehicle.
The charging timer indicator will
turn off if the charging timer func-
tion is canceled.
STEP6
STEP7
