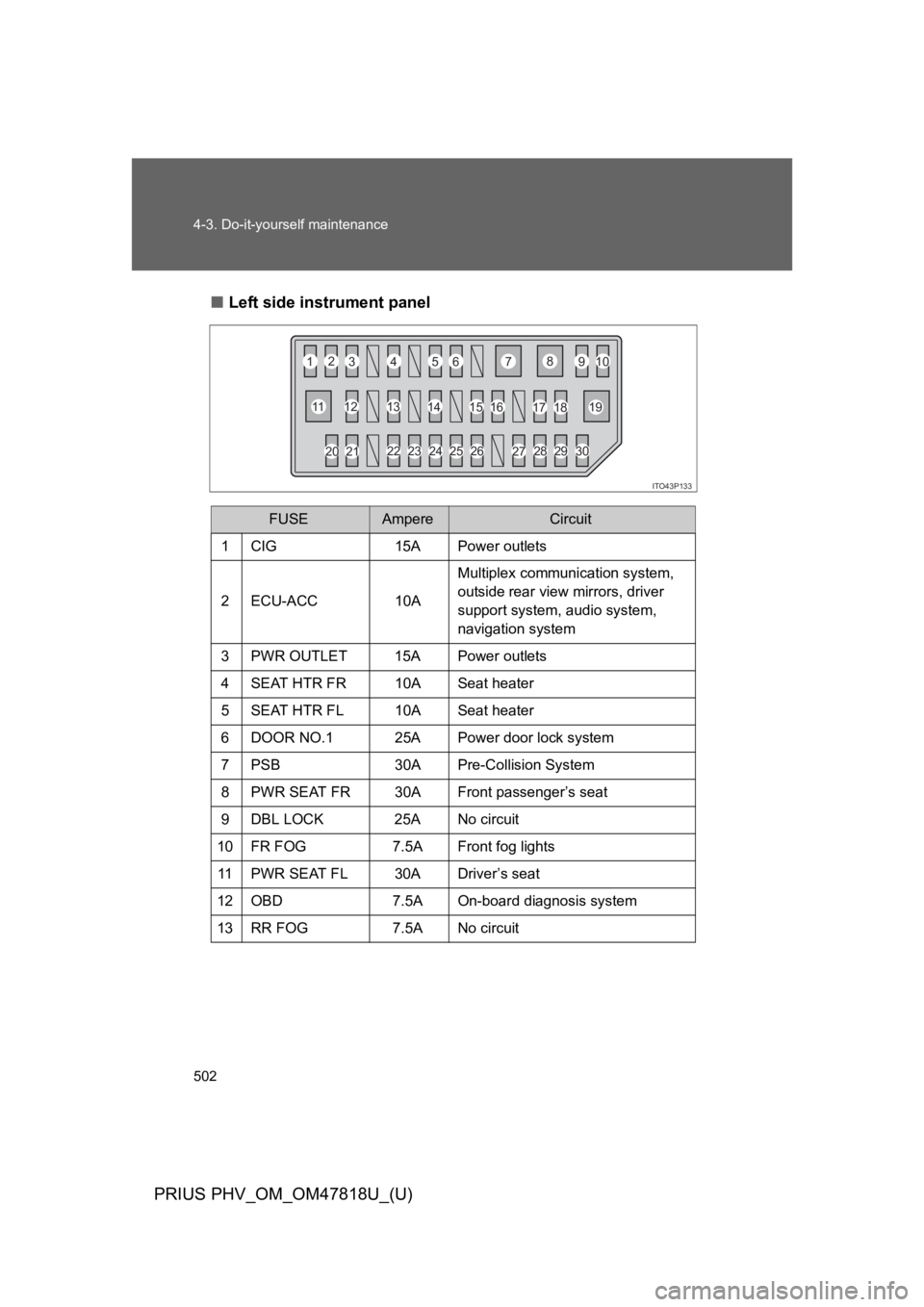

4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
■Left side instrument panel
FUSEAmpereCircuit
1CIG 15A Power outlets
2ECU-ACC 10A
Multiplex communication system,
outside rear view mirrors, driver
support system, audio system,
navigation system
3PWR OUTLET 15A Power outlets
4SEAT HTR FR 10A Seat heater
5SEAT HTR FL 10A Seat heater
6DOOR NO.1 25A Power door lock system
7PSB 30A Pre-Collision System
8 PWR SEAT FR 30A Front passenger’s seat
9DBL LOCK 25A No circuit
10 FR FOG 7.5A Front fog lights
11 PWR SEAT FL 30A Driver’s seat
12 OBD 7.5A On-board diagnosis system
13 RR FOG 7.5A No circuit
ITO43P133
12345678910
111213141516171819
2324252627282930202122
