TOYOTA PRIUS PLUG-IN 2014 Owners Manual

78
1-2. Charging
PRIUS PHV_OM_OM47856U_(U)

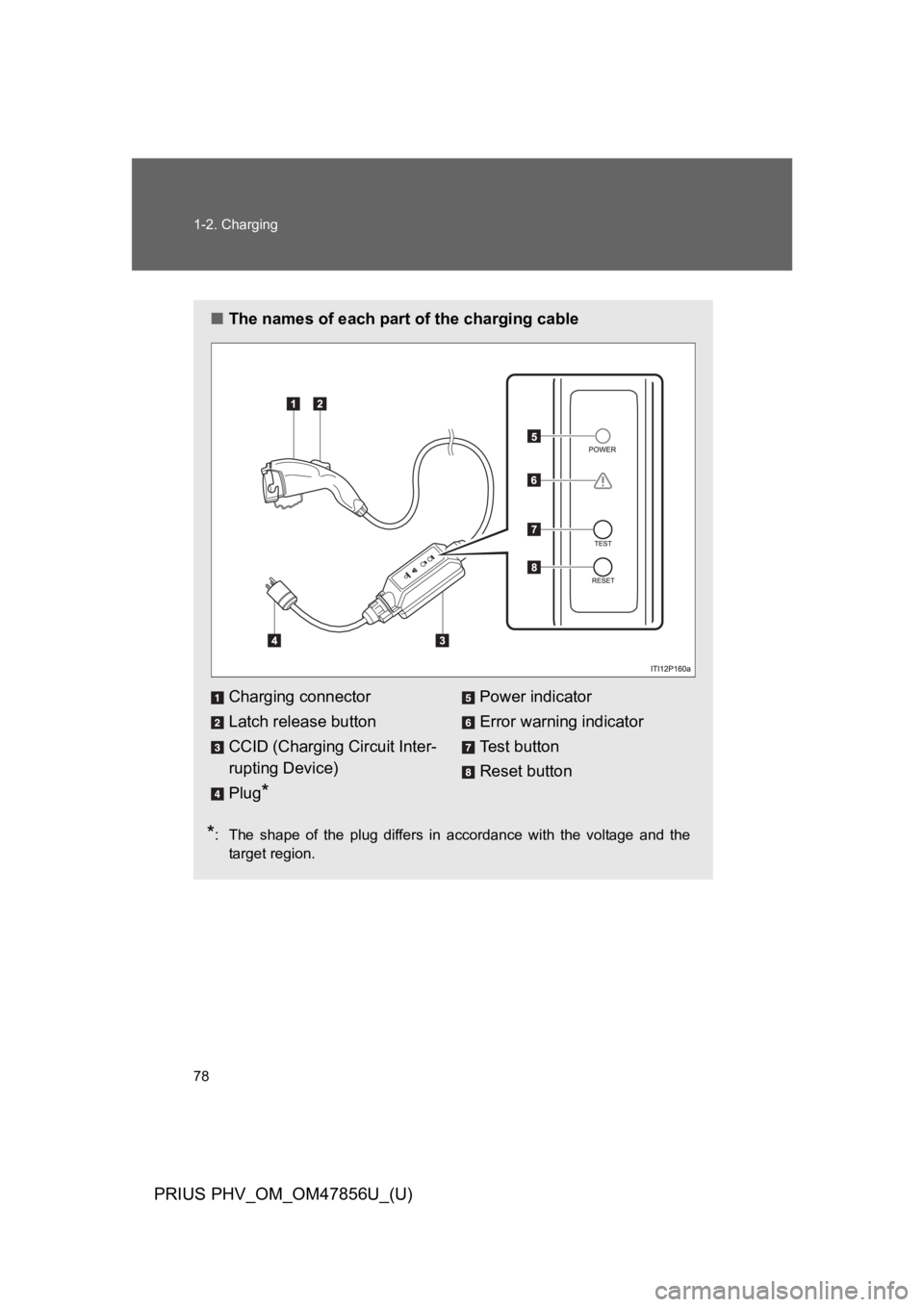

■The names of each part of the charging cable
*:The shape of the plug differs in accordance with the voltage and the
target region.
Charging connector
Latch release button
CCID (Charging Circuit Inter-
rupting Device)
Plug*
Power indicator
Error warning indicator
Te s t b u t t o n
Reset button

79
1-2. Charging
1
Before driving
PRIUS PHV_OM_OM47856U_(U)
Safety functions
The CCID (Charging Circuit Interrupting Device) has the following
safety features.
■Electrical leakage detection function
If an electrical leakage is detected during charging, the power
source will be automatically interrupted, thus preventing fires or
electrical shocks caused by electrical leakage.
If the power source is interrupted, the error warning indicator will illumi-
nate.
If the power source is interrupted: →P. 1 0 6
■Electrical leakage test function
The electrical leakage detection function can be tested prior to
charging to confirm that it is operating correctly.
When the test button is pressed while the plug is connected to an exter-
nal power source, the error warning indicator should illuminate.
(→P. 1 0 7 )
■Conditions for supplying current to the vehicle
The CCID (Charging Circuit Interrupting Device) is designed to
prevent electrical current from being supplied to the charging con-
nector when it is not connected to the vehicle, even if the plug is
inserted into the outlet.
■Charging cable
The charging cable may become hard in low temperatures.

80
1-2. Charging
PRIUS PHV_OM_OM47856U_(U)
CAUTION
■When using the charging cable and CCID (Charging Circuit Interrupt-
ing Device)
Observe the following precautions.
If you do not follow them, fire, electrical shock or damage may occur, possi-
bly resulting in death or serious injury.
●Do not attempt to disassemble or repair the charging cable, charging con-
nector, plug or CCID (Charging Circuit Interrupting Device).
If a problem arises with the charging cable or the CCID (Charging Circuit
Interrupting Device), stop charging immediately and contact your Toyota
dealer.
●Do not subject the charging cable, charging connector, plug or CCID
(Charging Circuit Interrupting Device) to strong force or impact.
●Do not forcefully fold the charging cable or damage the charging cable
with sharp objects.
●Do not fold the charging connector or plug or insert foreign objects into
them.
●Do hold the body of the charging connector or plug when removing or
inserting.
●Remove the charging connector from the vehicle’s charging inlet FIRST,
before removing the plug from the outlet.
●Avoid exposure of plug to water or moisture.

81
1
1-2. Charging
Before driving
PRIUS PHV_OM_OM47856U_(U)

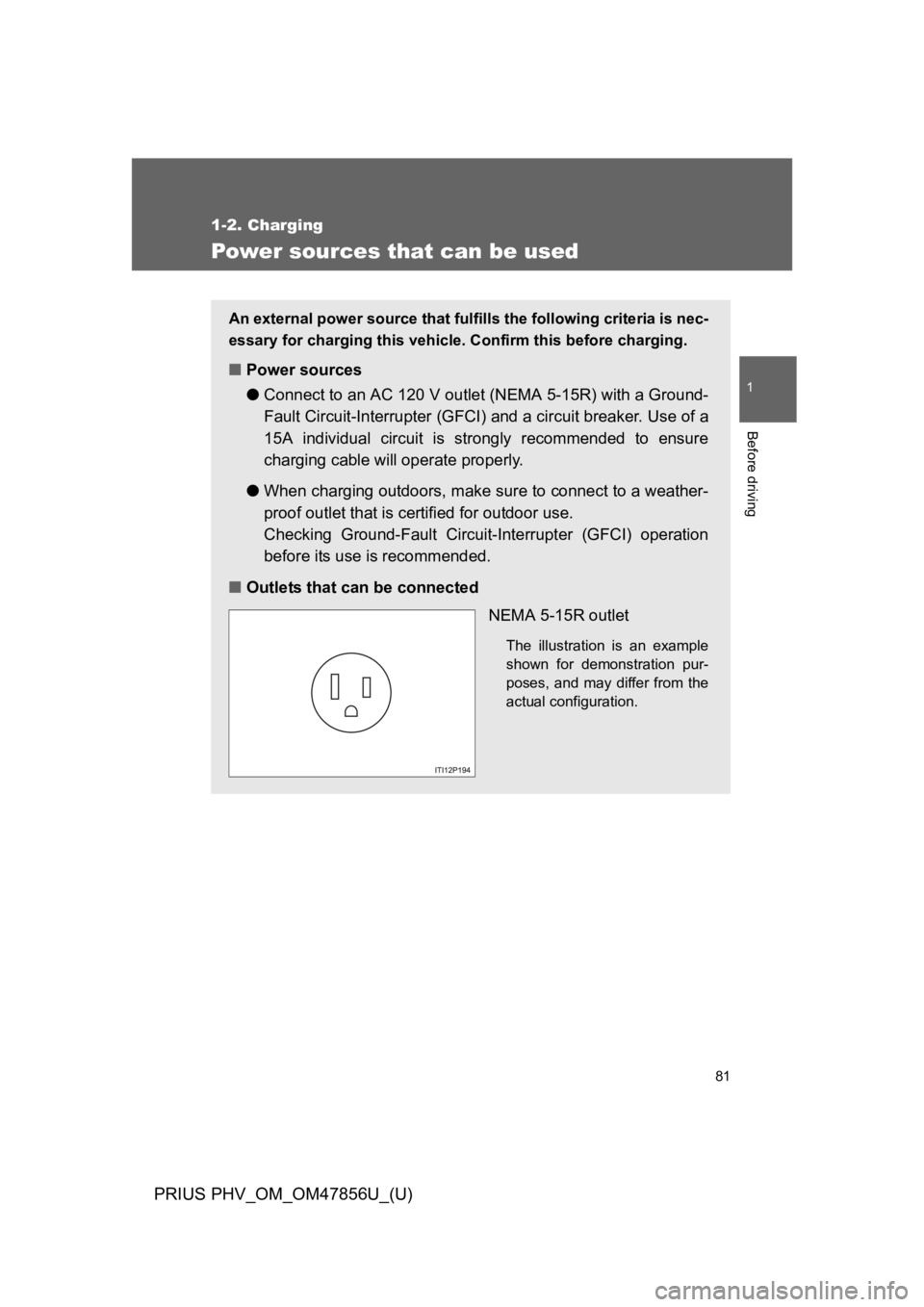

Power sources that can be used
An external power source that fulfills the following criteria is nec-
essary for charging this vehicle. Confirm this before charging.
■Power sources
●Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-
Fault Circuit-Interrupter (GFCI) and a circuit breaker. Use of a
15A individual circuit is strongly recommended to ensure
charging cable will operate properly.
●When charging outdoors, make sure to connect to a weather-
proof outlet that is certified for outdoor use.
Checking Ground-Fault Circuit-Interrupter (GFCI) operation
before its use is recommended.
■Outlets that can be connected
NEMA 5-15R outlet
The illustration is an example
shown for demonstration pur-
poses, and may differ from the
actual configuration.

82
1-2. Charging
PRIUS PHV_OM_OM47856U_(U)
■The charging environment
For safe charging, the following charging equipment and settings are recom-
mended.
●Weatherproof outlet
When charging outdoors, connect the plug to a weatherproof outlet, and
ensure that the plug remains waterproof while the plug is connected.
●Dedicated circuit
• To reduce the risk of fire, connect only to an at least 15A branch circuit
with an over-current protection in accordance with the National Electric
Code, ANSI/NFPA 70.
•To reduce the risk of electric shock when working with the plug, con-
nect to a outlet with a Ground-Fault Circuit-Interrupter (GFCI) or that
has an Earth Leakage Circuit Breaker installed.
CAUTION
■Warnings for electrical faults
Make sure to observe the following precautions when charging the vehicle.
Failure to use a power source that fulfills the requirements, or failure to
observe regulations while charging could lead to an accident, possibly
resulting in death or serious injury.

83
1-2. Charging
1
Before driving
PRIUS PHV_OM_OM47856U_(U)

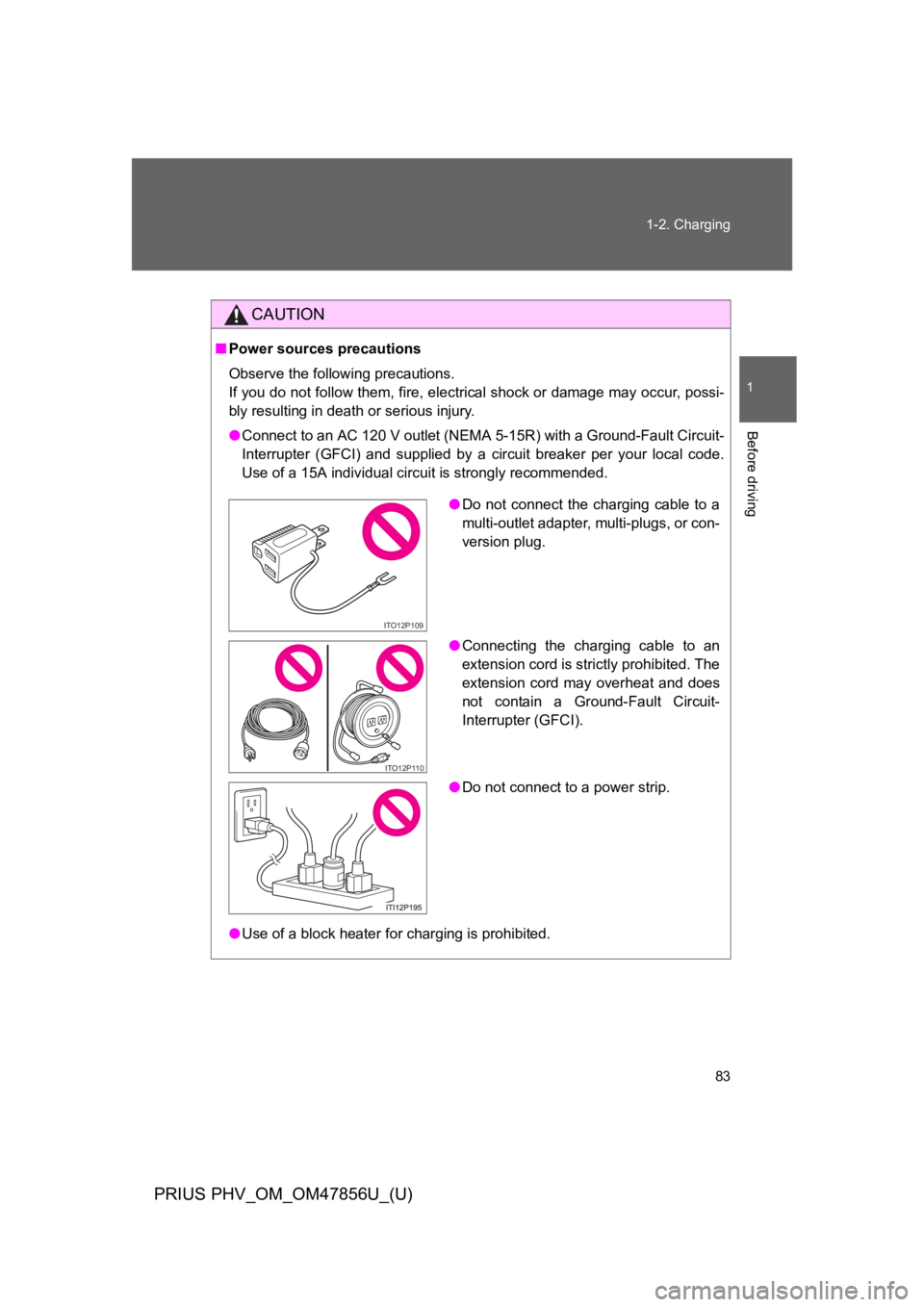

CAUTION
■Power sources precautions
Observe the following precautions.
If you do not follow them, fire, electrical shock or damage may occur, possi-
bly resulting in death or serious injury.
●Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit-
Interrupter (GFCI) and supplied by a circuit breaker per your local code.
Use of a 15A individual circuit is strongly recommended.
●Use of a block heater for charging is prohibited.
●Do not connect the charging cable to a
multi-outlet adapter, multi-plugs, or con-
version plug.
●Connecting the charging cable to an
extension cord is strictly prohibited. The
extension cord may overheat and does
not contain a Ground-Fault Circuit-
Interrupter (GFCI).
●Do not connect to a power strip.
ITO12P109
ITO12P110

84
1-2. Charging
PRIUS PHV_OM_OM47856U_(U)

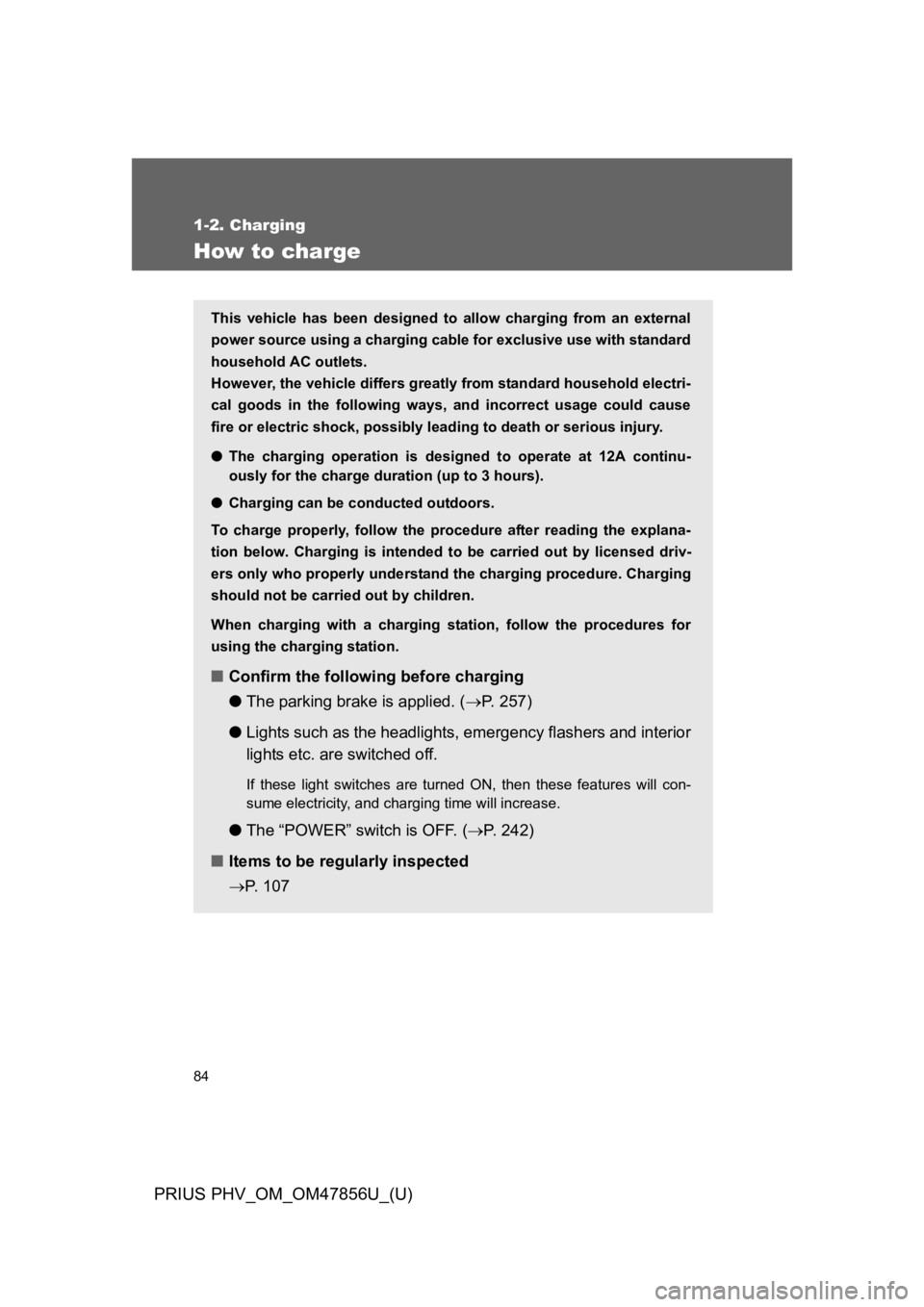

How to charge
This vehicle has been designed to allow charging from an external
power source using a charging cable for exclusive use with standard
household AC outlets.
However, the vehicle differs greatly from standard household electri-
cal goods in the following ways, and incorrect usage could cause
fire or electric shock, possibly leading to death or serious injury.
●The charging operation is designed to operate at 12A continu-
ously for the charge duration (up to 3 hours).
●Charging can be conducted outdoors.
To c h a r g e p r o p e r l y, f o l l o w t h e p rocedure after reading the explana-
tion below. Charging is intended to be carried out by licensed driv-
ers only who properly understand the charging procedure. Charging
should not be carried out by children.
When charging with a charging station, follow the procedures for
using the charging station.
■Confirm the following before charging
●The parking brake is applied. (→P. 2 5 7 )
●Lights such as the headlights, emergency flashers and interior
lights etc. are switched off.
If these light switches are turned ON, then these features will con-
sume electricity, and charging time will increase.
●The “POWER” switch is OFF. (→P. 2 4 2 )
■Items to be regularly inspected
→P. 1 0 7

85
1-2. Charging
1
Before driving
PRIUS PHV_OM_OM47856U_(U)

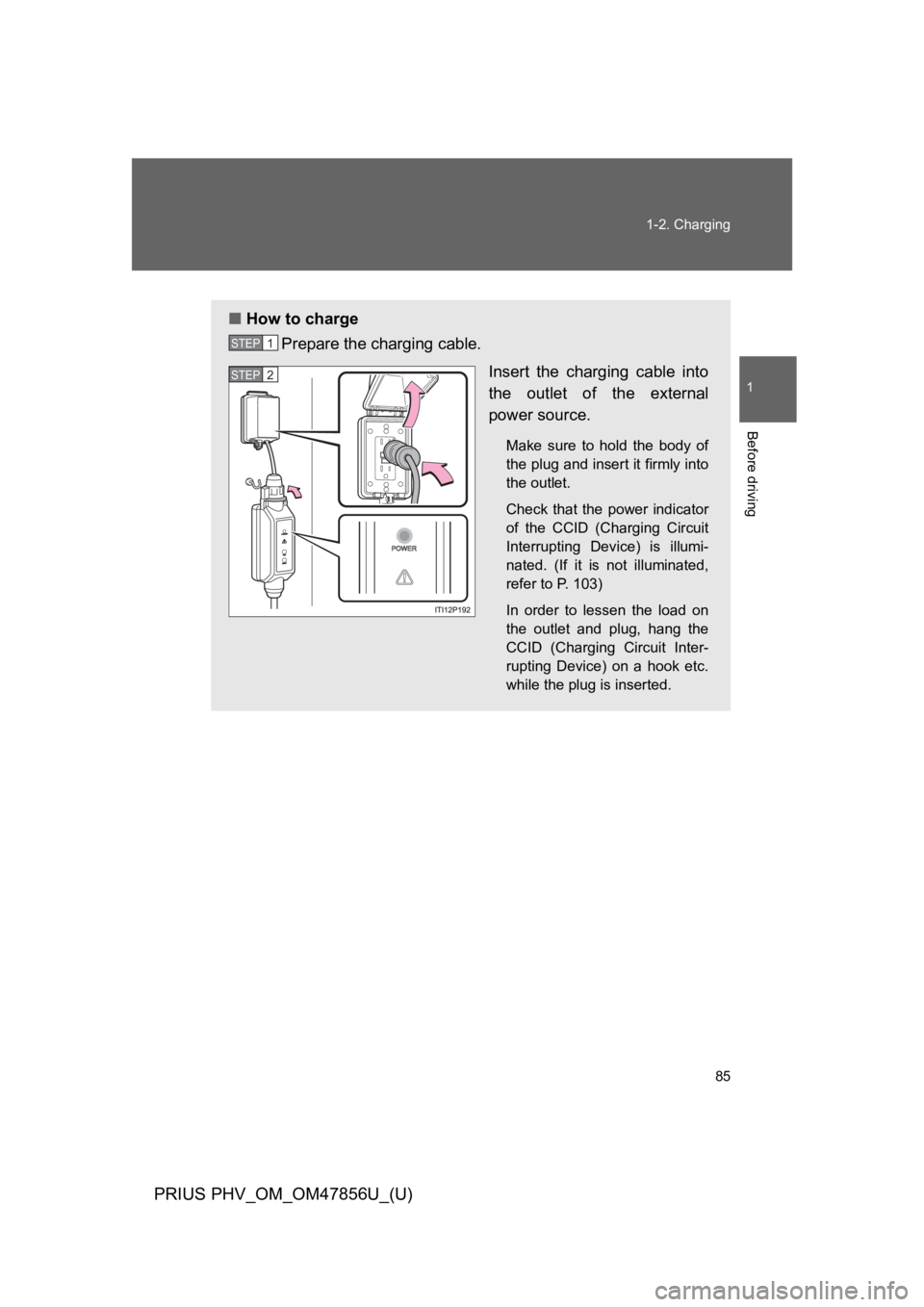

■How to charge
Prepare the charging cable.
Insert the charging cable into
the outlet of the external
power source.
Make sure to hold the body of
the plug and insert it firmly into
the outlet.
Check that the power indicator
of the CCID (Charging Circuit
Interrupting Device) is illumi-
nated. (If it is not illuminated,
refer to P. 103)
In order to lessen the load on
the outlet and plug, hang the
CCID (Charging Circuit Inter-
rupting Device) on a hook etc.
while the plug is inserted.
STEP 1
STEP 2

86
1-2. Charging
PRIUS PHV_OM_OM47856U_(U)
Press the test button on the
CCID (Charging Circuit Inter-
rupting Device) to check that
the electrical leakage detec-
tion function operates prop-
erly.
If the error warning indicator
illuminates when the test but-
ton is pressed, the function is
operating correctly.
After the test has been com-
pleted, press the reset button
to turn off the error warning
indicator. Charging cannot be
carried out while the error
warning indicator is illumi-
nated.
If the error warning indicator
does not come on even if the
test button is pressed, it is
likely that the function is not
operating correctly. Stop
charging immediately and con-
tact your Toyota dealer.
STEP 3

87
1-2. Charging
1
Before driving
PRIUS PHV_OM_OM47856U_(U)

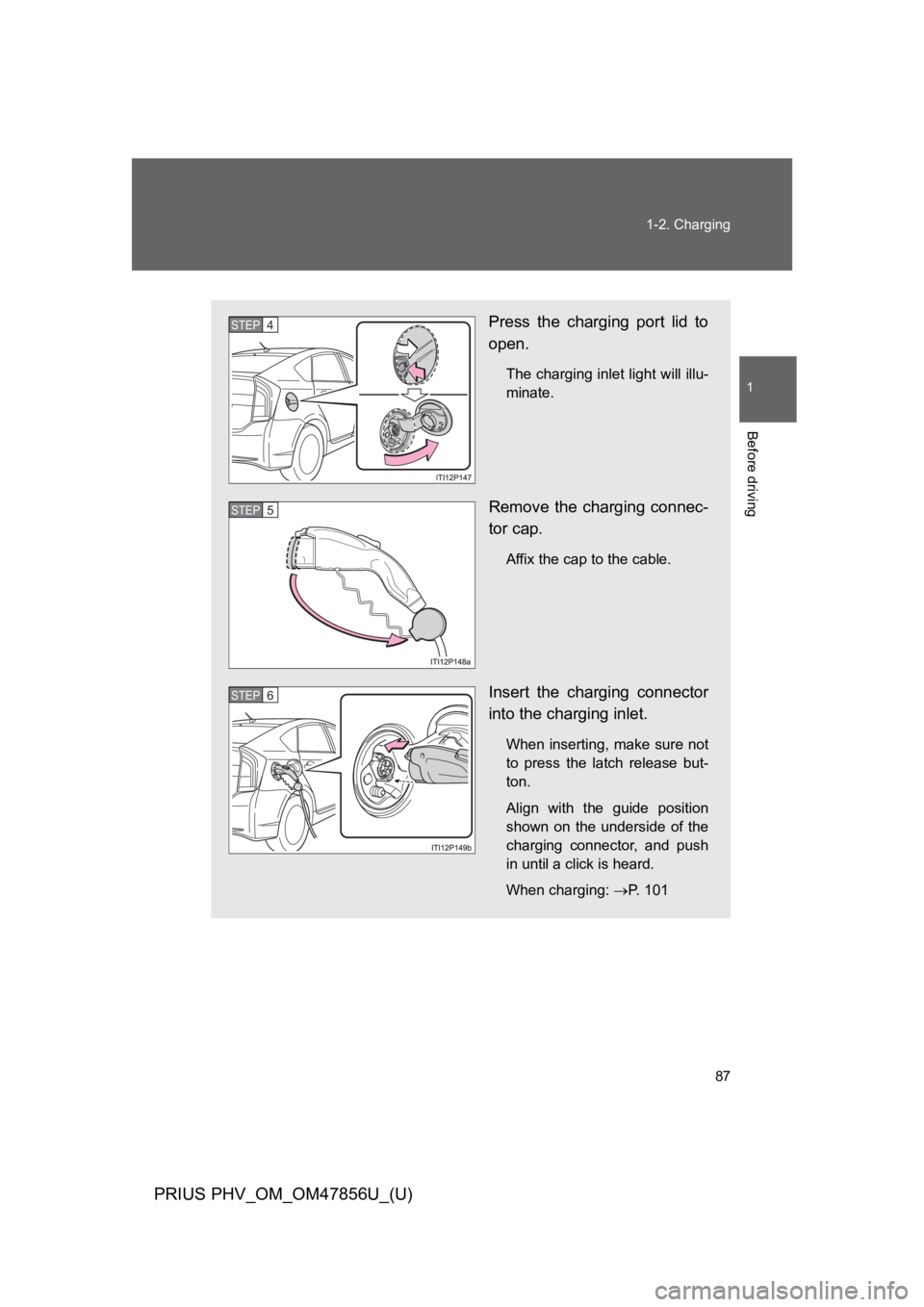

Press the charging port lid to
open.
The charging inlet light will illu-
minate.
Remove the charging connec-
tor cap.
Affix the cap to the cable.
Insert the charging connector
into the charging inlet.
When inserting, make sure not
to press the latch release but-
ton.
Align with the guide position
shown on the underside of the
charging connector, and push
in until a click is heard.
When charging: →P. 1 0 1
STEP 4
STEP 5
STEP 6
