TOYOTA PRIUS PLUG-IN 2015 Owners Manual

259
2-1. Driving procedures
PRIUS PHV_OM_OM47A11U_(U)
2
When driving

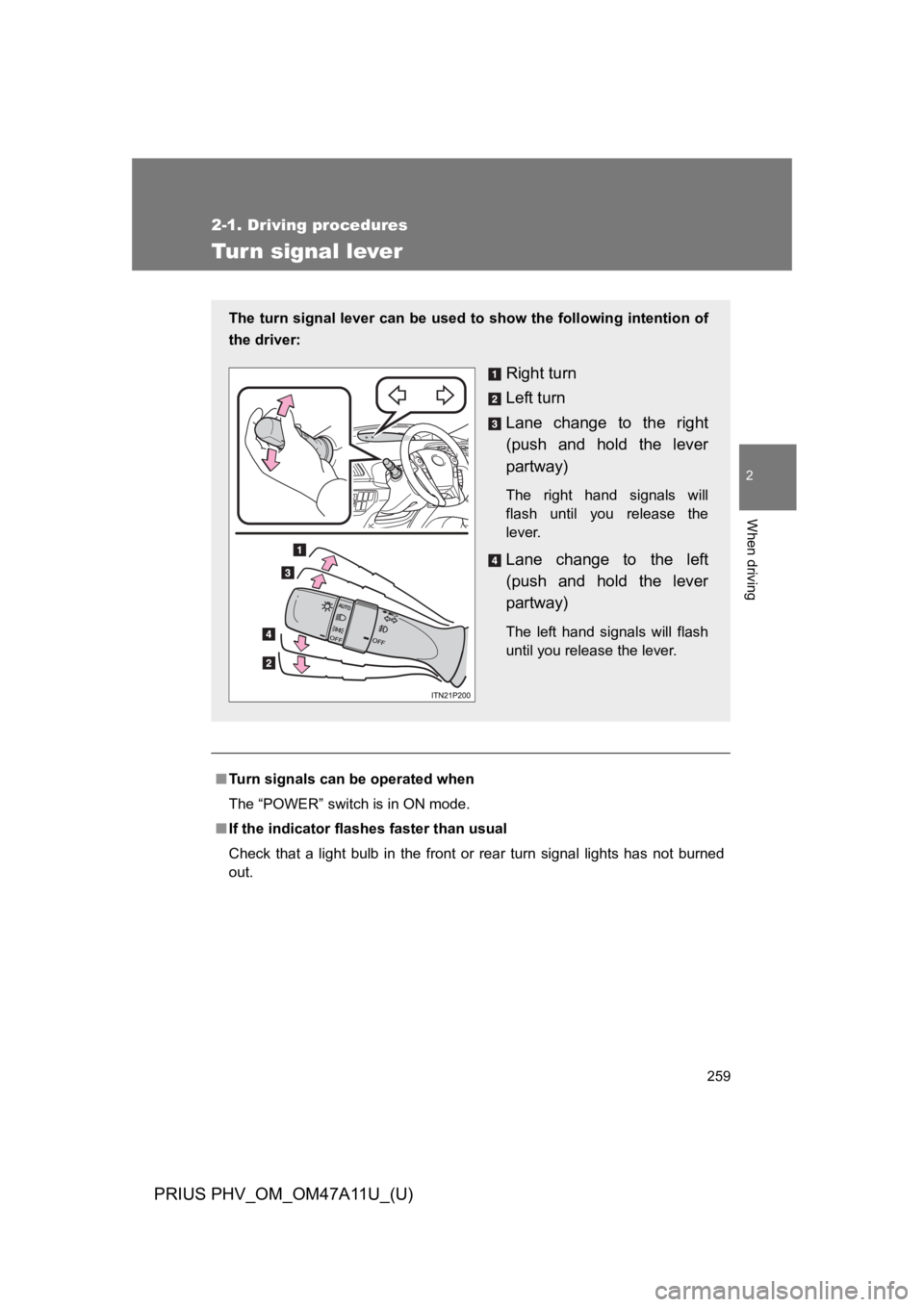

Tur n signal lever
■Tu r n s i g n a l s c a n b e o p e r a t e d w h e n
The “POWER” switch is in ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intention of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.

260
2-1. Driving procedures
PRIUS PHV_OM_OM47A11U_(U)

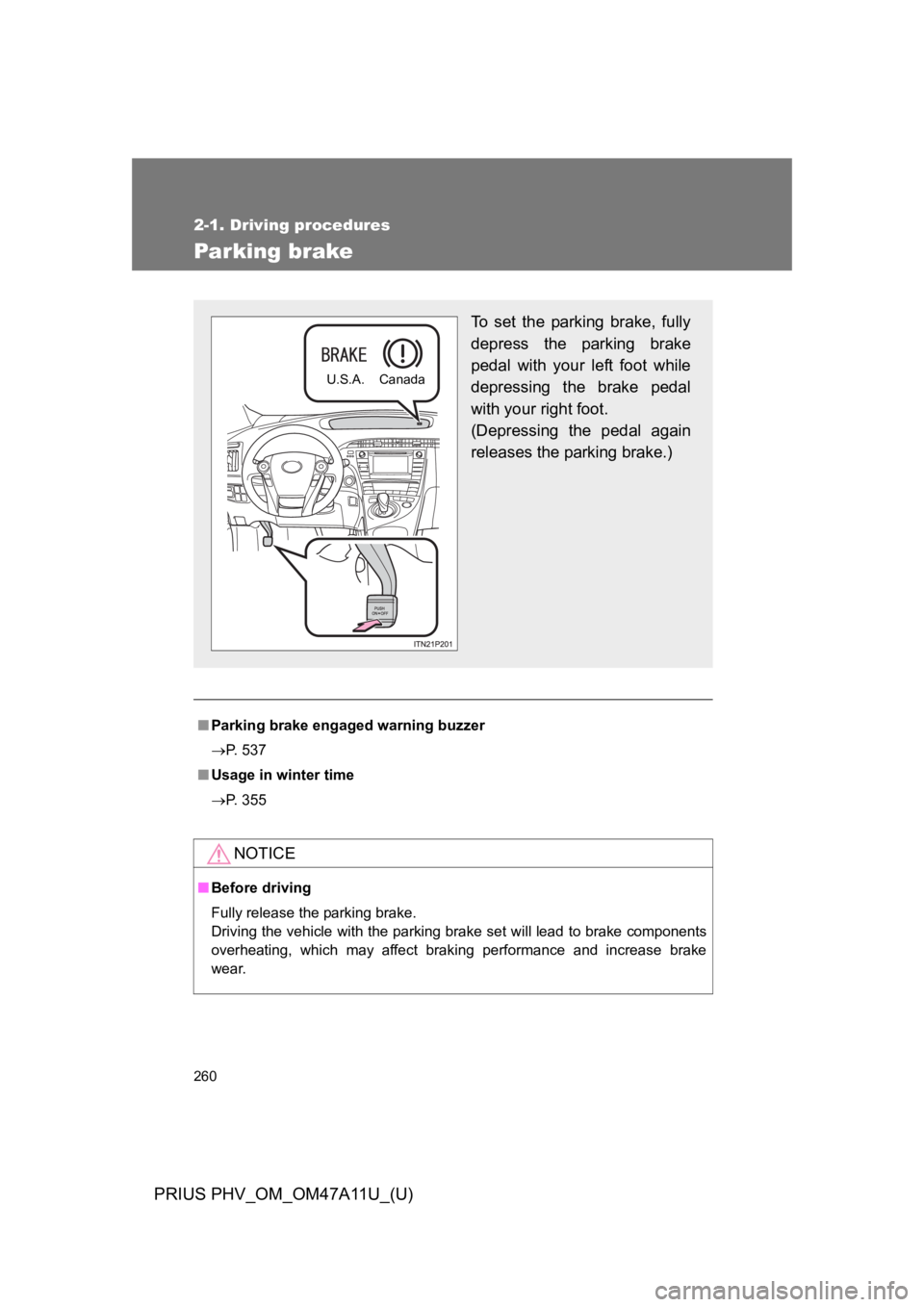

Par king brake
■Parking brake engaged warning buzzer
oP. 5 3 7
■Usage in winter time
oP. 3 5 5
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To s e t t h e p a r k i n g b r a k e , f u l l y
depress the parking brake
pedal with your left foot while
depressing the brake pedal
with your right foot.
(Depressing the pedal again
releases the parking brake.)
U.S.A. Canada

261
2-1. Driving procedures
PRIUS PHV_OM_OM47A11U_(U)
2
When driving

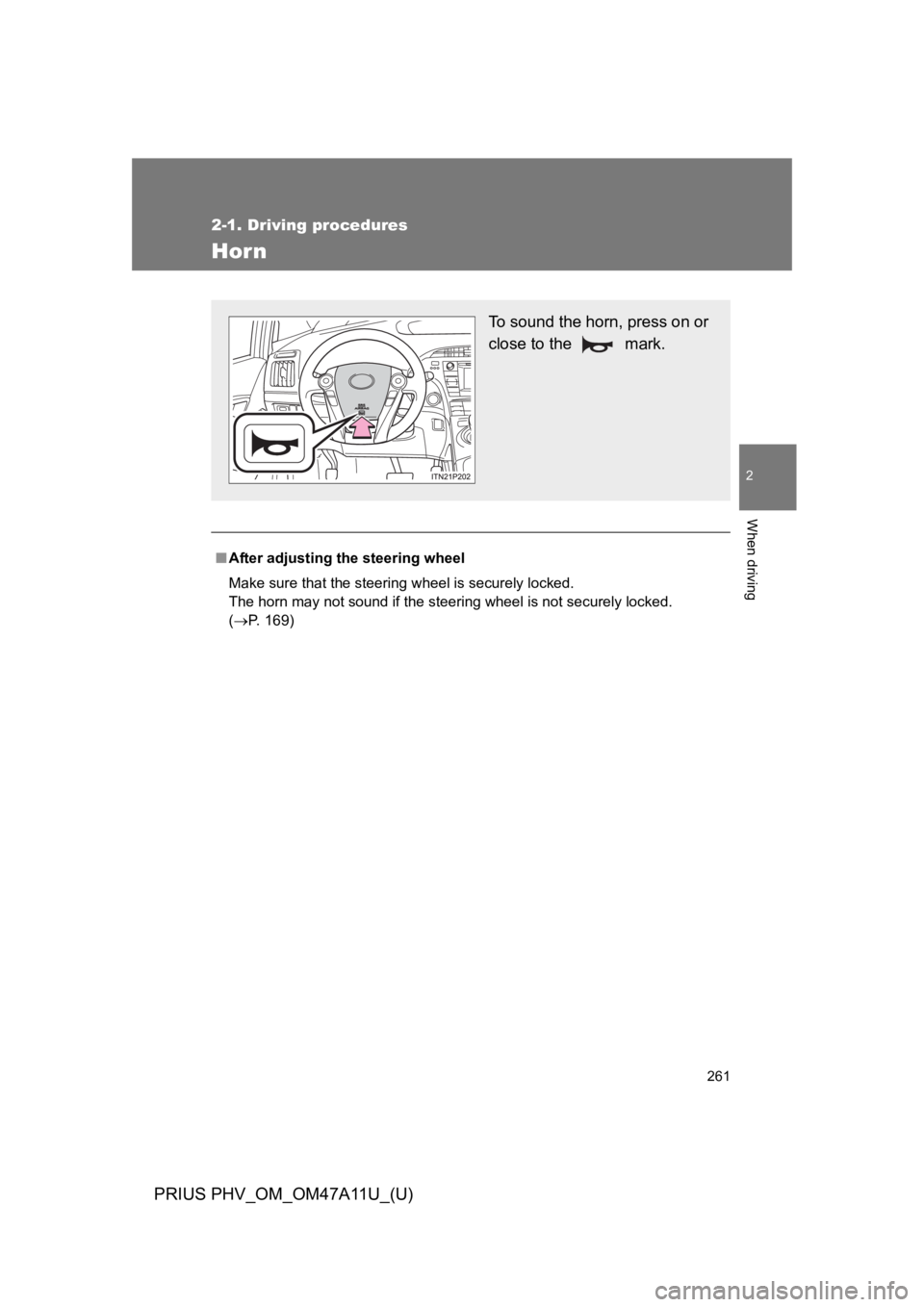

Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(oP. 1 6 9 )
To s o u n d t h e h o r n , p r e s s o n o r
close to the mark.

262
PRIUS PHV_OM_OM47A11U_(U)
2-2. Instrument cluster

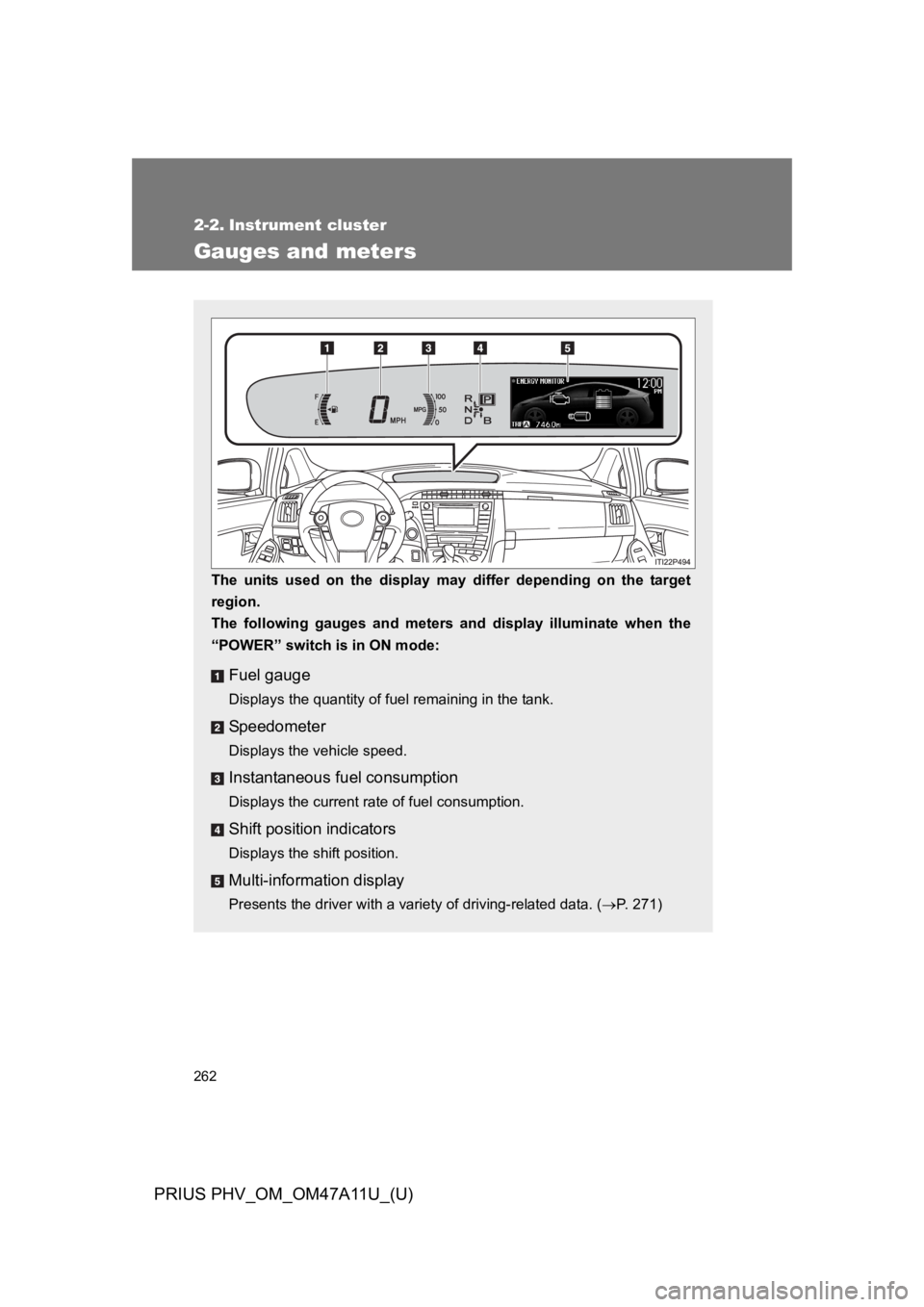

Gauges and meters
The units used on the display may differ depending on the target
region.
The following gauges and meters and display illuminate when the
“POWER” switch is in ON mode:
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Spe edometer
Displays the vehicle speed.
Instantaneous fuel consumption
Displays the current rate of fuel consumption.
Shift position indicators
Displays the shift position.
Multi-information display
Presents the driver with a variety of driving-related data. (oP. 2 7 1 )

263
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
To u c h t r a c e r d i s p l a y ( i f e q u i p p e d )
When the audio control switches,
climate control switches, “DISP”
button or “TRIP” button of the
steering wheel are touched, the
touch tracer display will appear
in front of the gauges, with the
touched button highlighted to
allow the driver to identify the
button that is being operated.
The button can then be operated
by further presses.
If an audio/navigation system is
used that is not compatible with
the steering switches in this vehi-
cle, the audio switch display may
not operate correctly.

264
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
MPH or km/h button
The speed units can be selected MPH or km/h.
Press the button to switch the
display between MPH and km/h.

265
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
Instrument panel light control
When the headlight switch is turned on while the surrounding area is
dark, the brightness of the instrument panel lights can be adjusted by
turning the dial.
Brighter
Darker
■Brightness of the instrument panel light
●If the headlight switch is turned on while the surrounding area is dark, the
instrument panel lights will dim.
If a display is difficult to see, the dimming can be canceled by fully turning
the dial in the direction of .
Turn the dial in the direction of in order to return the dimming.
●If the dial is fully turned in the direction of in the daytime, the bright-
ness of the instrument panel light can be darkened by one level.

266
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
CAUTION
■To p r e v e n t a n a c c i d e n t
NOTICE
■To p r e v e n t d a m a g e t o t h e e n g i n e a n d i ts c o m p o n e n ts
The engine may be overheating if the high coolant temperature warning light
comes on or flashes. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (oP. 6 0 7 )
Do not place anything or attach a sticker
in front of the instrument cluster. The item
may obscure or obstruct the display, or
could reflect off the display, possibly
causing an accident.
Instrument cluster

267
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving

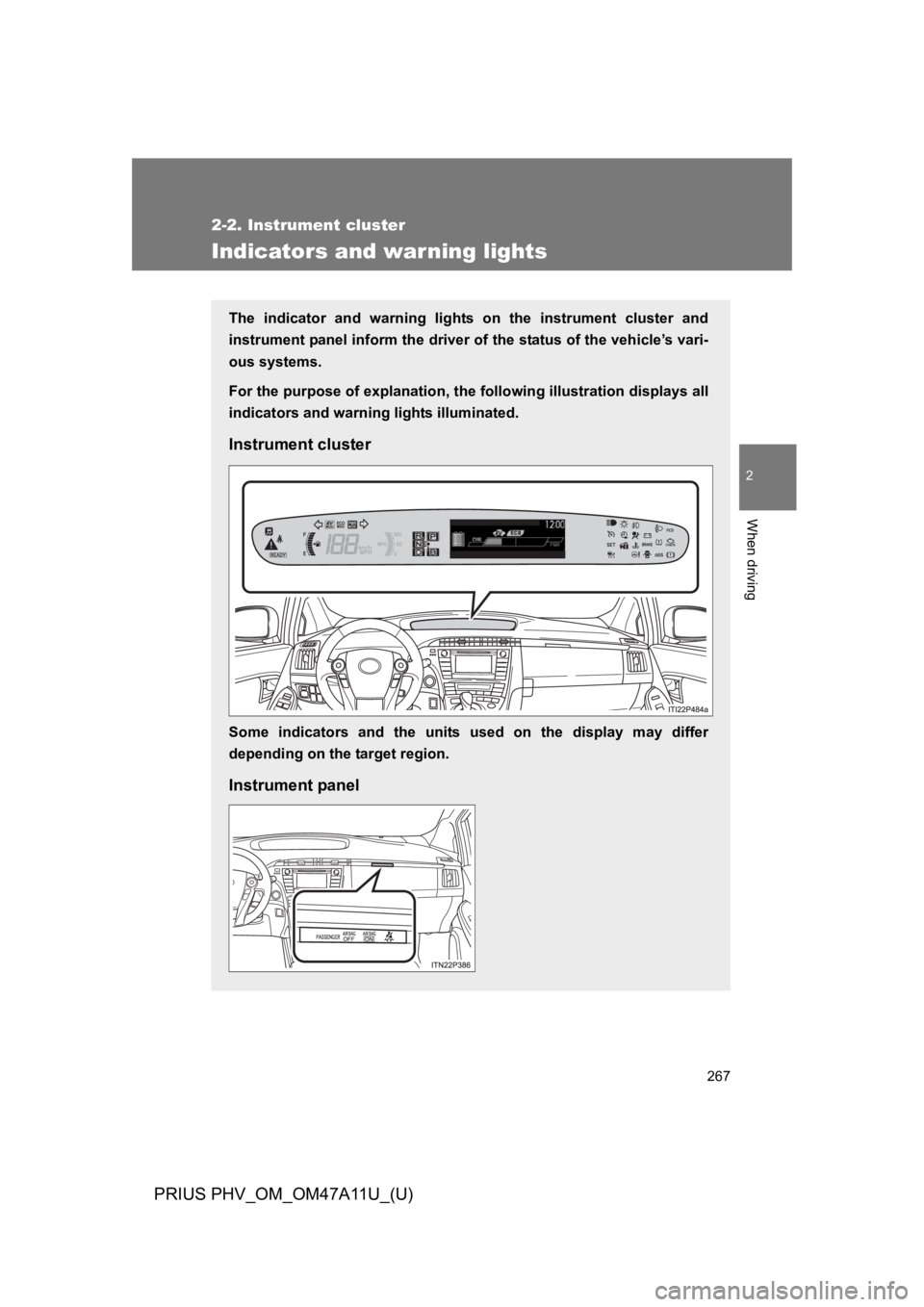

Indicators and warning lights
The indicator and warning lights on the instrument cluster and
instrument panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster
Some indicators and the units used on the display may differ
depending on the target region.
Instrument panel

268
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)

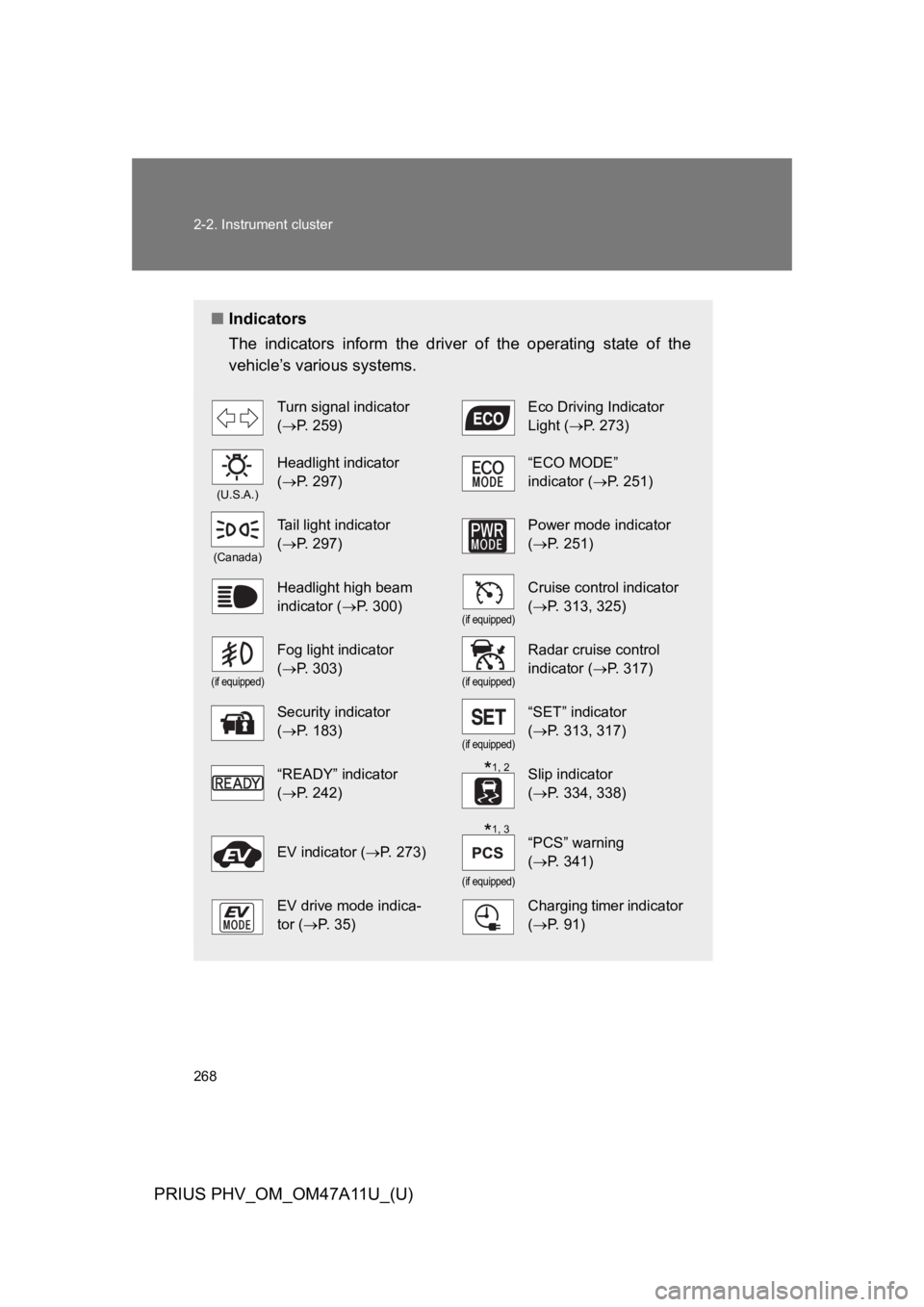

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(oP. 2 5 9 )
Eco Driving Indicator
Light (oP. 2 7 3 )
(U.S.A.)
Headlight indicator
(oP. 2 9 7 )
“ECO MODE”
indicator (oP. 2 5 1 )
(Canada)
Ta i l l i g h t i n d i c a t o r
(oP. 2 9 7 )
Power mode indicator
(oP. 2 5 1 )
Headlight high beam
indicator (oP. 3 0 0 )(if equipped)
Cruise control indicator
(oP. 3 1 3 , 3 2 5 )
(if equipped)
Fog light indicator
(oP. 3 0 3 )(if equipped)
Radar cruise control
indicator (oP. 3 1 7 )
Security indicator
(oP. 1 8 3 )(if equipped)
“SET” indicator
(oP. 3 1 3 , 3 1 7 )
“READY” indicator
(oP. 2 4 2 )
Slip indicator
(oP. 3 3 4 , 3 3 8 )
EV indicator (oP. 2 7 3 )
(if equipped)
“PCS” warning
(oP. 3 4 1 )
EV drive mode indica-
tor (oP. 3 5 )
Charging timer indicator
(oP. 9 1 )
*1, 2
*1, 3
