4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
Ty p e B

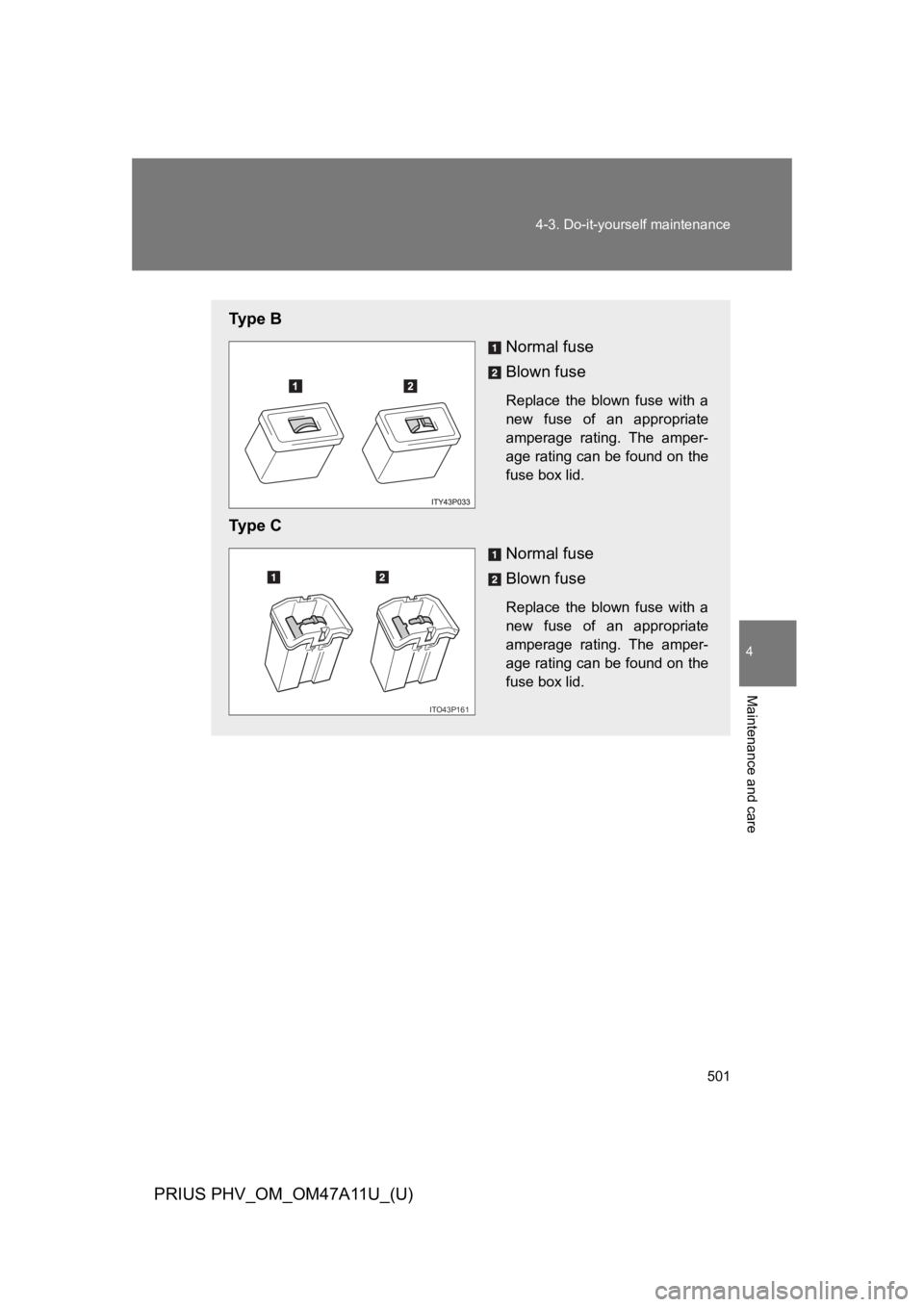

Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e C
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
ITO43P161

502
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
Fuse layout and amperage ratings

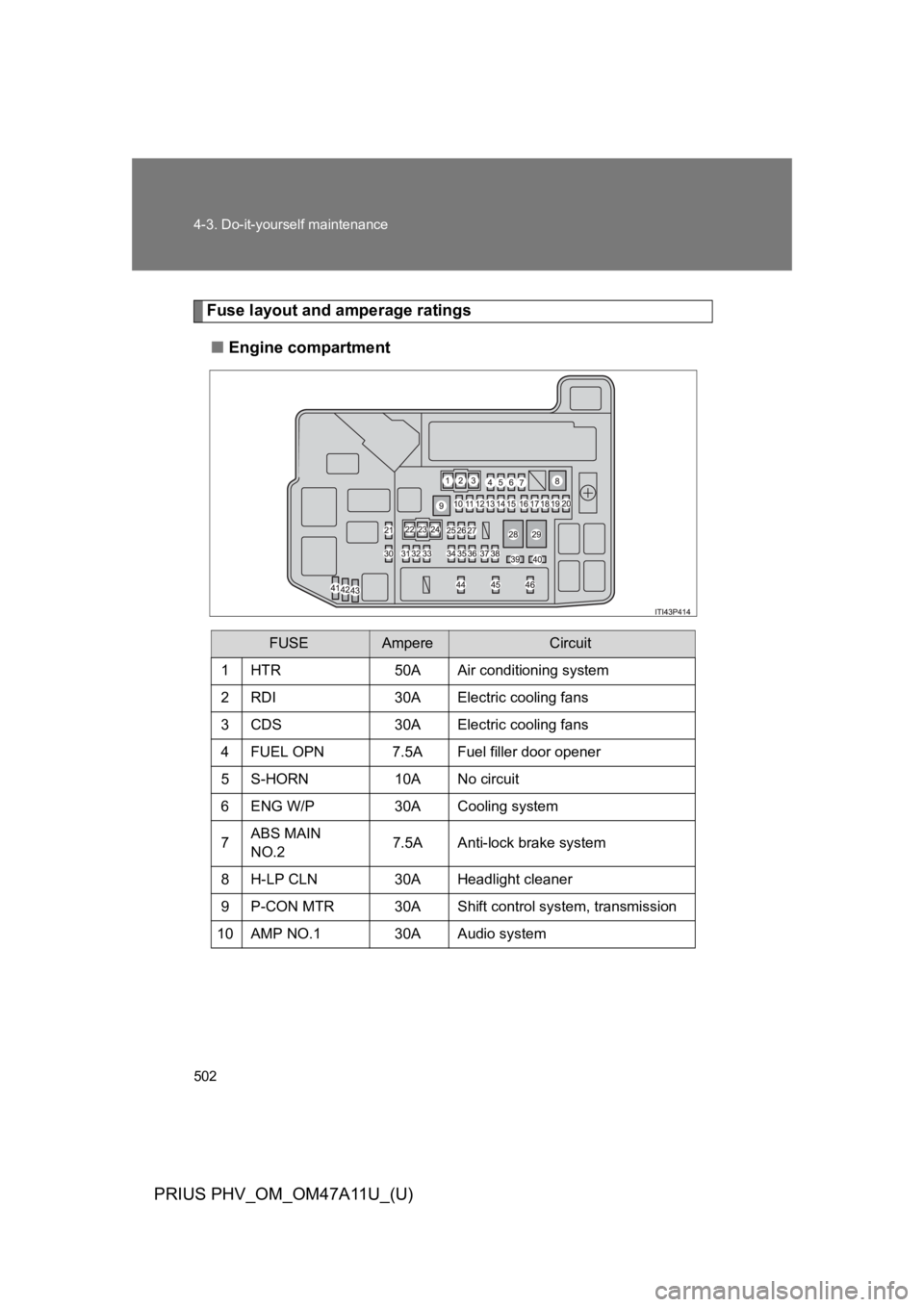

■Engine compartment
FUSEAmpereCircuit
1HTR 50A Air conditioning system
2RDI 30A Electric cooling fans
3CDS 30A Electric cooling fans
4FUEL OPN 7.5A Fuel filler door opener
5S-HORN 10A No circuit
6ENG W/P 30A Cooling system
7ABS MAIN
NO.27.5A Anti-lock brake system
8H-LP CLN 30A Headlight cleaner
9P-CON MTR 30A Shift control system, transmission
10 AMP NO.1 30A Audio system

503
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
FUSEAmpereCircuit
11 I G C T 3 0 A P C U , I G C T N O . 2 , I G C T N O . 3
12 DC/DC-S 5A Inverter and converter
13 P CON MAIN 7.5AShift control system, P position
switch
14 AM2 7.5A Power management system
15 ECU-B2 7.5A Smart key system, hybrid system
16 MAYDAY/DCM 10A MAYDAY/DCM
17 PIMR 10A Charge system
18 TURN & HAZ 10A Turn signal lights
19 ETCS 10A
Multiport fuel injection system/
sequential multiport fuel injection
system
20ABS MAIN
NO.120A Anti-lock brake system
21 H-LP LH LO 15A Left-hand headlight (low beam)
22 P/I 2 40AShift control system, horn, head-
light low beams, back-up lights
23 ABS MTR 1 30A Anti-lock brake system
24 ABS MTR 2 30A Anti-lock brake system
25 H-LP HI MAIN 20AHeadlight high beams, daytime
running lights
26 DRL 7.5A Daytime running lights
27 AMP NO.2 30A Audio system, navigation system
28 P/I 1 60A IG2, EFI MAIN, BATT FAN

504
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
FUSEAmpereCircuit
29 EPS 60A Electric power steering
30 H-LP RH LO 15A Right-hand headlight (low beam)
31 PCU 10A Inverter and converter
32 IGCT NO.2 10A
Hybrid system, shift control sys-
tem, power management system,
multiport fuel injection system/
sequential multiport fuel injection
system
33 MIR HTR 10A Outside rear view mirror defoggers
34 RAD NO.1 15A Audio system, navigation system
35 DOME 10A
Door courtesy lights, luggage
compartment light, personal light,
interior light, foot lights, vanity
lights, inside rear view mirror,
garage door opener
36 ECU-B 7.5ASmart key system, personal lights,
gauges and meters
37 H-LP LH HI 10A Left-hand headlight (high beam)
38 H-LP RH HI 10A Right-hand headlight (high beam)
39 EFI NO.2 10A
Multiport fuel injection system/
sequential multiport fuel injection
system
40 IGCT NO.3 10A Cooling system

505
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
FUSEAmpereCircuit
41 SPARE 30A Spare fuse
42 SPARE 10A Spare fuse
43 SPARE 7.5A Spare fuse
44 EFI MAIN 20A
Multiport fuel injection system/
sequential multiport fuel injection
system, cooling system, EFI NO.2
45 BATT FAN 20A Battery cooling fan
46 IG2 20A
Multiport fuel injection system/
sequential multiport fuel injection
system, MET, IGN, power man-
agement system

506
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
■Left side instrument panel
FUSEAmpereCircuit
1CIG 15A Power outlets
2ECU-ACC 10A
Multiplex communication system,
outside rear view mirrors, driver
support system, audio system,
navigation system
3PWR OUTLET 15A Power outlets
4SEAT HTR FR 10A Seat heater
5SEAT HTR FL 10A Seat heater
6DOOR NO.1 25A Power door lock system
7PSB 30A Pre-Collision System
8 PWR SEAT FR 30A Front passenger’s seat
9DBL LOCK 25A No circuit
10 FR FOG 7.5A Front fog lights
11 PWR SEAT FL 30A Driver’s seat
12 OBD 7.5A On-board diagnosis system
13 RR FOG 7.5A No circuit
14 STOP 10A
Stop lights, high mounted stop-
light, brake system, driver support
system, vehicle proximity notifica-
tion system
ITO43P133
12345678910
111213141516171819
2324252627282930202122

507
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
FUSEAmpereCircuit
15 P FR DOOR 25A Power windows
16 D FR DOOR 25A Power windows
17 DOOR RR 25A Power windows
18 DOOR RL 25A Power windows
19 S/ROOF 30A No circuit
20 ECU-IG NO.1 10A
Electric cooling fans, multiplex
communication system, vehicle
proximity notification system
21 ECU-IG NO.2 10A
Driver support system, Pre-Colli-
sion System, inside rear view mir-
ror, garage door opener, yaw rate
& G sensor, brake system, naviga-
tion system, tire pressure warning
system, seat belt pretensioners,
audio system, emergency flash-
ers, turn signal lights, windshield
wipers, headlight cleaner
22 GAUGE 10AHeadlight leveling system, gauges
and meters
23 A/C 10AAir conditioning system, Remote
Air Conditioning System
24 WASHER 15A Windshield washer
25 RR WIP 20A Rear window wiper and washer
26 WIP 30A Windshield wipers
27 MET 7.5A Gauges and meters

508
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
FUSEAmpereCircuit
28 IGN 10A
Brake system, driver support sys-
tem, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, SRS airbag sys-
tem, front passenger occupant
classification system (ECU and
sensors), power management sys-
tem, smart key system, front pas-
senger’s seat belt reminder light
29 PANEL 10A
Air conditioning system, personal
light, transmission, P position
switch, navigation system, Remote
Air Conditioning System, headlight
cleaner, front passenger’s seat
belt reminder light, headlight level-
ing system, glove box light, clock,
audio system, MPH or km/h switch
30 TAIL 10A
Headlight leveling system, park-
ing lights, tail lights, license plate
lights, front fog lights, side marker
lights

509
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (oP. 5 1 1 )
●If the replaced fuse blows again, have the vehicle inspected by your
To y o t a d e a l e r .
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
■To p r e v e n t s y s t e m b r e a k d o w n s a n d v e h i c l e f i r e
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.

510
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
To y o t a d e a l e r a s s o o n a s p o s s i b l e .
