150
PRIUS PHV_OM_OM47A11U_(U)
1-5. Adjustable components (seats, mirrors, steering wheel)

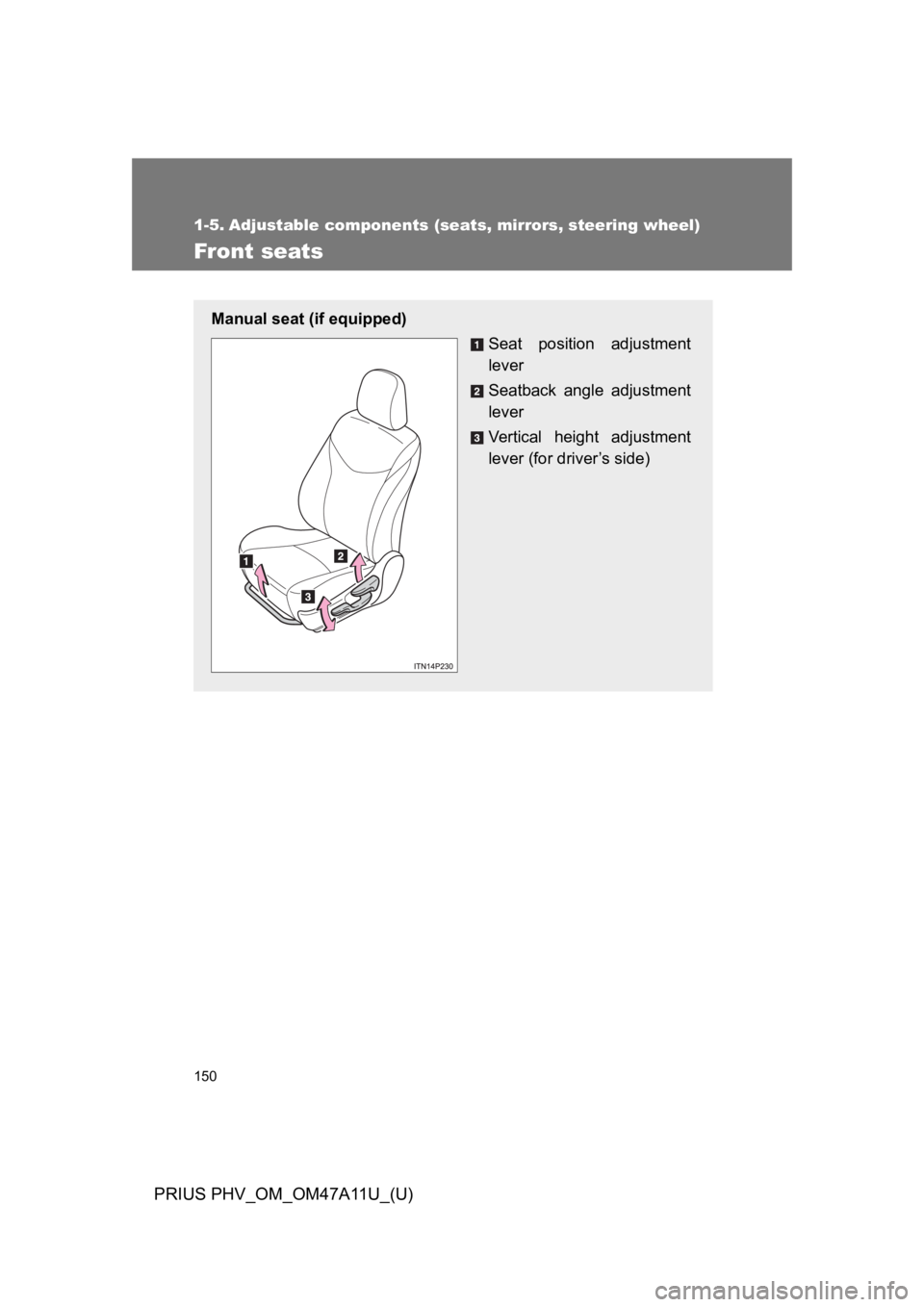

Fr ont seats
Manual seat (if equipped)
Seat position adjustment
lever
Seatback angle adjustment
lever
Ve r t i c a l h e i g h t a d j u s t m e n t
lever (for driver’s side)

151
1-5. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
Active head restraints
When the occupant’s lower back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward and upward to help reduce
the risk of whiplash on the seat
occupant.

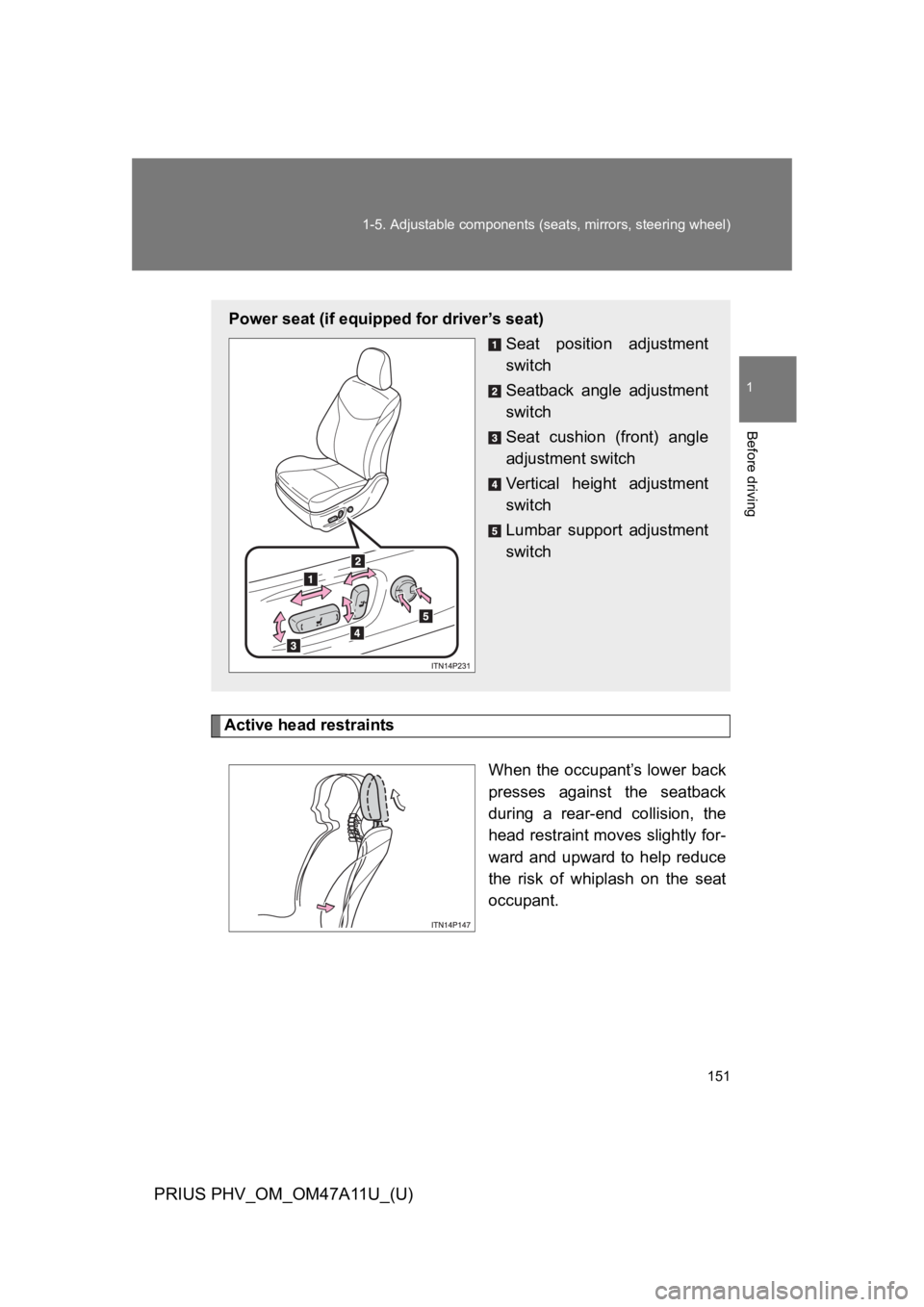

Power seat (if equipped for driver’s seat)
Seat position adjustment
switch
Seatback angle adjustment
switch
Seat cushion (front) angle
adjustment switch
Ve r t i c a l h e i g h t a d j u s t m e n t
switch
Lumbar support adjustment
switch

152
1-5. Adjustable components (seats, mirrors, steering wheel)
PRIUS PHV_OM_OM47A11U_(U)

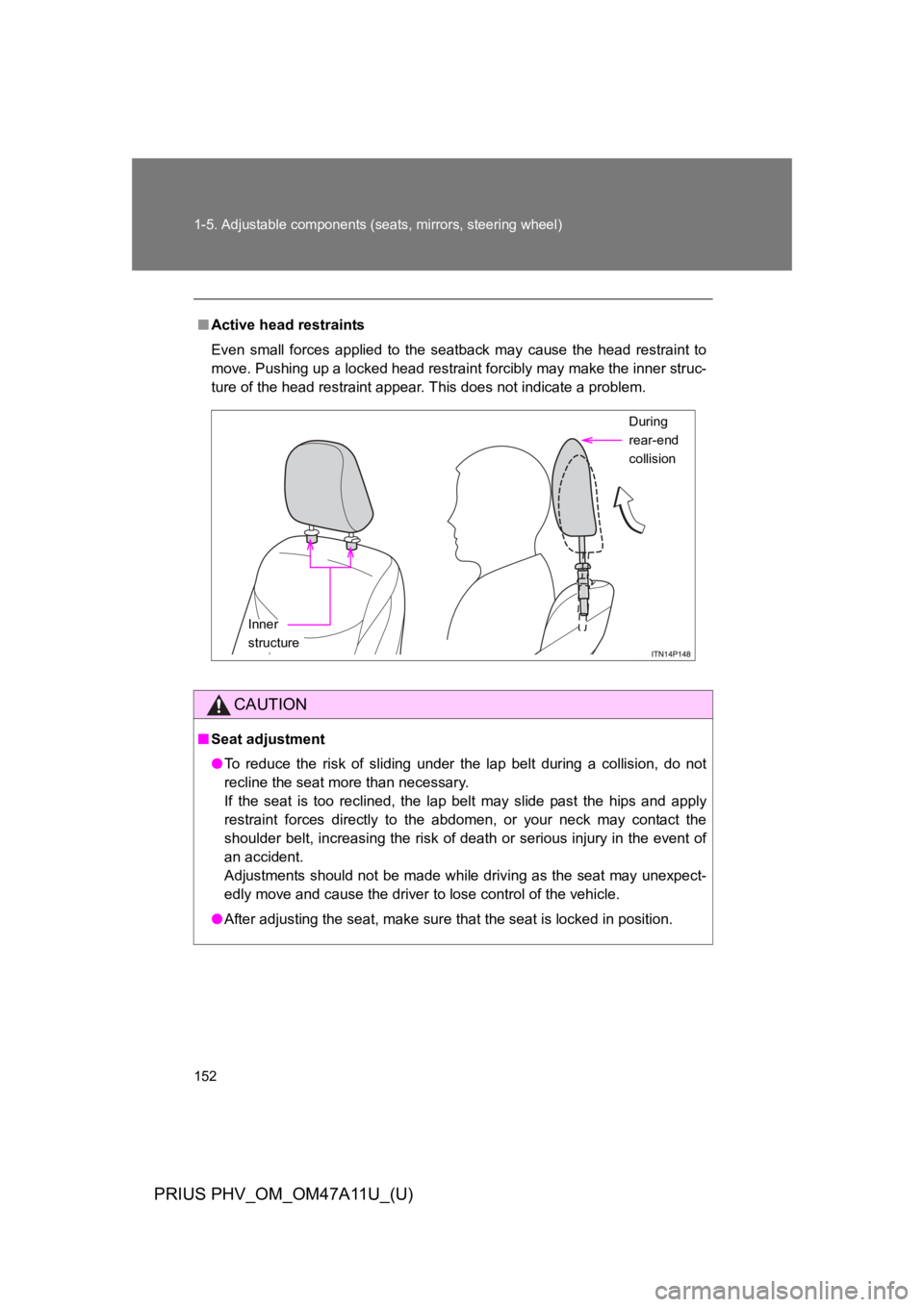

■Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may make the inner struc-
ture of the head restraint appear. This does not indicate a problem.
CAUTION
■Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
●After adjusting the seat, make sure that the seat is locked in position.
During
rear-end
collision
Inner
structure

169
1
1-5. Adjustable components (seats, mirrors, steering wheel)
Before driving
PRIUS PHV_OM_OM47A11U_(U)

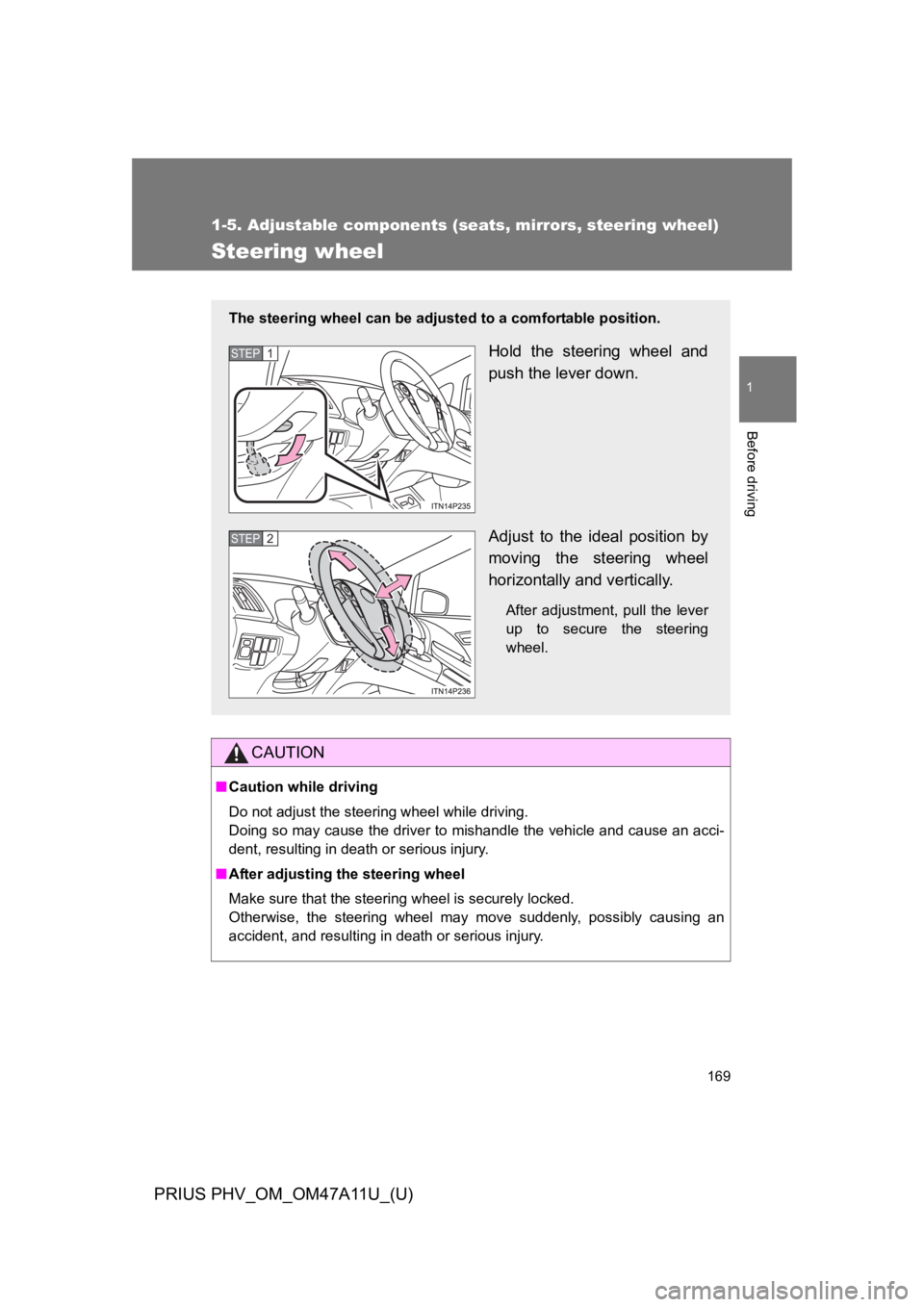

Steering wheel
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.
After adjustment, pull the lever
up to secure the steering
wheel.
STEP 1
STEP 2

186
1-9. Safety information
PRIUS PHV_OM_OM47A11U_(U)
CAUTION
■While driving
●Do not adjust the position of the driver’s seat.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent, resulting in death or serious injury. The adjustment mechanism may
also be damaged.
■Adjusting the seat position
●Ta k e c a r e w h e n a d j u s t i n g t h e s e a t p o s i t i o n t o e n s u r e t h a t o t h e r p a s s e n -
gers are not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

343
2-4. Using other driving systems
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
■Conditions that may trigger the system even if there is no possibility of
a collision
●When there is an object by the roadside at the entrance to a curve
●When passing an oncoming vehicle on a curve
●When driving over a narrow iron bridge
●When there is a metal object on the road surface
●When driving on an uneven road surface (nose up, nose down)
●When passing an oncoming vehicle on a left-turn
●When your vehicle rapidly closes on the vehicle in front
●When a grade separation/interchange, sign, billboard, or other structure
appears to be directly in the vehicle’s line of travel
●When the steep angle of the road causes a metal object located beneath
the road surface to be seen ahead of the vehicle
●When an extreme change in vehicle height occurs
●When the axis of the radar is out of adjustment
●When passing through certain toll gates
●When passing through an overpass
When the system is activated in the situations described above, there is also
a possibility that the seat belts will retract quickly and the brakes may be
applied with a force greater than normal. When the seat belt is locked in the
retracted position, stop the vehicle in a safe place, release the seat belt and
refasten it.

680
Alphabetical index
PRIUS PHV_OM_OM47A11U_(U)
Engine
Accessory mode....................244
Compartment ........................ 464
Hood...................................... 448
How to start the hybrid
system ................................ 242
Identification number .............620
If the hybrid system will not
start ..................................... 596
Ignition switch........................242
Overheating........................... 607
“POWER” switch ................... 242
Engine coolant
Capacity ................................ 625
Checking ............................... 469
Preparing and checking
before winter ....................... 355
Engine/power control
unit coolant
Capacity ................................ 625
Checking ............................... 469
Preparing and checking
before winter ....................... 355
Engine oil
Capacity ................................ 622
Checking ............................... 465
Preparing and checking
before winter ....................... 355
Enhanced VSC .........................333
EPS ............................................333
EV driving ratio indicator ........276
EV driving range ................58, 273
Event data recorder ...................25
EV/HV mode selection
switch .......................................37
Floor mats ................................ 407
Fluid
Brake..................................... 627
Washer.................................. 474
Fog lights
Replacing light bulbs ............. 511
Switch ................................... 303
Wattage................................. 628
Foot lights ................................ 388
Front fog lights
Replacing light bulbs ............. 511
Switch ................................... 303
Wattage................................. 628
Front passenger occupant
classification system ............ 202
Front passenger’s seat belt
reminder light ........................ 541
Front seats
Adjustment ............................ 150
Front side marker light
Replacing light bulbs ............. 511
Wattage................................. 628
Front turn signal lights
Replacing light bulbs ............. 511
Switch ................................... 259
Wattage................................. 628
Fuel
Capacity ................................ 621
Fuel gauge ............................ 262
Information ............................ 629
Refueling ............................... 178
Type ...................................... 629
Fuel door .................................. 178
Fuel filler door .......................... 178
Fuses ........................................ 499
F

681
Alphabetical index
PRIUS PHV_OM_OM47A11U_(U)
Garage door opener ................ 413
Gauges ..................................... 262
Glove boxes ............................. 392
Hands-free system
(for cellular phone)*
Hazard lights
Switch ................................... 528
Head restraints
Adjustment .......................... 156
Headlight cleaner .................... 312
Headlights
Cleaner ................................. 312
Replacing light bulbs ............ 511
Switch ................................... 297
Wattage ................................ 628
Heaters
Automatic air conditioning
system................................ 364
Seat heaters ......................... 403
Side mirrors .......................... 381
Hill-start assist control ........... 338
Hood ......................................... 448
Hooks
Cargo.................................... 409
Horn .......................................... 261
Hybrid system
Emergency shut off system .... 45
Energy monitor/
consumption screen ............. 52
High voltage components ....... 44
Hybrid System Indicator ....... 273
Ignition switch ....................... 242
Monthly fuel consumption
record ................................... 65
“POWER” switch .................. 242
I/M test.......................................444
Identification
Engine ...................................620
Vehicle ..................................619
Ignition switch ..........................242
Illuminated entry system .........388
Immobilizer system..................183
Indicator lights .........................267
Initialization
Items to initialize....................655
Inside rear view mirror ............170
Instrument panel light
control ....................................265
Interior lights
Interior lights..................389, 390
Switch............................389, 390
Wattage .................................628
Jack
Positioning a floor jack ..........451
Vehicle-equipped jack ...........454
Jack handle ..............................454
Keyless entry............................136
Keys
Electronic key ........................110
If the electronic key does not
operate properly.................. 599
If you lose your keys .............598
Key number ...........................110
Keyless entry.........................136
Keys ......................................110
Mechanical key .....................110
“POWER” switch ...................242
Wireless remote
control key ..........................136
Knee airbag ..............................187
G
H
I
J
K
*:Refer to “DISPLAY AUDIO SYSTEM OWNER’S MANUAL”
or “NAVIGATION SYSTEM OWNER’S MANUAL”.

683
Alphabetical index
PRIUS PHV_OM_OM47A11U_(U)
Odometer ................................. 278
Oil
Engine oil.............................. 465
Opener
Back door ............................. 144
Fuel filler door....................... 178
Hood ..................................... 448
Outside rear view mirrors
Adjusting and folding ............ 173
Outside rear view mirror
defogger switch .................... 381
Outside temperature
display ................................... 400
Overheating ............................. 607
Parking brake .......................... 260
Parking lights
Switch ................................... 297
PCS ........................................... 340
Personal lights
Switch ................................... 389
Wattage ................................ 628
Plug-in hybrid system
Driving tips.............................. 68
EV driving range ..................... 58
EV mode................................. 35
EV/HV mode selection
switch ................................... 37
Features ................................. 32
How to charge ........................ 85
HV mode ................................ 36
Plug-in Hybrid Applications .... 75
Power outlets........................... 401
Power sources........................... 82
“POWER” switch ..................... 242
Power windows ....................... 175
Pre-collision system ............... 340
Radar cruise control
system ....................................317
Radiator ....................................471
Radio*
Radio data system*
RDS*
Rear seats
Adjustment ............................153
Folding down .........................154
Rear turn signal lights
Replacing light bulbs .............511
Wattage .................................628
Rear view mirror...............170, 173
Rear view monitor system*
Rear window and outside
rear view mirror
defoggers ...............................381
Rear window wiper and
washer ....................................309
Remote Air Conditioning
System ....................................377
Replacing
Electronic key battery ............497
Fuses ....................................499
Light bulbs .............................511
Tires ......................................454
Reporting safety defects for
U.S. owners ............................658
Resetting the message
indicating maintenance is
required ..................................437
O
P
R
*:Refer to “DISPLAY AUDIO SYSTEM OWNER’S MANUAL”
or “NAVIGATION SYSTEM OWNER’S MANUAL”.

684
Alphabetical index
PRIUS PHV_OM_OM47A11U_(U)
Safety Connect .........................421
Seat belt reminder light ...........541
Seat belts
Adjusting the seat belt ........... 161
Automatic Locking Retractor
(ALR) .................................. 162
Child restraint system
installation ........................... 213
Cleaning and maintaining
the seat belt ........................ 434
Emergency Locking Retractor
(ELR) ................................. 162
How to wear your
seat belt .............................. 160
How your child should wear
the seat belt ........................ 163
Pre-collision seat belts ..........340
Pregnant women,
proper seat belt use ............ 165
Reminder light ....................... 541
Seat belt extenders ............... 163
Seat belt instructions
for Canadian owners........... 659
Seat belt pretensioners ......... 161
Seat heaters..............................403
Seating capacity.......................354
Seats
Adjustment ...................150, 153
Adjustment
precautions ................. 152, 155
Child seats/child restraint
system installation .............. 213
Cleaning ................................ 433
Folding down the
seatbacks............................ 154
Head restraint........................ 156
Properly sitting in the seat ..... 185
Seat heaters ..........................403
Service reminder
indicators .............................. 267
Shift lever
Transmission......................... 249
Side airbags ............................. 187
Side marker lights
Replacing light bulbs ............. 511
Switch ................................... 297
Wattage................................. 628
Side mirrors
Adjusting and folding............. 173
Smart key system
Antenna location ........... 116, 131
Entry functions ...................... 113
Starting the hybrid system .... 242
SOS button ............................... 421
Spark plug ................................ 625
Specifications .......................... 618
Speedometer ............................ 262
Steering wheel
Adjustment ............................ 169
Audio switches*
Storage feature ........................ 391
Stuck
If your vehicle becomes
stuck ................................... 613
Sun visors ................................ 398
S
