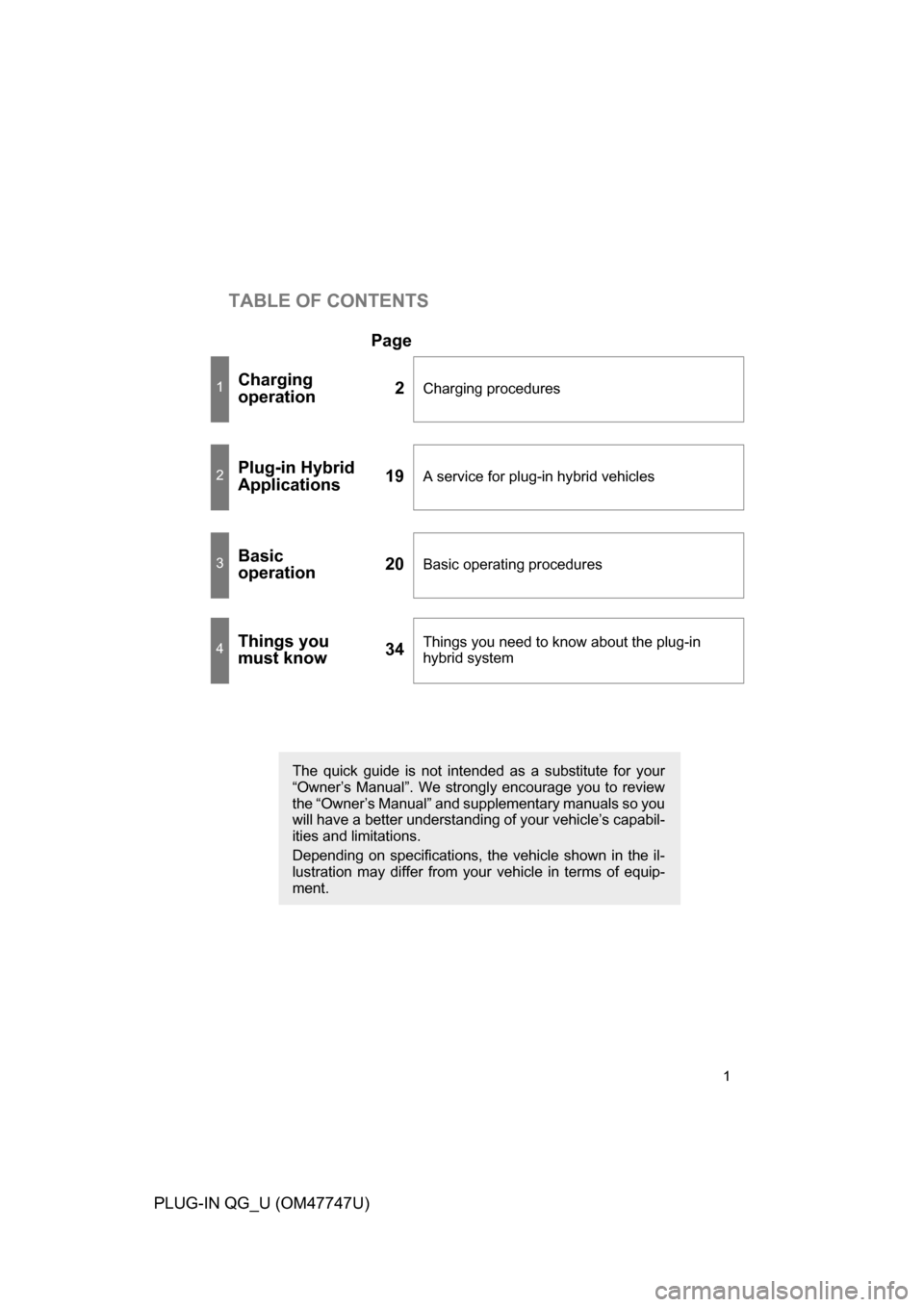

TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual TABLE OF CONTENTS
1
PLUG-IN QG_U (OM47747U)
Page
1Charging
operation2Charging procedures
2Plug-in Hybrid
Applications19A service for plug-in hybrid vehicles
3Basic
operation20Basic operating proced

Page 2 of 36

TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual 2
PLUG-IN QG_U (OM47747U)
1. Charging operation

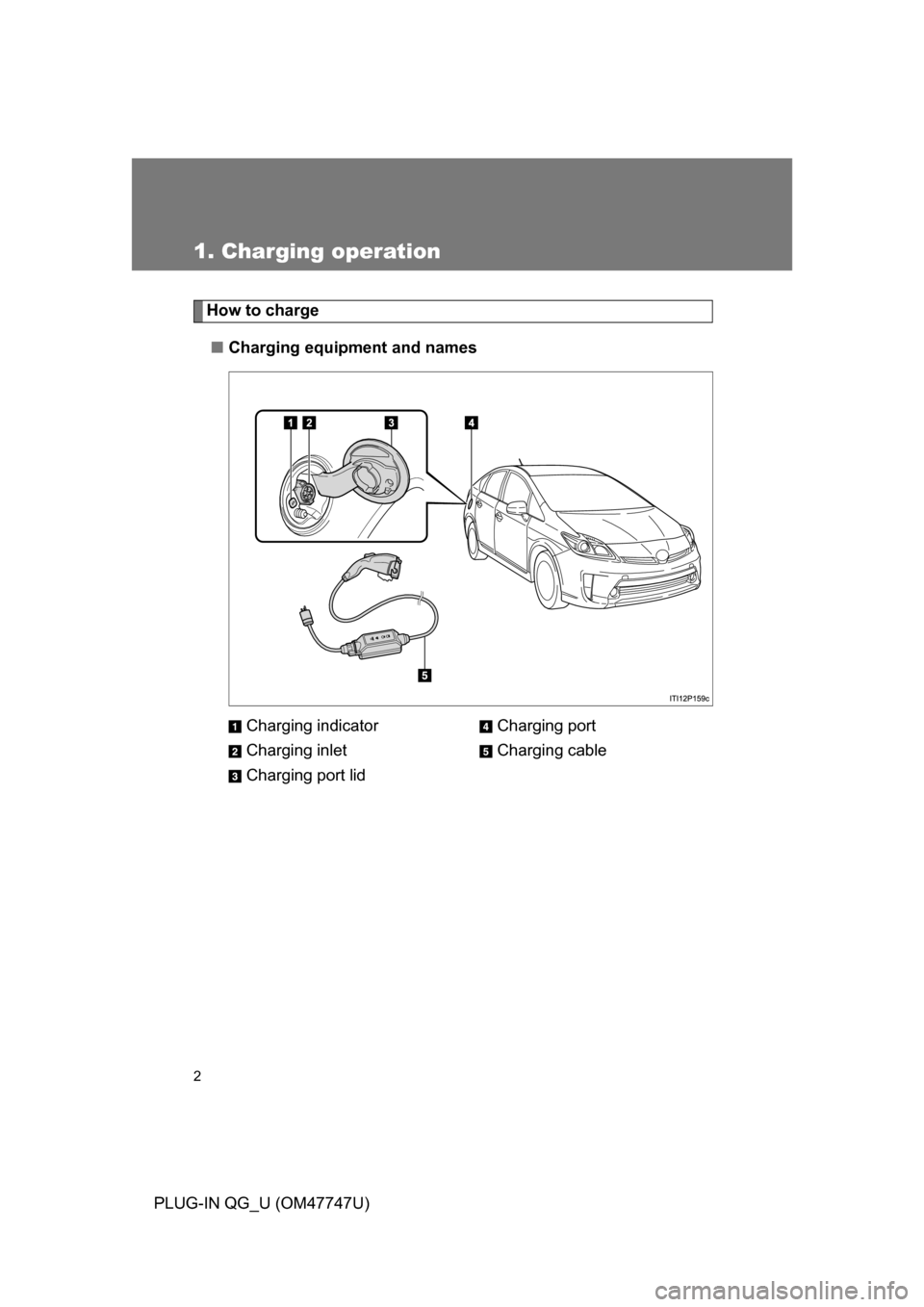

How to charge■ Charging equipment and names
Charging indicator
Charging inlet
Charging port lid Charging port
Charging cable

Page 3 of 36

TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual 3
1. Charging operation
PLUG-IN QG_U (OM47747U)
■

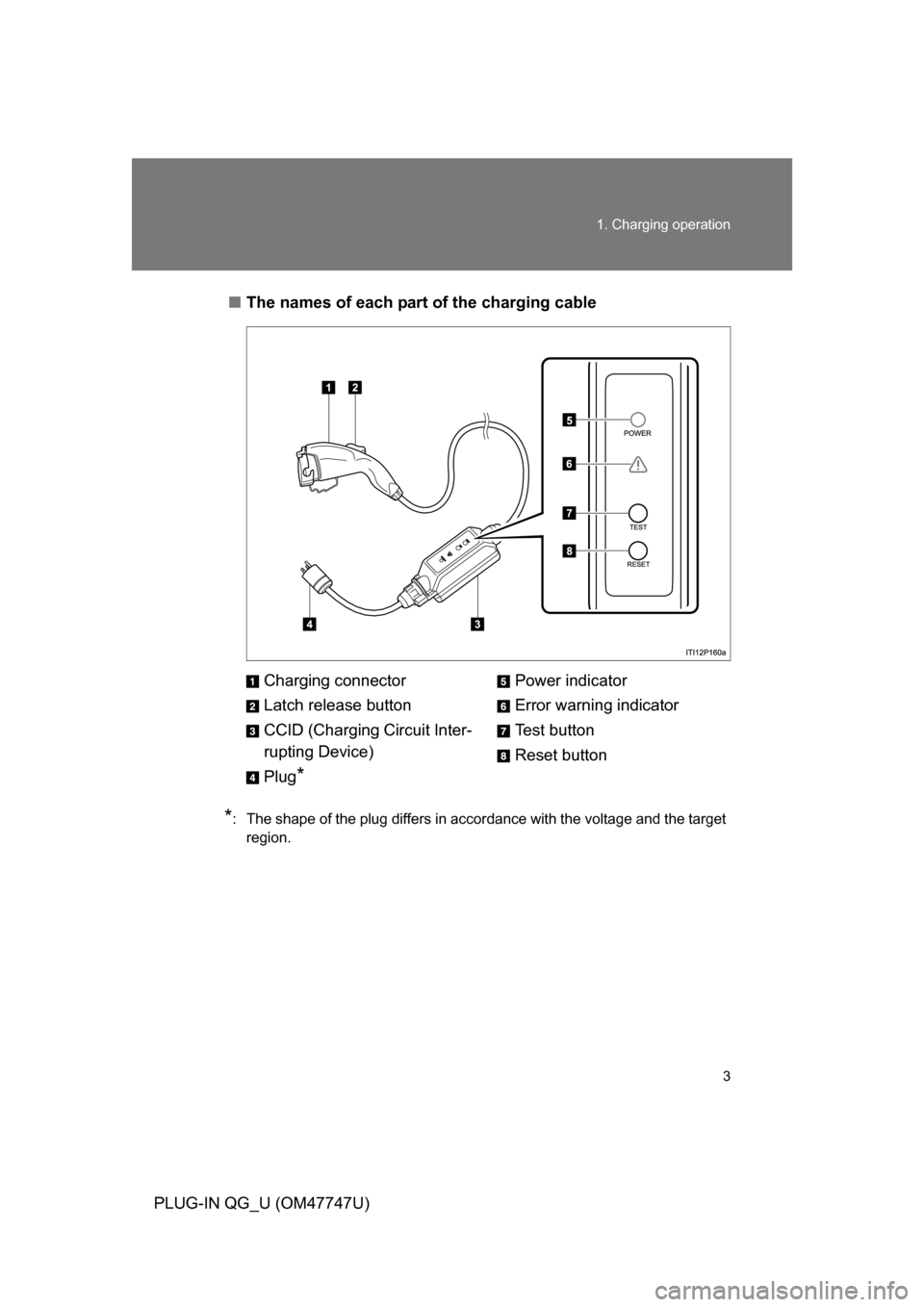

The names of each part of the charging cable
*: The shape of the plug differs in accordance with the voltage and the target
region.
Charging connect

Page 4 of 36

TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual 4 1. Charging operation
PLUG-IN QG_U (OM47747U)■

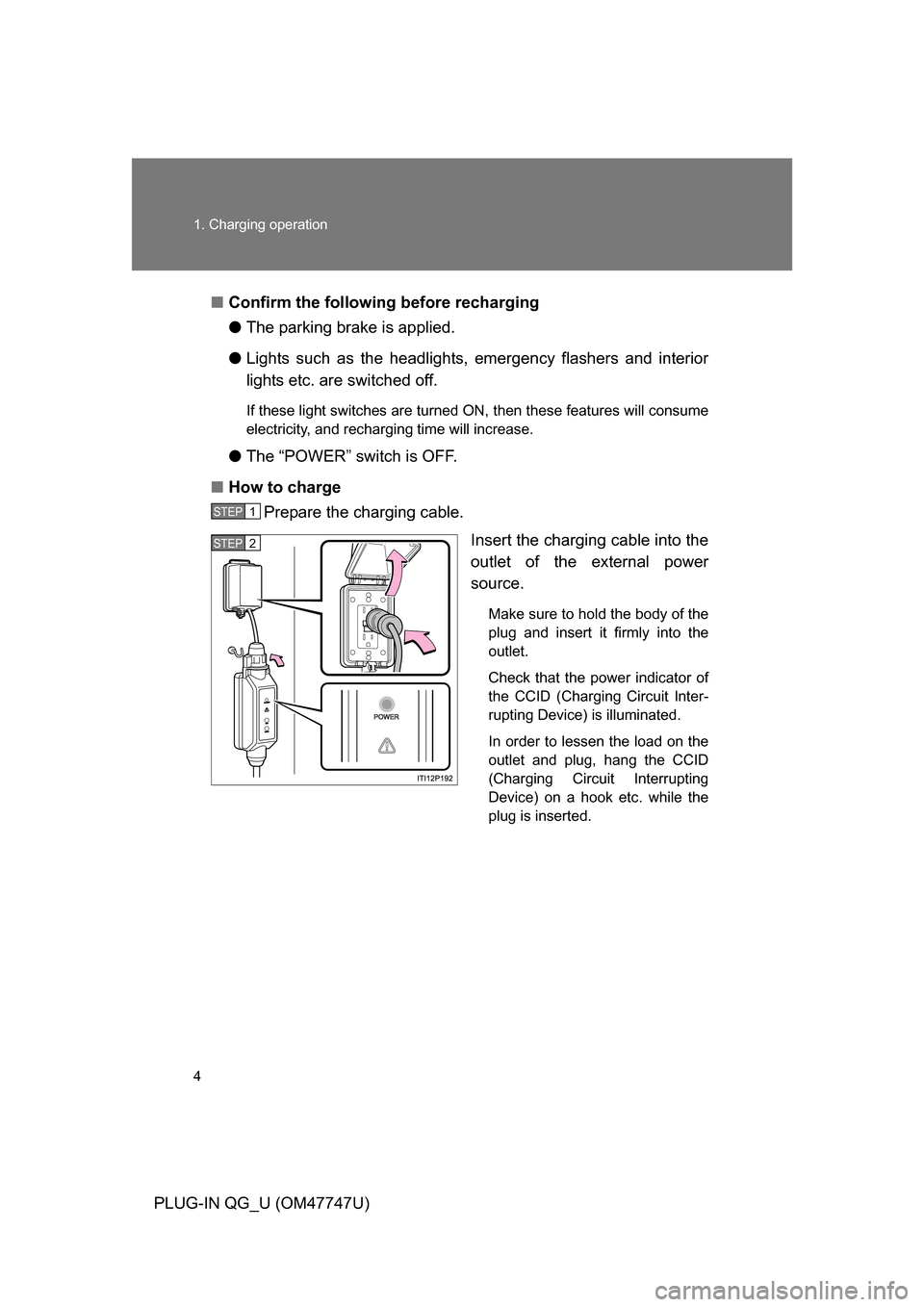

Confirm the following before recharging
●The parking brake is applied.
● Lights such as the headlights, emergency flashers and interior
lights et

Page 5 of 36

TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual 5
1. Charging operation
PLUG-IN QG_U (OM47747U)

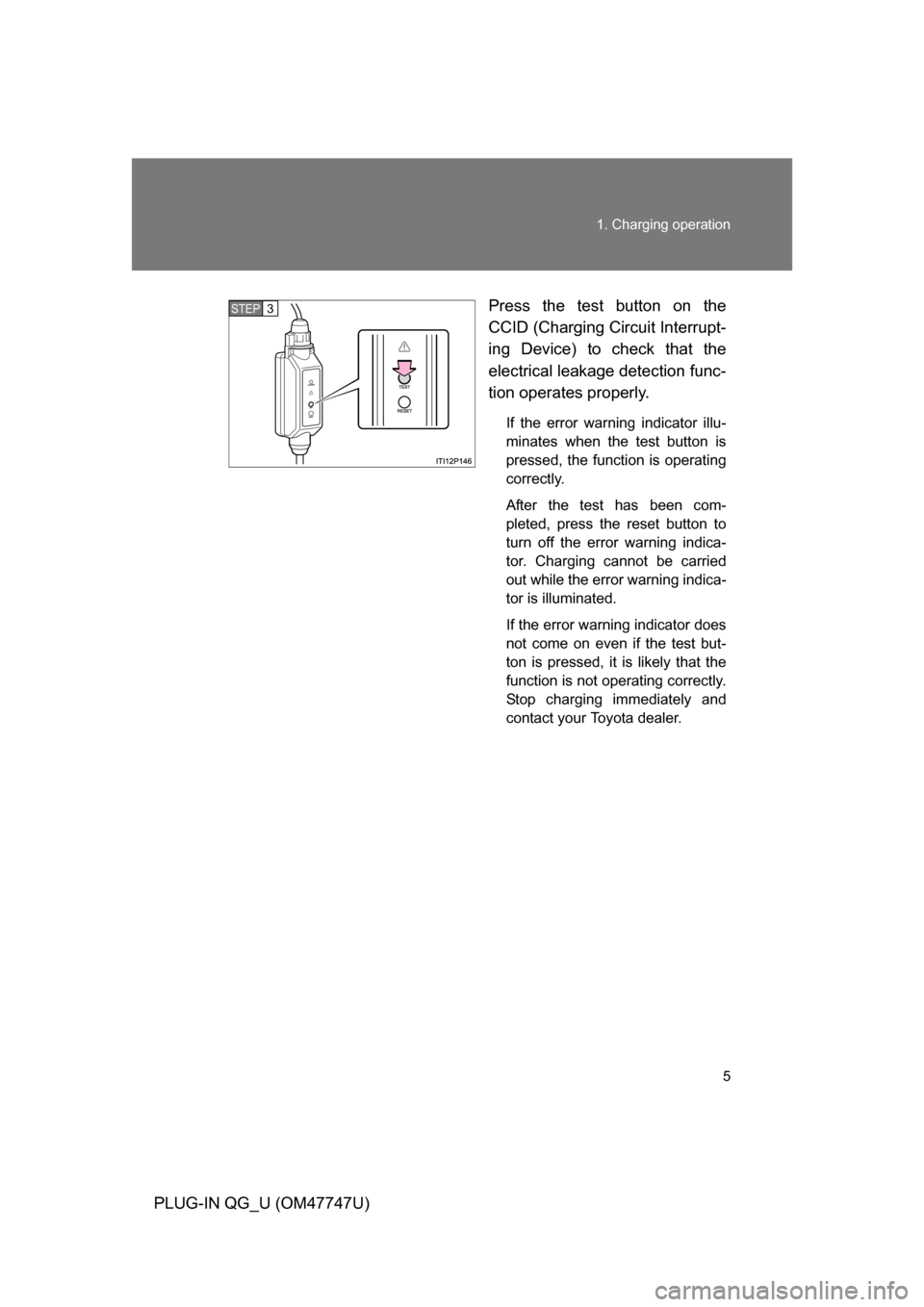

Press the test button on the
CCID (Charging Circuit Interrupt-
ing Device) to check that the
electrical leakage detection func-
tion operates properly.

Page 6 of 36

TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual 6 1. Charging operation

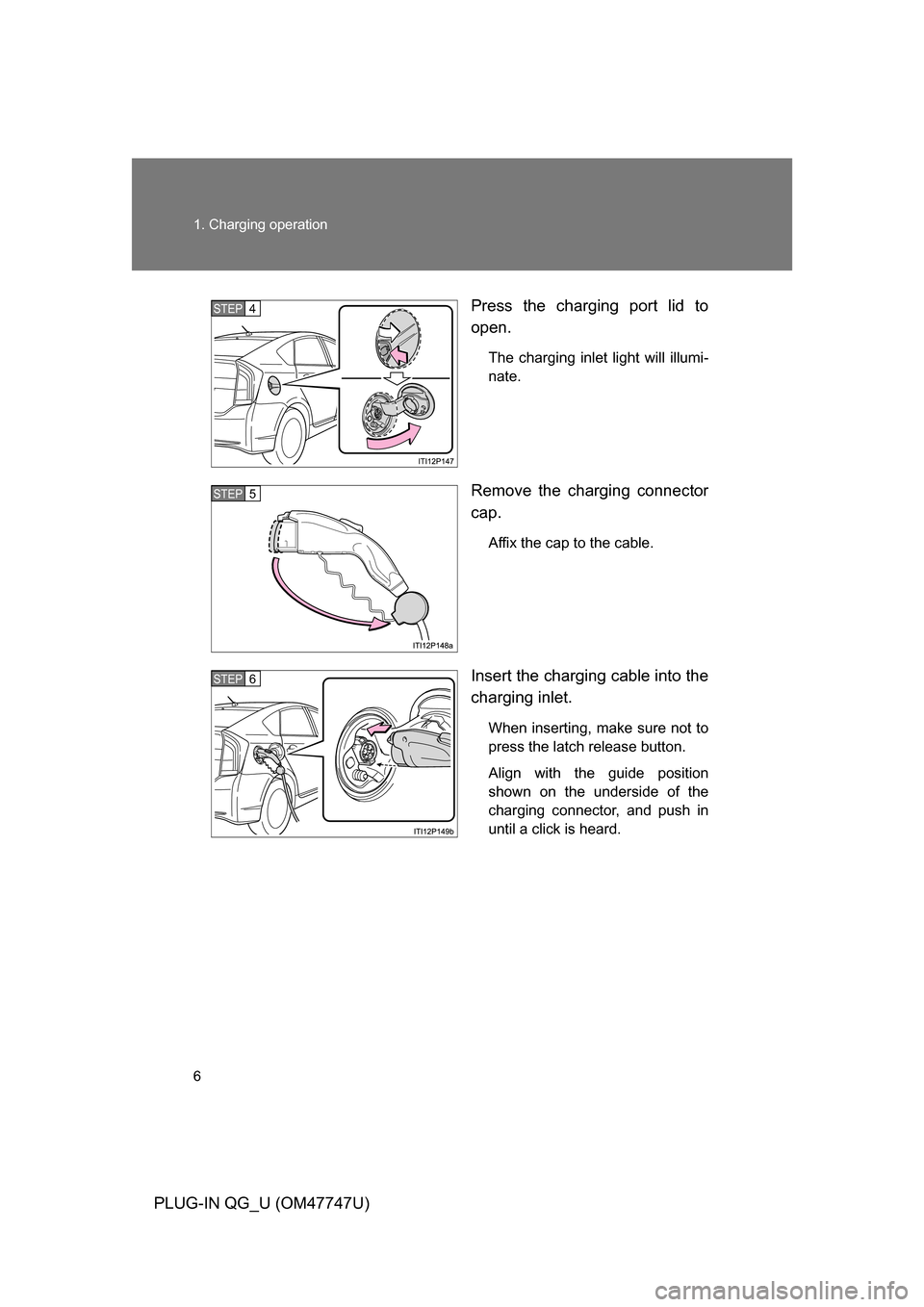

PLUG-IN QG_U (OM47747U)Press the charging port lid to
open.
The charging inlet light will illumi-
nate.
Remove the charging connector
cap.
Affix the cap to the cable.
Insert th

Page 7 of 36

TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual 7
1. Charging operation
PLUG-IN QG_U (OM47747U)

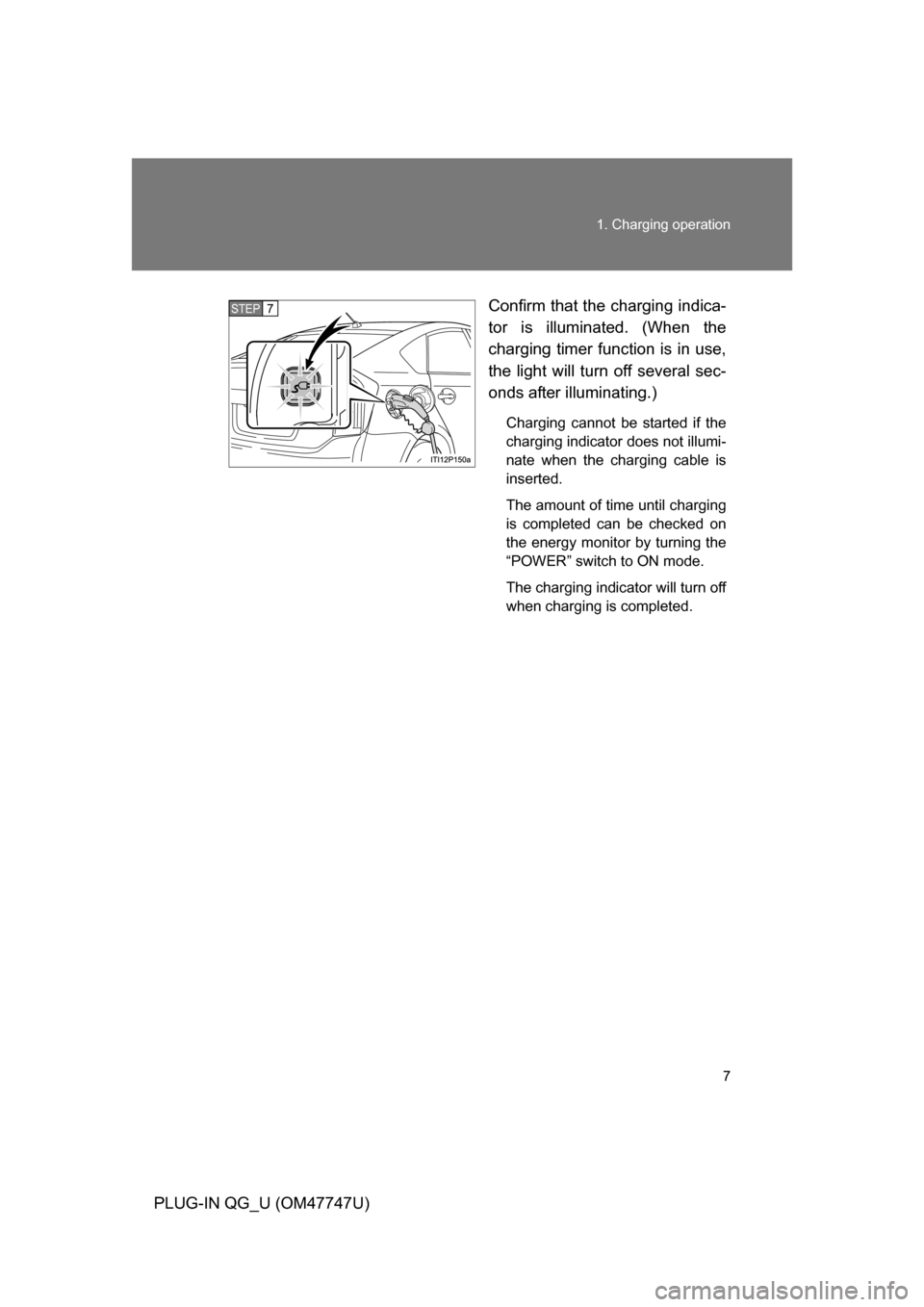

Confirm that the charging indica-
tor is illuminated. (When the
charging timer function is in use,
the light will turn off several sec-
onds after illum

Page 8 of 36

TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual 8 1. Charging operation
PLUG-IN QG_U (OM47747U)■

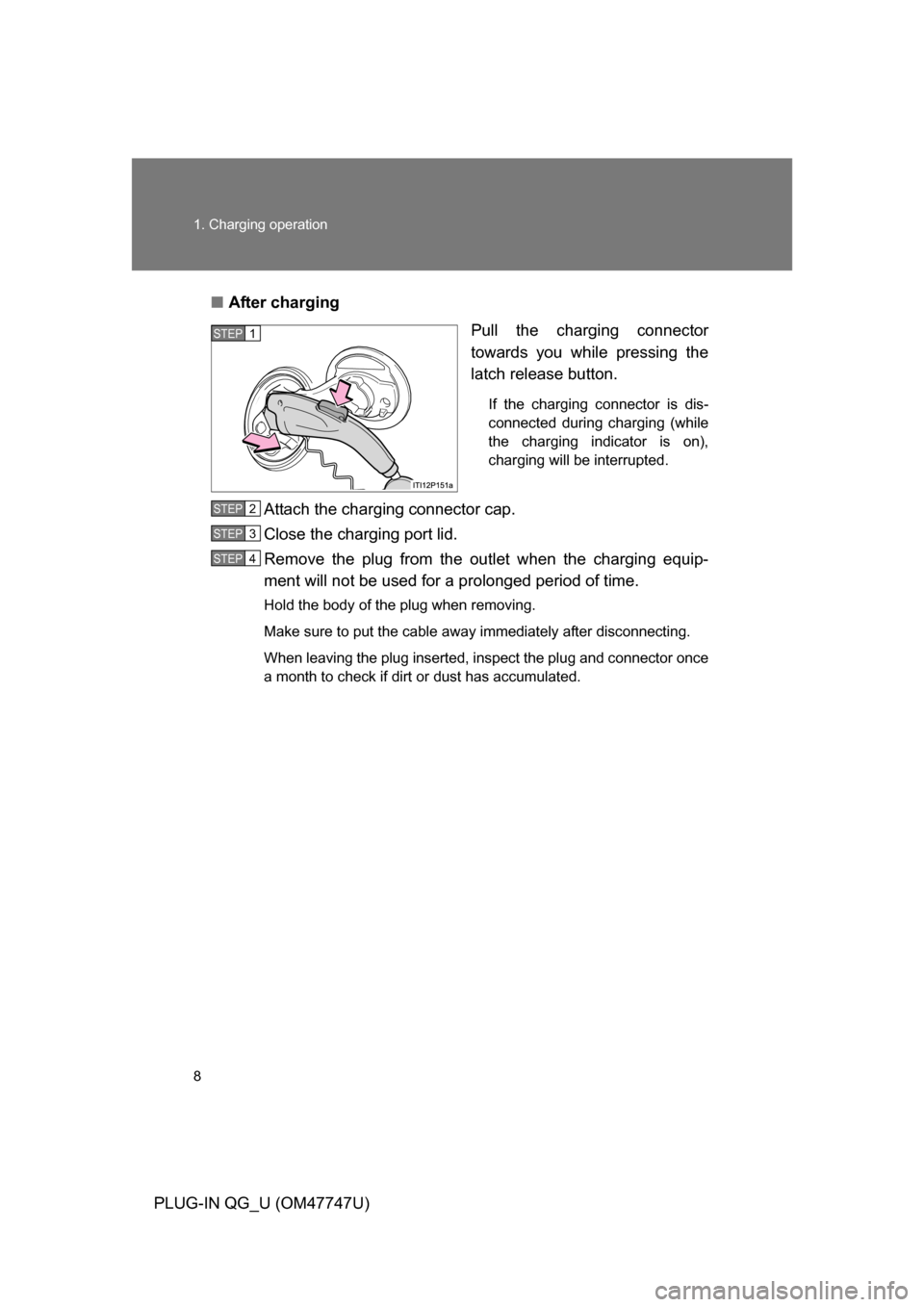

After charging
Pull the charging connector
towards you while pressing the
latch release button.
If the charging connector is dis-
connected during ch

Page 9 of 36

TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual 9
1. Charging operation
PLUG-IN QG_U (OM47747U)
■

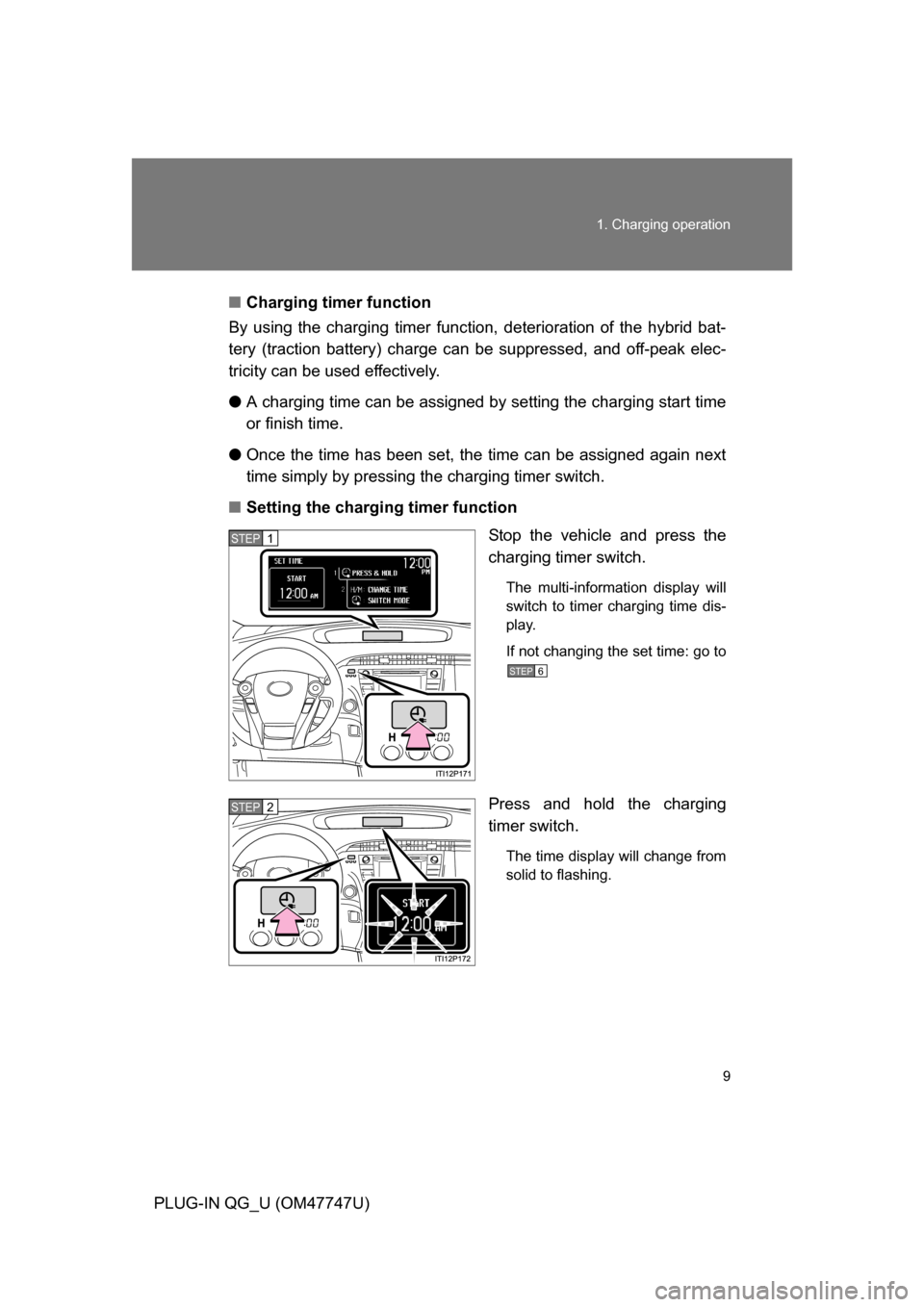

Charging timer function
By using the charging timer function,  deterioration of the hybrid bat-
tery (traction battery) charge can  be suppressed, a

Page 10 of 36

TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual 10 1. Charging operation

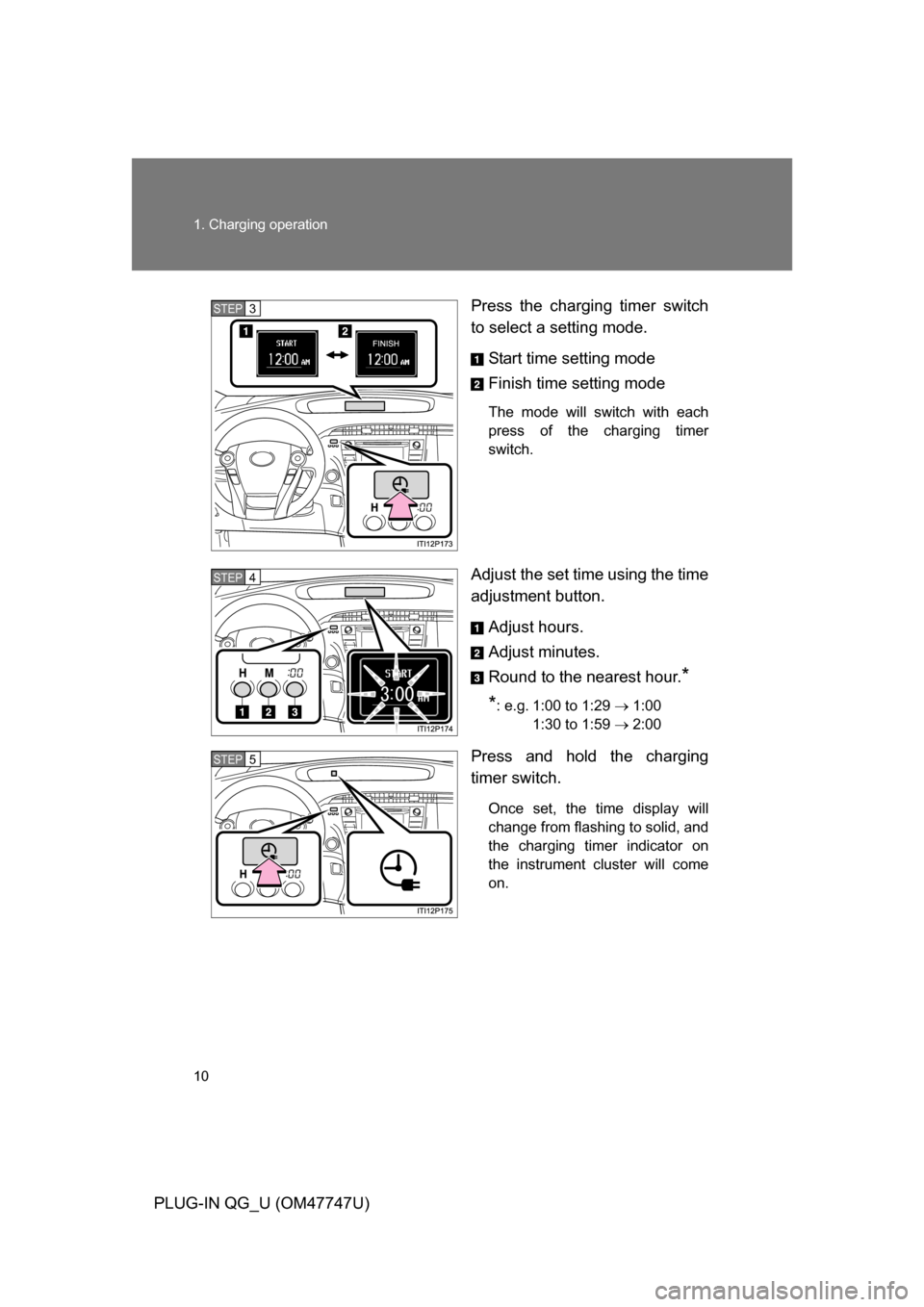

PLUG-IN QG_U (OM47747U)Press the charging timer switch
to select a setting mode.
Start time setting mode
Finish time setting mode
The mode will switch with each
press of the c
