check engine light TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual

23
3. Basic operation
PLUG-IN QG_U (OM47747U)

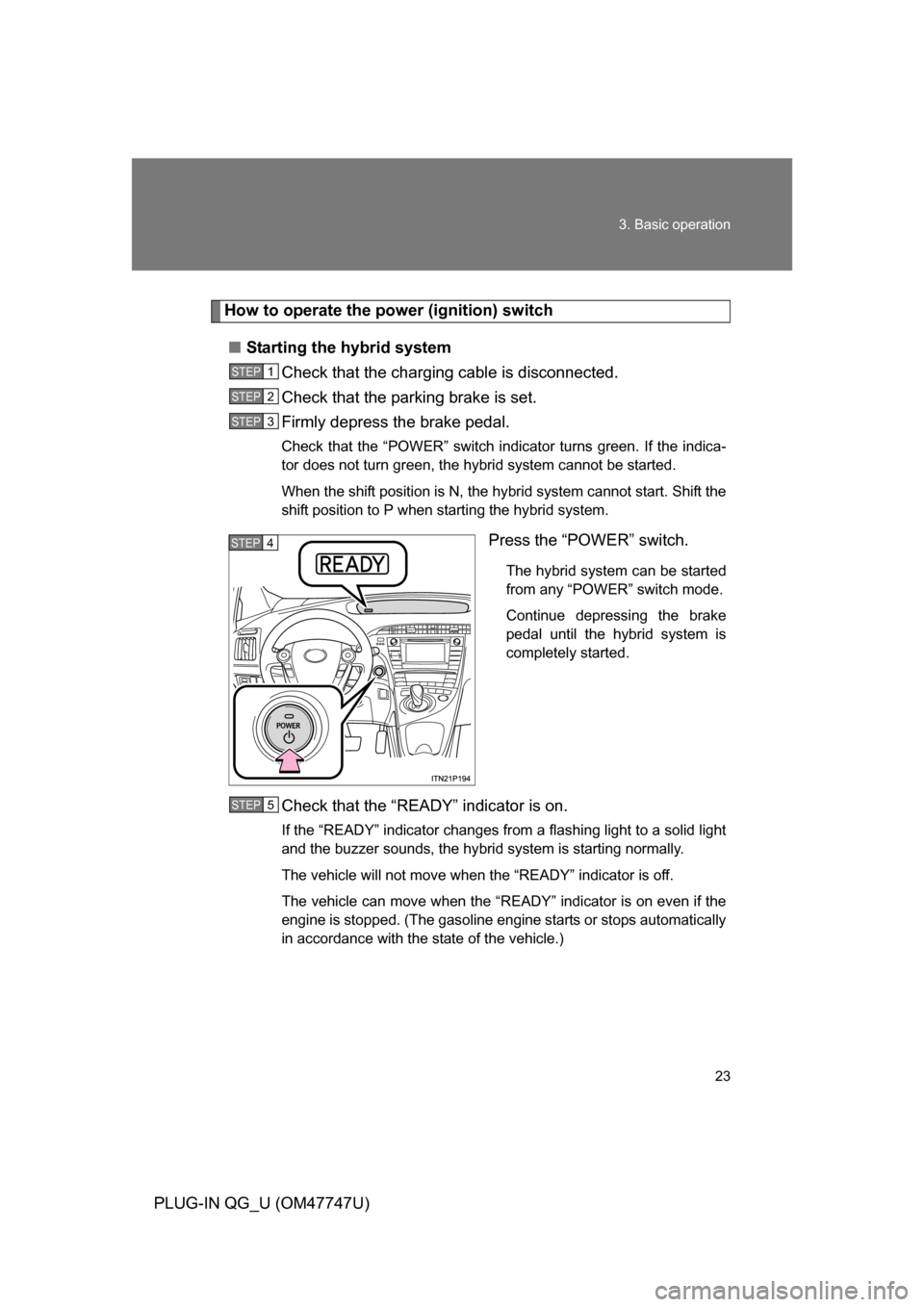

How to operate the power (ignition) switch
■ Starting the hybrid system
Check that the charging cable is disconnected.
Check that the parking brake is set.
Firmly depress the brake pedal.
Check that the “POWER” switch indicator turns green. If the indica-
tor does not turn green, the hybrid system cannot be started.
When the shift position is N, the hybrid system cannot start. Shift the
shift position to P when starting the hybrid system.
Press the “POWER” switch.
The hybrid system can be started
from any “POWER” switch mode.
Continue depressing the brake
pedal until the hybrid system is
completely started.
Check that the “READY” indicator is on.
If the “READY” indicator changes from a flashing light to a solid light
and the buzzer sounds, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if the
engine is stopped. (The gasoline engine starts or stops automatically
in accordance with the state of the vehicle.)
STEP1
STEP2
STEP3
STEP4
STEP5
