tow TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Owners Manual
[x] Cancel search | Manufacturer: TOYOTA, Model Year: 2012, Model line: PRIUS PLUG-IN HYBRID, Model: TOYOTA PRIUS PLUG-IN HYBRID 2012 1.GPages: 36, PDF Size: 0.92 MB
Page 8 of 36
8 1. Charging operation
PLUG-IN QG_U (OM47747U)■
After charging
Pull the charging connector
towards you while pressing the
latch release button.
If the charging connector is dis-
connected during charging (while
the charging indicator is on),
charging will be interrupted.
Attach the charging connector cap.
Close the charging port lid.
Remove the plug from the outlet when the charging equip-
ment will not be used for a prolonged period of time.
Hold the body of the plug when removing.
Make sure to put the cable away immediately after disconnecting.
When leaving the plug inserted, inspect the plug and connector once
a month to check if dirt or dust has accumulated.
STEP1
STEP2
STEP3
STEP4

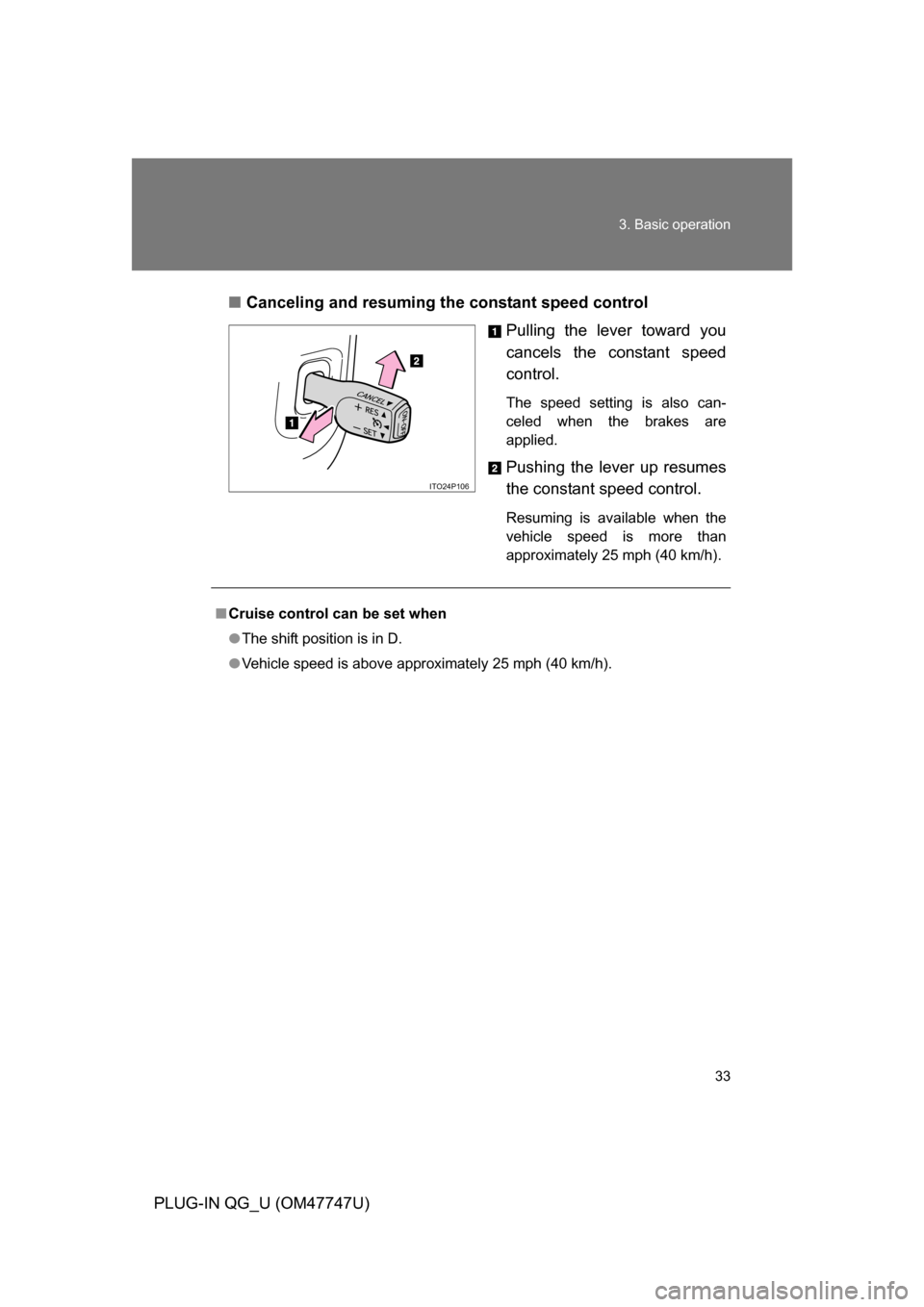

Page 33 of 36
33
3. Basic operation
PLUG-IN QG_U (OM47747U)
■
Canceling and resuming the constant speed control
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied.
Pushing the lever up resumes
the constant speed control.
Resuming is available when the
vehicle speed is more than
approximately 25 mph (40 km/h).
ITO24P106
■ Cruise control can be set when
● The shift position is in D.
● Vehicle speed is above approximately 25 mph (40 km/h).
