cruise control TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Charge port 8
Engine maintenance 10
Fuel tank door release and cap 8
Hood release 9
Indicator symbols4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 9
Smart Key system1,27
Air Conditioning/Heating 17
Audio 18
Auto lock/unlock111
Clock22
Cruise control20
Dynamic Radar Cruise Control20-21
EV/HV Mode 13
Garage door opener (HomeLink®)323
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System11
Lights1& turn signals 16
Multi-Information Display 222
Parking brake 13
Power outlets 19
Seat adjustments-Front 14
Seat heaters17
Seats-Folding down rear seats14
Seats-Head restraints 14
Steering wheel switches19
Tilt and telescopic steering wheel13
Transmission 12
Windows-Power15
Wipers & washers 15
Doors-Child safety locks 25
Door locks 25
Floor mat installation27
Seat belts 24
Seat belts-Shoulder belt anchor24
Emergency tire puncture repair kit25
Star Safety SystemTM26-27
Tire Pressure Monitoring (warning) System 24
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 1

2
OVERVIEW
Instrument panel
Steering wheel controls
“
E
“
“
S
“
T
P
H
F
M
In
1
2
3
Steering wheel audio controls2
Voice command button1,2
Steering wheel climate controls
Multi-Information Display button
“TRIP” button
Cruise control
1/Dynamic Radar Cruise Control switch1
Distance switch1
Telephone controls2
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls1
Wiper and washer controls
Charging timer switch
Head-Up Display switches
1
Power button
Multi-Information Display
Audio
2/Navigation system2,3
Air Conditioning controls
Outside rearview mirror/Rear window defogger button
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 2

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
r
2If this light flashes, refer to “Cruise control,” Section 2-4, 201\
2 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2
Theft deterrent/Engine immobilizer system indicator
Electric power steering system warning1
READY indicator
Front fog light indicator
ECO Mode indicator
EV Drive Mode indicator
Automatic headlight leveling system warning
1
a
Charging timer indicator
Pre-Collision System warning1
High coolant temperature warning1
POWER Mode indicator
ECO driving indicator
EV indicator
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 5

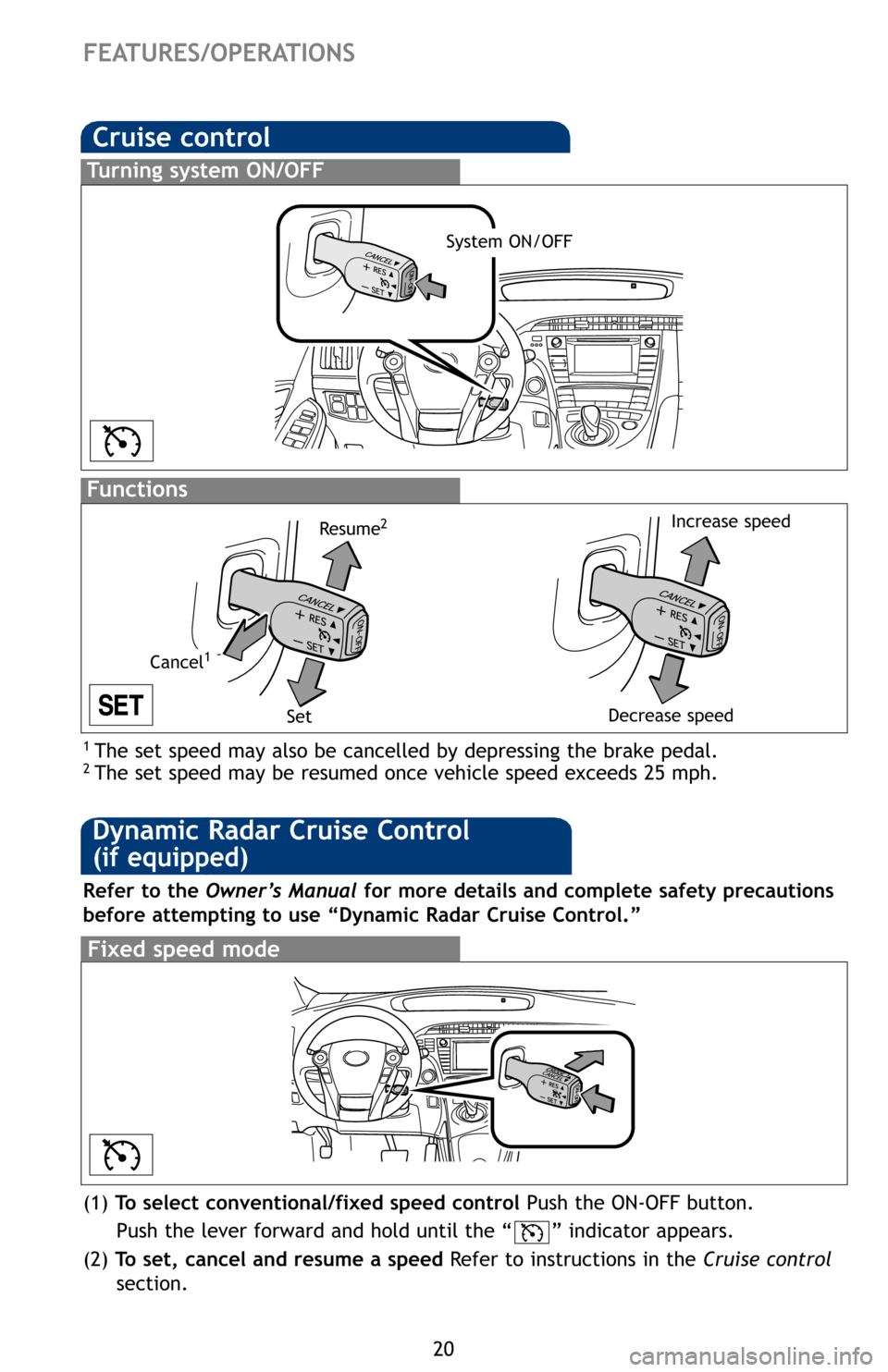

20
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
In di
selec
to th
(1) T
o
(2) T
s
(3) T
P
p
(1) To select conventional/fixed speed control Push the ON-OFF button.
Push the lever forward and hold until the “ ” indicator appears.
(2) To set, cancel and resume a speed Refer to instructions in the Cruise control
section.
Fixed speed mode
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic Radar Cruise Control.”
Dist
FEATURES/OPERATIONS
Dynamic Radar Cruise Control
(if equipped)
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 20

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

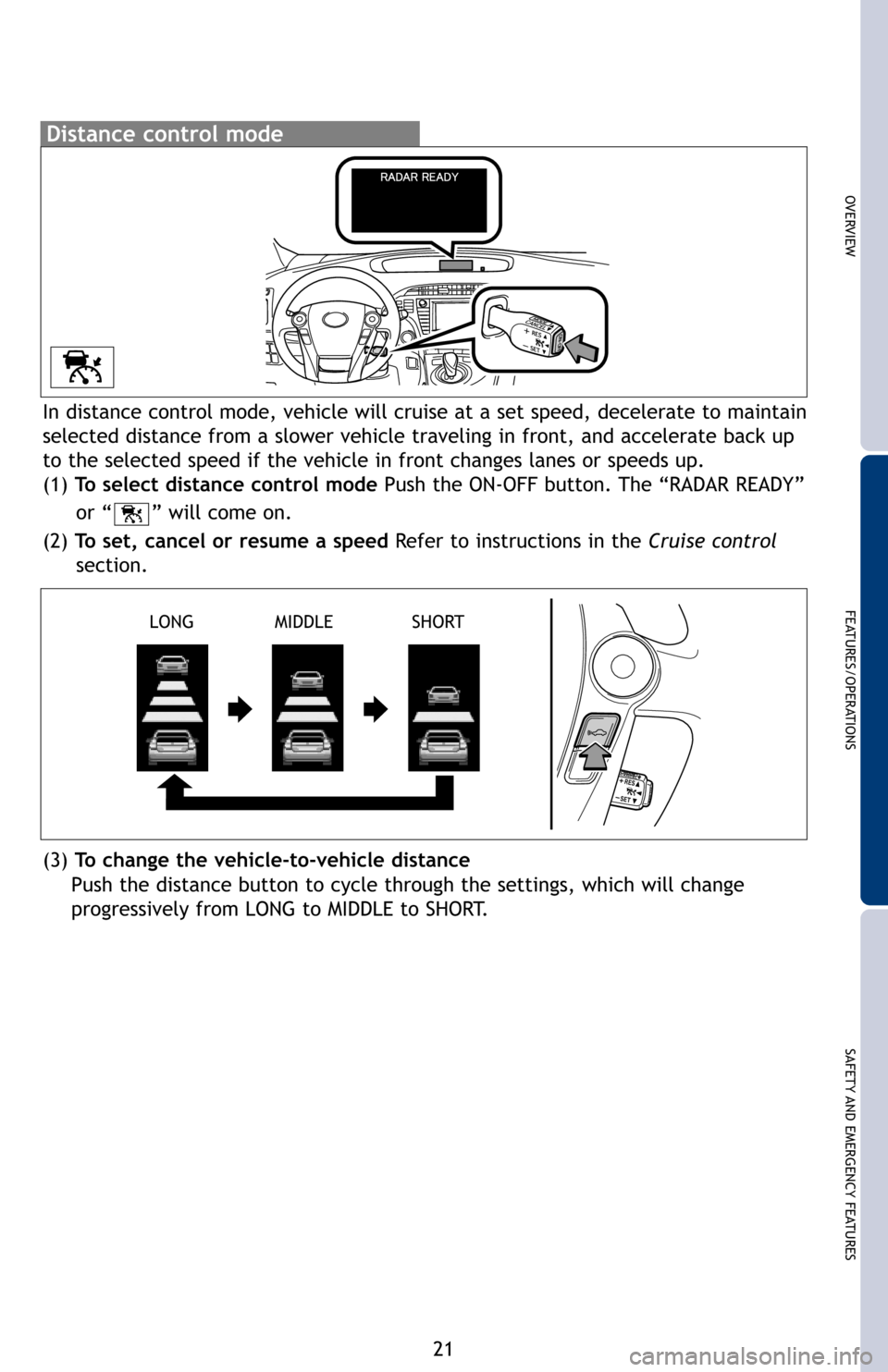

21
In distance control mode, vehicle will cruise at a set speed, decelerate\
to maintain
selected distance from a slower vehicle traveling in front, and accelera\
te back up
to the selected speed if the vehicle in front changes lanes or speeds up\
.
(1) To select distance control mode Push the ON-OFF button. The “RADAR READY”
or “ ” will come on.
(2) To set, cancel or resume a speed Refer to instructions in the Cruise control
section.
(3) To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will chang\
e
progressively from LONG to MIDDLE to SHORT.
rol
ons
Distance control mode
LONG MIDDLE SHORT
