lock TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Charge port 8
Engine maintenance 10
Fuel tank door release and cap 8
Hood release 9
Indicator symbols4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 9
Smart Key system1,27
Air Conditioning/Heating 17
Audio 18
Auto lock/unlock111
Clock22
Cruise control20
Dynamic Radar Cruise Control20-21
EV/HV Mode 13
Garage door opener (HomeLink®)323
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System11
Lights1& turn signals 16
Multi-Information Display 222
Parking brake 13
Power outlets 19
Seat adjustments-Front 14
Seat heaters17
Seats-Folding down rear seats14
Seats-Head restraints 14
Steering wheel switches19
Tilt and telescopic steering wheel13
Transmission 12
Windows-Power15
Wipers & washers 15
Doors-Child safety locks 25
Door locks 25
Floor mat installation27
Seat belts 24
Seat belts-Shoulder belt anchor24
Emergency tire puncture repair kit25
Star Safety SystemTM26-27
Tire Pressure Monitoring (warning) System 24
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 1

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
“PWR MODE” switch
Emergency flasher button
“ECO MODE” switch
“EV/HV” mode selection switch
Shift lever
“P” position switch
Tilt and telescopic steering lock release lever
Power rearview mirror controls
Headlight cleaner switch
1
Fuel filler door opener
Mph or km/h button
Instrument panel light control
1If equipped2For details, refer to the “Navigation System Owner’s Manual .”3For details, refer to the “Navigation System with Entune Quick Reference
Guide.”
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 3

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
r
2If this light flashes, refer to “Cruise control,” Section 2-4, 201\
2 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2
Theft deterrent/Engine immobilizer system indicator
Electric power steering system warning1
READY indicator
Front fog light indicator
ECO Mode indicator
EV Drive Mode indicator
Automatic headlight leveling system warning
1
a
Charging timer indicator
Pre-Collision System warning1
High coolant temperature warning1
POWER Mode indicator
ECO driving indicator
EV indicator
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 5

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door TWICE: All doors
Locking operation
Unlocking operation
Sm
Star
AC
ON
OF
With
oper
Pow
Remote Air Conditioning system operation
Panic button
Push and hold
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will r\
elock
for safety.
* Dri all
NOT
Loc
Carr
Bac
Carr
lock
Will automatically shut off
after 10 minutes, or if a door
is opened.
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 6

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; hybrid system is not engaged.
All systems OFF.
ACCESSORY
ON
OFF
Push
Depress
brake pedal
Carrying Green indicator ON
Without depressing the brake pedal, pressing the “POWER” switch wil\
l change the
operation mode in succession from:
Power (without starting hybrid system)
ock
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping a passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
LockingUnlocking
Carry remote to lock Carry remote to unlock
All-door lockDriver door unlock*
Back door lock/unlock
Carry remote to
lock/unlock
Touch
Grasp
Push
Lock
Push
Unlock
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 7

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
FEATURES/OPERATIONS
Starting your vehicle
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition, the
engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the hybrid system areshown on the Multi-Information Display.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking ener\
gy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes\
, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“POWER” switch OFF.
Refer to the Owner’s Manual for more details.(1) Depress the brake pedal, and
press the “POWER” switch
briefly and firmly.
(2) The “READY” light will blink. After a few seconds, when the
light remains steady and a
beep sounds, you may begin
driving.
fer
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 11

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel

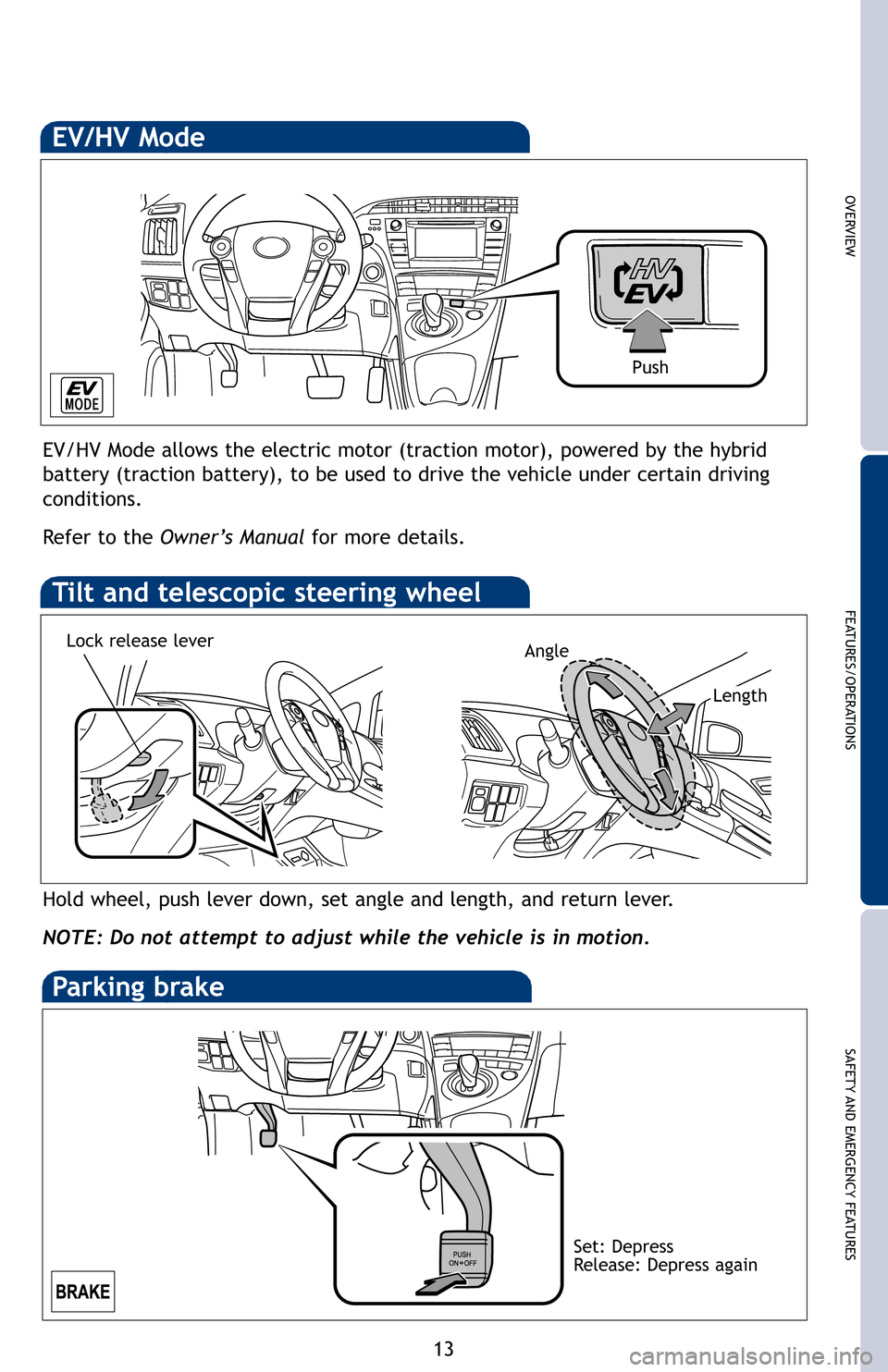

EV/HV Mode
EV/HV Mode allows the electric motor (traction motor), powered by the \
hybrid
battery (traction battery), to be used to drive the vehicle under cert\
ain driving
conditions.
Refer to the
Owner’s Manual for more details.
Push
Angle
Length
Lock release lever
Parking brake
Set: Depress
Release: Depress again
nt
*
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 13
