warning light TOYOTA PRIUS PLUG-IN HYBRID 2012 1.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Charge port 8
Engine maintenance 10
Fuel tank door release and cap 8
Hood release 9
Indicator symbols4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 9
Smart Key system1,27
Air Conditioning/Heating 17
Audio 18
Auto lock/unlock111
Clock22
Cruise control20
Dynamic Radar Cruise Control20-21
EV/HV Mode 13
Garage door opener (HomeLink®)323
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System11
Lights1& turn signals 16
Multi-Information Display 222
Parking brake 13
Power outlets 19
Seat adjustments-Front 14
Seat heaters17
Seats-Folding down rear seats14
Seats-Head restraints 14
Steering wheel switches19
Tilt and telescopic steering wheel13
Transmission 12
Windows-Power15
Wipers & washers 15
Doors-Child safety locks 25
Door locks 25
Floor mat installation27
Seat belts 24
Seat belts-Shoulder belt anchor24
Emergency tire puncture repair kit25
Star Safety SystemTM26-27
Tire Pressure Monitoring (warning) System 24
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 1

4
OVERVIEW
Indicator symbols
Instrument cluster
Service indicators and reminders
Transmission shift position indicator
Multi-Information Display
Instantaneous fuel consumption
Speedometer
Fuel gauge
Charging system warning1
Brake system warning1
Front passenger occupant classification or front passenger
airbag ON/OFF indicator
2If th
Low tire pressure warning1
Open door warning
Airbag SRS warning1
Master warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check engine indicator
1
Low fuel level warning
Brake system warning light (yellow indicator)1
1If indicator does not turn off within a few seconds of starting hybrid s\
ystem, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2012 Owner’s
Manual .
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 4

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
r
2If this light flashes, refer to “Cruise control,” Section 2-4, 201\
2 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2
Theft deterrent/Engine immobilizer system indicator
Electric power steering system warning1
READY indicator
Front fog light indicator
ECO Mode indicator
EV Drive Mode indicator
Automatic headlight leveling system warning
1
a
Charging timer indicator
Pre-Collision System warning1
High coolant temperature warning1
POWER Mode indicator
ECO driving indicator
EV indicator
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 2:08 AM Page 5

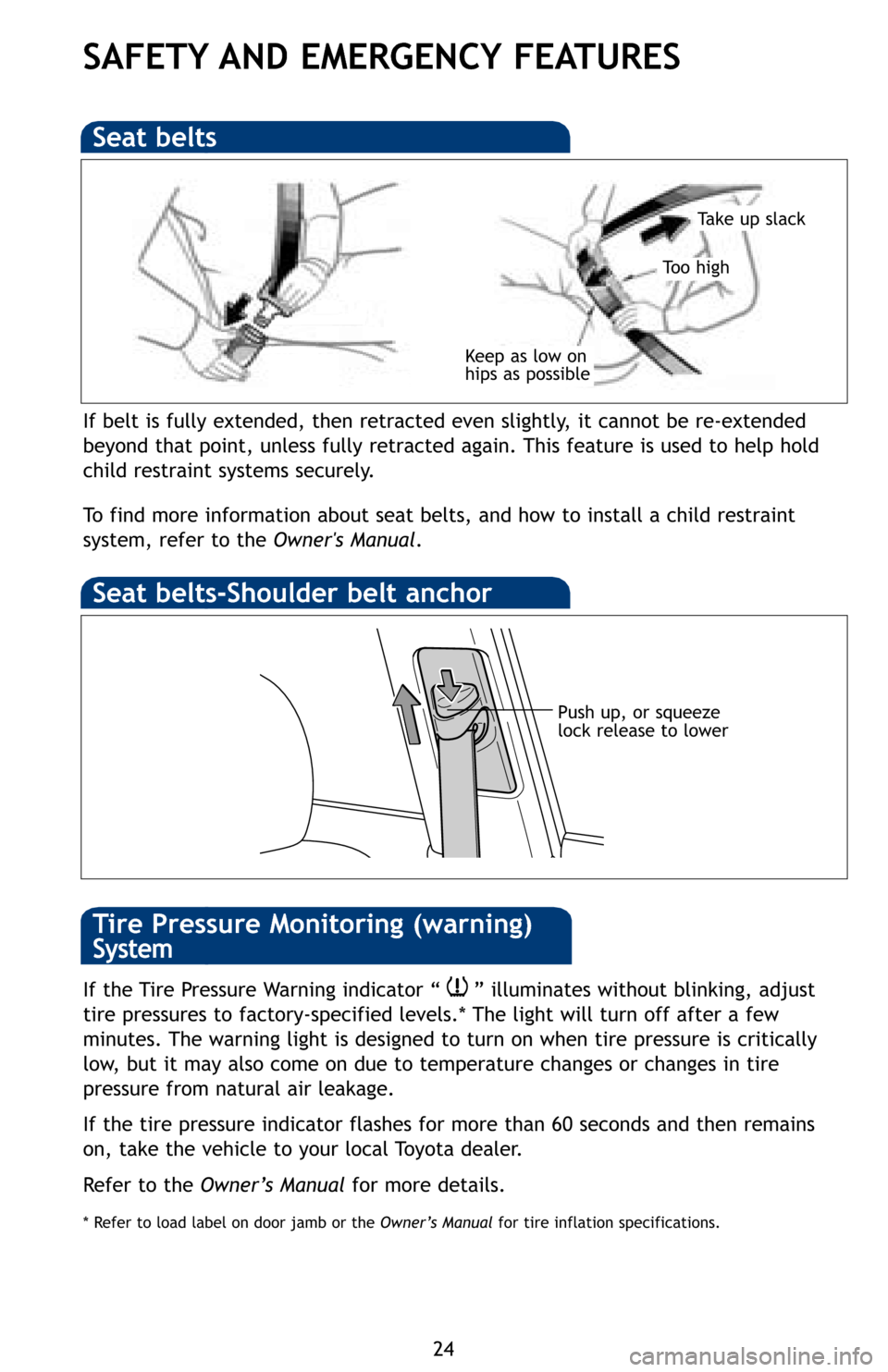

24
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child res\
traint
system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
Do
If the Tire Pressure Warning indicator “ ” illuminates without blinking, adjust
tire pressures to factory-specified levels.* The light will turn off after a few
minutes. The warning light is designed to turn on when tire pressure is criticall\
y
low, but it may also come on due to temperature changes or changes in tire
pressure from natural air leakage.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains
on, take the vehicle to your local Toyota dealer.
Refer to the Owner’s Manual for more details.
* Refer to load label on door jamb or the Owner’s Manualfor tire inflation specifications.
Tire Pressure Monitoring (warning)
System
Em
To o
Refe
Movi
outs
Rea
Do
125957_2012-Prius-PHV-QRGnew:2012 2/7/12 3:43 AM Page 24
