WHAT IS COVERED AND
HOW LONG
Basic Warranty
This warranty covers repairs and
adjustments needed to correct defects in
materials or workmanship of any part
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 36 months or
36,000 miles, whichever occurs first, with
the exception of wheel alignment and
wheel balancing, which are covered for
12 months or 20,000 miles, whichever
occurs first.
Hybrid System Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of the components listed
here and supplied by Toyota, subject to
the exceptions indicated under “What Is
Not Covered” on pages 14-15.
•Battery control module (battery
voltage sensor)
• Hybrid battery
• Hybrid control module (power
management control module)
• Inverter with converter
Coverage is for 96 months or
100,000 miles, whichever occurs first.
Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any component listed
below and in the next column and
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
Engine
Cylinder block and head and all internal
parts, timing gears and gaskets, timing
chain/belt and cover, valve covers, oil pan,
oil pump, engine mounts, engine control
computer, water pump, fuel pump, seals
and gaskets.
Transaxle/Motor/Generator
Case and all internal parts, transaxle
mounts, seals and gaskets.
Front-Wheel-Drive System
Final drive housing and all internal parts,
axle shafts, drive shafts, constant velocity
joints, front hub and bearings, seals and
gaskets.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail13

JOBNAME: 1125889-2012-ppi-toy PAGE: 37 SESS: 11 OUTPUT: Mon Jan 30 15:00:30 2012
/tweddle/toyota/sched-maint/1125889-en-ppi/wg
Special Operating Conditions
In addition to standard maintenance items,
the maintenance log indicates services that
should be performed on vehicles that are
driven under especially demanding
conditions. These “special operating
conditions” and their required maintenance
items are clearly indicated in each chart.
NOTE:You should perform these
additional maintenance services only if
the majority of your driving is done
under the special operating conditions
indicated. If you only occasionally
drive under these circumstances, it is
not necessary to perform the
additional services.
Engine Oil Selection
Please refer to your Owner’s Manual for
the specific oil viscosity rating
recommended for your vehicle/engine
type.
Additional Maintenance
In addition to scheduled maintenance,
your Toyota requires ongoing general
maintenance such as fluid checks and
visual inspections. These procedures are
explained in the Vehicle Maintenance and
Care section of the
Owner’s Manual.Be
sure to perform these procedures regularly
to ensure the most trouble-free operation
of your vehicle.
SuperChrome and Alloy Wheel
Care
If you purchased genuine Toyota
accessory Aluminum Alloy Wheels, follow
these cleaning guidelines to maintain the
appearance of your alloy wheels:
• If wheels are hot, wait for them to
cool before washing.
• Use a soft sponge or cotton cloth to
apply the same mild car-wash soap as
used for the vehicle body. Quickly
rinse off with water. Use a soft cloth
to apply the same car wax as used for
the vehicle body.
• DO NOT USE: Any kind of chemical
based cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes, or coarse
abrasives to clean your wheels.
Using the Maintenance Log Charts
Maintenance Log37
MAINTENANCE

JOBNAME: 1125889-2012-ppi-toy PAGE: 57 SESS: 11 OUTPUT: Mon Jan 30 15:00:30 2012
/tweddle/toyota/sched-maint/1125889-en-ppi/wg

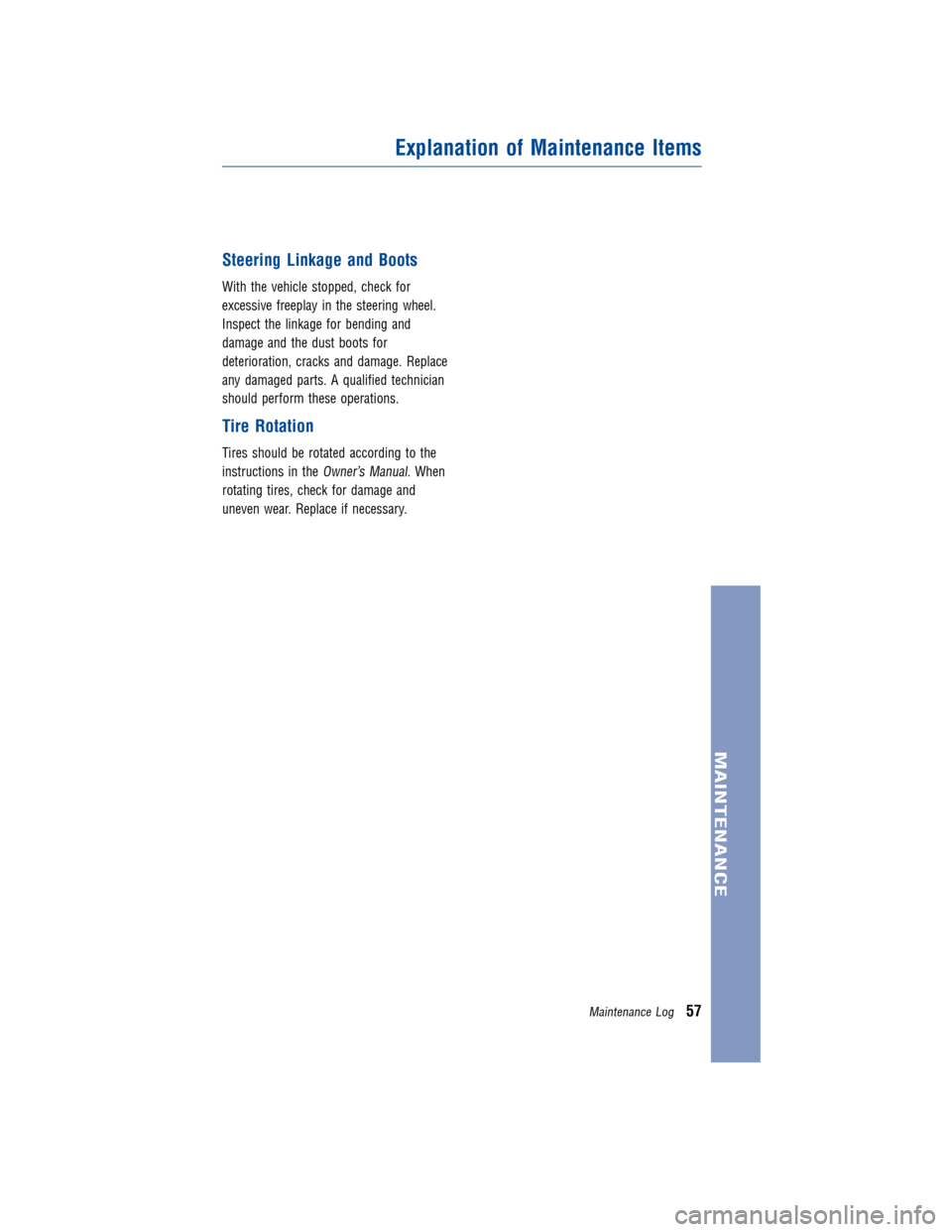

Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the
Owner’s Manual.When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Explanation of Maintenance Items
Maintenance Log57
