When trouble arises
561
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Interior
buzzerExterior buzzerWarning messageDetailsCorrection procedure
Once Contin-
uous
(Displayed alternately)(Flashes) The electronic
key has been
taken outside
the vehicle and
the doors have
been locked
without first
turning the
“POWER”
switch to OFF.
(vehicles with
entry function)
Turn the
“POWER”
switch to
OFF and
lock the
doors
again.

562 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once Contin-
uous
(Flashes)An attempt to
lock the doors
has been made
using the smart
key system
while the elec-
tronic key is
inside the vehi-
cle. (vehicles
with entry func-
tion)
Take the
electronic
key out-
side the
vehicle,
and lock
the doors
again.
With the key
inside the vehi-
cle, a front door
has been
opened, the
lock lever has
been pulled in
the lock direc-
tion, the door
has been
closed and an
attempt has
been made to
lock the door.

5
When trouble arises
563
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Interior
buzzerExterior buzzerWarning messageDetailsCorrection procedure
Contin-
uous Contin-
uous
(Displayed alternately)(Flashes) The driver’s
door is opened
and closed
while the elec-
tronic key is out-
side the
detection range
and the
“POWER”
switch is in
ACCESSORY
or ON mode
with the shift
position not in P.
• Shift the
shift posi-
tion to P.
• Confirm the loca-
tion of the
electronic
key.
Once 
(Comes on for 15 seconds.)
The electronic
key battery is
low. Replace
the bat-
tery.
(
P. 496)
Once 
(Flashes)An open door
has been
closed and the
“POWER”
switch has been
turned twice to
the ACCES-
SORY mode
from OFF. Press the
“POWER”
switch
while
applying
the
brakes.

564 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once 
(Flashes)The elec-
tronic key
does not
operate
properly.
P. 594
 Power
was
turned off
due to
the auto-
matic
power off
function.Next time when
starting the
hybrid system,
increase the
engine speed
slightly and
maintain that
level for approxi-
mately 5 min-
utes to charge
the battery.
NOTICE
■
While the engine oil level warning is displayed
Continued engine operation with low engine oil will damage the engine.
■ Engine oil maintenance message
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.

5
When trouble arises
565
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Charging messages
A message showing the charge results will be displayed if the
“POWER” switch is turned to ON mode after charging has completed
(when the vehicle’s charging indicator has turned off).
If one of the following messages is displayed, follow the correction proce-
dures.
If the message displays again after following the correction procedure,
contact your Toyota dealer.
*: For information about the safety functions, refer to P. 95.
MessageDetailsCorrection procedure
The charging cable has
been connected to the
vehicle while the
“READY” indicator light
was illuminated. A warning buzzer will
sound. The hybrid system auto-
matically stopped due to
operation of the safety
functions
*.
Turn the “POWER”
switch off and perform
charging according to the
procedures on P. 84.
An attempt has been
made to start the hybrid
system while the charg-
ing cable was connected. A warning buzzer will
sound. The hybrid system can-
not be started while the
charging cable is con-
nected due to the safety
functions
*.
Disconnect the charging
cable and start the hybrid
system.

566 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
MessageDetailsCorrection procedure
Charging has been inter-
rupted because the plug
has been disconnected
or some kind of power
failure has occurred. Charging has not fin-
ished properly.
Refer to the procedures
on P. 84 and perform
charging again.
The vehicle can be used
even if charging has not
finished. However, the
distance that can be
driven in EV mode
decreases.
One of the following situ-
ations has occurred:
• The charging connector is not properly inserted
• The latch release button has been pressed and
held
• The charging connector has been disconnected Reinsert the charging
connector to restart
charging.
Charging has been inter-
rupted by a malfunction
in the charging system. Stop charging immedi-
ately, and contact your
Toyota dealer.
Also, driving is possible
when the hybrid system
has been started.

5
When trouble arises
567
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
MessageDetailsCorrection
procedure
Charging has been
stopped because of the
high energy consumption
of electrical compo-
nents, such as the head-
lights. Switch the electrical
appliance OFF, and
restart charging by fol-
lowing the procedure on
P. 84.
If the message is still
displayed, the 12-volt
battery may have a low
charge.
In this event, turn the
“POWER” switch OFF
approximately 15 min-
utes after starting the
hybrid system, and
restart charging.
Charging has been
stopped because of
extremely low voltage,
possibly caused by the
plug not being inserted
correctly. Check that the plug is
inserted correctly, and
restart charging by fol-
lowing the procedure on
P. 84.
Check that the plug is
not connected to a
power strip and that an
extension cord, multi-
outlet etc. is not being
used.

568 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
MessageDetailsCorrection procedure
Charging has been
stopped because of a
problem with the charg-
ing cable. If the charging cable is
not a genuine Toyota
product, or if you are
charging using a charg-
ing station (other than a
Toyota dealer), try charg-
ing with a genuine Toyota
charging cable.
If the message is still
displayed, contact your
Toyota dealer.
Charging has stopped
because of the continued
high temperature of the
hybrid battery (traction
battery) (in order to pro-
tect the battery). If the desired charge
level has not been
achieved, restart charg-
ing by following the pro-
cedure on P. 84 after the
hybrid battery (traction
battery) has cooled
down.

5
When trouble arises
569
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

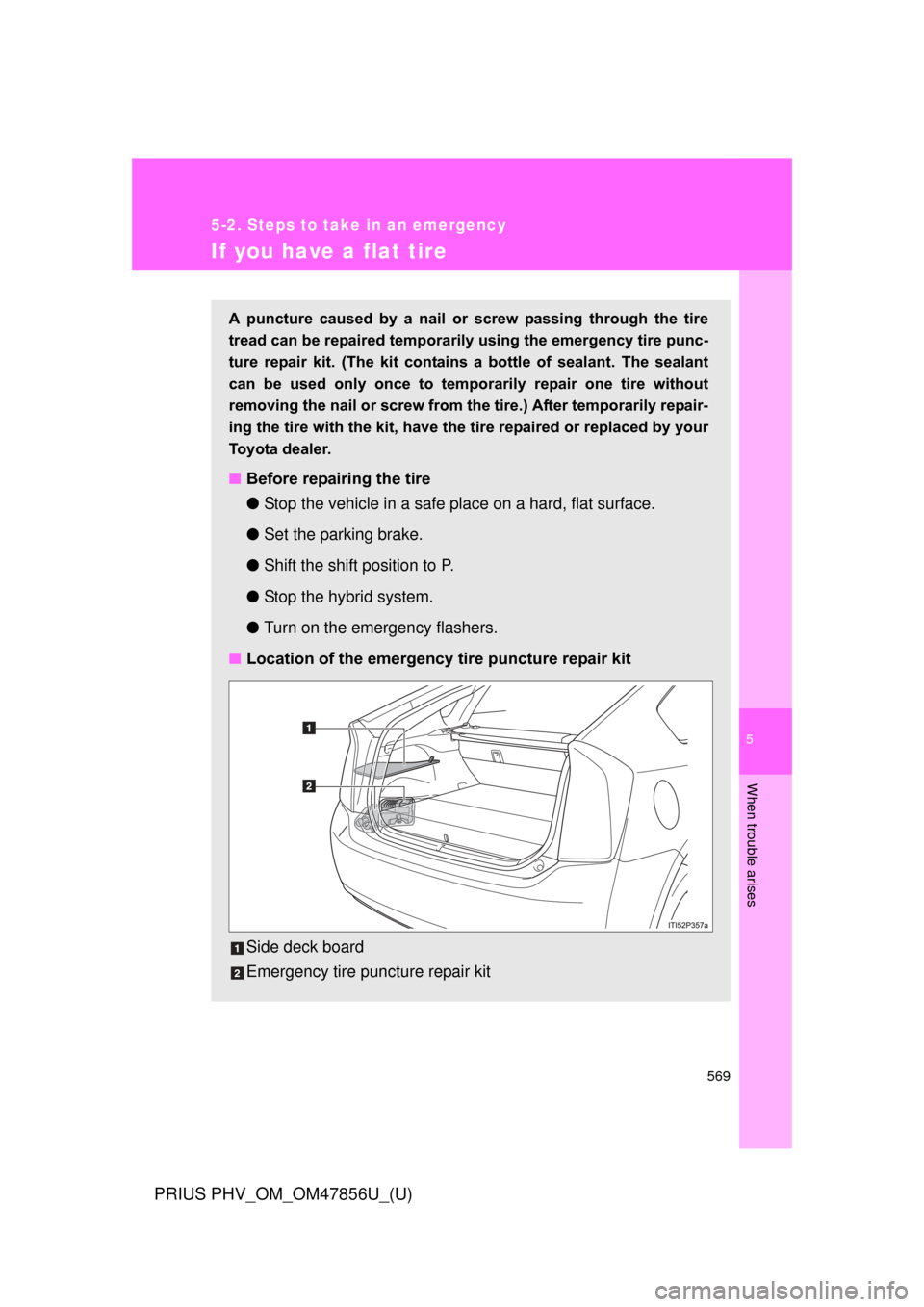

If you have a flat tire
A puncture caused by a nail or screw passing through the tire
tread can be repaired temporarily using the emergency tire punc-
ture repair kit. (The kit contains a bottle of sealant. The sealant
can be used only once to temporarily repair one tire without
removing the nail or screw from the tire.) After temporarily repair-
ing the tire with the kit, have the tire repaired or replaced by your
Toyota dealer.
■ Before repairing the tire
●Stop the vehicle in a safe pl ace on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
■ Location of the emergency tire puncture repair kit
Side deck board
Emergency tire puncture repair kit

570 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

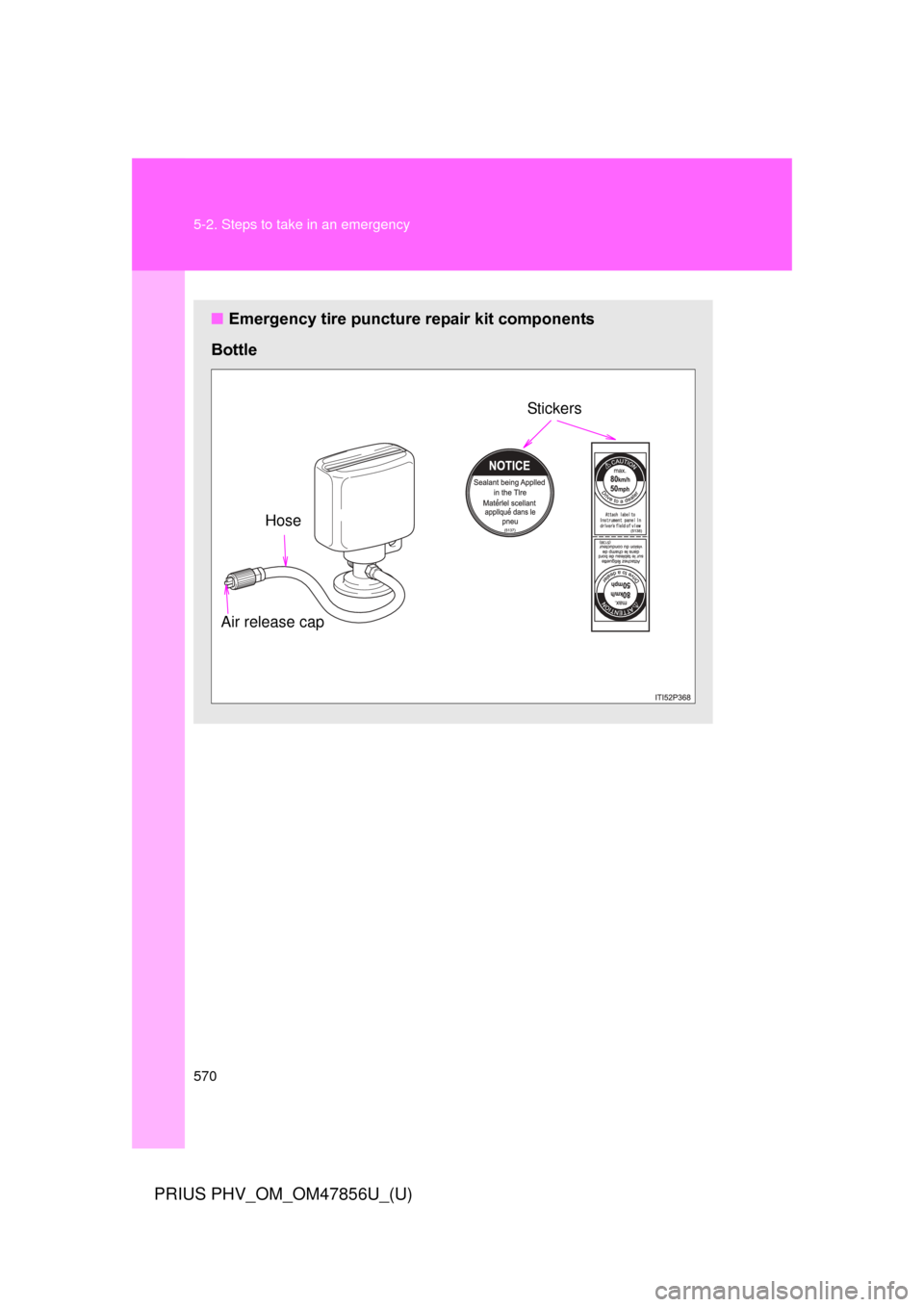

■Emergency tire puncture repair kit components
Bottle
Air release cap Hose Stickers
