TOYOTA PRIUS PLUG-IN HYBRID 2014 1.G Owners Manual

5
When trouble arises
571
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Compressor
Power plug
Air pressure gauge Compressor switch

572 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Before performing emergency repairCheck the degree of the tire damage. A tire should only be repaired
with the emergency tire puncture
repair kit if the damage is caused
by a nail or screw passing
through the tire tread.
• Do not remove the nail orscrew from the tire. Removing
the object may widen the
opening and prevent emer-
gency repair with the repair kit.
• To avoid sealant leakage,
move the vehicle until the area
of the puncture, if known, is
positioned at the top of the
tire.

5
When trouble arises
573
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
■In the following cases, the tire cannot be repaired with the emer-
gency tire puncture repair kit. Contact your Toyota dealer.
●When the tire is damaged due to dr
iving without sufficient air pres-
sure
●When there are any cracks or damage at any location on the tire,
such as on the side wall, except the tread
●When the tire is visibly separated from the wheel
●When the cut or damage to the trea d is 0.16 in. (4 mm) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When more than 2 sharp objects such as nails or screws have
passed through the tread on a single tire
●When the sealant has expired

574 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Taking out the emergency tire puncture repair kitLift the side deck board.
Unhook the tightening strap.
Take out the emergency tire
puncture repair kit.
STEP 1
STEP 2

5
When trouble arises
575
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Emergency repair method
Take out the repair kit from the plastic bag. Remove the valve cap from the
valve of the punctured tire.
Remove the air release cap from
the hose.
You will use the air release cap
again. Therefore keep it in a
safe place.
STEP 1
STEP 2
STEP 3

576 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Connect the hose to the valve.
Screw the end of the hose
clockwise as far as possible.
Make sure that the compressor
switch is off.
Remove the rubber stopper from
the compressor.
STEP 4
STEP 5
STEP 6

5
When trouble arises
577
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Connect the power plug to the power outlet socket. (
P. 397)
Instrument panel
Rear console boxSTEP7

578 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

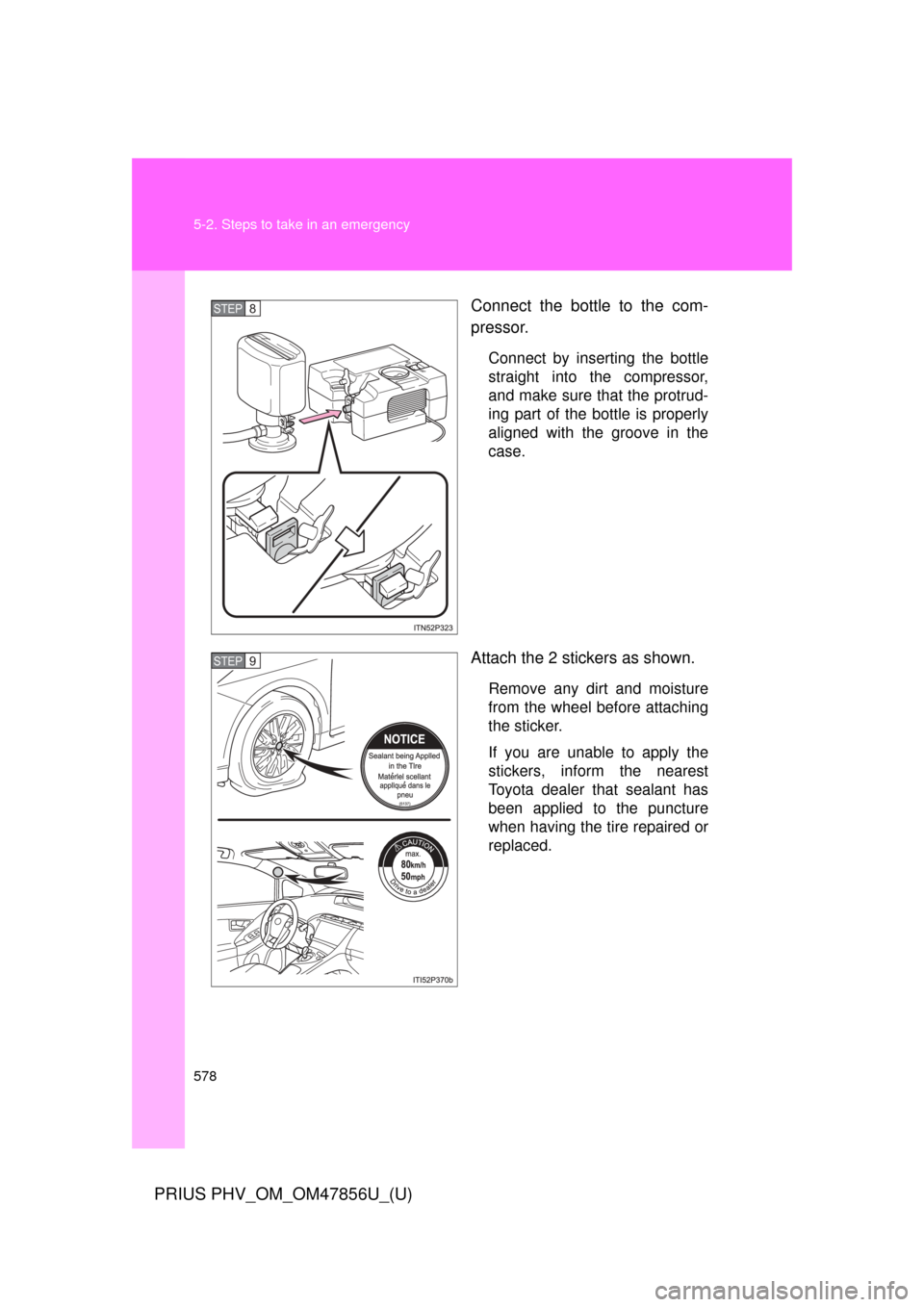

Connect the bottle to the com-
pressor.
Connect by inserting the bottle
straight into the compressor,
and make sure that the protrud-
ing part of the bottle is properly
aligned with the groove in the
case.
Attach the 2 stickers as shown.
Remove any dirt and moisture
from the wheel before attaching
the sticker.
If you are unable to apply the
stickers, inform the nearest
Toyota dealer that sealant has
been applied to the puncture
when having the tire repaired or
replaced.
STEP8
STEP9

5
When trouble arises
579
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

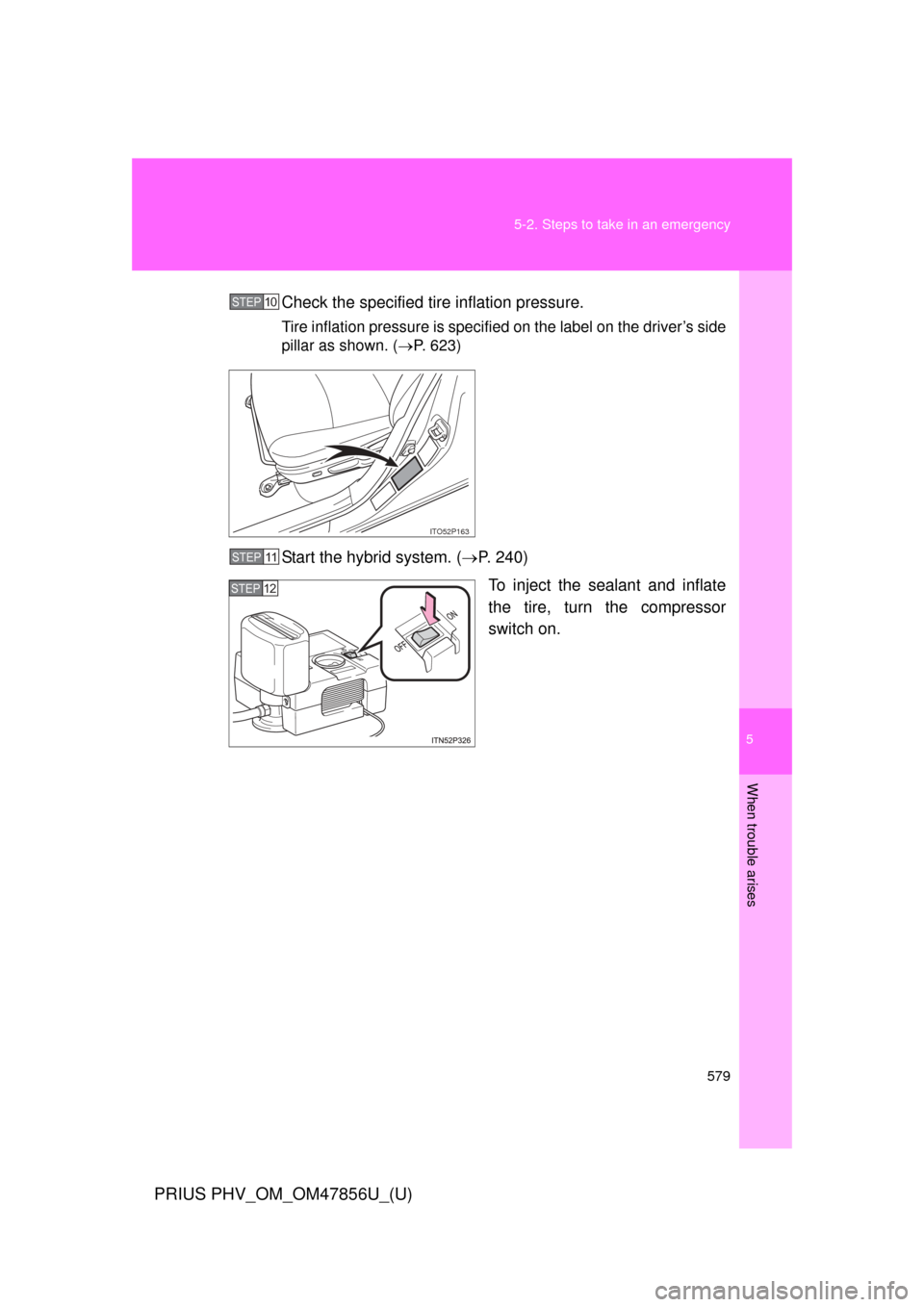

Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label on the driver’s side
pillar as shown. (
P. 623)
Start the hybrid system. ( P. 240)
To inject the sealant and inflate
the tire, turn the compressor
switch on.
STEP10
ITO52P163
STEP11
STEP12

580 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

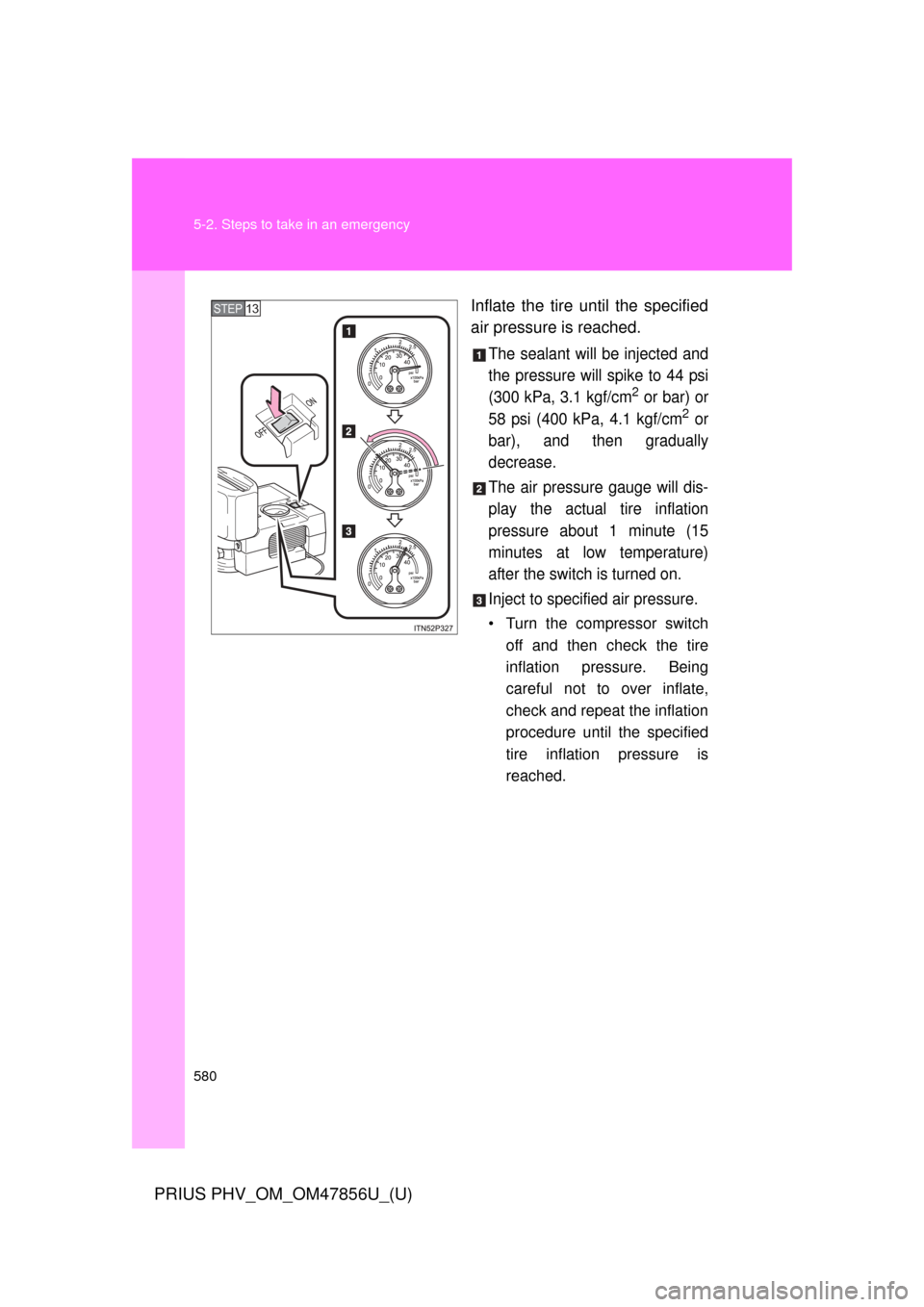

Inflate the tire until the specified
air pressure is reached.
The sealant will be injected and
the pressure will spike to 44 psi
(300 kPa, 3.1 kgf/cm
2 or bar) or
58 psi (400 kPa, 4.1 kgf/cm2 or
bar), and then gradually
decrease.
The air pressure gauge will dis-
play the actual tire inflation
pressure about 1 minute (15
minutes at low temperature)
after the switch is turned on.
Inject to specified air pressure.
• Turn the compressor switch
off and then check the tire
inflation pressure. Being
careful not to over inflate,
check and repeat the inflation
procedure until the specified
tire inflation pressure is
reached.
STEP13
