TOYOTA PRIUS PLUG-IN HYBRID 2015 1.G Owners Manual

361
2-5. Driving information
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with the four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

362 2-5. Driving information
PRIUS PHV_OM_OM47A11U_(U)

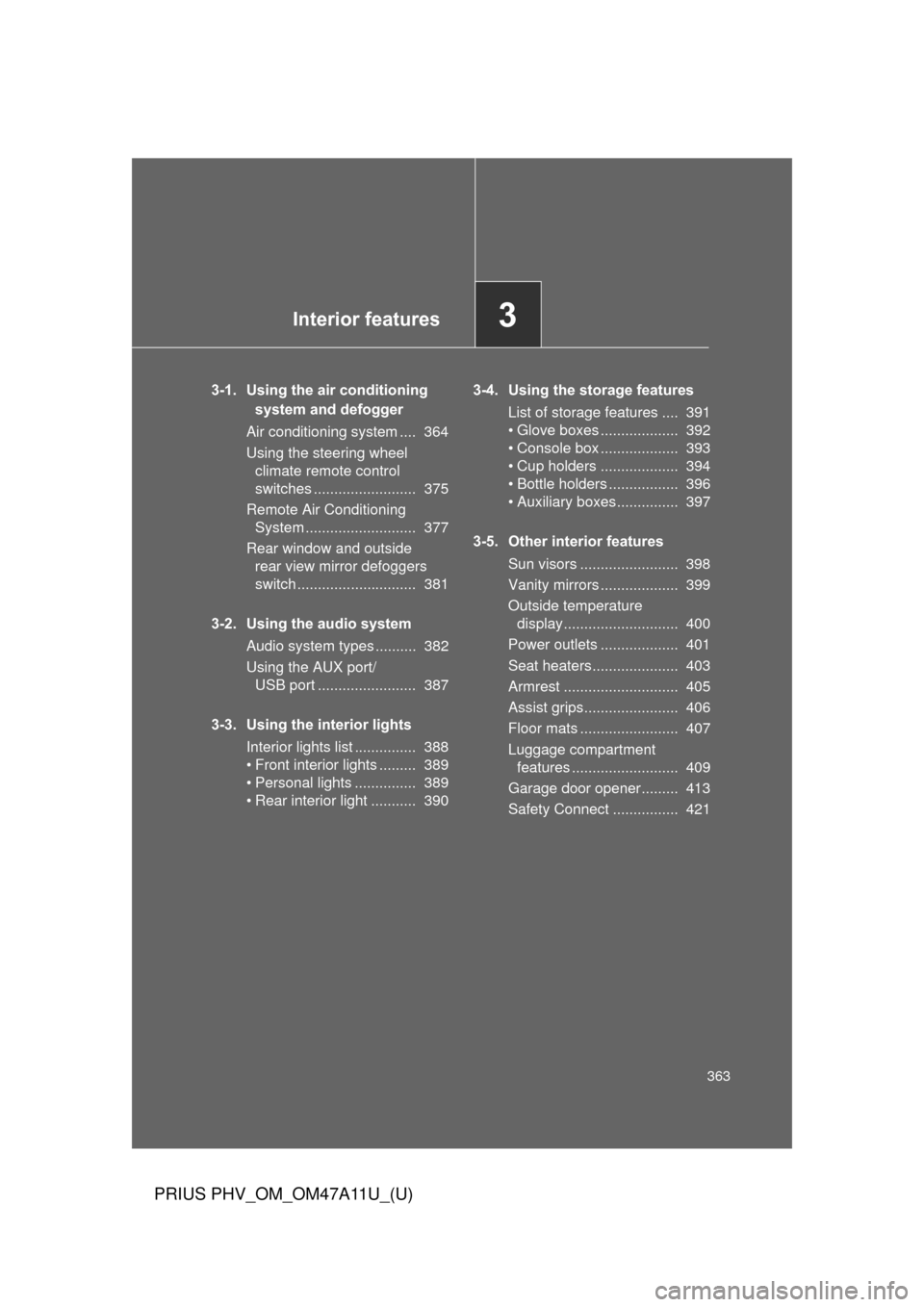

Interior features3
363
PRIUS PHV_OM_OM47A11U_(U)
3-1. Using the air conditioning system and defogger
Air conditioning system .... 364
Using the steering wheel climate remote control
switches ......................... 375
Remote Air Conditioning System ........................... 377
Rear window and outside rear view mirror defoggers
switch ............................. 381
3-2. Using the audio system Audio system types .......... 382
Using the AUX port/USB port ........................ 387
3-3. Using the interior lights Interior lights list ............... 388
• Front interior lights ......... 389
• Personal lights ............... 389
• Rear interior light ........... 390 3-4. Using the storage features
List of storage features .... 391
• Glove boxes ................... 392
• Console box ................... 393
• Cup holders ................... 394
• Bottle holders ................. 396
• Auxiliary boxes ............... 397
3-5. Other interior features Sun visors ........................ 398
Vanity mirrors ................... 399
Outside temperature display............................ 400
Power outlets ................... 401
Seat heaters..................... 403
Armrest ............................ 405
Assist grips....................... 406
Floor mats ........................ 407
Luggage compartment features .......................... 409
Garage door opener......... 413
Safety Connect ................ 421

364
PRIUS PHV_OM_OM47A11U_(U)
3-1. Using the air conditioning system and defogger

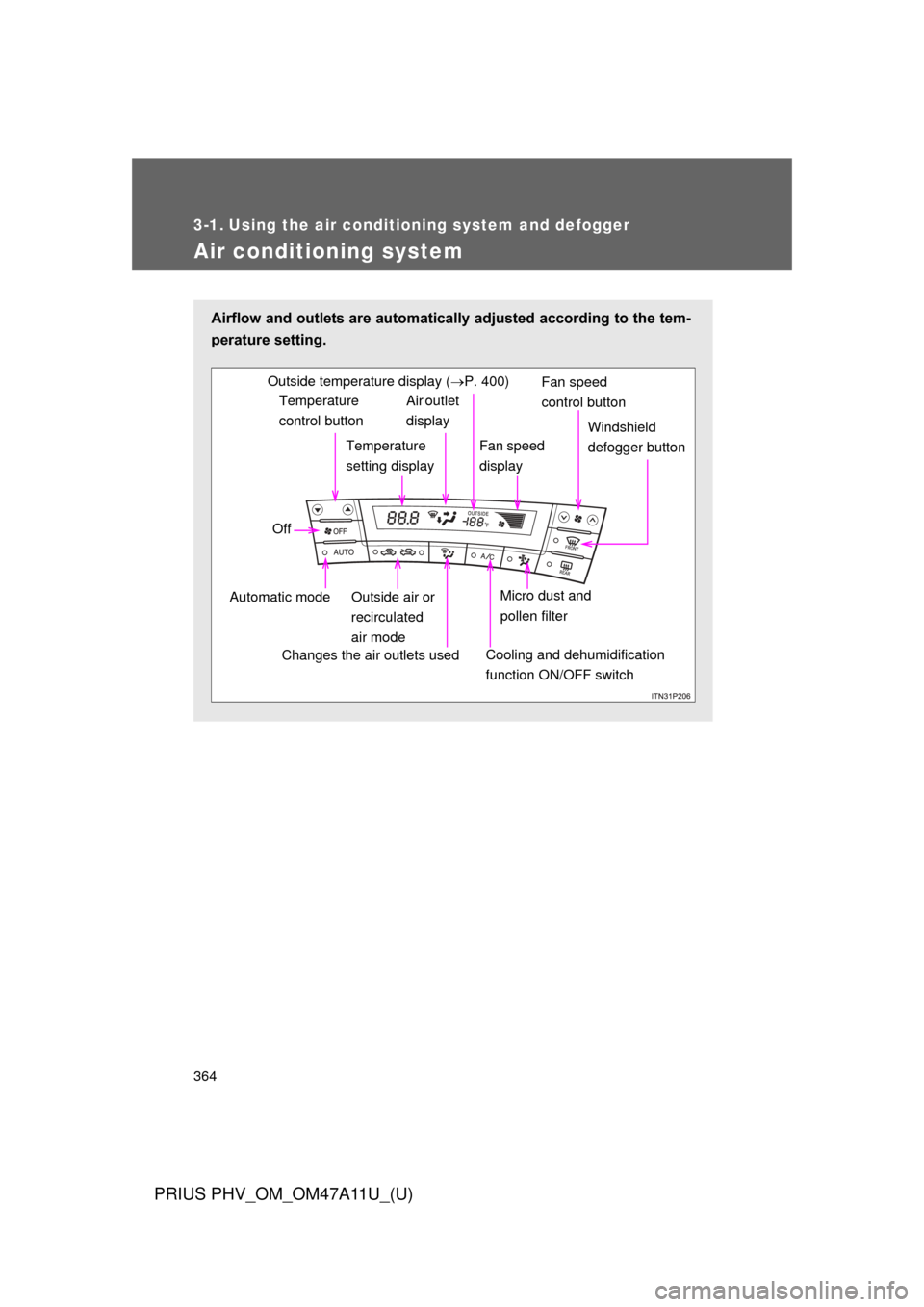

Air conditioning system
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Temperature
control buttonTemperature
setting displayAir outlet
display
Fan speed
display Windshield
defogger button
Off
Automatic mode Outside air or recirculated
air mode
Changes the air outlets used
Fan speed
control buttonOutside temperature display ( P. 400)
Micro dust and
pollen filter
Cooling and dehumidification
function ON/OFF switch

365
3-1. Using the air conditioning system
and defogger
PRIUS PHV_OM_OM47A11U_(U)
3
Interior features
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “▲” to increase the temperature and “ ▼” to decrease
the temperature on the .
■ Automatic mode indicator
If the fan speed setting or air flow modes are operated, the automatic
mode indicator goes off. However, automatic mode for functions other
than that operated are maintained.
Adjusting the settings
■ Changing the cooling and dehumidification function
Press .
The cooling and dehumidification function switches between on and off
each time the button is pressed.
■Adjusting the temperature setting
Press “ ▲” to increases the temperature and “ ▼” to decreases the
temperature on the .
■ Adjusting the fan speed
Press  (increase) or  (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
STEP 1
STEP 2

366 3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47A11U_(U)
■Changing the air outlets
Press .
The air outlets switch each time
the button is pressed.
Air flows to the upper body.
Air flows to the upper body and
feet.
ITO31P105

367
3-1. Using the air conditioning system
and defogger
PRIUS PHV_OM_OM47A11U_(U)
3
Interior features
Mainly air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
■ Switching between outside air and recirculated air modes
Press .
The modes switches between (recycles air inside the vehicle)
and (introduces air from outside the vehicle) modes each time
the button is pressed.

368 3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47A11U_(U)
Defogging the windshield
Press .
The air conditioning system con-
trol operates automatically.
(The gasoline engine may oper-
ate during EV mode driving,
depending on vehicle conditions.)
Recirculated air mode will auto-
matically switch to outside air
mode.
Micro dust and pollen filterPress .
Outside air mode switches to recirculated air mode. Pollen is removed
from the air and the air flows to the upper part of the body.
Usually the system will turn off automatically approximately 3 minutes
later.
To stop the operation, press again.

369
3-1. Using the air conditioning system
and defogger
PRIUS PHV_OM_OM47A11U_(U)
3
Interior features
Adjusting the position of and opening and closing the air outlets
■ Adjusting the air outlets
Center outlets Direct air flow to the left or right,
up or down.
Right and left side outlets Direct air flow to the left or right,
up or down.

370 3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47A11U_(U)
■Opening and closing the air outlets
Center outlets Open the vent.
Close the vent.
Move the knob in the direction of
the printed arrow until a click is
heard.
Right and left side outletsOpen the vent.
Close the vent.
Move the knob in the direction of
the printed arrow until a click is
heard.
