TOYOTA PRIUS PLUG-IN HYBRID 2015 1.G Quick Reference Guide

2015 Prius Plug-in HybridQuick Reference Guide

1
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Prius

Plug-in Hybrid
.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius Plug-
in Hybrid operations. Every Prius Plug-in Hybrid owner should
review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed

information highlighted in

color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2015
Prius Plug-in Hybrid
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Johnson Controls, Inc.
OVERVIEWFEATURES/OPERATIONS
Air Conditioning/Heating 26
Audio 27
Auto lock/unlock
1,2 20
Bluetooth
Device Pairing 27
Clock
31
Cruise control

29
Dynamic

Radar Cruise Control
30
EV/HV

Mode

22
Garage

door opener (HomeLin
k®)3 31
Heated
Seats

26
Hill-start Assist Control (HAC) 31Hybrid Synergy Drive System 20
Lights1 & turn signals 25
Multi-Information Display2 29
Parking
brake
22
Power outlets

28
Seat

adjustments-Front

23
Seats-Folding

down rear seats
23
Seats-Head

restraints

23
Steering

wheel switches

28
Tilt and

telescopic steering wheel
22
Transmission

21
USB/AUX port

28
Windows-Power

24
Wipers & washers

24



Doors-Child safety locks 33
Door locks 33
Floor
mat installation
35
Seat

belts
32
Seat

belts-Shoulder belt anchor
32
Star

Safety System
TM 34-35
Tire Pressure Monitoring
(warning)

System

32
Tire Rep

air System

33
Charge port 8
Engine maintenance 10
Fuel tank door release and cap

8
Hood release


9
Indicator symbols


4-5
Instrument cluster


4
Instrument panel
2-3Keyless entry1,2 6
Light control-Instrument panel 9
Smart Key System1,2 7


Charging 12-16
Charging equipment 11
Charging system safety function

19
Electric Vehicle System


11
Inspecting electrical leakage


detection function
Multi-Information


Display-Charging information
Plug-in Hybrid Applications


19


17 18
ELECTRIC VEHICLE SYSTEM
SAFETY AND EMERGENCY FEATURES
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

3
2
OVERVIEW

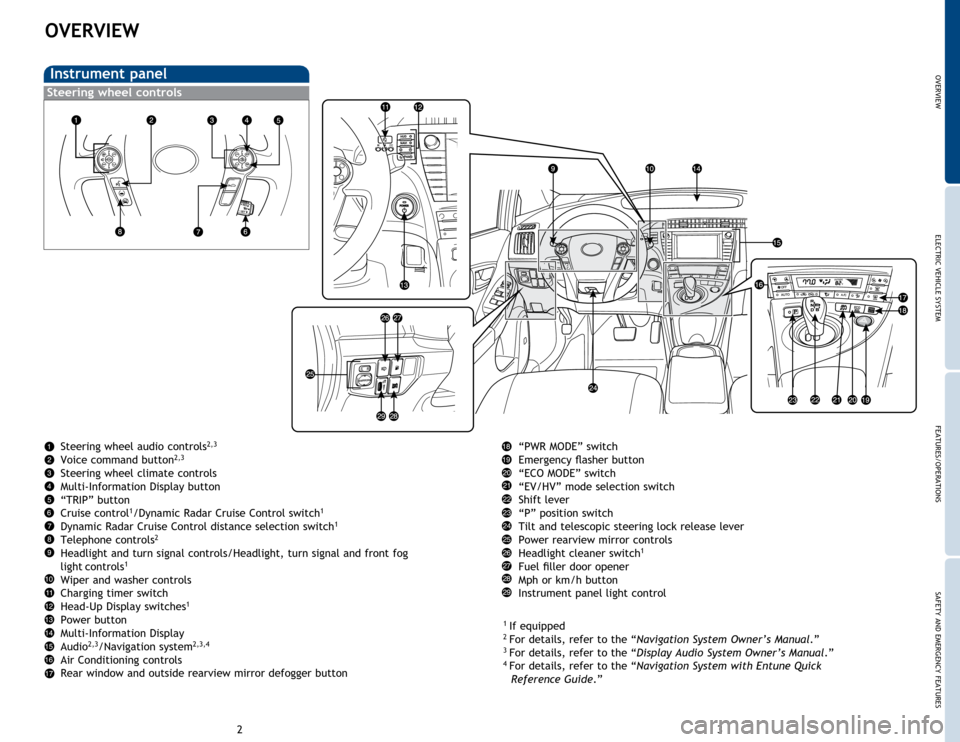

Instrument panel
Steering wheel controls
“PWR MODE” switch
Emergency flasher button
“ECO MODE” switch
“EV/HV” mode selection switch
Shift lever
“P” position switch
Tilt and telescopic steering lock release lever
Power rearview mirror controls
Headlight cleaner switch
1
Fuel filler door opener
Mph or km/h button
Instrument panel light control
1
If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “Display Audio System Owner’s Manual .”4
For details, refer to the “Navigation System with Entune Quick
Reference Guide.”
Steering wheel audio controls
2,3
Voice command button2,3
Steering wheel climate controls
Multi-Information Display button
“TRIP” button
Cruise control
1/Dynamic Radar Cruise Control switch1
Dynamic Radar Cruise Control distance selection switch1
Telephone controls2
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls1
Wiper and washer controls
Charging timer switch
Head-Up Display switches
1
Power button
Multi-Information Display
Audio
2,3/Navigation system2,3,4
Air Conditioning controls
Rear window and outside rearview mirror defogger button
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

5
4
OVERVIEW

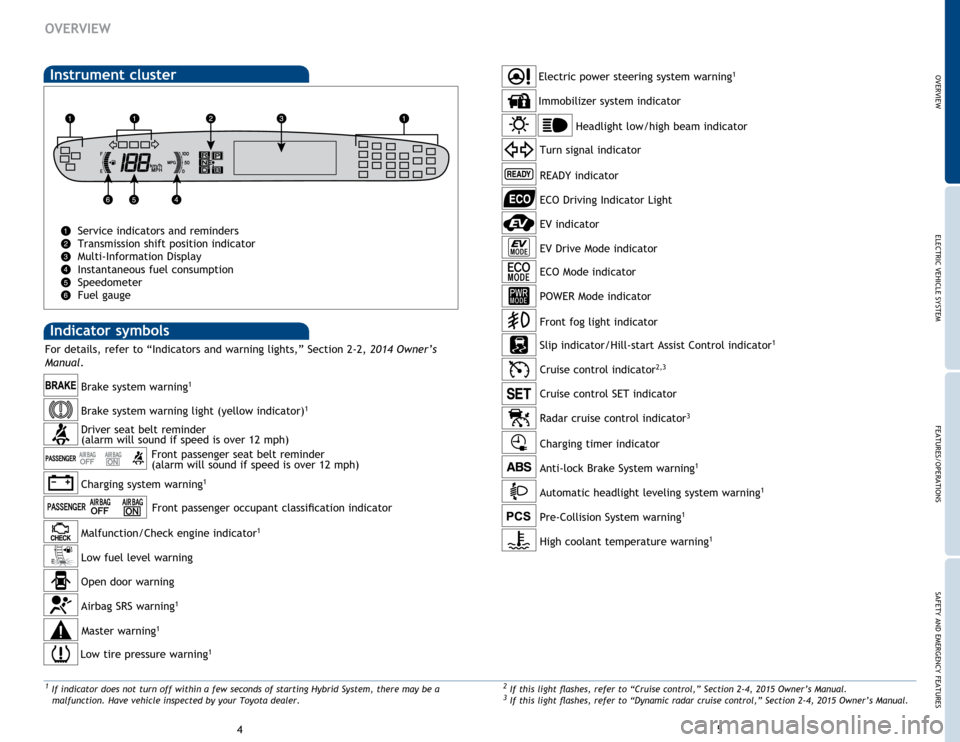

Indicator symbols
Instrument cluster
Service indicators and reminders
Transmission shift position indicator
Multi-Information Display
Instantaneous fuel consumption
Speedometer
Fuel gauge
Charging system warning1
Brake system warning1
Front passenger occupant classification indicator
2 If this light flashes, refer to “Cruise control,” Section 2-4, 2015 Owner’s Manual.3 If this light flashes, refer to “Dynamic radar cruise control,” Section 2-4, 2015 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2,3
Cruise control SET indicator
Radar cruise control indicator
3
Low tire pressure warning1
Immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph) Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check engine indicator
1
Low fuel level warning
Electric power steering system warning1
READY indicator
Front fog light indicator
Brake system warning light (yellow indicator)1
ECO Mode indicator
EV Drive Mode indicator
Automatic headlight leveling system warning
1
1 If indicator does not turn off within a few seconds of starting Hybrid System, there may be a

malfunction.

Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2014 Owner’s
Manual .
Charging timer indicator
Pre-Collision System warning1
High coolant temperature warning1
POWER Mode indicator
ECO Driving Indicator Light
EV indicator
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

7
6
OVERVIEW

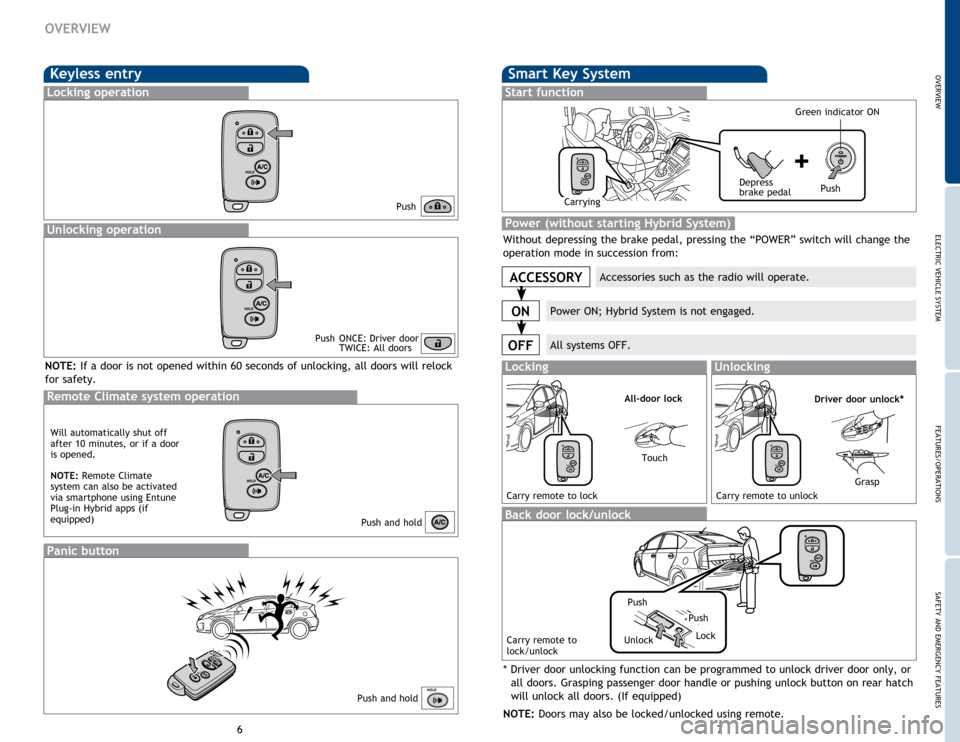

Keyless entry
Push
Push

ONCE: Driver door TWICE: All doors
Locking operation
Unlocking operation
Smart Key System
Start function
Accessories such as the radio will operate.
Power ON; Hybrid System is not engaged.
All systems OFF.
ACCESSORY
ON
OFF
Push
Depress
brake pedal
Carrying Green indicator ON
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Power (without starting Hybrid System)
Remote Climate system operation
Panic button
Push and hold
Push and hold
NOTE:
If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
* Driver door unlocking function can be programmed to unlock driver door only, or all doors. Grasping passenger door handle or pushing unlock button on rear hatch
will unlock all doors. (If equipped)
NOTE: Doors may also be locked/unlocked using remote.
LockingUnlocking
Carry remote to lock Carry remote to unlock
All-door lockDriver door unlock*
Back door lock/unlock
Carry remote to
lock/unlock
Touch
Grasp
Push
Lock
Push
Unlock
Will automatically shut off
after 10 minutes, or if a door
is opened.
NOTE:
Remote Climate
system can also be activated
via smartphone using Entune
Plug-in Hybrid apps (if
equipped)
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

9
8
OVERVIEW

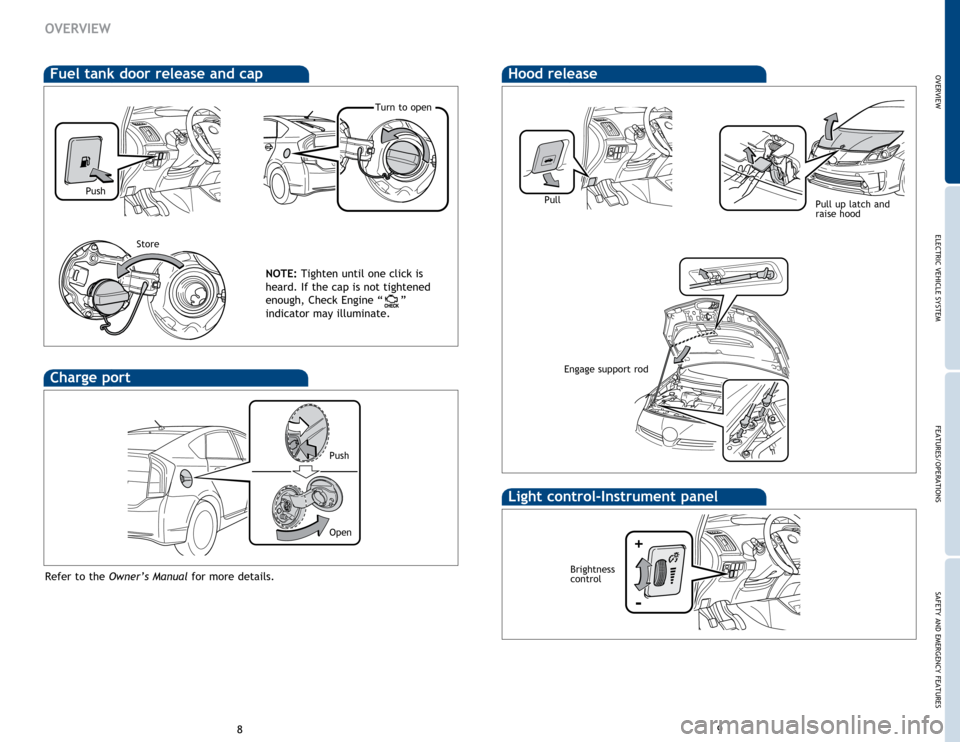

Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
Push
Turn to open
Store
Light control-Instrument panel
Brightness
control
-
+
Engage support rod
Pull
Charge port
Push
Open
Refer to the Owner’s Manual for more details.
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

11
10

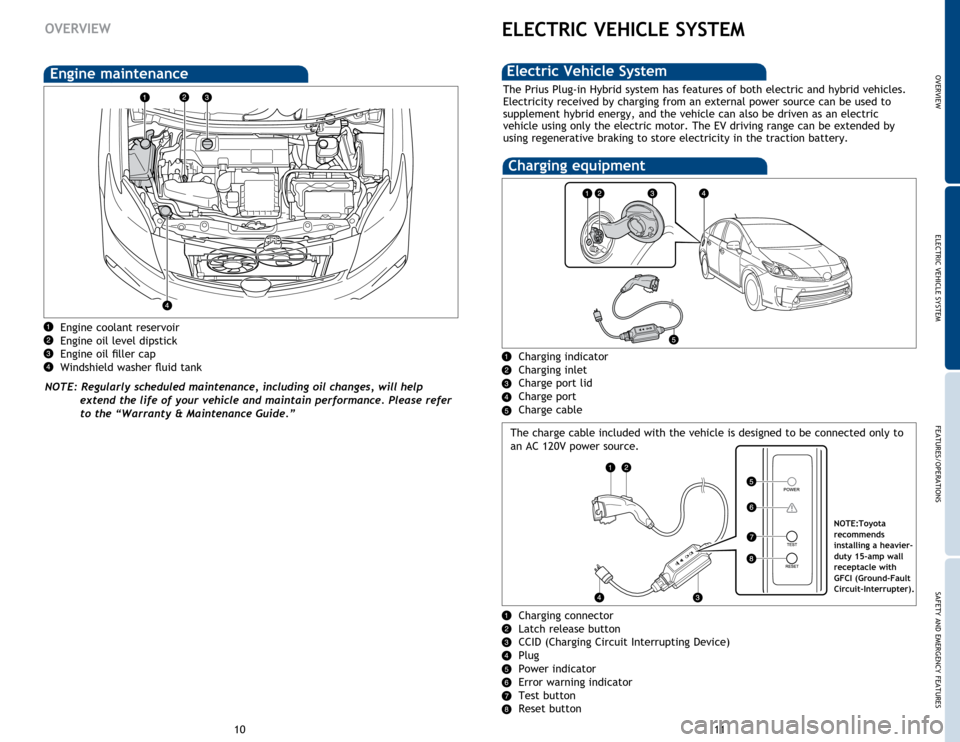

Engine coolant reservoir
Engine oil level dipstick
Engine oil filler cap
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
OVERVIEWELECTRIC VEHICLE SYSTEM
The Prius Plug-in Hybrid system has features of both electric and hybrid vehicles.
Electricity received by charging from an external power source can be used to
supplement hybrid energy, and the vehicle can also be driven as an electric
vehicle using only the electric motor. The EV driving range can be extended by
using regenerative braking to store electricity in the traction battery.
Electric Vehicle System
Charging indicator
Charging inlet
Charge port lid
Charge port
Charge cable
Charging equipment
Charging connector
Latch release button
CCID (Charging Circuit Interrupting Device)
Plug
Power indicator
Error warning indicator
Test button
Reset button
The charge cable included with the vehicle is designed to be connected only to
an AC 120V power source.
NOTE:Toyota
recommends
installing a heavier-
duty 15-amp wall
receptacle with
GFCI (Ground-Fault
Circuit-Interrupter).
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

13
12
ELECTRIC VEHICLE SYSTEM

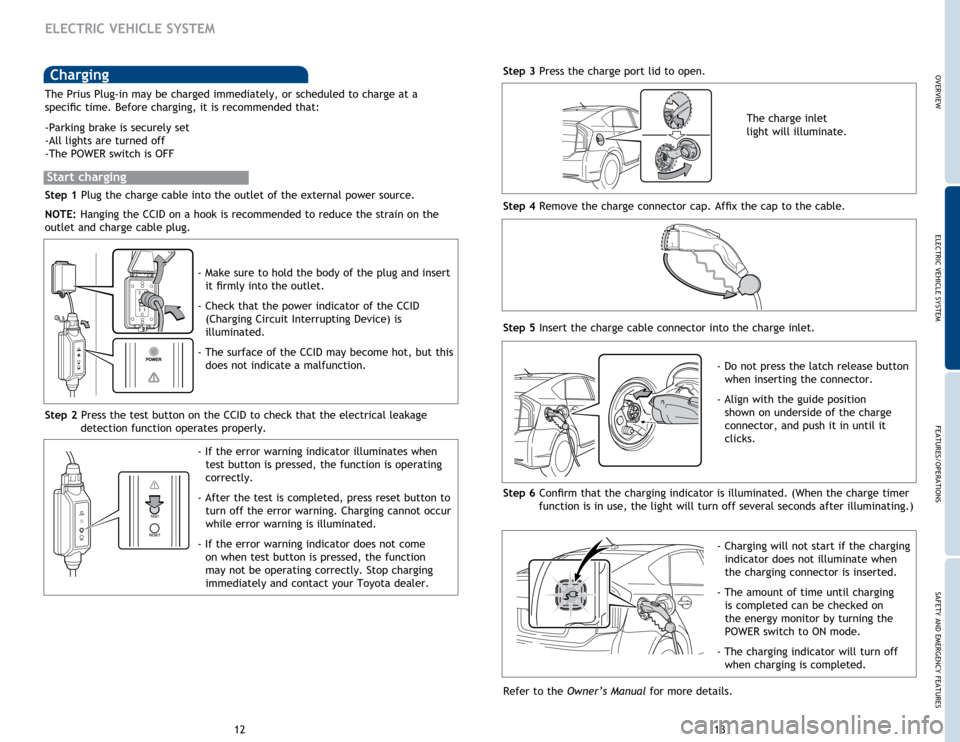

Charging
Step 1 Plug the charge cable into the outlet of the external power source.
NOTE: Hanging the CCID on a hook is recommended to reduce the strain on the
outlet and charge cable plug.
- Make sure to hold the body of the plug and insert
it firmly into the outlet.
- Check that the power indicator of the CCID (Charging Circuit Interrupting Device) is
illuminated.
- The surface of the CCID may become hot, but this does not indicate a malfunction.
Step 2 Press the test button on the CCID to check that the electrical leakage detection function operates properly.
- If the error warning indicator illuminates when test button is pressed, the function is operating
correctly.
- After the test is completed, press reset button to turn off the error warning. Charging cannot occur
while error warning is illuminated.
- If the error warning indicator does not come on when test button is pressed, the function
may not be operating correctly. Stop charging
immediately and contact your Toyota dealer. Step 3 Press the charge port lid to open.
Step 4 Remove the charge connector cap. Affix the cap to the cable.
The charge inlet
light will illuminate.
Step 5 Insert the charge cable connector into the charge inlet.
- Do not press the latch release button when inserting the connector.
- Align with the guide position shown on underside of the charge
connector, and push it in until it
clicks.
Step 6 Confirm that the charging indicator is illuminated. (When the charge timer function is in use, the light will turn off several seconds after illuminating.)
- Charging will not start if the charging indicator does not illuminate when
the charging connector is inserted.
- The amount of time until charging is completed can be checked on
the energy monitor by turning the
POWER switch to ON mode.
- The charging indicator will turn off when charging is completed.
The Prius Plug-in may be charged immediately, or scheduled to charge at a
specific time. Before charging, it is recommended that:
-Parking brake is securely set
-All lights are turned off
-The POWER switch is OFF
Start charging
Refer to the
Owner’s Manual for more details.
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

15
14
ELECTRIC VEHICLE SYSTEM
Use of the charging timer can help reduce electricity costs by making it easy to
charge during off-peak hours.

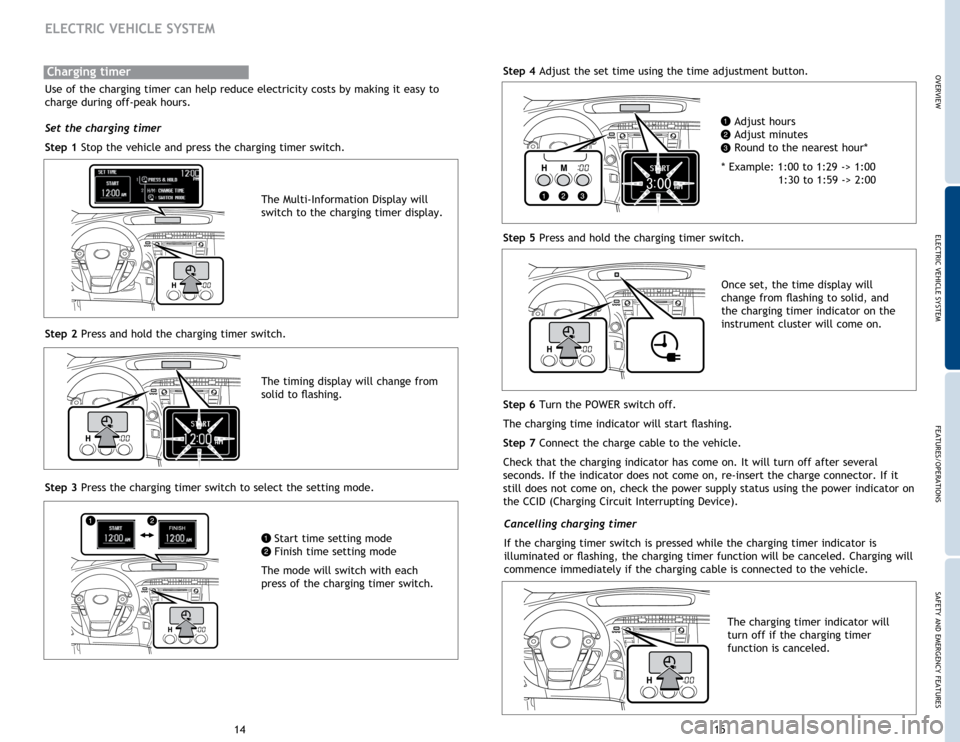

Set the charging timer
Step 1 Stop the vehicle and press the charging timer switch.
The timing display will change from
solid to flashing.
Charging timer
The Multi-Information Display will
switch to the charging timer display.
Step 2 Press and hold the charging timer switch.
Step 3 Press the charging timer switch to select the setting mode. Start time setting mode
Finish time setting mode
The mode will switch with each
press of the charging timer switch. Cancelling charging timer
If the charging timer switch is pressed while the charging timer indicator is
illuminated or flashing, the charging timer function will be canceled. Charging will
commence immediately if the charging cable is connected to the vehicle.
Step 5 Press and hold the charging timer switch.
Step 6 Turn the POWER switch off.
The charging time indicator will start flashing.
Step 7 Connect the charge cable to the vehicle.
Check that the charging indicator has come on. It will turn off after several
seconds. If the indicator does not come on, re-insert the charge connector. If it
still does not come on, check the power supply status using the power indicator on
the CCID (Charging Circuit Interrupting Device).
Step 4 Adjust the set time using the time adjustment button.
Adjust hours
Adjust minutes
Round to the nearest hour*
* Example: 1:00 to 1:29 -> 1:00
1:30

to 1:59 -> 2:00
Once set, the time display will
change from flashing to solid, and
the charging timer indicator on the
instrument cluster will come on.
The charging timer indicator will
turn off if the charging timer
function is canceled.
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

17
16
ELECTRIC VEHICLE SYSTEM
Step 1 Pull the charge connector toward you while pressing the latch release
button.
Step 2 Attach the charge connector cap.
Step 3 Close the charge port lid.
Step 4 Remove the plug from the outlet when the charging equipment will not be used for a long period of time.
Hold the

body of the plug when removing. Make sure to put the cable away
immediately after disconnecting.

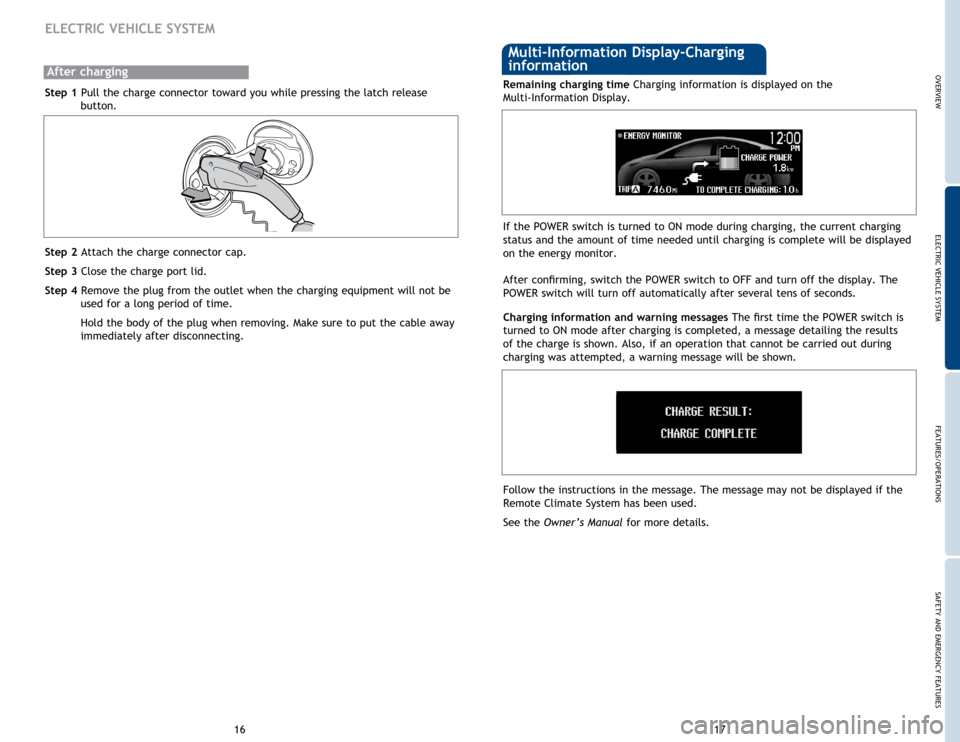

After charging
Charging information and warning messages The first time the POWER switch is
turned to ON mode after charging is completed, a message detailing the results
of the charge is shown. Also, if an operation that cannot be carried out during
charging was attempted, a warning message will be shown. Remaining charging time Charging information is displayed on the
Multi-Information Display.
If the POWER switch is turned to ON mode during charging, the current charging
status and the amount of time needed until charging is complete will be displayed
on the energy monitor.
After confirming, switch the POWER switch to OFF and turn off the display. The
POWER switch will turn off automatically after several tens of seconds.
Multi-Information Display-Charging
information
Follow the instructions in the message. The message may not be displayed if the
Remote Climate System has been used.
See the Owner’s Manual for more details.
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
